Shimano ULTEGRA Di2 R8170 2x12-speed Group Disc 140/160mm TOP DEAL
Product information "ULTEGRA Di2 R8170 2x12-speed Group Disc 140/160mm TOP DEAL"
SHIMANO’s Di2 Ultegra shifting systems utilise wireless technology wherever it makes sense for everyday riding and for ultimate sporting performance. Removing the physical connection between the shift levers and the rear derailleur creates a tidy cockpit and also simplifies the installation process. At the same time, the integration of the shifting components with an internal battery ensures absolute reliability thanks to the stable power supply (excluding original packaging).
Contents - Shimano Ultegra Di2 R8170 2x12-speed groupset + 140/160mm disc brakes
- 1 x Shimano ULTEGRA FC-R8100 12-speed crankset (select variant: gear ratio and crank arm length)

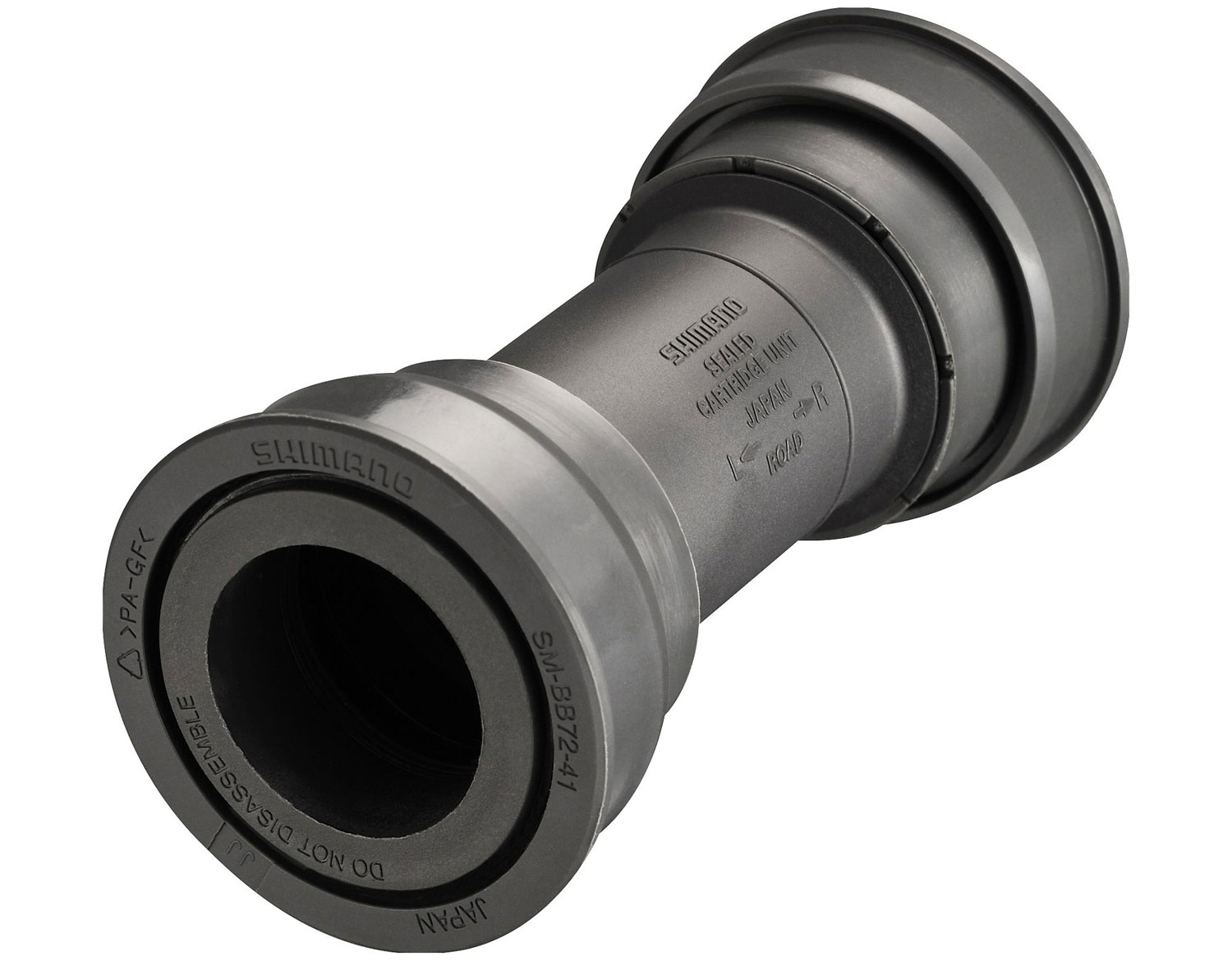

- 1 x Shimano ULTEGRA SM-BB72-41B Press-Fit Hollowtech II bottom bracket
- 1 x Shimano ULTEGRA Di2 ST-R8170+BR-R8170 2x12-speed disc brake set
- 1 x Shimano ULTEGRA Di2 FD-R8150 2x12-speed front derailleur (solder-on)
- 1 x Shimano ULTEGRA Di2 RD-R8150 12-speed rear derailleur
- 1 x Shimano ULTEGRA CS-R8100 12-speed cassette incl. retaining ring (select variant: gear range)
- 1 x Shimano XT CN-M8100 12-speed chain, 116 links with quick-link

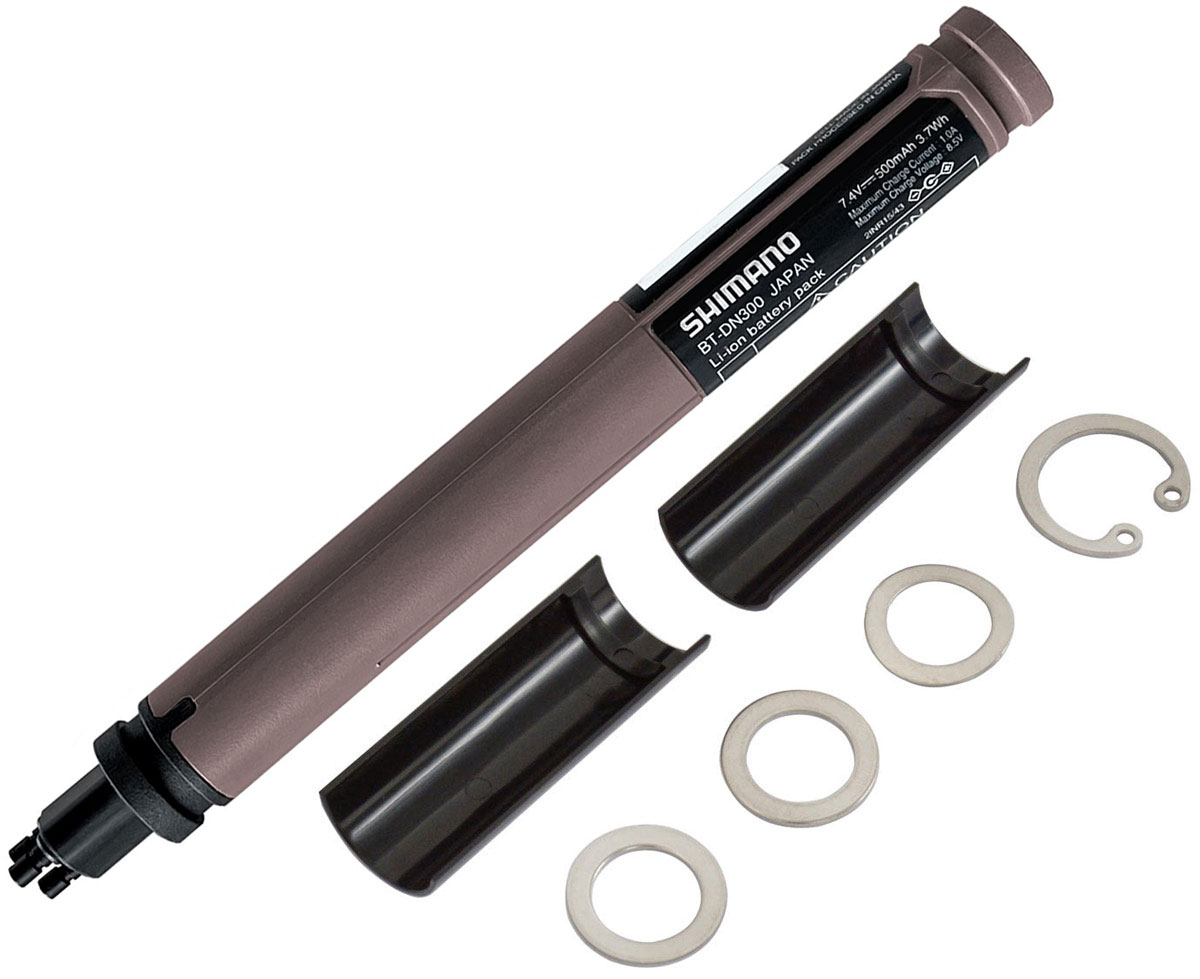

- 1 x Shimano BT-DN300 Di2 battery for fitting in the seatpost

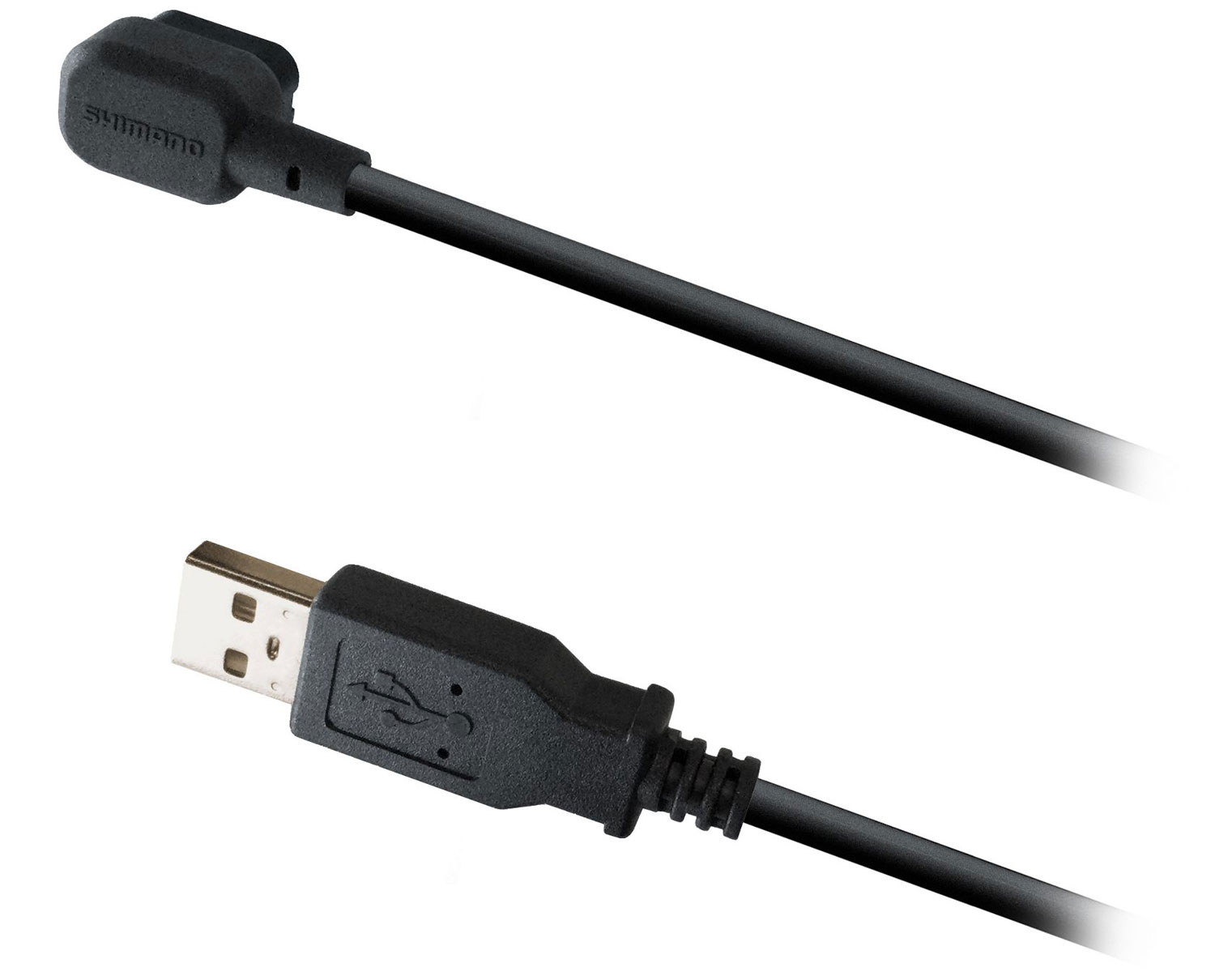

- 1 x Shimano EW-EC300 USB Type A charging cable (cable length 1500mm)

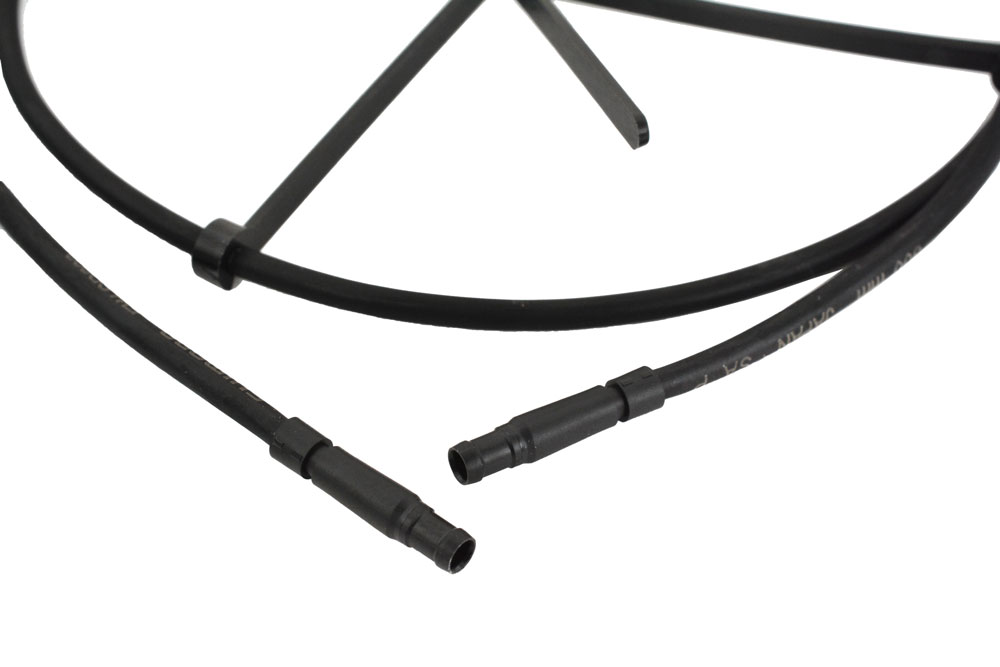

- 1 x Shimano Di2 EW-SD300-I power cable, 750 mm, for internal cable routing
- 1 x Shimano Di2 EW-SD300-I power cable, 1400mm, for internal cable routing
- 1 x Shimano RT-CL800 Centre-Lock brake disc, 140 mm, including locking ring
- 1 x Shimano RT-CL800 Centre-Lock brake disc, 160 mm, including locking ring
THE SCIENCE OF SPEED: the Ultegra Di2 2x12-speed groupset from Shimano
Great speed brings great responsibility. That is why, faced with the challenge of making the new ULTEGRA groupset even faster, Shimano has opted for a holistic and 100% performance-oriented approach. The new 12-speed road bike groupset delivers unrivalled control and comfort wherever and whenever you ride – whether in a mass-participation race, chasing a personal best or on a leisurely ride with friends. That is the ‘Science of Speed’. And that is what sets SHIMANO apart from the rest.

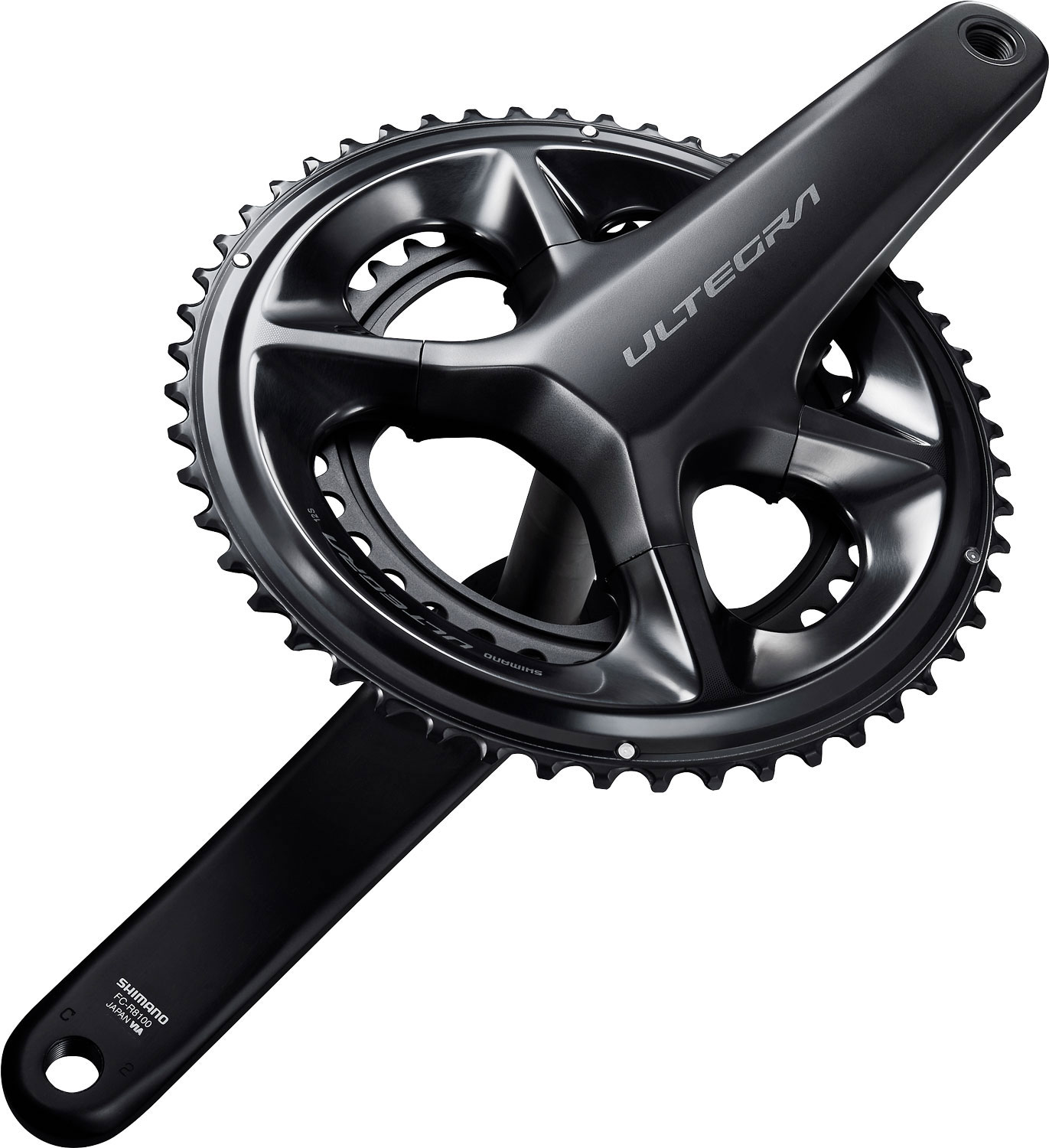

Shimano ULTEGRA FC-R8100 12-speed crankset (select variant)
The new design of the Shimano Ultegra FC-R8100 2 x 12-speed HOLLOWTECH II crankset not only boasts a look and aesthetic with the potential to become iconic, but also delivers even greater performance. The lightweight ULTEGRA FC-R8100 crankset is a key component in SHIMANO’s new 12-speed road bike range and, in keeping with SHIMANO’s legendary tradition, delivers fast and precise shifting and efficient power transfer. Cranks are available in lengths from 160 mm (up to 175 mm), meaning that shorter riders can now also benefit from their flawless performance. Chainring options include 52-36T and 50-34T.
Features
- HOLLOWTECH II crankset
- Optimal power transfer Optimal balance of low weight and efficiency
- Newly designed crank
- For high stiffness and reduced weight
- 4-arm crankset
- Legendary design
Product features
- Application: Road bike
- Groupset: Ultegra R8100
- Model: FC-R8100
- Q-factor: 146 mm
- Clamp width: 68 / 70 mm
- Front derailleur: 2-speed
- Rear gears: 12-speed
- Mounting: Hollowtech II
- Compatible chain: CN-M8100 HG 12-speed
- 4-arm crankset: Yes
- Bore diameter: 110 mm
- Chainline: 43 .5 mm
Gear ratio | Crank arm length (select variant)
- 50-34 | 170 mm
- 52-36 | 170 mm
Material
- Cranks: Aluminium, anodised
- Crankset axle: Steel, plated
- Large chainring: Anodisedaluminium / carbon fibre-reinforced plastic
- Small chainring: Anodisedaluminium
Colour
- Series color

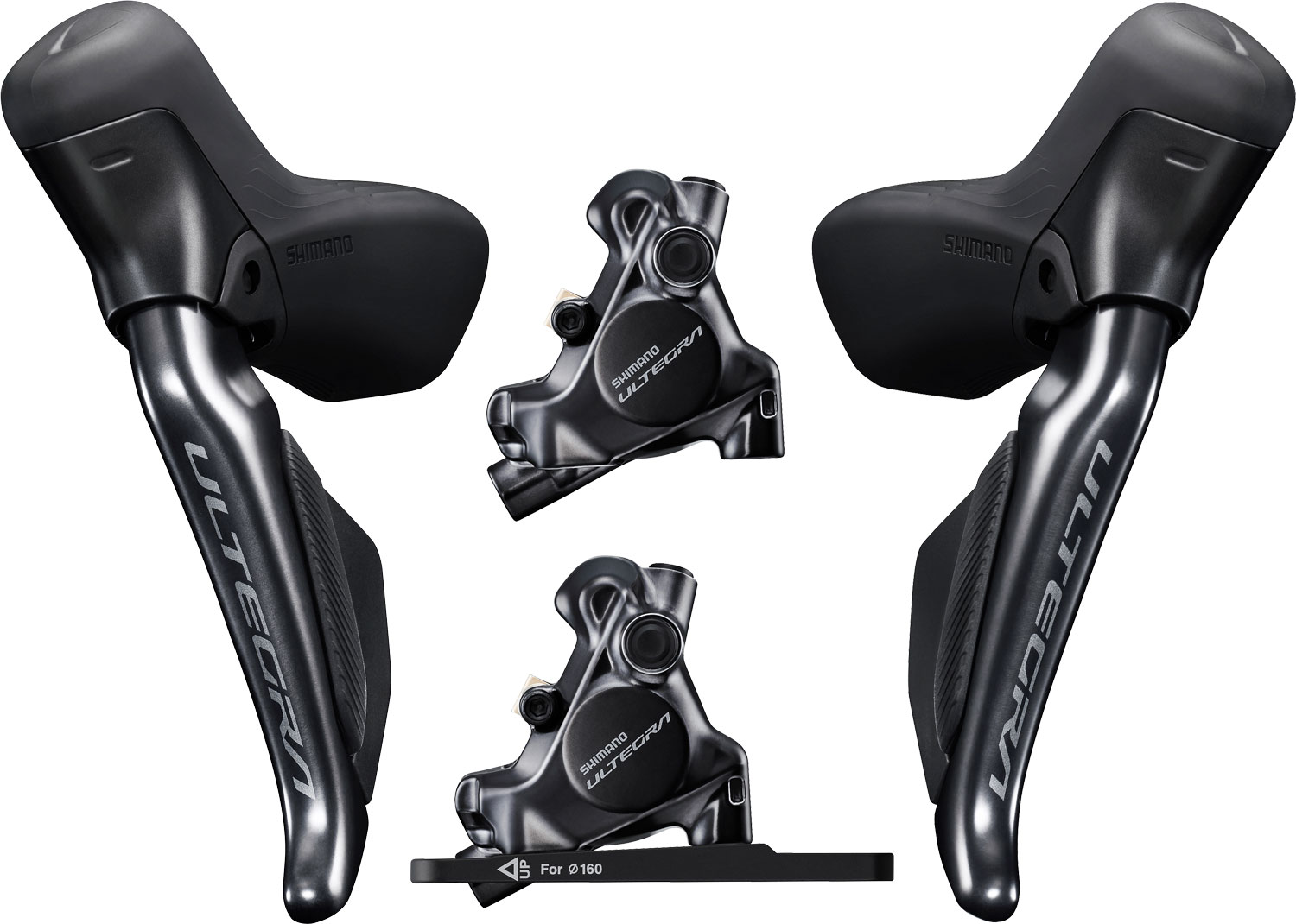

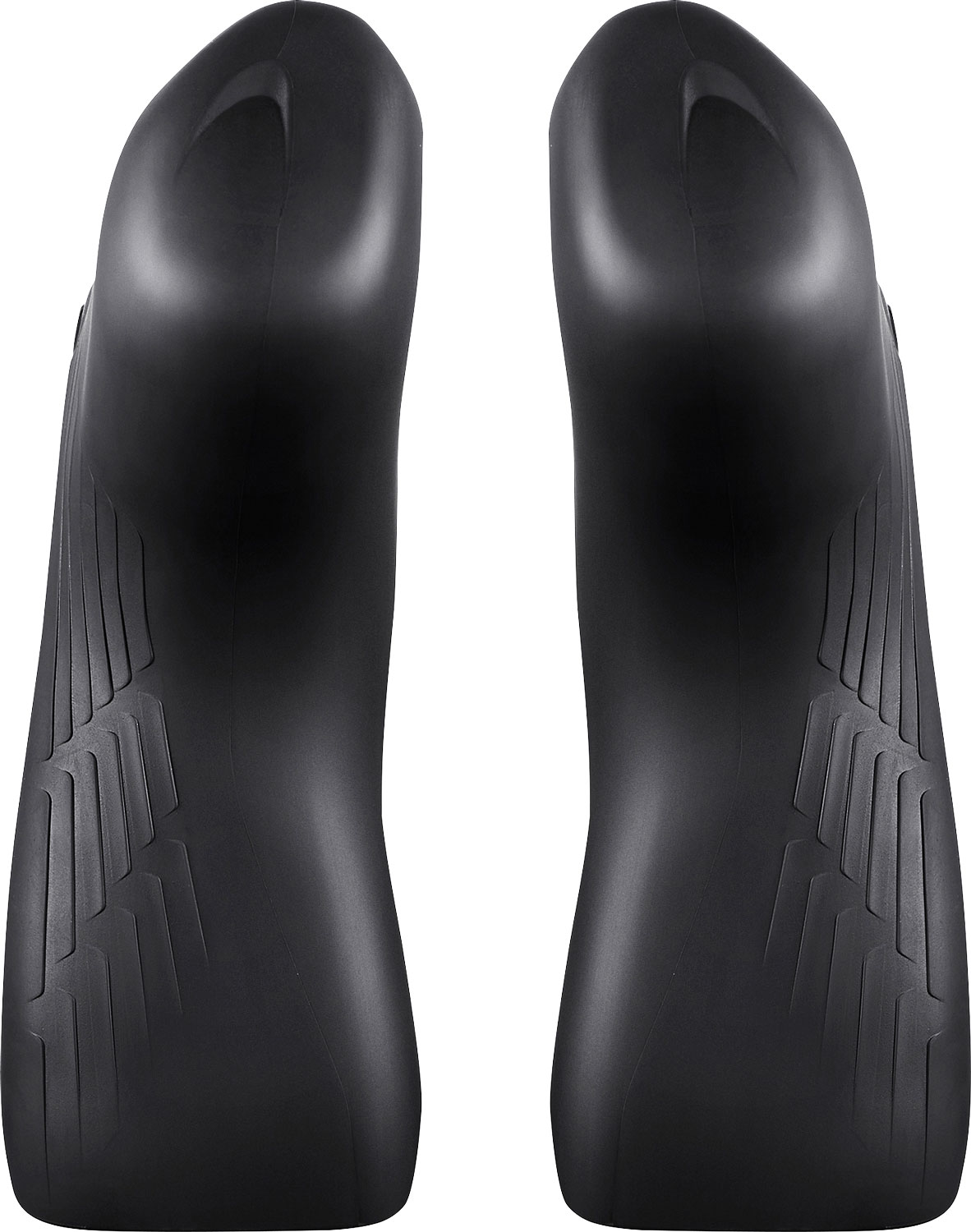

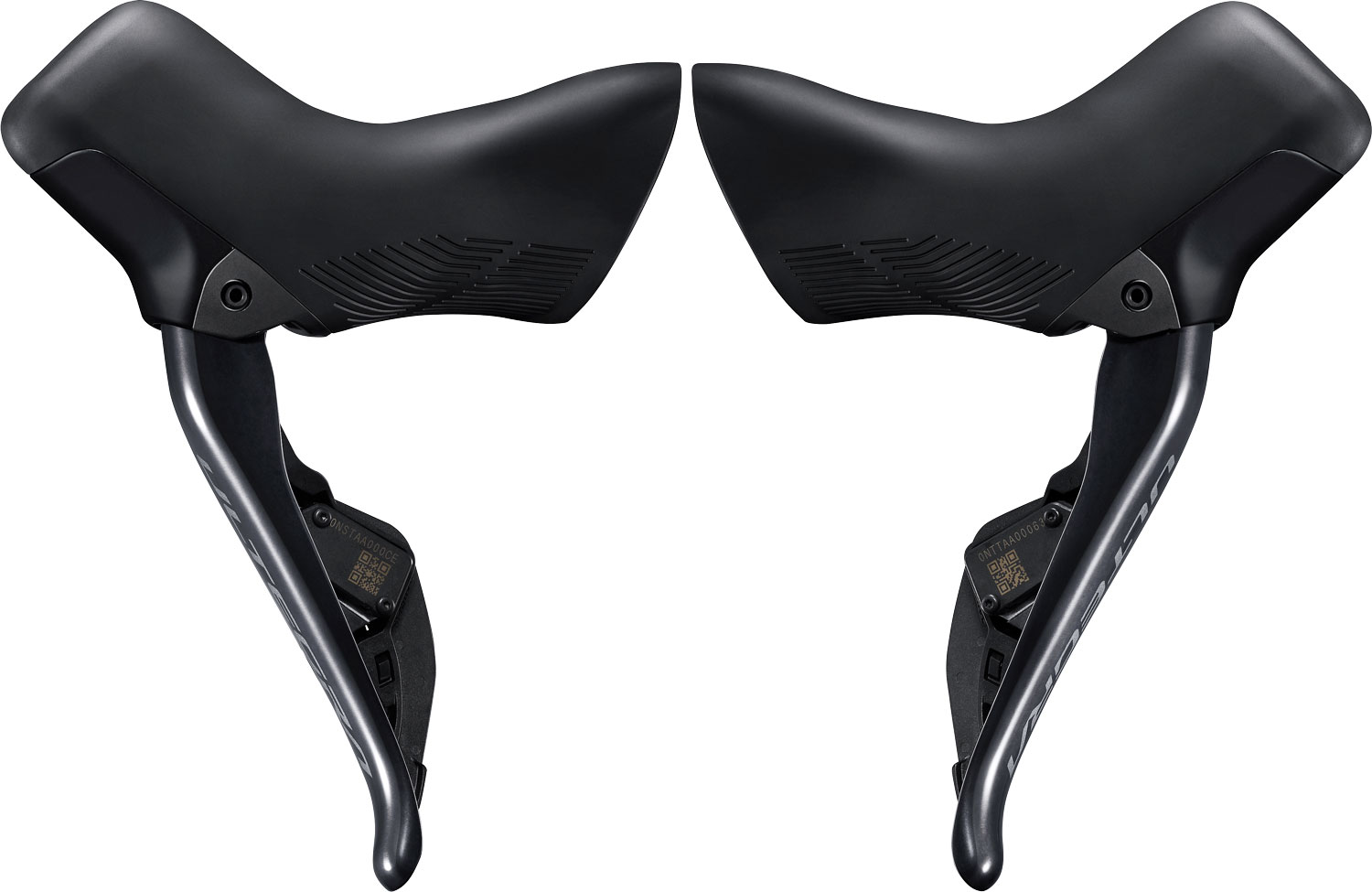

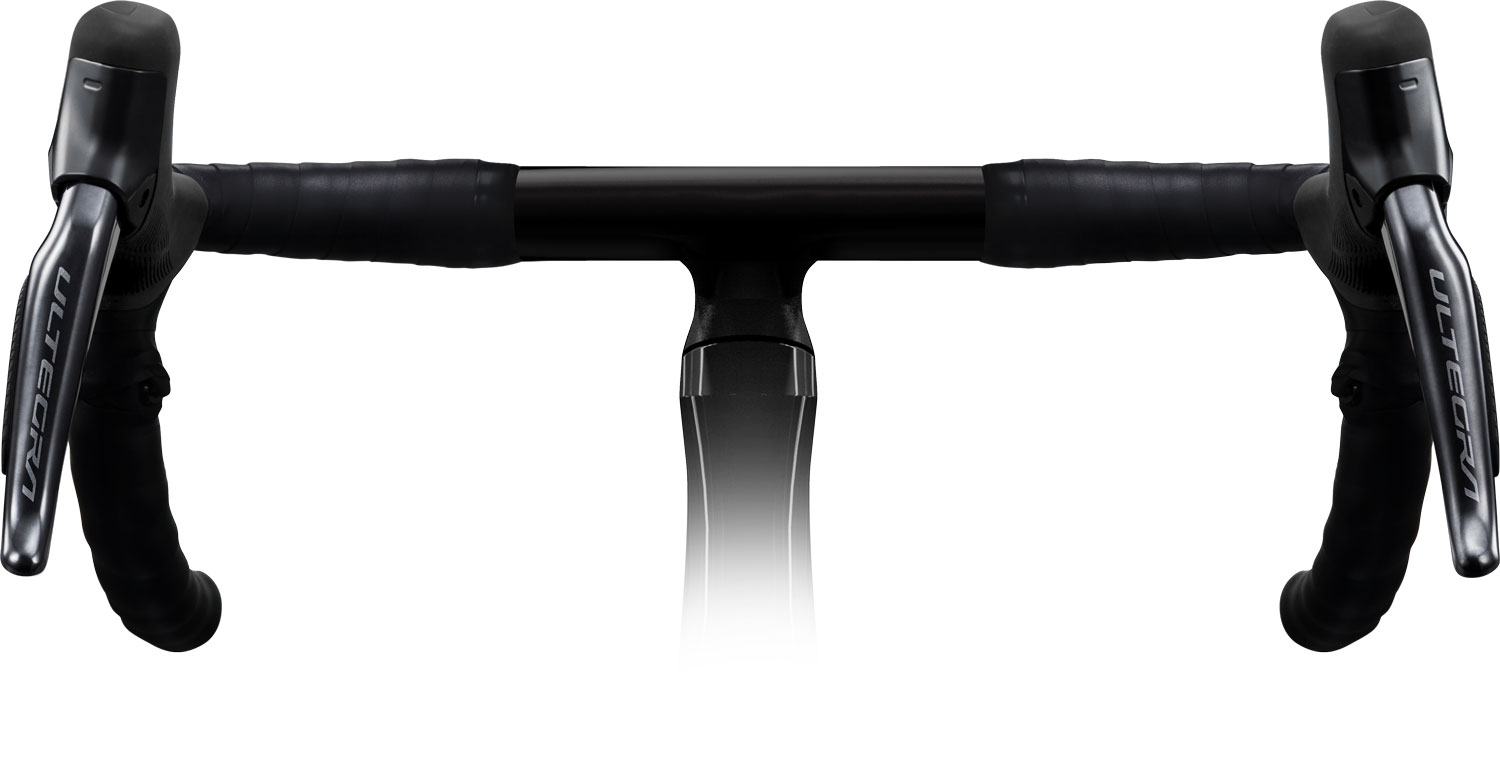

Shimano ULTEGRA Di2 ST-R8170 + BR-R8170 2x12-speed hydraulic disc brake set
The redesigned Shimano Ultegra Di2 ST-R8170 brake levers with BR-R8170 brake calipers impress with their new ergonomic design and even more precise braking modulation thanks to SHIMANO’s tried-and-tested SERVO WAVE technology. Wireless electronic shifting provides even greater control. The BR-R8170 hydraulic 2-piston brake caliper features a flat-mount mount and L03A resin disc pads with cooling fins. The completely redesigned ULTEGRA BR-R8170 brings a new level of control to the world of road cycling, with optimised modulation and unprecedented braking power. The new design minimises brake chatter. Furthermore, despite its compact size, the new system is quieter and easier to maintain than ever before.
Features
- THE FASTEST AND MOST RELIABLE SHIFTING PERFORMANCE EVER
- Improved aerodynamics – redesigned DUAL CONTROL shift/brake levers with raised and rounded brake grips

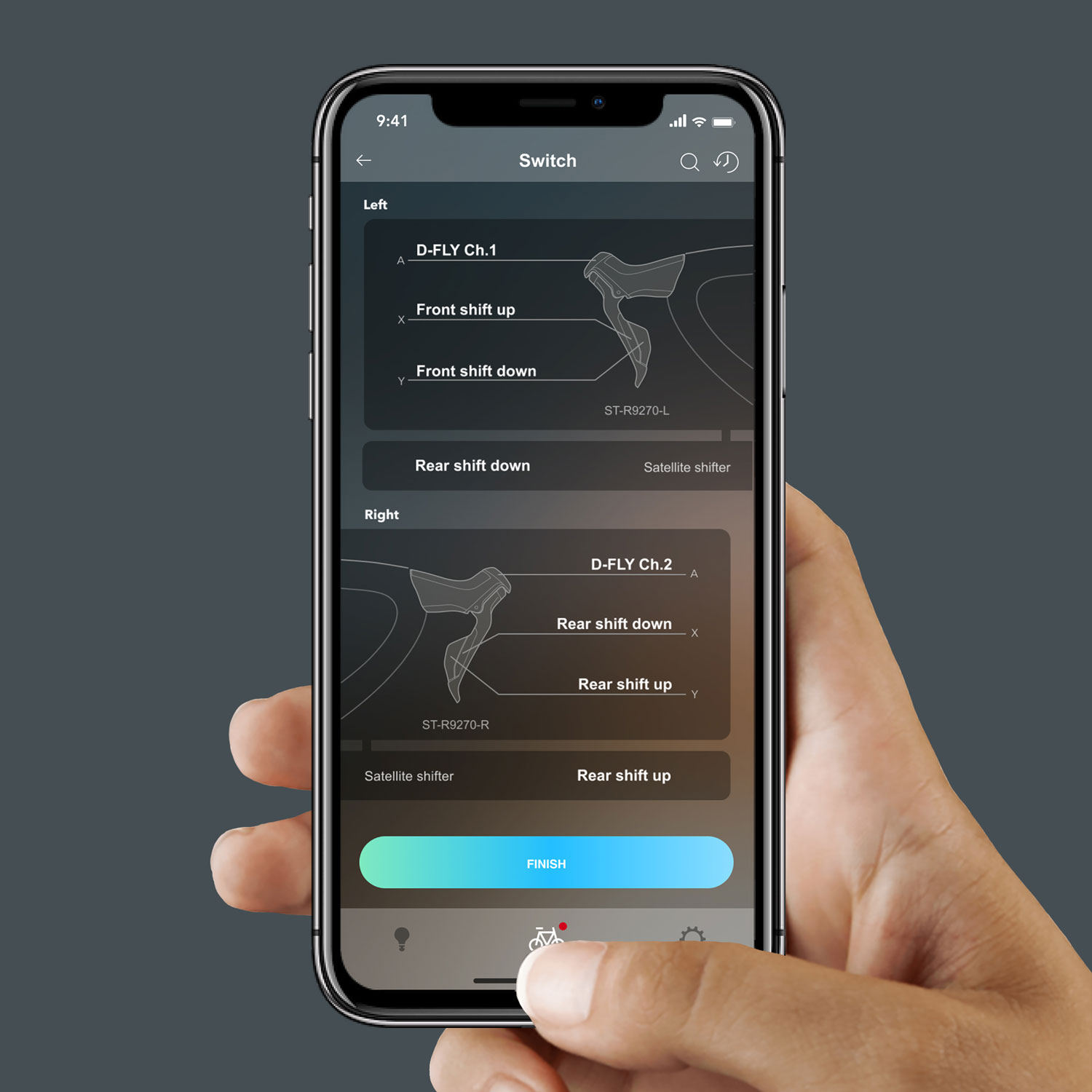

- The drivetrain can be customised to the rider’s preferences via the E-TUBE app
- Among other things, the shifting speed can be adjusted, a fully or semi-synchronous shifting mode selected, and the programme buttons on the shift lever can be assigned specific functions
- Wireless where it matters
- SHIMANO’s in-house developed, extremely secure Di2 wireless chip boasts a low probability of interference, unrivalled processing speed and lower energy consumption
- Fastest shifting operations at the front and rear

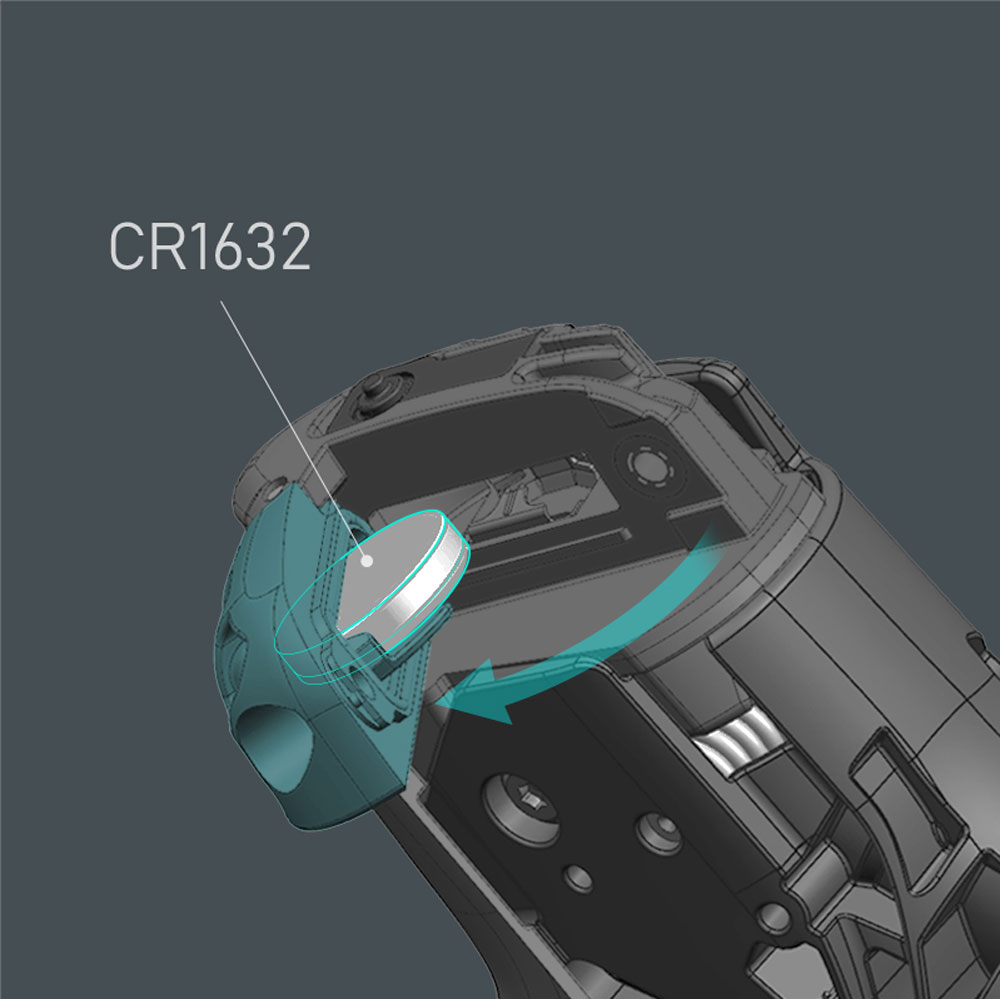

- The wireless STIs impress with high energy efficiency and a battery life of up to 1.7 years (CR1632)

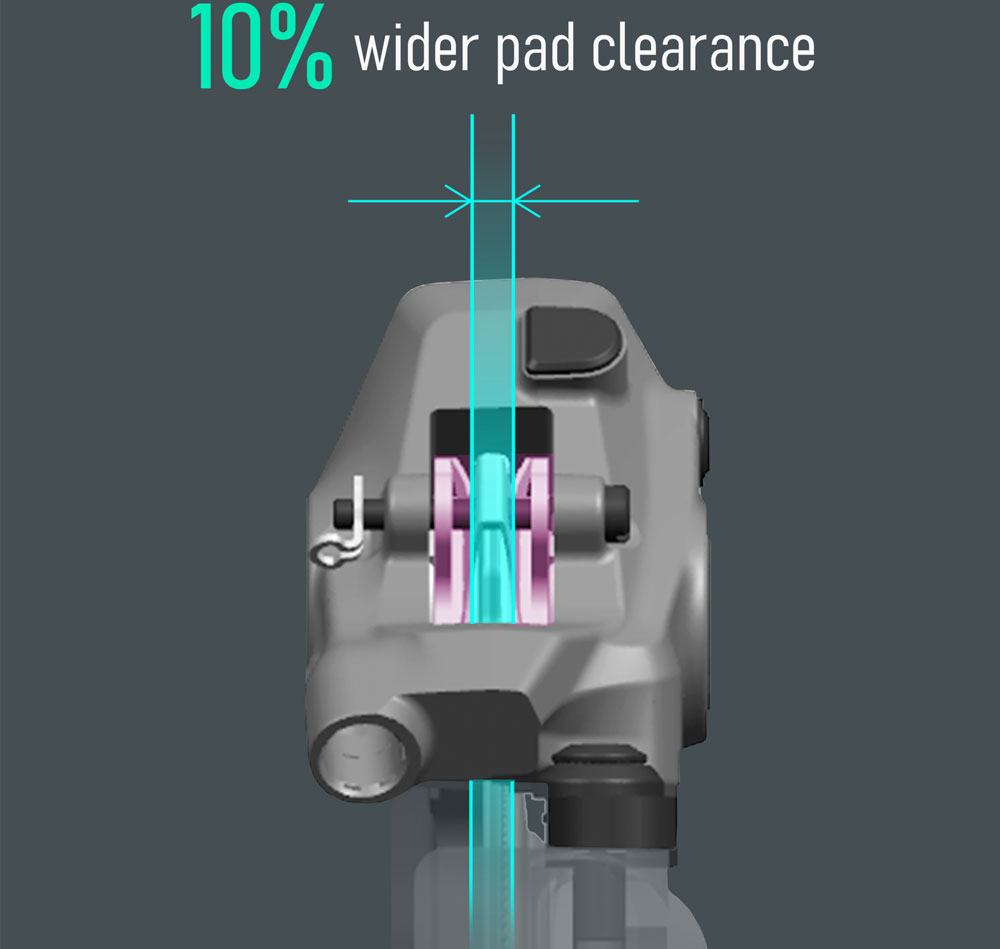

- Quieter and easier-to-maintain brake components
- Outstanding braking control
- Excellent heat dissipation
- Easy wheel changes

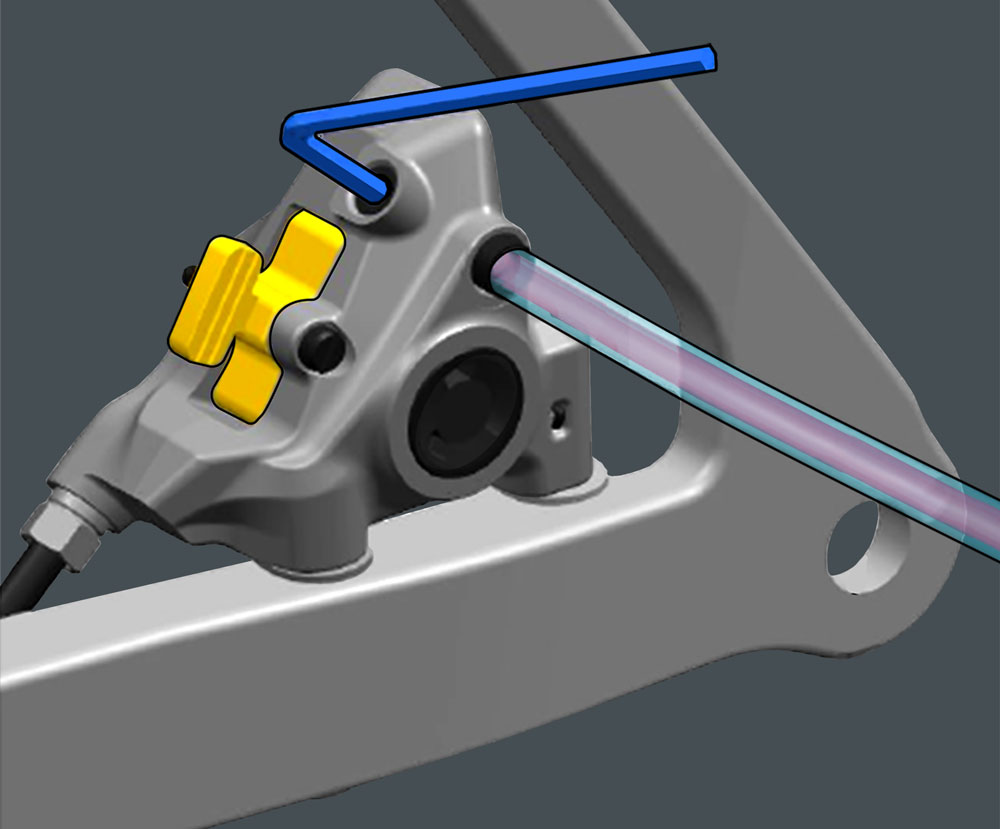

- Simple, clean bleeding system
- Easy adjustment and maintenance
- Included in the scope of delivery: 1 x Di2 ST-R8170 2x12-speed STI unit set, 2 x BR-R8170 flat-mount disc brake calipers, 1 x flat-mount adapter 140mm/160mm, 2 pairs of Resin brake pads without cooling fins, 2 x SM-BH90-JK-SSR brake hoses 900mm / 1550mm (can be cut to length), 4 x fixing bolts for brake calipers (2 x 38mm for the rear) and 2 x hose connection kits
- The SM-BH90-JK-SSR brake hoses are filled with mineral oil and pre-fitted to the BR-R8170 brake calipers!
Product features
- Application: Road bike
- Groupset: Ultegra Di2 R8150
- Model: ST-R8170 set
- Type: Dual-Control (STI)
- Mounting: left / right
- Front derailleur: 2-speed
- Rear derailleur speeds: 12-speed
- Visual gear indicator: no

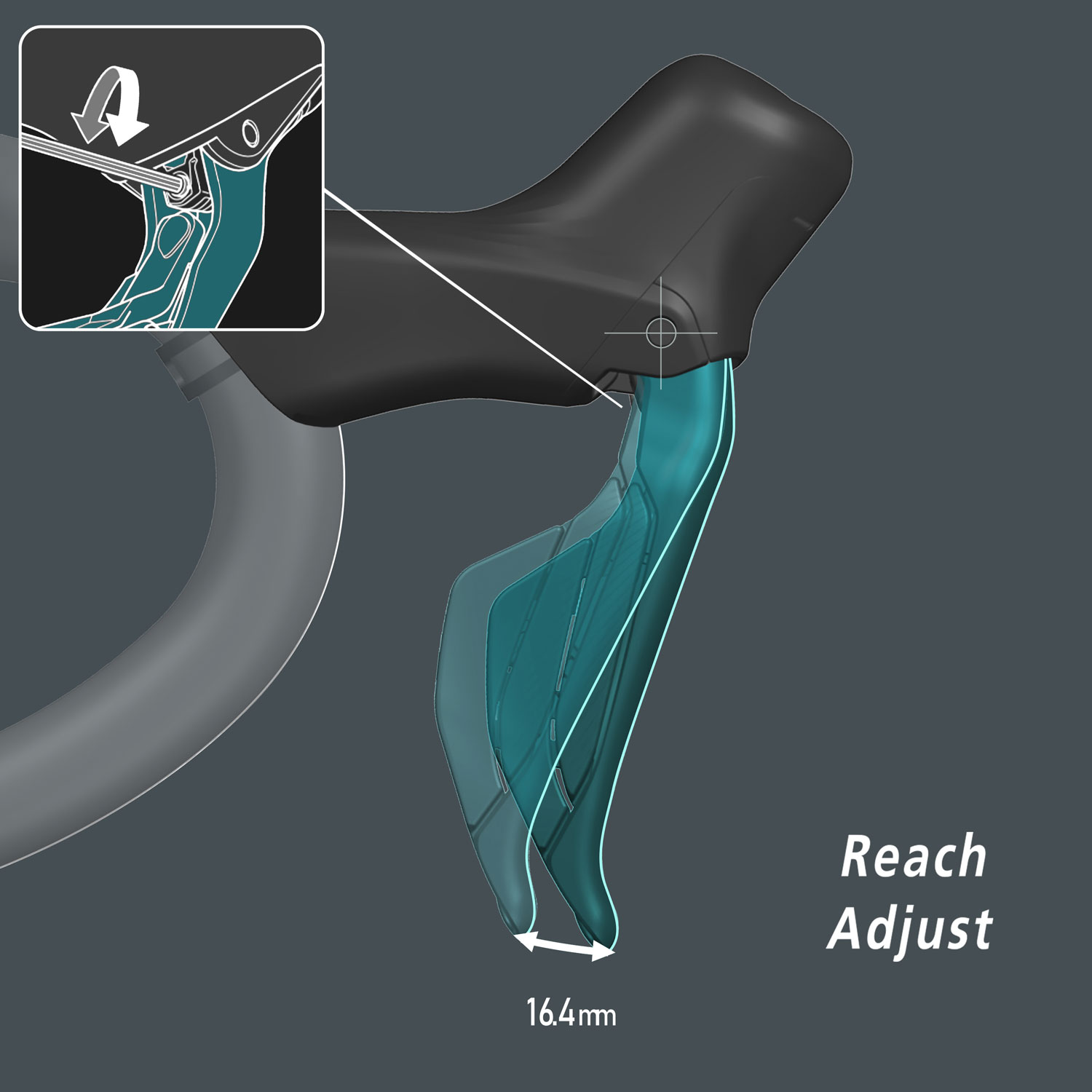

- Grip width adjustment: Yes
- Handlebar diameter: 23 .8 mm/24.2 mm
- Brake type: Hydraulic disc brake system

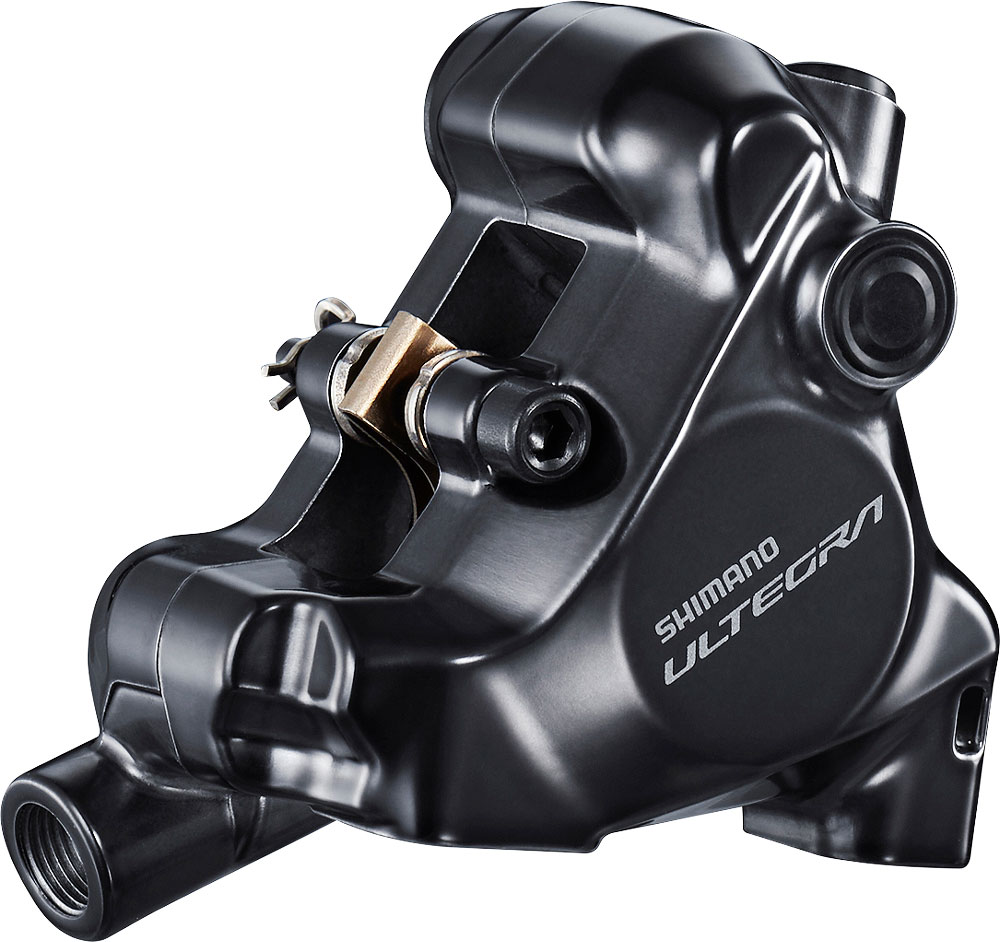

- Brake caliper: BR-R8170
- Brake caliper mount: Flat-mount
- Brake pads: Resin without cooling fins
- Brake hose: SM-BH90-JK-SSR front 900 mm / rear 1550 mm (can be shortened)
- One-way bleed valve: Yes
- Brake fluid: Mineral oil
- Recommended brake disc: RT-MT800 (140 mm/160 mm)
- Compatible power cable: EW-SD300
- E-Tube Project firmware update: Yes
- Number of E-Tube connectors: 2 each
- Number of E-Tube connections: 0
- Di2 wireless chip: Yes
Material
- Grip: CFRP
- Lever: Carbon, painted
- Brake caliper: Aluminium
Colour
- Series color

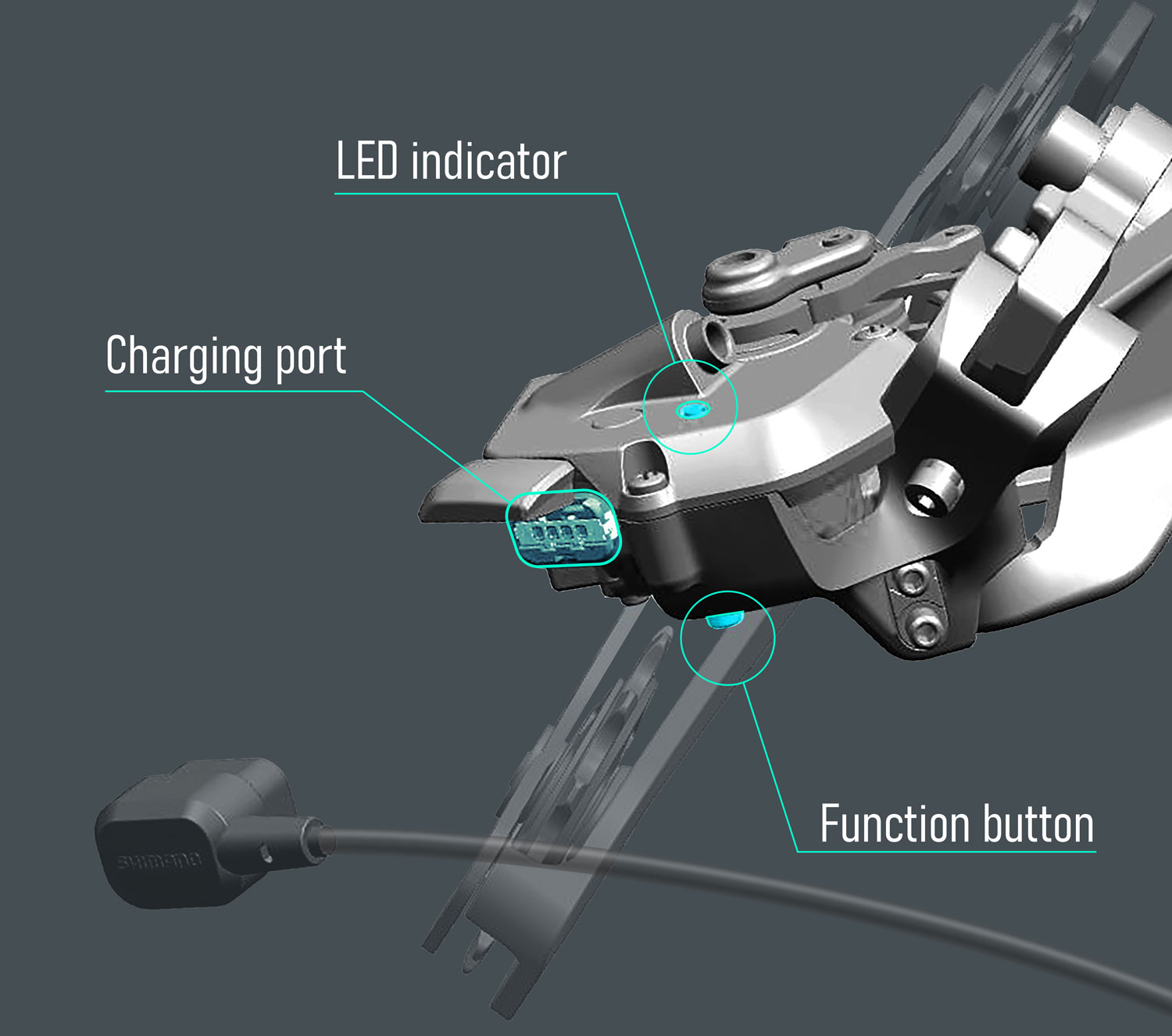

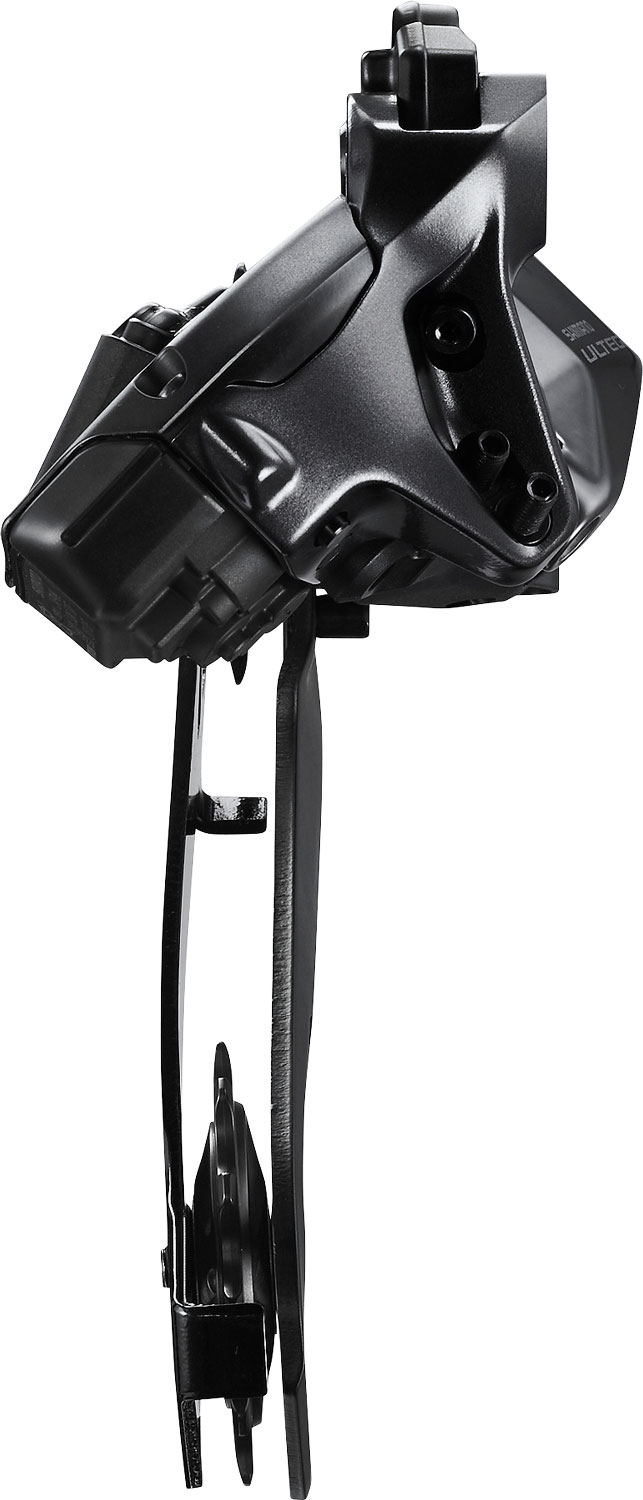

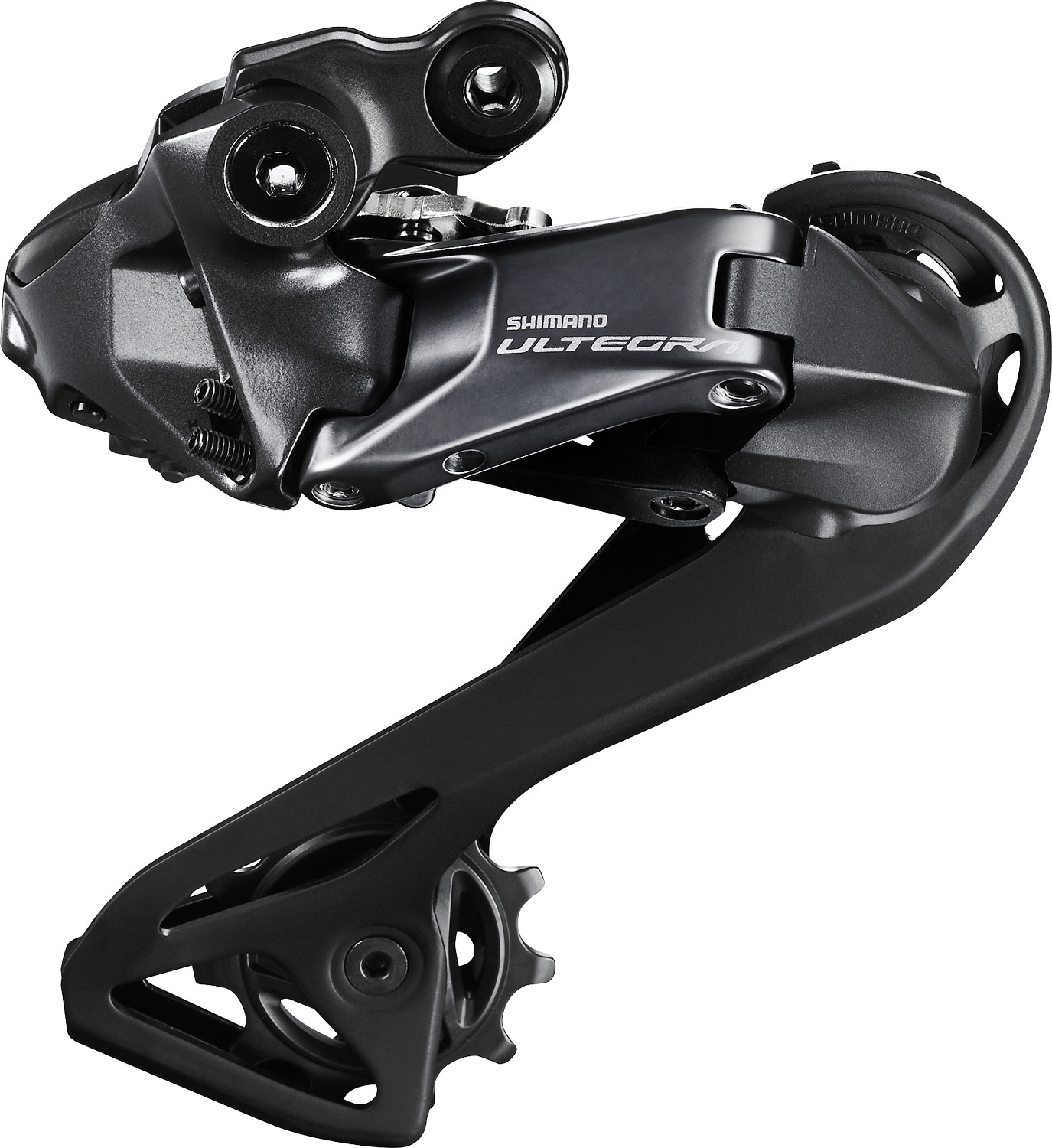

Shimano ULTEGRA Di2 RD-R8150 12-speed Shadow rear derailleur
The Shimano Ultegra RD-R8150 12-speed rear derailleur not only delivers the fastest and most precise shifting on the market, but is also more versatile than ever before. Available in a single cage length, the rear derailleur is now compatible with both 11-34T and 11-30T cassettes. The compact design houses the integrated wireless unit, the charger and the mode button – and it really packs a punch!
Features
- FULLY CUSTOMISABLE
- The drivetrain can be customised to the rider’s preferences via the E-TUBE app
- Among other things, you can adjust the shifting speed, select a fully or semi-synchronous shifting mode, and assign specific functions to the programme buttons on the shifter
- WHEN EVERY SECOND COUNTS
- The exclusive wireless protocol increases shifting speed without compromising on the shifting precision and reliability for which SHIMANO is renowned
- Fast, smooth shifting for responsive acceleration at any speed
- Low-profile rear derailleur
- SHIMANO SHADOW RD
- Compact and clean appearance
Product features
- Intendeduse: Road bike
- Groupset: Ultegra Di2 R8250
- Model: RD-R8150
- Mounting: Direct mount
- Rear derailleur speeds: 12-speed
- Compatible chain: CN-M8100 HG 12-speed
- Max. teeth on largest sprocket: 34 teeth
- Min. teeth on large sprocket: 30 teeth
- Max. teeth on small sprocket: 11 teeth
- Min. teeth on small sprocket: 11 teeth
- Max. front sprocket difference: 16 teeth
- Total capacity: 33 teeth
- Compatible power cable: EW-SD300
- E-Tube Project firmware update: Yes
- Number of E-Tube connectors: 1
- Number of E-Tube connections: 0
- Di2 wireless chip: Yes
Material
- Aluminium
- CFRP
Colour
- Series color

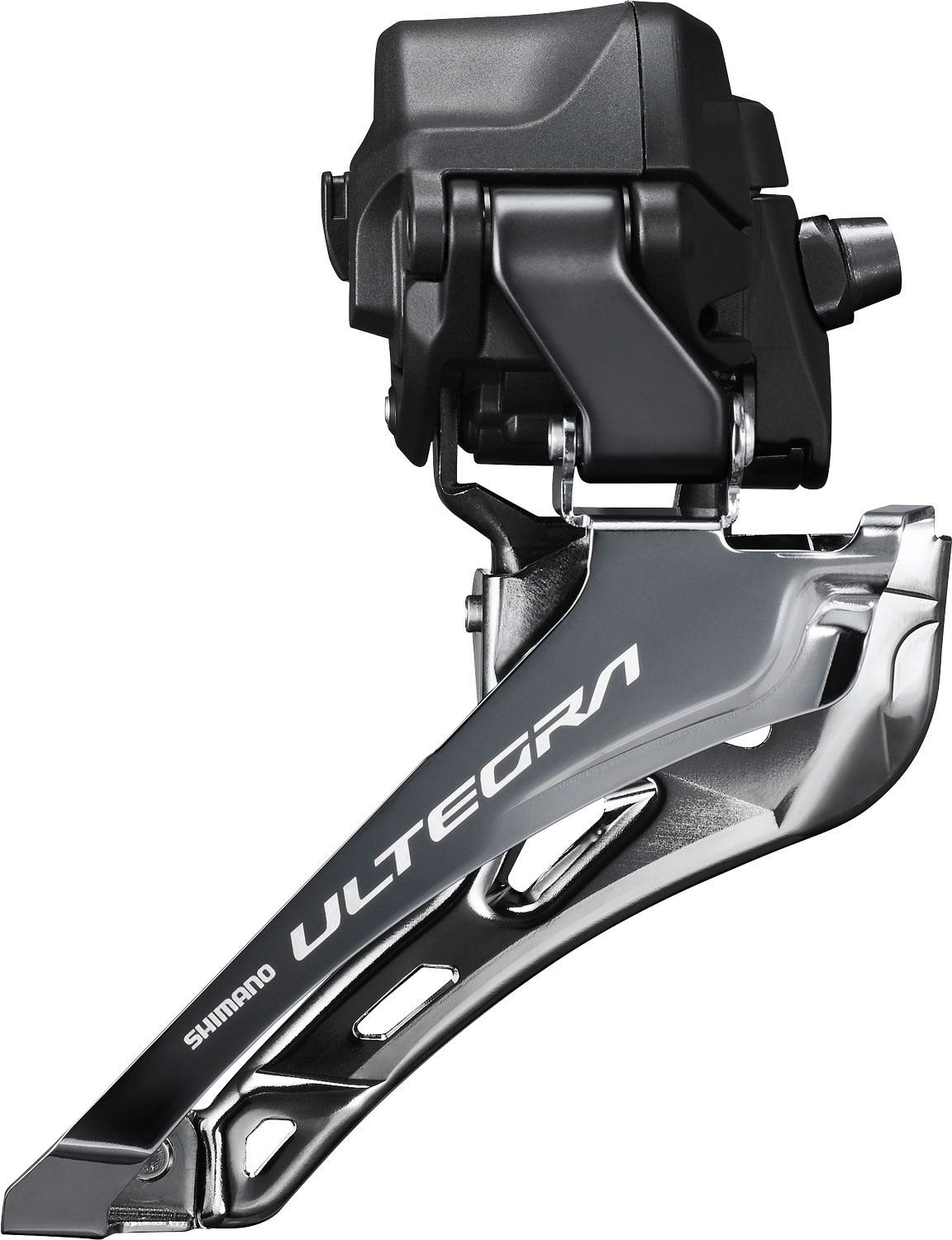

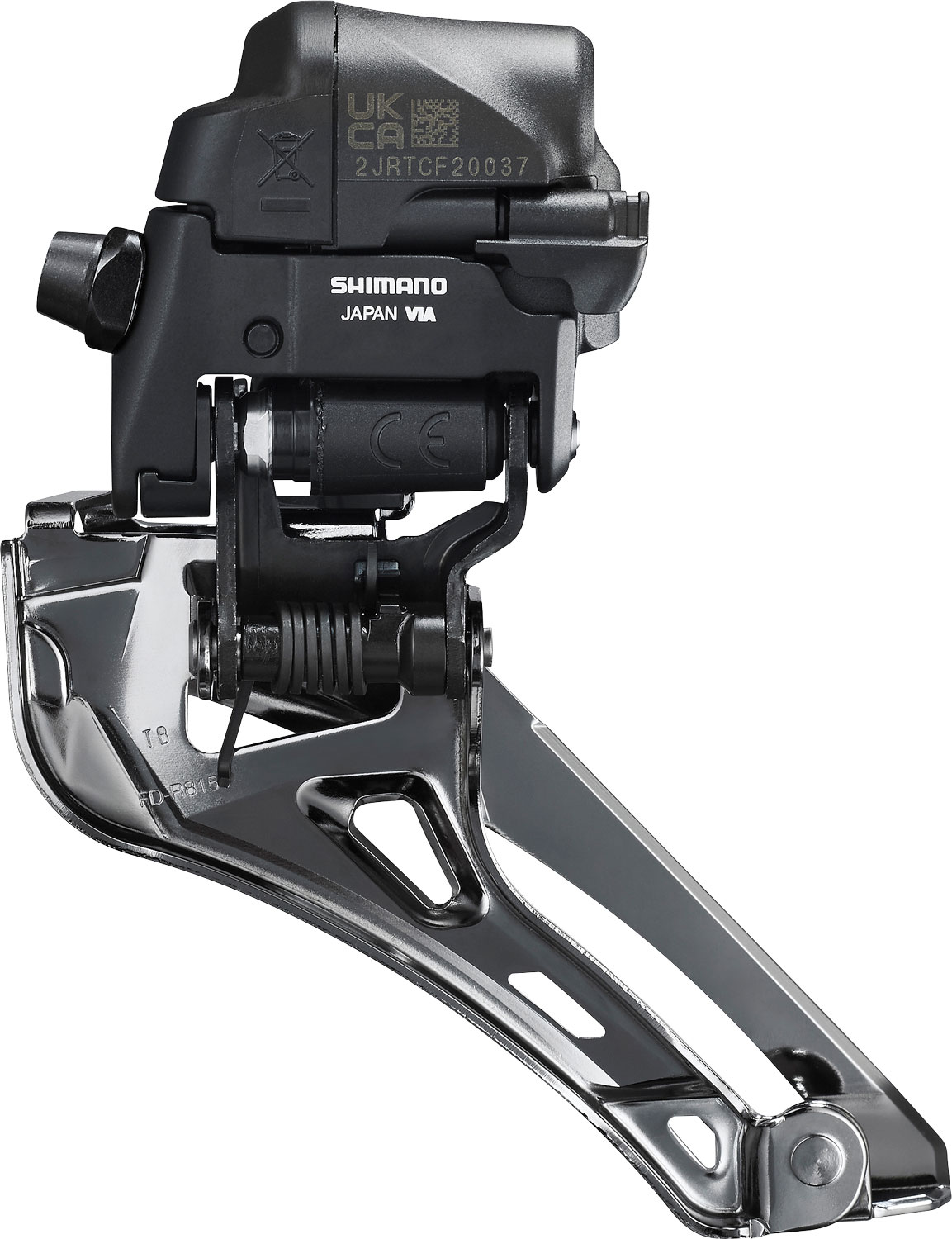

Shimano ULTEGRA Di2 FD-R8150 2x12-speed front derailleur (solder-on)
The Shimano Ultegra Di2 FD-R8150 2 x 12-speed front derailleur, with its new compact design, harmonises perfectly with its counterparts in the cockpit and is, of course, optimised for the new features. The ULTEGRA R8150 front derailleur is more compact than ever before and a real powerhouse. The front derailleur shifts absolutely seamlessly between the chainrings and carries out its shifts with digital precision in all conditions. In addition, the frontal area has been reduced, thereby optimising aerodynamics.
Features
- FULLY CUSTOMISABLE
- The drivetrain can be customised to the rider’s preferences via the E-TUBE app
- Among other things, you can adjust the shifting speed, select a fully or semi-synchronous shifting mode, and assign specific functions to the programme buttons on the shift lever
- WHEN EVERY SECOND COUNTS
- The exclusive wireless protocol increases shifting speed without compromising on the shifting precision and reliability for which SHIMANO is renowned

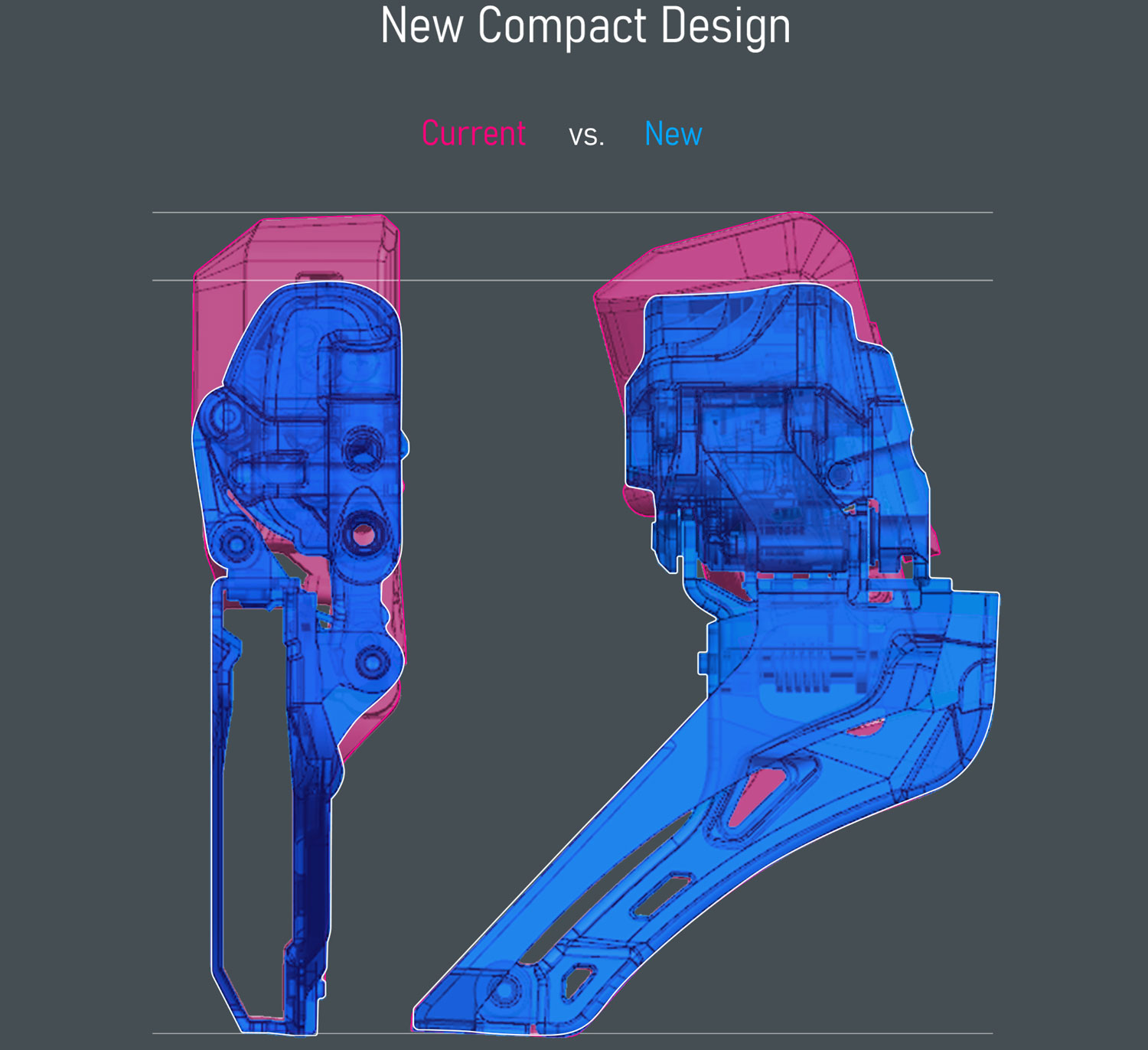

- Front derailleur’s frontal area reduced by 33%
- Fastest front and rear shifting
- Compact and clean appearance
Product features
- Intendeduse: Road bike
- Groupset: Ultegra Di2 R8150
- Model: FD-R8150
- Mounting: Solder-on
- Action: Down-swing
- Front derailleur speeds: 2-speed
- Rear gears: 12-speed
- Largest chainring: 50–54 teeth
- Total tooth capacity: 16 teeth
- Compatible chain: CN-M8100 HG 12-speed
- Chainstay angle: 61–66°
- Chainline: 43.5 mm
- Compatible power cable: EW-SD300
- E-Tube Project firmware update: Yes
- Number of E-Tube connectors: 1
- Number of E-Tube connections: 0
- Di2 wireless chip: No
Material
- Aluminium
- Titanium
- CFRF
Colour
- Series color

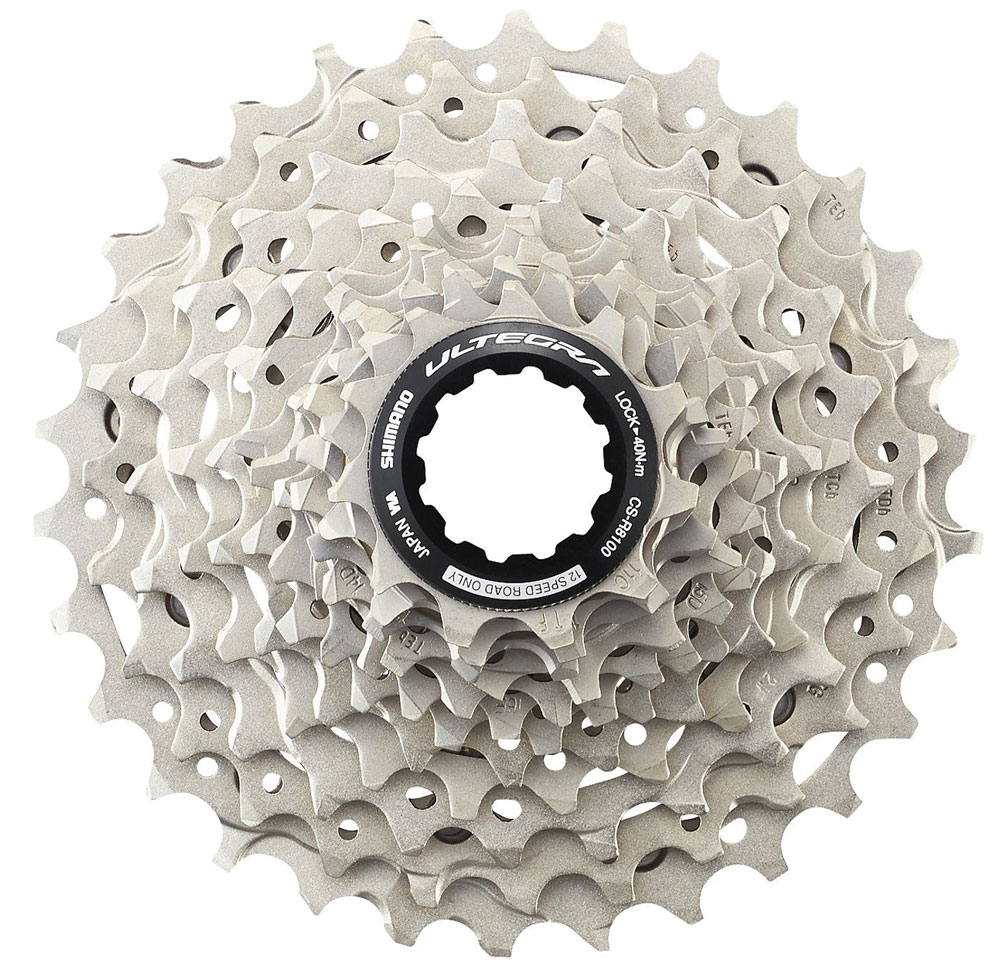

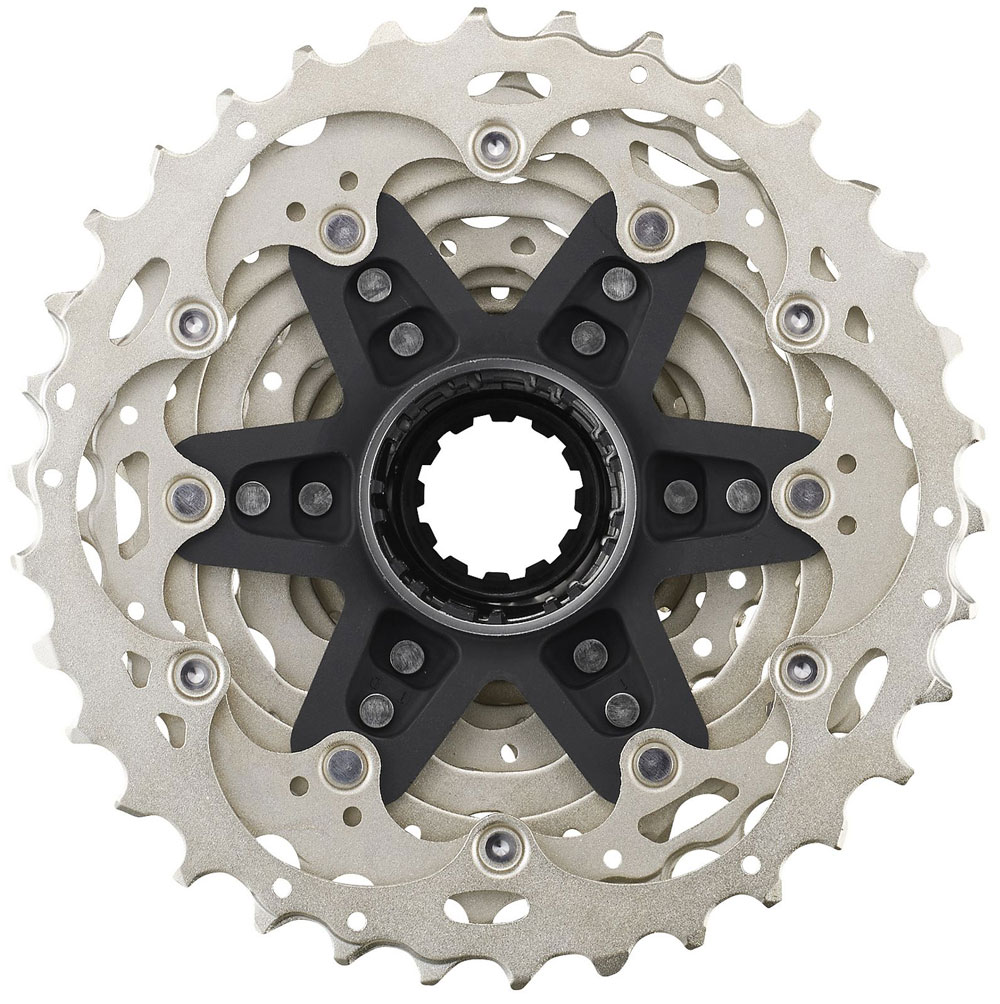

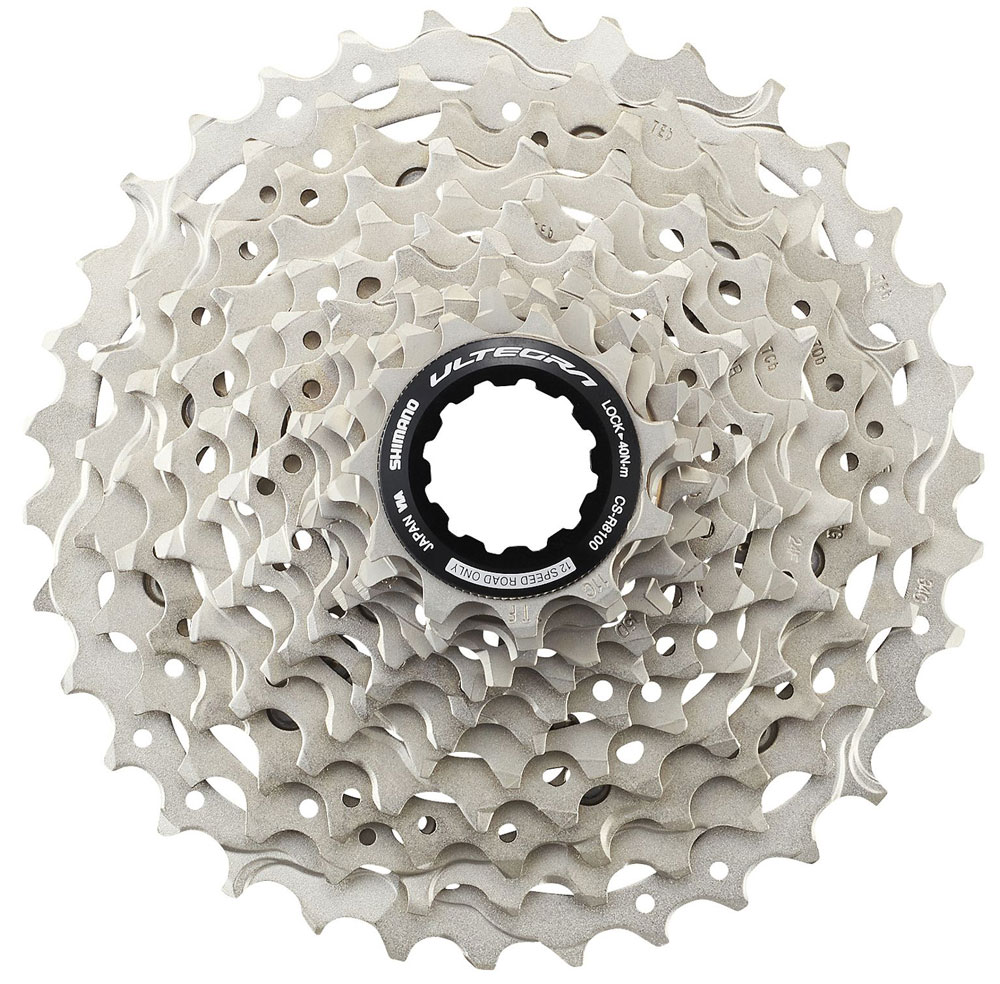

Shimano ULTEGRA CS-R8100 12-speed cassette (select variant)
The Shimano CS-R8100 is the perfect 12-speed cassette to complement the new Ultegra R8100 groupset. This advanced drivetrain is 100% performance-focused and, thanks to HYPERGLIDE+ technology, represents a true revolution. The smooth shifting of the ULTEGRA R8100 12-speed cassettes lets you climb, sprint or cruise without having to think about the next gear change. Larger cogs maximise drivetrain efficiency whilst remaining compatible with existing 11-speed freehub bodies. The cassette is available in 11-30T and 11-34T configurations.
HYPERGLIDE+ cassettes set new standards for off-road shifting thanks to seamless shifts when moving up or down through the entire gear range. It’s high time this technology was also used on road bikes. You can now change gears even when applying maximum force on climbs or in a head-to-head battle with an opponent. In all gears, the ULTEGRA R8150 drivetrain ensures maximum efficiency thanks to larger cogs and guarantees compatibility with existing HYPERGLIDE FREEHUB freehub bodies. Despite their expansion to 12 speeds, ULTEGRA CS-R8100 cassettes set new standards for road bike gear systems.
Features
- Hyperglide+: faster shifting, improved speed, shifting efficiency and smooth operation on any terrain
- Revised 12-speed gearing for first-class efficiency and optimum acceleration in all racing situations
- Faster, smoother shifting under maximum pedalling force
- Compatible with the new HG L2 12-speed road bike FREEHUB
Product features
- Application: Road bike
- Groupset: Ultegra R8100
- Model: CS-R8100
- Type: Hyperglide L2 Road
- Gears: 12-speed
- Recommended chain: CN-M8100 HG 12-speed
Gear range (select variant)
- 11-30 (11-12-13-14-15-16-17-19-21-24-27-30 teeth)
- 11–34 (11–12–13–14–15–17–19–21–24–27–30–34 teeth)
Material
- Sprocket carrier: aluminium
- Sprocket: Steel
- Retaining ring: aluminium
Weight (manufacturer’s specification)
- 291g (11-30)
- 345g (11-34)

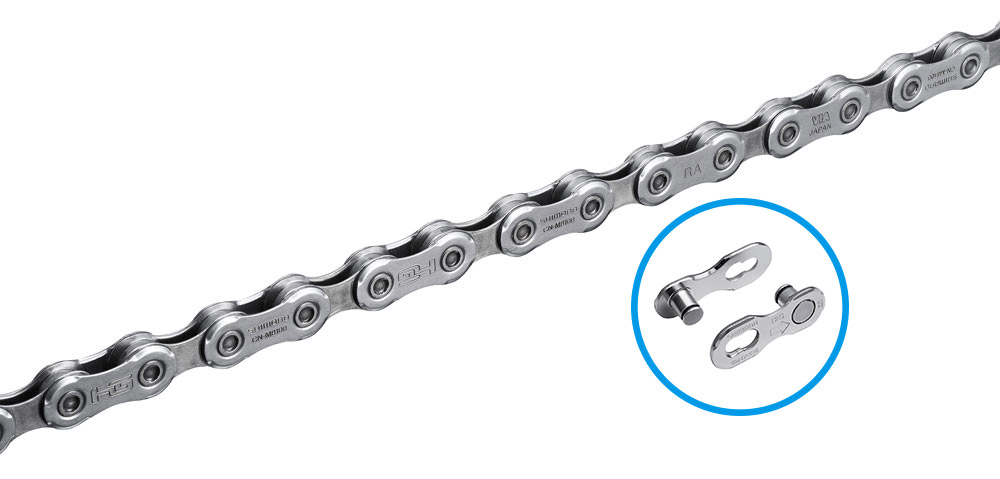

Shimano XT CN-M8100 12-speed chain with Quick-Link SM-CN910-12
The special design of the new Shimano XT CN-M8100 12-speed chain ensures improved shifting performance and a smoother ride – even on rough terrain. The SM-CN910-12 Quick-Link fastener, which is also new, makes installation easy. The XT CN-M8100 HYPERGLIDE+ chain has been optimised from the ground up and is an integral part of the new drivetrain. With its high-precision contact surfaces for chainring and cassette teeth, it ensures fast, precise and smooth shifting in both directions, even under the heaviest loads. Chrome-plated inner links further increase durability noticeably.
Features
- Special chain design for new drivetrain components
- Improved chain guidance with a wider area at the end of the inner link, which holds the chain in place on both the front chainring and the cassette sprocket
- Improved shifting performance
- Easy installation
- Smoother ride, even on rough terrain
- Compatible with the new generation of drivetrain components
- Supplied with the user-friendly Quick-Link (SM-CN910-12)
- Quick-Link pliers for fitting and removal (TL-CN10) – Not included!
Product features
- Group: XT M8100
- Model: CN-M8100
- Front derailleur gears: 1/2-speed
- Rear derailleur gears: 12-speed
- Type: HG
- Hollow pin: No
- Coating on outer cage: SIL-TEC
- Innerlink coating: Chromizing
- Closure: Quick-Link SM-CN910-12
Links
- 116
Weight
- approx. 252g / 116 links (manufacturer’s specification)
Technologies
SEIS SHIMANO ELECTRONIC INTELLIGENT SYSTEM
The innovative shifting technology of the SEIS is still based on the SHIMANO INDEX SYSTEM (SIS), whose outstanding shifting performance has been proven over many years. The main difference between the systems is that shifting is no longer carried out mechanically, but electronically. This electronic gear-changing system has been extensively tested in recent years by several professional cyclists under every conceivable condition, e.g. in rain, mud, extreme cold, on cobblestones and even in combinations of these factors. Shifting is carried out at the simple touch of a button. No physical effort is required to shift gears, which offers significant advantages, as the rider always maintains a firm grip on the handlebars and can concentrate on riding without being distracted by shifting. The gear-changing system enables precise and effortless gear changes in all situations, even with cold hands or when the rider is completely exhausted. Furthermore, gear-changing performance can no longer be impaired by dirty or stretched cables, as the gear-changing signal is transmitted electronically. The control buttons operate in a similar way to mechanical dual-control levers, making it easy to get used to the SEIS.
E-Tube
The E-Tube platform offers optimum flexibility. E-Tube transmits interactive signals and supplies power to all components via ‘plug-and-play’ connections. E-Tube is resistant to corrosion, stretching and frost, and requires minimal maintenance. The SMPCE1 establishes the connection between the PC and the components to update the firmware. Digital devices remain up to date by updating the firmware, ensuring improved performance.
Shimano Shadow RD
With its sophisticated technology, SHIMANO’s SHADOW rear derailleur is particularly well-suited to a more aggressive riding style. Its extremely low-profile design brings a number of advances. Thanks to its flat design and single-preload construction, the rear derailleur does not strike the chainstay, even under the harshest conditions. The shifting action is smooth and quiet.
