Scope of delivery - Shimano Dura Ace Di2 R9250 2x12-speed Upgrade Kit Rim Brake 11-30
- 1 x Shimano DURA ACE Di2 ST-R9250 2x12-speed STI Dual Control Set
- 1 x Shimano DURA ACE Di2 FD-R9250 2x12-speed Front Derailleur Braze On
- 1 x Shimano DURA ACE Di2 RD-R9250 12-speed Rear Derailleur
- 1 x Shimano DURA ACE CS-R9200 12-speed Cassette 11-30 incl. Lock Ring
- 1 x Shimano DURA ACE BR-R9200 Brake Caliper Set
- 1 x Shimano XTR CN-M9100 12-speed Chain 116 Links incl. Connector Quick-Link SM-CN910-12

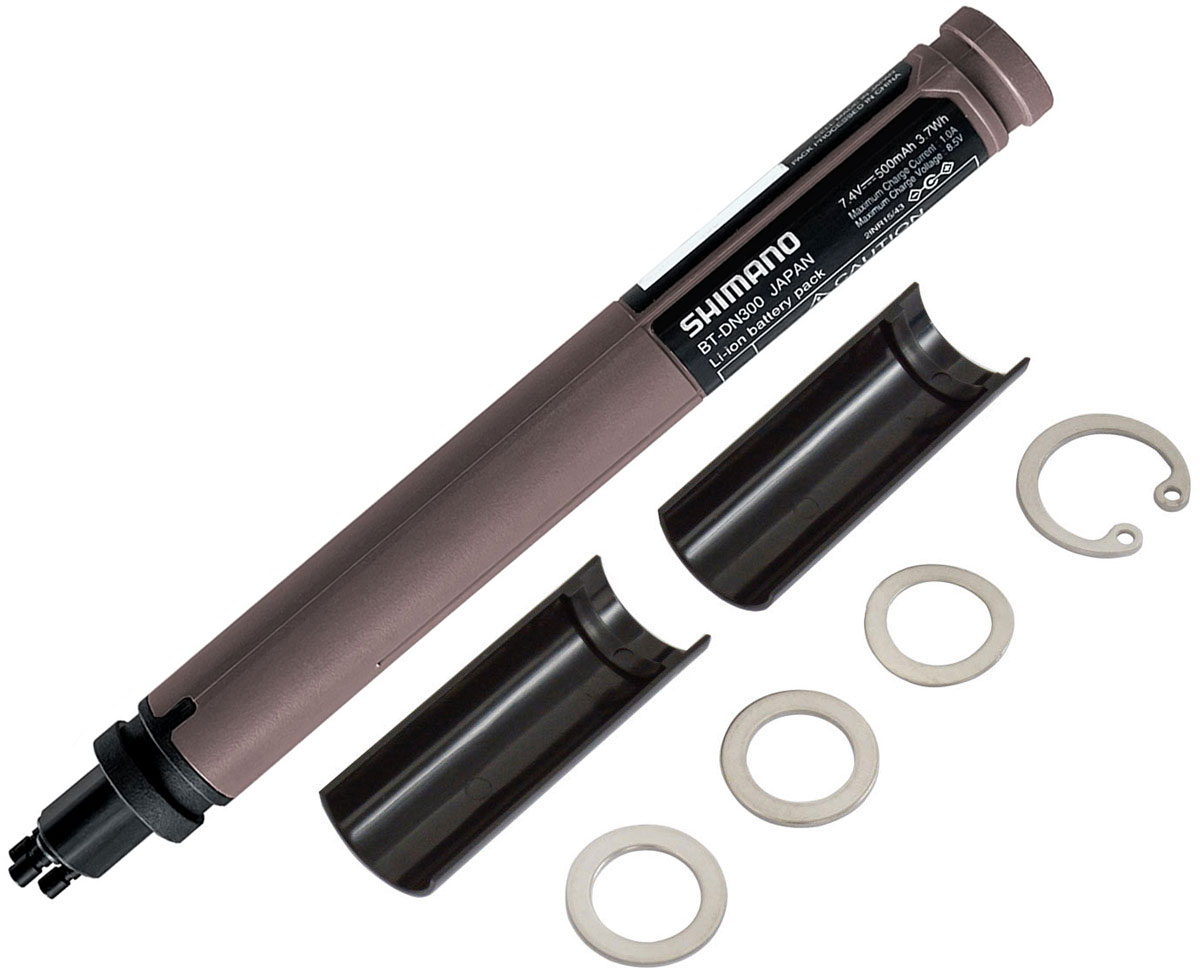

- 1 x Shimano BT-DN300 Di2 Battery for built-in installation in the Seat Post

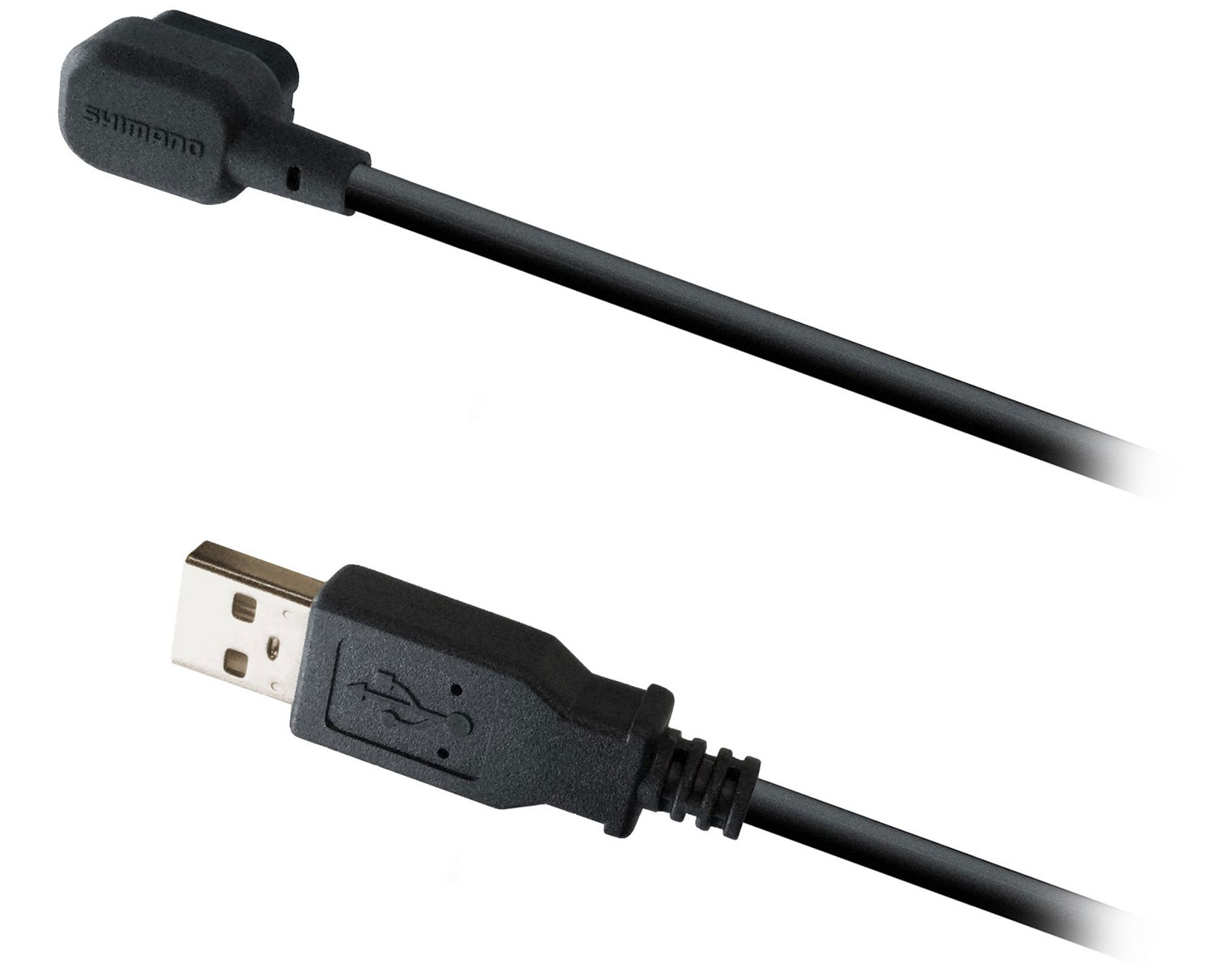

- 1 x Shimano EW-EC300 Charging Cable USB Type A (cable length 1.500mm)

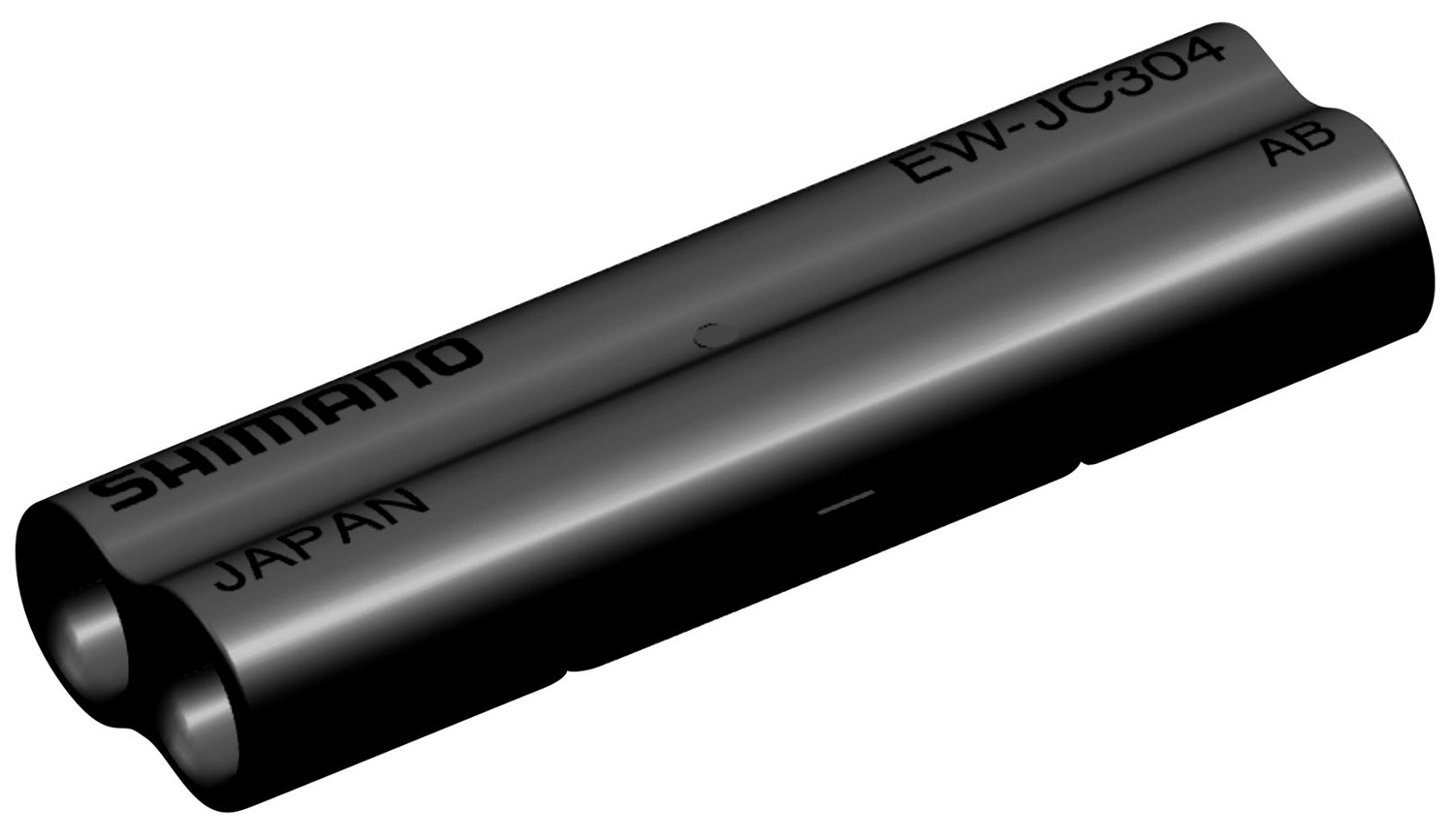

- 1 x Shimano Di2 EW-JC304 Internal Distributor with 4 Connectors

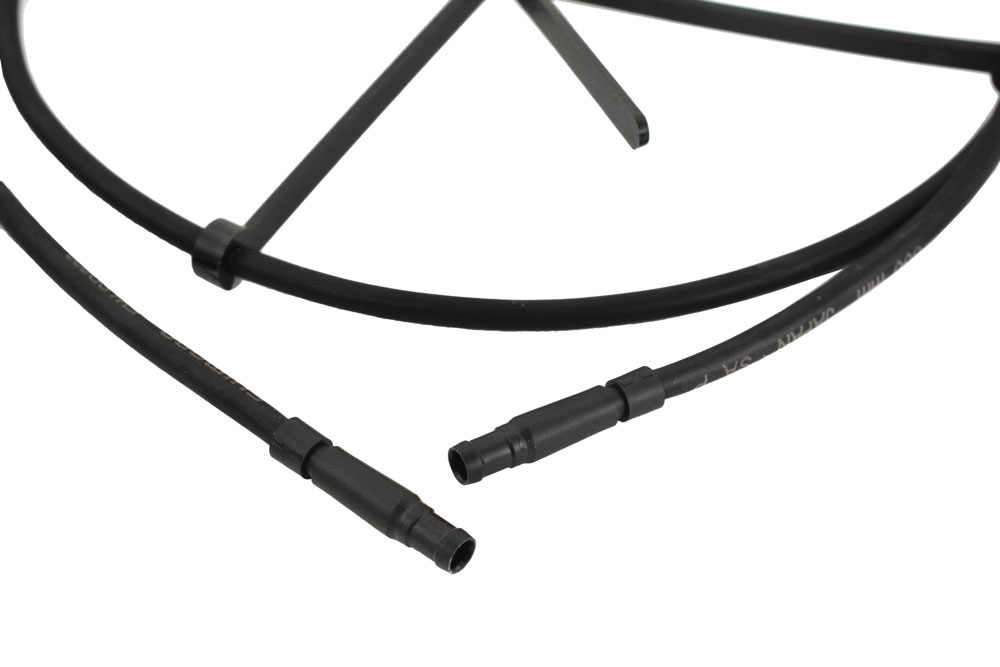

- 3 x Shimano Di2 EW-SD300-I Electric Wire 600mm for internal routing
- 2 x Shimano Di2 EW-SD300-I Electric Wire 1200mm for internal routing
THE SCIENCE OF SPEED: the Dura Ace Di2 2x12-speed Groupset from Shimano
Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That's why every component has been revised, refined and optimised to make you even faster - whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.Shimano Dura Ace Di2 ST-R9250 2x12-speed STI Dual Control Set

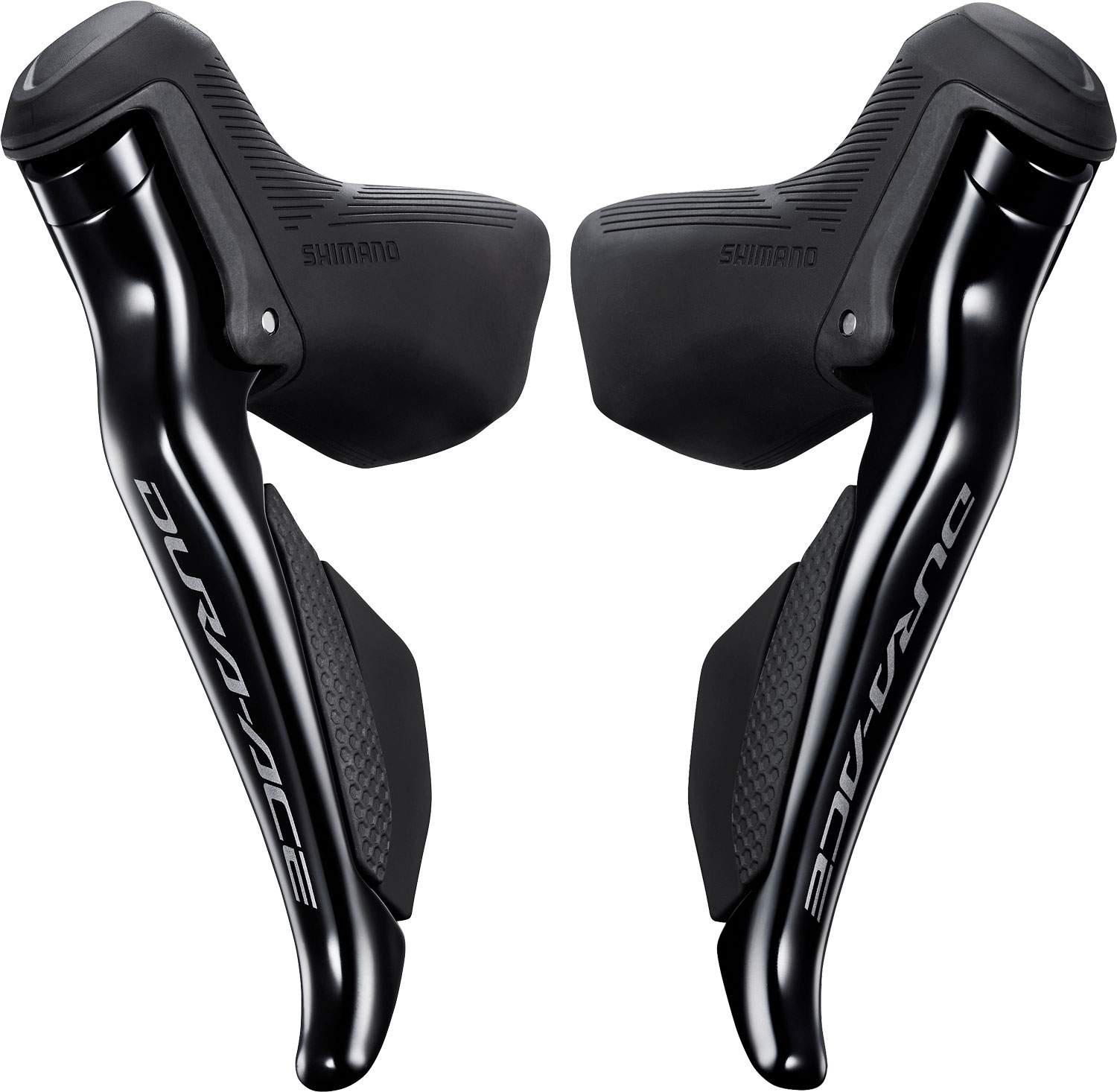

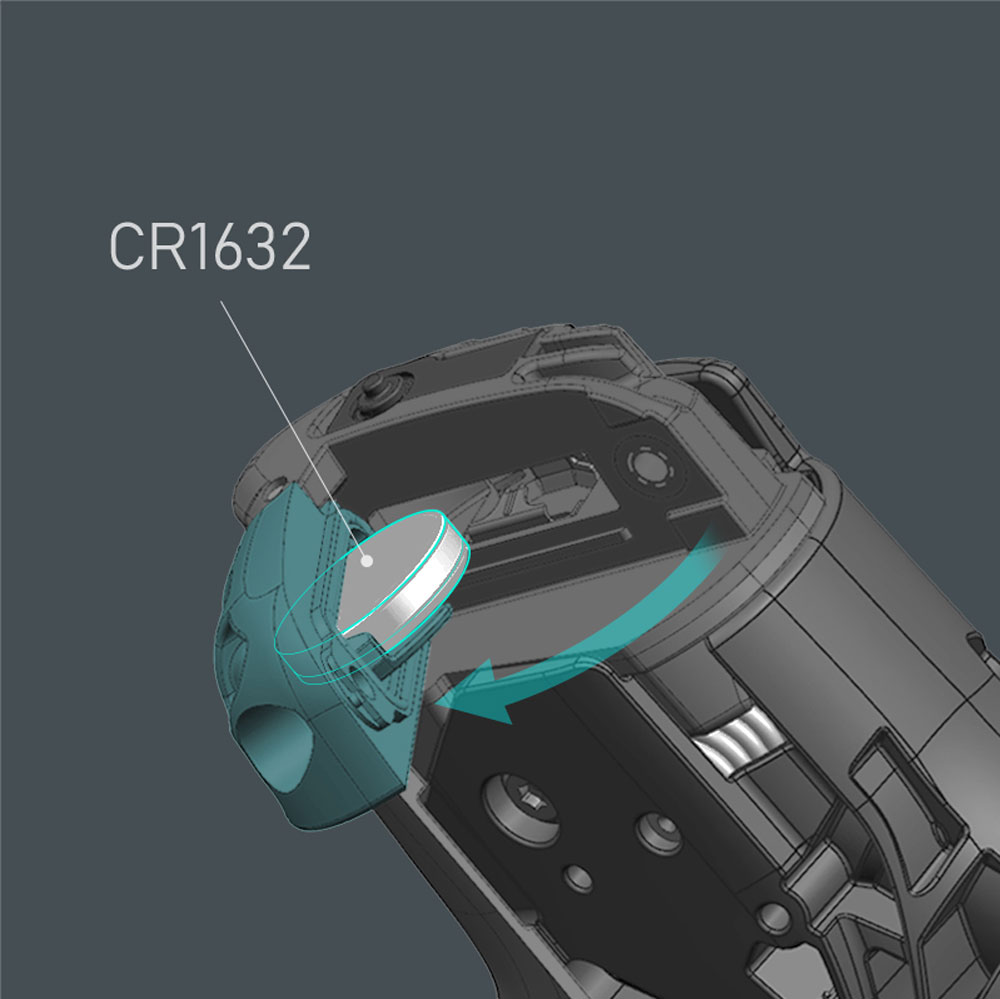

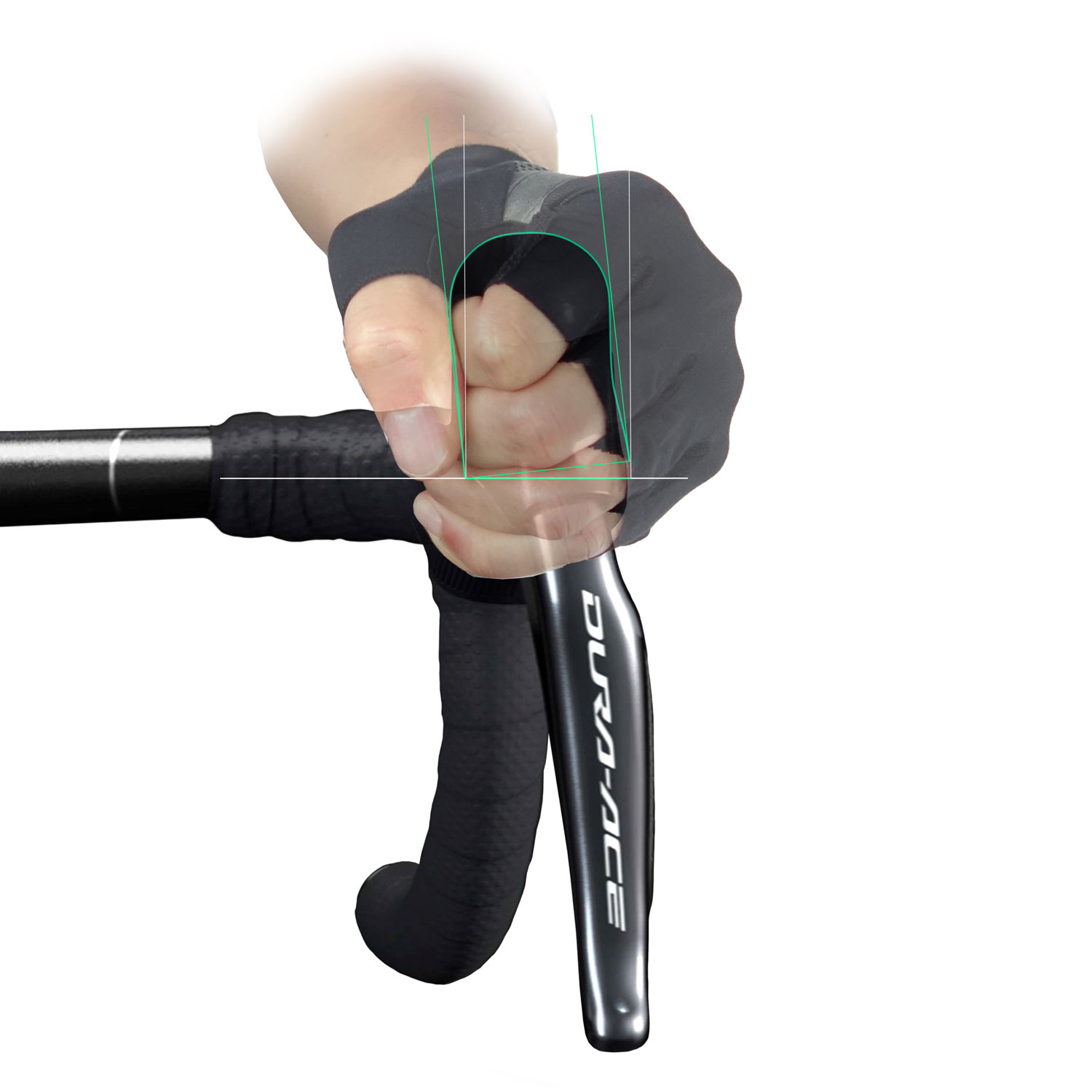

The finest rim brake DUAL CONTROL LEVERS, DURA-ACE ST-R9250 offer 12-speed shifting with refined ergonomics and exceptionally light weight. DURA-ACE ST-R9250 DUAL CONTROL LEVERS are the ultimate in reliable performance thanks to a wired connection and the light weight of rim brakes. Refined ergonomics and advanced materials show the race pedigree of these levers.Features
- FASTEST AND MOST RELIABLE SWITCHING OPERATIONS EVER

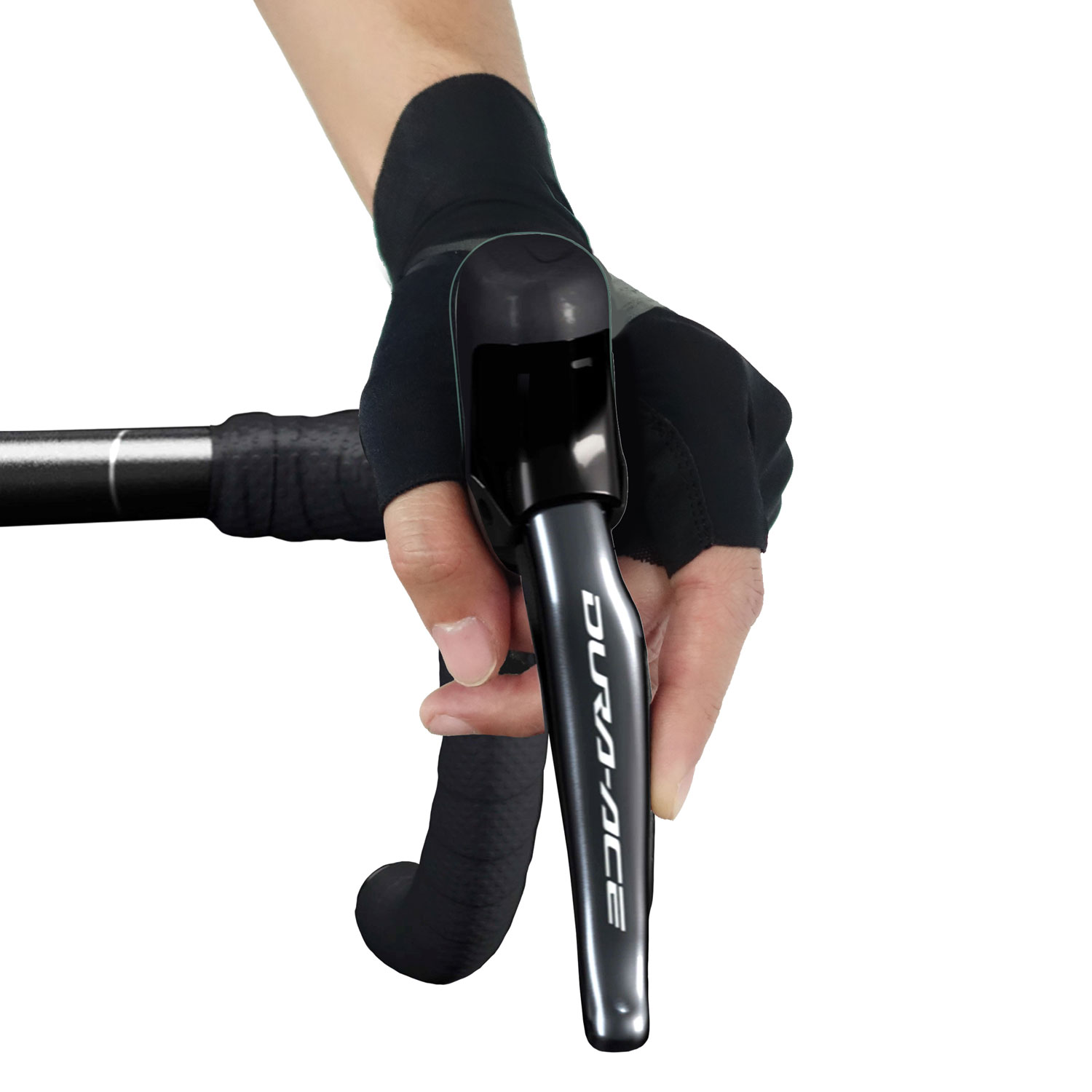

- Improved aerodynamics - Revised DUAL CONTROL shift/brake levers with raised and rounded brake grips

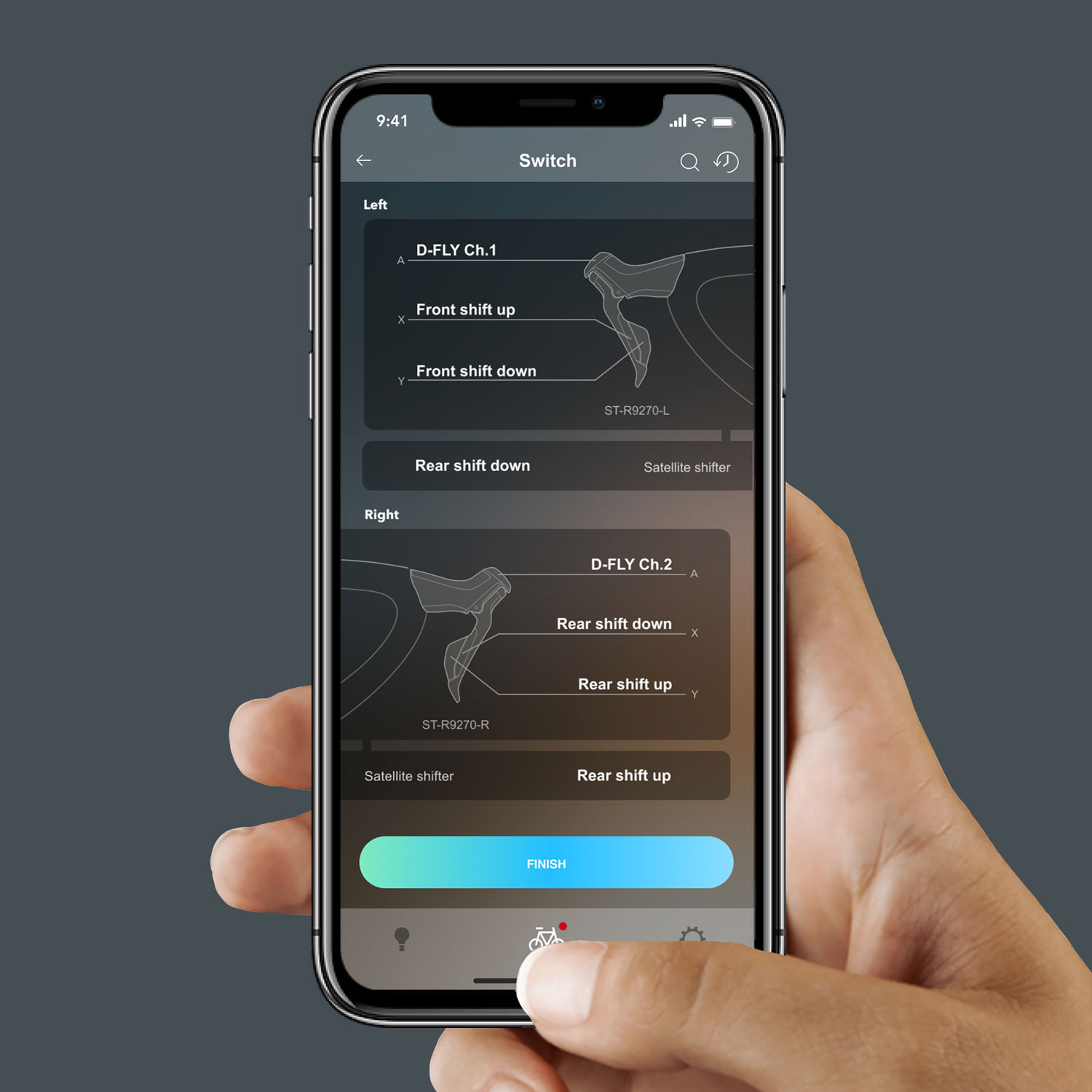

- The drive can be adjusted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the shift lever can be assigned certain functions
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: ST-R9250 Set
- Type: Dual-Control (STI)
- Handlebar mounting: left / right
- Gear front: 2-speed
- Gear rear: 12-speed
- Optical gear display: No

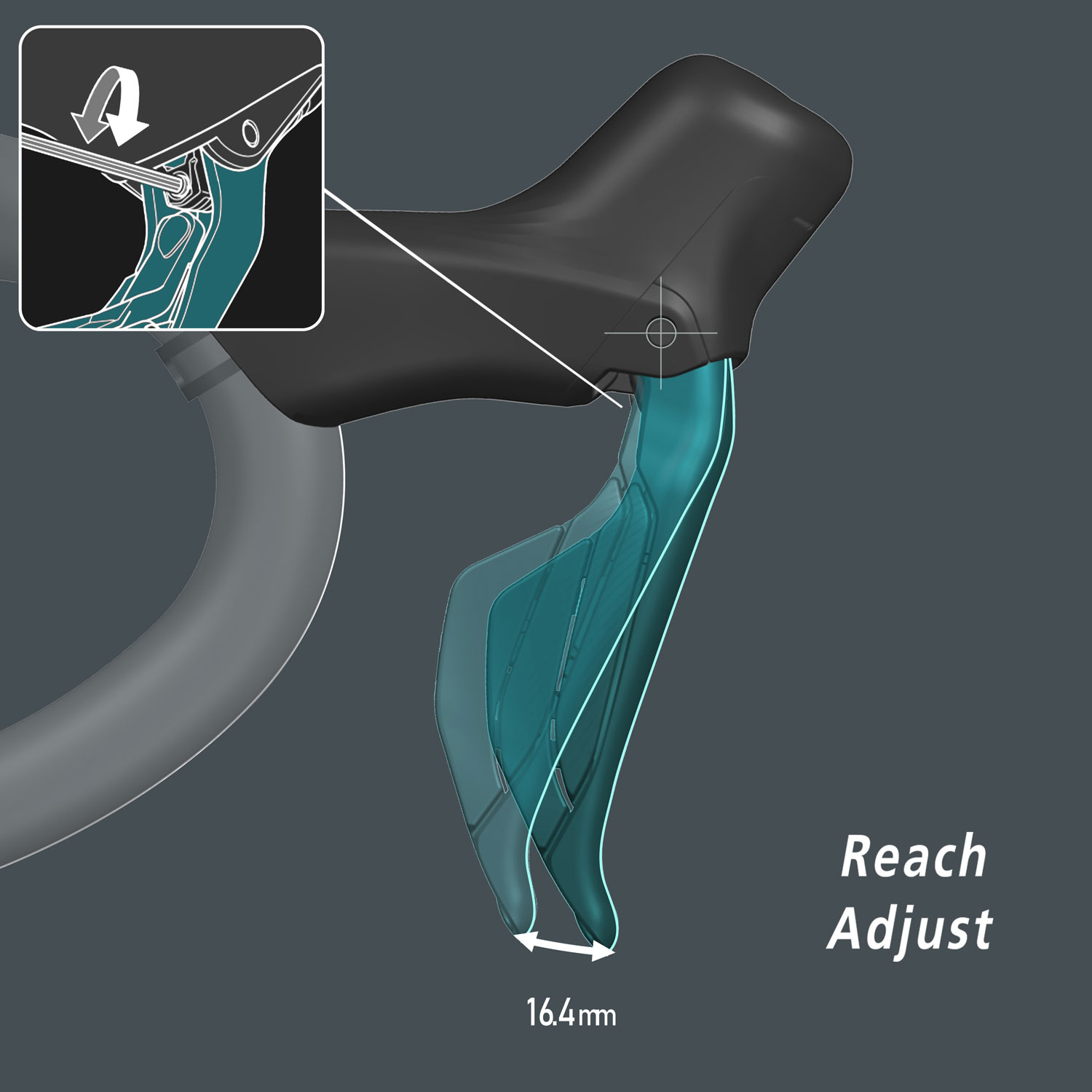

- Lever reach adjust: Yes
- Handlebar diameter: 23.8mm/24.2mm
- Brake-type: SLR-EV Rim Brake
- Recommended brake: BR-R9200, BR-R9210
- Compatible electric wire: EW-SD300
- E-tube Project: Yes
- E-tube port (pcs): each 2
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: No
Material
- Body: CFRP
- Lever: Carbon, painted
Color
- Series color

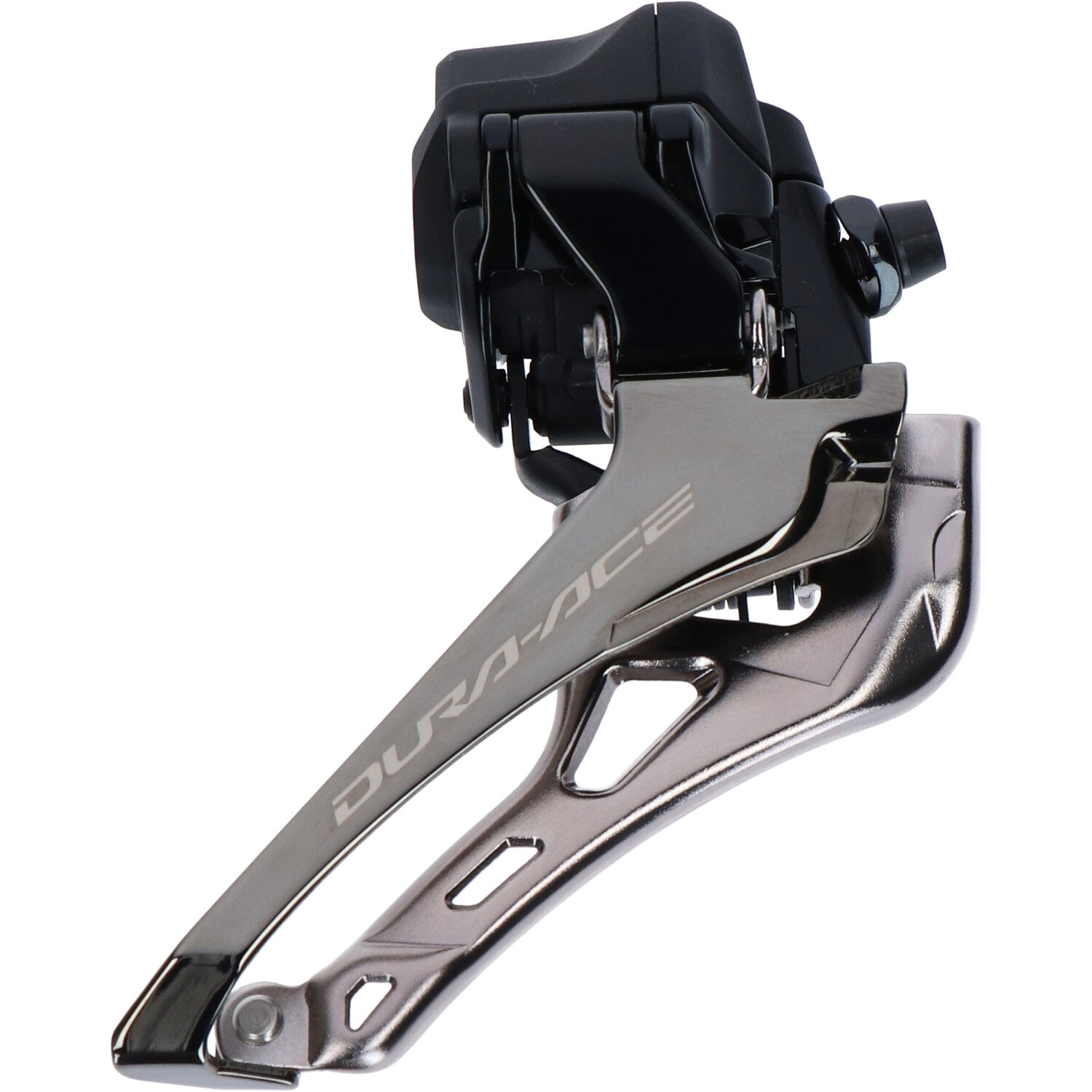

Shimano DURA ACE Di2 FD-R9250 2x12-speed Front Derailleur Braze On
The Shimano Dura Ace Di2 FD-R9250 2 x 12-speed front derailleur incorporate these new cockpit functions. The electronic front derailleur is compact and designed to protect the shifting operation in the event of a crash. The fastest shifting group has become even faster with the DURA-ACE FD-R9250 front derailleur. The new version weighs less than 100 g and shifts 45 % faster than SHIMANO's FD-R9150, which is currently the fastest front derailleur on the market. The front of the FD-R9250 has also been minimised to reduce aerodynamic drag.Features
- FULLY CUSTOMISABLE
- The drive can be adapted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the gear lever can be assigned specific functions
- WHEN EVERY SECOND COUNTS
- Our exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for

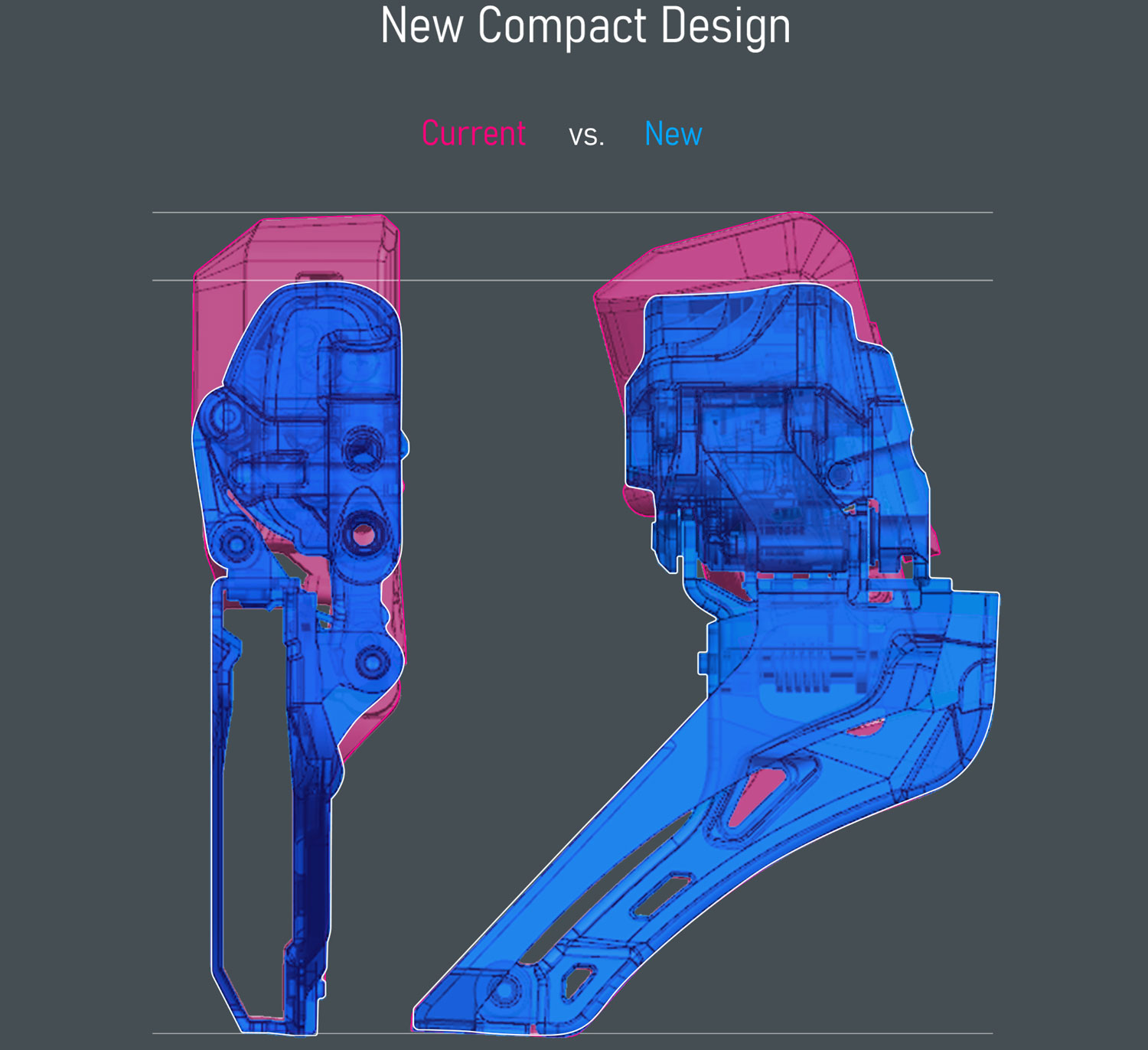

- Frontal area of attack of the front derailleur reduced by 33%
- Fastest gear changes front and rear
- Compact and clean optics
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: FD-R9250
- Mounting: Braze On
- Action: Down-Swing
- Gear front: 2-speed
- Gear rear: 12-speed
- Top gear teeth: 50-54T
- Total capacity: 16T
- Compatible chain: CN-M9100 HG 12-speed
- Chain stay angle: 61-66°
- Chain line: 43.5mm
- Compatible electric wire: EW-SD300
- Firmware update by E-tube Project: Yes
- E-tube port (pcs): 1
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: No
Material
- Aluminum
- Titanium
- CFRF
Color
- Series color

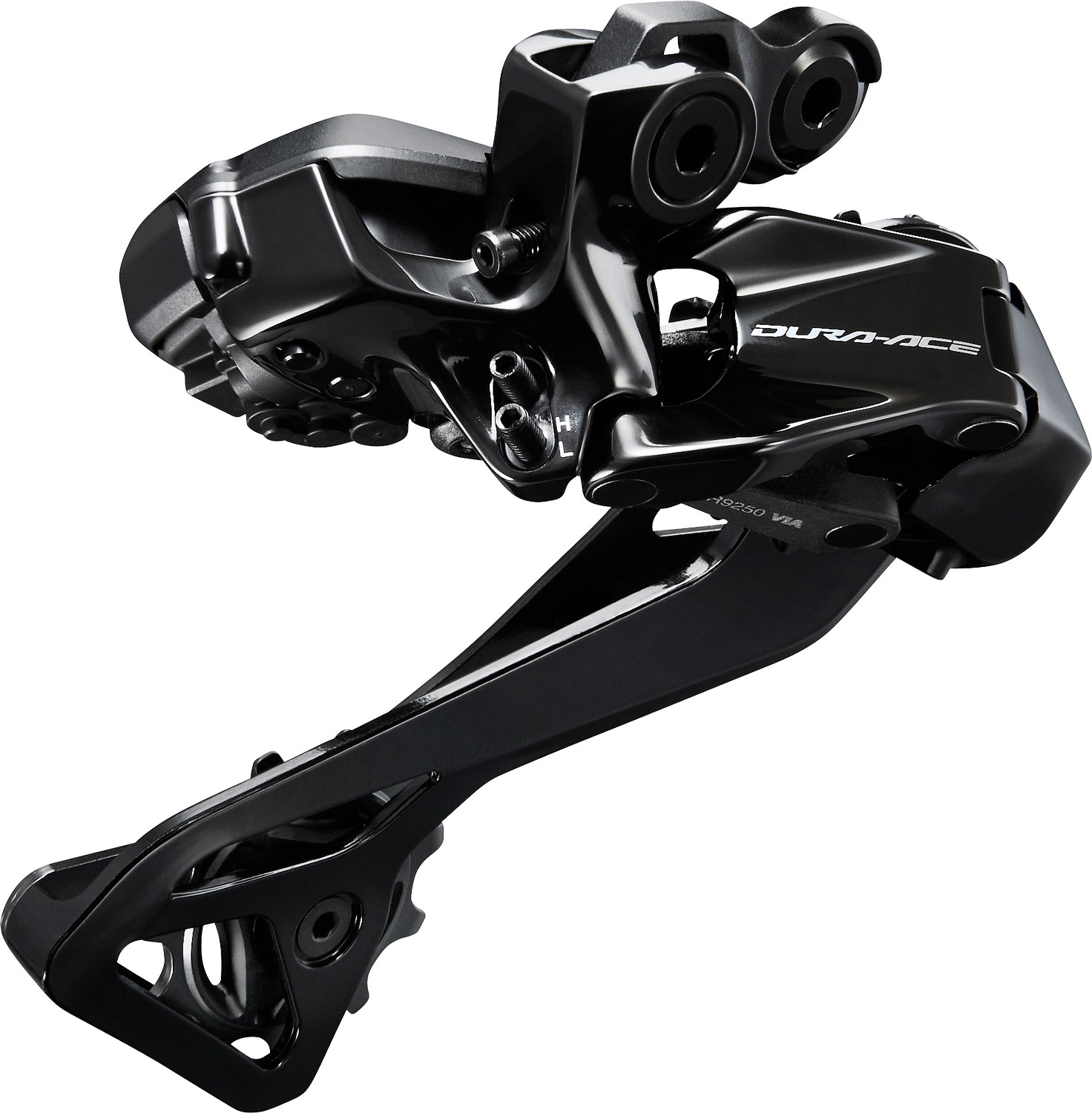

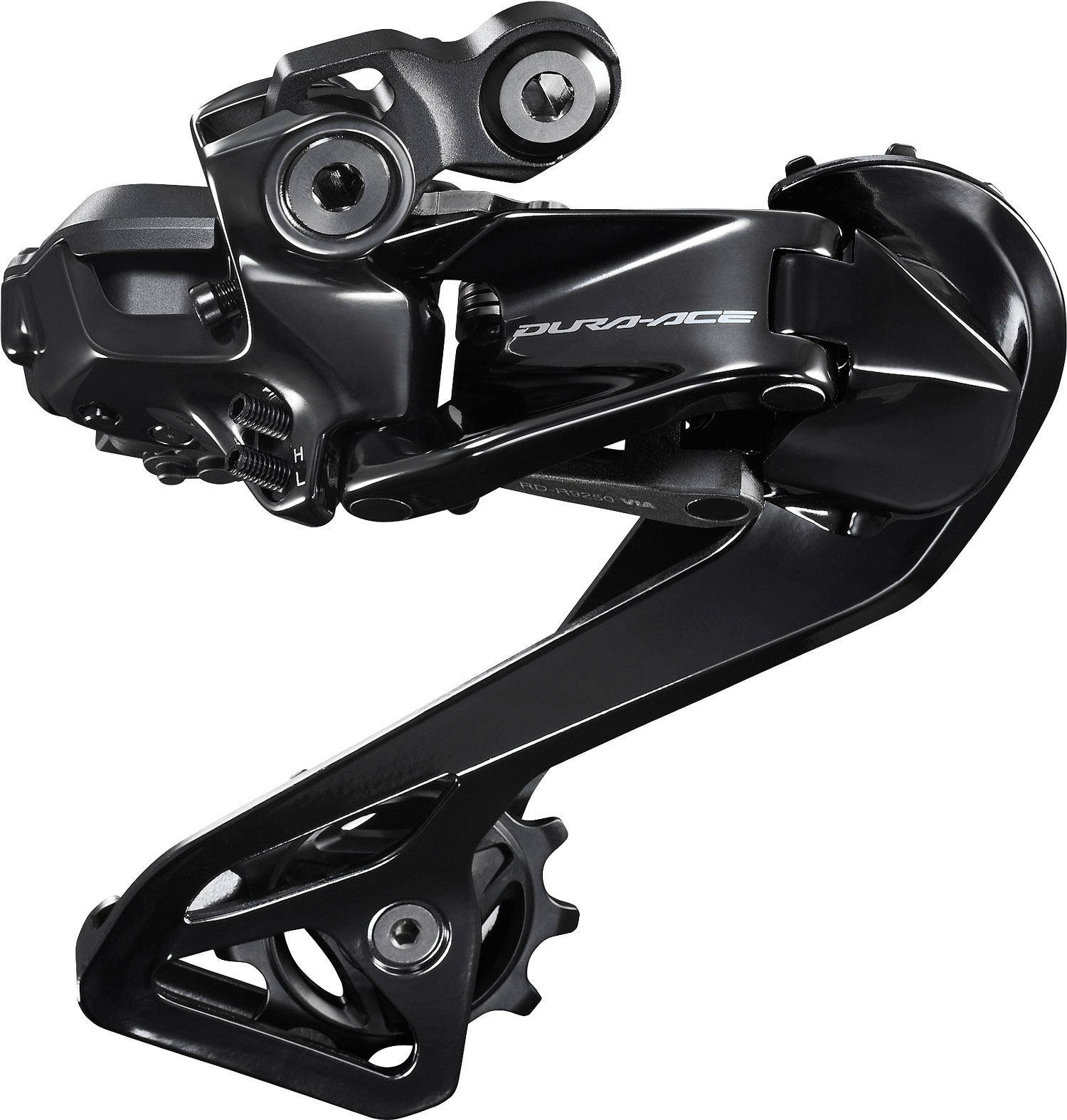

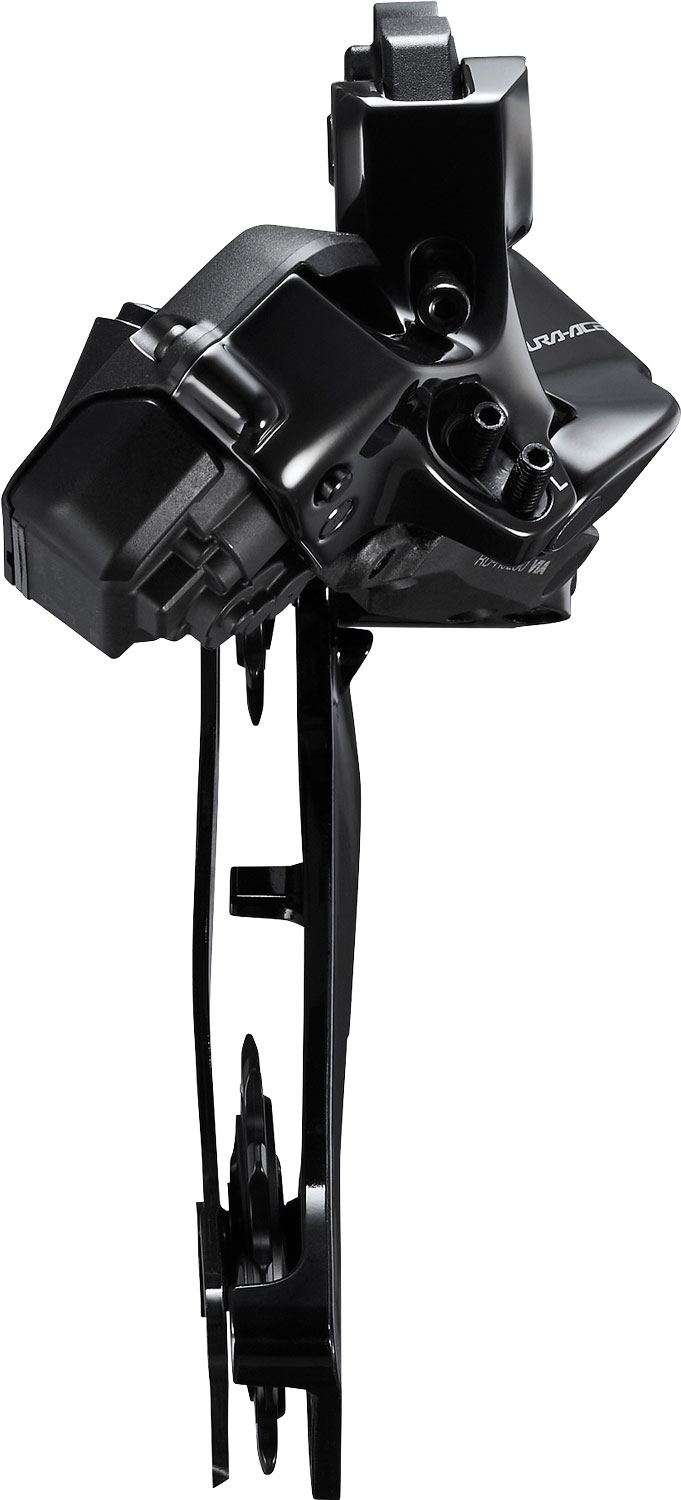

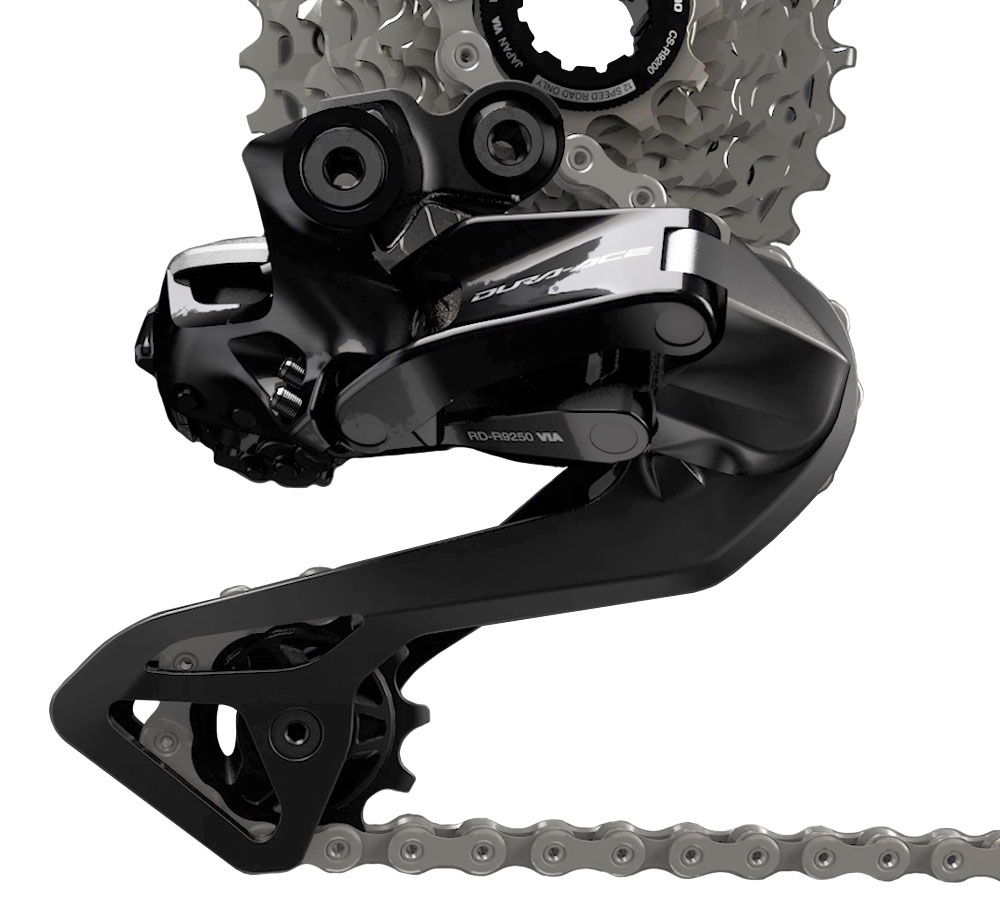

Shimano DURA ACE Di2 RD-R9250 12-speed Shadow Rear Derailleur

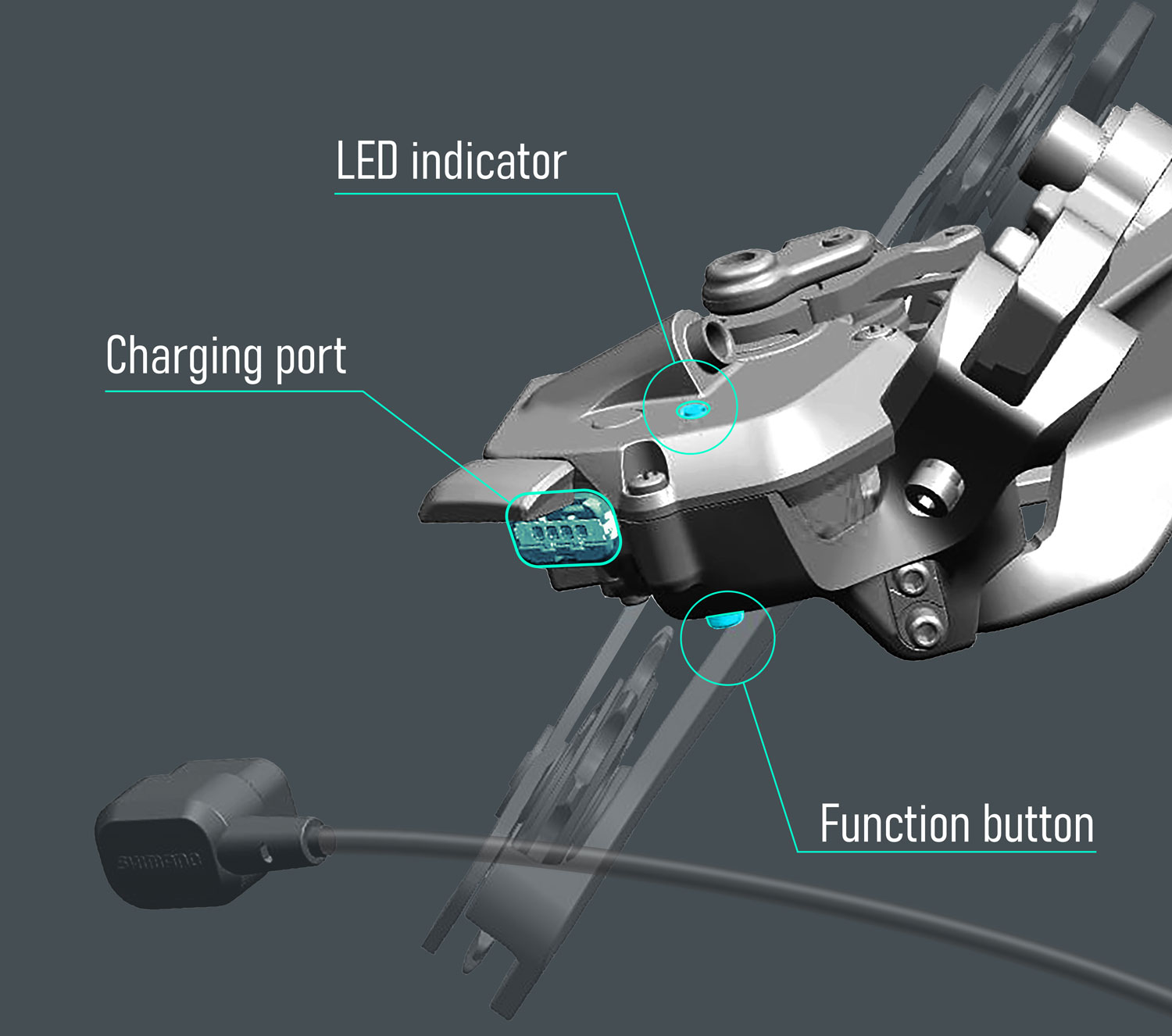

The Shimano Dura Ace RD-R9250 12-speed rear derailleur combines charging port and wireless system in one compact unit to provide a lightning-fast and precise shifting performance that is ready to win. With just one cage length, the rear derailleur shifts on cassettes from 11-28T to 11-34T, further enhancing the versatility of the world's best road bike component group.Features
- FULLY CUSTOMISABLE
- The drive can be adapted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the gear lever can be assigned specific functions
- WHEN EVERY SECOND COUNTS
- Our exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for
- Fast, jerk-free shifting for responsive acceleration at any speed
- Low profile rear derailleur design
- SHIMANO SHADOW RD
- Race endurance for less damage in crush
- Maintains compact and smooth appearance
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: RD-R9250
- Mount type: Direct Mount
- Gear rear: 12-speed
- Compatible chain: CN-M9100 HG 12-speed
- Max. teeth large sprocket: 34T
- Min. teeth large sprocket: 28T
- Max. teeth small sprocket: 11T
- Min. teeth small sprocket: 11T
- Max. front difference: 16T
- Total capacity: 35T
- Compatible electric wire: EW-SD300
- Firmware update by E-tube Project: Yes
- E-tube port (pcs): 1
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: Yes
Material
- Aluminum
- CFRP
Color
- Series color

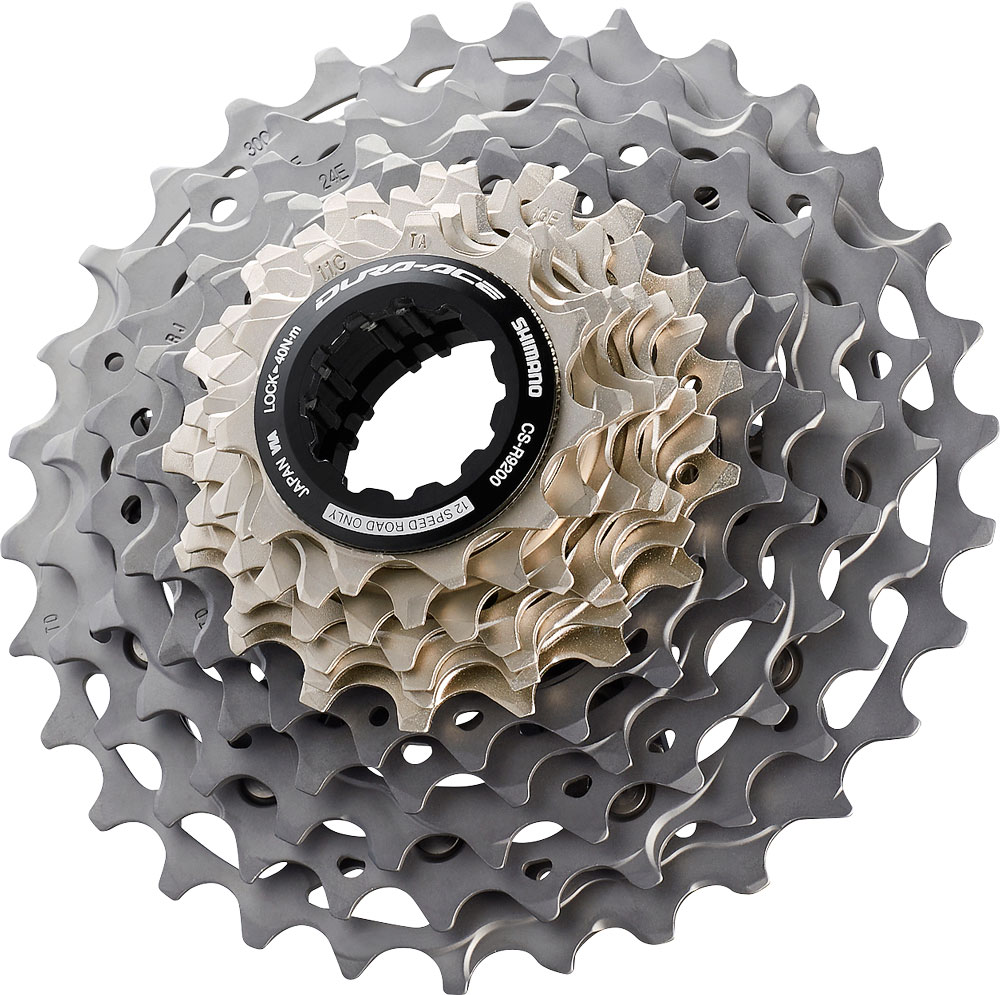

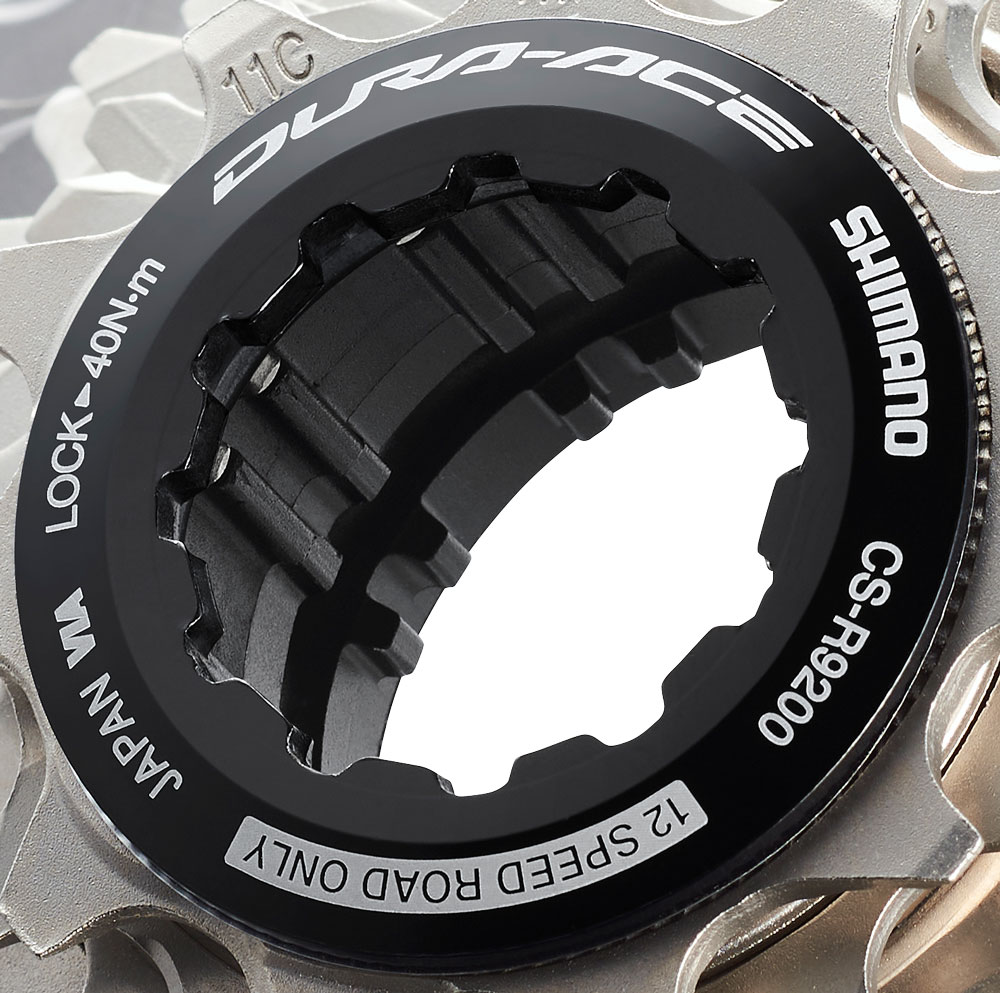

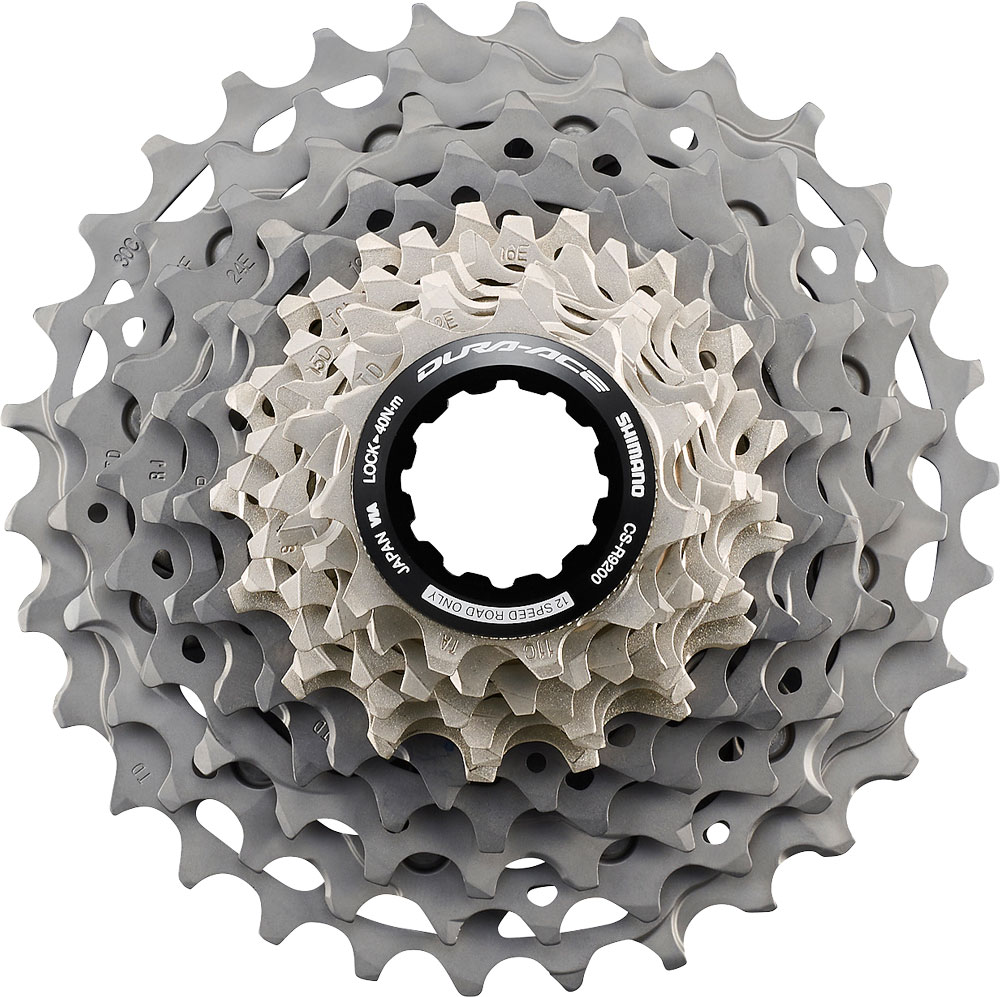

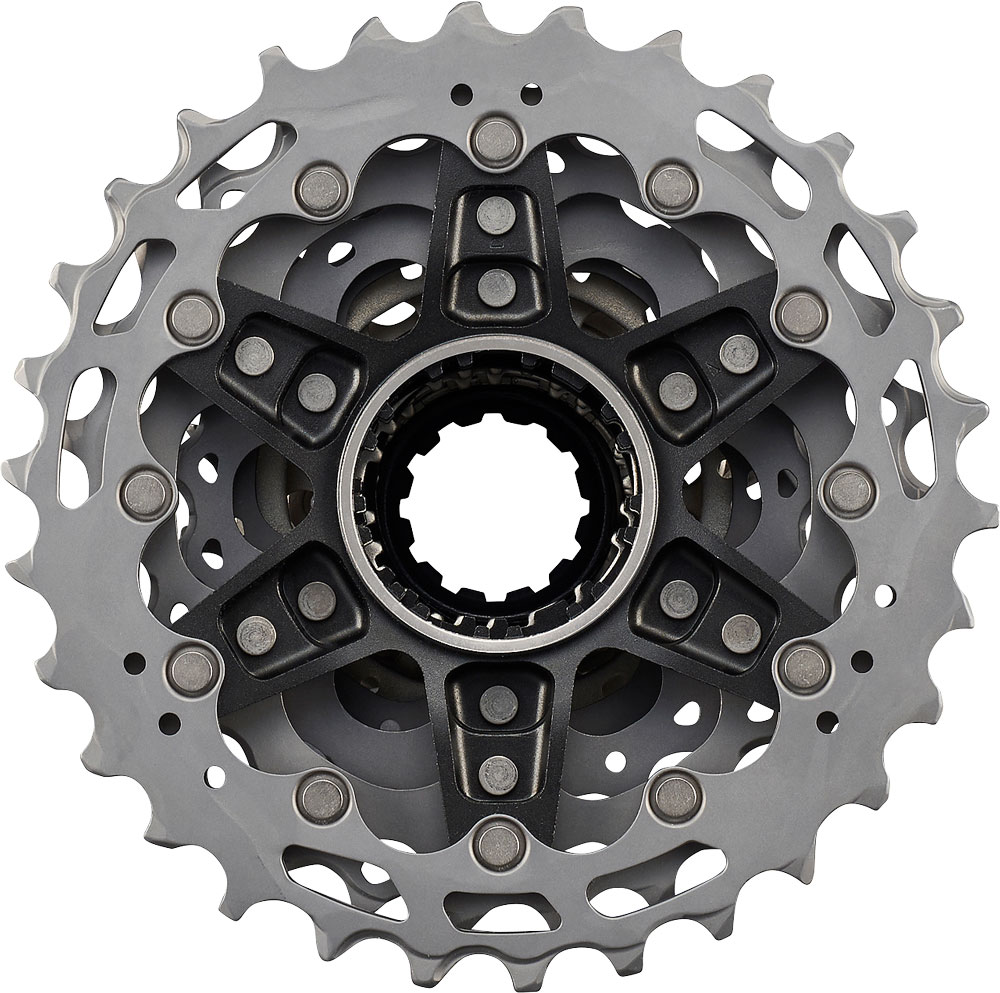

Shimano DURA ACE CS-R9200 12-speed Cassette 11-30
The Shimano CS-R9200 is the suitable cassette for new Dura Ace R9200 12-speed group. The most advanced drivetrain is 100 % performance focused and truly revolutionary thanks to the HYPERGLIDE+ technology.SHIMANO HYPERGLIDE+ cassettes have set new standards in off-road use with their smooth upshifting and downshifting across the entire gear range. Now it's time to use this technology on road bikes as well. Even when riding at maximum power on climbs or while racing to the finish line, you can now shift without having to worry. At all speed levels, the DURA-ACE R9250 components ensure maximum efficiency thanks to larger teeth and are at the same time compatible with existing 11-speed freewheels. The fact that you can switch to 12 gears without increasing the weight makes the DURA-ACE CS-R9200 cassettes the new shifting benchmark for road bikes.
Features
- Hyperglide+ faster shifting, improved speed, shifting efficiency and smoothness on any terrain
- Faster, seamless shifts under maximum pedaling load
- Refined 12 step gear combination provides peak efficiency and accelerating performance for every situation
- Add wider 34T spec for pro-race usage
- Compatible with new 12-speed and road 11-speed FREEHUB body
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: CS-R9200
- Type: Hyperglide+
- Gear: 12-speed
- Compatible chain: CN-M9100 HG 12-speed
Gradation

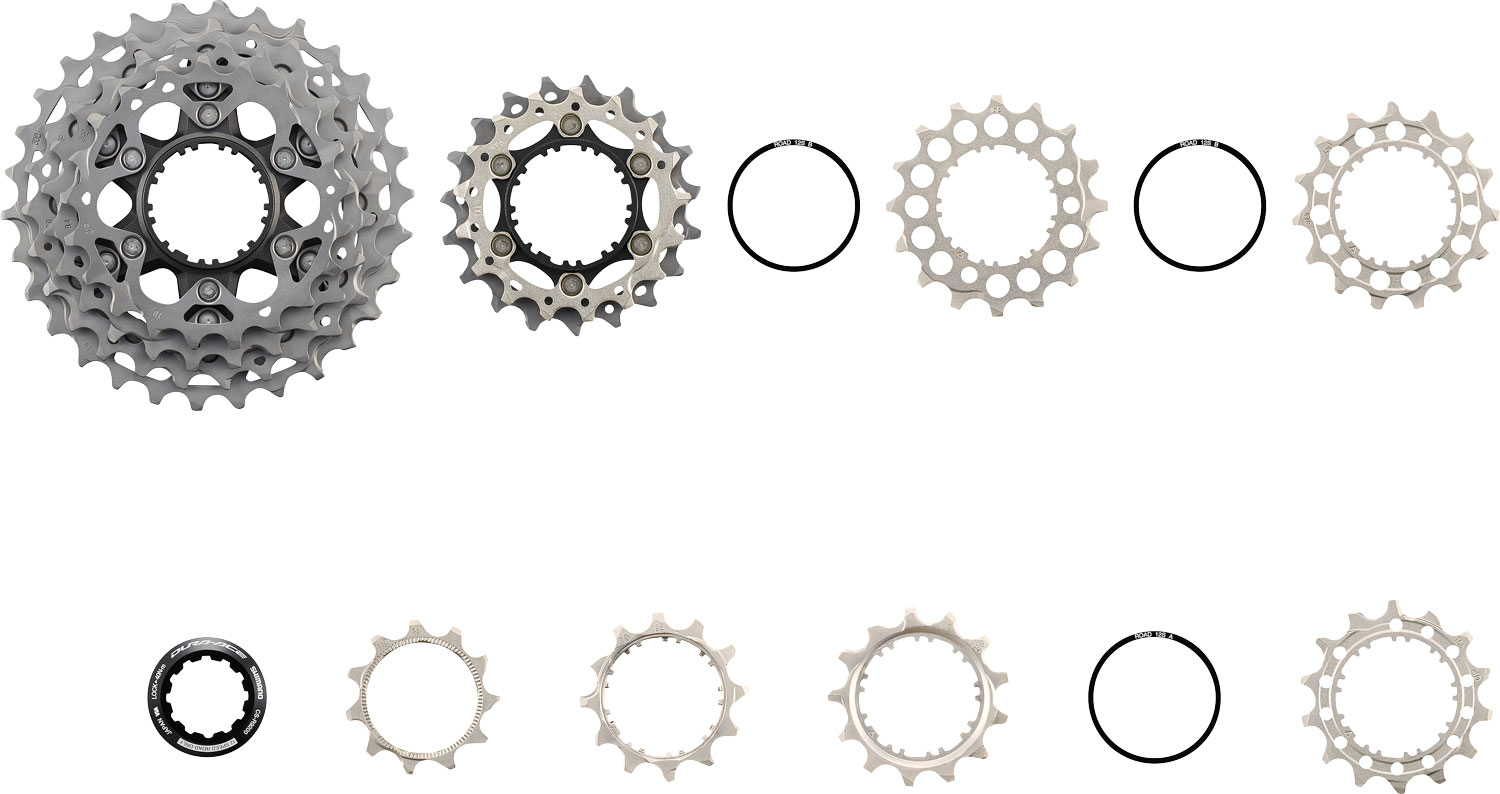

- 11-30 (11-12-13-14-15-16-17-19-21-24-27-30 teeth)
Material
- Spider arm: Aluminum
- Spockets: Titan/Steel
- Lock ring: Aluminum
Weight (manufacturer information)
- 223g (11-30)

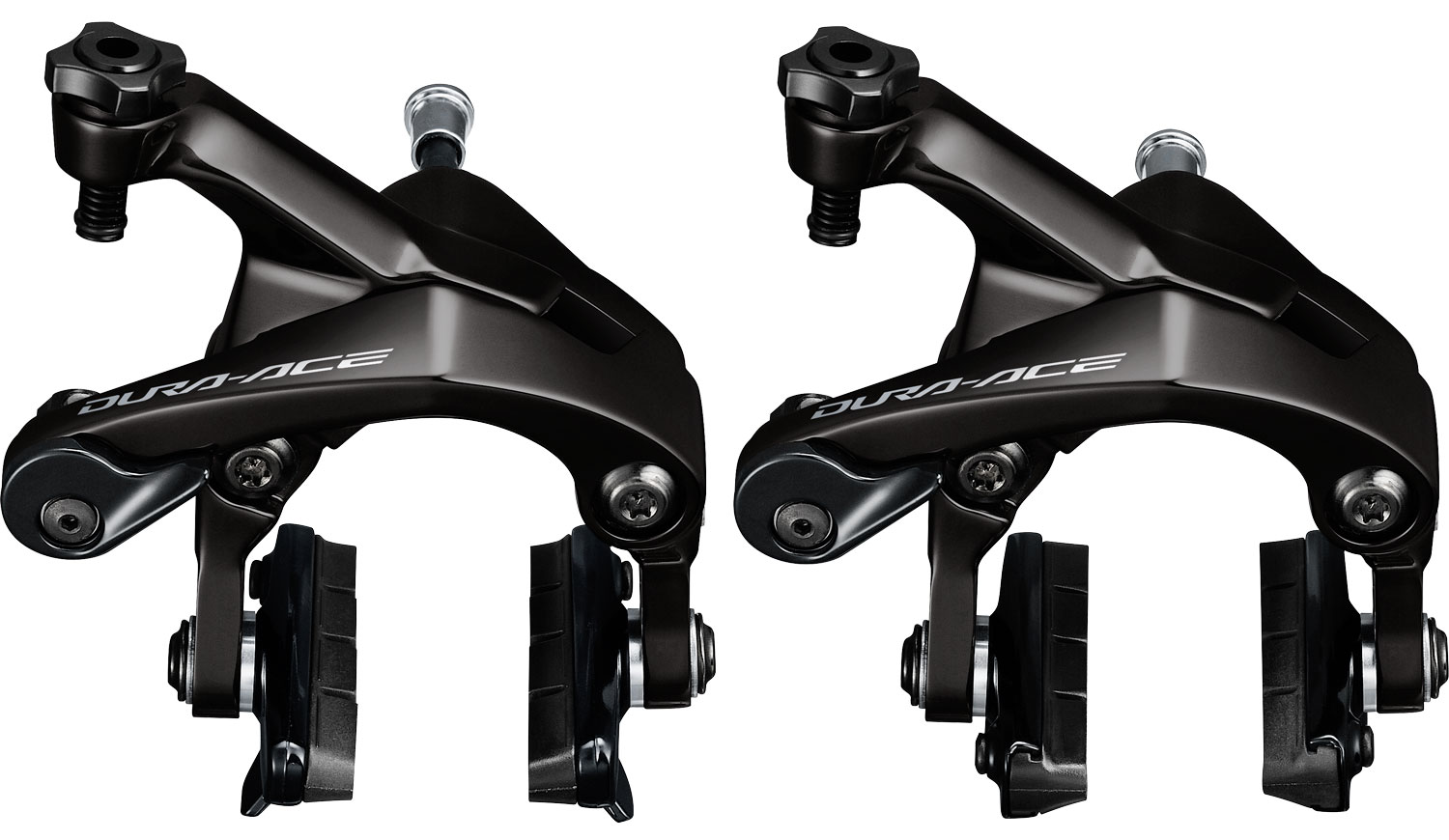

Shimano DURA ACE BR-R9200 Brake Caliper Set
The new Shimano Dura Ace BR-R9200 dual pivot brakes - Perfect balance between stiffness, light weight and braking performance.The Dual-pivot or Direct Mount type rim brake calipers bring incredibly powerful performance, offering the best balance between rigidity, weight and stopping power, providing a sleek design, bringing better clearance for tires up to 28C. Direct mount options provide integrated aerodynamic designs at the front (BR-R9210-F) and on the rear seat stay (BR-R9210-RS).
Features
- The best balance between rigidity, weight and stopping power
- More predictable, linear braking curve
- Clear contact feeling with better linearity
- Stabilizer added between axles work
- Sleek design
- Less gap between each arms
- Comfortable riding with wider tire on rough road
- Better clearance with wider tire
- Compatible with 28C tire size
- Dual Pivot and SLR-EV technology
Produkteigenschaften
- Use: Road, Triathlon
- Group: Dura Ace R9200
- Model: BR-R9200-F / BR-R9200-R
- Mounting: BR-R9200 Front / Rear - Dual Pivot
- Assembly pivot nut: BR-R9200 Front 10.5/12.5/18/27/32mm / rear 10.5mm
- Brake shoe: R55C4 (standard for aluminum rim)
- Reach: 51mm
- Technology: SLR-EV
- Rim width: 20.8-28mm
- Maximum tire size: 28mm
- Reference brake lever: ST-R9250
Model
- BR-R9200 Dual Pivot
Material
- Aluminum anodized
Farbe
- Series color

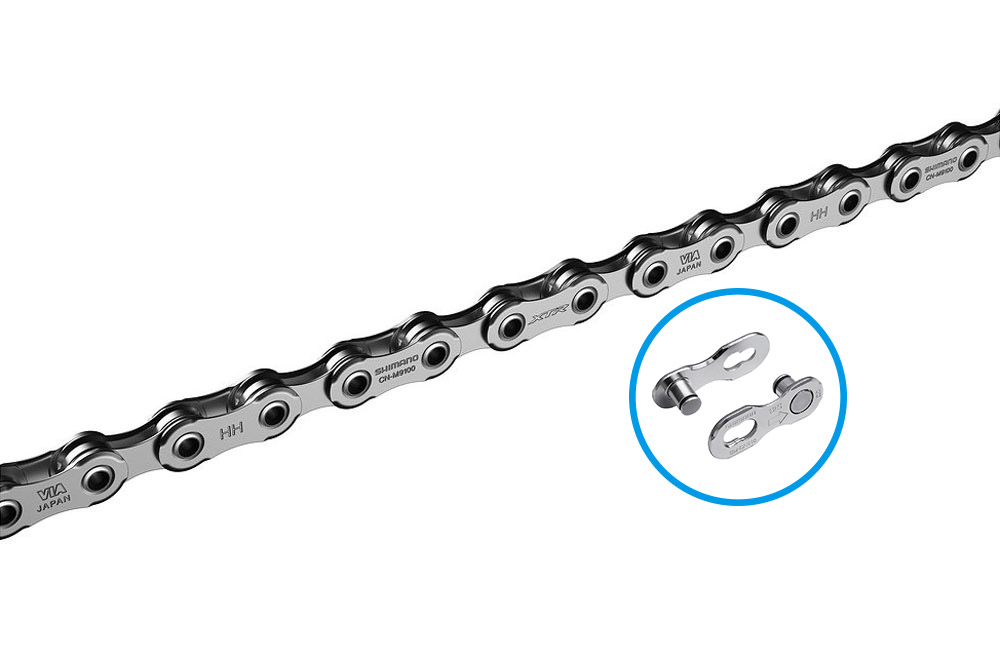

Shimano XTR CN-M9100 12-speed Chain with Quick-Link SM-CN910-12
The special design of the new Shimano CN-M9100 12-speed chain ensures improved shifting performance and smoother running - even in rough terrain. The SM-CN910-12 Quick-Link closure, which is also new, makes installation easy.Features
- New Drive System Dedicated Design Chain
- Greater chain retention to extend portion on the end of inner plate to firmly hold the tooth both front and cassette sprocket
- Enhancements to shifting performance
- Easy connect
- Smoother driving even over bumpy terrain
- Compatible with new generation of drive train
- Quick-Link (SM-CN910-12)
- Quick-Link connecting & removing pliers (TL-CN10) - Not included!
Product features
- Group: XTR M9100
- Model: CN-M9100
- Gear front: 1/2-speed
- Gear rear: 12-speed
- Type: HG
- Hollow Pin: Yes
- Pin Link Plate: SIL-TEC
- Roller Link Plate: Chromizing
- Roller: SIL-TEC
- Connector: Quick-Link SM-CN910-12
Links
- 116
Weight
- approx. 250g / 116 Links (manufacturer information)
Technologies
SEIS SHIMANO ELECTRONIC INTELLIGENT SYSTEME-Tube
Shimano Shadow RD
The mechanism rear derailleur, SHIMANO SHADOW RD, is intended for more aggressive riding. Its super low profile design carries many benefits. Because of its low profile and single tension construction, the derailleur does not hit the chain stay in rough riding conditions. The result is smooth and silent performance.
Dual-Pivot Caliper
The Dual-Pivot design realized a lightweight, compact and durable braking system. Dual-Pivot Caliper brake have made considerable progress in reduction of tolerance and deflection as well as in durability. They have achieved firm and instantaneous braking response while assuring longer service life. Moreover, the brake pads have an improved durability of 100% to help enjoy high-response braking over longer periods.
SLR-EV is brand new SLR with dual symmetric pivot brake caliper. The short-arm brake design employs two bearings and a roller to realize greater efficiency in the pivot area and deliver superior modulation and power for braking. Together with the BC-9000 brake cable, the new calipers deliver 36% more braking power than SHIMANO’s previous brake model. And we offer 2 axle symmetric brake caliper and fork mount and chain stay mount type.
