Shimano DURA ACE Di2 R9270 2x12-speed Group Disc 140/160mm
Please notify me as soon as the item is available for delivery again.
€2,489.00
incl. 19% VAT, plus €0.00 shipping costs
Choose variant
-
-
- In stock, delivery time 1-3 days
- not avaliable
- Available again from the above date
Item no.
20146201
Shimano DURA ACE Di2 R9270 2x12-speed Group Disc 140/160mm
Probably the world''s fastest road bike group: Shimano's new 12-speed Dura-Ace R9200 is the pinnacle of everything the Japanese component manufacturer has produced in terms of development and innovation in the course of its successful history. A totally advanced and performance-focused drivetrain that, thanks to the Hyperglide+, represents nothing less than a revolution in road bike technology (no box packaging).
The exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for.
E-Tube
Scope of delivery - Shimano DURA ACE Di2 R9270 2x12-speed Group + Disc Brakes 140/160mm
- 1 x Shimano DURA ACE FC-R9200 12-speed Crank (choose variant)
- 1 x Shimano SM-BBR60 Hollowtech II BSA Bottom Bracket
- 1 x Shimano DURA ACE Di2 ST-R9270+BR-R9270 2x12-speed Disc Brake Set
- 1 x Shimano DURA ACE Di2 FD-R9250 2x12-speed Front Derailleur Braze On
- 1 x Shimano DURA ACE Di2 RD-R9250 12-speed Rear Derailleur
- 1 x Shimano DURA ACE CS-R9200 12-speed Cassette incl. Lock Ring (choose variant)
- 1 x CN-M9100 12-speed Chain 116 Links with Quick-Link
- 1 x BT-DN300 Di2 Battery for built-in installation in the Seat Post
- 1 x EW-EC300 Charging Cable USB Type A (cable length 1.500mm)

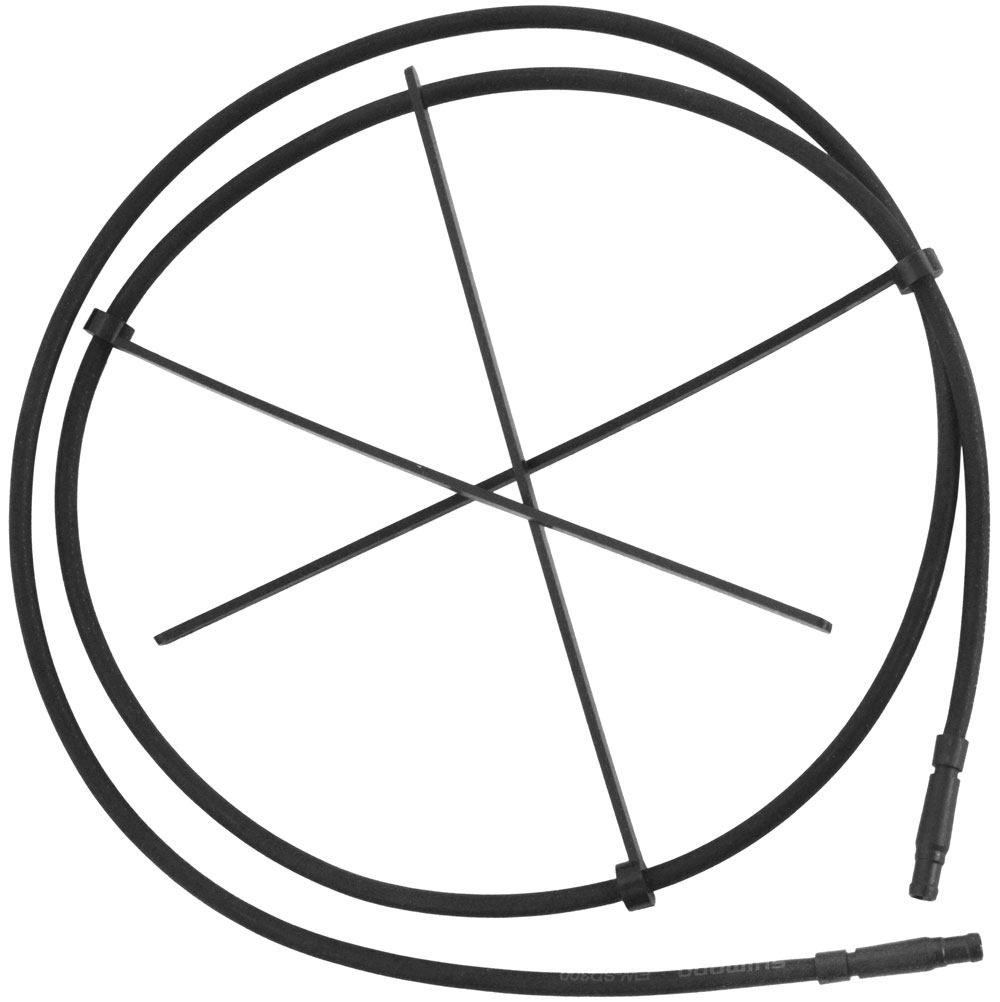

- 1 x Shimano Di2 EW-SD300-I Electric Wire 700mm for internal routing
- 1 x Shimano Di2 EW-SD300-I Electric Wire 1200mm for internal routing
- 1 x Shimano RT-CL900 Center-Lock Disc Rotor 140mm incl. Lockring with external tool holder
- 1 x Shimano RT-CL900 Center-Lock Disc Rotor 160mm incl. Lockring with external tool holder
THE SCIENCE OF SPEED: Shimano Dura Ace Di2 R9270 12-speed Group
Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That's why every component has been revised, refined and optimised to make you even faster - whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.The exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for.
Shimano DURA ACE FC-R9200 12-speed Crank (choose variant)
The new design of the Shimano Dura Ace FC-R9200 2 x 12-speed HOLLOWTECH II crankset not only brings a cult-like look and aesthetics, but also ensures even better performance. The DURA-ACE FC-R9200 crankset performs two crucial tasks: It converts pedal power into driving force and ensures extremely fast and precise front shifting. At the same time, the new dual-sided FC-R9200-P power meter processes all this data with outstanding accuracy. In addition, the lightweight HOLLOWTECH II crank arms and SHIMANO's leading chainring design further contribute to the FC-R9200's top ranking! Furthermore, it is available in various crank arm lengths and with different chainring options, ensuring that everyone will find the perfect crank for their needs.Features
- HOLLOWTECH II crankset
- Optimum power transfer Best balance for lighter weight and efficiency
- New designed crank arm
- Maintains high rigidity and reduces weight
- 4-arm construction crankset
- Iconic design
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: FC-R9200
- Q-factor: 146mm
- Threaded BB shell width: 68 / 70mm
- Gear front: 2-speed
- Gear rear: 12-speed
- Construction: Hollowtech II
- Compatible chain: CN-M9100 HG 12-speed
- PCD: 110mm
- Chain line: 43.5mm
Gradation / crank arm length (choose variant)
- 50-34 / 170mm
- 50-34 / 172.5mm
- 52-36 / 170mm
- 52-36 / 172.5mm
Material
- Crank arm: Aluminum Anodized
- Crank axle: Steel Plated
- Large Chainring: Aluminum Anodized / CFRP
- Small Chainring: Aluminum Anodized
Color
- Series color
Shimano DURA ACE Di2 ST-R9270+BR-R9270 2x12-speed Disc Brake Set
Now equipped with SERVO WAVE braking technology, the Shimano Dura Ace Di2 ST-R9270 brake lever with BR-R9270 caliper offers unparalleled modulation and control. Wireless shifting provides a clean look on the bike and allows for uniquely fast and precise shifting. All these features are integrated into a DUAL CONTROL shift/brake lever that is both lightweight and ergonomic thanks to the use of state-of-the-art materials ensuring optimum comfort and control even under challenging conditions. The hydraulic 2-piston brake caliper BR-R9270 for with Flat-Mount and L03A Resin disc pads with fin. The completely newly developed hydraulic disc brakes provide an unprecedented combination of braking power and controllability. With the brand new monobloc design, the peak of high braking performance has now been reached. The lighter BR-R9270 caliper offers wider pad spacing and reduces noise levels. Finally, a new bleeding system makes maintenance easier than ever before.Features
- FASTEST AND MOST RELIABLE SWITCHING OPERATIONS EVER
- Improved aerodynamics - Revised DUAL CONTROL shift/brake levers with raised and rounded brake grips
- The drive can be adjusted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the shift lever can be assigned certain functions
- Wireless where it matters
- SHIMANO's in-house developed, extremely secure Di2 wireless chip scores with low interference probability, unrivalled processing speed and lower energy consumption
- Fastest gear changes front and rear
- The wireless STIs convince with high energy efficiency and a battery life of up to 1.7 years (CR1632)
- Quieter and more maintenance-friendly brake components
- Excellent brake control and heat dissipation
- Simple wheel replacement
- Easy and clean bleeding system
- Included in delivery: 1 Di2 ST-R9270 2x12-speed STI Dual Control Set, 2 BR-R9270 Flat-Mount Disc Brake Calipers, 1 Flat-Mount Adapter 140mm/160mm, 2 pair Brake Pads L03A-Resin with Fin, 2 Brake Hoses SM-BH90-JK-SSR 1000mm / 1700mm (shortable), 4 Screws for brake caliper (for rear 2 x 38mm) and 2 Tube Joint Kits
- The brake hoses SM-BH90-JK-SSR are with mineraloil filled and pre-mountedon the calipers BR-R9270!
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: ST-R9270 Set
- Type: Dual-Control (STI)
- Handlebar mounting: left / right
- Gear front: 2-speed
- Gear rear: 12-speed
- Optical gear display: No
- Lever reach adjust: Yes
- Handlebar diameter: 23.8mm/24.2mm
- Brake-type: Hydraulic Disc Brake
- Brake caliper: BR-R9270
- Brake mounting: Flat-Mount
- Brake pads: L03A Resin with Fin
- Brake hose: SM-BH90-JK-SSR front 1000mm / rear 1700mm (shortable)
- One-Way bleeding: Yes
- Brake fluid: Mineral oil
- Recommended brake rotor: SM-RT900 (140mm/160mm)
- Compatible electric wire: EW-SD300
- E-tube Project: Yes
- E-tube port (pcs): each 2
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: Yes
Material
- Body: CFRP
- Lever: Carbon, painted
- Caliper: Aluminium
Color
- Series color
Shimano DURA ACE Di2 FD-R9250 2x12-speed Front Derailleur Braze On
The Shimano Dura Ace Di2 FD-R9250 2 x 12-speed front derailleur incorporate these new cockpit functions. The electronic front derailleur is compact and designed to protect the shifting operation in the event of a crash. The fastest shifting group has become even faster with the DURA-ACE FD-R9250 front derailleur. The new version weighs less than 100 g and shifts 45 % faster than SHIMANO's FD-R9150, which is currently the fastest front derailleur on the market. The front of the FD-R9250 has also been minimised to reduce aerodynamic drag.Features
- FULLY CUSTOMISABLE
- The drive can be adapted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the gear lever can be assigned specific functions
- WHEN EVERY SECOND COUNTS
- Our exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for
- Frontal area of attack of the front derailleur reduced by 33%
- Fastest gear changes front and rear
- Compact and clean optics
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: FD-R9250
- Mounting: Braze On
- Action: Down-Swing
- Gear front: 2-speed
- Gear rear: 12-speed
- Top gear teeth: 50-54T
- Total capacity: 16T
- Compatible chain: CN-M9100 HG 12-speed
- Chain stay angle: 61-66°
- Chain line: 43.5mm
- Compatible electric wire: EW-SD300
- Firmware update by E-tube Project: Yes
- E-tube port (pcs): 1
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: No
Material
- Aluminum
- Titanium
- CFRF
Color
- Series color
Shimano DURA ACE Di2 RD-R9250 12-speed Rear Derailleur
The Shimano Dura Ace RD-R9250 12-speed rear derailleur combines charging port and wireless system in one compact unit to provide a lightning-fast and precise shifting performance that is ready to win. With just one cage length, the rear derailleur shifts on cassettes from 11-28T to 11-34T, further enhancing the versatility of the world's best road bike component group.Features
- FULLY CUSTOMISABLE
- The drive can be adapted to the rider's preferences via the E-TUBE app
- Among other things, the shift speed can be set, a fully or semi-synchronous shift mode can be selected and the programme buttons on the gear lever can be assigned specific functions
- WHEN EVERY SECOND COUNTS
- Our exclusive wireless protocol increases shifting speed without sacrificing any of the shifting precision and reliability SHIMANO is known for
- Fast, jerk-free shifting for responsive acceleration at any speed
- Low profile rear derailleur design
- SHIMANO SHADOW RD
- Race endurance for less damage in crush
- Maintains compact and smooth appearance
Product features
- Use: Road
- Group: Dura Ace Di2 R9250
- Model: RD-R9250
- Mount type: Direct Mount
- Gear rear: 12-speed
- Compatible chain: CN-M9100 HG 12-speed
- Max. teeth large sprocket: 34T
- Min. teeth large sprocket: 28T
- Max. teeth small sprocket: 11T
- Min. teeth small sprocket: 11T
- Max. front difference: 16T
- Total capacity: 35T
- Compatible electric wire: EW-SD300
- Firmware update by E-tube Project: Yes
- E-tube port (pcs): 1
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: Yes
Material
- Aluminum
- CFRP
Color
- Series color
Shimano DURA ACE CS-R9200 12-speed Cassette (choose variant)
The Shimano CS-R9200 is the suitable cassette for new Dura Ace R9200 12-speed group. The most advanced drivetrain is 100 % performance focused and truly revolutionary thanks to the HYPERGLIDE+ technology. SHIMANO HYPERGLIDE+ cassettes have set new standards in off-road use with their smooth upshifting and downshifting across the entire gear range. Now it's time to use this technology on road bikes as well. Even when riding at maximum power on climbs or while racing to the finish line, you can now shift without having to worry. At all speed levels, the DURA-ACE R9250 components ensure maximum efficiency thanks to larger teeth and are at the same time compatible with new HG L2 road 12-speed FREEHUB body. The fact that you can switch to 12 gears without increasing the weight makes the DURA-ACE CS-R9200 cassettes the new shifting benchmark for road bikes.Features
- Hyperglide+ faster shifting, improved speed, shifting efficiency and smoothness on any terrain
- Faster, seamless shifts under maximum pedaling load
- Refined 12 step gear combination provides peak efficiency and accelerating performance for every situation
- Add wider 34T spec for pro-race usage
- Compatible with new HG L2 road 12-speed FREEHUB body
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: CS-R9200
- Type: Hyperglide L2 Road
- Gear: 12-speed
- Compatible chain: CN-M9100 HG 12-speed
Gradation (choose variant)
- 11-30 (11-12-13-14-15-16-17-19-21-24-27-30 teeth)
- 11-34 (11-12-13-14-15-17-19-21-24-27-30-34 teeth)
Material
- Spider arm: Aluminum
- Spockets: Titan/Steel
- Lock ring: Aluminum
Weight (manufacturer information)
- 223g (11-30)
- 253g (11-34)
Shimano CN-M9100 12-speed Chain 116 Links with Quick-Link
The special design of the new Shimano CN-M9100 12-speed chain ensures improved shifting performance and smoother running - even in rough terrain. The SM-CN910-12 Quick-Link closure, which is also new, makes installation easy.Features
- New Drive System Dedicated Design Chain
- Greater chain retention to extend portion on the end of inner plate to firmly hold the tooth both front and cassette sprocket
- Enhancements to shifting performance
- Easy connect
- Smoother driving even over bumpy terrain
- Compatible with new generation of drive train
- Quick-Link (SM-CN910-12)
- Quick-Link connecting & removing pliers (TL-CN10) - Not included!
Product features
- Use: Road
- Model: CN-M9100
- Gear rear: 12-speed
- Type: HG
- Hollow Pin: Yes
- Pin Link Plate: SIL-TEC
- Roller Link Plate: Chromizing
- Roller: SIL-TEC
- Connector: Quick-Link SM-CN910-12
Links
- 116
Shimano RT-CL900 Center-Lock Rotor 140/160mm
SHIMANOs compact and lightweight RT-CL900 brake discs feature particularly fast heat dissipation thanks to ICE TECHNOLOGIES FREEZA heat management system. SHIMANOs CENTER LOCK design makes the installation and removal of brake discs very easy.Features
- High-performance and consistent brake performance
- New ICE TECHNOLOGIES FREEZA construction for boosting heat dissipation
- 140mm and 160mm optimal for Road / Gravel
- Lockring type with external (External Serration) toothing
Product features
- Use: Road
- Model: RT-CL900
- Disc mount: Center-Lock
- Pad compatibility: Metal / Resin
- Lockring: With external tool holder
Diameter
- 140mm
- 160mm
Material
- Rotor: Stainless steel / Aluminum
- Lockring: Aluminum
Technologies
SEIS SHIMANO ELECTRONIC INTELLIGENT SYSTEMThe SEIS innovative shift technology is still based on the SHIMANO INDEX SYSTEM (SIS) that has proved its superior gear changing characteristics over the years. The big difference is that in this case, the shifting action is provided for by electronics instead of mechanics. This electronic shifting system has been extensively tested over past two years by several professional riders in all conditions possible, such as rain, mud, low temperatures, cobble stone roads and combinations of all of these at the same time. Shifting is executed by simply pressing the button. No power is needed to shift, which gives important advantages since it is easier now to always keep a tight grip on the handlebar and to keep your concentration on riding instead on shifting. The shift system allows accurate and effortless shifting in difficult circumstances like when you have cold hands or when you are completely exhausted. Furthermore, the shifting performance will never be affected by contaminated or stretched cables since the shifting signal is transferred electronically. The operating buttons work similarly to mechanical Dual Control Levers so you don’t need to re-program your mind for a new system.
E-Tube
E-Tube platform offers optimum flexibility on your bike. E-TUBE transmits interactive signals and power supply to each parts by “Plug & play” connection. E-TUBE is no rust, no stretch, no freeze and it ensures advanced low maintenance. And SM-PCE1 connects between PC and components to update firmware. Digital device stay the latest version with updating firmware for improve function.
HOLLOWGLIDE - Hollow technology on outer chainring
High rigidity hollow structure cuts down on weight yet maintains strength. Better power transfer and quicker and more precise front shifting.
HOLLOWTECH II - Providing the best balance of stiffness, strength, weight and rotating performance
HOLLOWGLIDE - Hollow technology on outer chainring
High rigidity hollow structure cuts down on weight yet maintains strength. Better power transfer and quicker and more precise front shifting.
HOLLOWTECH II - Providing the best balance of stiffness, strength, weight and rotating performance
The concept of HOLLOWTECH II technology is focused on producing a superior crankset which will maximize a rider’s power transfer. The rigidity of the crankset ensures pedaling efficiency while its weight, a key element of the crankset, you want light, aids in cycling longer distances over which the rider needs to pedal more. Naturally, SHIMANO strove for the optimum balance between the conflicting needs of stiffness while producing a lightweight crank. HOLLOWTECH technology is an ultra-lightweight hollow crankarm created by SHIMANO with the company’s own proprietary forging technology that also maintains rigidity. The addition of HOLLOWTECH II technology integrates the bottom bracket axle with the right crankarm for more stiffness and a weight savings to achieve a high-dimensional balance. Its outboard bottom bracket bearing system provides better weight distribution and more pedaling stability, allowing for more efficient power transfer.
Shimano Shadow RD
The mechanism rear derailleur, SHIMANO SHADOW RD, is intended for more aggressive riding. Its super low profile design carries many benefits. Because of its low profile and single tension construction, the derailleur does not hit the chain stay in rough riding conditions. The result is smooth and silent performance.
Shimano Shadow RD
The mechanism rear derailleur, SHIMANO SHADOW RD, is intended for more aggressive riding. Its super low profile design carries many benefits. Because of its low profile and single tension construction, the derailleur does not hit the chain stay in rough riding conditions. The result is smooth and silent performance.
Shimano DURA-ACE Di2 R9250
