Shimano ULTEGRA Di2 R8170-P 2x12-speed Powermeter Group Disc 160/160mm TOP-DEAL

SHIMANO’s Di2 Ultegra shifting systems utilise wireless technology wherever it makes sense for everyday riding and for ultimate sporting performance. Removing the physical connection between the shift levers and the rear derailleur creates a tidy cockpit and also simplifies the installation process. At the same time, the connection of the shifting components to an internal battery ensures absolute reliability thanks to the stable power supply (without original packaging).

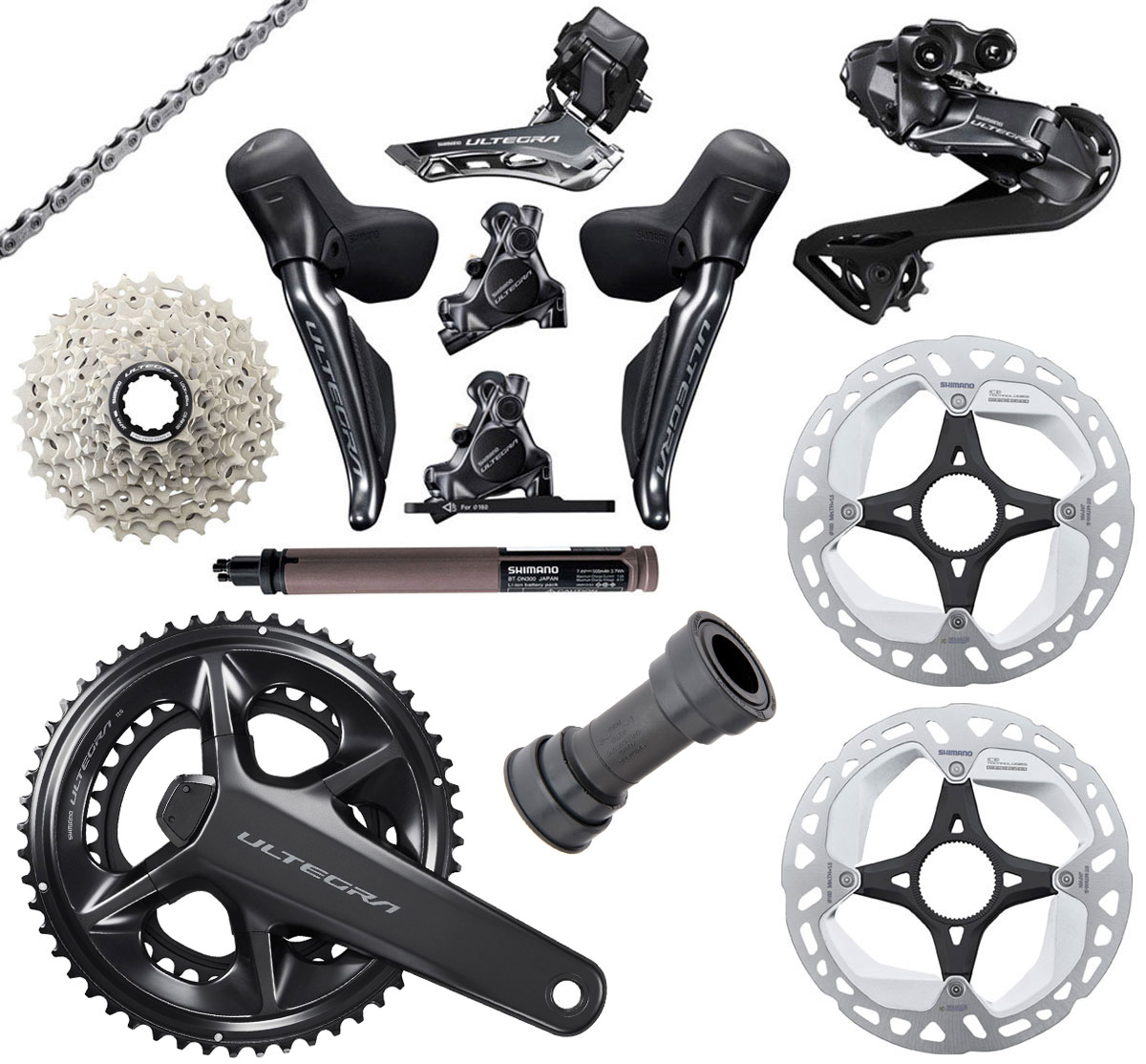

Contents - Shimano Ultegra Di2 R8170-P 2x12-speed power metre groupset + 160/160mm disc brakes

• 1 x Shimano ULTEGRA FC-R8100-P 12-speed power metre crankset (select variant: gear ratio and crank arm length)

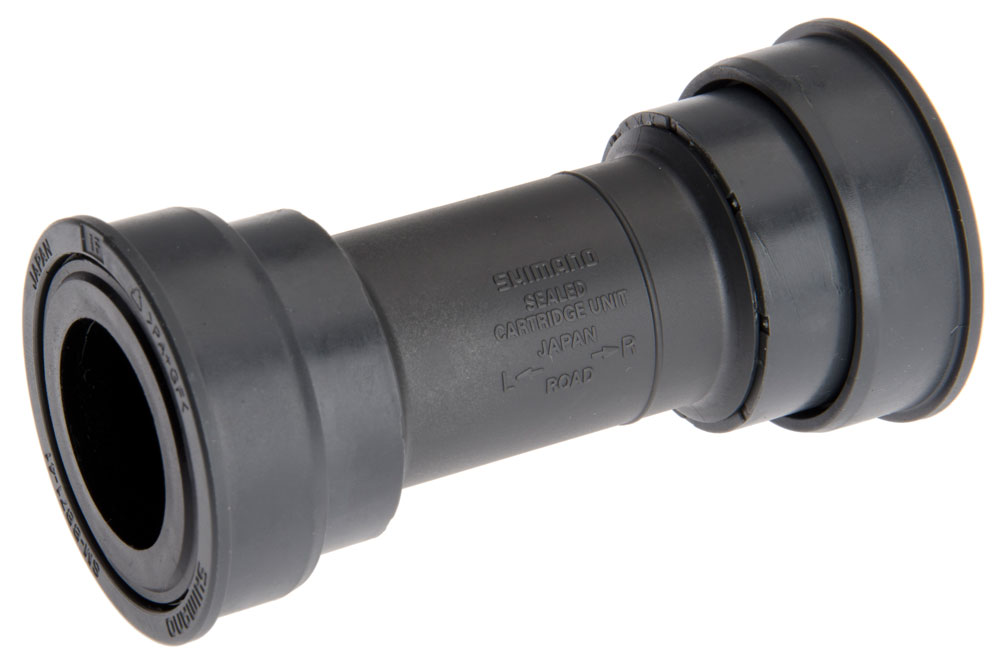

• 1 x Shimano SM-BB71-41B Hollowtech II Press Fit bottom bracket
• 1 x Shimano ULTEGRA Di2 ST-R8170+BR-R8170 2x12-speed disc brake set
• 1 x Shimano ULTEGRA Di2 FD-R8150 2x12-speed front derailleur (solder-on)
• 1 x Shimano ULTEGRA Di2 RD-R8150 12-speed rear derailleur
• 1 x Shimano ULTEGRA CS-R8100 12-speed cassette incl. retaining ring (select variant: gear range)
• 1 x Shimano XT CN-M8100 12-speed chain, 124 links with quick-link

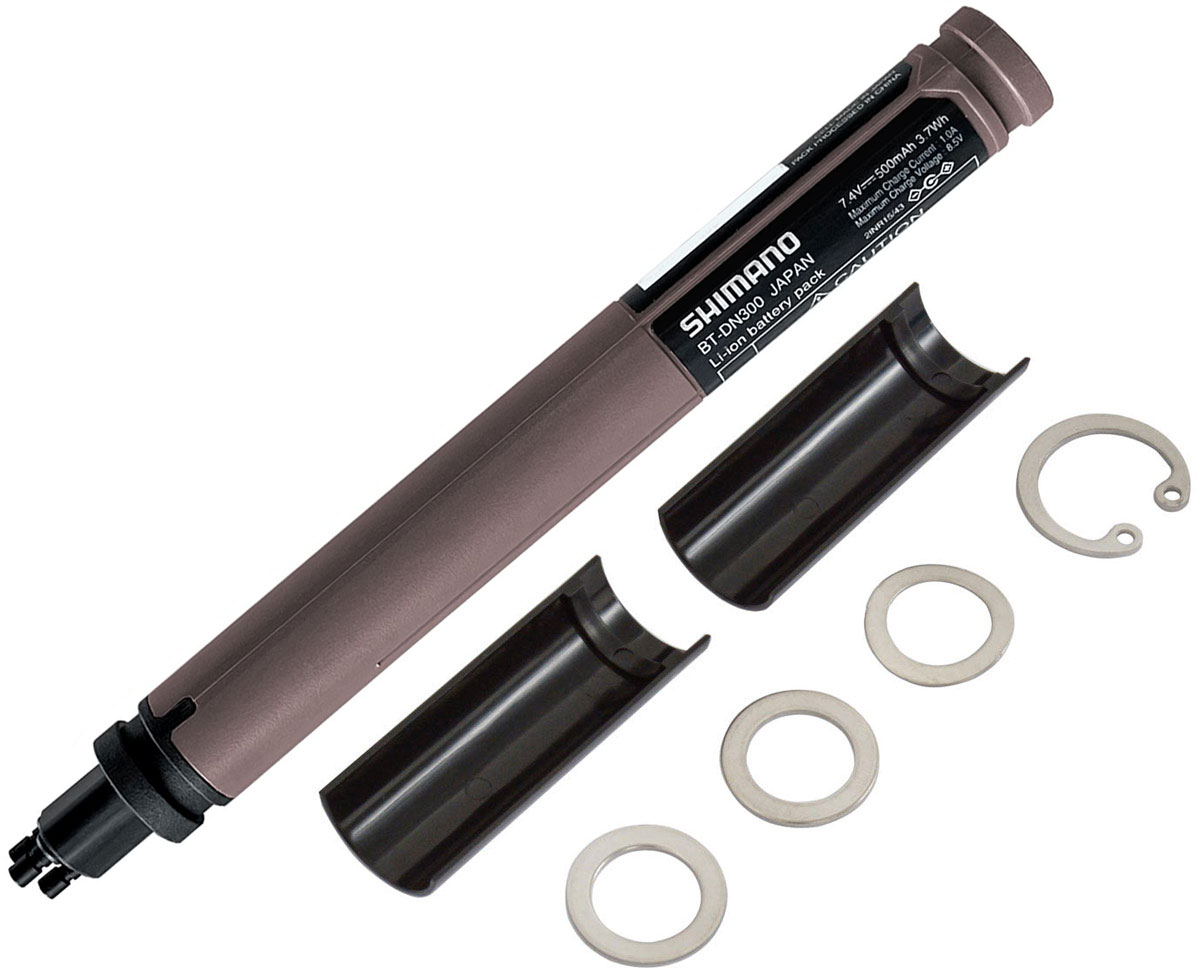

• 1 x Shimano BT-DN300 Di2 battery for fitting in the seatpost

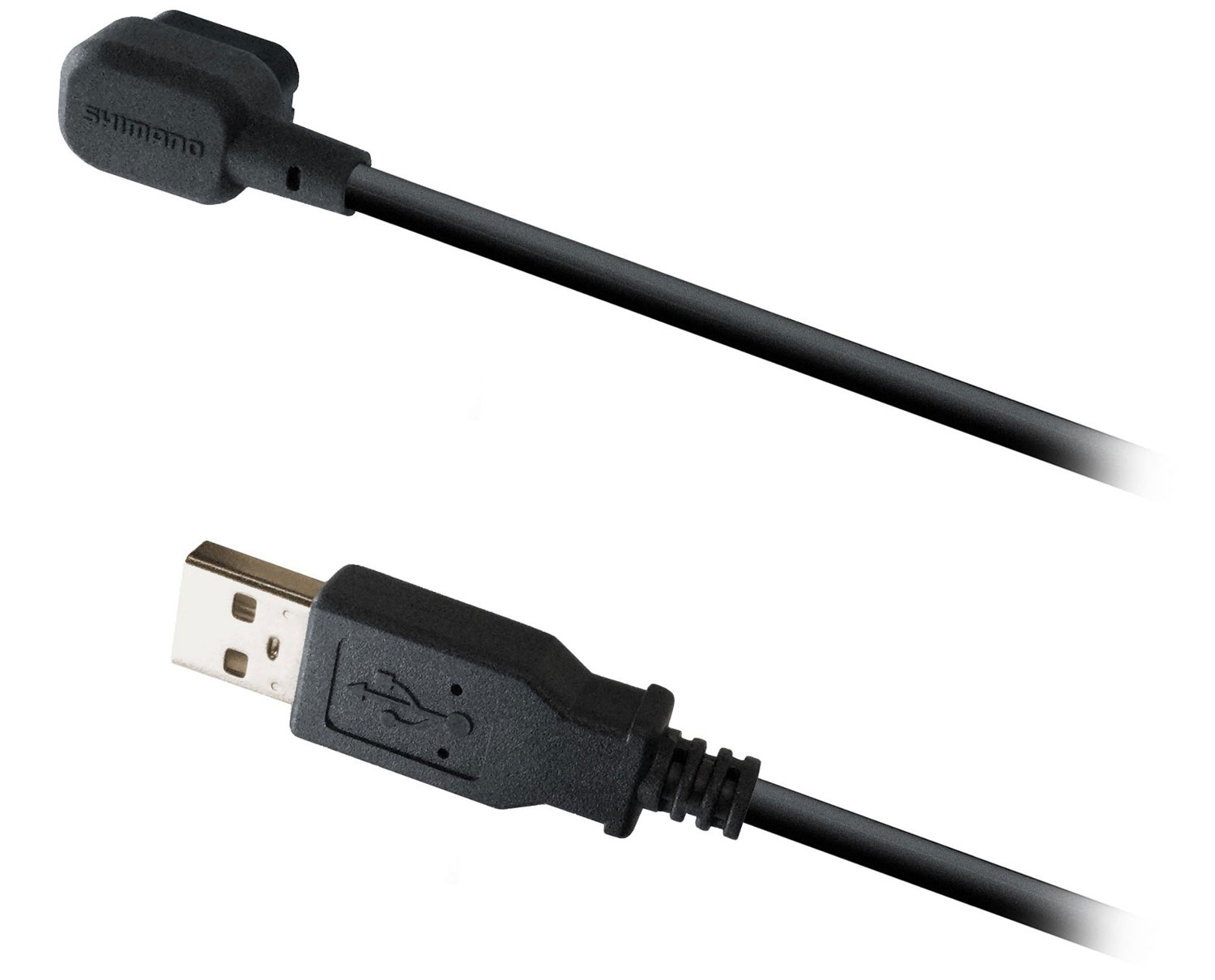

• 1 x Shimano EW-EC300 USB Type A charging cable (cable length 1500mm)

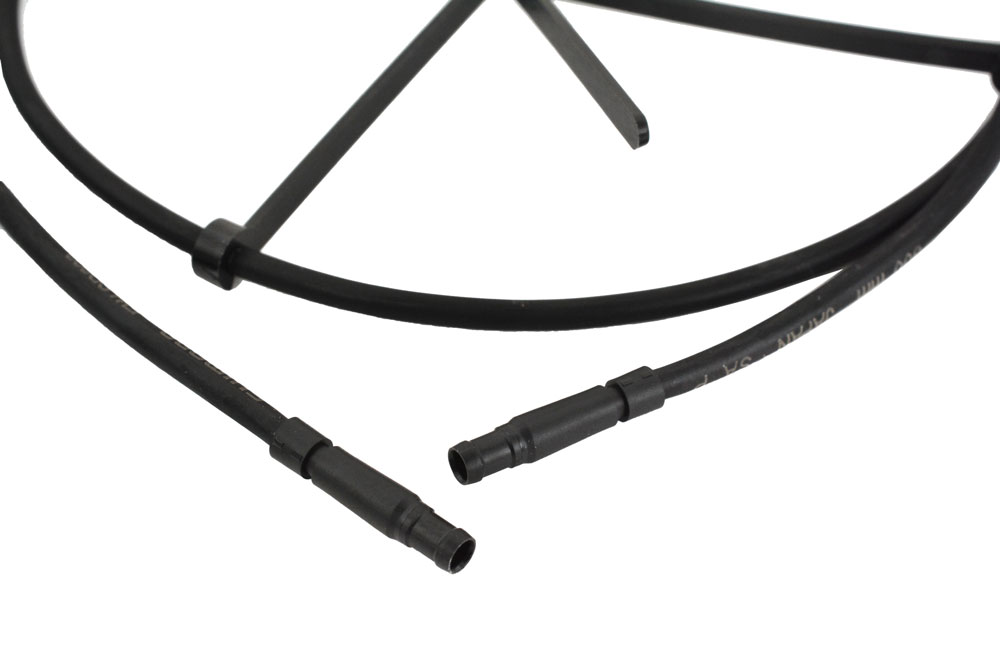

• 1 x Shimano Di2 EW-SD300-I power cable, 700 mm, for internal cable routing
• 1 x Shimano Di2 EW-SD300-I power cable, 1400mm, for internal cable routing

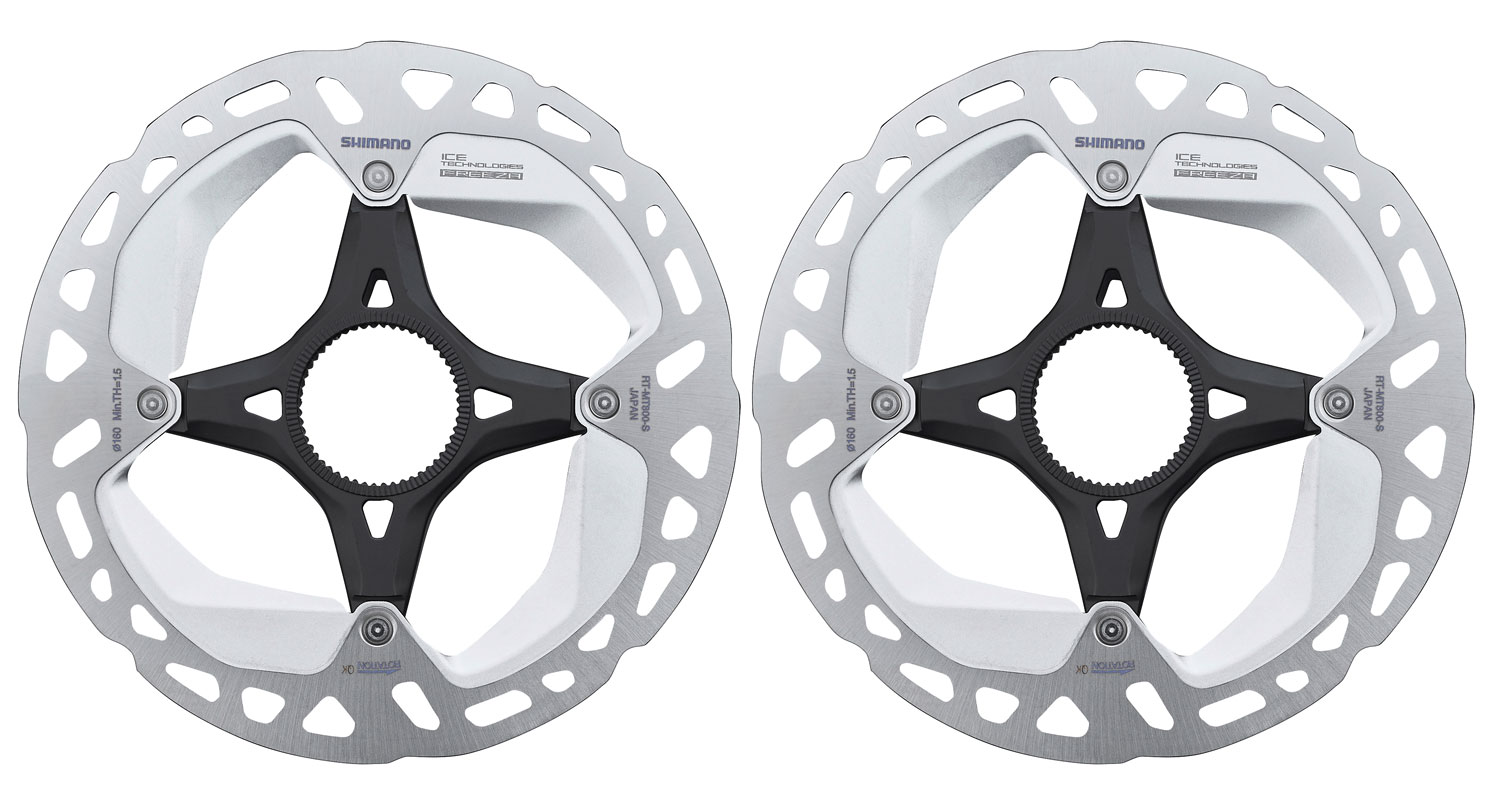

• 2 x Shimano RT-MT800 Centre-Lock brake discs, 160 mm, including lock ring

THE SCIENCE OF SPEED: the Ultegra Di2 2x12-speed groupset from Shimano

Great speed brings great responsibility. That is why, faced with the challenge of making the new ULTEGRA groupset even faster, Shimano has opted for a holistic and 100% performance-oriented approach. The new 12-speed road bike groupset delivers unrivalled control and comfort anytime, anywhere – whether in a mass-participation race, chasing a personal best or on a leisurely ride with friends. That is the ‘Science of Speed’. And that is what sets SHIMANO apart from the rest.

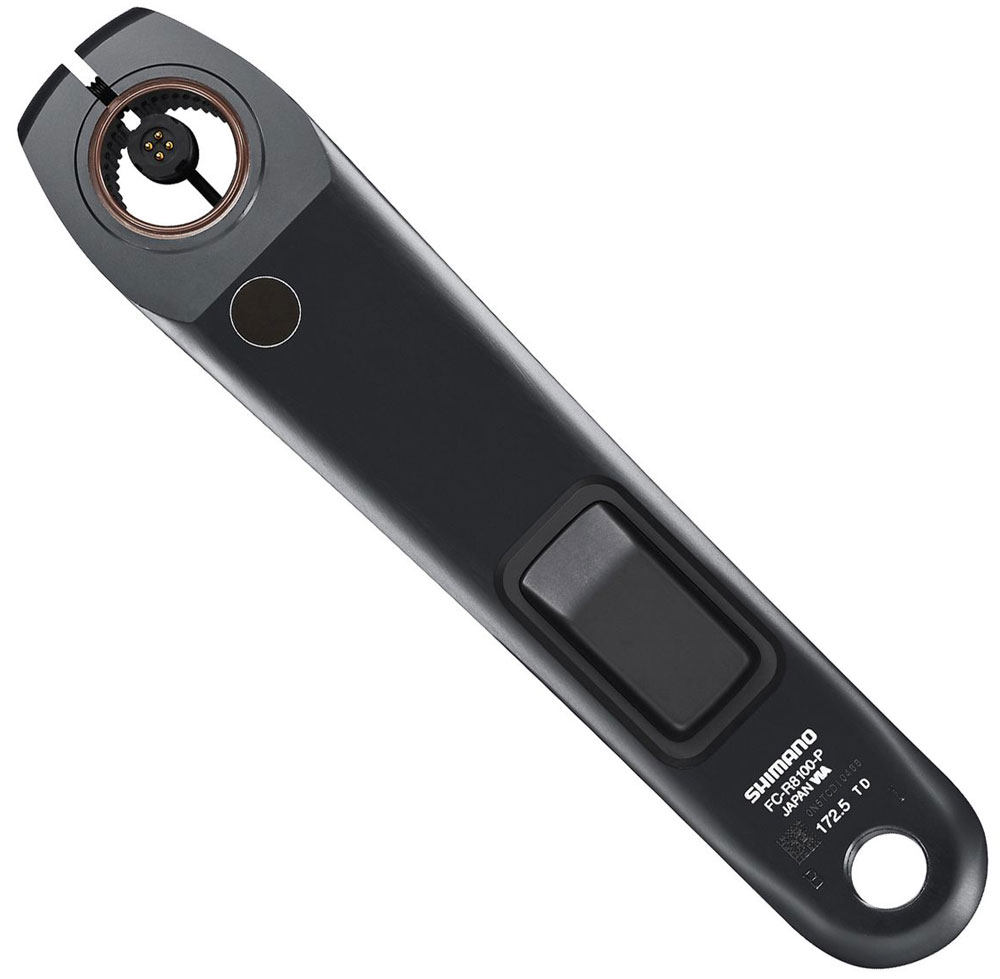

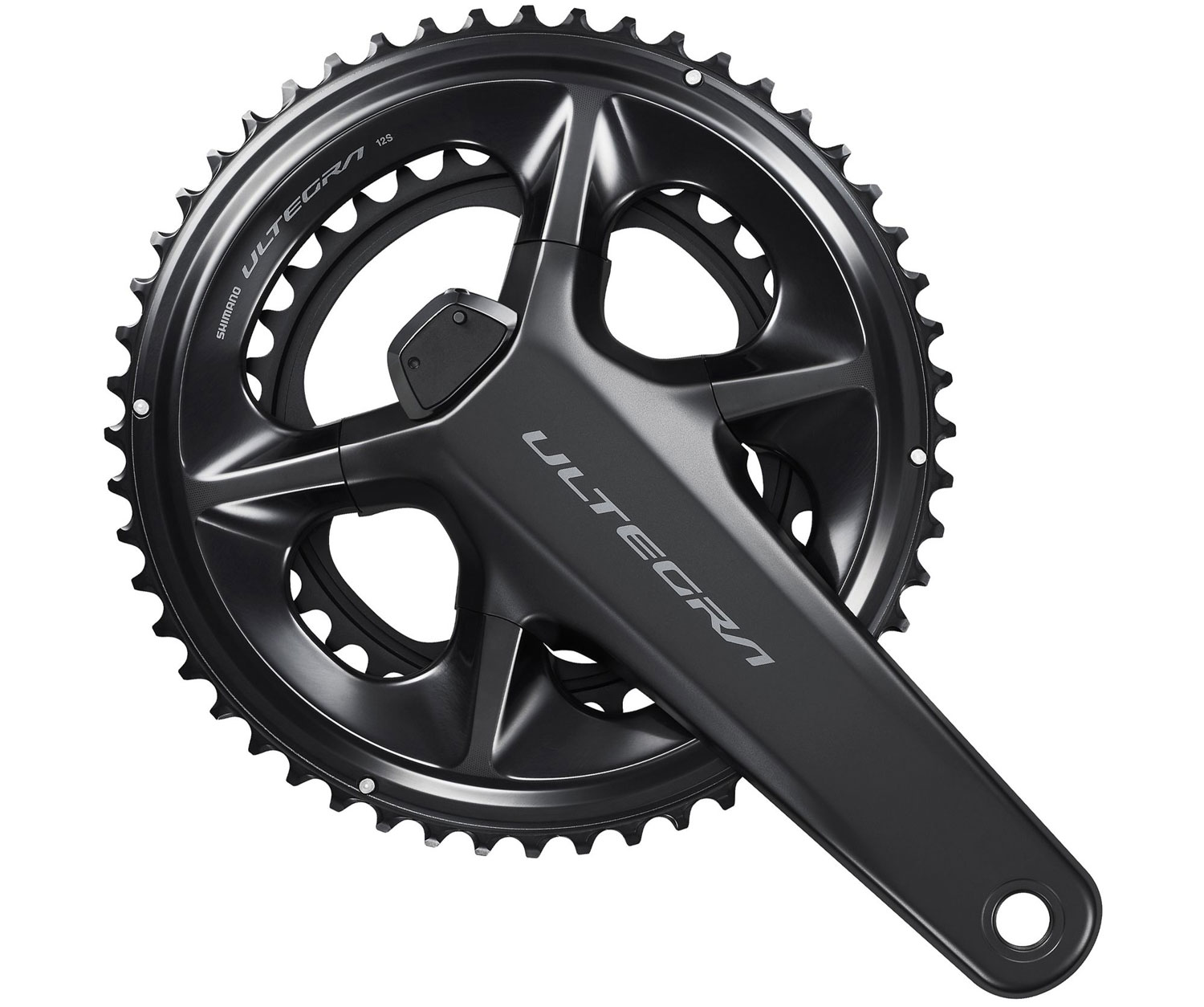

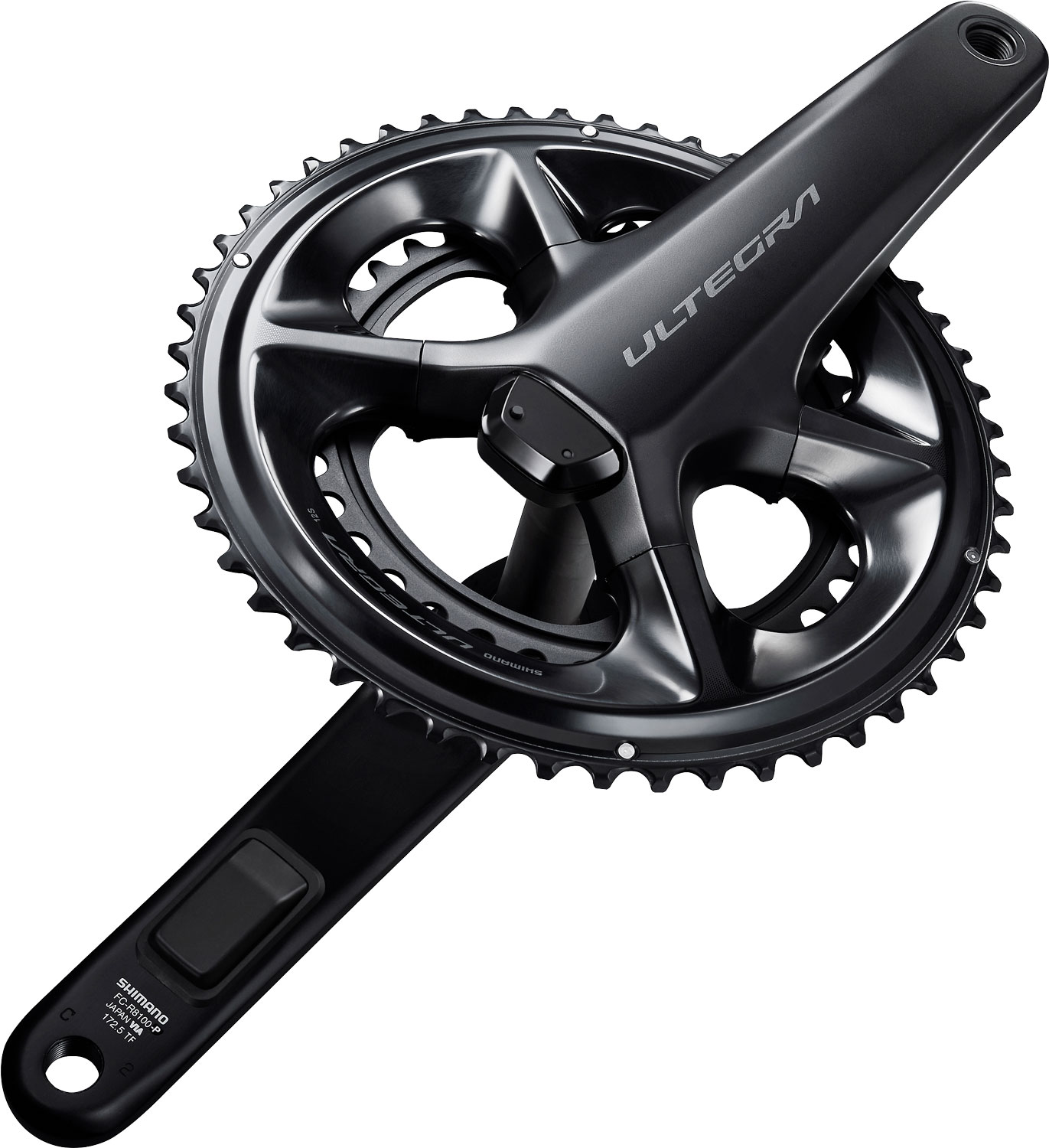

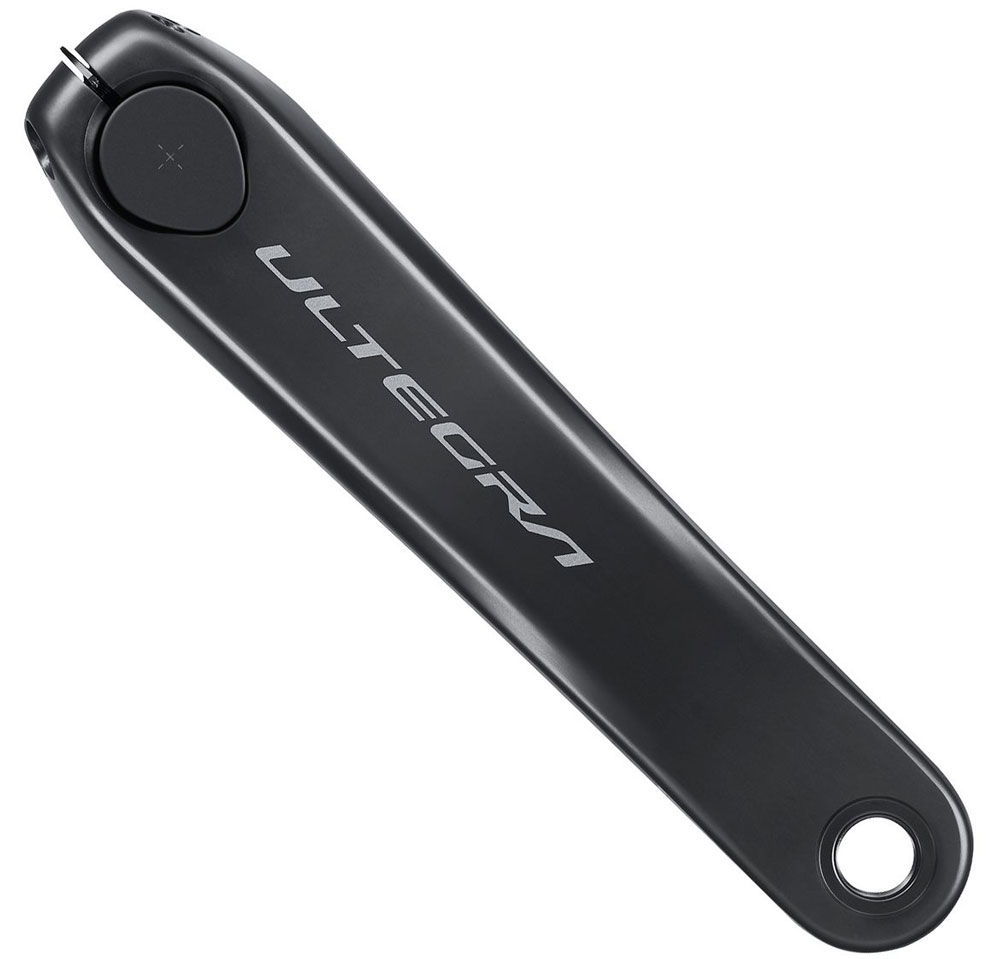

Shimano ULTEGRA FC-R8100-P 12-speed power metre crankset (select variant)

The new design of the Shimano Ultegra FC-R8100-P 2 x 12-speed HOLLOWTECH II power metre crankset not only boasts a look and aesthetic with the makings of a cult classic, but also delivers even greater performance. The new dual-sided power metre with optimised accuracy (±2.0%) sets a new standard in power measurement. The ULTEGRA FC-R8100-P offers the same accuracy and range of functions as the DURA-ACE power metre crankset at a more affordable price. Measuring training thresholds is a science and requires user-friendliness. The new power measurement system offers both. The dual-side measurement is accurate to within 2.0 per cent, and zero-point calibration can be carried out quickly and easily. And perhaps most importantly: the long battery life, ease of recharging and connectivity via ANT+ and Bluetooth LE make using and recording training sessions a breeze.

Features

• Integrated design
• Reliable electronic system
• Waterproof in all conditions
• Easy maintenance
• Integrated rechargeable battery
• Greater convenience thanks to the charge level indicator
• Easy replacement of chainrings without any loss of performance
• Distance from the frame
• Ample clearance with our direct-mount brake caliper
• Precise data recording: ±2.0% accuracy of the power meter across the entire range
• Stable power measurement system across different pedalling positions
• Active temperature compensation
• In-house developed strain gauge
• Automatic software compensation
• Quick system start-up
• Easy zero reset via a switch on the transmitter
• Direct response
• Left and right sides connected by a cable
• Cadence sensor
• Bluetooth® LE and ANT+
• Firmware updates via wireless connection
• HOLLOWTECH II crankset
• Optimal power transfer Optimal balance of low weight and efficiency
• Newly designed crank
• For high stiffness and reduced weight
• 4-arm crankset
• Legendary design

Product features

• Application: Road bike
• Groupset: Ultegra R8100
• Model: FC-R8100-P
• Gear ratio: 50–34 teeth
• Q-factor: 146 mm
• Cage width: 68 / 70 mm
• Front gears: 2-speed
• Rear gears: 12-speed
• Mounting: Hollowtech II
• Compatible chain: CN-M8100 HG 12-speed
• 4-arm crankset: Yes
• Bore diameter: 110mm
• Chainline: 43 .5 mm

Gearing | Crank arm length (select variant)

• 50-34 | 170 mm
• 50-34 | 172.5 mm
• 50-34 | 175 mm
• 52-36 | 170 mm
• 52-36 | 172.5 mm
• 52-36 | 175 mm

Material

• Crank arms: aluminium, anodised
• Crank axle: steel, plated
• Large chainring: Anodisedaluminium / carbon fibre-reinforced plastic
• Small chainring: Anodisedaluminium

Colour

• Series color

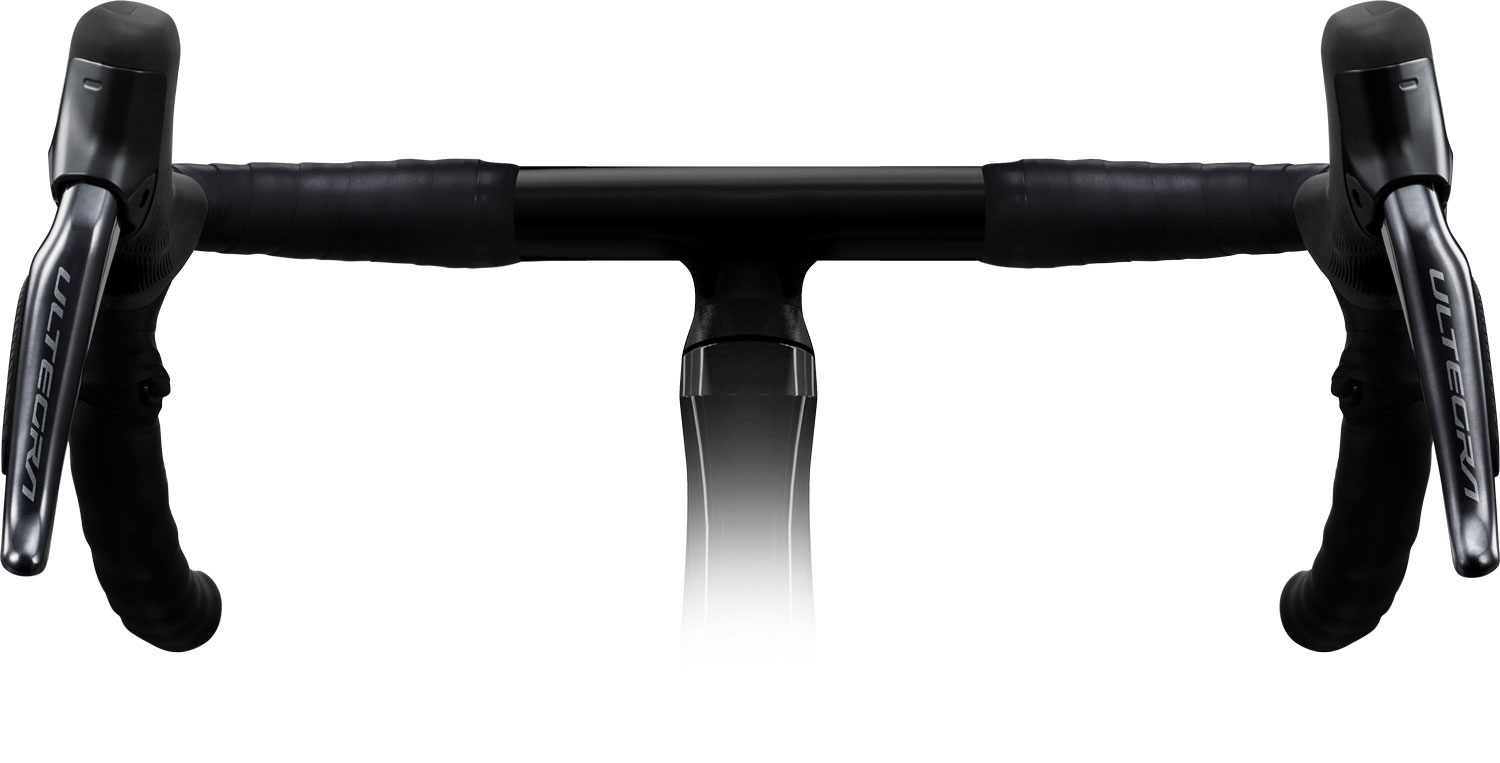

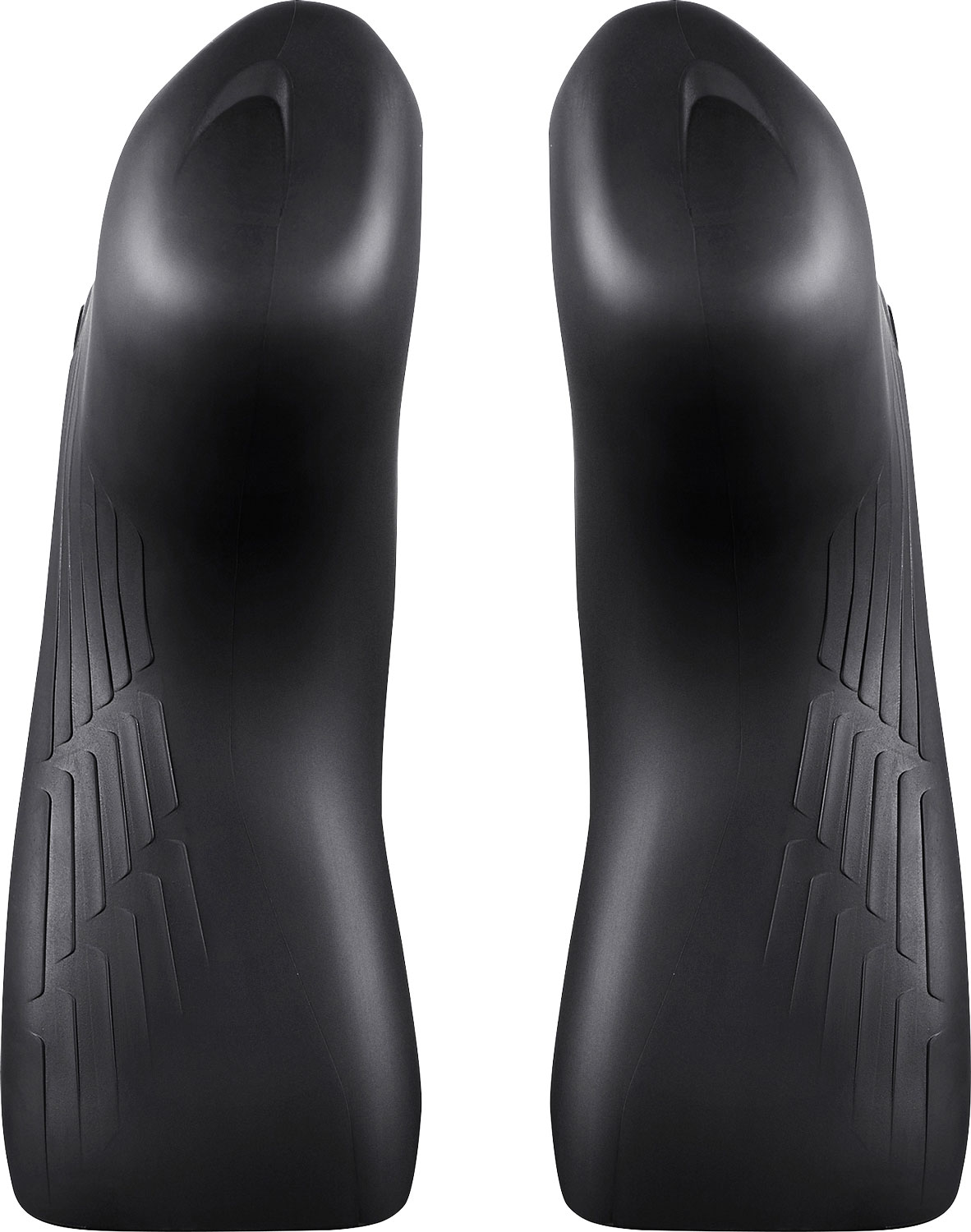

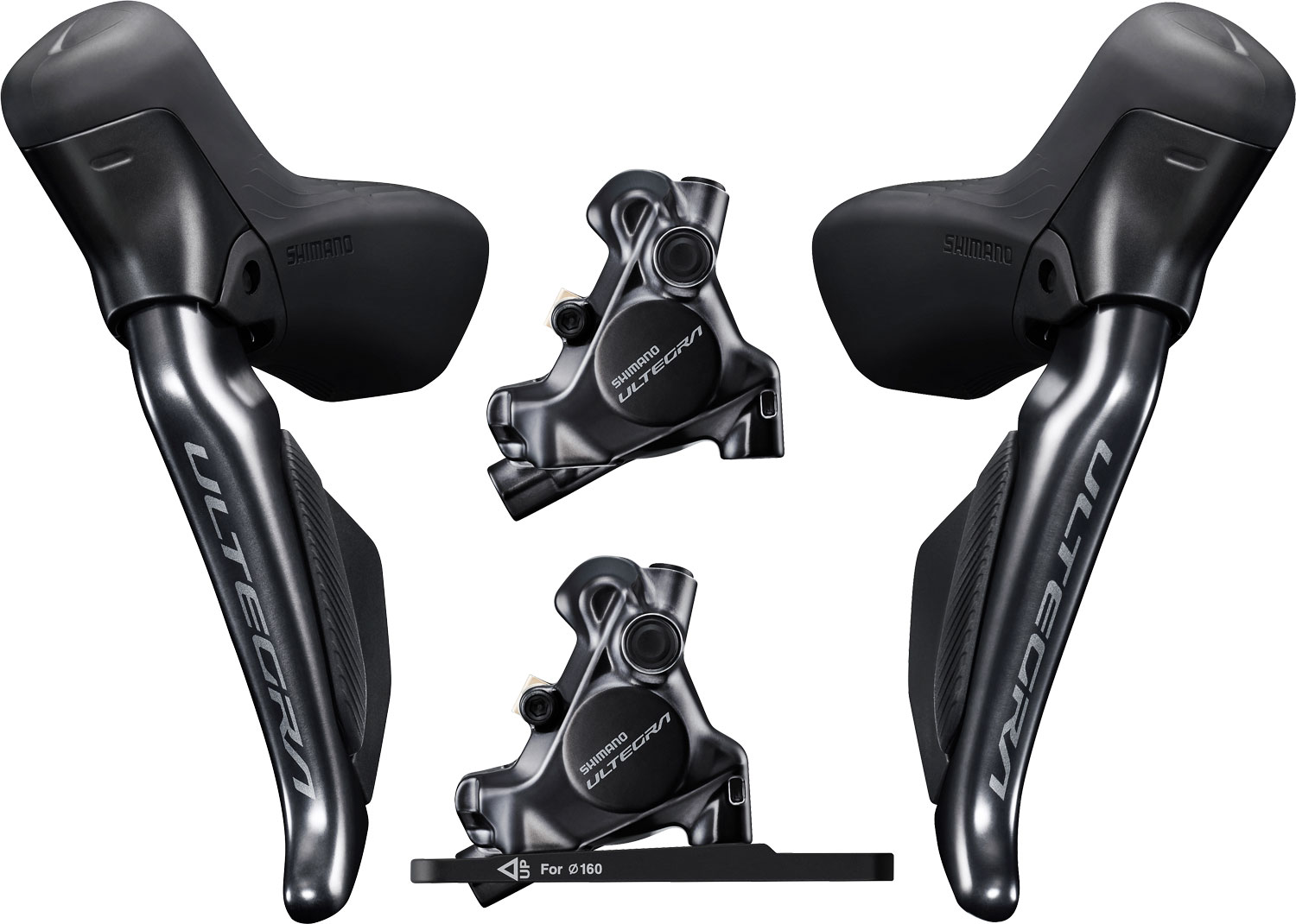

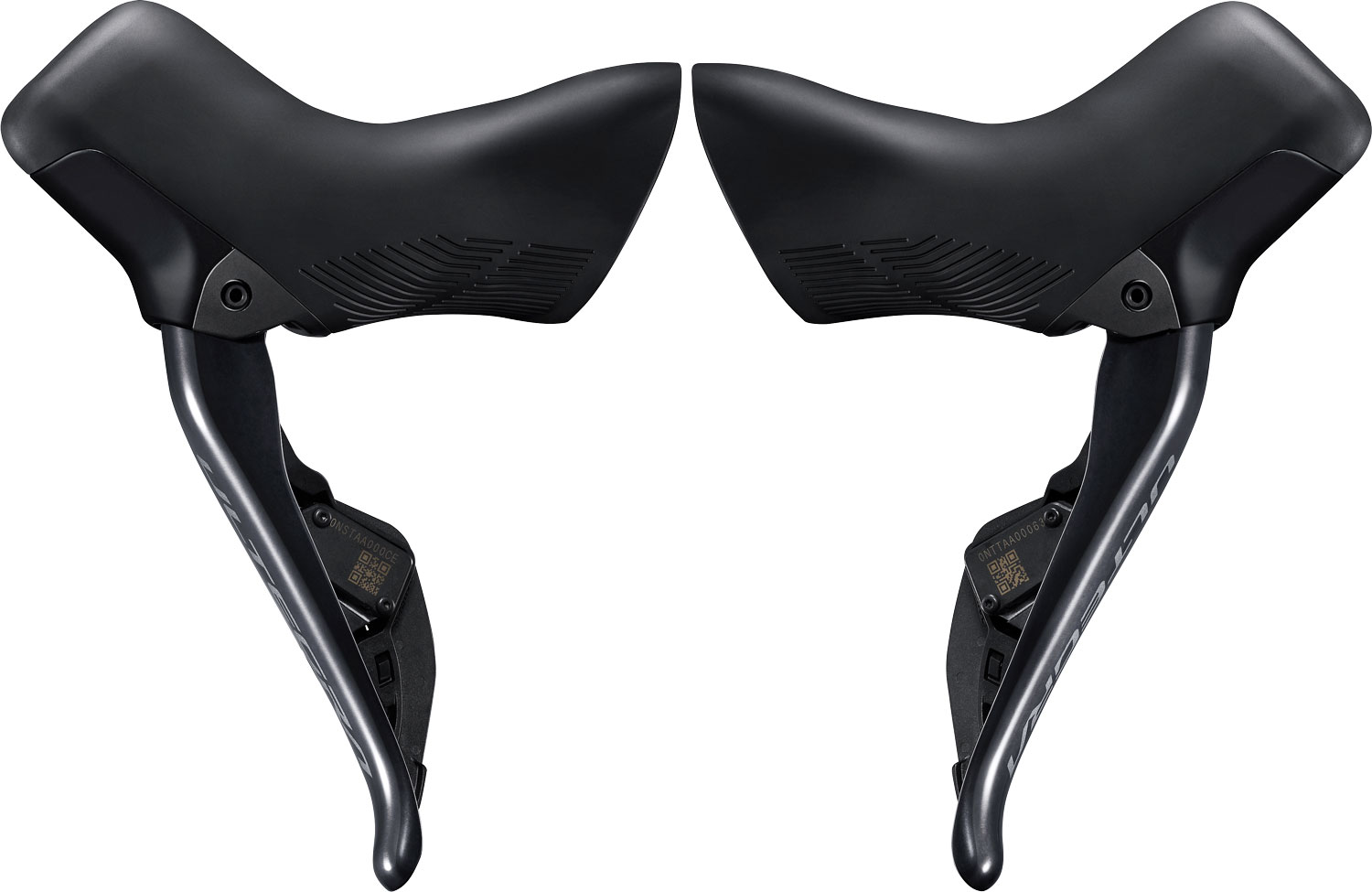

Shimano ULTEGRA Di2 ST-R8170 + BR-R8170 2x12-speed hydraulic disc brake set

The redesigned Shimano Ultegra Di2 ST-R8170 brake levers with BR-R8170 brake calipers impress with their new ergonomic design and even more precise braking modulation thanks to SHIMANO’s tried-and-tested SERVO WAVE technology. Wireless electronic shifting provides even greater control. The BR-R8170 hydraulic 2-piston brake caliper features a flat-mount mount and L03A resin disc pads with cooling fins. The completely redesigned ULTEGRA BR-R8170 brings a new level of control to the world of road cycling, with optimised modulation and unprecedented braking power. The new design minimises brake rub. Furthermore, despite its compact size, the new system is quieter and easier to maintain than ever before.

Features

• THE FASTEST AND MOST RELIABLE SHIFTING PERFORMANCE EVER
• Improved aerodynamics – redesigned DUAL CONTROL shift/brake levers with raised and rounded brake levers

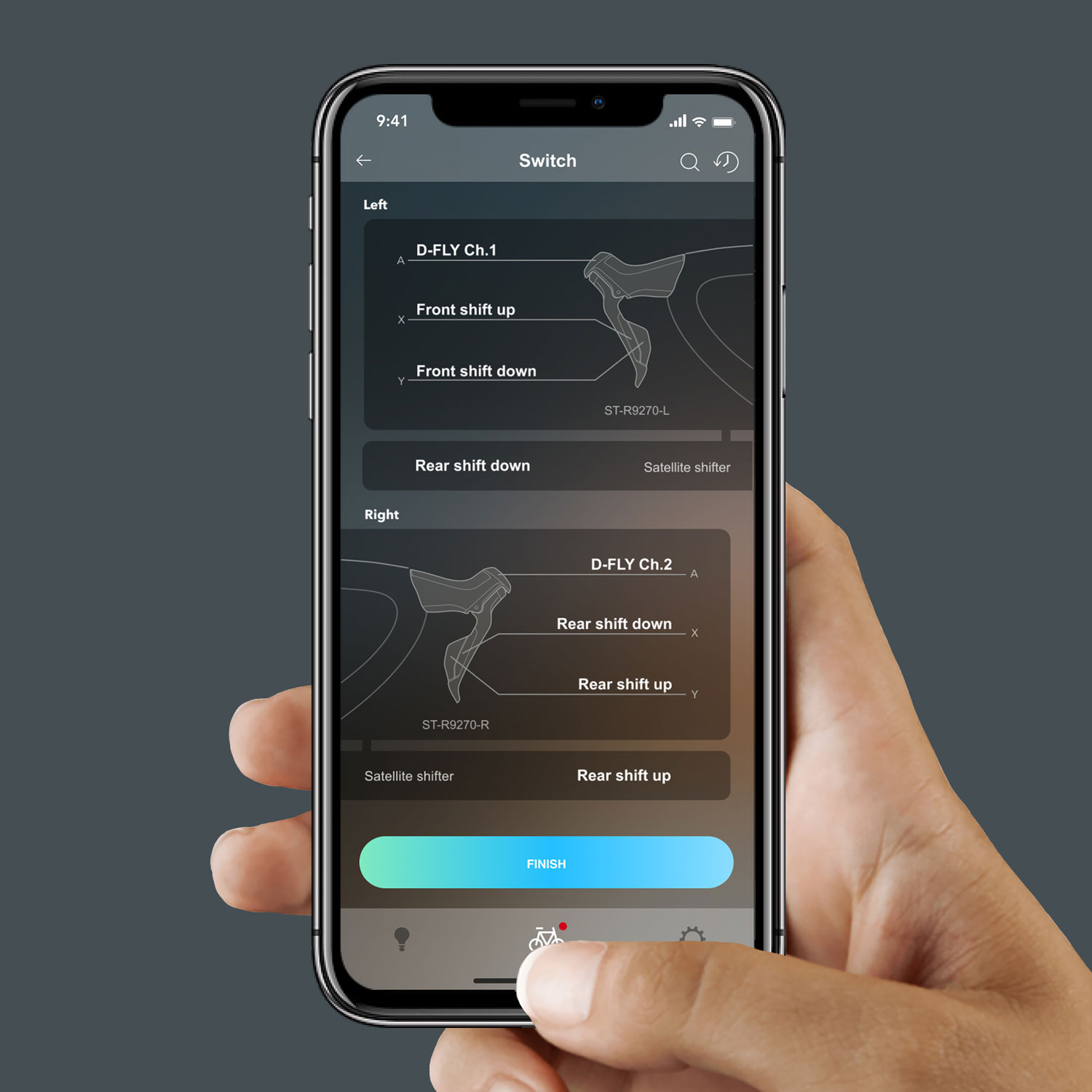

• The drivetrain can be customised to the rider’s preferences via the E-TUBE app
• Among other things, the shifting speed can be adjusted, a fully or semi-synchronous shifting mode selected, and the programme buttons on the shift lever can be assigned specific functions
• Wireless where it matters
• SHIMANO’s in-house developed, extremely secure Di2 wireless chip boasts a low probability of interference, unrivalled processing speed and lower energy consumption
• Fastest shifting operations at the front and rear

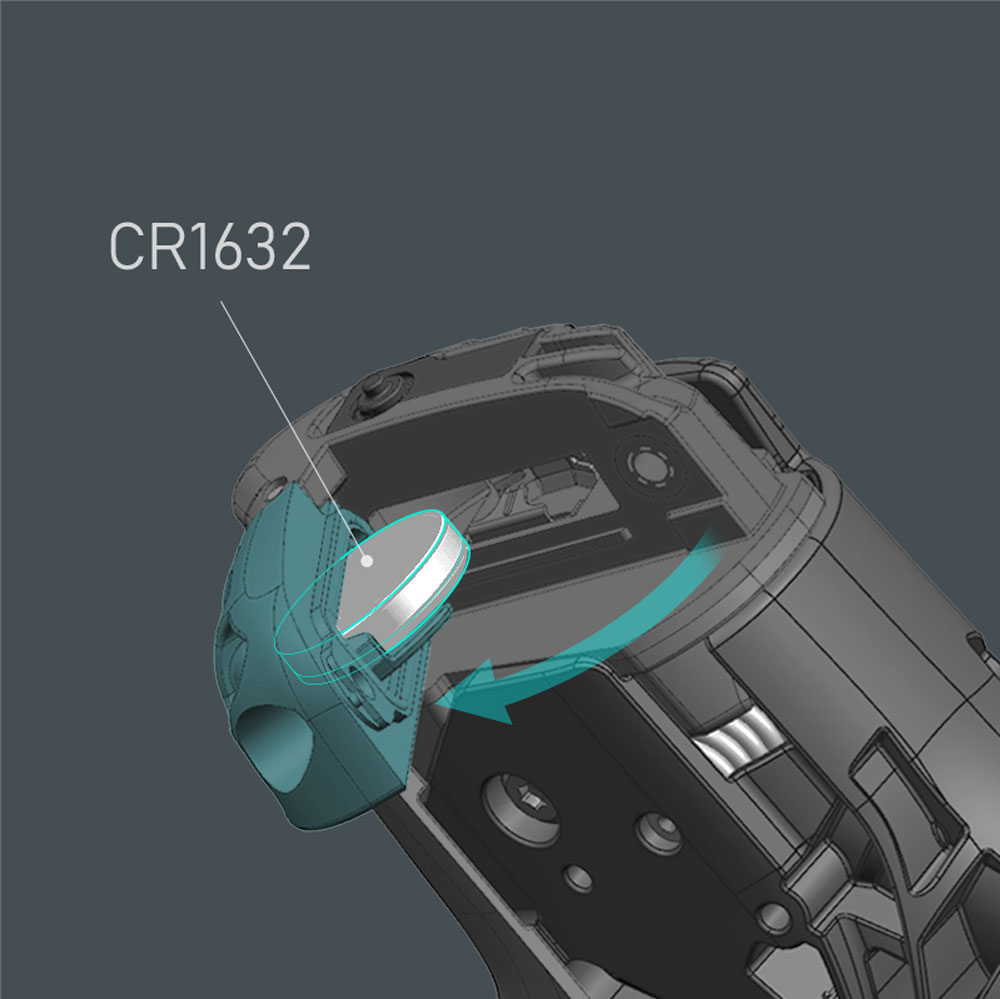

• The wireless STIs impress with high energy efficiency and a battery life of up to 1.7 years (CR1632)
• Quieter and easier-to-maintain brake components
• Outstanding braking control
• Excellent heat dissipation
• Easy wheel changes

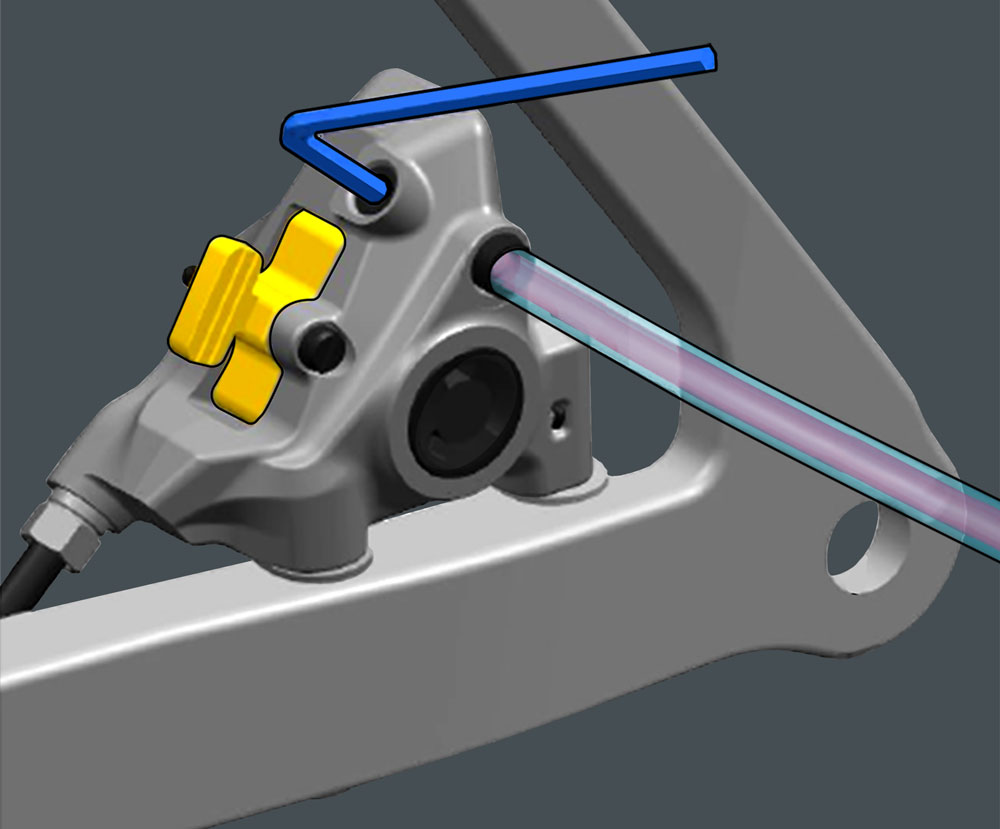

• Simple, clean bleeding system

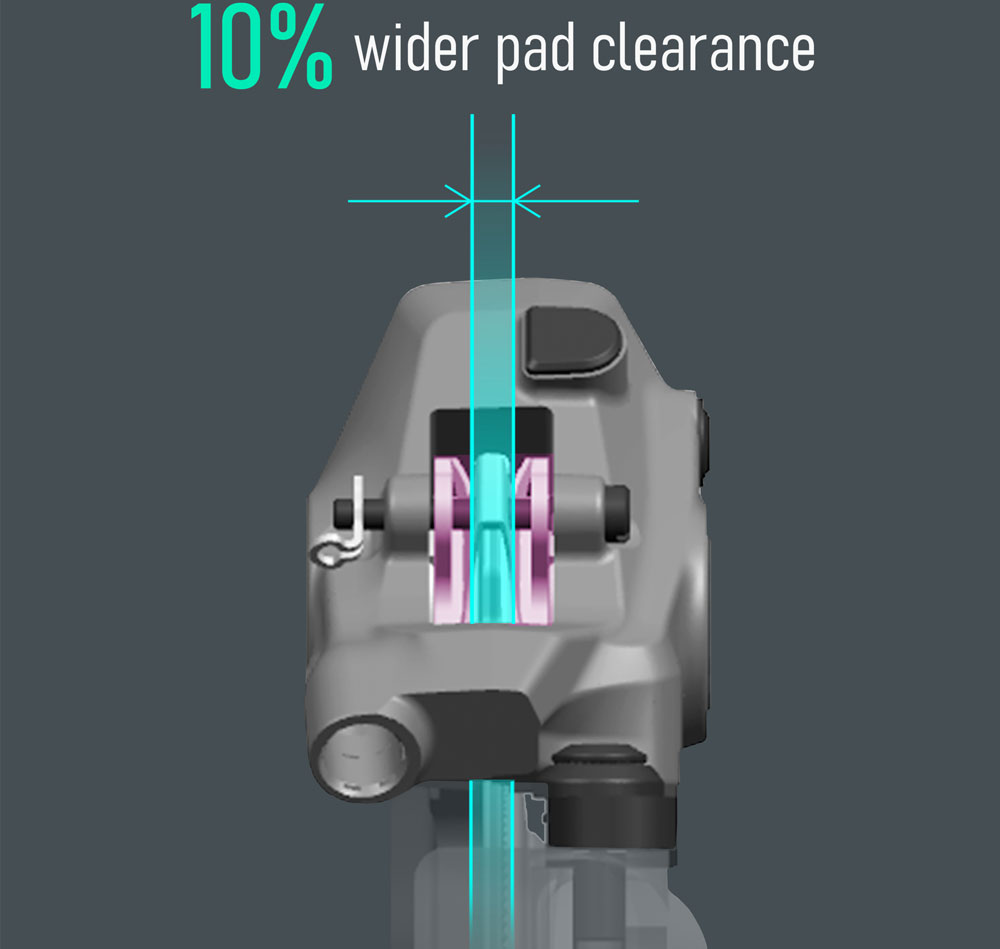

• Easy adjustment and maintenance
• Included in the scope of delivery: 1 x Di2 ST-R8170 2x12-speed STI unit set, 2 x BR-R8170 flat-mount disc brake calipers, 1 x flat-mount adapter 140mm/160mm, 2 pairs of Resin brake pads without cooling fins, 2 x SM-BH90-JK-SSR brake hoses 900mm / 1550mm (can be cut to length), 4 x fixing bolts for brake calipers (2 x 38mm for the rear) and 2 x hose connection kits
• The SM-BH90-JK-SSR brake hoses are filled with mineral oil and pre-fitted to the BR-R8170 brake calipers!

Product features

• Application: Road bike
• Groupset: Ultegra Di2 R8150
• Model: ST-R8170 set
• Type: Dual-Control (STI)
• Mounting: left / right
• Front derailleur: 2-speed
• Rear derailleur speeds: 12-speed
• Visual gear indicator: no

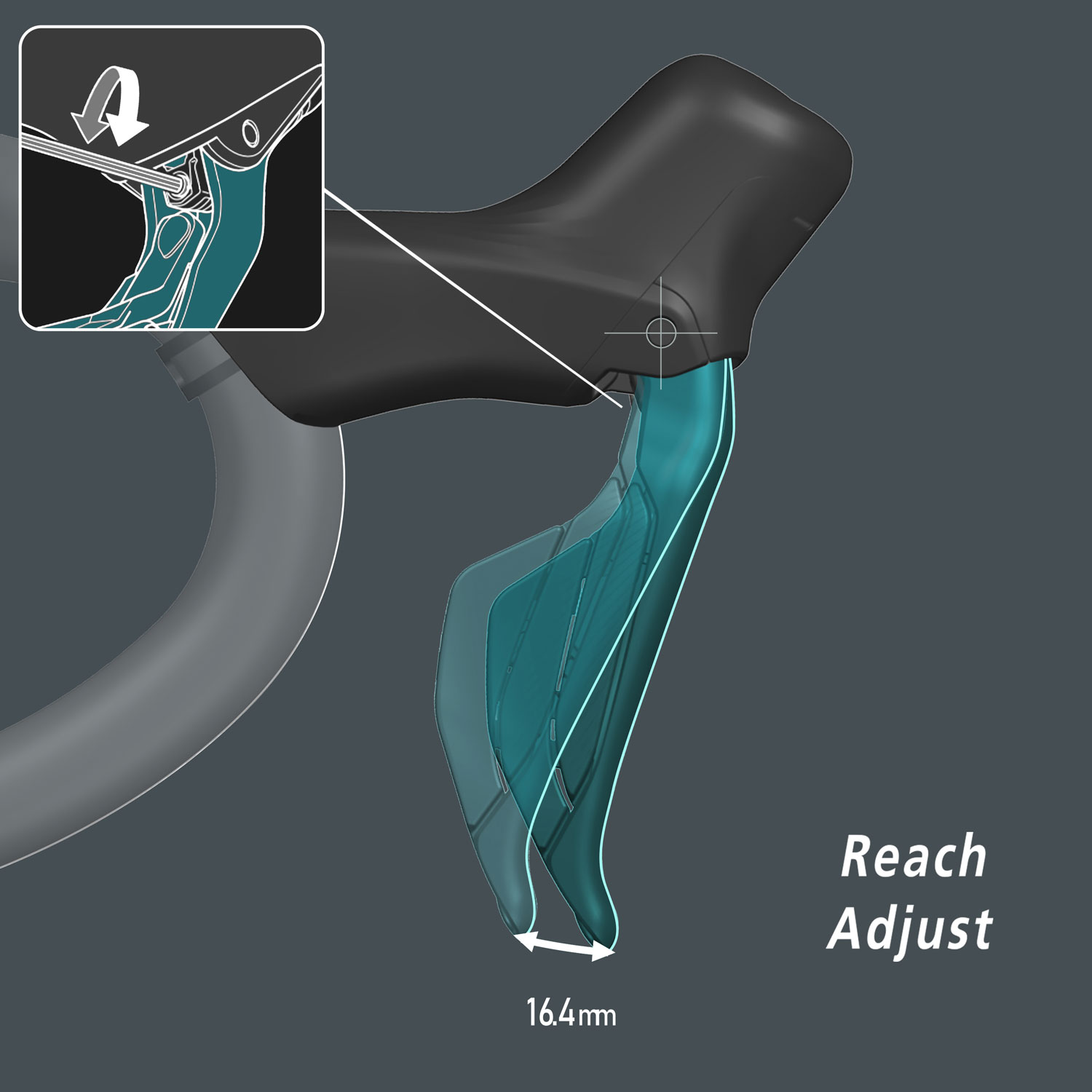

• Grip width adjustment: Yes
• Handlebar diameter: 23 .8 mm/24.2 mm
• Brake type: Hydraulic disc brake system

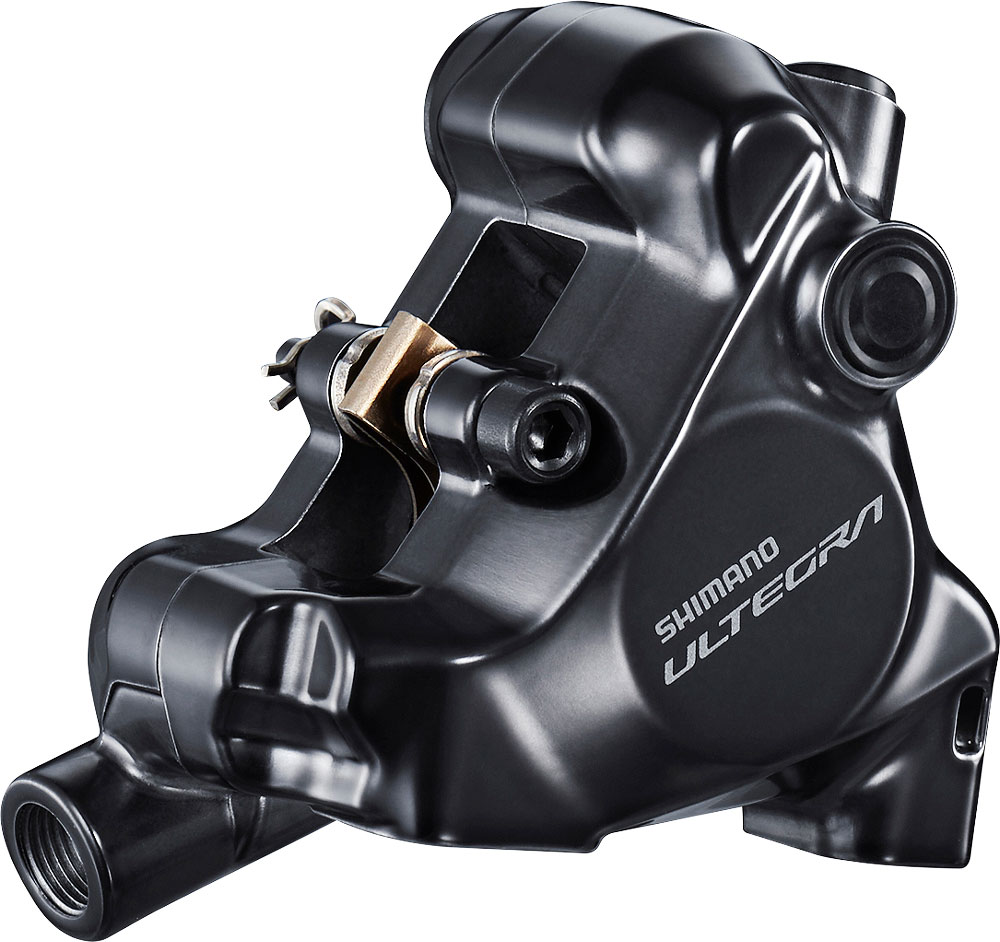

• Brake caliper: BR-R8170
• Brake caliper mount: Flat-mount
• Brake pads: Resin without cooling fins
• Brake hose: SM-BH90-JK-SSR front 900 mm / rear 1550 mm (can be shortened)
• One-way bleed valve: Yes
• Brake fluid: Mineral oil
• Recommended brake disc: RT-MT800 (140mm/160mm)
• Compatible power cable: EW-SD300
• E-Tube Project firmware update: Yes
• Number of E-Tube connectors: 2 each
• Number of E-Tube connections: 0
• Di2 wireless chip: Yes

Material

• Grip: CFRP
• Lever: Carbon, painted
• Brake caliper: Aluminium

Colour

• Series color

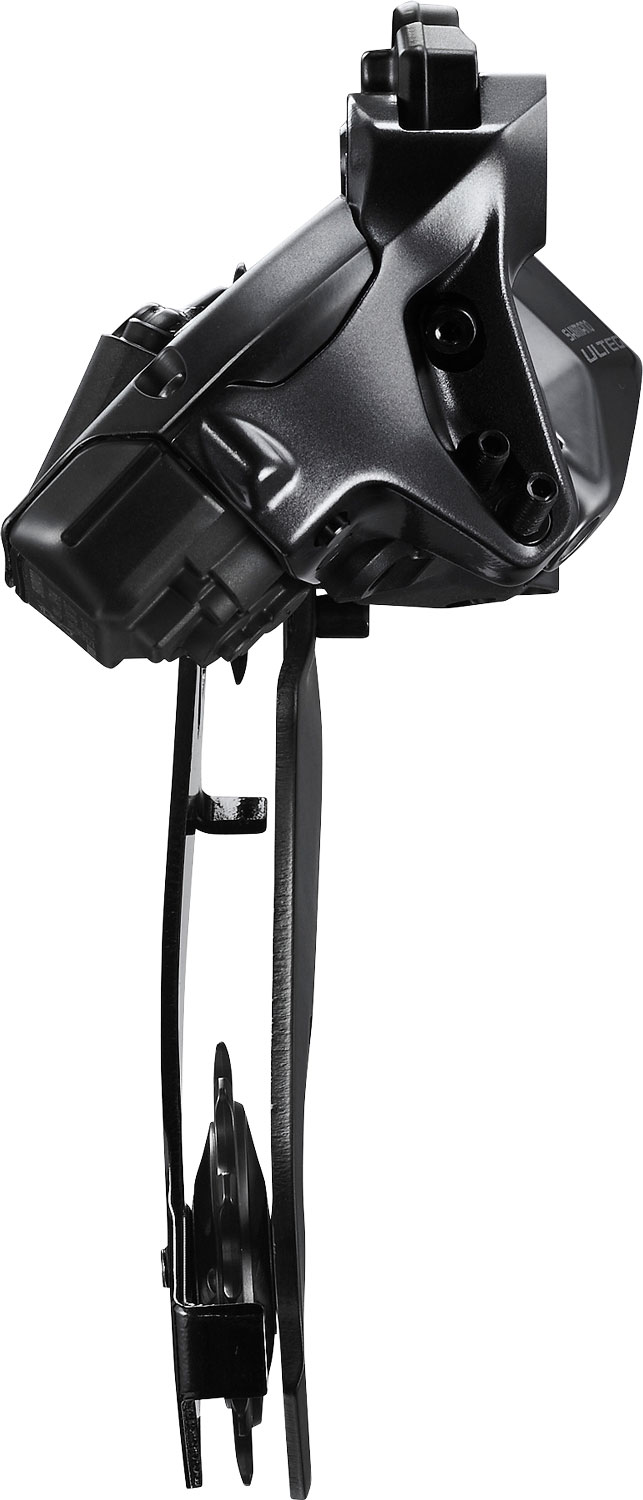

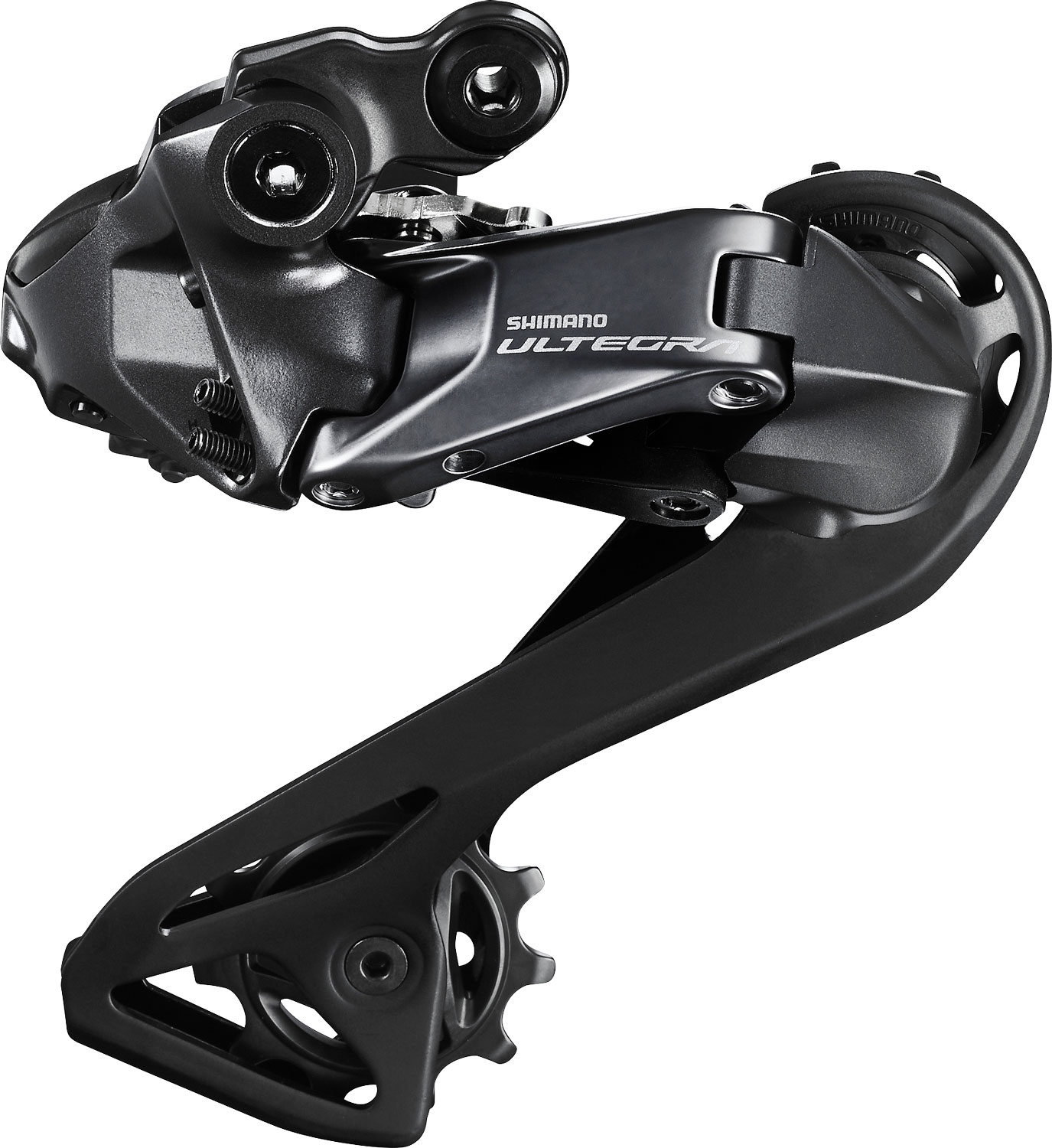

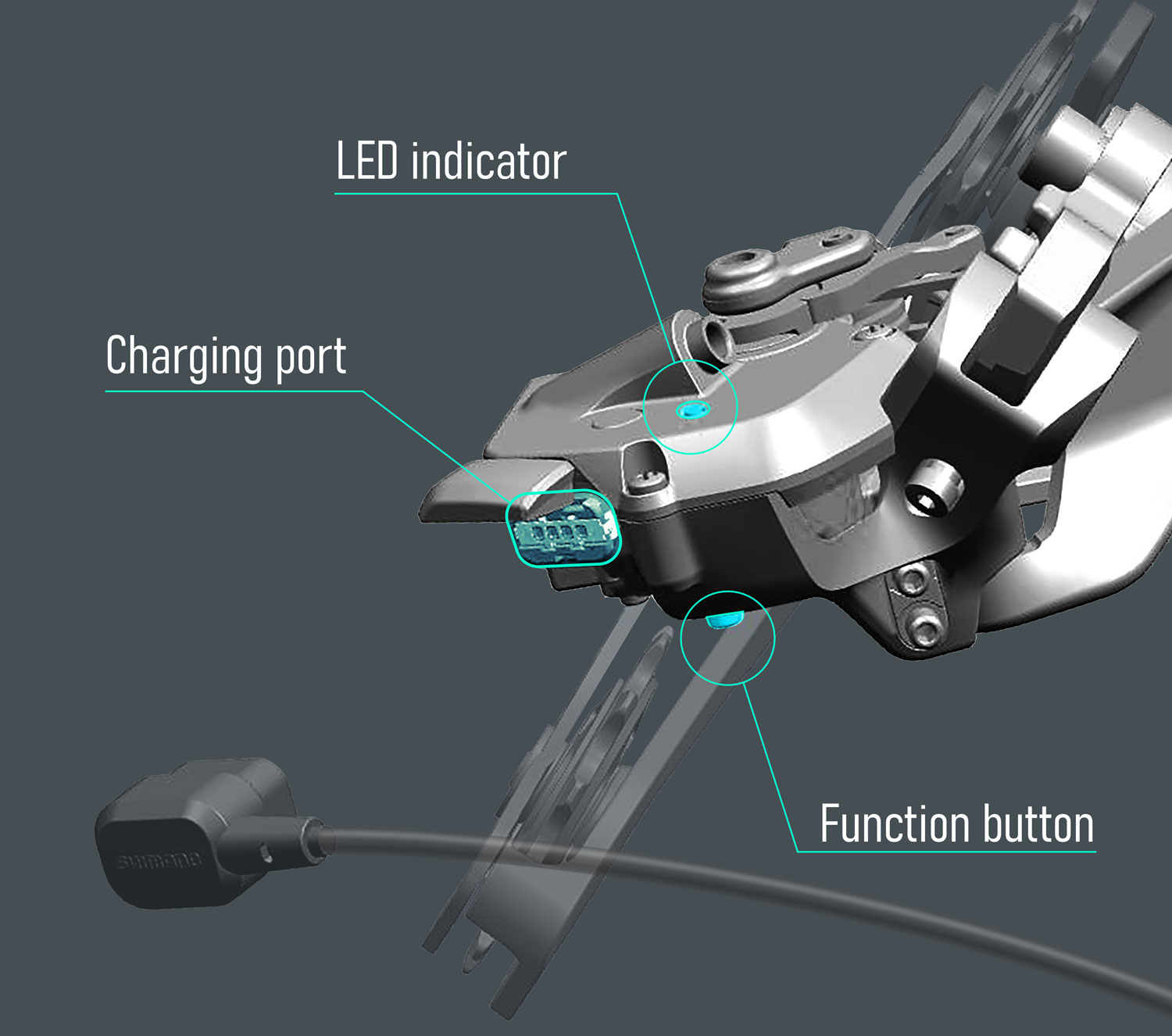

Shimano ULTEGRA Di2 RD-R8150 12-speed Shadow rear derailleur

The Shimano Ultegra RD-R8150 12-speed rear derailleur not only delivers the fastest and most precise shifting on the market, but is also more versatile than ever before. Available in a single cage length, the rear derailleur is now compatible with both 11-34T and 11-30T cassettes. The compact design houses the integrated wireless unit, the charger and the mode button – and it really packs a punch!

Features

• FULLY CUSTOMISABLE
  • The drivetrain can be customised to the rider’s preferences via the E-TUBE app
  • Among other things, you can adjust the shifting speed, select a fully or semi-synchronous shifting mode, and assign specific functions to the programme buttons on the shifter
• WHEN EVERY SECOND COUNTS
  • The exclusive wireless protocol increases shifting speed without compromising on the shifting precision and reliability for which SHIMANO is renowned
• Fast, smooth shifting for responsive acceleration at any speed
• Low-profile rear derailleur
• SHIMANO SHADOW RD
• Compact and clean appearance

Product features

• Intendeduse: Road bike
• Groupset: Ultegra Di2 R8250
• Model: RD-R8150
• Mounting: Direct mount
• Rear derailleur speeds: 12-speed
• Compatible chain: CN-M8100 HG 12-speed
• Max. teeth on largest sprocket: 34 teeth
• Min. teeth on large sprocket: 30 teeth
• Max. teeth on small sprocket: 11 teeth
• Min. teeth on small sprocket: 11 teeth
• Max. front sprocket difference: 16 teeth
• Total capacity: 33 teeth
• Compatible power cable: EW-SD300
• E-Tube Project firmware update: Yes
• Number of E-Tube connections: 1
• Number of E-Tube connections: 0
• Di2 wireless chip: Yes

Material

• Aluminium
• CFRP

Colour

• Series color

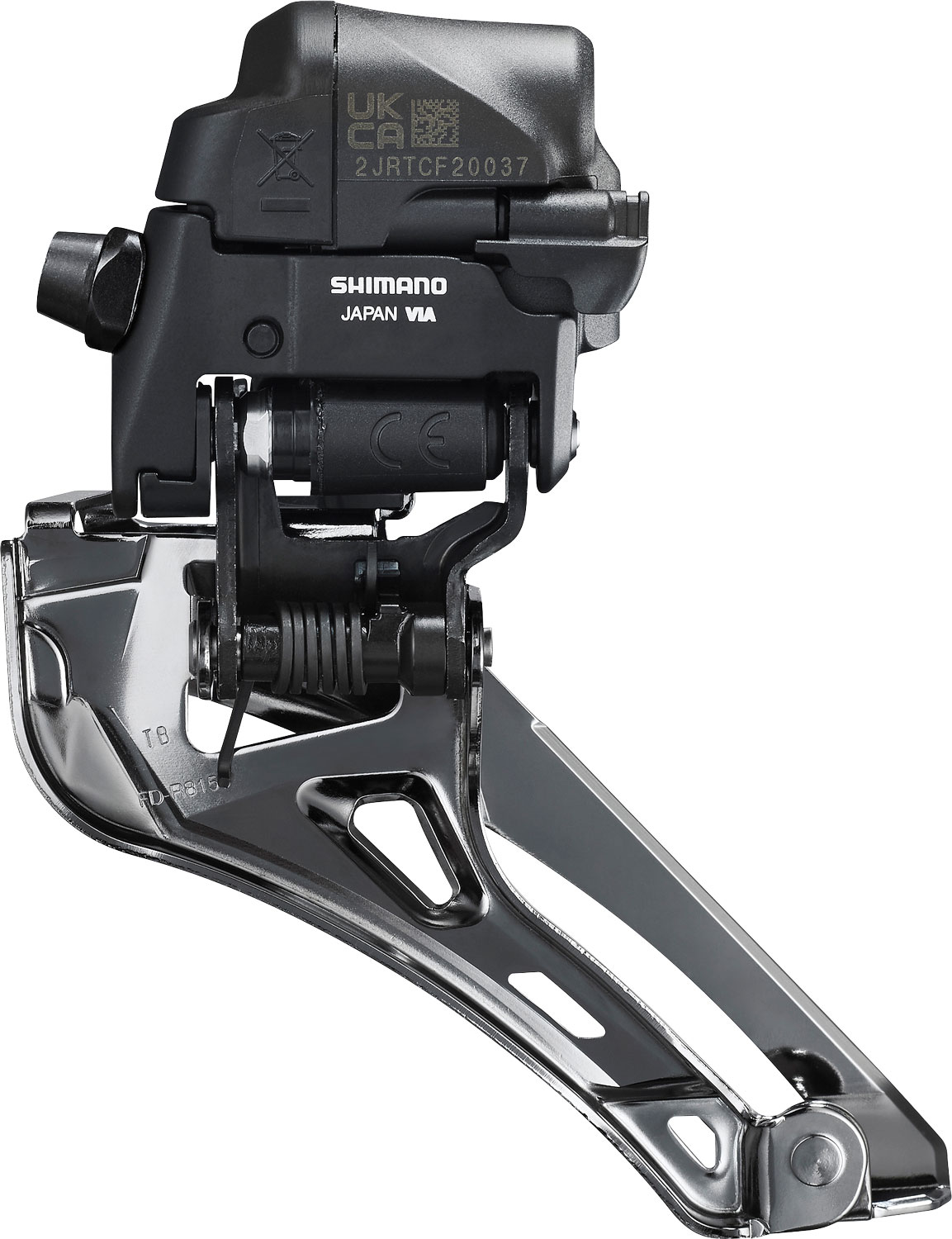

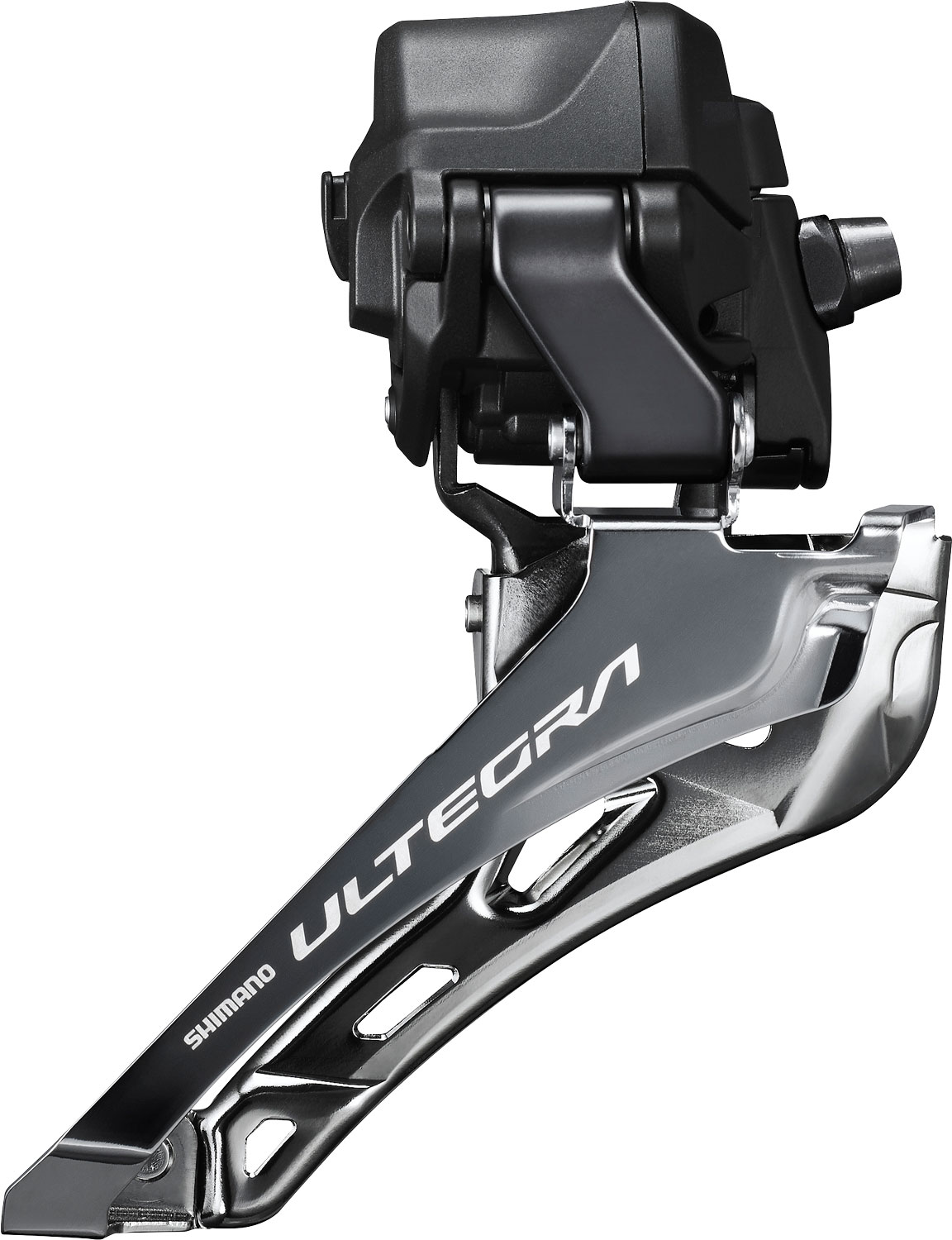

Shimano ULTEGRA Di2 FD-R8150 2x12-speed front derailleur (solder-on)

The Shimano Ultegra Di2 FD-R8150 2 x 12-speed front derailleur, with its new compact design, harmonises perfectly with its counterparts in the cockpit and is, of course, optimised for the new features. The ULTEGRA R8150 front derailleur is more compact than ever before and a real powerhouse. The front derailleur shifts absolutely seamlessly between the chainrings and carries out its shifts with digital precision in all conditions. Furthermore, the frontal surface area has been reduced, thereby optimising aerodynamics.

Features

• FULLY CUSTOMISABLE
  • The drivetrain can be customised to the rider’s preferences via the E-TUBE app
  • Among other things, you can adjust the shifting speed, select a fully or semi-synchronous shifting mode, and assign specific functions to the programme buttons on the shift lever
• WHEN EVERY SECOND COUNTS
  • The exclusive wireless protocol increases shifting speed without compromising on the shifting precision and reliability for which SHIMANO is renowned

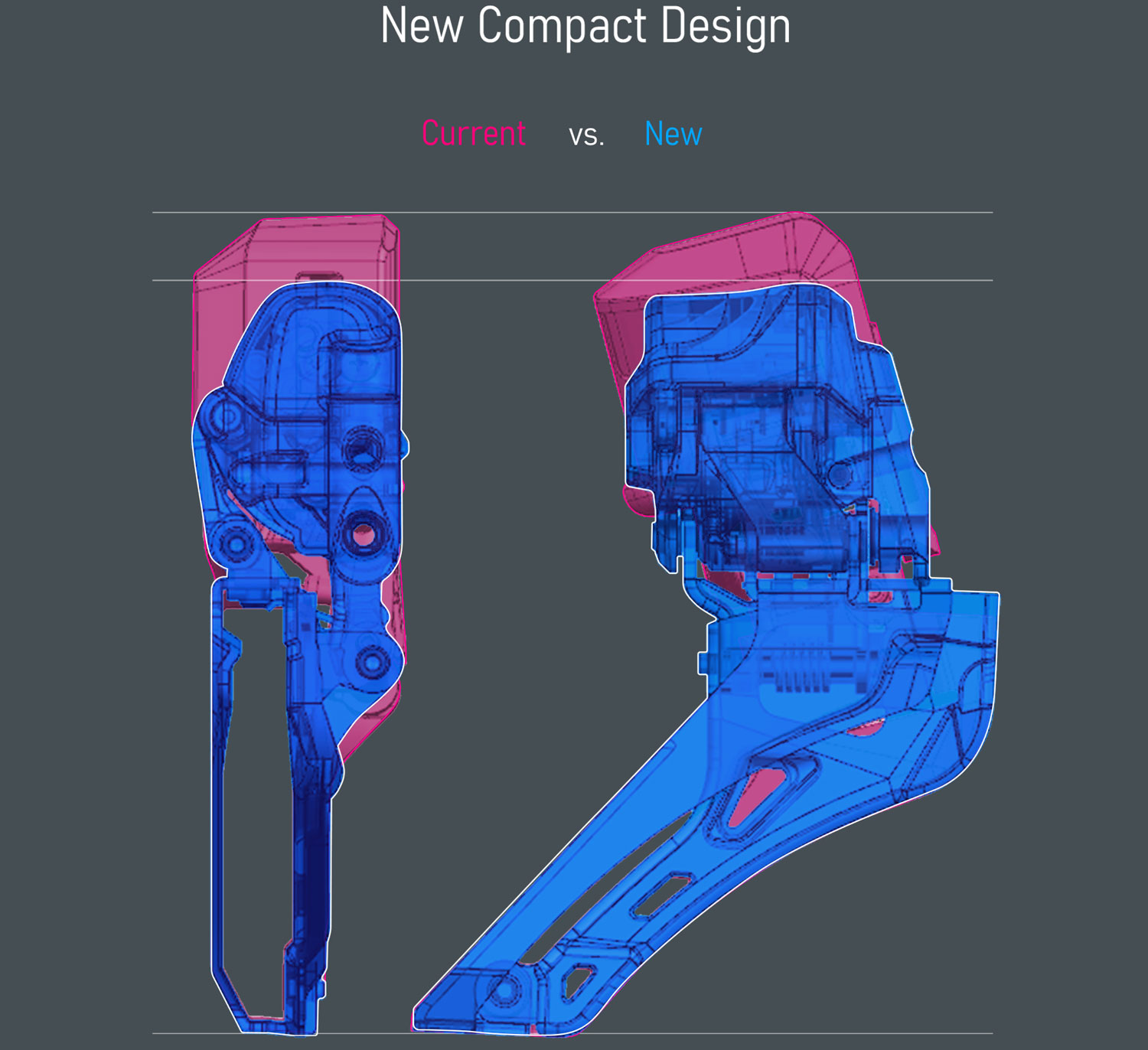

• Front derailleur’s frontal area reduced by 33%
• Fastest front and rear shifting
• Compact and clean appearance

Product features

• Intendeduse: Road bike
• Groupset: Ultegra Di2 R8150
• Model: FD-R8150
• Mounting: Soldered
• Action: Down-swing
• Front derailleur speeds: 2-speed
• Rear gears: 12-speed
• Largest chainring: 50–54 teeth
• Total tooth capacity: 16 teeth
• Compatible chain: CN-M8100 HG 12-speed
• Chainstay angle: 61–66°
• Chainline: 43.5 mm
• Compatible power cable: EW-SD300
• E-Tube Project firmware update: Yes
• Number of E-Tube connectors: 1
• Number of E-Tube connections: 0
• Di2 wireless chip: No

Material

• Aluminium
• Titanium
• CFRF

Colour

• Series color

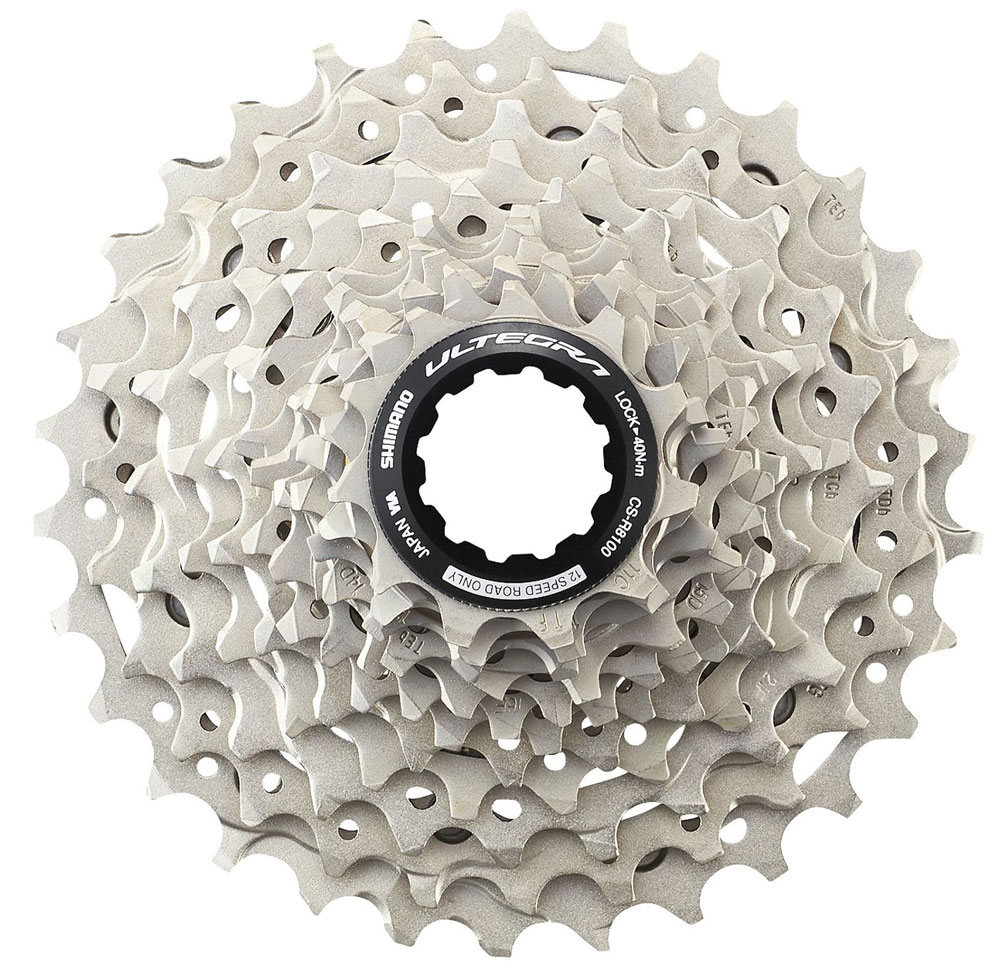

Shimano ULTEGRA CS-R8100 12-speed cassette 11-30

The Shimano CS-R8100 is the perfect 12-speed cassette to complement the new Ultegra R8100 groupset. This advanced drivetrain is 100% performance-oriented and, thanks to HYPERGLIDE+ technology, represents a genuine revolution. The smooth shifting of the ULTEGRA R8100 12-speed cassettes lets you climb, sprint or cruise without having to think about the next gear change. Larger cogs maximise drivetrain efficiency whilst remaining compatible with existing 11-speed freehub bodies.

HYPERGLIDE+ cassettes set new standards for off-road shifting thanks to seamless shifts when upshifting or downshifting across the entire gear range. It’s high time this technology was also used on road bikes. You can now change gears even when applying maximum force on climbs or in a head-to-head battle with an opponent. In all gears, the ULTEGRA R8150 drivetrain ensures maximum efficiency thanks to larger cogs and guarantees compatibility with existing HYPERGLIDE FREEHUB bodies. Despite being expanded to 12 speeds, ULTEGRA CS-R8100 cassettes set new standards for road bike gear systems.

Features

• Hyperglide+: faster shifting, improved speed, shifting efficiency and smooth operation on any terrain
• Revised 12-speed gearing for first-class efficiency and optimum acceleration in all racing situations
• Faster, smoother shifting under maximum pedalling force
• Compatible with the new HG L2 12-speed road bike FREEHUB

Product features

• Application: Road bike
• Groupset: Ultegra R8100
• Model: CS-R8100
• Type: Hyperglide L2 Road
• Gears: 12-speed
• Recommended chain: CN-M8100 HG 12-speed

Gear range

• 11-30 (11-12-13-14-15-16-17-19-21-24-27-30 teeth)

Material

• Sprocket carrier: aluminium
• Sprocket: Steel
• Retaining ring: aluminium

Weight (manufacturer’s specification)

• 291g (11-30)

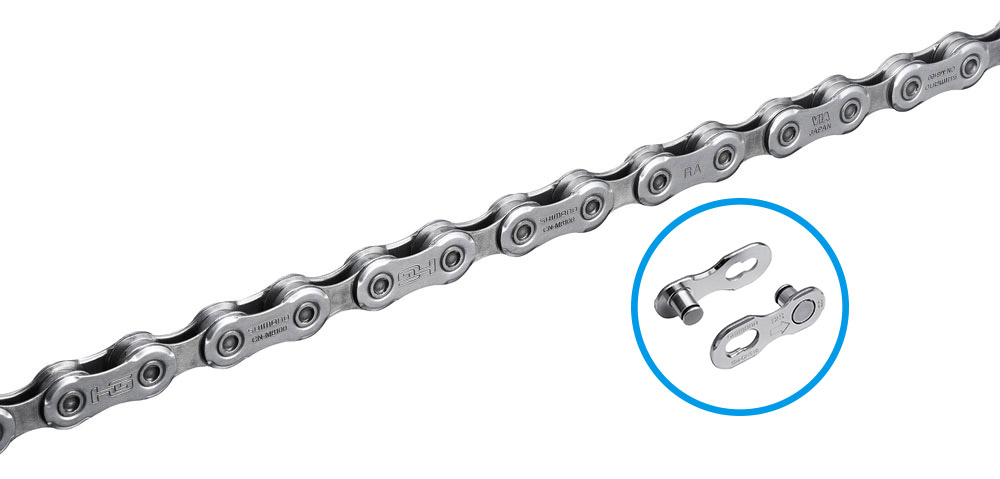

Shimano XT CN-M8100 12-speed chain with Quick-Link SM-CN910-12

The special design of the new Shimano XT CN-M8100 12-speed chain ensures improved shifting performance and a smoother ride – even on rough terrain. The SM-CN910-12 Quick-Link fastener, which is also new, allows for easy fitting. The XT CN-M8100 HYPERGLIDE+ chain has been optimised from the ground up and is an integral part of the new drivetrain. With its high-precision contact surfaces for chainring and cassette cogs, it ensures fast, precise and smooth shifting in both directions, even under the heaviest loads. Chrome-plated inner links further increase durability noticeably.

Features

• Special chain design for new drivetrain components
• Improved chain guidance with a wider area at the end of the inner link, which holds the chain in place on both the front chainring and the cassette sprocket
• Improved shifting performance
• Easy installation
• Smoother ride, even on rough terrain
• Compatible with the new generation of drivetrain components
• Supplied with the user-friendly Quick-Link (SM-CN910-12)
• Quick-Link pliers for fitting and removal (TL-CN10) – Not included!

Product features

• Group: XT M8100
• Model: CN-M8100
• Front derailleur gears: 1/2-speed
• Rear derailleur gears: 12-speed
• Type: HG
• Hollow pin: No
• Coating on outer link: SIL-TEC
• Innerlink coating: Chromizing
• Closure: Quick-Link SM-CN910-12

Links

• 124

Weight

• approx. 252g / 116 links (manufacturer’s specification)

Technologies

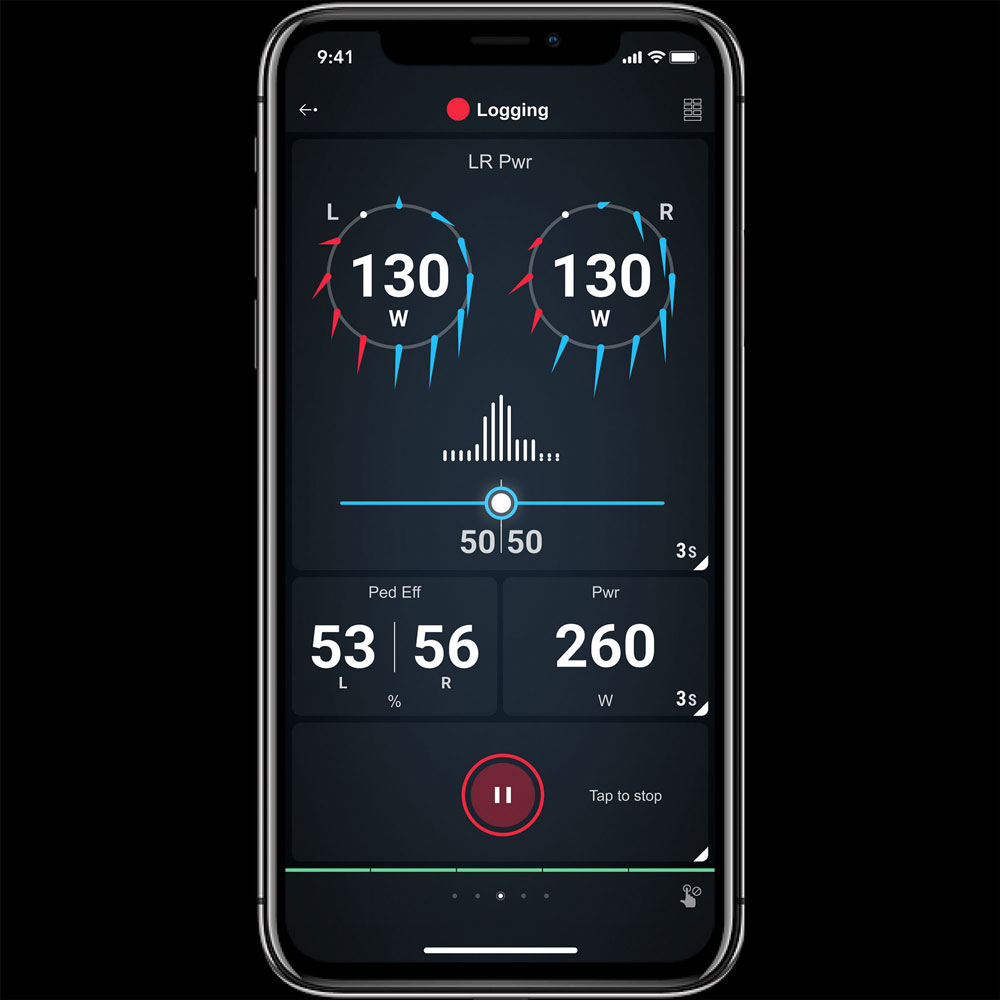

Power meter

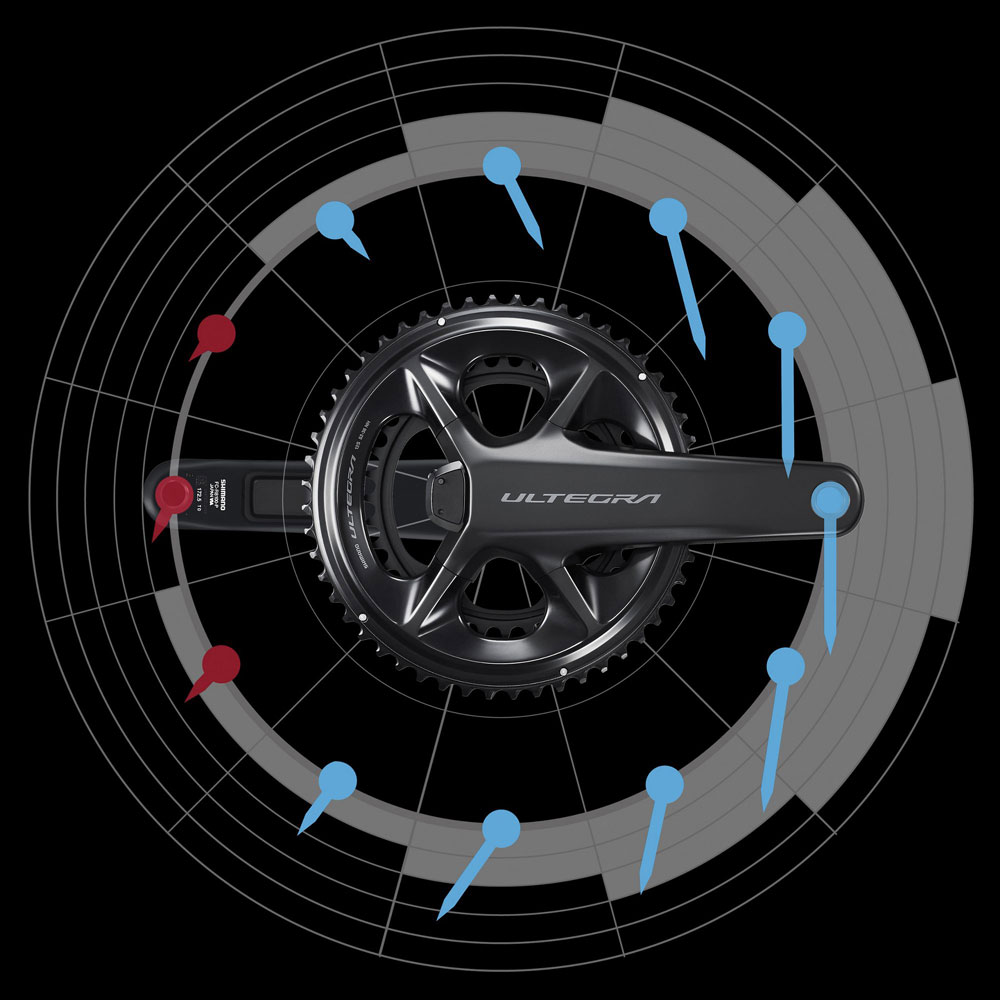

The ‘brain’ of the power meter, the central unit, is housed in the crankcase of the ULTEGRA crankset, whilst the strain gauges are integrated into the crank arms, enabling them to measure power separately for the left and right sides. The central unit is very compact and, discreetly mounted behind the chainrings, very unobtrusive. This makes the system one of the lightest and most seamlessly integrated systems on the market. Furthermore, this design allows for easy chainring replacement without compromising the accuracy of the power meter. For system checks or firmware updates, SHIMANO’s new E-TUBE platform enables incredibly simple, Bluetooth-based communication via smartphones and tablets. To ensure communication with and data display on a wide range of cycle computers or GPS devices, the power metre crankset features both Bluetooth and ANT+. An integrated, rechargeable battery powers the power metre. Charging is carried out via a small magnetic adapter, meaning no covers or lids need to be opened and weather resistance is maintained in all conditions.

HOLLOWGLIDE – Large hollow chainring
The extremely stiff hollow structure reduces weight whilst maintaining the same strength. Better power transfer and faster, more precise front shifting.

HOLLOWTECH II – Perfect balance between stiffness, stability, weight and rotational efficiency
The HOLLOWTECH II technology was designed to produce an optimised crankset that minimises the effort required by the rider to drive the bike. The high stiffness of the crankset ensures efficient power transfer when pedalling, whilst its low weight reduces the strain on the rider, particularly over longer distances. The crankset was developed with a view to achieving an optimal balance between stiffness and low weight. HOLLOWTECH technology enables extremely lightweight, hollow crank arms, which are manufactured using SHIMANO’s exclusive forging technology to achieve maximum stiffness. Furthermore, on the HOLLOWTECH II crankset, the right-hand crank is firmly connected to the bottom bracket spindle, achieving an optimal balance between maximum stiffness and minimum weight. The external bottom bracket offers better weight distribution and greater stability, ensuring more efficient power transfer.

SEIS SHIMANO ELECTRONIC INTELLIGENT SYSTEM

The innovative shifting technology of the SEIS is still based on the SHIMANO INDEX SYSTEM (SIS), whose outstanding shifting performance has been proven over many years. The main difference between the systems is that shifting is no longer carried out mechanically, but electronically. This electronic gear-changing system has been extensively tested in recent years by several professional cyclists under every conceivable condition, e.g. in the rain, in mud, in extreme cold, on cobblestones and even when these factors are combined. Shifting is carried out at the simple touch of a button. No physical effort is required to shift gears, which offers significant advantages, as the rider always maintains a firm grip on the handlebars and can concentrate on riding without being distracted by shifting. The gear-changing system enables precise and effortless gear changes in all situations, even with cold hands or when the rider is completely exhausted. Furthermore, gear-changing performance can no longer be impaired by dirty or stretched cables, as the gear-changing signal is transmitted electronically. The control buttons operate in a similar way to mechanical dual-control levers, making it easy to get used to the SEIS.

E-Tube
The E-Tube platform offers optimum flexibility. E-Tube transmits interactive signals and supplies power to all components via ‘plug-and-play’ connections. E-Tube is resistant to corrosion, stretching and frost, and requires minimal maintenance. The SMPCE1 establishes the connection between the PC and the components to update the firmware. Digital devices remain up to date by updating the firmware, ensuring improved performance.

Shimano Shadow RD
With its sophisticated technology, the SHIMANO SHADOW rear derailleur is particularly well-suited to a more aggressive riding style. Its extremely low-profile design brings a number of advances. Thanks to its flat design and single-preload construction, the rear derailleur does not strike the chainstay, even under the harshest conditions. The shifting action is smooth and quiet.

The new ULTEGRA – Leave time behind | SHIMANO

• Manufacturer number: R8170PCX04130SRD
