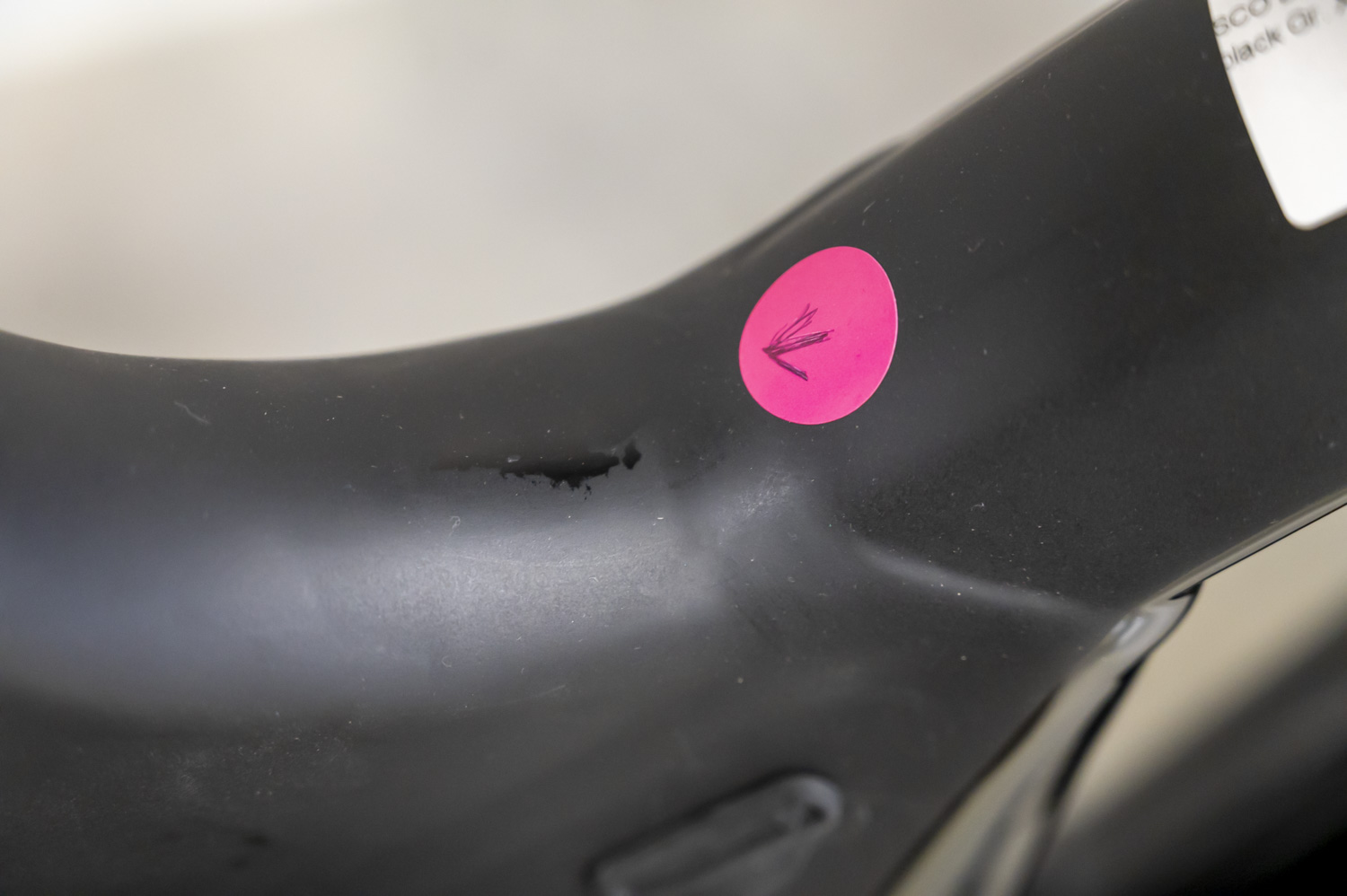

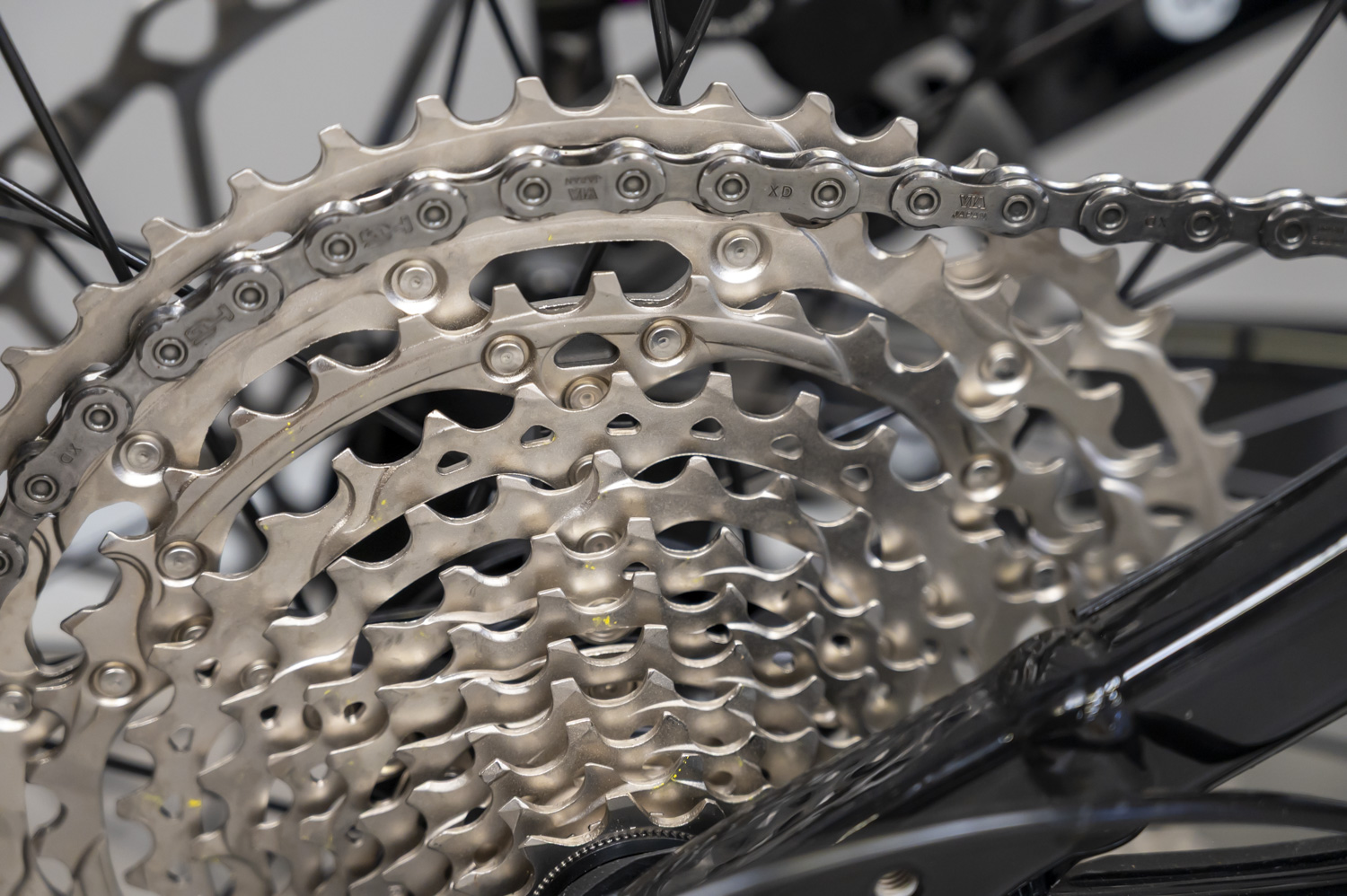

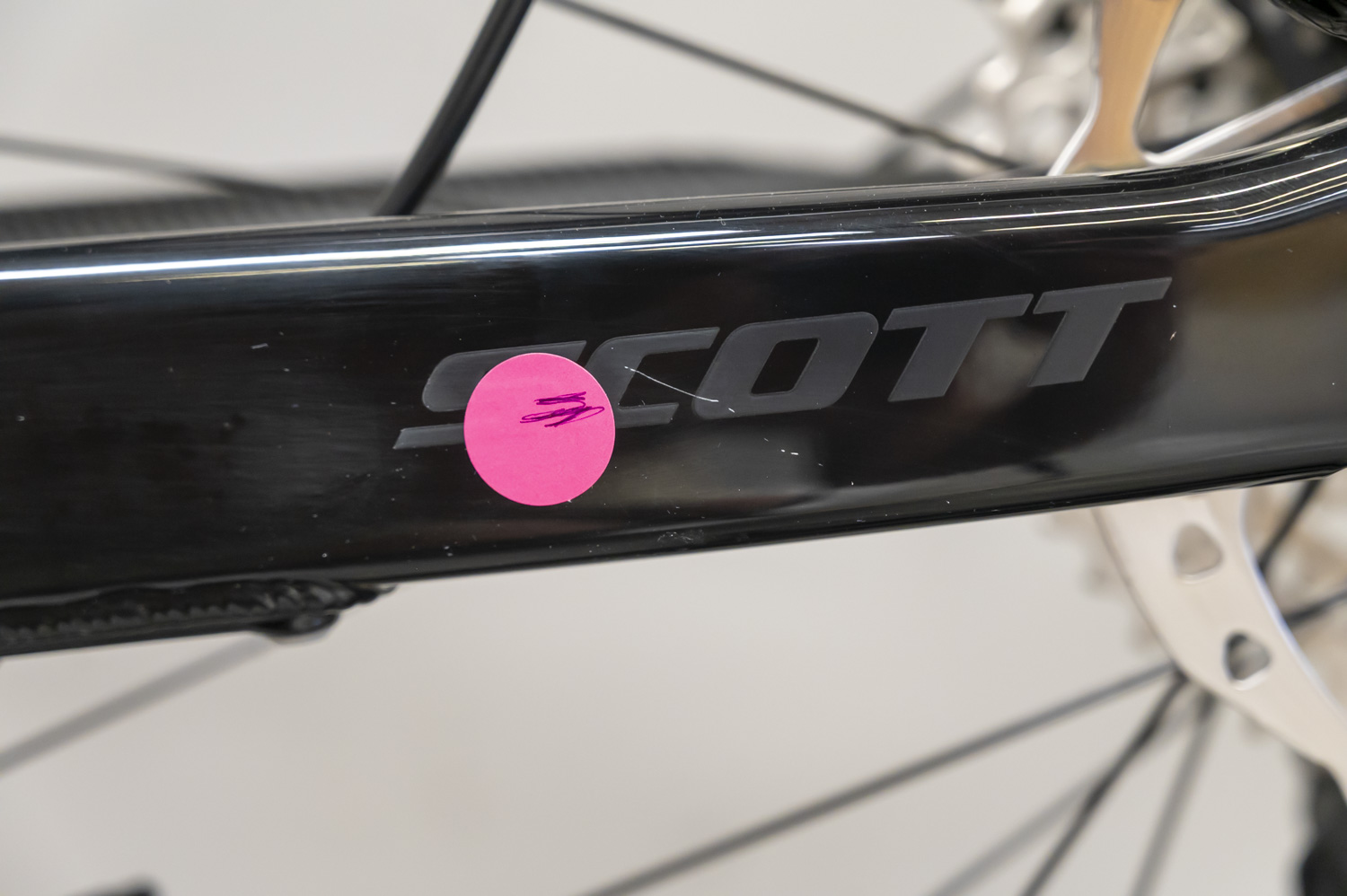

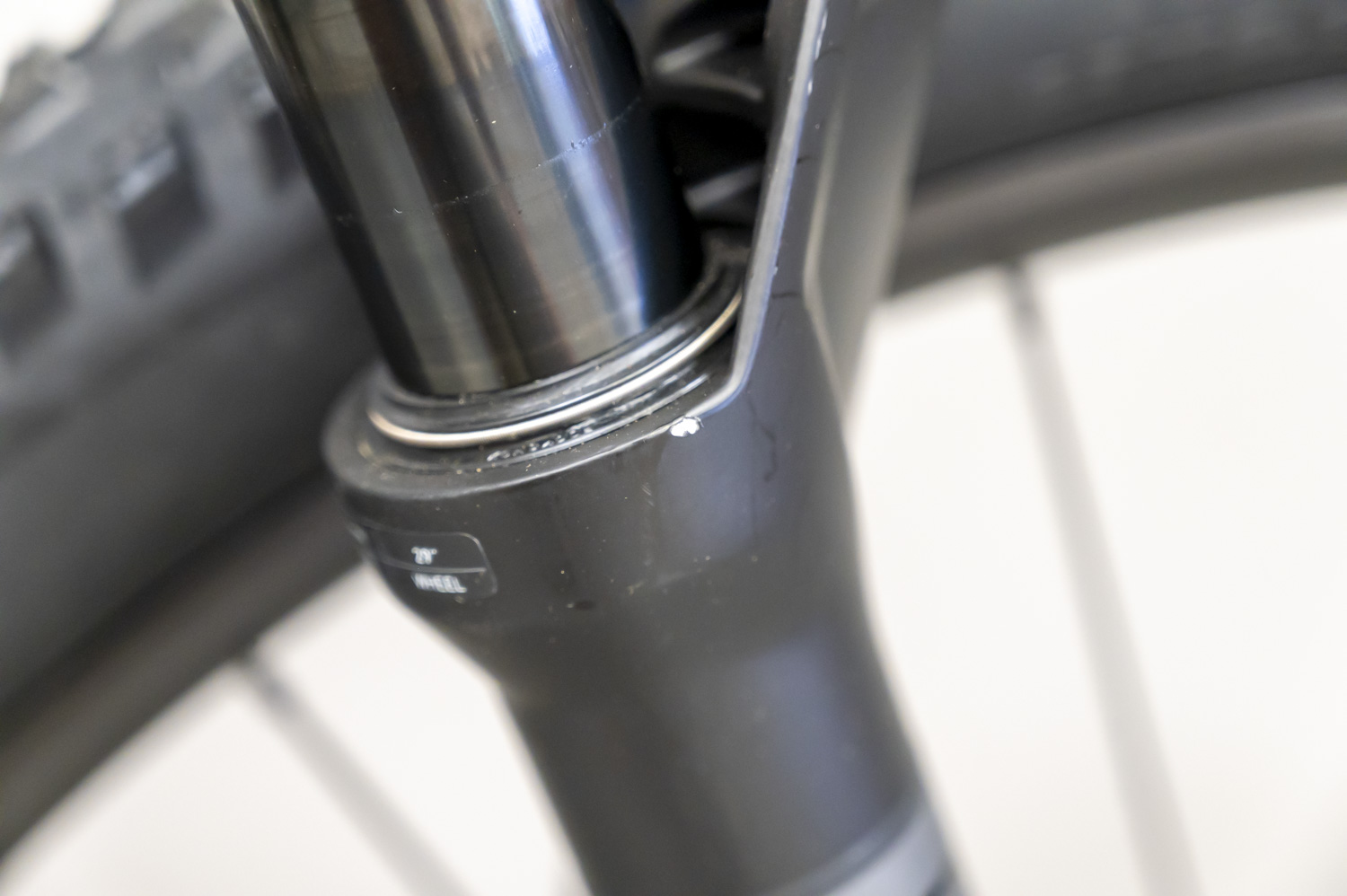

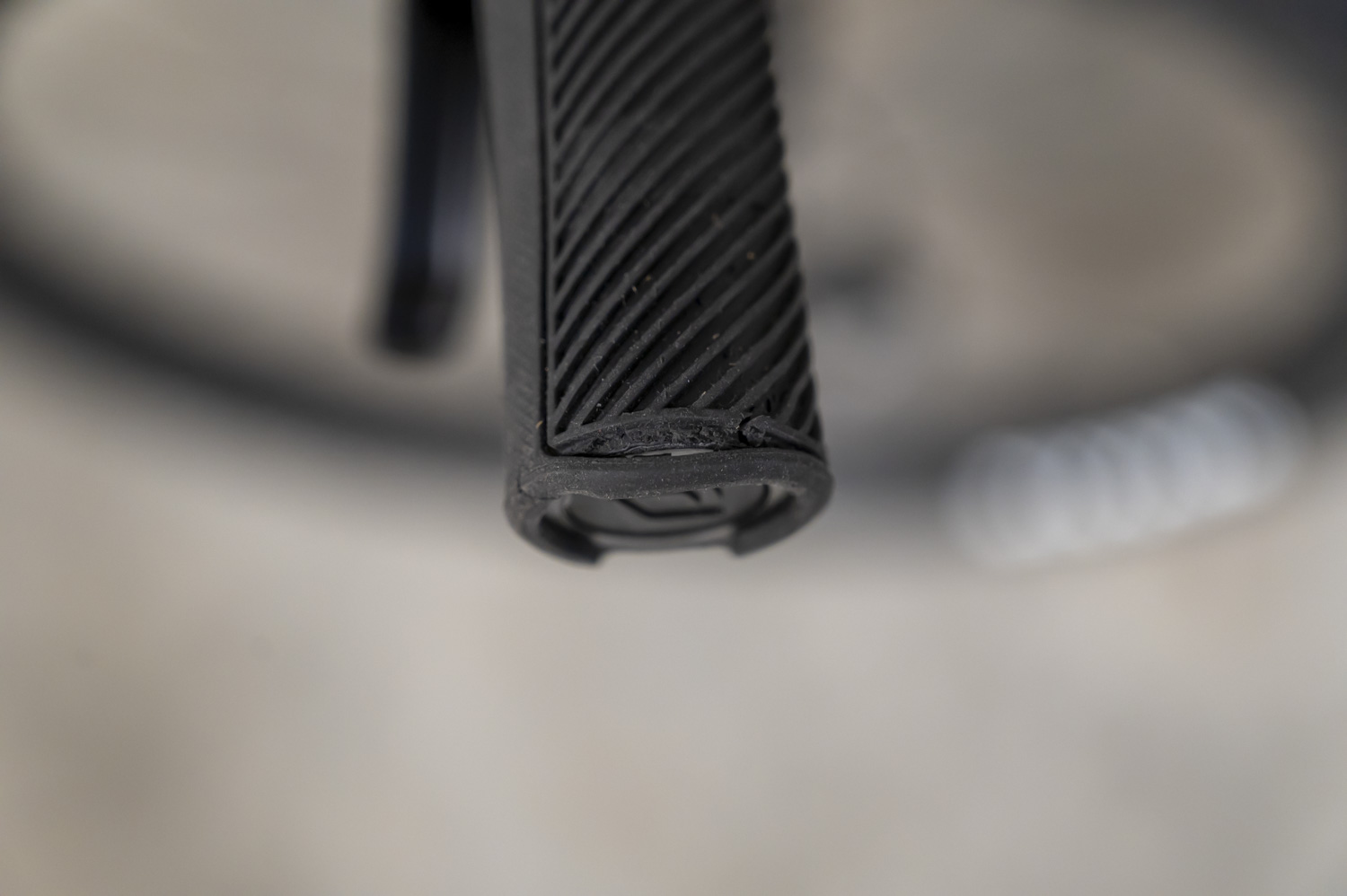

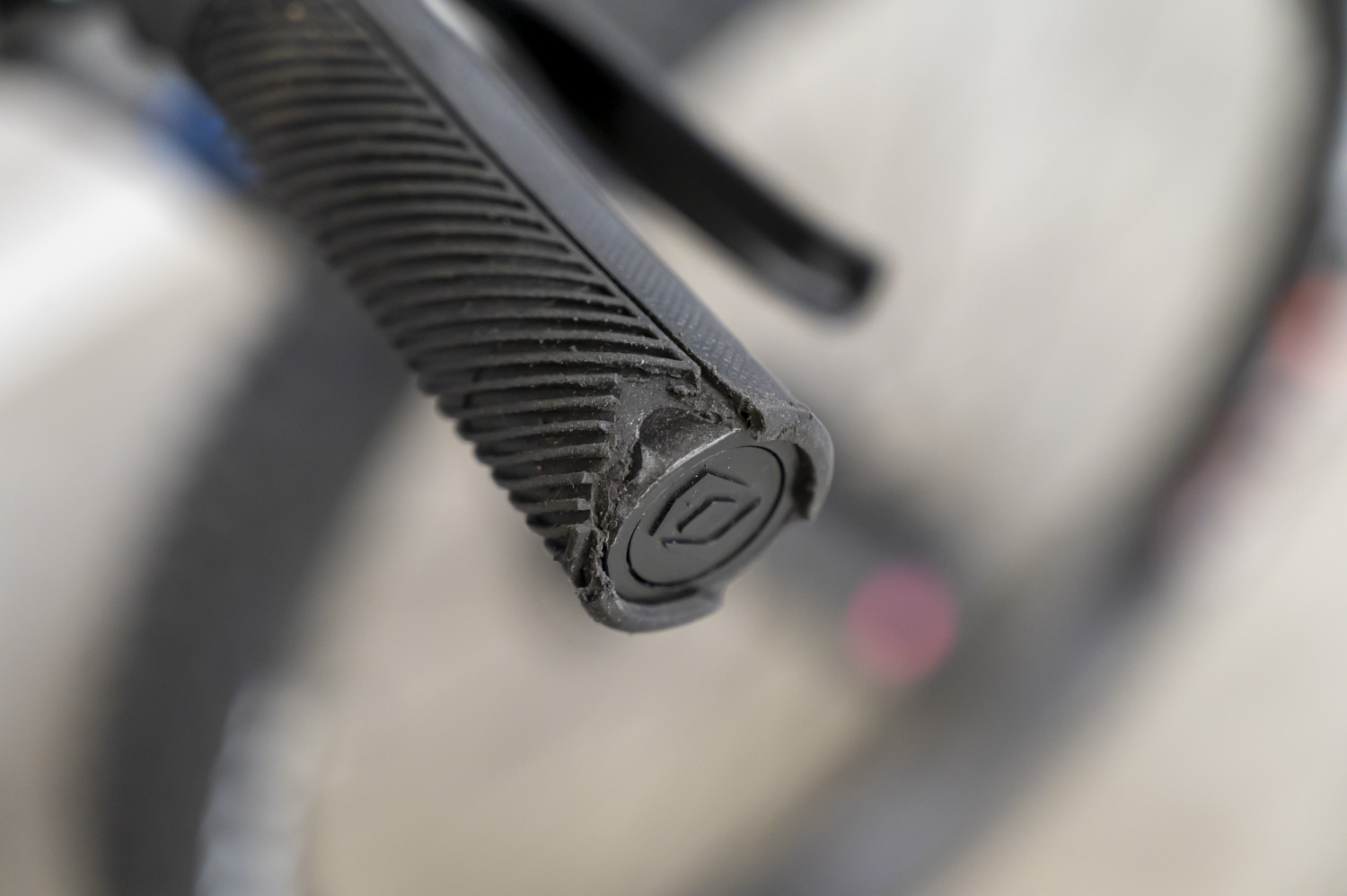

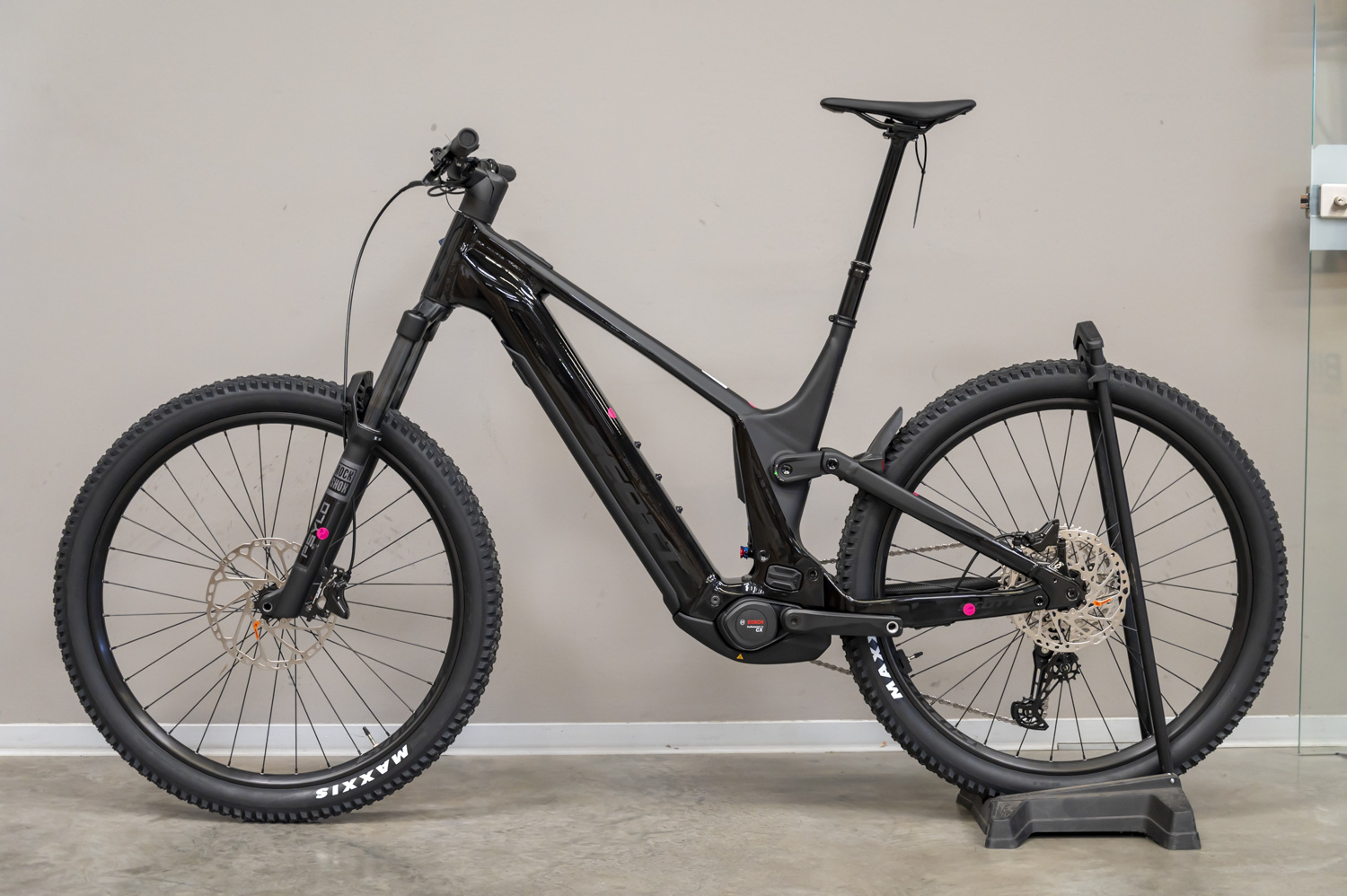

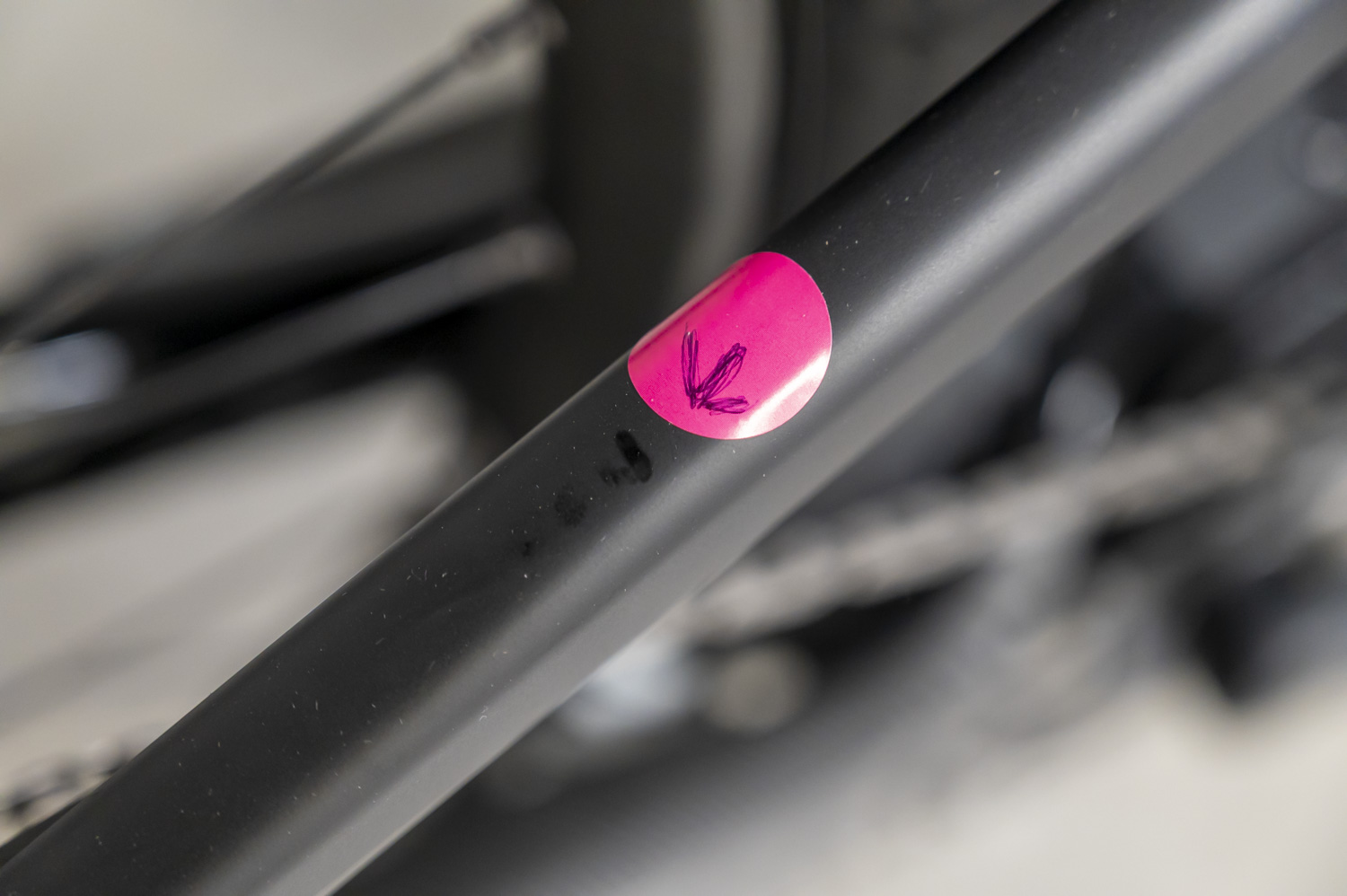

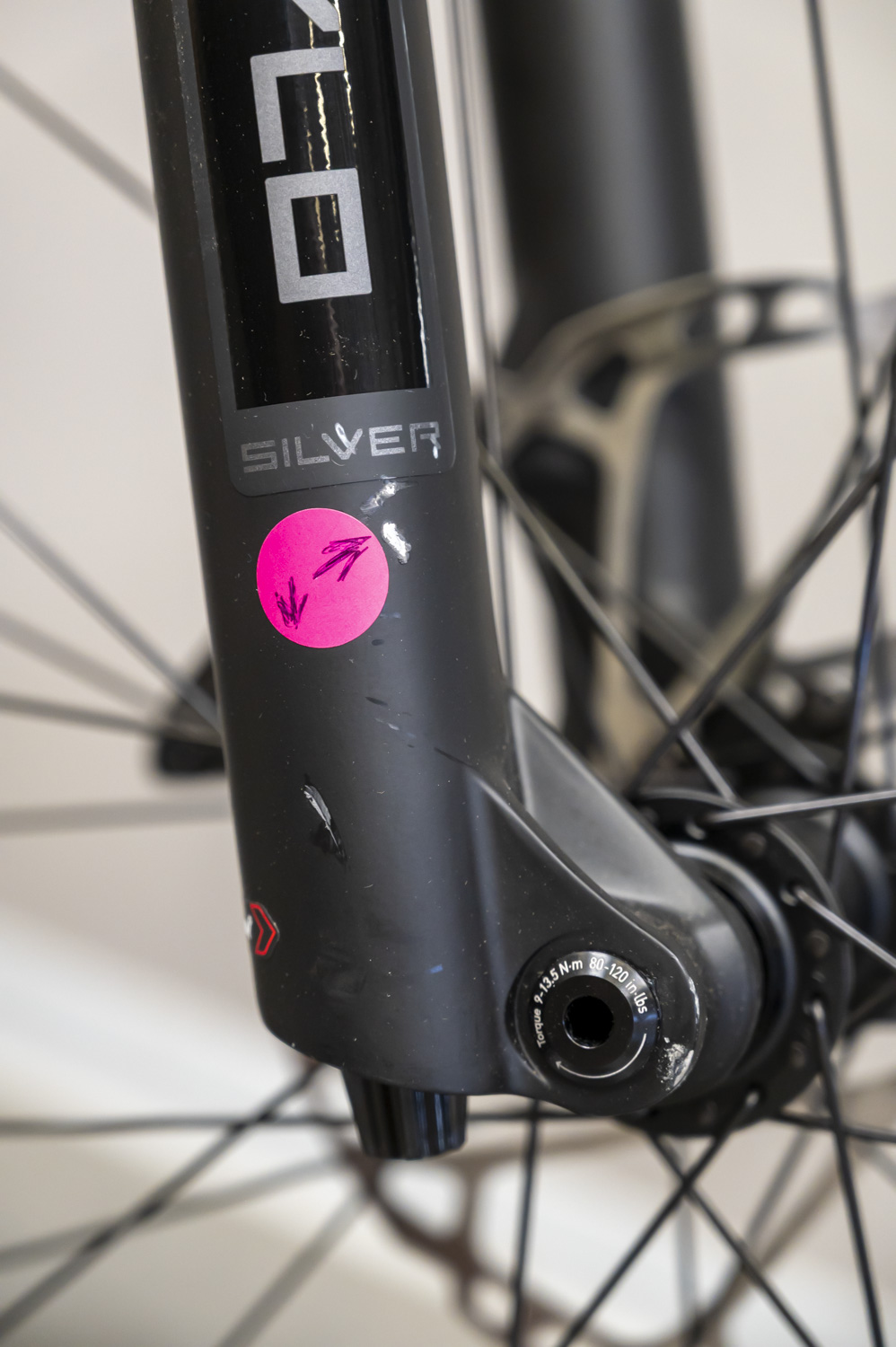

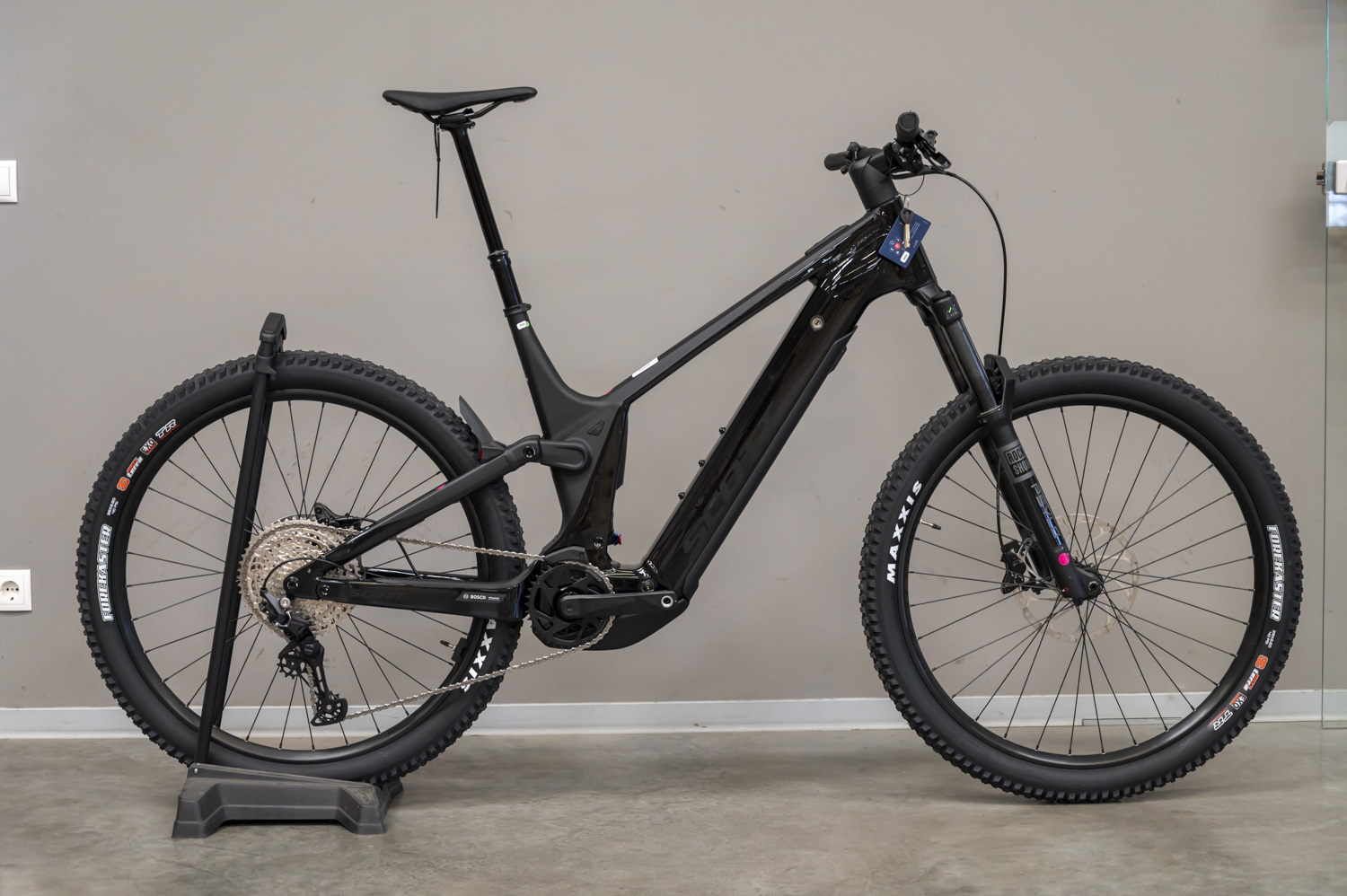

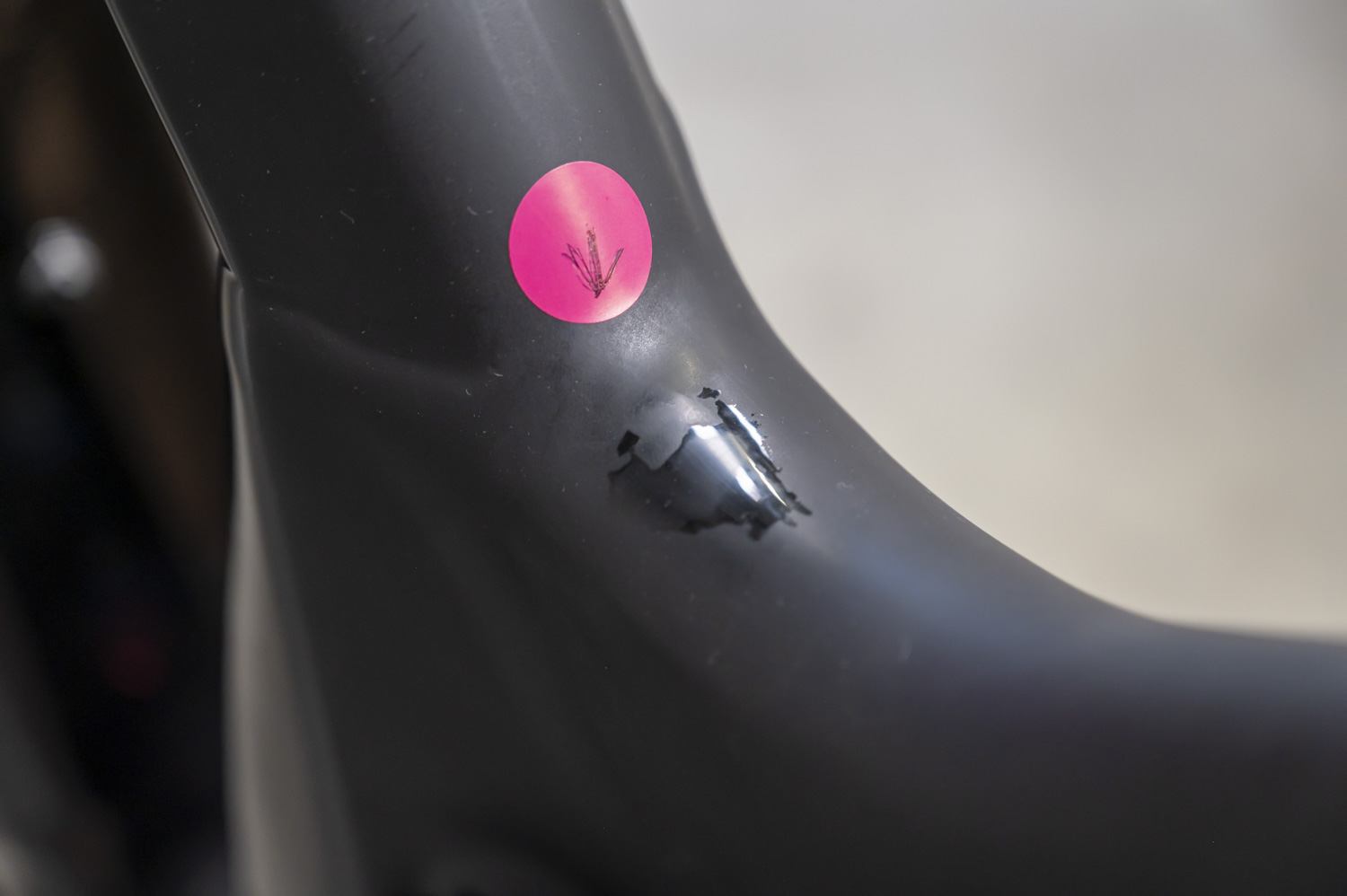

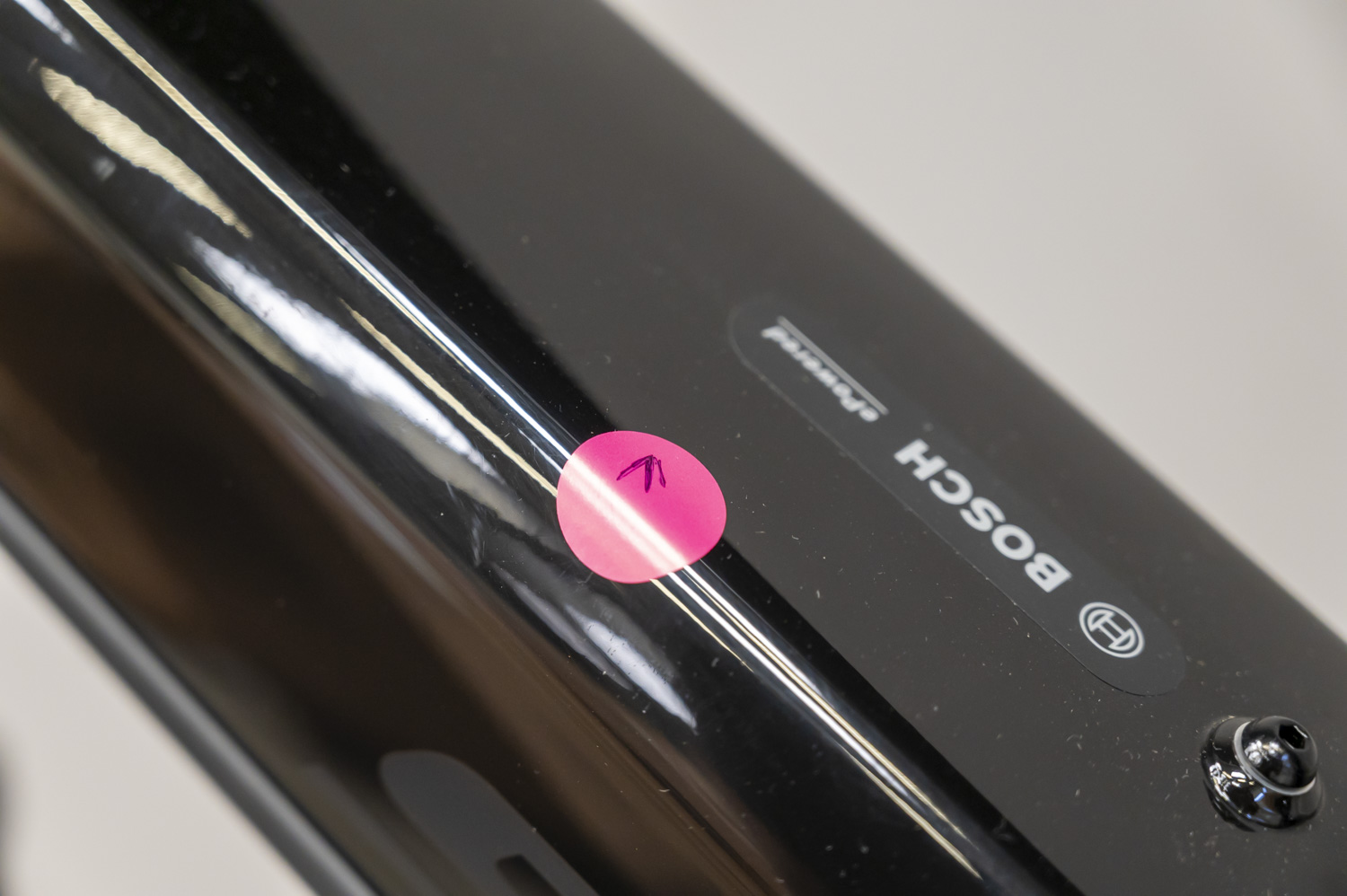

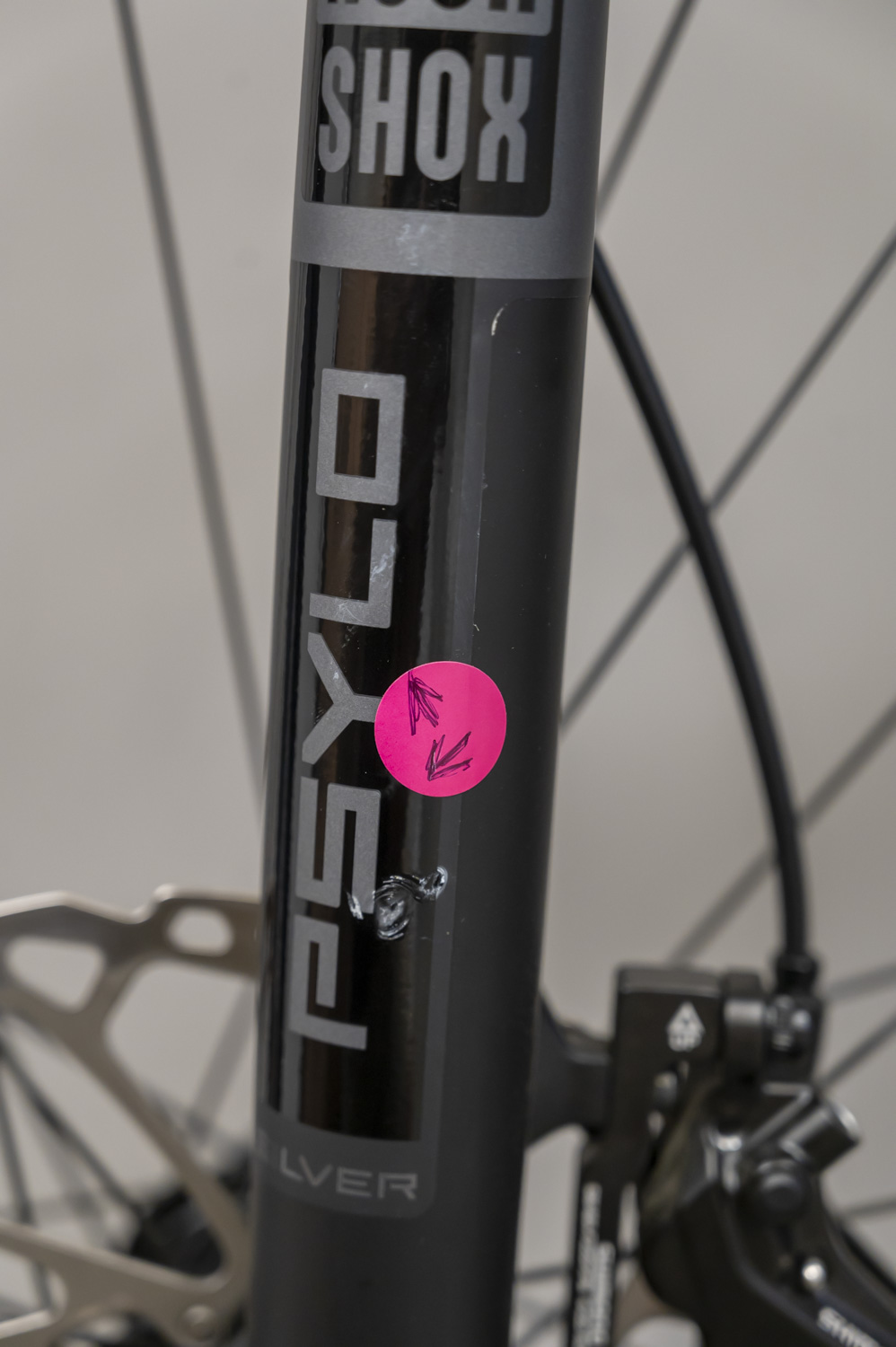

Scott Patron 930 Black (New item with a paint fault)

What components make up the Bosch smart system?

Bosch Drive Unit Performance Line CX Motor Generation 5

The Performance Line CX Gen.5 (BDU384Y) motor takes riding dynamics and agility to a whole new level. It is powerful, lightweight and quiet. Ten years of experience and countless trail rides around the world have gone into its development. The Performance Line CX motor combines power, dynamism, efficiency and range. 100 Nm maximum torque, 600 W maximum motor power, 340% maximum support factor. These figures represent the ideal balance between performance and riding enjoyment in relation to wear and range.

Powerful uphill
The maximum torque of 100 Nm has a noticeable effect on your riding experience when e-mountain biking. The powerful motor enables strong acceleration after tight bends and obstacles, even at low cadences, and makes setting off on hills easier. For fast sprints, the motor also supports you at high cadences.

Intuitive handling
A mode for greater focus: with the eMTB mode, specially designed for sporty riding, you benefit from optimum control and intuitive handling, as you need to switch between the different riding modes less often. With this clever feature of eMTB mode, you can ride through technical sections with confidence and overcome obstacles such as roots and thick branches effortlessly by applying targeted pedal pressure with Extended Boost. The Performance Line CX drive unit thus ensures even more riding enjoyment and a ‘flow’ experience that sets new standards.

Maximum agility
The multi-sensor concept enables controlled and agile riding even on technically demanding trails; combined with the innovative Bosch motor control system, it delivers maximum dynamism and responsiveness.

Sporty and economical
Whether you’re out for a sporty ride on a trekking bike or an eMTB, the Tour+ riding mode on the Bosch Performance Line CX always puts the focus on riding enjoyment. It eliminates the need to switch between assistance modes, so you can concentrate fully on your e-biking experience. In Tour+ mode, you pedal harder on flat stretches than in Tour mode, resulting in a sportier ride – this helps the riding mode conserve power whilst extending your range – for even more riding fun! Whether on trails or tarmac, Tour+ mode is always the right choice. That’s because it constantly adapts to you. Sensors on the motor measure key riding data more than 1,000 times per second, and Tour+ mode uses this information to determine the optimal level of assistance for you. It modulates the extra power so precisely that you not only enjoy a natural riding experience, but also achieve a greater range when you apply more effort.

Personalised riding experience
To ensure the e-bike’s handling matches your own riding style or the chosen route, the available riding modes can be individually adjusted in the eBike Flow app. The level of assistance, dynamics, maximum speed and maximum torque of the drive can thus be flexibly tailored to your personal needs and requirements. Whether it’s an intensive training session or a long e-bike tour – the riding modes always offer you the right level of assistance and make riding even more enjoyable.

The Performance Line CX responds more sensitively than ever before to your input
Bosch has reinterpreted and improved the signals from the sensors: inertial sensors (IMU), cadence sensor and torque sensor. The new motor does exactly what you want it to – responsively, precisely and directly. That’s a natural riding experience

eMTB mode and Extended Boost
You don’t need any other riding mode to get into the uphill flow. That’s exactly what Bosch developed it for. The eMTB mode responds progressively to you and recognises in a flash, based on your pedalling pressure, just how much power you want – dynamically, with maximum traction and always in control. With the integrated Extended Boost, a well-timed push on the pedal is all it takes for the drive unit to effortlessly propel you over steps and rocks.

Push Assist and Hill Start Assist
All the way to your destination: helpful functions take the weight off your eMTB when you have to stop on tricky sections. With the push assist, you can push your eMTB easily, whilst the drive unit automatically adjusts the pushing speed to the gradient and the terrain. What’s more, the hill start assist enables a controlled start with strong traction, even on steep terrain. In both cases, Hill Hold is active: your eMTB stays put and doesn’t roll backwards unexpectedly.

Customisable riding modes
A natural riding experience is personal – with the eBike Flow app, you can create a riding mode tailored entirely to your preferences. Your trail, your riding experience, your mode: using four parameters, you can easily tailor the riding modes to your needs via sliders in the eBike Flow app. Assistance, dynamics, maximum torque and maximum speed – you decide what you need.

Powder-coated. Robust right down to the tips

• The housing is made of magnesium – robust, corrosion-resistant and hard
• The sealing design prevents water spray from entering
• The sound of the trail – nothing else: Bosch has managed to reduce noise from the gearbox. The new motor is quiet. It strikes a balance between power delivery and noise levels
• Power. Distributed across 2.8 kilograms. The Performance Line CX is around 100 grams lighter than the previous version

Bosch eBike Flow app

Enhance your eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor, and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.

Track your activities
Record your ride and fitness data as soon as you set off. For iPhone users, Activity Tracking also automatically syncs all data with Apple Health if desired. If you take a break, the recording stops automatically.

Customise riding modes
Tailor the riding mode precisely to your needs: you can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more assistance or use less power.

Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether it’s battery level, remaining range, distance already travelled or your next service appointment – the home screen clearly displays everything you need to know with constantly updated e-bike data.

Bosch System Controller and Mini Remote

	Easy to use Focus entirely on city traffic or your trail ride.
	A robust and functional companion The System Controller is perfect for modern eUrban bikes or sporty eMTBs.
	Constant upgrades Connect your smartphone to the System Controller and enjoy new features via the eBike Flow app.
	Minimalist design The System Controller and Mini Remote embody an authentic and clean eBike look.

Bosch System Controller

Minimalist, robust control unit
The System Controller is a control unit for eBikes with the smart system, stripped back to the essentials. The deliberately limited number of functions and information makes it easy to get a quick overview and avoids distractions whilst riding. The System Controller is seamlessly integrated into the top tube – this provides additional protection for this already robust companion, makes it virtually unnoticeable and makes it perfect for sporty rides and design-conscious e-bike enthusiasts.

LED display
LEDs use different colors to indicate the riding mode and the battery charge level in 10 per cent increments.

Connected via the smart system
The System Controller makes your e-bike smart and acts as the interface for software updates.

Fitted in the top tube
The system controller is barely noticeable; it is made of robust material and is therefore protected against knocks and scratches.

Two buttons
With just two buttons, you can control the most important functions of your eBike: switch your eBike on or off and change the riding mode.

Hardware facts

• Display of the e-bike’s current charge level via the five charge level LEDs
• Assistance level indicated by the color of the riding mode LED: red, purple, blue, green
• Can be expanded with the Mini Remote for additional functions and more convenient operation
  • Modular use: The System Controller can be used in conjunction with the Mini Remote to control the eBike Flow app and the Bosch display whilst riding
  • Use of the push assist via the Mini Remote and status indication via the charging status LEDs on the System Controller flashing in sequence (white = push assist ready; ice blue = push assist active)
  • Switch the light on/off
• Ambient light sensor automatically adjusts the brightness of the LEDs
• Two-component design: a combination of a soft-touch surface and hard material for optimum ergonomics and durability
• Replaceable, long-life battery lasts up to approx. 7 years
• ABS function indicated via the ABS LED (only on e-bikes with Bosch eBike ABS)
• Diagnostic interface (type: USB-C) for diagnosing the e-bike system or for charging the system controller’s built-in battery
• System connector for connecting the e-bike system
• IP54 protection against dust and splashing water
• Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
• Only available for e-bikes with the smart system

Bosch Mini Remote

As an additional control unit, the Mini Remote complements the system controller, expands the range of functions and enables safe operation. It is connected to the system controller via Bluetooth and can be flexibly mounted on the handlebars. Thanks to the buttons within easy reach of your thumbs, your hands remain on the handlebars at all times. More buttons mean more functions: with the Mini Remote, you get practical features such as the smart push assist and you can switch your e-bike lights on or off.

Quick to retrofit
The Mini Remote can be retrofitted quickly and is connected to the System Controller via Bluetooth.

Three buttons, more functions
The buttons on the Mini Remote have dual functions: for ride mode, the light function and the smart push assist, as well as for controlling a display.

Full flexibility
The Mini Remote works with or without a display. Control the Ride Screen in the eBike Flow app or your display screens.

Intuitive operation
Short travel for your thumb and a non-slip soft-touch surface: the buttons feature icons and are intuitive to use.

Hardware facts

• Optional add-on to the System Controller for additional functions and convenient operation from the handlebars
  • Control of the Ride Screen or the navigation screen in the eBike Flow app (smartphone) or the Bosch display
  • Smart push assist and innovative roll-back protection (provides assistance on steep, impassable inclines and can prevent the eBike from rolling backwards)
  • Switch lights on/off
• Optimal button ergonomics thanks to the flat design
• Wireless mounting on the handlebars
• Soft-touch surface for excellent grip
• LED indicates low battery on the Mini Remote, pairing activity or a lost connection to the system
• The battery life (CR1620 button cell) can last up to approx. 2 years and can be easily replaced by removing it from the handlebars and inserting it into the rubber insert
• IP54 rated for protection against dust and splashing water
• Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
• Only available for e-bikes with the smart system
• Bluetooth connectivity (Bluetooth 5.0 Low Energy)

Bosch PowerTube 600 / 800

Maximum range
With the PowerTube 600 / 800, long distances and significant elevation gains are easy to tackle.

Stylish e-bike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive e-bike design and high capacity – a combination that makes no compromises. A new, lighter casing has been used for the battery. Provided the e-bike manufacturer has designed the e-bike to allow for it, the battery can be easily swapped – for a longer or, if needed, shorter range.

Reliable power source
High safety standards. Impressive mileage, long service life, reliable performance – the lithium-ion battery is equipped with a battery management system that protects the battery cells from overloading.

User-friendly operation
The PowerTube 600 / 800 stands out for its particularly simple handling. The battery is always securely anchored in the frame on all rides; removal is via an intuitive, lockable mechanism, offering you user-friendly operation.

Comparison table
