Park Tool TS-4.3 Truing Stand
Product information "TS-4.3 Truing Stand"
Easy handling - the Park Tool TS-4.3 truing stand

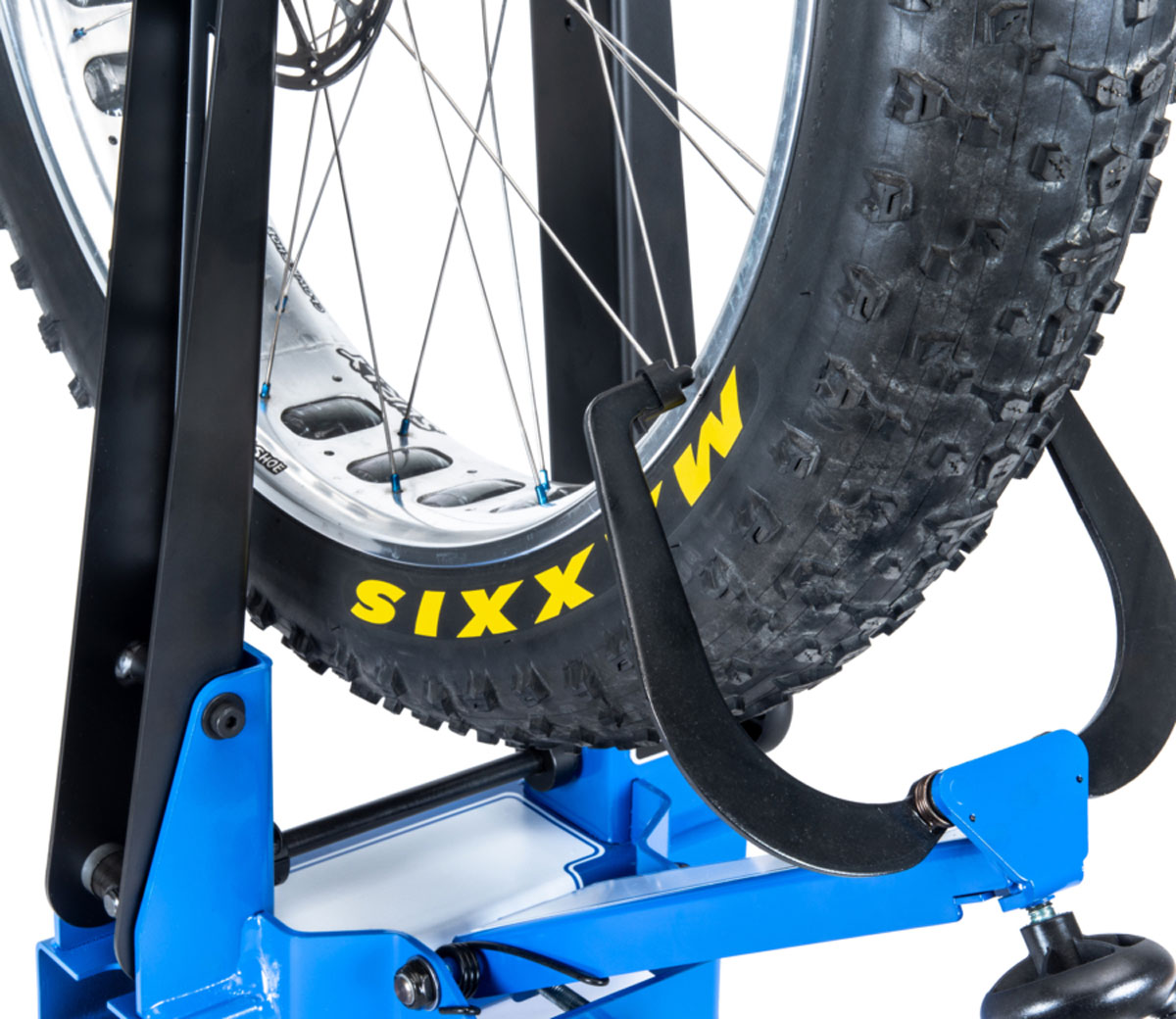

The TS-4.3 truing stand is characterized by its enlarged dimensions: higher supports, a wider base and oversized measuring probes. This design makes it possible to accommodate almost any wheel and tire combination, including fatbike tires and aero rims up to 29 inch+. Quick adjustment to different hub and rim widths is effortless via an ergonomically designed rotary knob.
The sturdy posts of the TS-4.3 have integrated thru-axle adapters. This ensures compatibility with thru-axle, quick-release and solid axle hubs without the use of additional adapters. The generously dimensioned measuring sensors offer enough space for practically any tire so that it does not have to be removed for centering - an advantage especially for tubeless setups.
Robust construction and durability
The TS-4.3 truing stand is made of durable, powder-coated heavy-duty steel. It is manufactured, assembled and calibrated in St. Paul, Minnesota. Sturdy, comfortable knobs and spring-loaded probes and measuring arm ensure smooth and consistent operation. Replaceable composite tips on the probes protect painted rims and delicate materials from damage. The stand is fully adjustable and can be serviced when required, providing a lifetime of use.
Features - Park Tool TS-4.3
- Extended compatibility for a wide range of wheel and tire combinations (fatbikes, aero rims, children's bikes, 29 inch+)
- Ergonomic rotary knob for quick adjustment of the supports and sensors
- Integrated thru-axle adapter for thru-axle, quick-release and solid axle hubs
- oversized sensors allow centering with mounted tire
- Robust construction made from powder-coated heavy-duty steel
- Spring-loaded feelers and measuring arm for smooth operation
- Removable composite tips to protect sensitive rims
- Fully adjustable and serviceable for a long service life
- Manufactured, assembled and calibrated in St. Paul, Minnesota (USA)
Product features
- Maximum wheel size: Up to 29"+ with or without tires
- Hub width: 75 mm to 250 mm (2.95-9.8 inch)
- Maximum rim width: 127 mm (5 inches)
- Maximum tire width: 152 mm (6 inch)
- Hub compatibility: thru axle, quick release and solid axle
- Base depth (for vice mounting): 102 mm (4 inches)
- Mounting slots (for table top mounting): 9.5 mm (3/8 inch) deep, approx. 311 mm (12.25 inch) from center to center
Material
- Powder coated heavy duty steel
- Composite material (for probe tips)
Color
- Blue / silver
Scope of delivery
- 1 Park Tool TS-4.3 Truing Stand
TS-4.3 Professional Truing Stand
- Manufacturer number: TS-4.3
- UPC: 763477008169
5115 Hadley Ave N
55128 St. Paul NY
United States
https://www.parktool.com/en-int/
Otto-Hahn-Str. 17
65520 Bad Camberg
Deutschland
https://www.grofa.com/de/contact-de/
