Supernova Mini 3 Pro (12V) - E-bike Headlight
Product information "Mini 3 Pro (12V) - E-bike Headlight"
The new automatic light reacts to brightness changes for automatic change between low and daytime running lights. The high beam now reaches up to 1100 lm and 190 LX in the new optionally programmable 21 W operation and the low beam is almost twice as bright as the previous Mini 2 Pro model.
Features - Supernova Mini 3 Pro (12V) - E-bike headlight
- Innovative lens system with 200 micro-optics creates an exceptionally homogeneous carpet of light approx. 10 m wide and excellent illumination right into bends.
- Integrated light guides in the front ring ensure highly visible daytime running light, supplemented by automatic switching between low beam and daytime running light.
- High beam with up to 1200 lumens and 190 lux in optionally programmable 21 W mode; low beam almost twice as bright as the predecessor MINI 2 PRO.

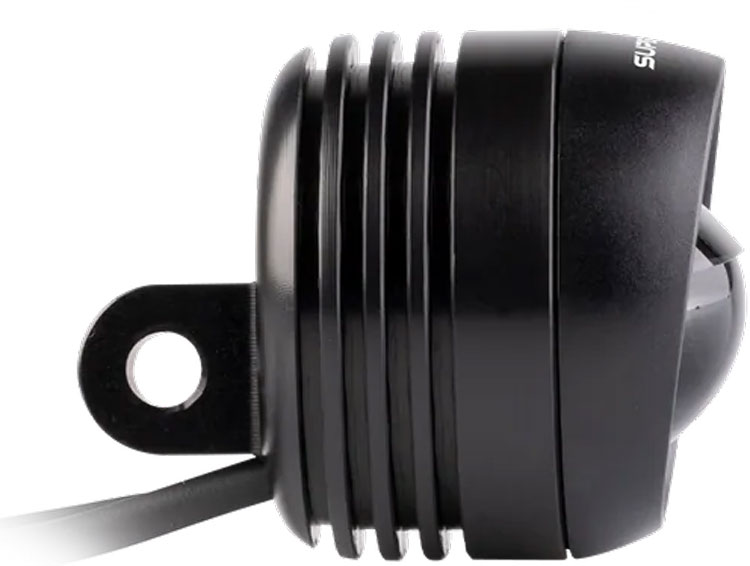

- Housing made of saltwater-resistant anodized aerospace aluminium with cooling fins for optimum heat dissipation, high stability and extended LED service life.
- Tested under extreme conditions by ultra-cycling athletes, confirming reliability, durability and maximum efficiency.
Product features
- Bicycle category: E-bike
- High beam
- 21W: Up to 1200 lm, 190 lx, 21 W (programmable)
- 12W: 650 lm, 140 lx, 12 W
- Low beam: 450 lm, 110 lx, 7.5 W
- Daytime running mode: New daytime running light mode (2.5 W consumption) with a striking light signature controlled by a light sensor located directly behind the lens
- Optic: Terraflux 5 lens
- Supply voltage: 12 V DC
- Dimensions: 55 x 43 x 43 mm
- Cable length: With SUPERNOVA Power Connector System, 100mm to the connector & 110mm to the high beam connector
- StVZO: Yes
Material
- Anodized aluminium
Color
- matt black
Weight (manufacturer's specification)
- 70 g (without cable)
Scope of delivery
- 1 x Supernova Mini 3 Pro (12V) - e-bike headlight

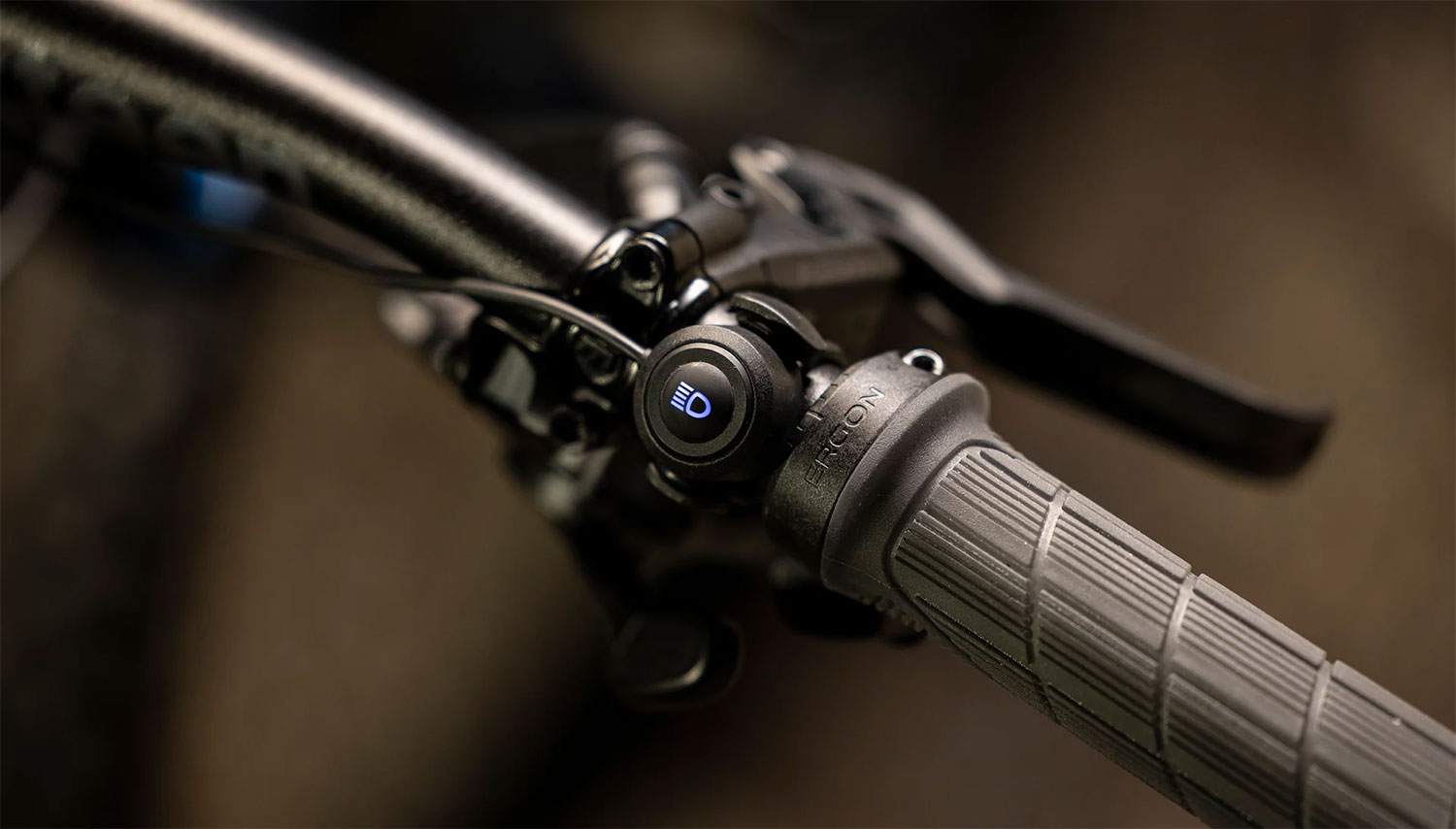

- Magnetic high -beam button (cable length: 212 mm, with microgold sticker)
- racket for decentralized handlebar clamp, Ø 22.0 mm
- Power connector cable - Bosch Smart System (cable length: 1,300 mm, with Bosch Smart System connector)
Technology

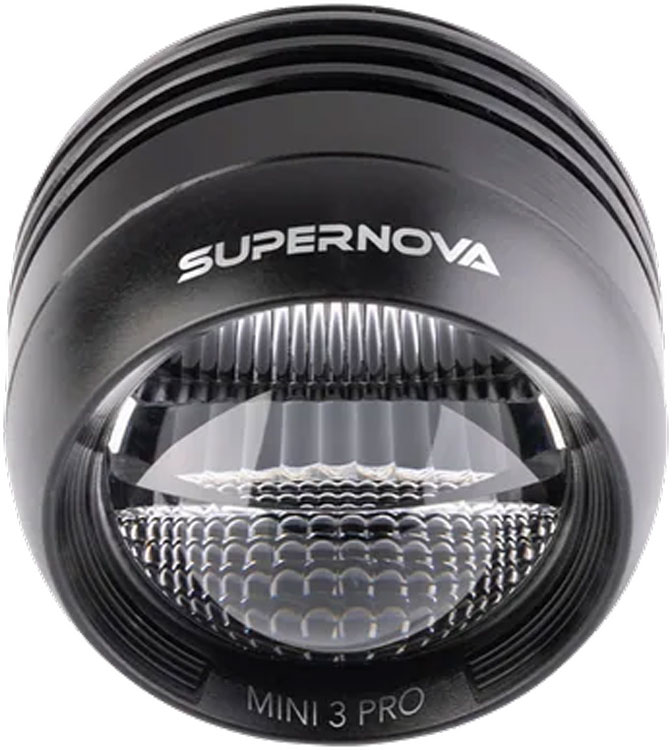

TERRAFLUX 5 LENS
The Terraflux 5 technology provides strong yet eye-friendly lighting. The wide beam of light offers excellent illumination - in the near field as well as to the side and towards the horizon. An increased beam angle enables the light to better capture the outer edges of the illuminated area, thus making it even brighter when entering curves. Thanks to the smooth transitions, the light is distributed very homogeneously and is comfortable for the eyes. The performance improvements in all areas compared to previous Terraflux models are achieved through 200 high-precision micro-optics. These are part of a main lens, which is integrated with additional lenses in a multi-stage optical system. This is what enables the light from the LED emitters be optimally distributed to the desired areas of use.
ALUMINUM HOUSING
Supernova uses aerospace aluminum for our housings because it is not only super strong but also has the best heat conduction properties. The better the cooling, the brighter the LED. In addition, the housings are anodized, salt water-resistant, and defy the most adverse conditions. Extreme tests in all seasons and climates by ultracycling athletes on the road with SUPERNOVA lighting prove their outstanding reliability and durability.
LED COOLING
High performance with the best possible efficiency is our credo. Only by a complex cooling of the high-performance LEDs are the enormous brightness values of our headlamp systems can be achieved. Because: the better an LED is cooled, the brighter it lights up. The life is greatly extended by good cooling. The most important prerequisites for an ideal heat levy include a careful choice of material and a sophisticated construction. For example, the completely uninterruptible heat dissipation can only be obtained by a housing seamlessly made of a single piece aluminum. In extreme situations, integrated heat sensor always keeps the headlight in the optimum temperature range. Supernova's engineers use computationally intensive computer simulations to find the most suitable way to dissipate the heat from the LEDs in advance. Over 20 years of experience with LED headlights comes into its own here.
- Manufacturer number: Y-MINI3P-MBLK
- EAN: 4260224792037
- Model Year: 2025
Industriestraße 26
79194 Gundelfingen
Deutschland
https://www.supernova-lights.com
