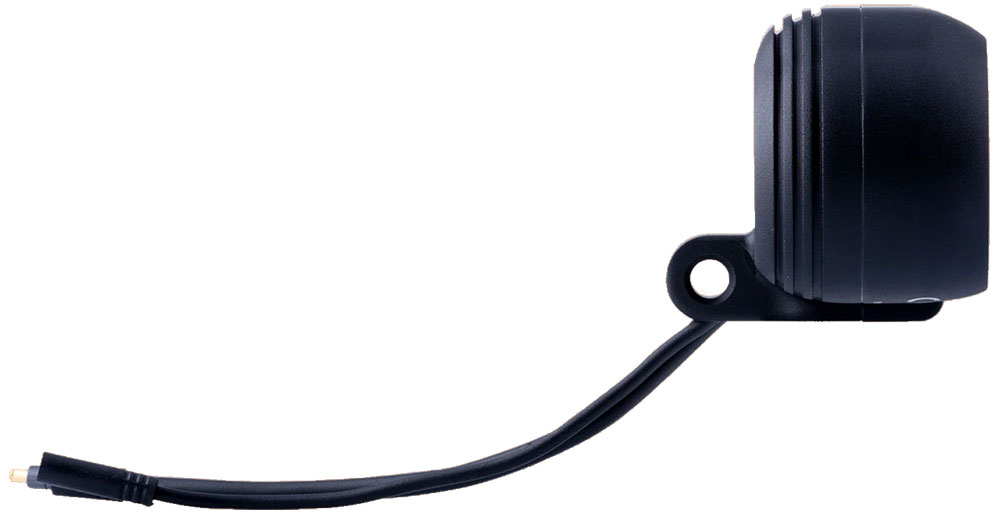

Supernova M99 Mini Pro 25 - 21W Power Version - E-Bike Headlight
Product information "M99 Mini Pro 25 - 21W Power Version - E-Bike Headlight"
High beam is essential for off-road use and significantly improves the illumination of tight corners. This massively increases safety by illuminating the entire area around the trail. With the integrated low beam, it is finally possible to ride home relaxed, without blinding oncoming traffic.
The electronics can communicate with modern e-bikes via automotive CAN or CANopen. Even without software communication, the integrated sensors control the light intelligently so that it functions on all popular e-bike systems.Product features - Supernova M99 Mini Pro 25 21W
- Bicycle category: E-Bike (25 km/h)
- Functions: High beam, low beam
- Low beam: 450 lm, 150 lx
- Wattage low beam
- 5 V/6 V/12 V: 5,2 W
- High beam: 1500 lm, 260 lx
- Wattage high beam
- 5 V: 10 W
- 6 V: 8 W
- 12 V: 15.5 W*
- Input voltage: 5 V - 12 V DC
- Illuminant: 10 automotive LEDs
- Approvals: German K-number
- Size: 38 x 78 x 50 mm
- Cable length: 1300 mm
- Cable length to main beam connector: 212 mm (with micro-gold connector and magnetic holder for decentralized handlebar clamping, Ø 22.0 mm, (MSH22))
Material
- 6061 Aluminum
Color
- black
Weight (manufacturer information)
- 120 g
Scope of delivery
- 1 x Supernova M99 Mini Pro 25 Headlight
Technologies
SUPERNOVA HIGH BEAM
Supernova was the first manufacturer to offer a legally-approved high beam for bicycles with the launch of the M99 MINI PRO25. With the most recent changes to road traffic legislation, the high beam has become one of the most important innovations in the bicycle lighting sector. A high beam offers tremendous radiance and increases a cyclist’s safety substantially. Our legally-approved bicycle lights provide excellent illumination, especially for tricky terrain where cyclists have to negotiate hanging branches, signs, junctions, and poorly visible pedestrians. No matter how steep or winding the trail, our high beam lights illuminate the pathway. The Supernova high beam has an extremely wide beam angle. This allows an excellent awareness of the surroundings, with the additional advantages described below.
SUBMERGED SUSPENSION FORK
The diving of the suspension fork is a well-known problem with mountain bikes. Because MTBs have a long travel suspension, and the fork dives to a great extent when you brake, the reach of the light cone is often diminished by up to 90%. Supernova’s special high beam is optimized to increase the beam above the light-dark boundary so that it compensates for the movement of the fork. This way, the visibility of the pathway is maintained. The high beam of the M99 reflector has a 56% larger opening angle than other comparable front lights. Using the low beam, you can ride to the trailhead without dazzling others. Once you go offroad, you can change to the high beam at the push of a button.
CURVE ILLUMINATION
When a cyclist leans into a bend, the dipped beam, which is sharply limited at the glare horizon, tilts to the side with the rider, so that the way ahead is only partially illuminated. In contrast, the brilliant high beam radiates far beyond the glare horizon and the light streams into the corner. As a result, there is a much improved illumination of the pathway when cornering and thus a significant increase in safety for cyclists.
M99 MATRIX MIRROR
The future is now! Based on scientific research by the Lichttechnical Institute at KIT and funded by the German Federal Ministry for Economic Affairs and Energy, the M99 introduced a lighting technology that sets completely new standards in bicycle lighting. An LED matrix, controlled intelligently and combined with a highly complex facetted mirror consisting of 99 individually calculated surfaces, is designed for unprecedented brilliance. After years of development, it has thus become possible for the first time to pack highly potent automotive technology into the miniature format of a bicycle front light.
ALUMINUM HOUSING
We use aerospace aluminum for our housings because it is not only super strong but also has the best heat conduction properties. The better the cooling, the brighter the LED. In addition, the housings are anodized, salt water-resistant, and defy the most adverse conditions. Extreme tests in all seasons and climates by ultracycling athletes on the road with SUPERNOVA lighting prove their outstanding reliability and durability.
LED COOLING
We believe in high performance with the best possible efficiency. Cooling extends the service life significantly. The most important prerequisites for an ideal heat dissipation include a careful choice of material and sophisticated construction. For example, completely uninterrupted heat dissipation can only be obtained by a housing that is made seamlessly from a single piece of aluminum. In extreme situations, integrated heat sensors keep the headlight in an optimum temperature range. With extensive computer simulations, our engineers continue to find the most appropriate way to derive the heat from the LEDs. Our more than 20 years of experience with LED front lights comes into its own here.
- Manufacturer number: V-M99MIPC-K-MBLK
- EAN: 4260224791481
Industriestraße 26
79194 Gundelfingen
Deutschland
https://www.supernova-lights.com
