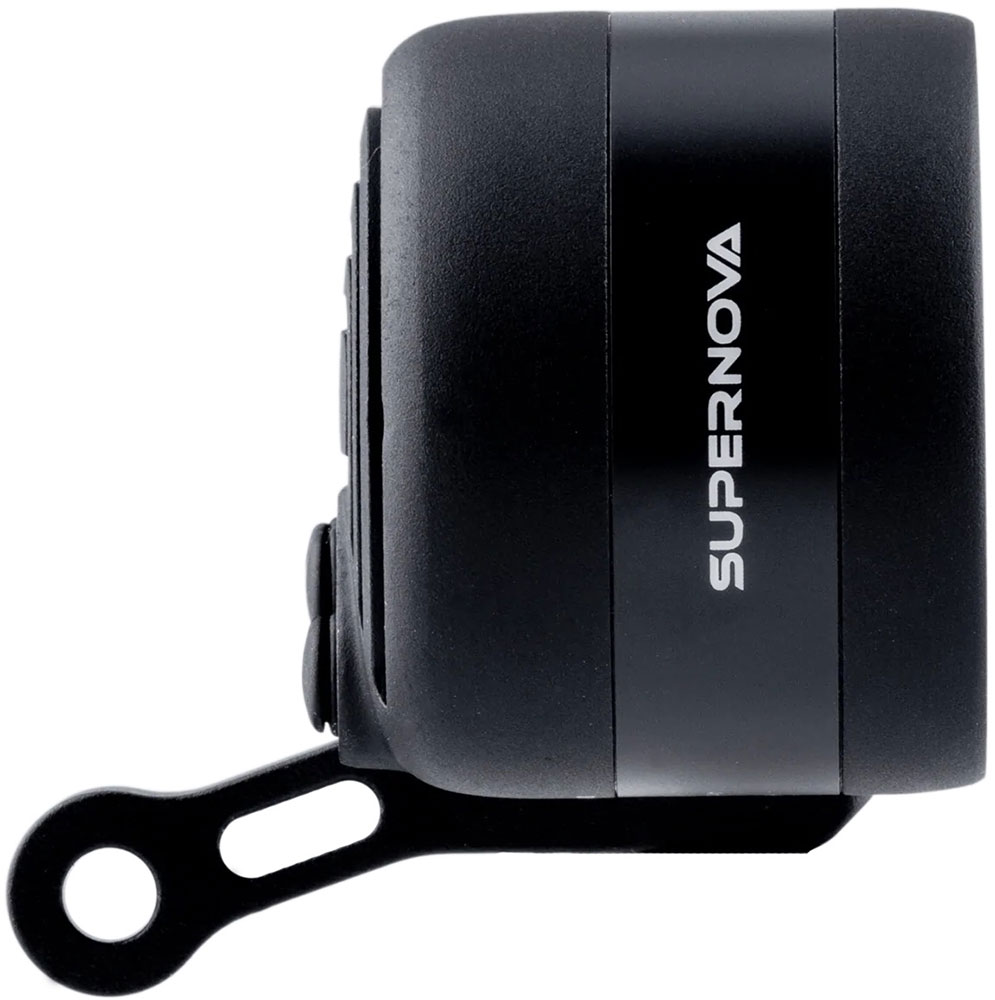

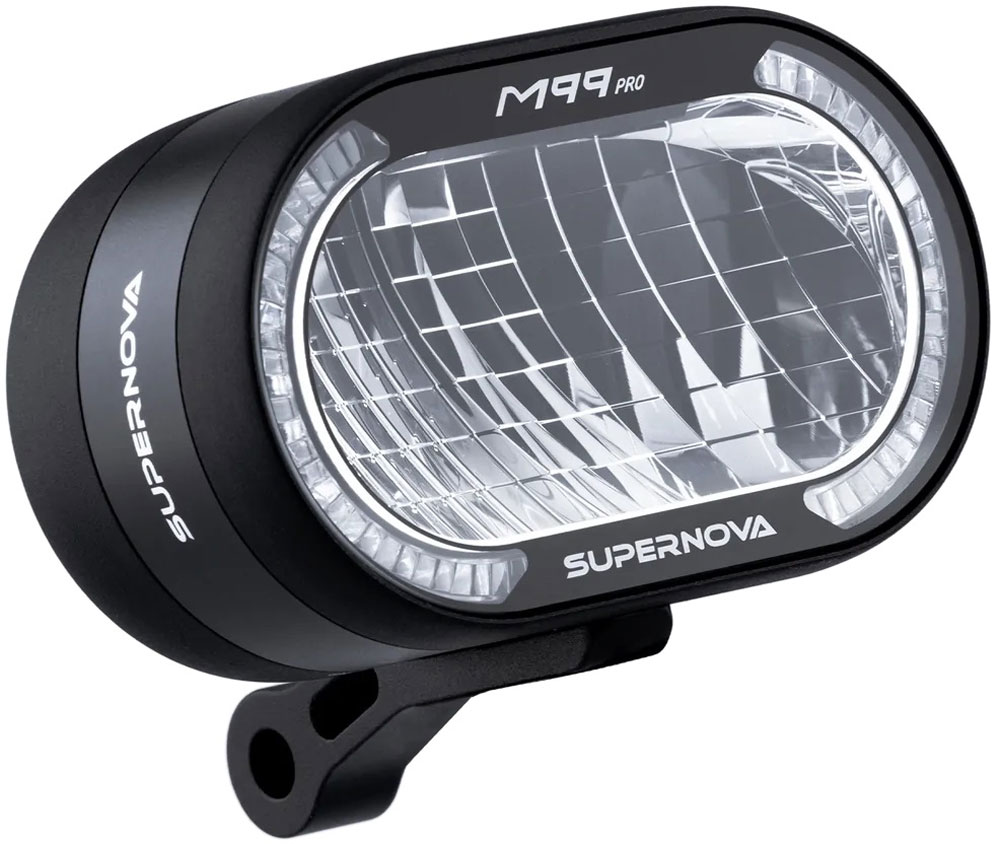

Supernova M99 Pro 2 (25km/h) - E-bike Headlight
Product information "M99 Pro 2 (25km/h) - E-bike Headlight"
The front light has an intelligent control center that manages components with short-term high power consumption such as a horn or a USB. A light sensor automatically switches between the new SMD LED daytime running light module and the low beam in fractions of a second. The completely redesigned aluminum housing and tempered front glass protect the optics and electronics from all environmental impacts with protection level IP67. All materials are subjected to stringent quality controls during production of the front light in Gundelfingen, Germany.
Product features - Supernova M99 Pro 2
- Bicycle category: E-Bike (25 km/h)
- Functions: High beam, low beam, daytime running light
- Low beam: 500 lm, 130 lx
- Wattage low beam: 5 W
- High beam: 3000 lm, 450 lx (for full power, please use the Power Boost Connector)
- Wattage high beam: 35 W
- Daytime running light: 12 Power LEDs
- Input voltage: 6 - 12 V DC, 11 - 35 W programmable
- Signal processing: Horn, USB
- Illuminant: 16 high-power LEDs
- Size: 45 x 85 x 52 mm
Material
- 6061 Aluminum
Color
- black
Weight
- 190 g (manufacturer information)

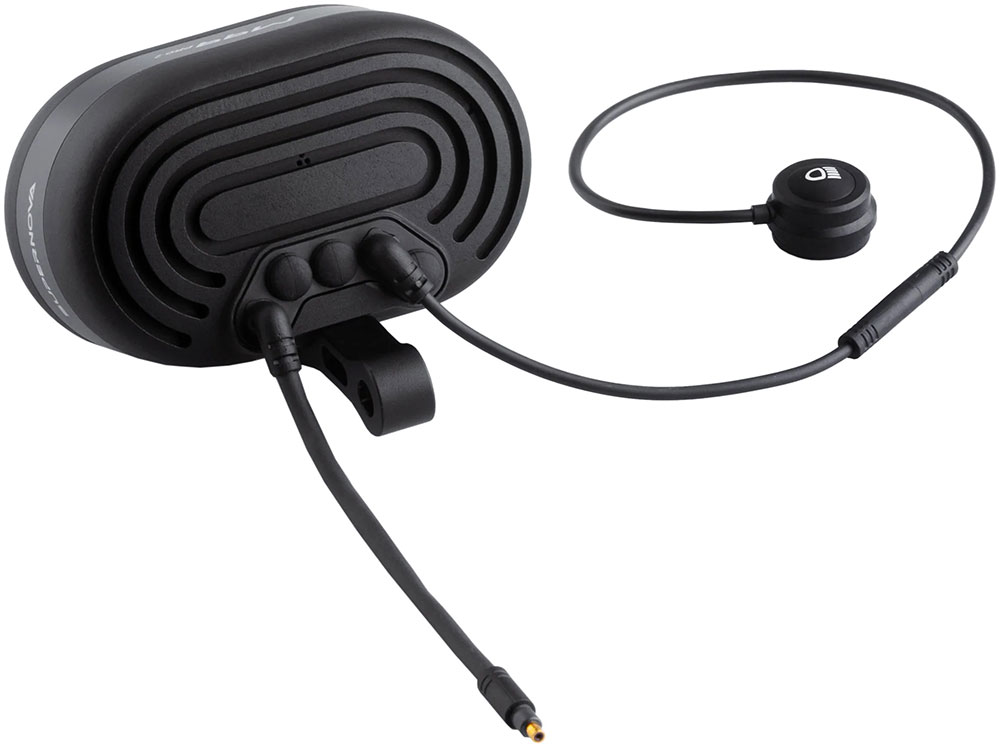

Scope of delivery
- 1 Supernova M99 Pro 2 Headlight
- High beam switch (cable length: 212 mm, with micro gold plug)
- MSH22 High beam switch bracket ø 22.0 mm
- Power Connector Cable (cable length: 1,300 mm, with Bosch Smart-System-plug)
Technologies
SUPERNOVA HIGH BEAM
As the first manufacturer, Supernova launched a legally approved high beam for bicycles. The high beam is one of the most important innovations in the bicycle lighting industry since the new German road code legislation. The high beam offers, in addition to the excellent range, a great illumination which increases the safety of riders significantly. Now, approved bicycle lights offer illumination for difficult terrain, and the cyclist can more quickly perceive hanging branches, signs, junctions or poorly visible pedestrians - no matter how steep and winding the trail is! Our Supernova high beam has an extremely wide beam angle. This ensures excellent visibility of the surroundings.
M99 PRO 2 DAYLIGHT RUNNING LIGHT
To be equally safe like other road users when riding an S-pedelec in road traffic is difficult. If someone underestimates your speed when driving on a round-about and dismisses your right of way, you can be in a dicey situation. The M99 daytime running light eliminates such problems quickly because the very distinctive and widely recognizable gleaming, bright arcs leave no doubt that a fast road user is approaching. You then get the necessary respect, and your ride will be more relaxing!

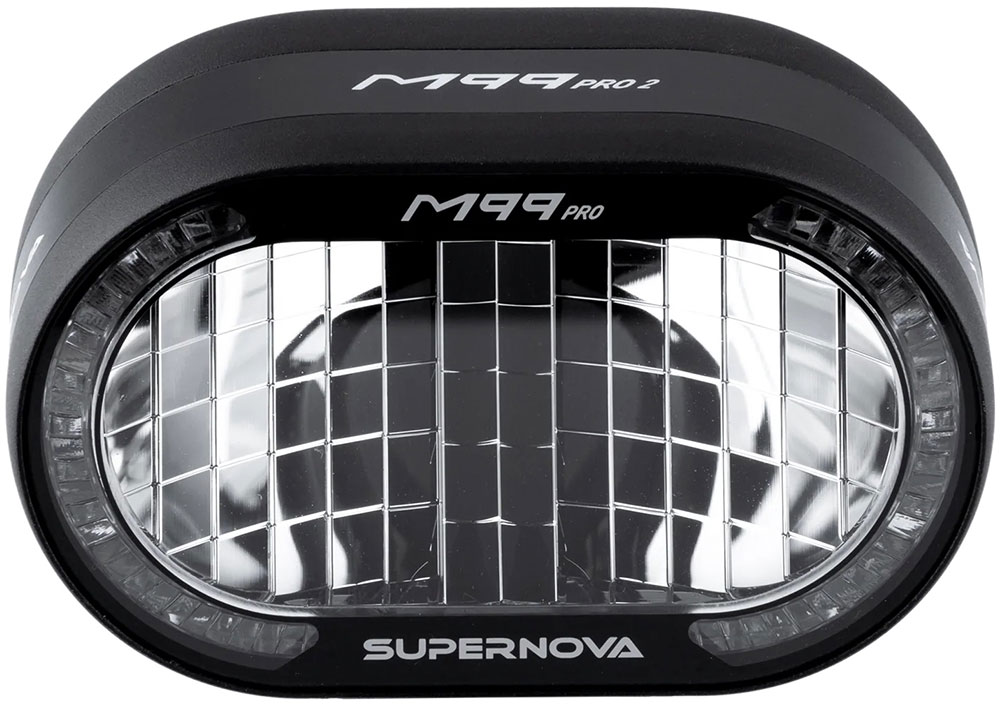

M99 MATRIX MIRROR
The future is now! Based on scientific research by the Lichttechnical Institute at KIT and funded by the German Federal Ministry for Economic Affairs and Energy, the M99 introduced a lighting technology that sets completely new standards in bicycle lighting. An LED matrix, controlled intelligently and combined with a highly complex facetted mirror consisting of 99 individually calculated surfaces, is designed for unprecedented brilliance. After years of development, it has thus become possible for the first time to pack highly potent automotive technology into the miniature format of a bicycle front light. 2

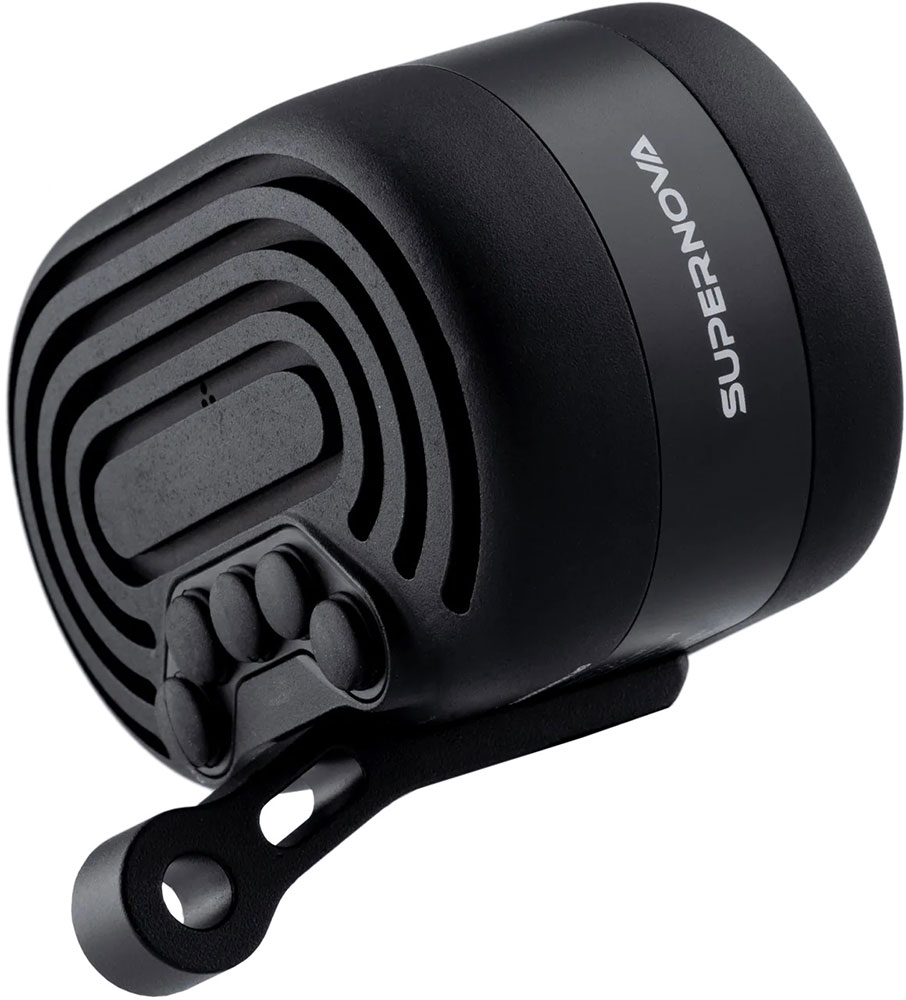

LED cooling
We believe in high performance with the best possible efficiency. Cooling extends the service life significantly. The most important prerequisites for an ideal heat dissipation include a careful choice of material and sophisticated construction. For example, completely uninterrupted heat dissipation can only be obtained by a housing that is made seamlessly from a single piece of aluminum. In extreme situations, integrated heat sensors keep the headlight in an optimum temperature range. With extensive computer simulations, our engineers continue to find the most appropriate way to derive the heat from the LEDs. Our more than 20 years of experience with LED front lights comes into its own here.
ALUMINUM CASING
We use aerospace aluminum for our housings because it is not only super strong but also has the best heat conduction properties. The better the cooling, the brighter the LED. In addition, the housings are anodized, salt water-resistant, and defy the most adverse conditions. Extreme tests in all seasons and climates by ultracycling athletes on the road with SUPERNOVA lighting prove their outstanding reliability and durability.
- Manufacturer number: V-M99-K12-MBLK
- EAN: 4260224791450
Industriestraße 26
79194 Gundelfingen
Deutschland
https://www.supernova-lights.com
