SRAM Force E1 Powermeter 50-37T Carbon AXS 12-speed Groupset

Scope of delivery - SRAM Force E1 Powermeter 50-37T Carbon AXS 12-speed groupset

• 2 x Force eTap® AXS E1 HRD shift/brake lever FM disc brake

• 1 x Force AXS Powermeter E1 DUB 2x12-speed carbon crank 50/37T

• 1 x Force AXS E1 12-speed rear derailleur

• 1 x Force AXS E1 2x12-speed braze-on front derailleur

• 1 x Force XG-1270 12-speed cassette 10-36

• 1 x Paceline Rounded CenterLock brake rotor 160 mm

• 1 x Paceline Rounded CenterLock brake rotor 140 mm

• 1 x Force E1 Flattop 12-speed chain 126 links

• 2 x eTap / AXS battery unit

• 1 x eTap / AXS charger

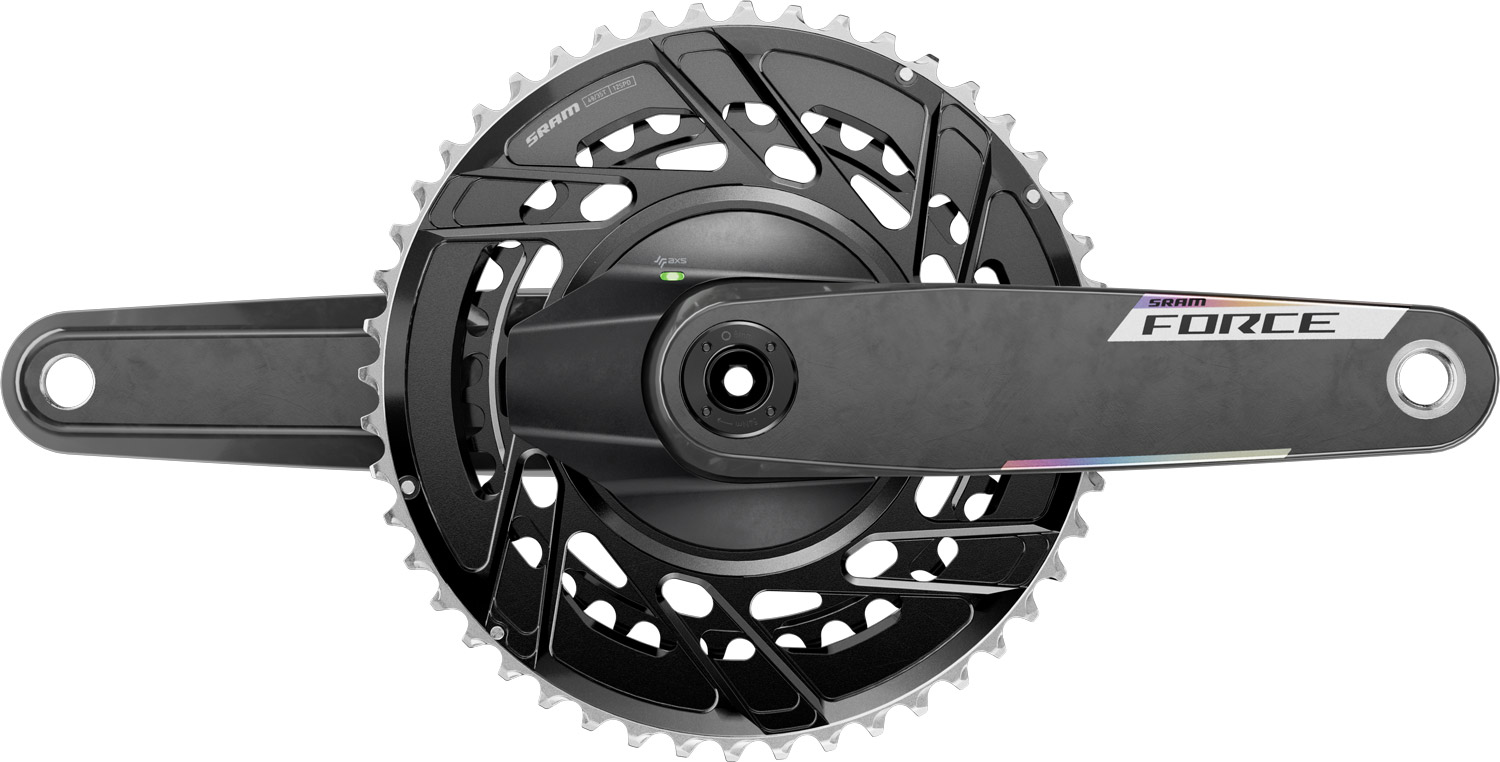

SRAM Force AXS Powermeter E1 DUB 2x12-speed carbon crank 50/37T

Measure your ride/performance data more accurately than ever before with the Force AXS power meter. Building on the robustness and accuracy of the integrated RED AXS power meter, the new Force-level power meter now offers even more riders even more options for customization and with further improved serviceability. Chainrings with screw fastening allow a quick chainring change without affecting the accuracy of the power measurement.

Features

• The power meter is fully integrated into the chainring for greater weight savings

• Power readings are accurate within +/- 1.5% and are not affected by climatic conditions during a ride

• Measures the distribution of right and left leg

• X-Range transmission technology gives you more gear range and better gear progression so you're always in the right gear

• Crisp and precise front shifting

• DUB bottom bracket ensures durability and simplicity

Product features

• Area of application: Road bike

• Crankarms: Force

• Model: AXS

• Power meter: Yes

• Power meter type: Spider

• Chain Guard: No

• Chainring Size: 50/37 teeth

• BCD: Thread Mount

• Bottom bracket: DUB

• Bottom bracket compatibility: All SRAM Road DUB

• Front gear range: 2x

• Rear gear steps: 12-speed

• Chainline: 45 mm

Crank arm length (select variant)

• 165 mm

• 170 mm

• 172.5 mm

Material

• Crank arms: Carbon

• Chainring: Aluminum

Color

• Carbon Gloss

Weight

• 709 g (manufacturer's specification)

SRAM Force E1 DUB 2x12-speed carbon crank 50/37T

The Force - now even faster! And with even more style! Combine the lighter and stiffer Force crank with chainring combinations of 46/33, 48/35 or 50/37 teeth. The X-range gear ratio ensures that the cadence changes as little as possible when shifting gears at the front, maximizing your ability to always deliver full power - whether on climbs, descents or on the flat.

Features

• One-piece 2x chainring results in a lighter, stiffer and more durable crankset

• X-Range transmission technology gives you a wider gear range and smoother gear gradation so you're always in the right gear

• Crisp and precise front shifting

• DUB bottom bracket for durability and simplicity

• Available in chainring combinations of 46/33, 48/35 and 50/37 teeth

• Can be upgraded with a power meter

Product features

• Area of application: Road bike

• Crank arms: Force

• Chain guard: No

• Chainring size: 50/37 teeth

• BCD: Direct Mount

• Bottom bracket: DUB

• Bottom bracket compatibility: All SRAM Road DUB

• Front gear range: 2x

• Rear gear steps: 12-speed

• Chainline: 45 mm

Crank arm length (select variant)

• 165 mm

• 170 mm

• 172.5 mm

Material

• Crank arms: Carbon

• Chainring: Aluminum

Color

• Carbon Gloss

Weight

• 622 g (manufacturer's specification)

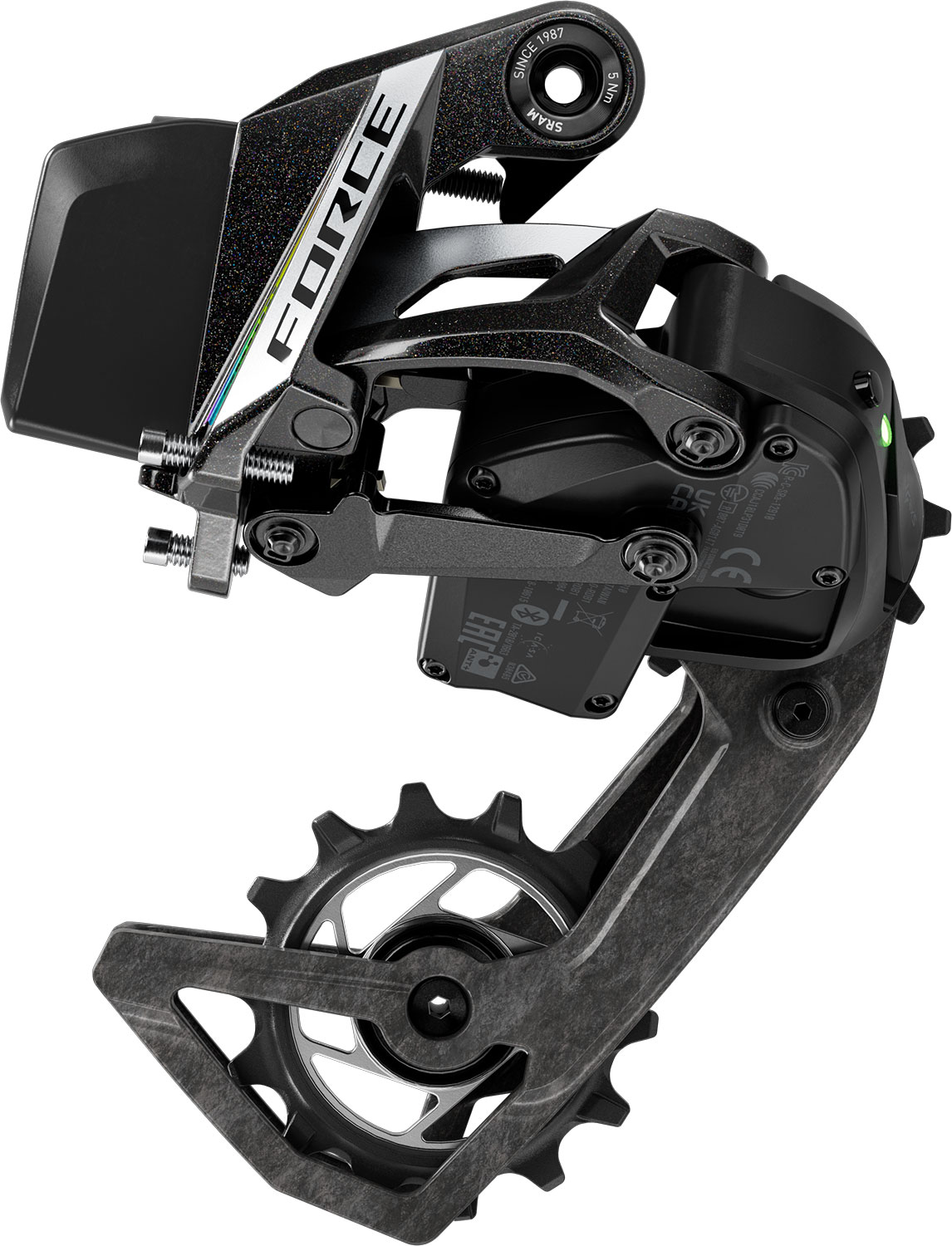

SRAM Force AXS E1 12-speed rear derailleur

The Force AXS rear derailleur is lighter, faster and more powerful than ever before... and in style. With the capacity for cassettes from 10-28 teeth up to 10-36 teeth, this wireless marvel features a new, even lighter cage and a larger pulley wheel for even more drivetrain efficiency. A rear derailleur for 1x and 2x, for the steepest climbs and descents and at the same time 12 g lighter than the previous Force generation.

Features

• AXS-capable for easy setup, quick personalization and high reliability

• Compatible with 1x and 2x drivetrains

• Compatible with cassettes from 10-28 to 10-36 teeth

• Larger X-SYNC derailleur pulleys for greater efficiency

• Chain management technology ensures a quiet and safe drivetrain

Product features

• Application: Road bike

• Model: Force E1

• Gears: 12-speed

• Communication protocol: AXS

• Shifting technology: Wireless

• Chain compatibility: Road Flattop D1/E1

• Cassette compatibility: 10-28 to 10-36 teeth

• Cassette sprocket size max.: 36 teeth

• Cassette sprocket size min.: 10 teeth

Material of cage

• Cage: Carbon

• Bearing: Steel

Color

• Unicorn Black w/Laser Foil

Weight

• 284 g (manufacturer's specification)

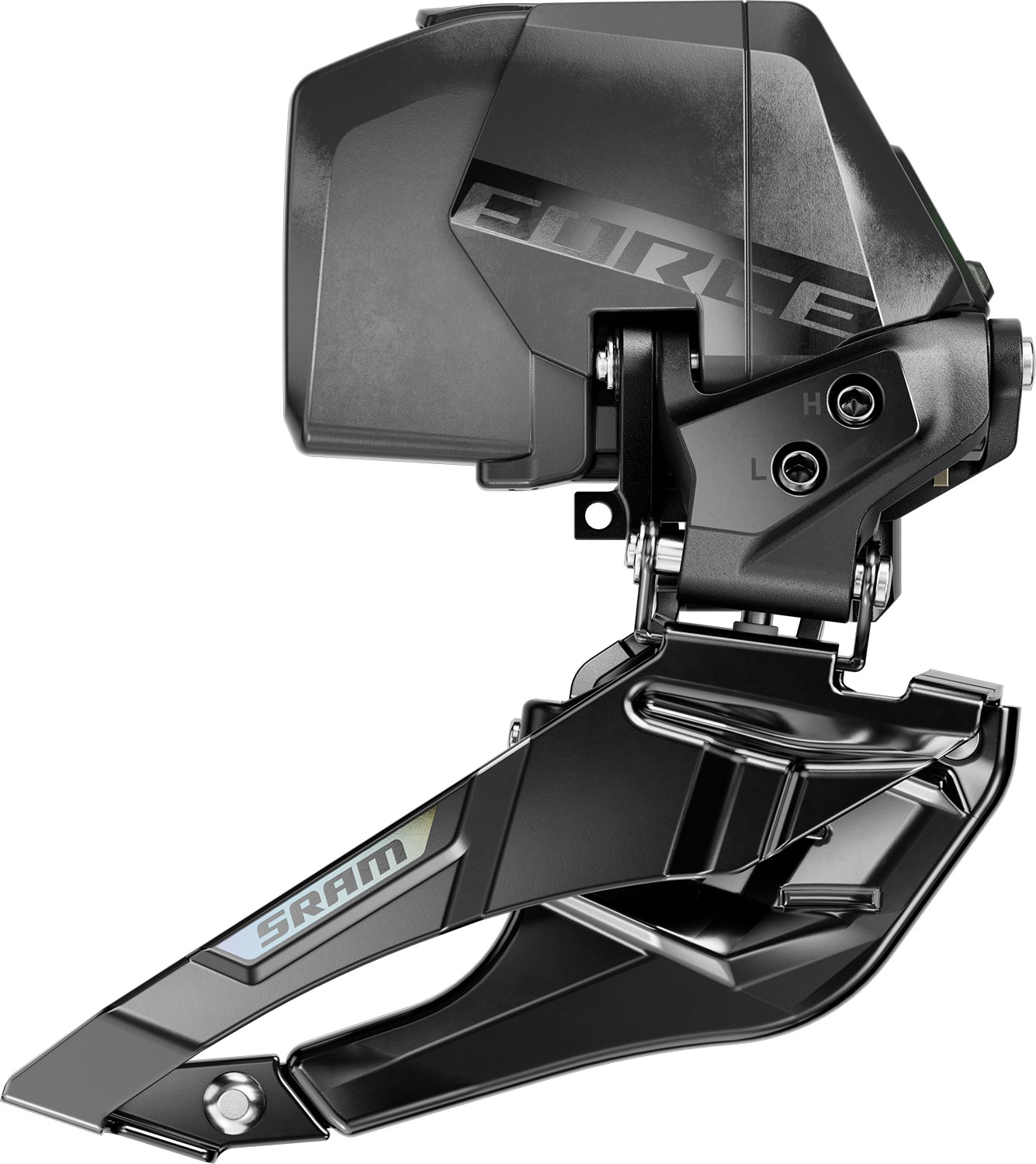

SRAM Force AXS E1 2x12-speed braze-on front derailleur

The Force AXS front derailleur has been developed and improved to offer outstanding performance. Not only does it shift quickly and even more precisely between the chainrings, it is also absolutely silent in every gear. The derailleur cage is narrower, which means it doesn't have to pivot as far, which is particularly noticeable when shifting outwards and under high loads. The front derailleur uses SRAM Yaw technology with auto-trim, guaranteeing the fastest possible shifting and silent performance.

Features

• Compatible with 46/33-tooth, 48/35-tooth or 50/37-tooth chainring combinations

• The advanced cage design ensures faster and more precise front shifting

• Easy setup with the supplied tool

• SRAM Yaw cage technology optimized for use with X-range chainrings

• Automatic trimming function for optimum and chatter-free chain operation

• AXS-enabled for easy wireless setup, direct monitoring, quick customization and high reliability

Product features

• Application: Road bike, Gravel

• Group: Force AXS

• Mounting Braze-on

• Front gear steps: 2x

• Gear steps rear: 12-speed

Color

• Iridescent

Weight

• 156 g (manufacturer's specification)

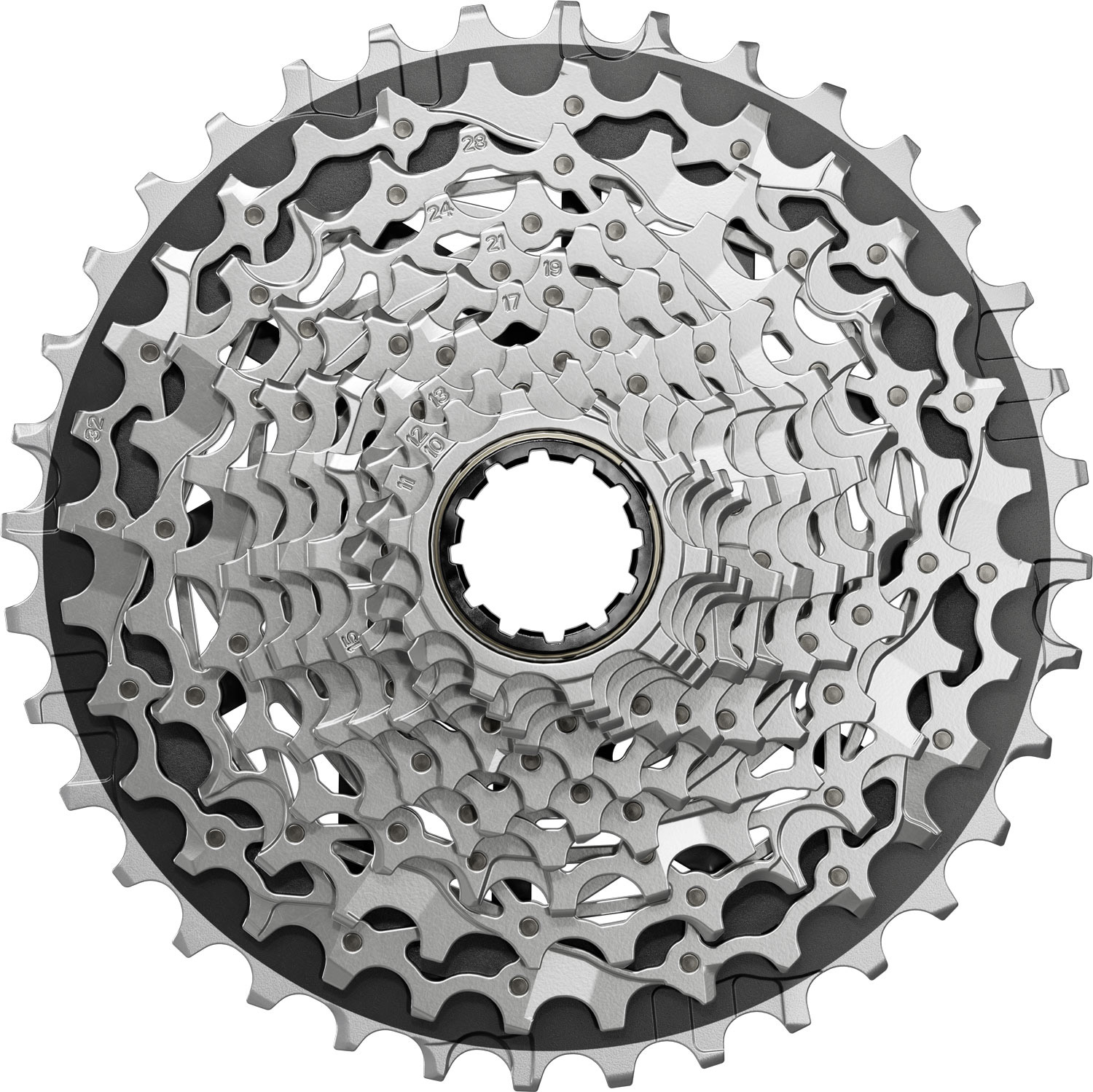

SRAM Force XG-1270 cassette 10-36

No matter what sporting goals you are pursuing or what riding style you have - with the Force you will always make the right choice. Customize your drivetrain according to your requirements.

Features

• The X-range transmission offers you a wider gear range and a smoother gear gradation so that you are always in the right gear

• The 10-tooth initial sprocket provides a wider gear range

• Matte nickel chrome plating for smoothness and durability

• FULL PIN construction for high durability and low weight

• Designed for use with an XDR freehub body

Product features

• Application: Road bike

• Model: XG-1270

• Gear steps: 12-speed

• Freehub body: XDR

• Cassette technology: XG

• Cassette compatibility: Road Flattop D1/E1

Gradation

• 10-36 teeth: 10,11,12,13,15,17,19,21,24,28,32,36

Material

• Nickel Chrome

Color

• silver

Weight

• 250 g (manufacturer's specification)

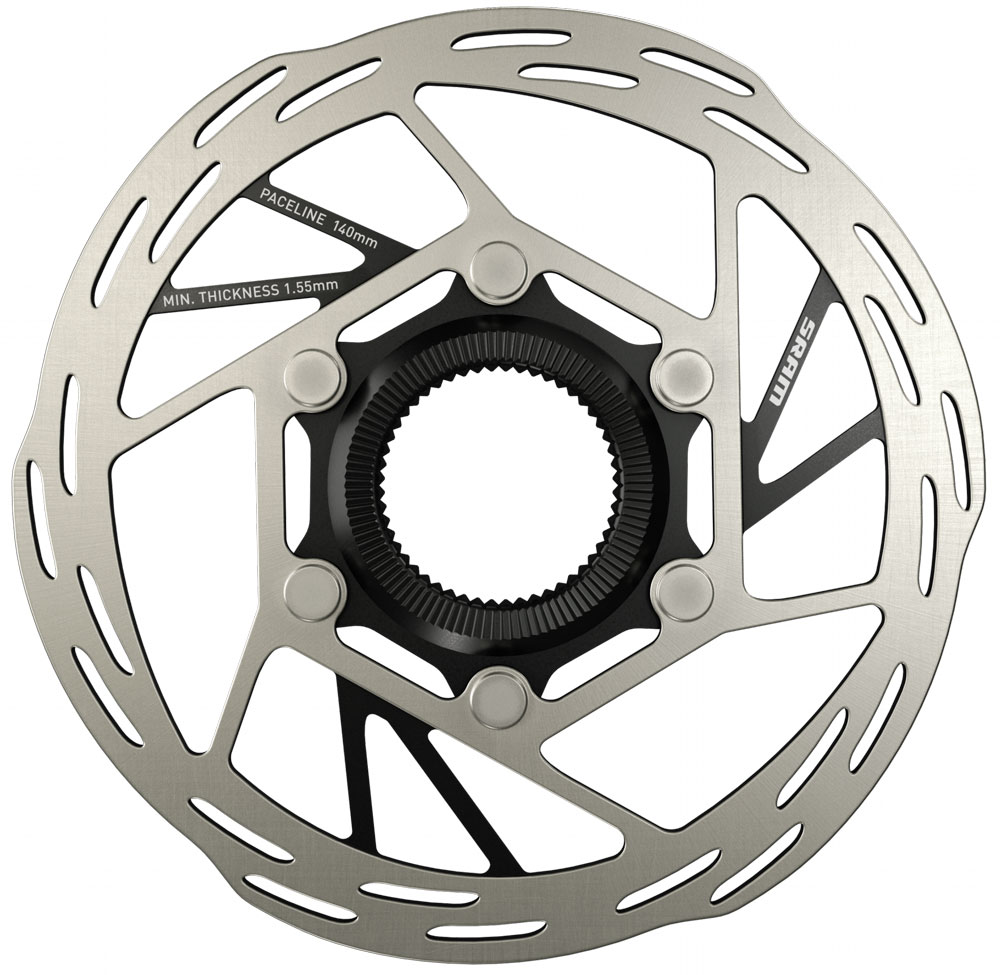

SRAM Paceline Rounded CenterLock brake rotor

The Sram Paceline brake rotors combine the elegant design of the eTap AXS road bike groupsets with optimized ventilation: for quiet and smooth braking performance.

Features

• For use on road bikes

• Paceline braking surface for quieter braking

Product features

• Area of application: Road bike

• Mount: CenterLock

• Diameter: 160/140 mm

SRAM Force E1 Flattop 12-speed chain

The SRAM Force chain is lighter, stronger and even more durable. Flattop technology creates a quieter, longer-lasting chain for long rides and countless shifting operations. The Force chain is compatible with 12-speed Road and 13-speed Gravel cassettes.

Features

• Flattop technology enables a narrower chain with quieter operation and increased strength and durability

• Hard chrome-plated inner plates and rollers for reduced wear and a longer service life

• H-recesses in the inner and outer plates reduce weight

• Compatible with 12-speed Road and 13-speed XPLR AXS gravel groupsets.

Product features

• Area of application: Road / Gravel

• Model: Force

• Rear gear steps: 12-/13-speed

• Locking link: PowerLock D1

• Pin: Solid Pin

• Chain technology: Road Flattop E1

• E-bike approval: Yes

• Links: 126

Chain material

• Coating of the pin: Chrome hardened

• Outer link plate coating: Nickel, PVD

• Coating of the inner link plate: Chrome hardened, chrome-plated, PVD

Color

• Silver color

Weight (manufacturer's specification)

• 244 g (114 links)

Sram eTap / AXS battery unit

SRAM eTap / AXS battery is the power source for the eTap / AXS system and is interchangeable between front derailleur and rear derailleur. It's time to shift up a gear. We at SRAM know that technological progress has to prove itself in practice. A bicycle in particular should be simple. Elegance means doing without anything superfluous. That's progress, and it's our guiding principle for our first electronic shifting system, the SRAM RED® eTap.

Features

• Ride up to 1000 kilometers on one charge

Product features

• Battery: Lithium-ion battery

• Nominal capacity: 300mAh

• Nominal voltage: 7.4V

Compatibility

• eTap front derailleur

• eTap rear derailleur

• AXS front derailleur

• AXS rear derailleur

• RockShox Reverb AXS Vario seatpost

Weight

• 24 g (manufacturer's specification)

• Manufacturer number: 00.6118.739.003.
