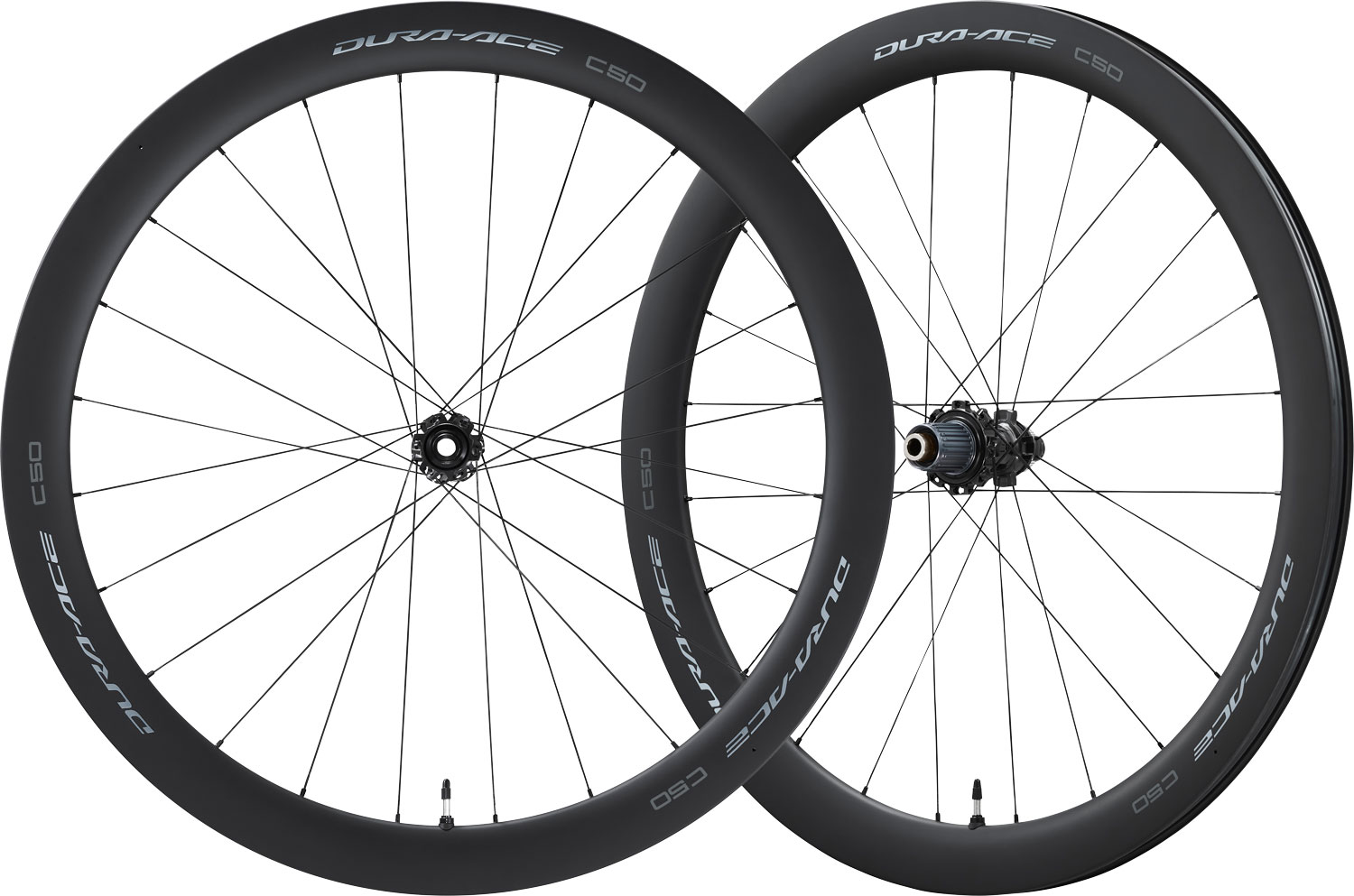

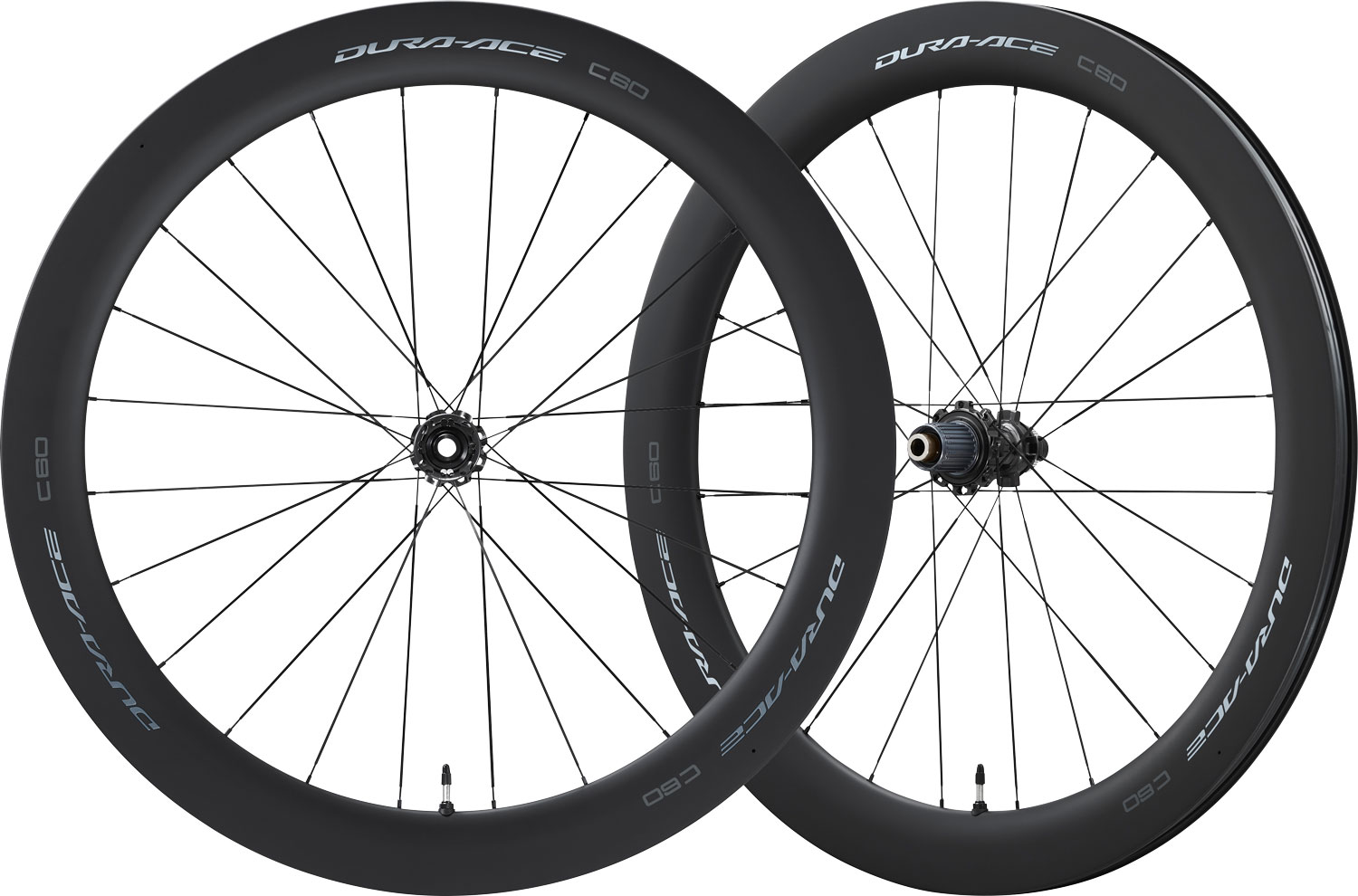

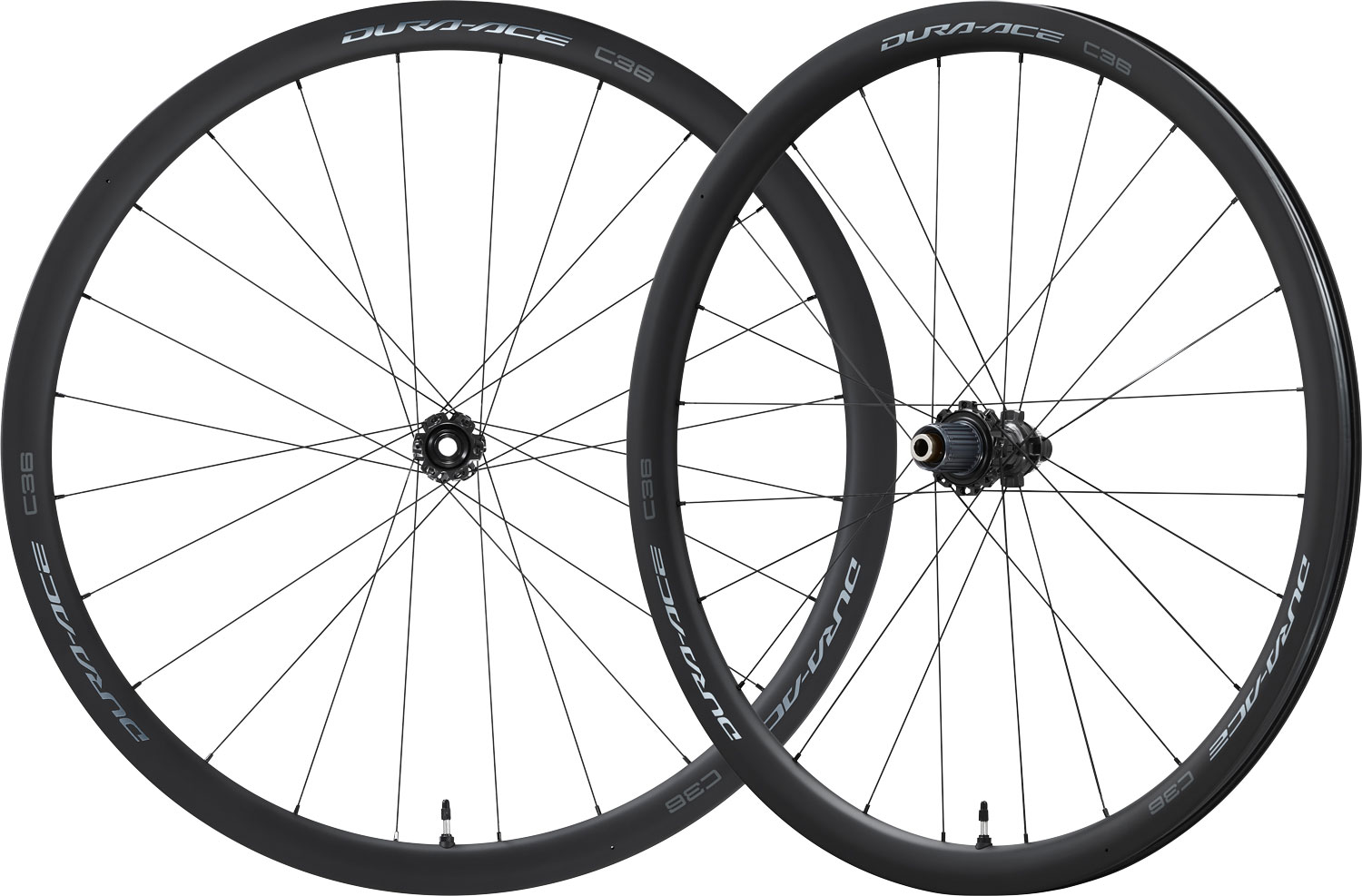

Shimano DURA ACE WH-R9270-TL 28" Center-Lock Carbon Wheelset
Product information "DURA ACE WH-R9270-TL 28" Center-Lock Carbon Wheelset"

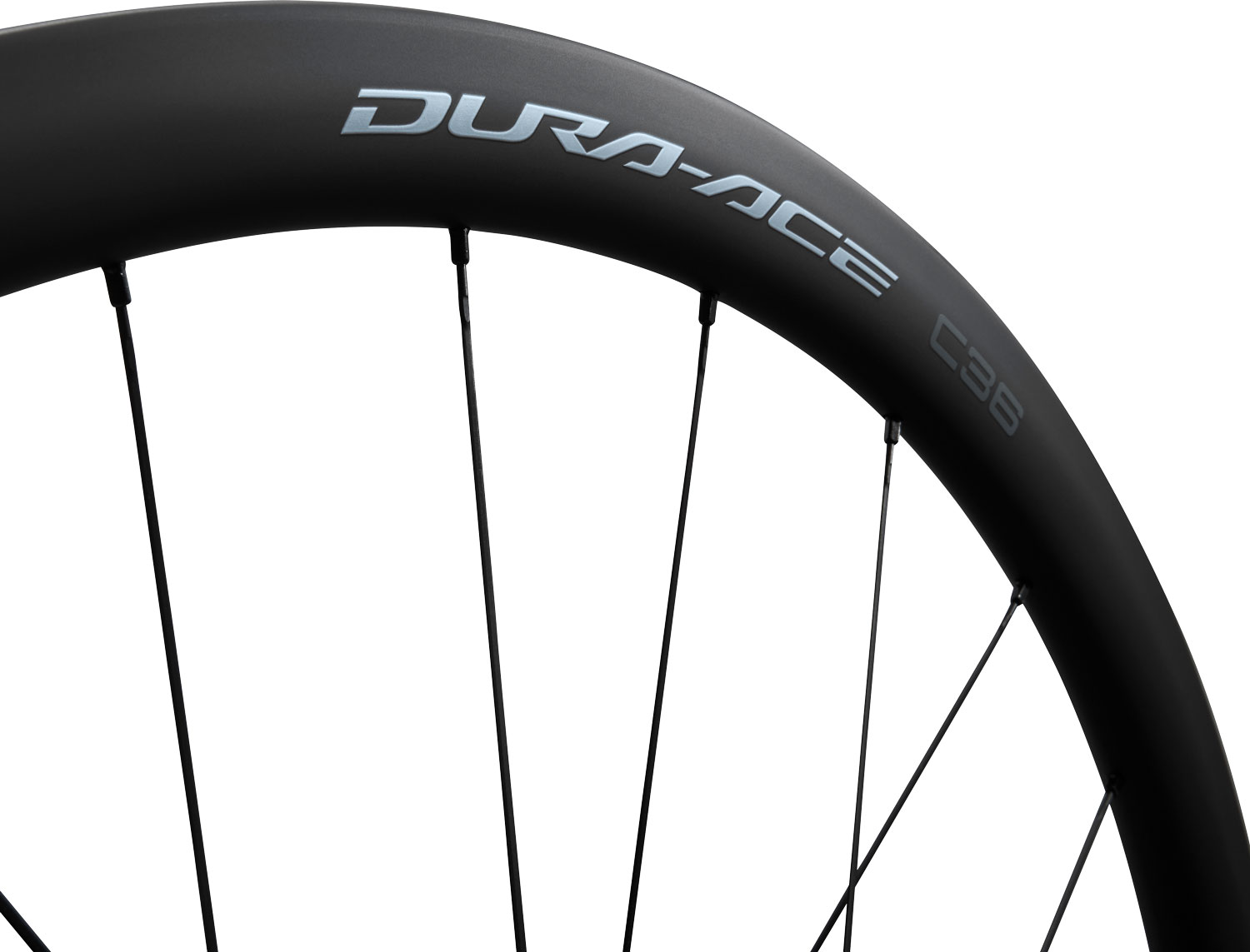

The new Shimano Dura Ace wheel range is designed to be strong, lightweight and aerodynamic for outstanding performance on any road. The following rim heights are available on the WH-R9270-TL: 36 mm, 50 mm and 60 mm.
The DURA-ACE WH-R9270-TL is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9270-TL is perfectly equipped for climbs in the mountains. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight.. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
CENTER LOCK System
THE SCIENCE OF SPEED: Shimano Dura Ace WH-R9270-TL Center-Lock
Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That's why every component has been revised, refined and optimised to make you even faster - whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.The DURA-ACE WH-R9270-TL is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9270-TL is perfectly equipped for climbs in the mountains. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight.. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
Features - Shimano DURA ACE WH-R9270-TL 28" Center-Lock Wheelset | 12x100mm / 12x142mm
- Best all-round wheelset
- Balanced low inertia & aerodynamics
- Responsive acceleration
- Improved drive rigidity
- OPTBAL spoke system
- Lightweight within rigid
- Road E-THRU 12mm

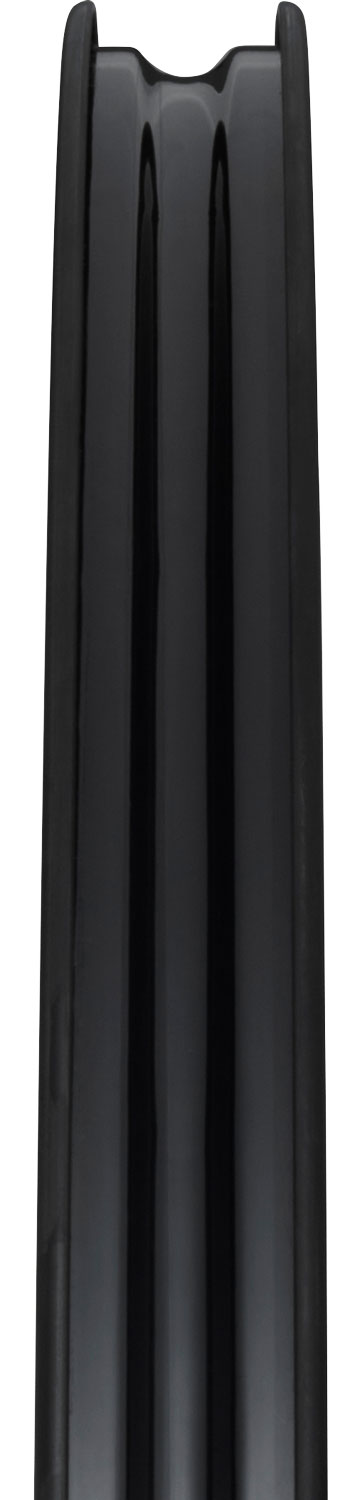

- Ultra-light full carbon rim
- Disc brake system CENTER LOCK
- Compatible only with Shimano road 12-speed cassette sprockets
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: WH-R9270-TL
- Wheel size: 28"
- Tyre type: UST Tubeless Ready / Clincher

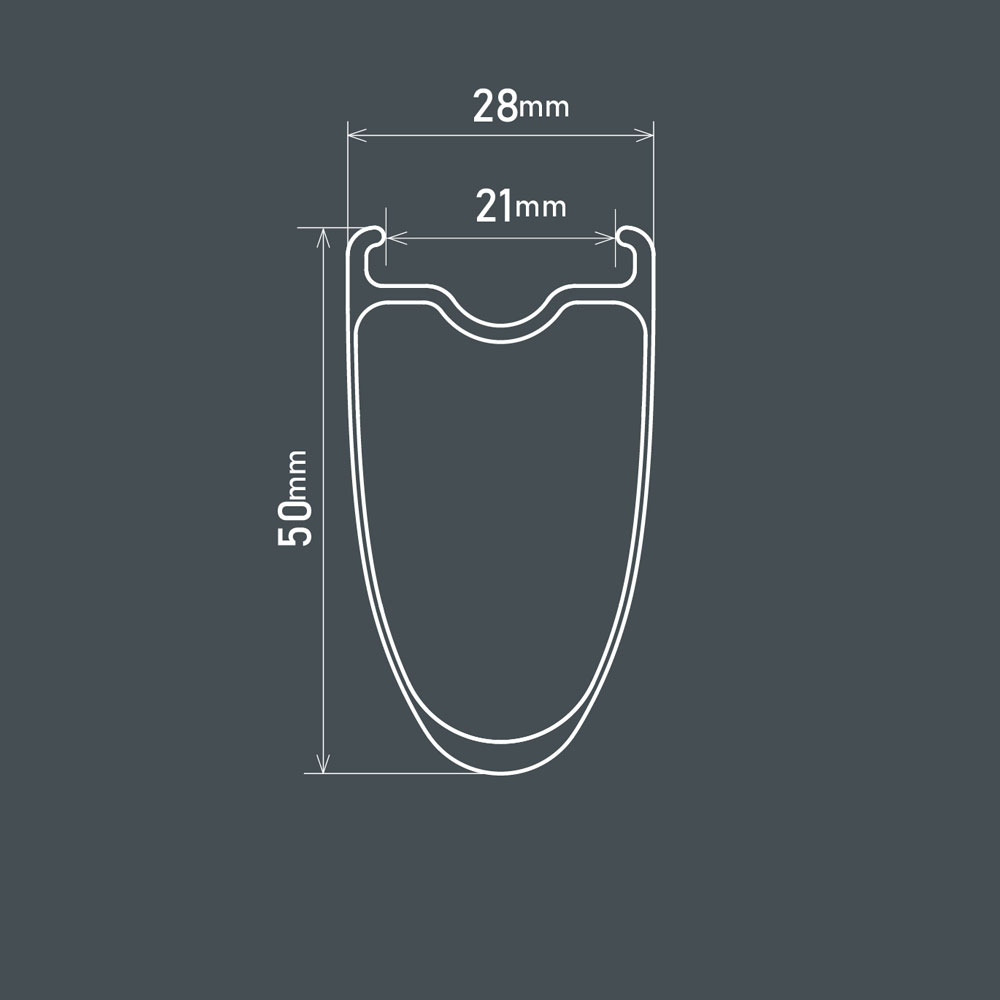

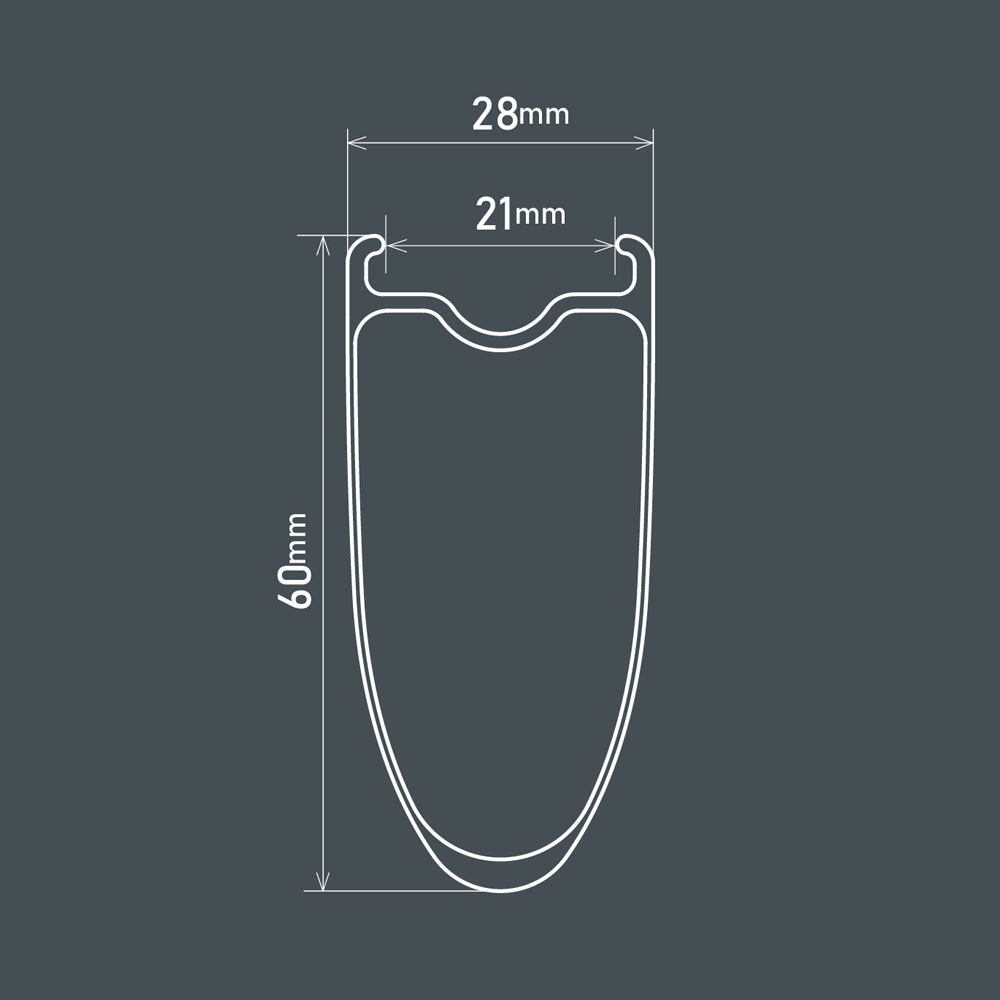

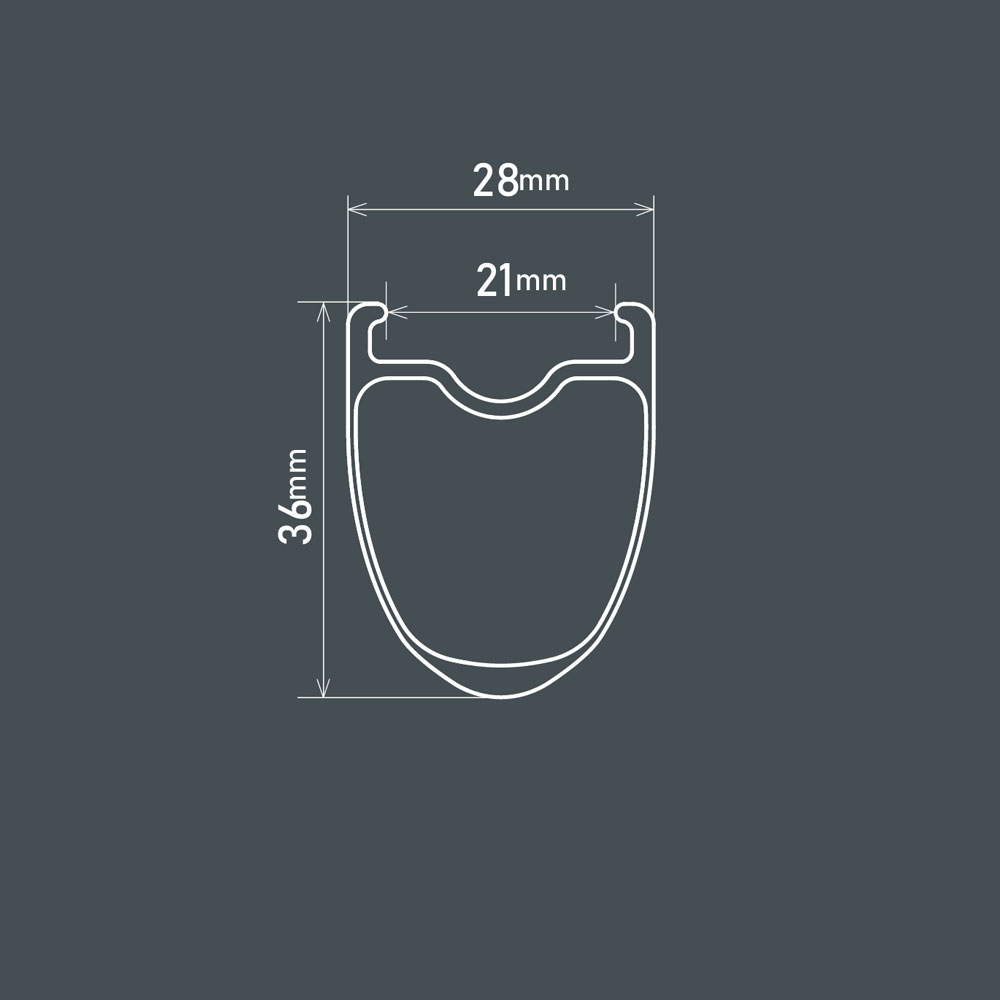

- Rim size: 622 x 21C
- Rim inner witdh: 21mm
- Rim outer witdh: 28mm
- Brake type: Disc Center-Lock

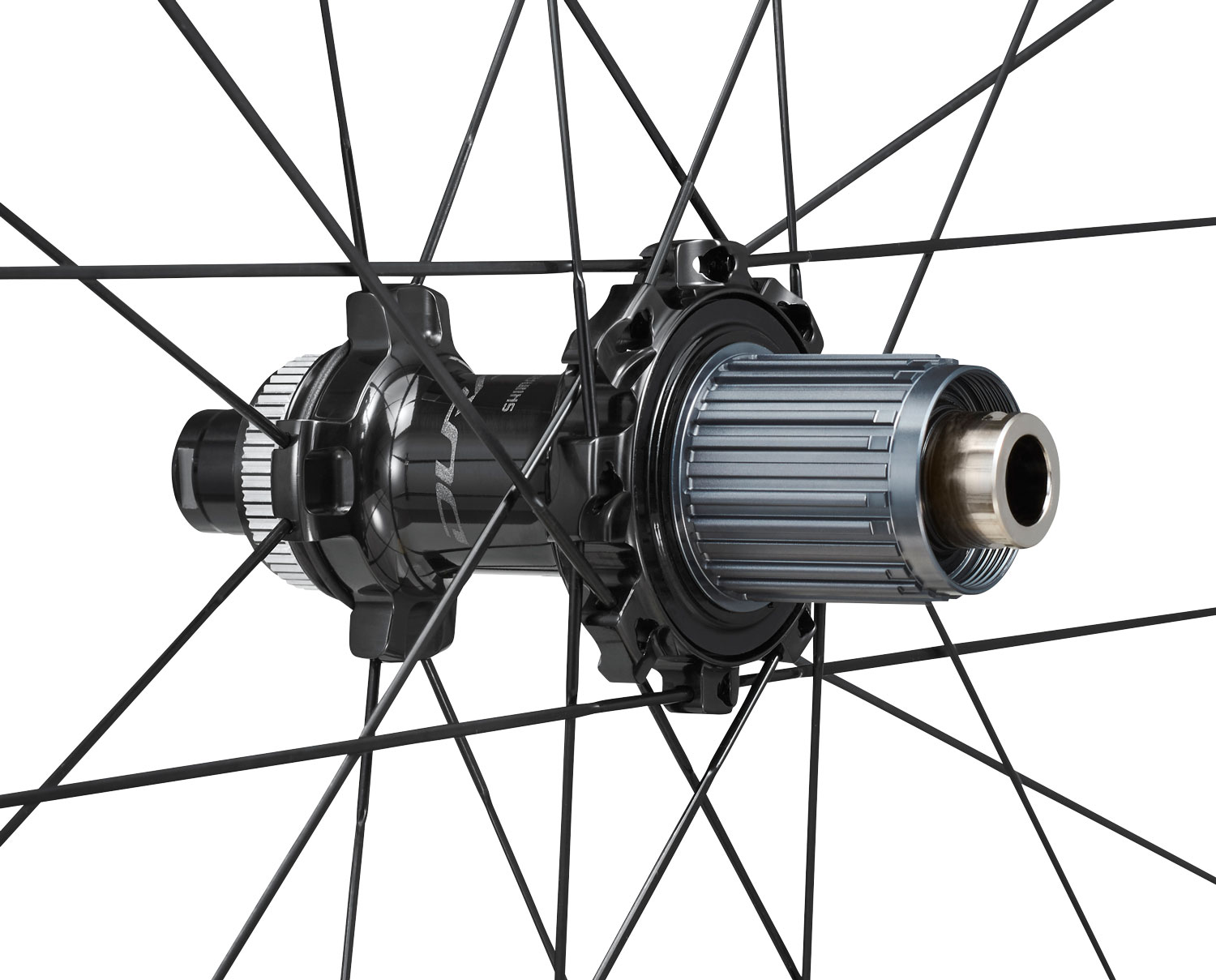

- Freehub body: Shimano 12-speed Road
- Over locknut: front 12 x 100mm / rear 12 x 142mm
- Axle Fixing method: 12mm E-thru
- Contact seal: Labyrinth and Contact
- Spokes: front 24 / rear 24
- Tire recommended size: 25-622 to 32-622
Rim height (choose variant)
- C36 Rim (36mm)
- C50 Rim (50mm)

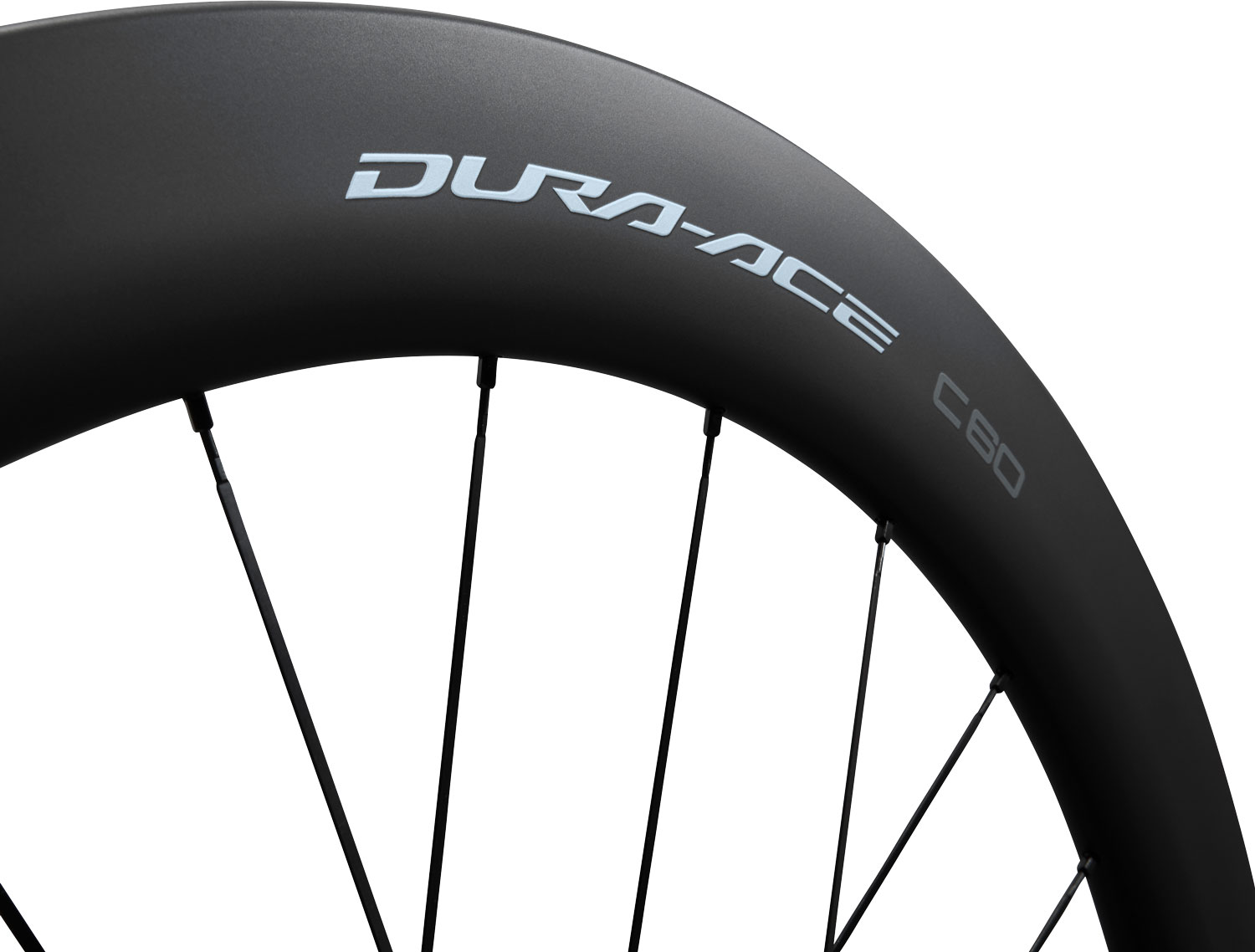

- C60 Rim (60mm)
Material
- Rim: Carbon

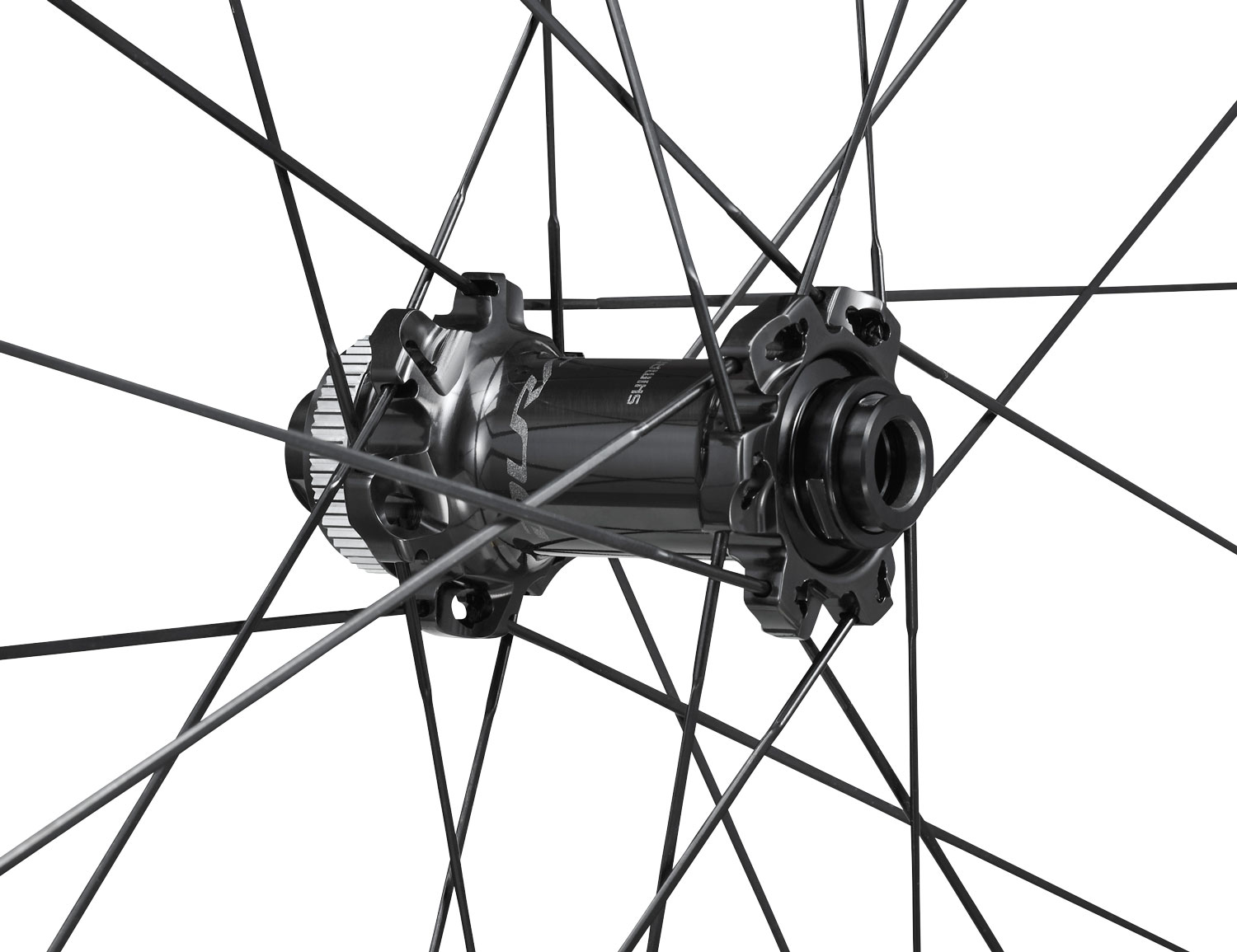

- Hub: Aluminum
- Spokes: Stainless steel
- Nipples: Aluminum
Color
- Series color
Weight (manufacturer information)
- C36 (Front 620g | Rear 730g | Set 1350g)
- C50 (Front 674g | Rear 787g | Set 1461g)
- C60 (Front 751g | Rear 858g | Set 1609g)
Scope of delivery
- 1 x Shimano Dura Ace WH-R9270-TL 28" Center-Lock Wheelset
- 2 x Tubeless Valve
Technologies
OPTBAL Spoke System
The OPTBAL rear wheel spoke system features 24 spokes - 16 on the drive side and 8 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.
CENTER LOCK System
The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
Shimano DURA-ACE Di2 R9250
- Manufacturer number: EWHR9270C36LFEREDX
Manufacturer:
SHIMANO INC.3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Person responsible in the EU:
Shimano Europe BVHigh Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
