Santa Cruz Vala AL MX 70 Lunar Grey
Product information "Vala AL MX 70 Lunar Grey"
Features - Santa Cruz Vala AL MX 70
- Robust aluminum frame with four-bar suspension in mullet design (front: 29", rear: 27.5")
- Bosch Performance Line CX Gen.5 motor with 100Nm torque for powerful support
- Sufficient range thanks to the powerful Bosch 600Wh battery
- Simple and intuitive operation of the e-bike system thanks to Bosch System Controller and remote
- RockShox Zeb Base suspension fork with 160 mm travel and RockShox Super Deluxe Base damper
- SRAM 70 Eagle Transmission 1x12-speed drivetrain
- Reserve 30|HD AL wheelset and Maxxis Assegai / Maxxis Minion DHRII 2.5" tires
Highlights
First-class E-MTB power meets Santa Cruz quality
All the legendary Santa Cruz features - outstanding handling, first-class suspension and a long service life - paired with the best-in-class Bosch Performance Line CX Gen.5 motor and a fun-to-ride battery solution. The Vala is a full-power eMTB for the highest trail quality.
Best handling as standard:

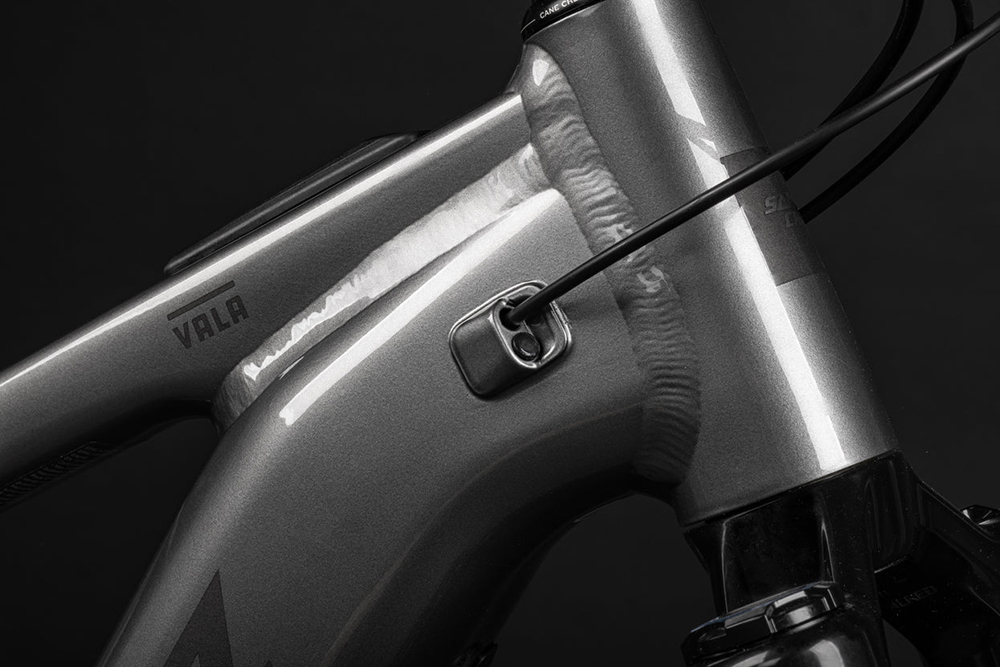

Robust aluminum frame, strong chassis performance for full riding fun on your trails.
First-class performance
The Bosch Performance Line CX is powerful, reliable and quiet. The available power and natural power delivery bring riding fun to the uphill
Range for perfect handling
600 Wh is optional for the vast majority of tours. The relatively light battery significantly improves the riding characteristics. The 250 Wh PowerMore Range Extender offers the opportunity to cover more meters. You only carry the extra weight when you need it.
Lifetime frame warranty
Santa Cruz Bicycles will, at its sole discretion, repair or replace any frame manufactured by Santa Cruz Bicycles that is defective in material or workmanship. The warranty is valid for the life of the frame and is available only to the original owner. Notwithstanding the foregoing, frames purchased prior to May 1, 2015 are covered by the pre-existing warranty for five years from the original date of purchase. In the event of a situation where the warranty does not apply, Santa Cruz Bicycles will offer replacement parts to the original owner at a reduced price for the warranty period described above*
Technology
Bosch Flow App
The Bosch Flow App connects your bike experience. You can adjust the support levels, load routes, track tours and see the range. With the Range Control Tool, you can select the right support levels to help you reach your destination safely.
Low center of gravity
The integrated 600Wh battery enables a lightweight design and brings agility and riding fun. The optional 250Wh PowerMore range extender gives you the flexibility to increase the range if required.
4 support levels
With the tidy, wireless remote on the handlebars, you can switch between four support levels as standard - Eco, Tour, eMTB and Turbo. You can also customize the different modes in the Bosch Flow app
Inconspicuous display - System Controller
The integrated display on the top tube - the System Controller - shows the battery charge status and the selected support level. The system controller can also be used to switch on, off and over. The exact battery charge in % and range can be called up via the app.
Robust hardware
As is typical for Santa Cruz, the axles and rocker arms are extremely robust, reliable and easy to maintain. Santa Cruz installs high-quality sealed Enduro MAX bearings, which all first-time owners receive as replacements free of charge for the lifetime of the bike.
Pivot points
The main pivot points run on the legendary, conically clamped axles that Santa Cruz introduced and which are now copied by many bicycle brands. The axles cannot come loose on their own, but are easy to dismantle for maintenance.
Bearings
Four large bearings in the chainstay pivot points and an axle that holds everything securely together (no explosions on the workshop floor). No bearing puller is required to remove the bearings for maintenance. Santa Cruz uses larger, more robust bearings than most other brands. Larger bearings are less susceptible to contamination. So the bike rides better and lasts longer. And as with all bike models, Santa Cruz offers free rear bearings for life to the first owner.
Recommended frame size
- S: 154 - 165 cm
- M: 165 - 175 cm
- L: 175 - 185 cm
- XL: 182 - 193 cm
Please note that no pedals are included in the scope of delivery!
*Limitations, exclusions and limitations of liability of the warranty
The sole remedy available under the foregoing express warranty and all implied warranties is the repair or replacement of defective parts with parts of equal or greater value, as determined by Santa Cruz Bicycles in its sole discretion. The warranty does not cover labor costs, custom fabrication, normal wear and tear, or damage from commercial use. The warranty is void if the part is altered in any way from its original condition or used outside of its normal intended use, as determined by Santa Cruz Bicycles in its sole discretion. The warranty for damage caused by accidents, falls and other influences is limited to the above replacement at a reduced price. All implied warranties (including, but not limited to, warranties of merchantability and fitness for a particular purpose) that cannot be excluded under applicable law are limited in duration to the period stated above or the applicable statute of limitations, whichever is shorter.
The foregoing warranty is the sole and exclusive warranty offered by Santa Cruz Bicycles. To the maximum extent permitted by applicable law, all other express and implied warranties (including, but not limited to, warranties of merchantability and fitness for a particular purpose) are hereby disclaimed. To the maximum extent permitted by applicable law, in no event shall Santa Cruz Bicycles or any of its owners, officers, employees, representatives, agents or affiliates (or any of their respective successors or assigns) be responsible or otherwise liable for any direct, incidental, consequential or punitive damages arising out of or in connection with the use or performance of the products or services.in no event shall the Company be responsible or otherwise liable for any direct, incidental or consequential damages arising out of the purchase, use or possession of the Company's products, including, without limitation, personal injury, property damage or economic loss, whether based on contract, warranty, negligence, product liability or any other basis.
Some states and countries do not allow some or all of the above exclusions or limitations, so they may not apply to you. If any part of the foregoing warranty (or the exclusions or limitations) is held invalid or unenforceable under applicable law, the warranty shall be deemed modified to be valid and effective to the maximum extent permitted by such law. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state and country to country.
- Model Year: 2026
2841 Mission Street
95060 Santa Cruz, California
United States
[email protected]
www.santacruzbicycles.com
Hauptstrasse 17 & 19, Gebäude 24.4
55120 Mainz
Deutschland
[email protected]
Santa Cruz Vala AL MX 70 Lunar Grey
Features - Santa Cruz Vala AL MX 70
- Robust aluminum frame with four-bar suspension in mullet design (front: 29", rear: 27.5")
- Bosch Performance Line CX Gen.5 motor with 100Nm torque for powerful support
- Sufficient range thanks to the powerful Bosch 600Wh battery
- Simple and intuitive operation of the e-bike system thanks to Bosch System Controller and remote
- RockShox Zeb Base suspension fork with 160 mm travel and RockShox Super Deluxe Base damper
- SRAM 70 Eagle Transmission 1x12-speed drivetrain
- Reserve 30|HD AL wheelset and Maxxis Assegai / Maxxis Minion DHRII 2.5" tires
Highlights
First-class E-MTB power meets Santa Cruz quality
All the legendary Santa Cruz features - outstanding handling, first-class suspension and a long service life - paired with the best-in-class Bosch Performance Line CX Gen.5 motor and a fun-to-ride battery solution. The Vala is a full-power eMTB for the highest trail quality.
Best handling as standard:
Robust aluminum frame, strong chassis performance for full riding fun on your trails.
First-class performance
The Bosch Performance Line CX is powerful, reliable and quiet. The available power and natural power delivery bring riding fun to the uphill
Range for perfect handling
600 Wh is optional for the vast majority of tours. The relatively light battery significantly improves the riding characteristics. The 250 Wh PowerMore Range Extender offers the opportunity to cover more meters. You only carry the extra weight when you need it.
Lifetime frame warranty
Santa Cruz Bicycles will, at its sole discretion, repair or replace any frame manufactured by Santa Cruz Bicycles that is defective in material or workmanship. The warranty is valid for the life of the frame and is available only to the original owner. Notwithstanding the foregoing, frames purchased prior to May 1, 2015 are covered by the pre-existing warranty for five years from the original date of purchase. In the event of a situation where the warranty does not apply, Santa Cruz Bicycles will offer replacement parts to the original owner at a reduced price for the warranty period described above*
Technology
Bosch Flow App
The Bosch Flow App connects your bike experience. You can adjust the support levels, load routes, track tours and see the range. With the Range Control Tool, you can select the right support levels to help you reach your destination safely.
Low center of gravity
The integrated 600Wh battery enables a lightweight design and brings agility and riding fun. The optional 250Wh PowerMore range extender gives you the flexibility to increase the range if required.
4 support levels
With the tidy, wireless remote on the handlebars, you can switch between four support levels as standard - Eco, Tour, eMTB and Turbo. You can also customize the different modes in the Bosch Flow app
Inconspicuous display - System Controller
The integrated display on the top tube - the System Controller - shows the battery charge status and the selected support level. The system controller can also be used to switch on, off and over. The exact battery charge in % and range can be called up via the app.
Robust hardware
As is typical for Santa Cruz, the axles and rocker arms are extremely robust, reliable and easy to maintain. Santa Cruz installs high-quality sealed Enduro MAX bearings, which all first-time owners receive as replacements free of charge for the lifetime of the bike.
Pivot points
The main pivot points run on the legendary, conically clamped axles that Santa Cruz introduced and which are now copied by many bicycle brands. The axles cannot come loose on their own, but are easy to dismantle for maintenance.
Bearings
Four large bearings in the chainstay pivot points and an axle that holds everything securely together (no explosions on the workshop floor). No bearing puller is required to remove the bearings for maintenance. Santa Cruz uses larger, more robust bearings than most other brands. Larger bearings are less susceptible to contamination. So the bike rides better and lasts longer. And as with all bike models, Santa Cruz offers free rear bearings for life to the first owner.
Recommended frame size
- S: 154 - 165 cm
- M: 165 - 175 cm
- L: 175 - 185 cm
- XL: 182 - 193 cm
Please note that no pedals are included in the scope of delivery!
*Limitations, exclusions and limitations of liability of the warranty
The sole remedy available under the foregoing express warranty and all implied warranties is the repair or replacement of defective parts with parts of equal or greater value, as determined by Santa Cruz Bicycles in its sole discretion. The warranty does not cover labor costs, custom fabrication, normal wear and tear, or damage from commercial use. The warranty is void if the part is altered in any way from its original condition or used outside of its normal intended use, as determined by Santa Cruz Bicycles in its sole discretion. The warranty for damage caused by accidents, falls and other influences is limited to the above replacement at a reduced price. All implied warranties (including, but not limited to, warranties of merchantability and fitness for a particular purpose) that cannot be excluded under applicable law are limited in duration to the period stated above or the applicable statute of limitations, whichever is shorter.
The foregoing warranty is the sole and exclusive warranty offered by Santa Cruz Bicycles. To the maximum extent permitted by applicable law, all other express and implied warranties (including, but not limited to, warranties of merchantability and fitness for a particular purpose) are hereby disclaimed. To the maximum extent permitted by applicable law, in no event shall Santa Cruz Bicycles or any of its owners, officers, employees, representatives, agents or affiliates (or any of their respective successors or assigns) be responsible or otherwise liable for any direct, incidental, consequential or punitive damages arising out of or in connection with the use or performance of the products or services.in no event shall the Company be responsible or otherwise liable for any direct, incidental or consequential damages arising out of the purchase, use or possession of the Company's products, including, without limitation, personal injury, property damage or economic loss, whether based on contract, warranty, negligence, product liability or any other basis.
Some states and countries do not allow some or all of the above exclusions or limitations, so they may not apply to you. If any part of the foregoing warranty (or the exclusions or limitations) is held invalid or unenforceable under applicable law, the warranty shall be deemed modified to be valid and effective to the maximum extent permitted by such law. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state and country to country.
- Model Year: 2026
2841 Mission Street
95060 Santa Cruz, California
United States
[email protected]
www.santacruzbicycles.com
Hauptstrasse 17 & 19, Gebäude 24.4
55120 Mainz
Deutschland
[email protected]
Configuration
| Frame: | Aluminum MX 150mm Travel, 4-Bar, 148mm, UDH, Mullet (Front: 29", rear: 27.5"), Max. Tyre Clearance: 2.5", Max. Chainring: 36t |
|---|---|
| Frame material: | aluminium |
| Wheel size: | Front: 29", rear: 27.5" |
| Speeds: | 1 x 12 |
| Colour: | Gloss Lunar Grey |
| Fork: | RockShox Zeb Base, 160mm |
| Rear Shock: | RockShox Super Deluxe Base, 205x60 |
| Travel: | 160 mm / 150 mm |
| Brakes: | SRAM DB8 4-piston |
| Brake discs: | SRAM Centerline, 220 mm / 203 mm |
| Headset: | FSA IS-2/47/42 ACB |
| Stem: | OneUp Enduro Stem, 42mm |
| Handlebar: | Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise |
| Bar grips: | Santa Cruz Bicycles House Grips |
| Saddle: | WTB Silverado Medium, Steel |
| Seatpost: | SDG Tellis Dropper, 31.6mm |
| Crankset: | E13 Helix eSpec, 160mm |
| Rear derailleur: | SRAM 70 Eagle Transmission, T-Type, 12spd |
|---|---|
| Gear shifters: | SRAM 70 Eagle Transmission 12spd |
| Chain guide: | OneUp Chainguide |
| Cassette: | SRAM XS 1270 Eagle T-Type, 10-52T |
| Chain: | SRAM 70 Eagle Transmission, T-Type, Flattop, 12spd |
| Front tyre: | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear tyre: | Maxxis Minion DHRII, 27.5"x2.5", DoubleDown |
| Front hub: | SRAM MTH 716, 15x110, 6-Bolt, 32h |
| Rear hub: | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rims: | Reserve 30|HD AL |
| Display: | Bosch System Controller, Bosch Mini Remote |
| Battery: | Bosch PowerTube Battery 600Wh |
| Engine: | Bosch Performance CX Gen. 5 Smart System, BDU38, 100Nm |
| Pedals: | not included in the scope of delivery |
| Maximum total weight allowed: | 155 kg (body weight + bike + equipment) |
| Weight: | ab 24.35 kg |

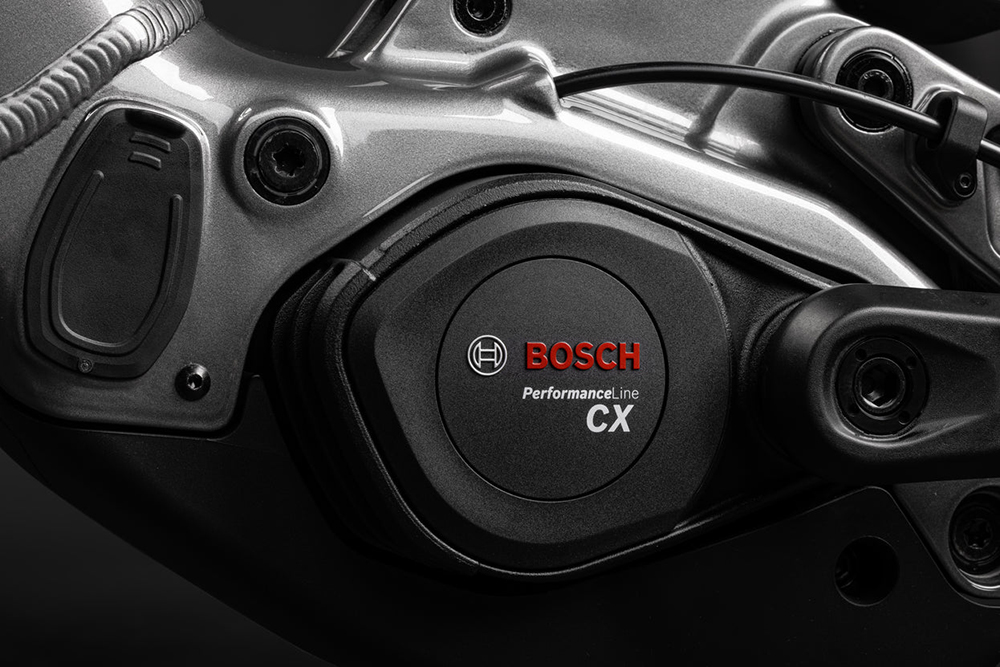

Bosch Performance Line CX Generation 5 - Smart System
The Performance Line CX (BDU384Y) takes riding dynamics and agility to a new level. It is powerful, light and quiet. Bosch's focus: the ultimate uphill flow.
The Performance Line CX (BDU384Y) offers you the perfect triad of performance and riding fun in relation to wear and tear and range with the performance values 85 Nm, 600 watts and 340 % support as standard - for a natural riding experience. New Available from mid-July 2025: Decide for yourself and increase the performance values of your drive unit: more power, higher torque, increased support factor.
- 100 Nm max. Max. torque
- 750 W Max. Motor power
- 400% Max. Support factor
- 2.8 kg motor weight (100g lighter than its predecessor)
The Performance Line CX reacts more sensitively to your input than ever before.
Bosch has reinterpreted and improved the signals from the sensors.
The cadence sensor measures how fast the cranks are turning.
The torque sensor measures how much force is exerted on the pedals.
Acceleration and position sensors detect how the e-bike is moving.
The Drive Unit does exactly what you want - sensitively, controlled and directly.
All options. Your choice
The higher torque ensures stronger acceleration. The increased maximum power makes best times possible. The increased support quadruples your own power.
eMTB+ mode
With the built-in "Dynamic Control", you ride with full control, even if you have increased your performance values. In steep, bumpy riding situations, you have superior propulsion and on loose or wet surfaces it is like traction control.
eMTB mode and Extended Boost
The eMTB mode reacts progressively to you and recognizes in a flash how much power you want based on your pedal pressure - dynamically, with maximum traction and always in control. With the integrated Extended Boost, all it takes is a targeted kick on the pedal and the Drive Unit pushes you effortlessly over steps and stones.
Push assist and hill start assist
With the push assist, you can easily push your eMTB, while the Drive Unit automatically adjusts the pushing speed to the incline and surface. In addition, the hill start assist enables a controlled and high-traction start, even on steep terrain. Hill Hold is active in both cases: your eMTB stays in place and does not roll back unexpectedly.
Bosch eBike ABS Pro
ABS Pro is ideal for professional eBikers: designed for fast, sporty downhill riding and braking. You can make full use of your braking skills and still feel how the system increases performance.
eShift with TRP
You can decide whether you want eShift with TRP to shift gears automatically for you or whether you want to change gears yourself on varied terrain with fast maneuvers - simply at the touch of a button. With eShift, gear changes are efficient and precise.
PowerMore 250
Compact and 1.5 kilograms in weight, the range extender can be easily attached to the water bottle holder. It can be combined with all batteries in the smart system. Please find out in advance whether you can use the range extender for your eBike.
Individual riding modes
Your trail, your riding experience, your mode: with the help of four parameters, you can easily adapt the riding modes to your needs using the slider in the eBike Flow app. Support, dynamics, maximum torque and maximum speed - you decide what you need.
Powder-coated. Robust right up to the tips
- The housing is made of magnesium - robust, corrosion-resistant and hard.
- The sealing concept prevents splash water from penetrating.
- Bosch has been able to reduce the noise generated by the gearbox.
- The Performance Line CX motor is quiet. It strikes a balance between power delivery and noise development
| Performance Line CX (BDU384Y)² | |
|---|---|
| eBike system | The smart system |
| Gear type | Derailleur gears, hub gears |
| Max. Support level (%) | 400 % |
| Max. possible drive torque | 100 Nm |
| Starting behavior | direct, powerful |
| Support up to max. | 25 km/h |
| Coaster brake | no |
| Push assist with hill hold | yes |
| Hill start assist with hill hold | yes |
| Shifter identification | Gear hub: no Derailleur gears: yes |
| Weight, approx. | 2.8 kg |
| Rated continuous power | 250 W |
| Maximum power | 750 W |
| Max. Power at a cadence of 70 rpm | 730 W |
| Max. weight-related power, approx. | 268 W/kg |
Bosch eBike Flow app
Extend the eBike
Use the eBike Flow app to download new functions and updates for components such as the battery or motor and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.
Record activities
Record your tour and fitness data as soon as you set off. For iPhone users, Activity Tracking also synchronizes all data automatically with Apple Health if desired. If you take a break, the recording stops automatically.
Individualize riding modes
Customize the riding mode exactly to your needs: You can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether battery status, remaining range, distance already ridden or next service appointment - the home screen shows you everything you need to know with constantly updated eBike data.
Bosch System Controller
Minimalist, robust Control Unit
The System Controller is the Control Unit for eBikes with the smart system, reduced to the essentials. The deliberately limited number of functions and information facilitates a quick overview and is not distracting while riding. The System Controller is seamlessly integrated into the top tube – this gives the already robust companion additional protection, is hardly noticeable and is perfect for sporty tours and design-oriented eBike fans.
LED indicators
LEDs use different colors to indicate the riding mode as well as the battery charge level in 10 % steps.
Connected in the smart system
The System Controller makes your eBike smart – and is the interface for software updates.
Built into the top tube
The System Controller is hardly noticeable, made of sturdy material and protected from knocks and scratches.
Two buttons
With only two buttons you control the most important functions of your eBike: turn your eBike on or off and change the riding mode.
Hardware Facts
- The bottom five LEDs indicate the charge level
- The large LED indicates the current support level through its colour: red, violet, blue, green
- Expandable with Mini Remote for additional functions and more convenient operation
- Modular use: The System Controller can be used in conjunction with the Mini Remote to control the eBike Flow app and Bosch display while riding
- Use of the Pust Assist via the Mini Remote and display of the status by rolling illumination of the charging status LEDs on the System Controller (white = Push Assist ready; ice blue = Push Assist active)
- Switching light on/off
- Ambient light sensor automatically adjusts the brightness of the LEDs
- Two-component design: combination of soft-touch surface and hard material for best ergonomics and robustness
- Replaceable and long-life battery lasts up to approx. 7 years
- Display of ABS function via ABS LED (only for eBikes with Bosch eBike ABS)
- Diagnostic interface (type: USB-C) for diagnosing the eBike system or charging the integrated battery of the system controller
- System connector for connecting the eBike system
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
Bosch Mini Remote
As an additional operating panel, the Mini Remote supplements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebar. The buttons near the thumb keep the hands on the handlebar at all times. More keys offer more functions: with the Mini Remote you get practical features like the smart Push Assist and you can turn your eBike light on or off.
Quickly retrofittable
The Mini Remote can be quickly retrofitted and is connected to the System Controller via Bluetooth.
Three keys, more functions
The keys of the Mini Remote have dual assignments: riding mode, light function, smart Push Assist, and for controlling a display.
Full flexibility
The Mini Remote works with or without display. Operate the Ride screen of the eBike Flow app or your display screens.
Intuitive operation
Short distances for the thumb and grippy soft-touch surface: The buttons have icons and can be used intuitively.
Hardware Facts
- Supplement to the system controller for additional functions and convenient operation on the handlebar
- Control of the navigation or ride screen in the eBike Flow app (smartphone) or the Bosch display
- Smart Push Assist and innovative rollback protection (supports on steep, non-rideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
- Optimal ergonomics of the buttons due to low profile design
- Wireless mounting on the handlebar
- Soft touch surface for extra good grip
- LED indicates low battery of the Mini Remote, pairing activity or lack of connection to the system
- Battery life (coin cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebar and inserting it into the rubber insert
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
- Bluetooth connectivity (Bluetooth 5.0 Low Energy)
Bosch PowerTube 600 / 800
Maximum range
With the PowerTube 600 / 800, long distances and many meters of altitude are easy to master.
Stylish eBike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive eBike design and high capacity - a combination without compromise. A new, lighter housing has been used for the battery. Provided the eBike manufacturer has prepared the eBike for this, it can be easily replaced - for more or less range.
Reliable energy supplier
High safety standards. Enormous mileage, long service life, reliable handling - the lithium-ion battery is equipped with a battery management system that protects the battery cells from overload.
User-friendly handling
The PowerTube 600 / 800 is characterized by particularly easy handling. The battery is always securely anchored in the frame on all tours, removal is via an intuitive, lockable mechanism and offers you user-friendly operation.
Comparison table
| PowerTube | 600 | 800 |
|---|---|---|
| System | The smart system | The smart system |
| Mounting type | In the frame | In the frame: Horizontal / Vertical |
| Voltage | 36 V | 36 V |
| Battery capacity | 16.7 Ah | 22.2 Ah |
| Energy content | approx. 600 Wh | approx. 800 Wh |
| Weight, Frame battery / Rack battery |
approx. 3.0 kg | approx. 3.9 kg |
|
Size, horizontal / vertical |
424 x 71 x 67 mm | 424 x 77 x 71 mm / 430 x 71 x 77 mm |
| Compatible with DualBattery of the smart system | yes | yes |
| 4A Charger | 50 % charge: approx. 2.0 hours 100 % charge: approx. 5.3 hours |
50 % charge: approx. 2.6 hours 100 % charge: approx. 6.9 hours |
| 2A Charger | 50 % charge: approx. 4.2 hours 100 % charge: approx. 9.1 hours |
50 % charge: approx. 5.7 hours 100 % charge: approx. 12.4 hours |
Geometry
To submit a rating, please log in. We do not check whether the rated item was purchased from us.
Last viewed
