Radon RENDER 8.0 625
Product information "RENDER 8.0 625"
Highlights
- moderner carbon mainframe
- Bosch Performance Line CX drive unit 4th generation
- Bosch 625Wh Powertube
- Bosch LED Remote - the smart system
- Fox 36 Rhythm fork
- Fox Float X Performance 2-Pos. rear shock
- Maxxis Minion DHF and DHR II tires
The latest Bosch Performance CX motor with 85 Nm torque? Check! Elegantly integrated 625 Wh Bosch Powertube battery? Check! Bosch LED Remote? Check! Thanks to its modular design, you can expand Bosch's Smart System infinitely and perfect it for your use. The suspension, consisting of Fox 36 Rhythm and Fox Float X Performance, offers balanced handling with 160/140 mm travel, plenty of reserves in technical terrain and good uphill performance on long climbs. For the gears, we rely on high-quality Shimano DEORE and XT parts: perfect ergonomics, fast gear changes and outstanding reliability are just three of the characteristics of the 1x12 Shimano gears. Should you find yourself flying downhill again, you have plenty of braking power on board with the MT Trail Custom. Four pistons at the front, two pistons at the rear and 203 mm brake rotors provide brute yet finely modulated deceleration. The popular Maxxis tires, consisting of the grippy DHF at the front and the easy-rolling DHR II at the rear, find perfect grip on the SUNringlé Düroc SD37 with 32 mm rim width and spoil you with plenty of grip and an easily controllable limit range. With an adjustable dropper post and a Race Face Chester cockpit, we round off our unbeatable entry-level model RENDER 8.0 625 perfectly and wish you lots of fun on the trail!
The RENDER Family
The RENDER is now a modern classic that flaunts horsepower and continuous performance. Our trail all-rounder is powered by Bosch’s most powerful motor, the Performance Line CX, with its 85 Nm of torque and a maximum assist of 340%. And it does that for a long time, because the RENDER down tube has the large Powertube battery with up to 750 Wh of capacity. This is beautifully integrated into the down tube, which houses all of the cables for the gear system or the vario support in one rail system. The front frame is made of carbon and is unique in its shape with the wing-like connection from the top to the down tube, which also houses the shock. 160 mm of travel on the front and 140 mm on the rear together with the 29” wheels provide tremendous running smoothness and security. Short chain stays and a sophisticated geometry keep the RENDER very agile and maneuverable. The central seat position gives plenty of control of the bike and invites you to take epic trips. RENDER your ride.
The RENDER Frame
Our RENDER is a modern classic. Since the season 2022, it is also coming as a revision for the new Bosch Smart System. What remains is the ultra-modern, lightweight and very rigid carbon frame with the concise wing between the top tube and down tube, which also elegantly accommodates the shock. Also retained is the 140 mm of travel at the chainstay, which we combine at the front with 160 mm suspension forks. The high-capacity 750 Wh battery can be housed in the down tube, which powers the brutally strong Bosch Performance CX motor with its 85 Nm. Also new is the charging socket for the battery, which is located on the left side of the seat tube and is protected from dirt by a small, rotating disk when not in use. The speed sensor sits in the latest RENDER variant in the dropout. The signal-giving magnet rotates in the rear brake disk. Optionally, the new RENDER frame can accommodate a display in the top tube, where you then have all the data directly in view, which is extremely convenient.
The all new RADON RENDER E-MTB
To download the EG-Certificate of Conformity for Radon e-bikes: >CLICK HERE<
System weight max: 135 kg (body weight + bike + equipment)
Please note that pedals are not included!
- Manufacturer number: 799910
- Model Year: 2024
Konrad-Zuse-Straße 20
53501 Grafschaft
Deutschland
www.bike-discount.de
Radon RENDER 8.0 625
Highlights
- moderner carbon mainframe
- Bosch Performance Line CX drive unit 4th generation
- Bosch 625Wh Powertube
- Bosch LED Remote - the smart system
- Fox 36 Rhythm fork
- Fox Float X Performance 2-Pos. rear shock
- Maxxis Minion DHF and DHR II tires
The latest Bosch Performance CX motor with 85 Nm torque? Check! Elegantly integrated 625 Wh Bosch Powertube battery? Check! Bosch LED Remote? Check! Thanks to its modular design, you can expand Bosch's Smart System infinitely and perfect it for your use. The suspension, consisting of Fox 36 Rhythm and Fox Float X Performance, offers balanced handling with 160/140 mm travel, plenty of reserves in technical terrain and good uphill performance on long climbs. For the gears, we rely on high-quality Shimano DEORE and XT parts: perfect ergonomics, fast gear changes and outstanding reliability are just three of the characteristics of the 1x12 Shimano gears. Should you find yourself flying downhill again, you have plenty of braking power on board with the MT Trail Custom. Four pistons at the front, two pistons at the rear and 203 mm brake rotors provide brute yet finely modulated deceleration. The popular Maxxis tires, consisting of the grippy DHF at the front and the easy-rolling DHR II at the rear, find perfect grip on the SUNringlé Düroc SD37 with 32 mm rim width and spoil you with plenty of grip and an easily controllable limit range. With an adjustable dropper post and a Race Face Chester cockpit, we round off our unbeatable entry-level model RENDER 8.0 625 perfectly and wish you lots of fun on the trail!
The RENDER Family
The RENDER is now a modern classic that flaunts horsepower and continuous performance. Our trail all-rounder is powered by Bosch’s most powerful motor, the Performance Line CX, with its 85 Nm of torque and a maximum assist of 340%. And it does that for a long time, because the RENDER down tube has the large Powertube battery with up to 750 Wh of capacity. This is beautifully integrated into the down tube, which houses all of the cables for the gear system or the vario support in one rail system. The front frame is made of carbon and is unique in its shape with the wing-like connection from the top to the down tube, which also houses the shock. 160 mm of travel on the front and 140 mm on the rear together with the 29” wheels provide tremendous running smoothness and security. Short chain stays and a sophisticated geometry keep the RENDER very agile and maneuverable. The central seat position gives plenty of control of the bike and invites you to take epic trips. RENDER your ride.
The RENDER Frame
Our RENDER is a modern classic. Since the season 2022, it is also coming as a revision for the new Bosch Smart System. What remains is the ultra-modern, lightweight and very rigid carbon frame with the concise wing between the top tube and down tube, which also elegantly accommodates the shock. Also retained is the 140 mm of travel at the chainstay, which we combine at the front with 160 mm suspension forks. The high-capacity 750 Wh battery can be housed in the down tube, which powers the brutally strong Bosch Performance CX motor with its 85 Nm. Also new is the charging socket for the battery, which is located on the left side of the seat tube and is protected from dirt by a small, rotating disk when not in use. The speed sensor sits in the latest RENDER variant in the dropout. The signal-giving magnet rotates in the rear brake disk. Optionally, the new RENDER frame can accommodate a display in the top tube, where you then have all the data directly in view, which is extremely convenient.
The all new RADON RENDER E-MTB
To download the EG-Certificate of Conformity for Radon e-bikes: >CLICK HERE<
System weight max: 135 kg (body weight + bike + equipment)
Please note that pedals are not included!
- Manufacturer number: 799910
- Model Year: 2024
Konrad-Zuse-Straße 20
53501 Grafschaft
Deutschland
www.bike-discount.de
Configuration
| Frame: | RENDER 750 (Maximale Reifenbreite: 2.6"; Powertube Akku 625Wh horizontal; Schaltauge: UDH) |
|---|---|
| Frame material: | Carbon main frame/aluminium rear triangle |
| Wheel size: | 29" |
| Speeds: | 1 x 12 |
| Colour: | mudhoney / black |
| Fork: | Fox 36 Rhythm, FIT GRIP, Sweep-Adjust, E-Tuned, Boost (Nachlauf: 44mm) |

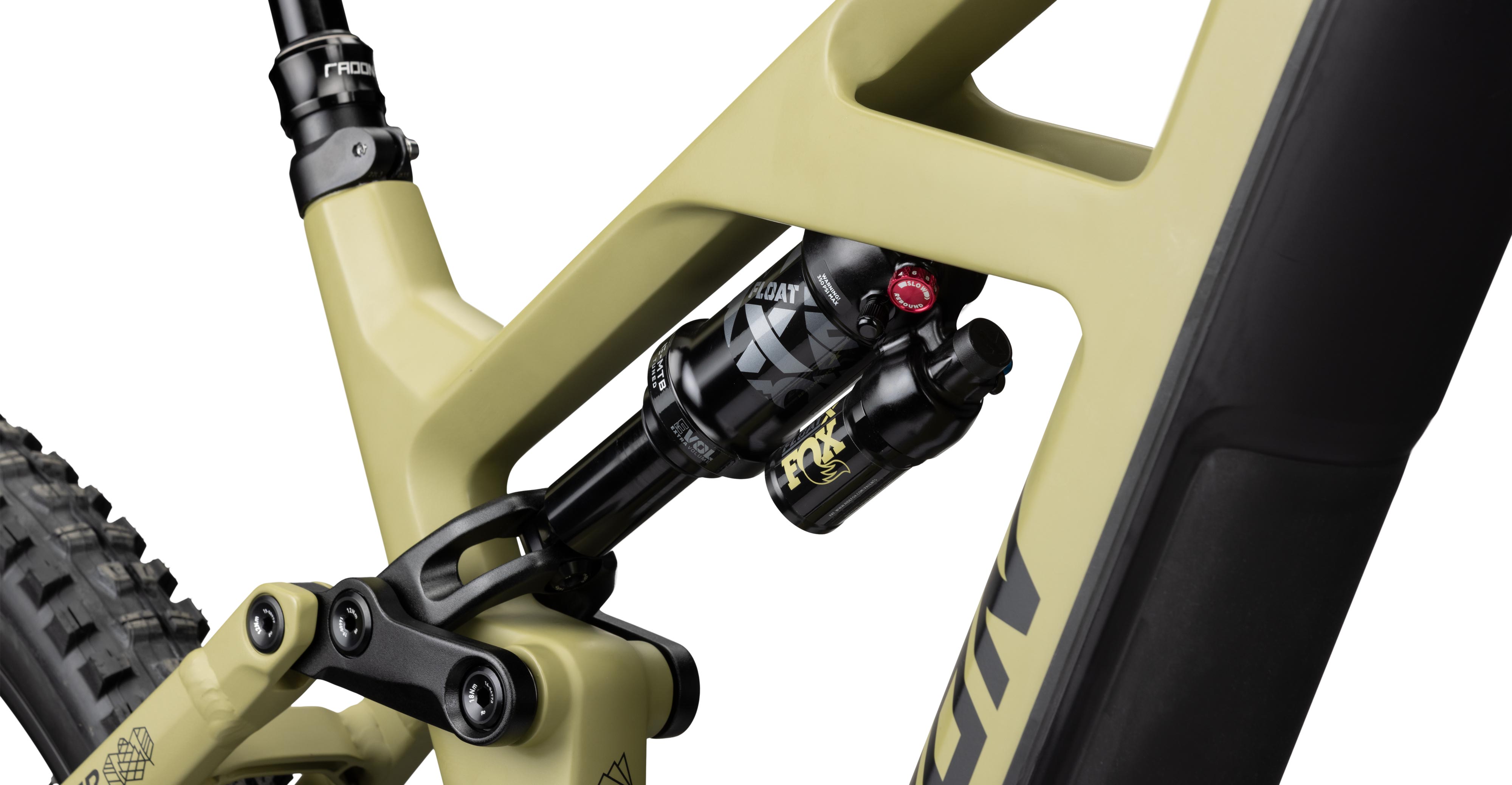

| Rear Shock: | Fox Float X Performance, 2-Pos., EVOL LV (Einbaumaß: 210 x 55mm; Buchsenmaß: Oben: 8 x 30mm, Unten: DU-Bushing 12.7mm) |
| Travel: | 160mm/ 140mm |

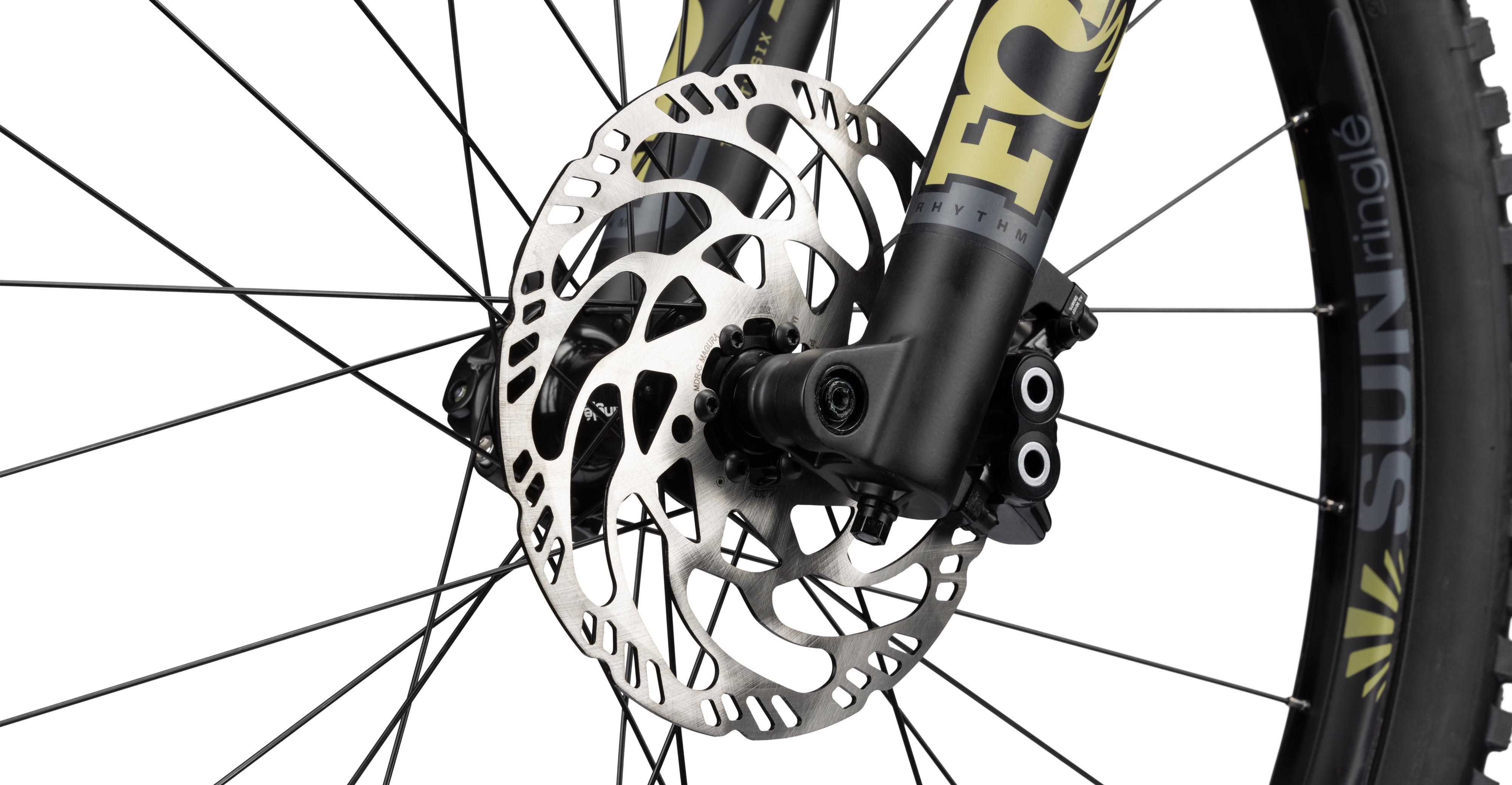

| Brakes: | Magura MT Trail Custom |
| Brake discs: | Magura MDR-C, 203/203mm, 6-bolt |
| Headset: | Acros Block-Lock, ZS56/ZS56 |
| Stem: | Race Face Chester, Ø35mm (M: 40mm; L: 40mm; XL: 60mm) |
| Handlebar: | Race Face Chester, 35 x 780mm, 20mm rise |
| Bar grips: | Acid Disrupt |
| Saddle: | Natural Fit Venec Lite |
| Seatpost: | RADON Competition Dropper, Ø31.6mm (M: 125mm Hub; L: 150mm Hub; XL: 150mm Hub) |
| Crankset: | e*thirteen e*spec Plus, 165mm, e*thirteen Chainring Alu, 34T |
|---|---|

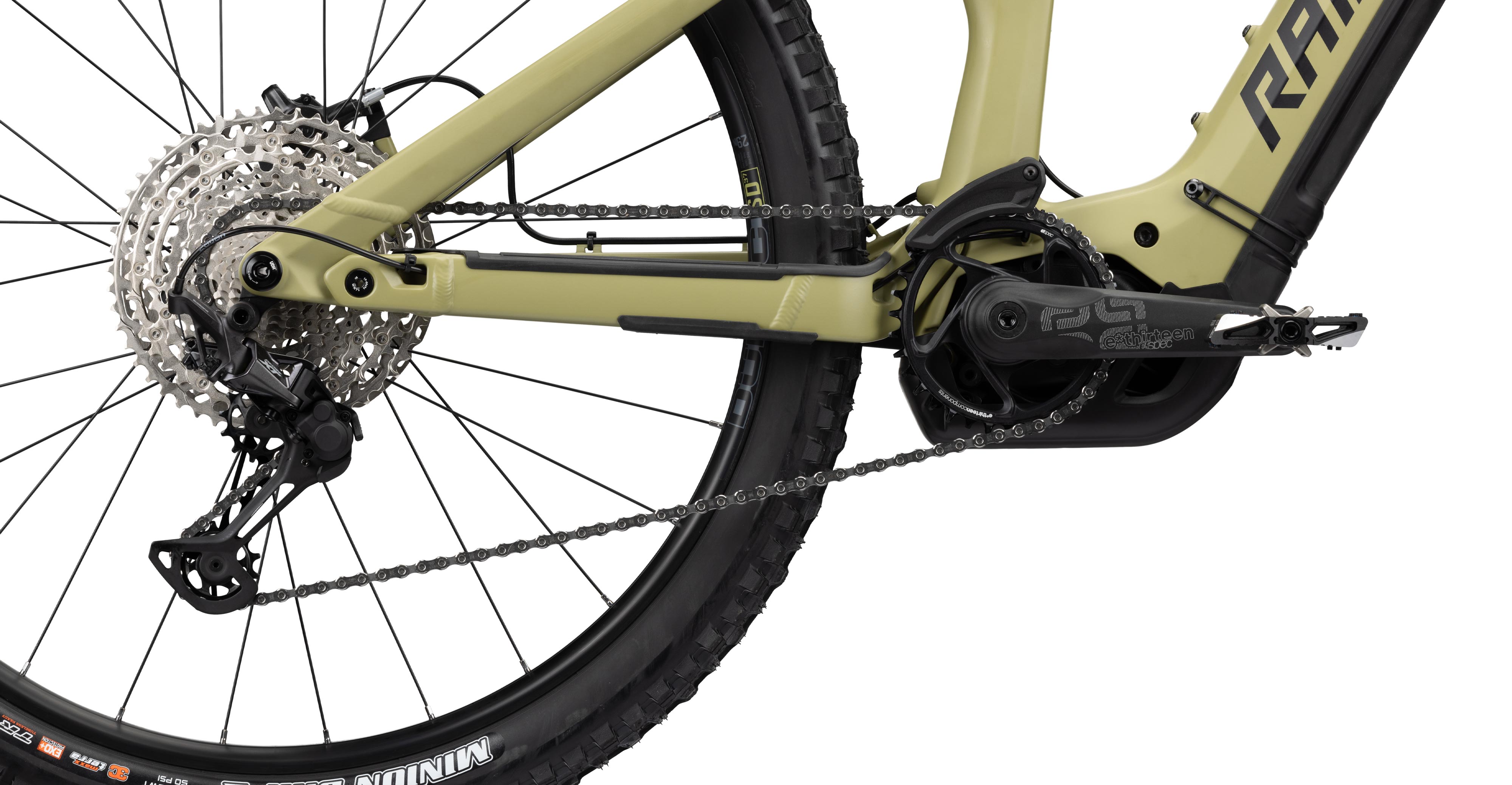

| Rear derailleur: | Shimano XT RD-M8100-SGS, 12-speed |
| Gear shifters: | Shimano DEORE SL-M6100-IR, Shiftmix |
| Chain guide: | Reverse Components Flip-Guide, direct mount |
| Cassette: | Shimano Deore CS-M6100, 10-51 |
| Chain: | Shimano Deore CN-M6100 |
| Front tyre: | Maxxis Minion DHF, 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT |
| Rear tyre: | Maxxis Minion DHR II, 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT |
| Wheelset: | SUNringlé Düroc SD37, 110/148mm (Felgenhöhe: 17mm; Maulweite: 32mm; Tubeless ready: ✔; Tubeless Ventile: nicht enthalten; Tubeless Felgenband: 34-35mm, nicht enthalten; Tubeless Milch: nicht enthalten) |
| Display: | Bosch LED Remote |
| Battery: | Bosch PowerTube 625Wh |
| Charger: | Bosch Charger 2A |

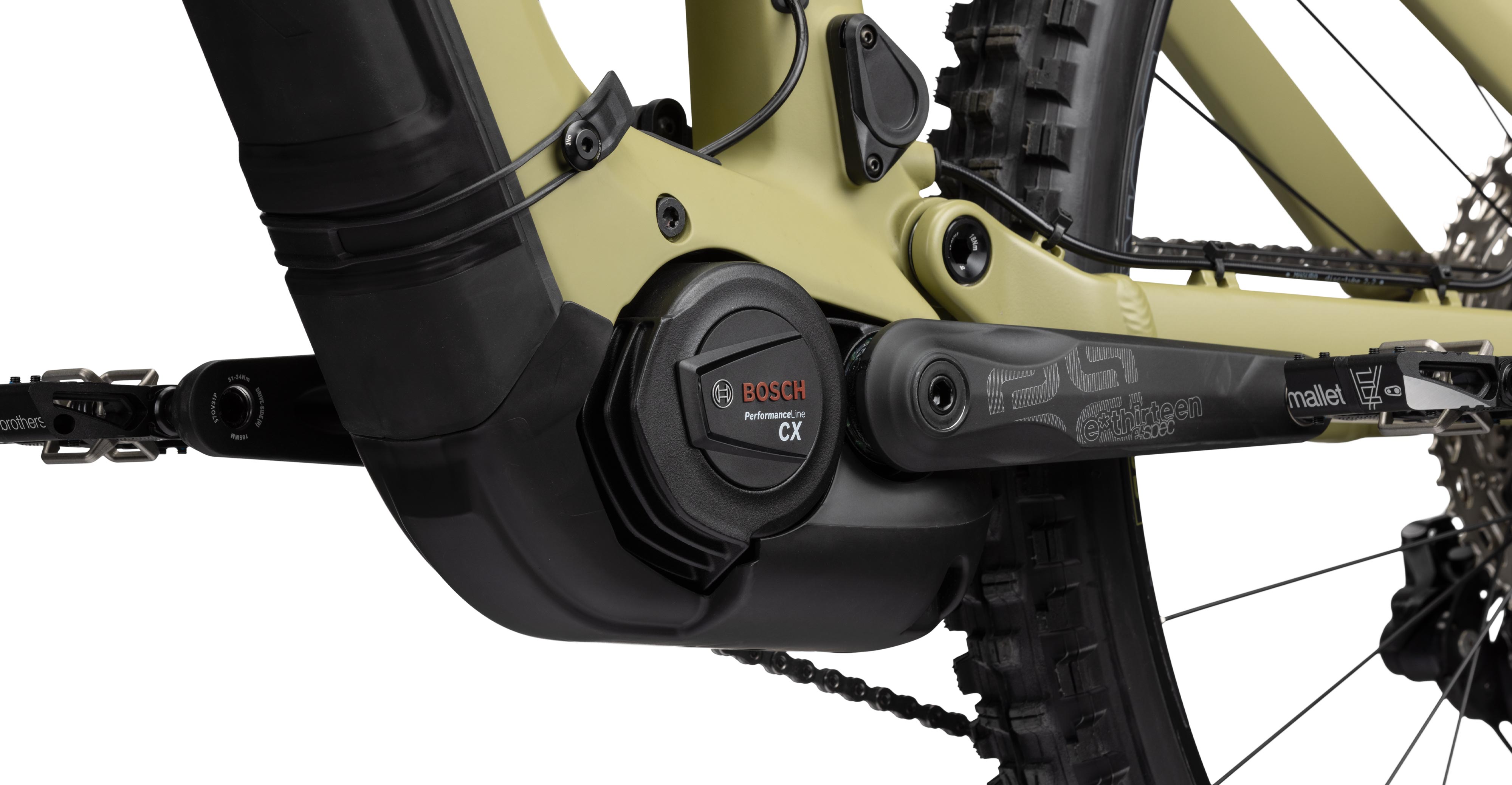

| Engine: | Bosch Performance Line CX Gen4 Smart System |
| Pedals: | not included in the scope of delivery |
| Maximum total weight allowed: | 135 kg (body weight + bike + equipment) |
| Weight: | starting from 23,95 kg |
Bosch - the smart system for e-bikes
At the start into the networked e-bike world, Bosch is equipping the top drive unit Performance line CX for the future. The well-known motor with a new connectivity is accompanied by Bosch's brand-new PowerTube 750 battery - for longer riding pleasure with a significantly increased range. Beside the new Kiox 300 display, the new LED remote, and the new 4A charger, the new smart system also includes the new eBike Flow app, which now is the center for customizing your e-bike! Thanks to the network, you can easily retrofit new functions or install updates "over-the-air". Of course, you can also track your activities and customize the riding modes. The retrofittable "ConnectModule" is intended to increase security, enabling new options for e-bike theft protection. For example, an acoustic alarm can be triggered in the event of an attempted theft, and the bike can also be tracked if it has been stolen. Further features are planned to promise more riding fun and safety with the smart system by Bosch.
Why should I buy an e-bike with the smart Bosch system?
Your e-bike continues to evolve
Even after purchase, new functions can be retrofitted via "over-the-air" updates, so new riding fun is always guaranteed.
Your e-bike is networked
Thanks to the eBike Flow app, your e-bike is connected to your smartphone - and thus to the digital world! The app can be connected to the LED Remote via Bluetooth and you increase your riding fun thanks to smart, customizable functions.
Your e-bike battery lasts longer
Thanks to a capacity of 750 Wh, you'll still be riding when others already have given up. Just enjoy the increased range and have fun on long tours and many trails.
Your e-bike looks really good
Every single component of the smart system by Bosch can be integrated beautifully and ensures a modern, puristic design.
Your e-bike benefits from perfect interaction
All of the smart system’s components are coordinated and harmonize perfectly - with each other and with you. Thanks to access to the digital world, you can automatically record and evaluate your activities and synchronize them with your favorite apps.
What components does the Bosch smart system consist of?
Bosch Performance Line CX drive unit
Power on the hill
The maximum torque of 85 Nm has a noticeable effect on your riding behaviour when eMountain biking. The powerful motor enables rapid acceleration after tight turns and obstacles at a low cadence and facilitates starting up on the steepest of hills. For fast sprints, the motor also supports you at high cadence.
Intuitive handling
A mode for more focus: Specially designed for sporty use, eMTB mode offers you optimum control and intuitive handling, as you need to switch less between the different riding modes. With this clever function of the eMTB mode, technical sections can be mastered with confidence and obstacles such as root systems and rock gardens can be overcome by applying targeted pedal pressure with the Extended Boost. The Performance Line CX drive unit thus ensures even more riding enjoyment and a flow experience that sets the standard.
Maximum agility
The multi-sensor concept allows for controlled and agile riding, even on technically demanding trails. Combined with the innovative Bosch motor control, it offers the very best in dynamics and the highest level of sensitivity.
Sporty and economical
Sporty riding on a trekking bike or eMTB: The Tour+ mode of the Bosch Performance Line CX always focuses on riding enjoyment. It eliminates the need to switch between support modes, so you can focus entirely on the eBiking. Tour+ mode requires you to pedal harder on flat tracks than Tour mode - thus saving power and extending your boundaries for even more riding enjoyment!
Whether off-road or on asphalt, Tour+ mode is always the perfect choice. That's because it constantly adapts to you. Sensors on the motor measure important riding data more than 1,000 times per second, enabling Tour+ mode to determine optimum support for you. It delivers the additional power so sensitively that you not only experience a natural riding sensation, but also enjoy a longer range by applying more power.
A personal riding experience
To ensure that the eBike’s handling characteristics suit your riding style or the selected route, the available riding modes can be customised using the eBike Flow app. The level of the support, dynamics, maximum speed and maximum torque of the drive can thus be flexibly adjusted to your personal needs and preferences. Intensive training or extended eBike ride — the riding modes always offer you the right support and enable even more riding enjoyment.
Riding modes of Bosch eBike – the smart system
Turbo:
- Direct and maximum powerful support up to the highest pedalling rates for sports riding.
- Support level: 340%
- Maximum drive torque: 85 Nm
eMTB:
- The eMTB mode dynamically varies between the Tour and Turbo riding modes, progressive motor support for maximum performance on the trail.
- Support level: 140% - 340%
- Maximum drive torque: 85 Nm
Tour:
- Uniform support for long stretches, with clear focus on long ranges.
- Support level: 140%
- Maximum drive torque: 50 Nm
Tour+:
- Dynamic support for maximum riding fun and sporty riding performance.
- Support level: 60% - 340%
- Maximum drive torque: 85 Nm
Eco:
- Effective, but gentle support, designed for maximum efficiency for long ranges.
- Support level: 60%
- Maximum drive torque: 40 Nm
Bosch eBike Flow app
Enhancing the eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor and send them to your eBike via Bluetooth. That way it's always up to date and you get to enjoy more options.
Recording activities
Track your ride and fitness data as soon as you get started. If desired, the Activity Tracking for iPhone users can also sync all data automatically with Apple Health. When you take a break, the recording stops automatically.
Customising riding modes
Adjust the riding mode exactly to your needs: You can finely adjust the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Everything at a glance
Use the Home screen to gain a quick overview of everything that's important. Whether battery status, remaining range, distance travelled or the next service appointment, the Home screen clearly shows you everything you need to know with constantly updated eBike data.
Bosch LED remote
Optimal readability
For less distraction and more safety. All important information can be captured quickly and easily thanks to the LED remote. The LEDs are also highly visible in sunlight, and the brightness of the display adapts flexibly to the ambient light: This means that readability is maintained even in changing light conditions and you are never dazzled. You can also quickly recognise the selected riding mode by the respective colour.
Smart connectivity
Greater flexibility, comfort, and safety: The LED remote connects the eBike with the eBike Flow app. This enables you to call up all important riding data, such as the duration of your ride or the distance covered, using your smartphone and to share this with other users. It is also possible to carry out software updates independently.
Smart Walk Assist
Even on the steepest of trails, when riding is no longer an option, you can push your eBike more easily with the help of Walk Assist: Simply press the minus button, move the eBike and you will already feel the support. The LED remote also acts as your guide, making handling easier for you. Walk Assist is especially helpful when eMountain biking in challenging terrain.
Ergonomic handling
The LED remote can be individually adjusted to you and, in addition to an attractive design, boasts optimal ergonomics and intuitive operation. Thanks to the ergonomic 'L' design, the LED remote can be attached to the handlebar so that you can reach and operate all buttons perfectly with your thumb.
Sustainably on the move
Reach your destination safer and more sustainably: The long-life rechargeable battery of the LED remote means that you can rely on the control centre on every single eBike ride. If the battery does ever need to be replaced, it can be ordered by a specialist dealer because the next route is already waiting to be discovered!
Bosch PowerTube 625 battery
Maximum range
The PowerTube 625 makes it easy to conquer long distances and significant variations in altitude.
Elegant eBike design
Like all Bosch PowerTubes, the PowerTube 625 is perfectly integrated into the frame of the eBike. An appealing eBike design and high capacity make for an uncompromising combination.
Reliable power source
High safety standards Enormous mileage, long service life, reliable handling — the lithium-ion battery is equipped with a Battery Management System (BMS) that protects the battery cells from overload.
User-friendly operation
The PowerTube 625 is characterised by particularly easy handling. The rechargeable battery is always securely fastened within the frame. It can be removed via an intuitive, lockable mechanism and offers user-friendly handling.
Bosch 4A Charger
Small and lightweight
The 4A charger is the perfect charger with many advantages: It charges quickly, is easy to use and is visually appealing. The small and lightweight charger is ideal for on-the-go charging and supplies the PowerTube 750 with the necessary energy in no time: It takes six hours to fully charge the battery, and just over two hours to charge it halfway. The perfect opportunity for a restful break along the way.
Geometry
