Magura MT8 Pro HC rear disc brake 1550mm TOP-DEAL
Product information "MT8 Pro HC rear disc brake 1550mm TOP-DEAL"
Attention: The brake hose is filled and has been clamped off and cut by the manufacturer near the brake lever using two metal clamps. Before using the brake for the first time, the hose must be shortened at these points and reconnected. The necessary pin and olive set is included in the package. |
Excellent braking power with 1-finger HC lever: the Magura MT8 Pro disc brake
An increased transmission ratio will give you a reassuring feeling of safety in every competition situation. The new 1-finger HC lever blade modulates the enormous braking power as desired.
A Carbotecture master cylinder and a forged one-piece brake calliper made of polished aluminium give the MT8 a look of sophisticated quality. The equally sophisticated Carbotecture master and the aluminum lever provide ultimate reliability and performance at a low weight.
Features - Magura MT8 Pro HC disc brake + SRAM Shiftmix 3 Clamp right
Optimal heat resistance

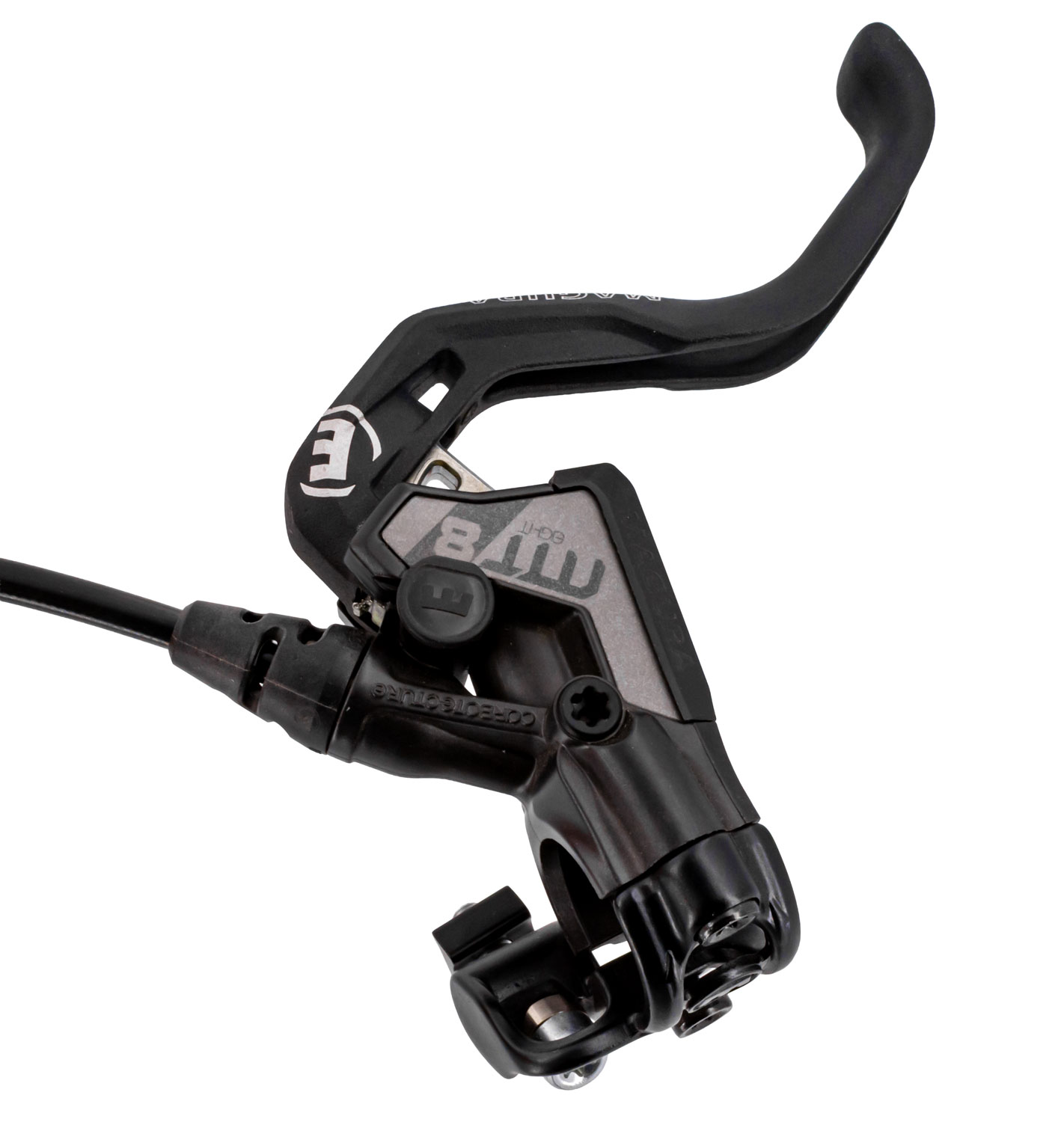

Ergonomic, 1-finger aluminum HC lever
Forged one-piece 2-piston aluminum brake caliper
Reach adjust with 3 mm allen key
Compatible with all MAGURA Storm, Storm HC and Storm SL / SL.2 discs
Made in Germany
Designed and engineered in Germany
Product Features
Use: MTB Cross Country (XC), All Mountain
Technical features: Full hydraulic dual piston floating caliper
Pad wear adjustment: Automatic
Brake hose: MAGURA disc tube (easily shortened)
Transmission medium: MAGURA Royal Blood mineral oil
Banjo fitting: Yes
Hydraulic system: Open, with expansion chamber
Intern. standard mounting (IS): Yes, adaptor
EBT (Easy Bleed Technology): Yes
Reach adjust: Yes (with tool / 3 mm allen key)
Flip-Flop-Design: Yes
Shift Mix: Yes (optional)
BAT (bite point adjuster): No
OPD (caliper in one-piece design): Yes
Postmount mounting (PM): Yes, direct mount
2-Piece Lever Clamp: Yes
Rotor recommendation: Storm SL.2 140/160/180/203
Hose length: 1550 mm (shortable)
Material
Bolts: Aluminum
Master: Carbotecture
Lever: Aluminum
Caliper: Aluminum
Scope of delivery
1 x Magura MT8 Pro HC Disk Brake (no box packaging)
1 x SRAM Matchmaker Shiftmix 3 Clamp right
1 x Brake Pads
2 x Fastening Screw
1 x Insertpin
1 x Olive
1 x Transport safety
Attention: The brake hose is filled and has been clamped off and cut by the manufacturer near the brake lever using two metal clamps. Before using the brake for the first time, the hose must be shortened at these points and reconnected. The necessary pin and olive set is included in the package.
Rotor and adaptor not included!
For suitable rotors >CLICK HERE<
For suitable adaptors >CLICK HERE<
Technology
What is Carbotecture?
In the sensitive motorcycle and bicycle industries, MAGURA stands for the highest possible quality, solid reliability and mature components from its in-house production in Germany. In developing special materials and processes such as Carbotecture® and Carbolay®, we have realized designs and constructions that no other manufacturer can implement. We have also established an extremely effective quality assurance system at our Hülben and Hengen production and assembly sites near the original factory in Bad Urach. MAGURA brakes are light, very stable and function reliably for many years – and we realize these features with several plastics that we develop ourselves. However, Carbotecture is definitely not just a “plastic” – it is so much more!
We see ourselves as the architects of our materials – and the term Carbotecture® is a combination of the terms carbon and architecture. Here is a brief explanation of how we create our basic Carbotecture® material: First of all, a mixture of high-tech polymers and carbon or glass fibres is converted into a plastic granulate by means of several complex processes. During the processing from the granulate to the finished component, the carbon fibres are then optimally aligned to match future stress requirements. This “Carboflow” process can create any desired shape from the granulate during an injection moulding process. Carbotecture® offers major advantages compared to classic lightweight aluminium – for example, it’s 50% lighter, but it possesses the same tensile and breaking strength! Thanks to our highly developed machines and processes, Carbotecture® is indeed a dream material, from which smooth surfaces can be created in almost any complex shape – and this is also how we make our rigid yet lightweight brake masters. BMW also relies on the special properties of Carbotecture® for its motorcycles – the clutch master of the BMW GS is also made of this material, for instance.
We increase the resistance of our Carbotecture SL® material by integrating medium-length carbon fibres into the polyamides instead of short fibres – and this also reduces the weight of the material. The brake masters of our award-winning MT disc brake series are made of Carbotecture® and Carbotecture SL®.
Yet another of our materials is Carbolay®. It is produced in a fully automated procedure, during which a textile process is used to position the carbon fibres according to load. The fibres are then automatically impregnated with resin in a mould. This process enables us to produce Carbolay® lever blades in an attractive and ergonomically optimized form – and the blades also achieve perfect finger force transmission thanks to their high degree of rigidity and low weights.
Mounting/Installation a Magura MT8 brake
>
Shorten the tubing/hose of a Magura disc brake MT8
- Manufacturer number: 2005658
Stuttgarter Straße 48
72574 Bad Urach
Deutschland
[email protected]
https://www.magura.com
