Hoheacht Amuza Monto
Product information "Amuza Monto"
The range extender (360 Wh) is also available in our store: >Click here<
Featherweight among the e-hardtails: the AMUZA MONTO from Hoheacht
So much for the basic data of the AMUZA MONTO. You simply have to experience how light-footedly you can climb the peaks and heat along the trails on this light e-MTB. The motor offers you cleverly integrated support. Instead of a typical light drive, Hoheacht relies on the EP801, the power unit from the Shimano range, even on the lightest mountain bike. The specific motor configuration achieves an optimum balance between power, range and weight. This makes the AMUZA the ultimate in efficiency without any compromises. This results in an extremely wide range of use for this weight class, making the AMUZA MONTO a first-class choice for a wide variety of rider types and riding styles.
Highlights - Hoheacht Amuza Monto
Application area
Trail | All-mountain | Enduro – perfect for rough terrain
Motor

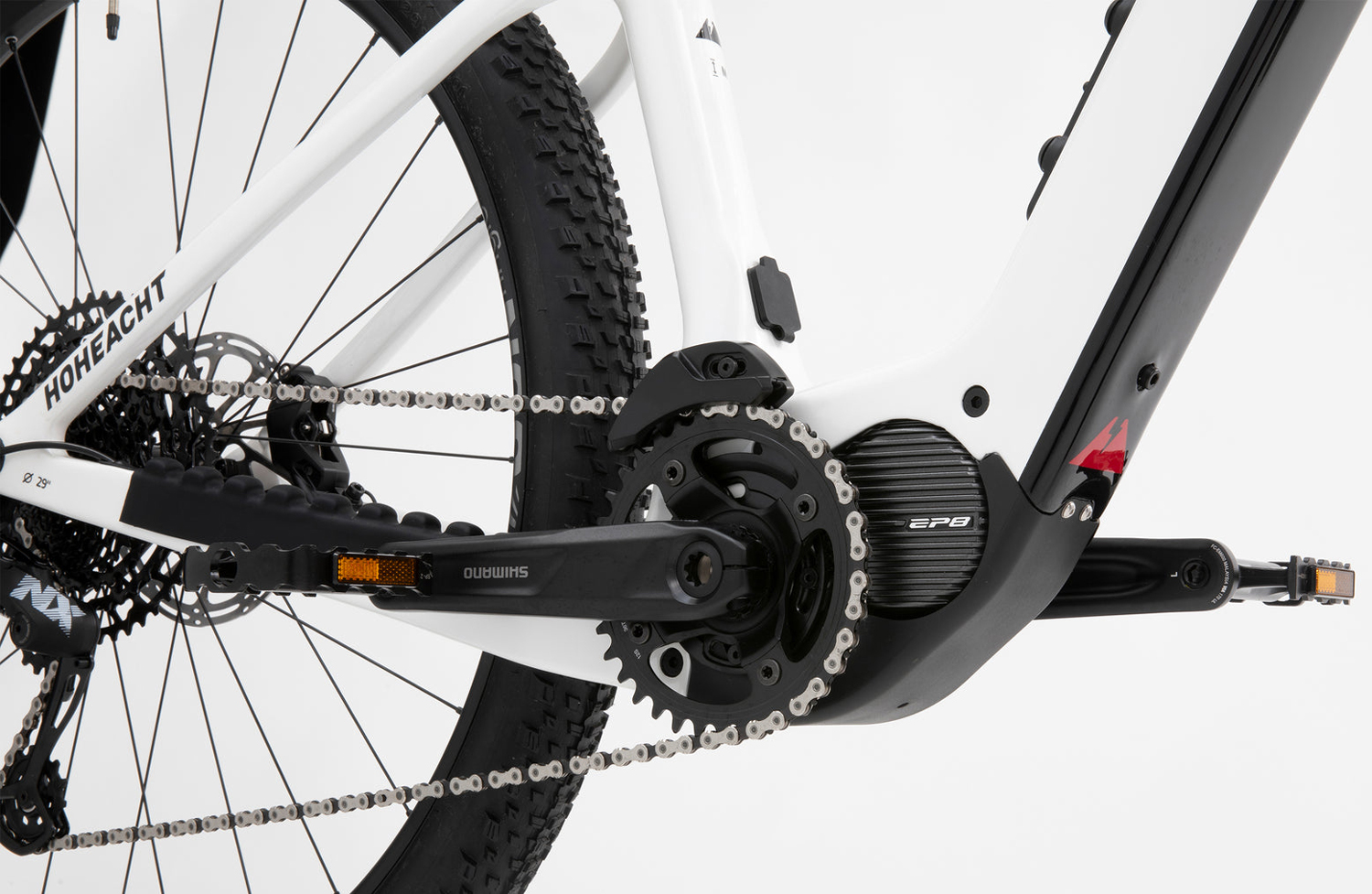

Discover the next level of e-bike riding with the Shimano Steps DU-EP801 mid-motor. All AMUZA models have a torque of 75 Nm for a perfect balance of power and range. With the new lightness you will experience a completely new driving experience. Thanks to its position in the bottom bracket area, the mid-motor provides balanced weight distribution and a natural riding experience while helping you climb hills and cover long distances with ease.
Shifting System

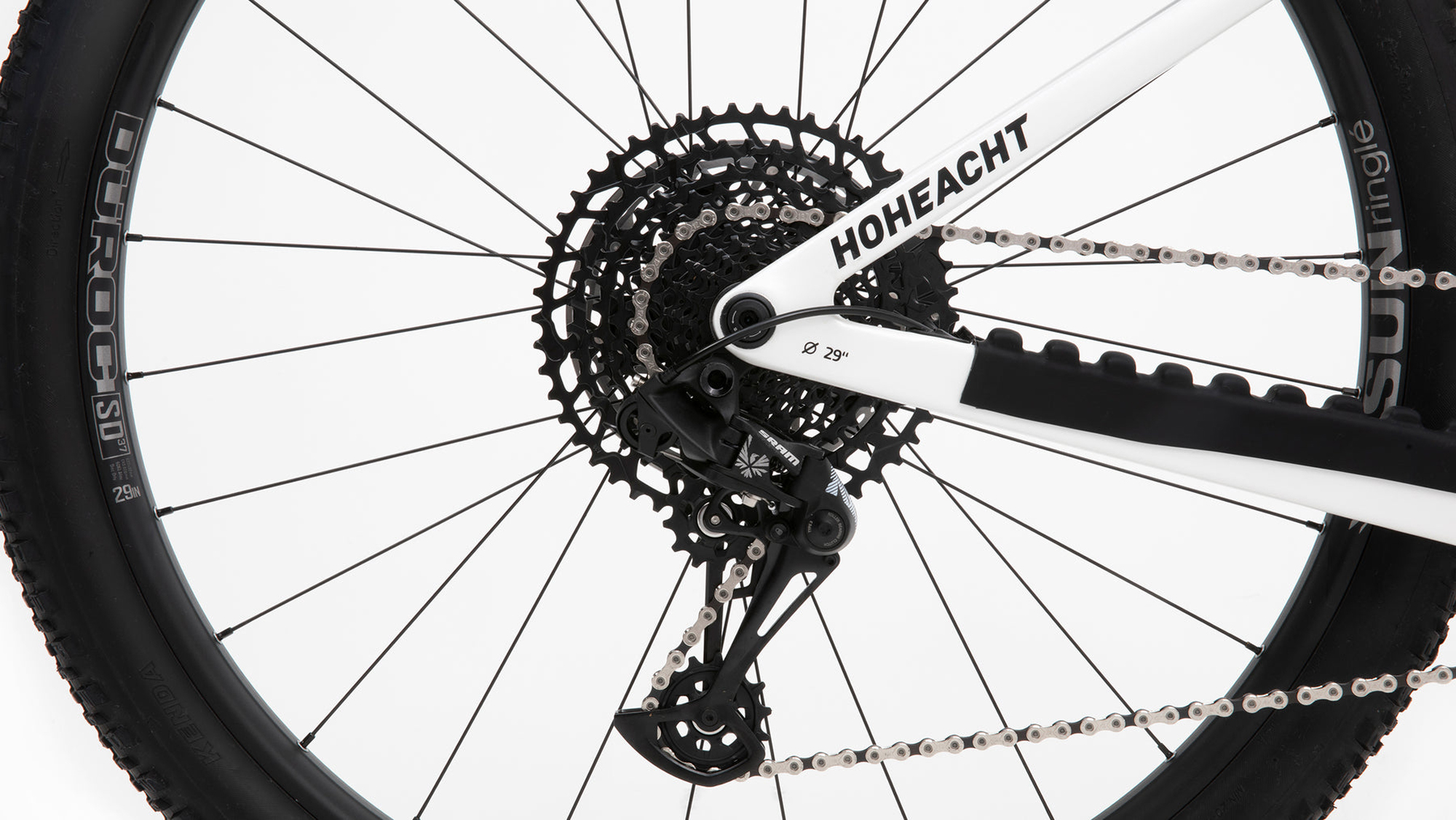

The high-quality SRAM NX Eagle 12-speed derailleur gear allows you to achieve precise and reliable shifting behaviour on any terrain. With the SRAM NX Eagle rear derailleur and the matching shifters, you always have full control of your ride and can effortlessly switch between gears. No matter whether you're conquering steep climbs or enjoying rapid descents, the gears guarantee an optimal driving experience and make every ride a pure pleasure.
Recommended frame sizes
| Frame size: | 40 | 45 | 50 |
| Body size : | 160-170 cm | 170-180 cm | 180-195 cm |
- Manufacturer number: B81010-85108I3-3645C
Julius-Saxler-Straße 3
54550 Daun
Deutschland
[email protected]
www.hoheacht-bikes.de
Hoheacht Amuza Monto
The range extender (360 Wh) is also available in our store: >Click here<
Featherweight among the e-hardtails: the AMUZA MONTO from Hoheacht
So much for the basic data of the AMUZA MONTO. You simply have to experience how light-footedly you can climb the peaks and heat along the trails on this light e-MTB. The motor offers you cleverly integrated support. Instead of a typical light drive, Hoheacht relies on the EP801, the power unit from the Shimano range, even on the lightest mountain bike. The specific motor configuration achieves an optimum balance between power, range and weight. This makes the AMUZA the ultimate in efficiency without any compromises. This results in an extremely wide range of use for this weight class, making the AMUZA MONTO a first-class choice for a wide variety of rider types and riding styles.
Highlights - Hoheacht Amuza Monto
Application area
Trail | All-mountain | Enduro – perfect for rough terrain
Motor
Discover the next level of e-bike riding with the Shimano Steps DU-EP801 mid-motor. All AMUZA models have a torque of 75 Nm for a perfect balance of power and range. With the new lightness you will experience a completely new driving experience. Thanks to its position in the bottom bracket area, the mid-motor provides balanced weight distribution and a natural riding experience while helping you climb hills and cover long distances with ease.
Shifting System
The high-quality SRAM NX Eagle 12-speed derailleur gear allows you to achieve precise and reliable shifting behaviour on any terrain. With the SRAM NX Eagle rear derailleur and the matching shifters, you always have full control of your ride and can effortlessly switch between gears. No matter whether you're conquering steep climbs or enjoying rapid descents, the gears guarantee an optimal driving experience and make every ride a pure pleasure.
Recommended frame sizes
| Frame size: | 40 | 45 | 50 |
| Body size : | 160-170 cm | 170-180 cm | 180-195 cm |
- Manufacturer number: B81010-85108I3-3645C
Julius-Saxler-Straße 3
54550 Daun
Deutschland
[email protected]
www.hoheacht-bikes.de
Configuration
| Frame: | H8 UHD Carbon Hardtail All Mountain |
|---|---|
| Frame material: | Carbon |
| Wheel size: | 29" |
| Speeds: | 1 x 12 |
| Colour: | Schneewittchen |
| Fork: | RockShox, ZEB, BSE, 150 mm travel |
| Travel: | 150 mm |

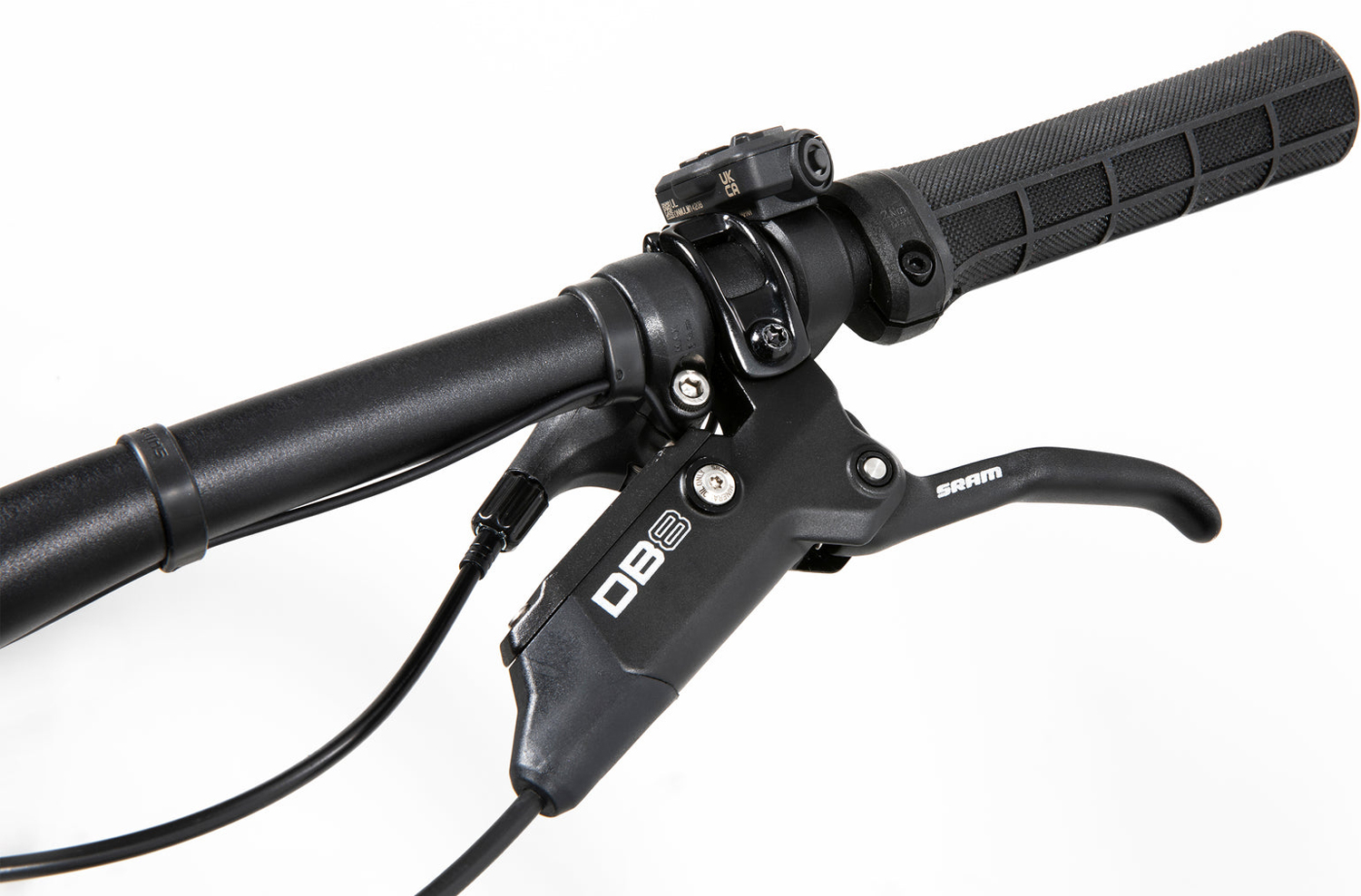

| Brakes: | SRAM, DB-DB8-A1, four-piston |
| Brake discs: | Front: SRAM, DB Rotor, 200 mm, IS 6-hole, Rear: SRAM, DB Rotor, 180 mm, IS 6-hole |
| Headset: | ACROS, zs55 & zs66, industrial bearings, Stem Cap SP-Connect |
| Stem: | HoheAcht, 60 mm, ±7°, Aluminum, black |
| Handlebar: | HoheAcht, 31.8 mm, width 740 mm (S) | 780 (M+L) mm, aluminum, black |
| Bar grips: | Velo Plastic, Vexk, 135 mm |
| Saddle: | Prologo, Proxim W350 |
| Seatpost: | Limotec, A1 Dropper Post, 125 (S) | 170 (M) | 170 (L) mm, aluminum |
| Crankset: | Chainring Shimano Steps, SM-CRE80, 36 teeth, steel/aluminum, Crank arm set Shimano Steps, FC-EM600, 170 mm |
| Rear derailleur: | SRAM, NX Eagle, RD-NX-1-B1, 12-speed derailleur |
| Gear shifters: | SRAM, NX Eagle, TRIGGER, SL-NX1-PA-B1, 12-speed |
|---|---|
| Cassette: | SRAM, EAGLE, CS-PG-1210, 12-speed, 11-50 teeth |
| Chain: | YBN, S12e S2 |
| Front tyre: | Kenda, Regolith K1214, 29'' x 2.4'' (61-622), TR |
| Rear tyre: | Kenda, Booster XC, K1227, 29'' x 2.4'' (61-622) |
| Front hub: | Sunringlé, Düroc SD37 Expert 29'', Disc, 15 x 110 mm, Boost |
| Rear hub: | Sunringlé, Düroc SD37 Expert 29'', Disc, 12 x 148 mm, Boost |
| Rims: | Sunringlé, Düroc SD37 Expert 29'', aluminum, black |
| Display: | Shimano Steps, SC-EN600, Bluetooth, ANT Private |
| Battery: | Simplo, 360 Wh, Intube-Battery (included); Additional 360 Wh with optional range extender (total 720 Wh) (not included) |
| Charger: | Simplo, Smart Charger, 4A |
| Engine: | Shimano Steps, DU-EP801, 25km/h, 75 Nm, mid-motor |
| Front light: | Sate-lite lighting set LF-12, Li-ion battery, max. 50 LUX + Messingschlager reflector set |
| Backlight: | Sate-lite lighting set LR-03K, 200mAh LIR2050 battery, 220° visibility |
| Pedals: | Marwi, SP-160 BL, Aluminum |
| Maximum total weight allowed: | 140 kg (body weight + bicycle + equipment) |
| Weight: | ab 18 kg |
SHIMANO EP8 - The right performance at the right time
What are the benefits of a SHIMANO E-MTB?
Available for a wide range of brands and models
Countless options to help you find the perfect E-MTB to suit your riding style and preferences
Technology proven on the trails
E-MTB systems are based on 40 years of research and are the undisputed benchmark in the mountain bike industry
Developed as a complete system
Unique performance thanks to harmonious coordination with other SHIMANO components
Discover the EP801 series from Shimano
The top model from Shimano. The lightweight and smarter E-MTB system EP8 (EP801) offers controllable high performance for a natural riding experience on the trails. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP8 e-bike system. Click on a component to find out more.
SHIMANO EP8 (EP801) motor
The top-of-the-line EP8 (EP801) is a smarter drive unit that offers superbly controllable high power with a maximum torque of 85 Nm over a wider cadence range than ever before. The result is a harmonious power delivery and optimized control for a natural feel on the trail.
- 85 Nm of maximum torque over a wider cadence range
- Harmonious and intuitive for a natural riding experience
- Compact and lightweight at just 2.7 kg
- Even smarter, enabling FREE SHIFT and AUTO SHIFT functionality in conjunction with the new DEORE XT Di2
- Offers extended connectivity via CAN and ACC connections
- Low noise development for relaxed riding on trails
- Improved heat management prevents power loss on long climbs
- Extensive configuration options via the FINE TUNE mode of the E-TUBE PROJECT Cyclist Cyclist Cyclist app
- Support modes: Walk, Eco, Trail and Boost
All you need to know about the EP Series | SHIMANO
SHIMANO SC-EN600 Display
Shimano has developed a range of displays that optimize the riding experience in a variety of applications.
SC-EN600
- Compact size for a secure fit on the handlebars
- Easy to read color display even in bright sunlight
- Configurable data dashboards allow the selection of four riding data per screen
Switch for support mode
The large contact surfaces enable intuitive operation even on rough trails - with or without gloves Concave switches make it easy to switch between Eco, Trail and Boost mode.
- Tidy cockpit thanks to compact design
- Ergonomic, intuitive design
- Push assist activated with one button
- Robust construction for off-road use
- Easy to operate with or without gloves
Rechargeable battery
The batteries allow you to ride longer on the trails and cover more kilometers. The internal battery with 630 Wh offers a higher capacity, so you can concentrate on the next bend and not on the battery indicator.
- Long service life
- After 1000 full charge cycles, the batteries still store 60 % of the maximum charge.
- The quick-charge function gets you back on the trail faster
- Enables long-distance rides
Compatible with SHIMANO Deore XT Di2 (optional)
The EP8 (EP801) is compatible with the precise electronic shifting technology of the DEORE XT Di2 and allows you to use the FREE SHIFT and AUTO SHIFT functions. Another plus is the large selection of cranks, chains and chainrings.
The DEORE XT Di2 is available in two versions:
- Fast and easy shifting with HYPERGLIDE+ for 12-speed drivetrains with FREE SHIFT
- Harmonious and durable shifting with LINKGLIDE technology for 11-speed drivetrains with FREE SHIFT and AUTO SHIFT
Advantages:
- Shorter cranks prevent pedal slap and enable a smooth cadence with constant motor support
- Crank lengths: 160 mm, 165 mm, 170 mm or 175 mm
- Light and stable chainrings with DYNAMIC CHAIN ENGAGEMENT+ for improved chain retention in rough terrain
- Chainring variants: 32T, 34T, 36T or 38T
What happens when DEORE XT Di2 meets the EP Series? | SHIMANO
Individual riding experience
TUBE PROJECT Cyclist Cyclist Cyclist App
Control everything via the E-TUBE PROJECT Cyclist Cyclist app, from the support level to the AUTO SHIFT settings. You can easily adjust the settings to the terrain and your preferences from the app. You can also save the settings in two different profiles and switch between them while riding.
With 15 customization modes, the ability to fine-tune the AUTO SHIFT and FREE SHIFT settings for DEORE XT Di2 and wireless firmware updates, the app offers maximum control and freedom to customize your riding experience.
E-TUBE PROJECT App from version 4.0 | SHIMANO
Fine-tune your ride with the E-TUBE PROJECT Cyclist App | SHIMANO
Trail mode
Trail mode uses the full 85 Nm of the EP8 drivetrain to support the rider comfortably, safely and reliably on difficult sections. The extremely versatile support mode is optimally tuned by default and requires no further adjustment. This allows you to concentrate fully on conquering the toughest trails. The harder you pedal, the more support power is available to you. This means that you are supported by the drive unit at exactly the right time and always have optimum traction and control. Whether it's loose sand or steep climbs in the mountains, the drive unit always adapts quickly and independently so that you can concentrate fully on the terrain.
Geometry
