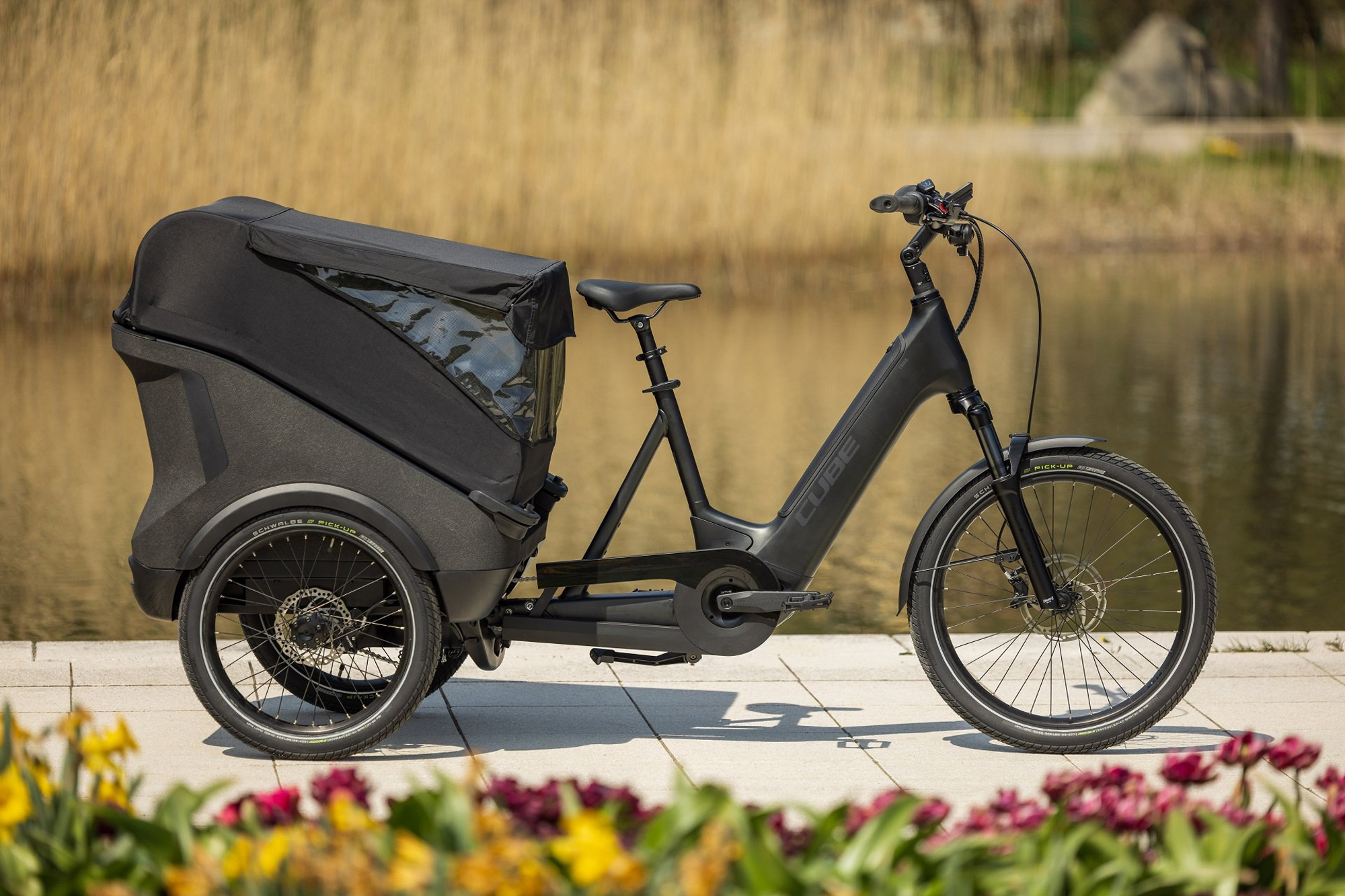

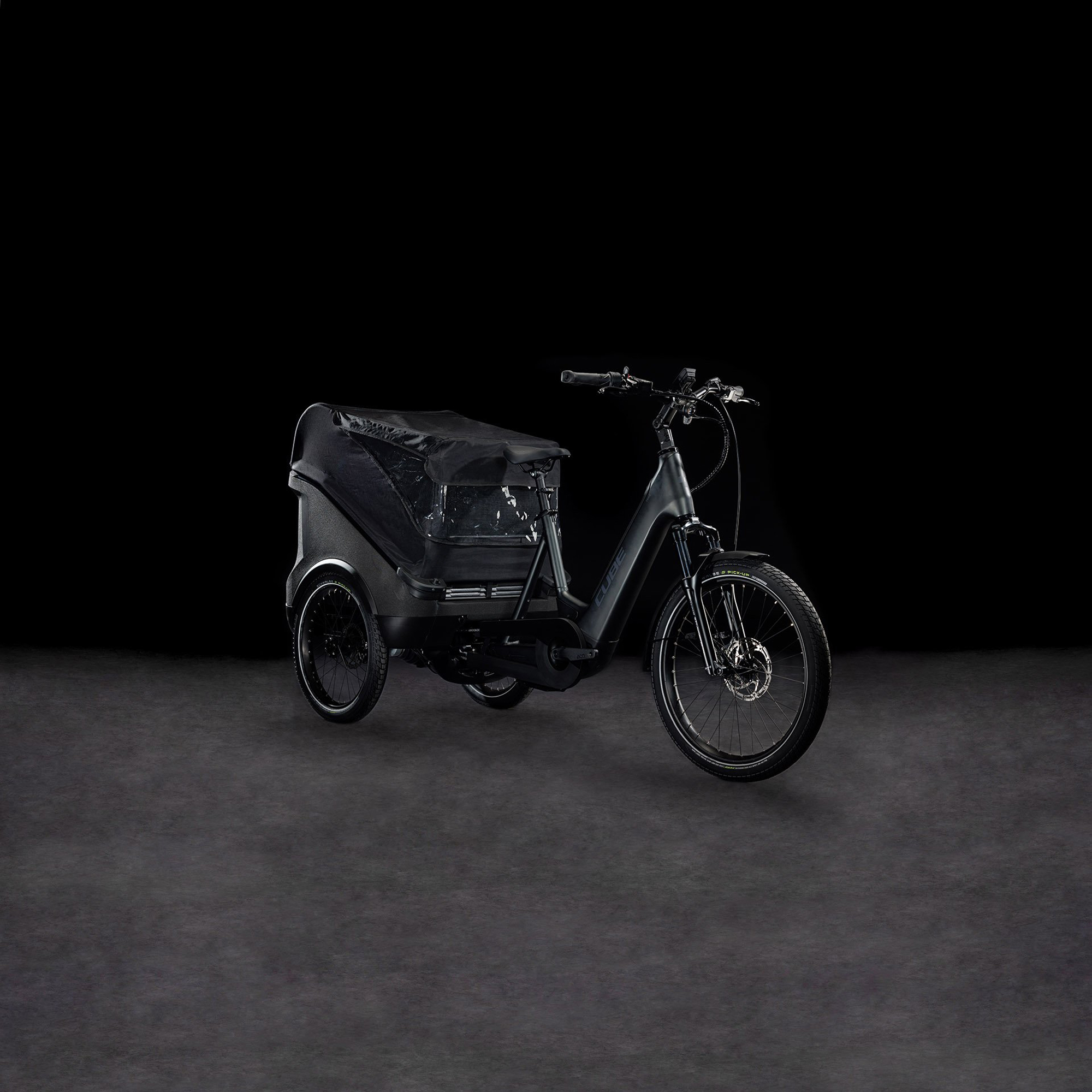

Cube Trike Cargo Hybrid 750 grey´n´reflex
3.999,00 €
incl. 19% VAT
Product information "Trike Cargo Hybrid 750 grey´n´reflex"
Only available at the Bike-Discount Megastore in Bonn, Germany.
Shipping is not possible!
You can get more information at: 0228-978480.
Open 360° viewMoving things around congested cities isn't easy at the best of times, but the Trike Cargo Hybrid 750 gives you an immediate advantage. Combining safety, ease of use and practicality in one easy-to-handle package, its innovative design was developed in collaboration with BMW. Bosch's fourth-generation CX Line drive system with a 750Wh battery and an easy-to-use, stepless hub gear work together to make light work of any route. Up front, a Suntour Mobie34 Cargo suspension fork provides a comfortable ride on potholed city streets. Powerful disc brakes – and an additional parking brake – keep your speed in check. A telescopic seatpost and stem, with adjustable reach for the handlebar, make it quick and easy to set up for any rider. At the rear, the versatile cargo box is waterproof, features a lockable lid and is capable of carrying loads of up to 50kg. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. Beating the traffic never looked more attractive...
FRAME Cube Trike Cargo Hybrid 750
The Trike Cargo Hybrid is part of our vision for the future of cleaner urban transport. A brand-new concept in its own right and a co-development with input from BMW, it combines the easy handling of a 'normal' hybrid bike with the versatility of a cargo bike and the safety and stability of three wheels. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough cargo box is waterproof and lockable – the ideal way to transport just about anything across town, up to a load of 50kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already.
Technologies
High Performance Aluminium
High performance aluminium is all about extracting the best possible performance from this strong, durable material. CUBE select precisely the right grade of alloy for their needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
Gravity Casting
Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with the Hybrid models CUBE has able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
Comfort Ride Geometry
As you might expect, the Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? CUBE has sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
One Size Concept
The flexible ONE SIZE CONCEPT makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.

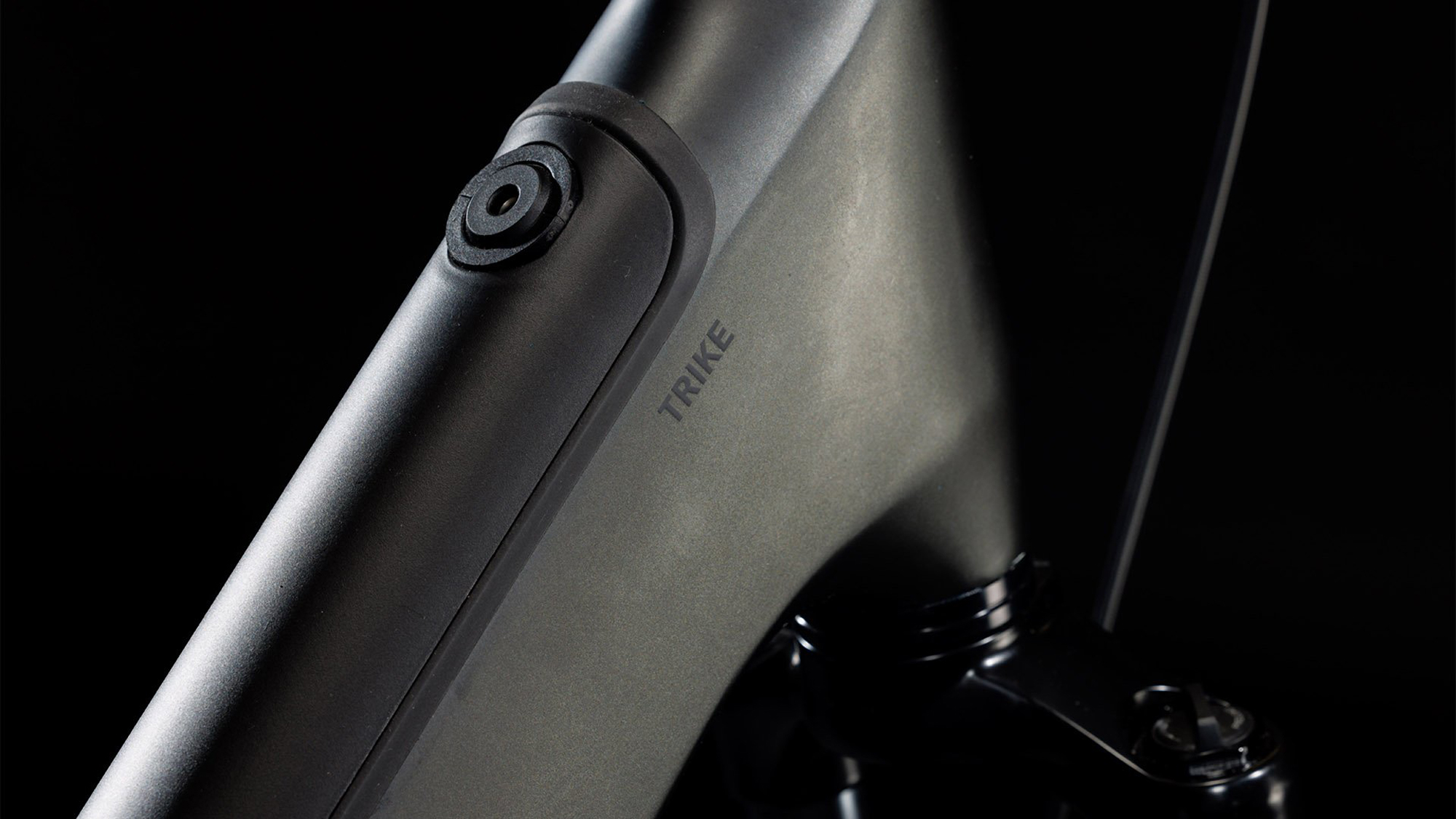

Downtube Storage
The Downtube Storage provides an ingenious way of carrying your posessions in a lockable, integrated and secure compartment. With removable dividers, a rain-proof cover and easy access, it's the ideal way to carry anything from a waterproof jacket to some snacks, a pair of gloves... whatever you need.
EPP Foam Box
Carrying larger loads means having somewhere to put them, and that's where our EPP Foam Box comes in. Extremely light but also tough and durable, it gives our Cargo bike the versatility you'll need to carry just about any load you can think of safely and securely.
Tilting Technology
To give our Trike Hybrid its exceptional stability and natural ride feel, we gave it an innovative tilting mechanism. The front of the bike leans naturally into corners with the rider, leaving the load area upright with both rear wheels giving maximum grip. The result is that it feels like riding a regular bike, even if you're carrying a cargo load or bringing your kids along in the child seats.
Front Carrier ready
Carrying your belongings, shopping or work bag just got a little easier. Our new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.
Constant Velocity Joint and Differential
Two driven rear wheels help give our Trike Hybrid the exceptional grip and stability that make it such a versatile beast. To achieve this, we developed a constant velocity joint and differential – borrowing from automotive technology – so that each wheel can be driven indepedently. It's a maintenance-free, single component designed to handle high mileage. Just enjoy the ride.

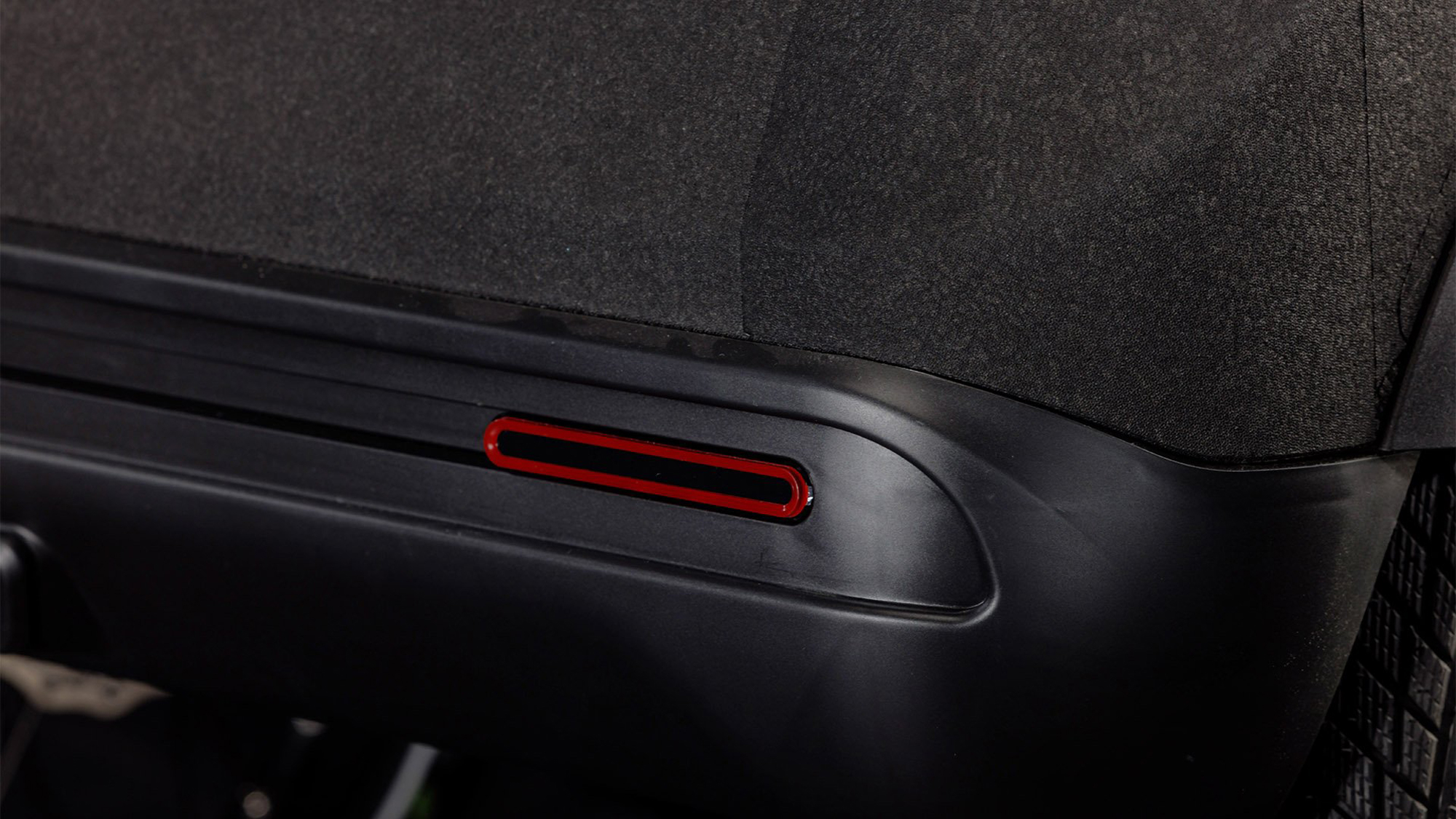

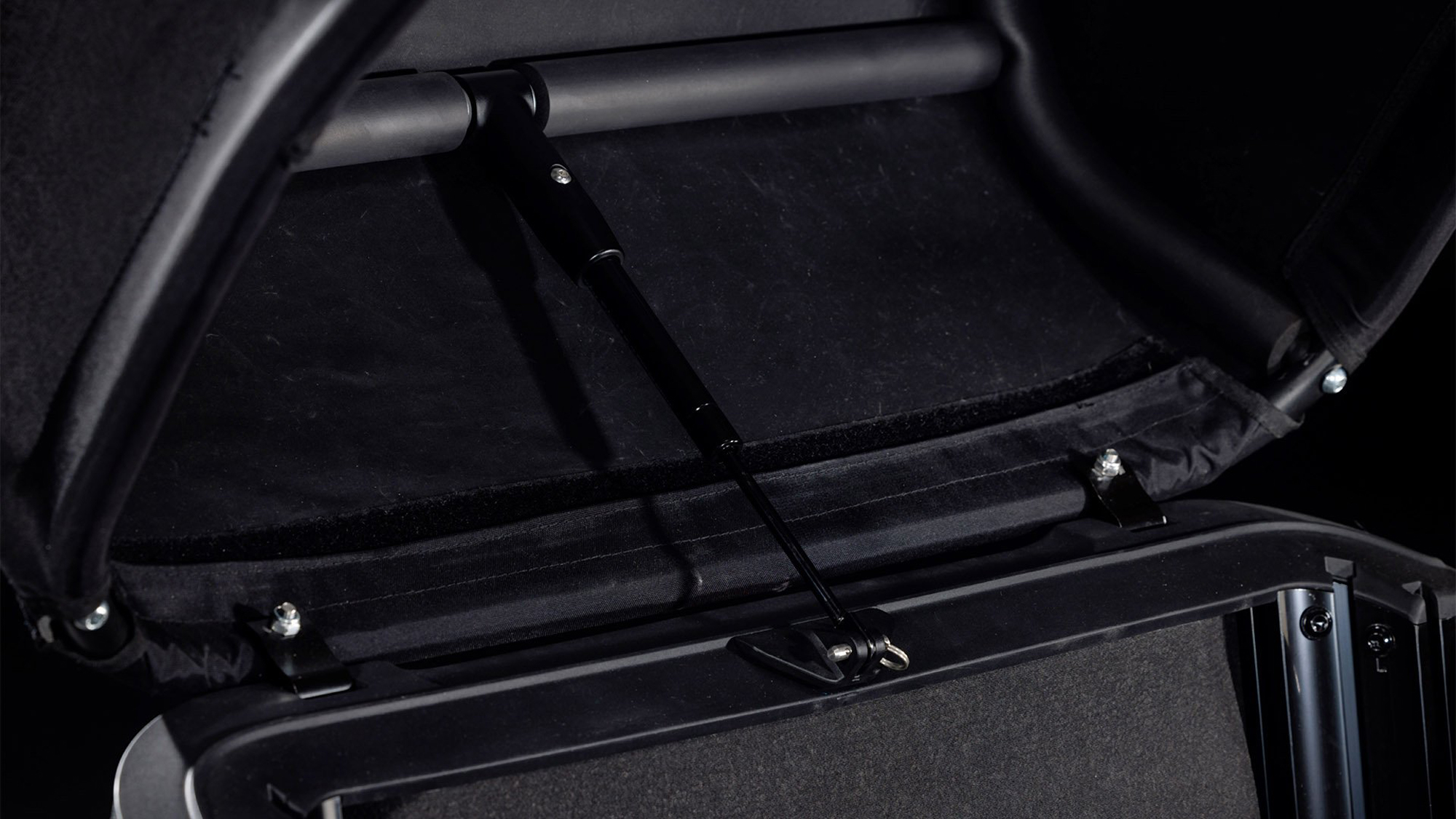

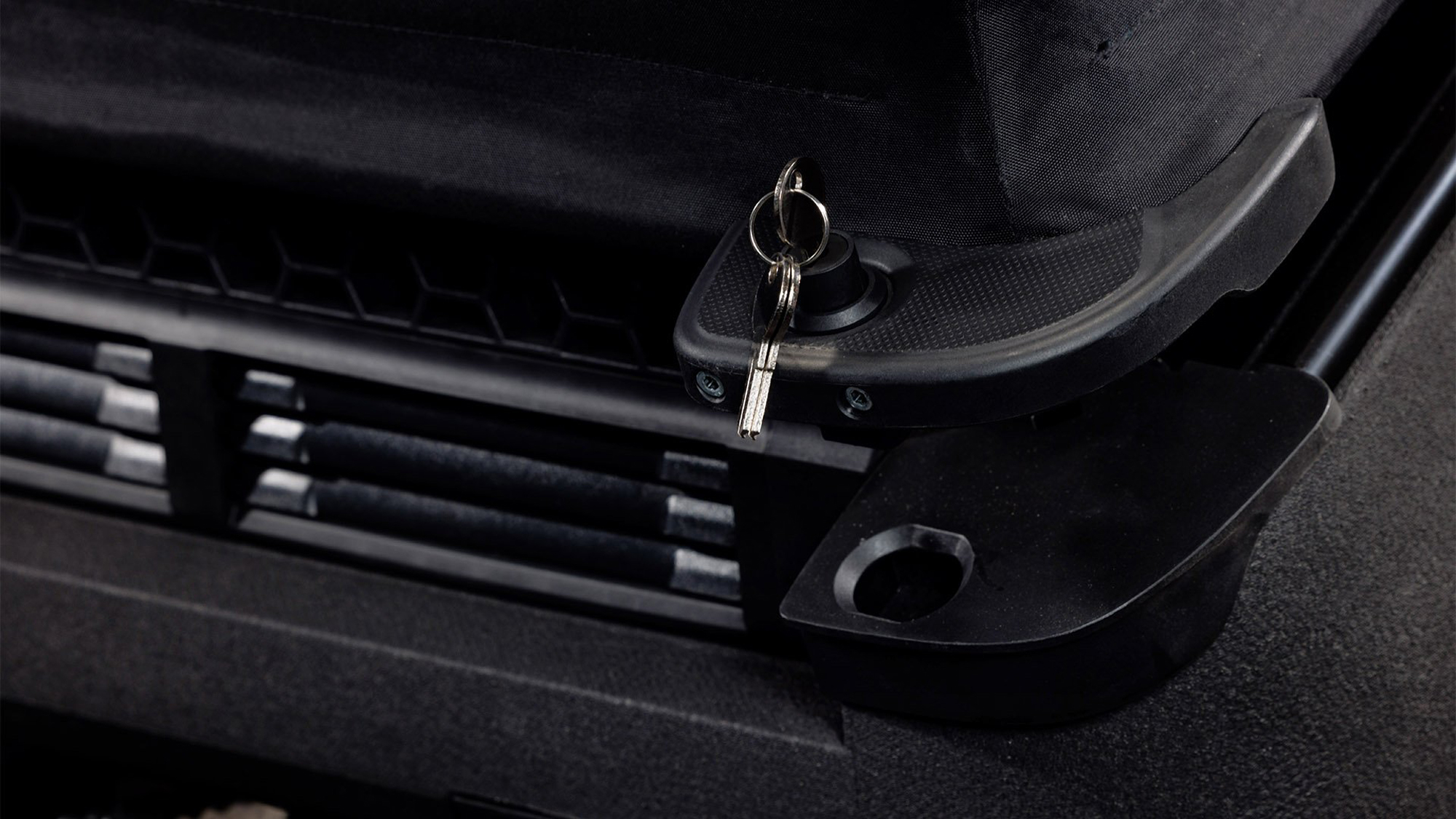

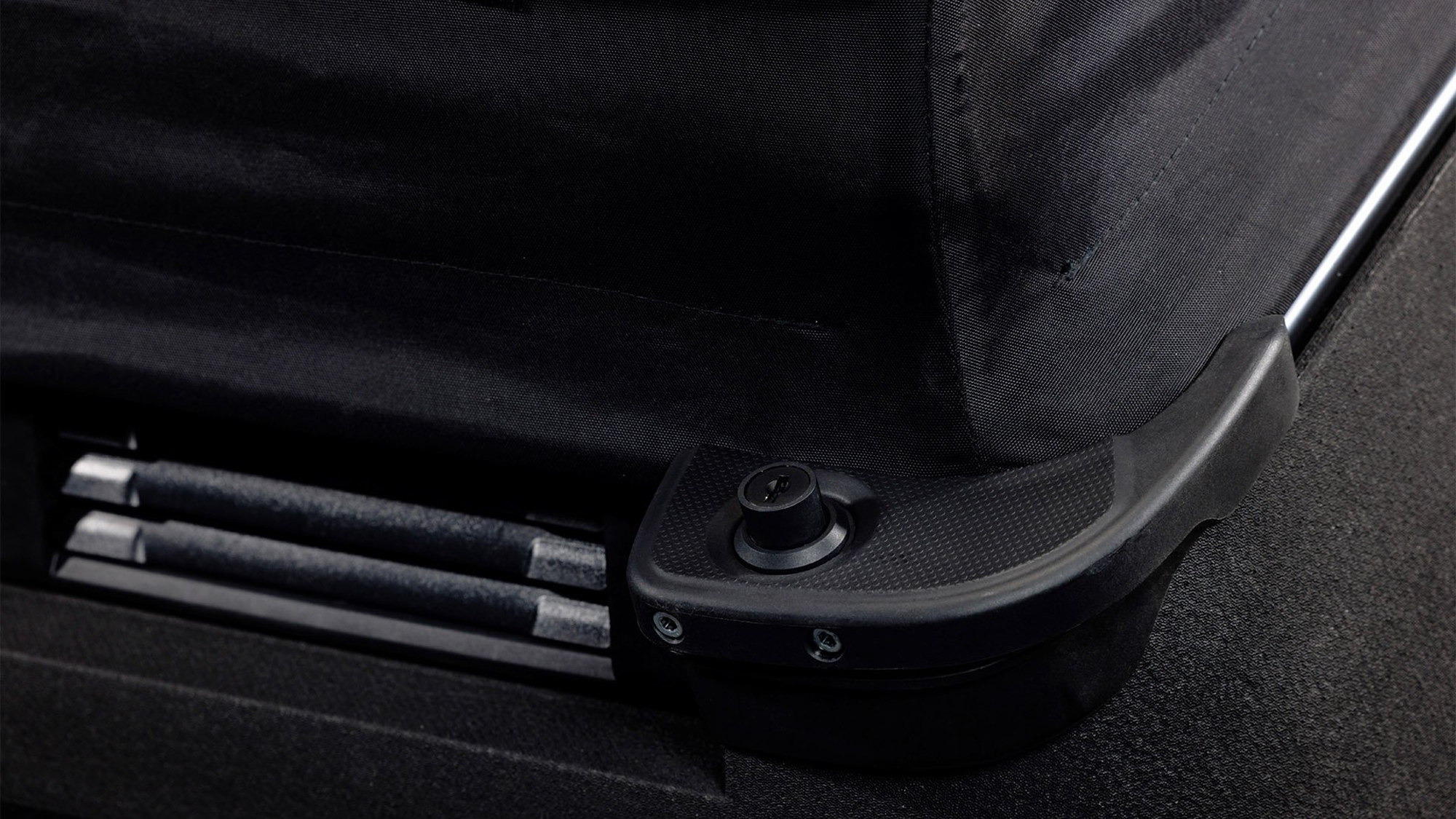

Cargo Box
Cube wanted the Trike Hybrid's cargo box to be as versatile as possible, so we gave it some unique extra features. Its height is extendable, so you can carry taller loads. It can be used as a convenient and comfortable dog carrier for your pooch friends. And various attachment options give you the ability to customise it to meet your needs.
CUBE Trike Cargo Hybrid - CUBE Bikes Official
- Manufacturer number: 789540
- Model Year: 2024
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube Trike Cargo Hybrid 750 grey´n´reflex
Only available at the Bike-Discount Megastore in Bonn, Germany.
Shipping is not possible!
You can get more information at: 0228-978480.
Open 360° viewMoving things around congested cities isn't easy at the best of times, but the Trike Cargo Hybrid 750 gives you an immediate advantage. Combining safety, ease of use and practicality in one easy-to-handle package, its innovative design was developed in collaboration with BMW. Bosch's fourth-generation CX Line drive system with a 750Wh battery and an easy-to-use, stepless hub gear work together to make light work of any route. Up front, a Suntour Mobie34 Cargo suspension fork provides a comfortable ride on potholed city streets. Powerful disc brakes – and an additional parking brake – keep your speed in check. A telescopic seatpost and stem, with adjustable reach for the handlebar, make it quick and easy to set up for any rider. At the rear, the versatile cargo box is waterproof, features a lockable lid and is capable of carrying loads of up to 50kg. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. Beating the traffic never looked more attractive...
FRAME Cube Trike Cargo Hybrid 750
The Trike Cargo Hybrid is part of our vision for the future of cleaner urban transport. A brand-new concept in its own right and a co-development with input from BMW, it combines the easy handling of a 'normal' hybrid bike with the versatility of a cargo bike and the safety and stability of three wheels. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough cargo box is waterproof and lockable – the ideal way to transport just about anything across town, up to a load of 50kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already.
Technologies
High Performance Aluminium
High performance aluminium is all about extracting the best possible performance from this strong, durable material. CUBE select precisely the right grade of alloy for their needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
Gravity Casting
Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with the Hybrid models CUBE has able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
Comfort Ride Geometry
As you might expect, the Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? CUBE has sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
One Size Concept
The flexible ONE SIZE CONCEPT makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.
Downtube Storage
The Downtube Storage provides an ingenious way of carrying your posessions in a lockable, integrated and secure compartment. With removable dividers, a rain-proof cover and easy access, it's the ideal way to carry anything from a waterproof jacket to some snacks, a pair of gloves... whatever you need.
EPP Foam Box
Carrying larger loads means having somewhere to put them, and that's where our EPP Foam Box comes in. Extremely light but also tough and durable, it gives our Cargo bike the versatility you'll need to carry just about any load you can think of safely and securely.
Tilting Technology
To give our Trike Hybrid its exceptional stability and natural ride feel, we gave it an innovative tilting mechanism. The front of the bike leans naturally into corners with the rider, leaving the load area upright with both rear wheels giving maximum grip. The result is that it feels like riding a regular bike, even if you're carrying a cargo load or bringing your kids along in the child seats.
Front Carrier ready
Carrying your belongings, shopping or work bag just got a little easier. Our new HIC (Headset Integrated Carrier) fits simply, neatly and very securely on the front of your CUBE bike to add accessible, stable and versatile load-carrying capacity. With the ability to safely accommodate a Eurobox of 300mm x 400mm, up to 20kg in weight and RILink accessories, you'll wonder how you managed without.
Constant Velocity Joint and Differential
Two driven rear wheels help give our Trike Hybrid the exceptional grip and stability that make it such a versatile beast. To achieve this, we developed a constant velocity joint and differential – borrowing from automotive technology – so that each wheel can be driven indepedently. It's a maintenance-free, single component designed to handle high mileage. Just enjoy the ride.
Cargo Box
Cube wanted the Trike Hybrid's cargo box to be as versatile as possible, so we gave it some unique extra features. Its height is extendable, so you can carry taller loads. It can be used as a convenient and comfortable dog carrier for your pooch friends. And various attachment options give you the ability to customise it to meet your needs.
CUBE Trike Cargo Hybrid - CUBE Bikes Official
- Manufacturer number: 789540
- Model Year: 2024
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | Cube Cargo, One Size |
|---|---|
| Frame material: | aluminium |
| Wheel size: | 24" / 20" |
| Speeds: | stepless |
| Colour: | grey´n´reflex |
| Fork: | SR Suntour MOBIE 34 CARGO 24", 100mm |
| Travel: | 100 mm |
| Brakes: | Tektro Auriga Twin+ HD-E745 with parking lock mechanism |
| Brake discs: | 180 / 160 mm |
| Headset: | ACROS FI-Link, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem: | Cube Comfort Stem Pro 31.8mm Adjustable |
| Handlebar: | CUBE Comfort Trail Bar, 700mm |

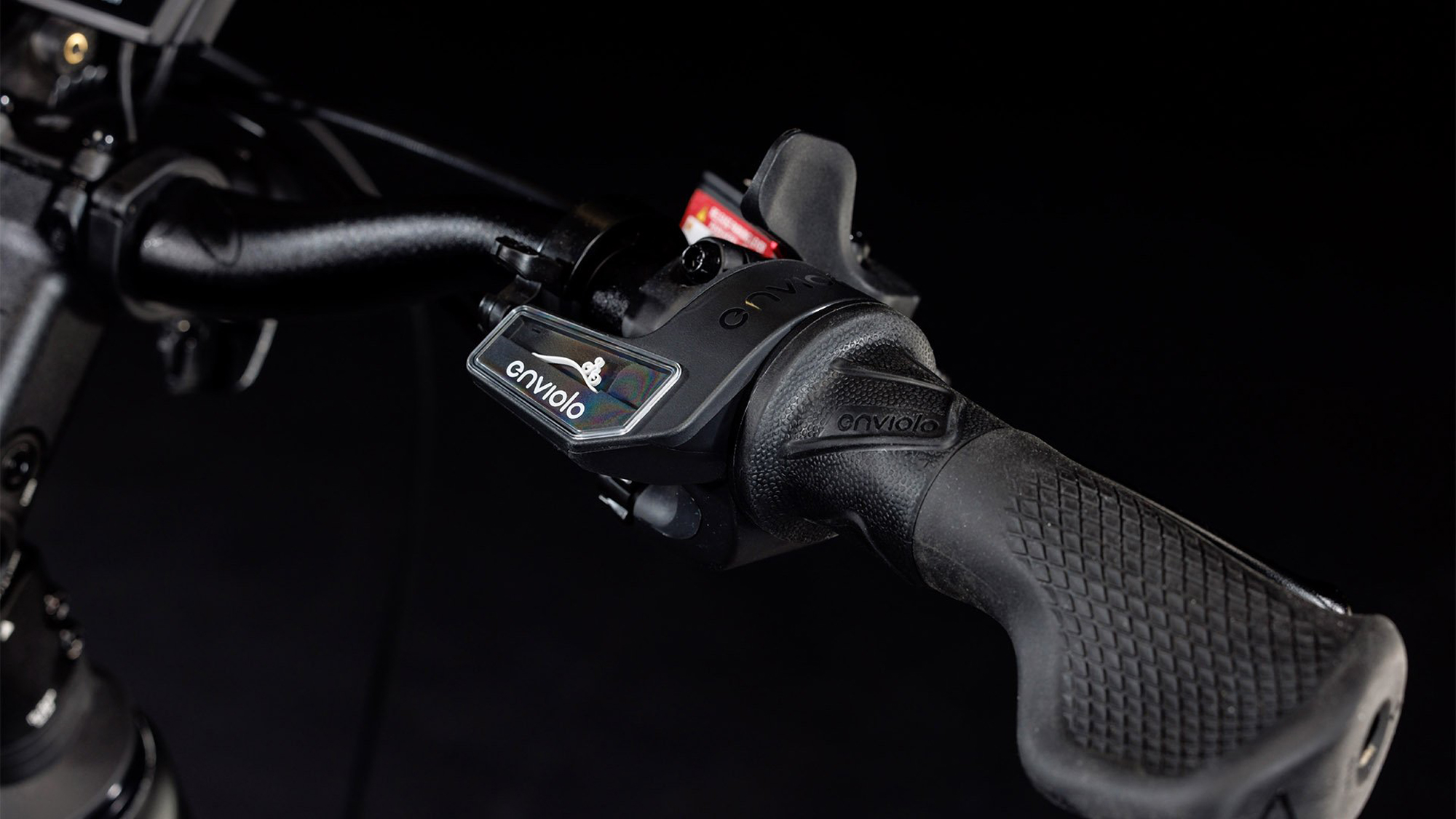

| Bar grips: | ACID Travel Comfort Gripshift |

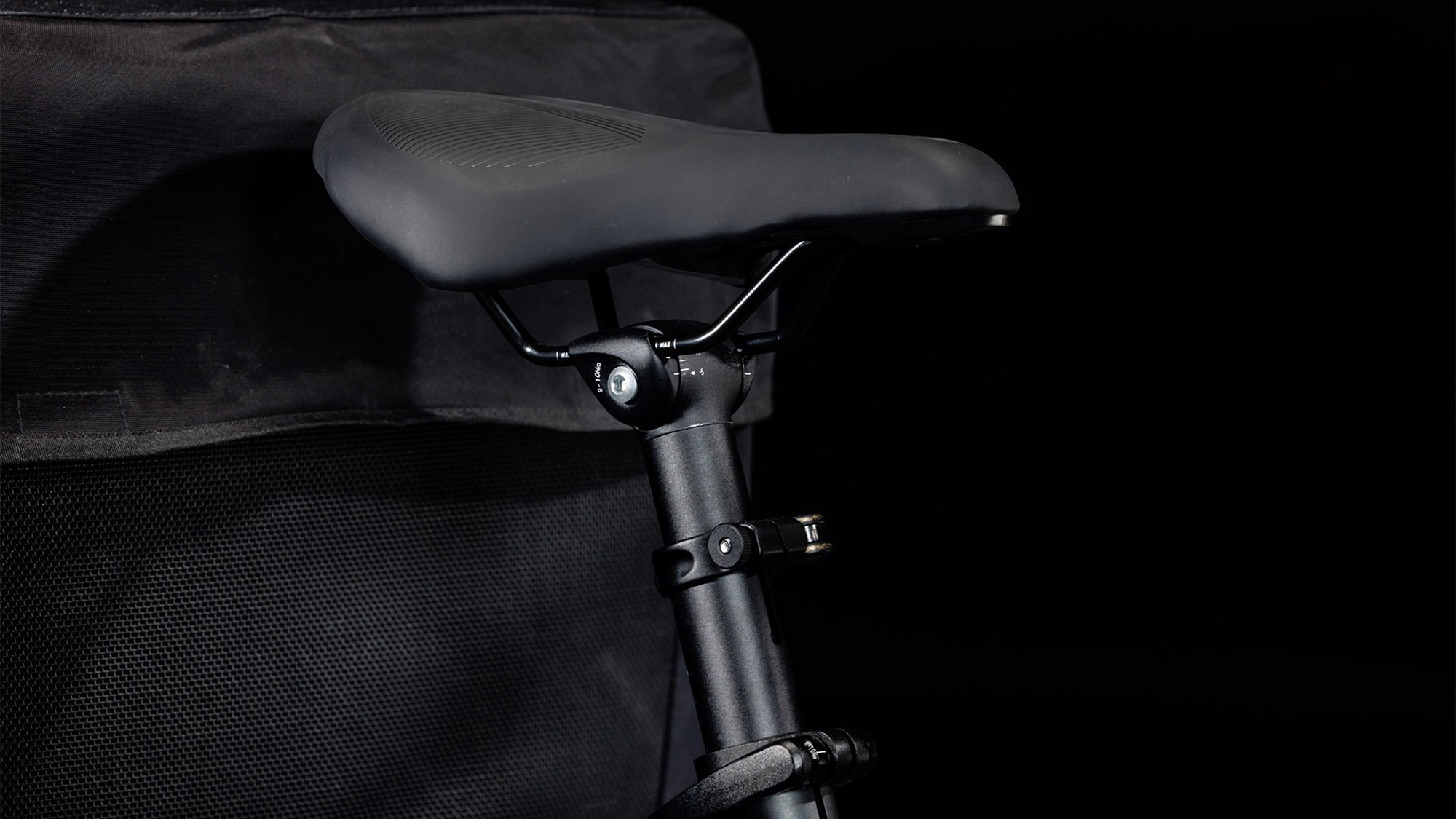

| Saddle: | Natural Fit Sequence Comfort |
| Seatpost: | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
| Seat clamp: | CUBE Varioclose, 34.9mm |
| Crankset: | ACID E-Crank, 170mm, 42T |
| Gear shifters: | Enviolo Cargo manual |
|---|---|
| Cassette: | KMC 3mm, 18T |
| Chain: | KMC e101 EPT |
| Front tyre: | Schwalbe Pick-Up, Super Defense, 65-507 |
| Rear tyre: | Schwalbe Pick-Up, Super Defense, 65-406 |
| Front hub: | Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost |
| Rear hub: | Cube Trike Hub, Straightpull |
| Rims: | CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready |
| Display: | Bosch Kiox 300, Bosch LED Remote |
| Battery: | 1 x Bosch PowerPack 500 (expandable to 2 x PowerPack 500) |
| Charger: | Bosch 4A |
| Engine: | Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Front light: | ACID Front Light PRO-E 110, 5-16V, DC |
| Backlight: | Supernova T-M99 |
| Pedals: | CUBE PP MTB |
| Other details: | Schutzblech, Ständer, Glocke, Bosch ConnectModule |
Bosch - the smart system for e-bikes
At the start into the networked e-bike world, Bosch is equipping the drive unit Cargo line for the future. The motor with a new connectivity is accompanied by Bosch's brand-new PowerTube 750 battery. Beside the new LED remote, and the new 4A charger, the new smart system also includes the new eBike Flow app, which now is the center for customizing your e-bike! Thanks to the network, you can easily retrofit new functions or install updates "over-the-air". Of course, you can also track your activities and customize the riding modes. The retrofittable "ConnectModule" is intended to increase security, enabling new options for e-bike theft protection. For example, an acoustic alarm can be triggered in the event of an attempted theft, and the bike can also be tracked if it has been stolen. Further features are planned to promise more riding fun and safety with the smart system by Bosch.
Why should I buy an e-bike with the smart Bosch system?
Your e-bike continues to evolve
Even after purchase, new functions can be retrofitted via "over-the-air" updates, so new riding fun is always guaranteed.
Your e-bike is networked
Thanks to the eBike Flow app, your e-bike is connected to your smartphone - and thus to the digital world! The app can be connected to the LED Remote via Bluetooth and you increase your riding fun thanks to smart, customizable functions.
Your e-bike battery lasts longer
Thanks to a capacity of 750 Wh, you'll still be riding when others already have given up. Just enjoy the increased range and have fun on long tours and many trails.
Your e-bike looks really good
Every single component of the smart system by Bosch can be integrated beautifully and ensures a modern, puristic design.
Your e-bike benefits from perfect interaction
All of the smart system’s components are coordinated and harmonize perfectly - with each other and with you. Thanks to access to the digital world, you can automatically record and evaluate your activities and synchronize them with your favorite apps.
What components does the Bosch smart system consist of?
Bosch Cargo Line drive unit
Strong support
Transport your loads effortlessly to their destination. Whether you're tackling a steep hill or pedalling on the flat, 85 Nm of torque and a perfectly tuned transmission provide powerful yet natural support.
Ride with confidence
Navigate difficult riding conditions with ease. The multi-sensor concept and sophisticated software enable consistent acceleration and give you a smooth, safe riding sensation. The new Auto mode senses the riding conditions and automatically adjusts the level of support. With no need to switch riding modes, you can concentrate fully on the road ahead.
Robust Cargo mode
Specially designed for the Cargo Line, Cargo mode lets you get maximum support from your eBike, namely 400% of your own pedal power. In addition, Cargo mode optimises start-up behaviour. Despite the high level of support and torque, your eCargo bike starts smoothly and pleasantly. Prefer different dynamics or torque? Simply use the slide control in the eBike Flow app to adjust Cargo mode to suit.
Smart walk assist
When you need to get off and push, Cargo Line Walk Assist eases the burden. Press and hold the minus button to activate. As soon as you start to push your eCargo bike, motor support kicks in. At the same time, the integrated Hill Hold function stops your bike from rolling backwards or downhill. Safety is never an issue, even on the steepest of climbs and setting off on your bike again is effortless.
Easy handling
Save battery power and increase your range: When you cycle faster than 25 km/h, the electric motor and gearbox automatically decouple. This results in minimal pedal resistance and exceptionally smooth handling. Cargo Line is also compatible with shorter pedal cranks. This means better ground clearance and an even safer ride.
Effective technology
Keep your eBike cool, no matter how hard it's working. When pushed to perform, or on hot days, the cooling fins of the Cargo Line keep the heat at bay. With no need to worry about the drive unit overheating, you can push yourself to the limit, even on long summer rides. Cargo Line's compact dimensions and magnesium housing reduce the weight of the drive unit to just 2.9 kilograms. This makes your eBike even lighter and easier to handle.
Bosch eBike Flow app
Enhancing the eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor and send them to your eBike via Bluetooth. That way it's always up to date and you get to enjoy more options.
Recording activities
Track your ride and fitness data as soon as you get started. If desired, the Activity Tracking for iPhone users can also sync all data automatically with Apple Health. When you take a break, the recording stops automatically.
Customising riding modes
Adjust the riding mode exactly to your needs: You can finely adjust the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Everything at a glance
Use the Home screen to gain a quick overview of everything that's important. Whether battery status, remaining range, distance travelled or the next service appointment, the Home screen clearly shows you everything you need to know with constantly updated eBike data.

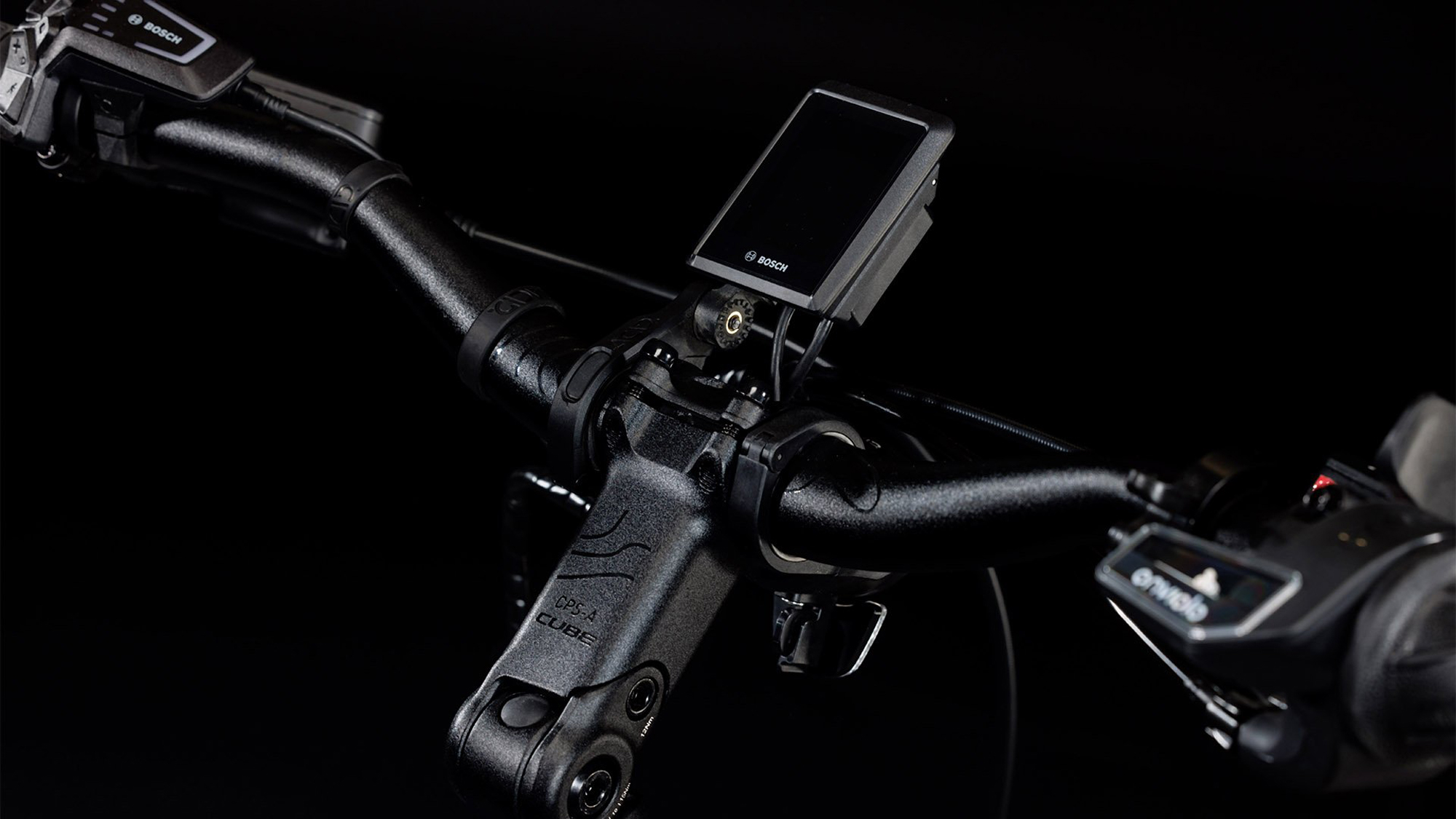

Bosch Kiox 300 display
Fun features
The robust display is an intelligent companion for sporty rides to determine fitness data and to optimise your training. Kiox 300 always stays up-to-date thanks to regular updates over the air and ensures optimal flow with further future offers and new features via the eBike Flow app.
Easy to read, sleek design
Small but powerful. Kiox 300 impresses not only because of its compact size, but for its colour display which ensures optimum readability by day and night. Operation via the LED remote is simple and is visually supported by animations and images. The handy display underlines the sleek eBike look and is protected against water splashes and dust.
Helpful support
An end to tedious pushing. The new Walk Assist function can be activated via the LED remote and supports the rider on particularly steep climbs. Kiox 300 provides clear, visual guidance and facilitates intuitive operation. The display also supports you before or during the ride by clearly showing you the remaining range for all riding modes. This allows you to better assess which riding mode can be used to reach your destination.
Positioning as desired
The display mount allows for centralised positioning of the display on the handlebar and is adjusted as per your personal preference. The tilt angle of the display can also be individually adjusted — for optimum readability during the ride.
Bosch LED remote
Optimal readability
For less distraction and more safety. All important information can be captured quickly and easily thanks to the LED remote. The LEDs are also highly visible in sunlight, and the brightness of the display adapts flexibly to the ambient light: This means that readability is maintained even in changing light conditions and you are never dazzled. You can also quickly recognise the selected riding mode by the respective colour.
Smart connectivity
Greater flexibility, comfort, and safety: The LED remote connects the eBike with the eBike Flow app. This enables you to call up all important riding data, such as the duration of your ride or the distance covered, using your smartphone and to share this with other users. It is also possible to carry out software updates independently.
Smart Walk Assist
Even on the steepest of trails, when riding is no longer an option, you can push your eBike more easily with the help of Walk Assist: Simply press the minus button, move the eBike and you will already feel the support. The LED remote also acts as your guide, making handling easier for you. Walk Assist is especially helpful when eMountain biking in challenging terrain.
Ergonomic handling
The LED remote can be individually adjusted to you and, in addition to an attractive design, boasts optimal ergonomics and intuitive operation. Thanks to the ergonomic 'L' design, the LED remote can be attached to the handlebar so that you can reach and operate all buttons perfectly with your thumb.
Sustainably on the move
Reach your destination safer and more sustainably: The long-life rechargeable battery of the LED remote means that you can rely on the control centre on every single eBike ride. If the battery does ever need to be replaced, it can be ordered by a specialist dealer because the next route is already waiting to be discovered!
Bosch PowerTube 750 battery
Maximum range
The PowerTube 750 makes it easy to conquer long distances and significant variations in altitude. The durable power source enables approx. 20% greater range than the PowerTube 625 and is ideal for extended and challenging rides.
Elegant eBike design
Like all Bosch PowerTubes, the PowerTube 750 is perfectly integrated into the frame of the eBike. An appealing eBike design and high capacity make for an uncompromising combination.
Reliable power source
High safety standards Enormous mileage, long service life, reliable handling — the lithium-ion battery is equipped with a Battery Management System (BMS) that protects the battery cells from overload.
User-friendly operation
The PowerTube 750 is characterised by particularly easy handling. The rechargeable battery is always securely fastened within the frame. It can be removed via an intuitive, lockable mechanism and offers user-friendly handling.
Bosch 4A Charger
Small and lightweight
The 4A charger is the perfect charger with many advantages: It charges quickly, is easy to use and is visually appealing. The small and lightweight charger is ideal for on-the-go charging and supplies the PowerTube 750 with the necessary energy in no time: It takes six hours to fully charge the battery, and just over two hours to charge it halfway. The perfect opportunity for a restful break along the way.
Geometry
