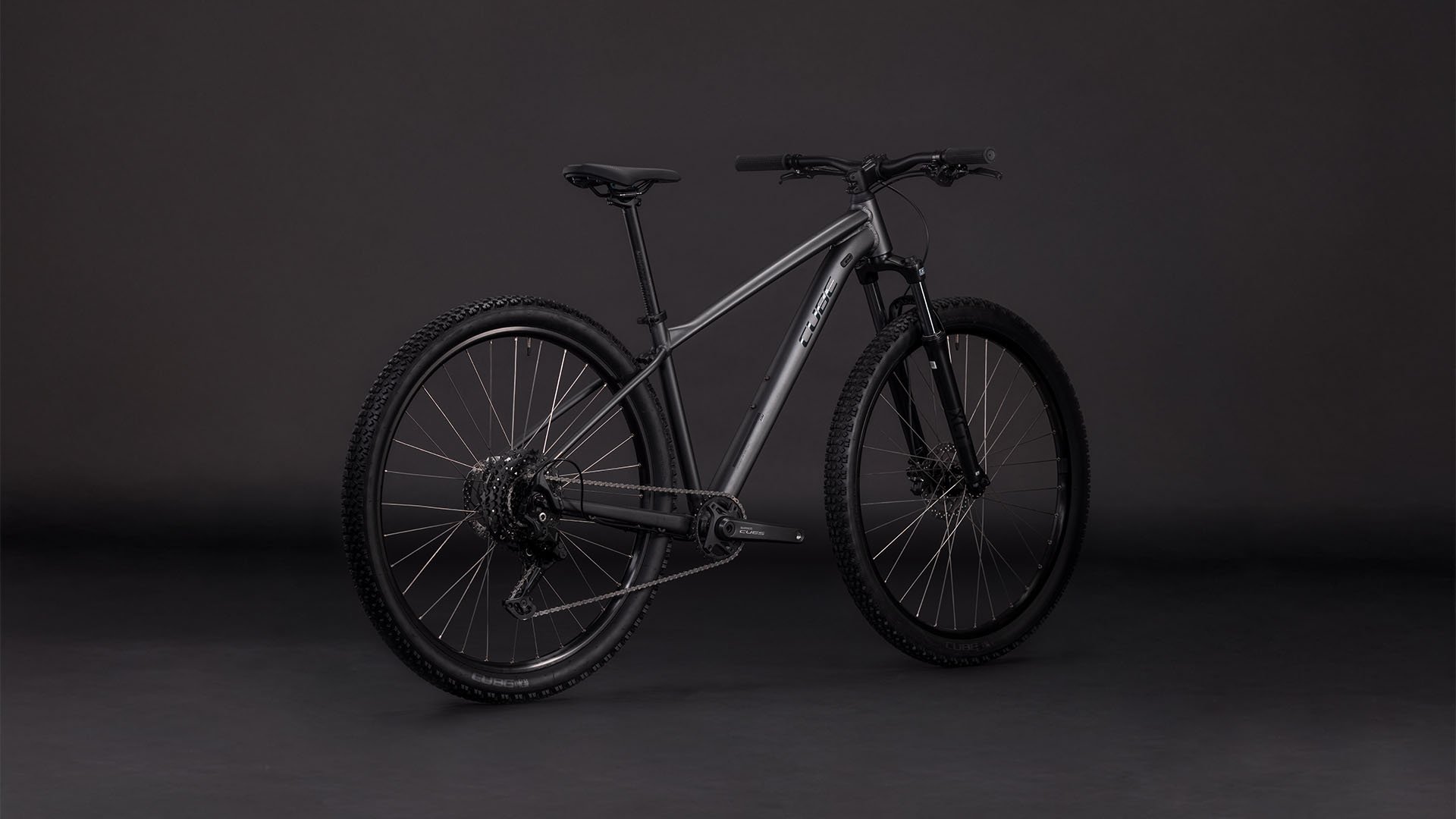

Cube Aim Pro slateblack´n´black
509,15 €
incl. 19% VAT
- In stock, delivery time 13-19 Days
Product information "Aim Pro slateblack´n´black"
open 360° viewHighlights
- Aluminium frame
- Cues RD-U6000-GS 10-speed derailleur from Shimano
- Cues FC-UT400 crankset from Shimano
- BR-MT200 hydraulic disc brakes with 160 mm brake rotors from Shimano
- SR Suntour XCT fork with 100 mm travel
In frame sizes XS and S as 27.5er. In frame sizes M, L, XL and XXL as a 29er.
FRAME Cube Aim Pro

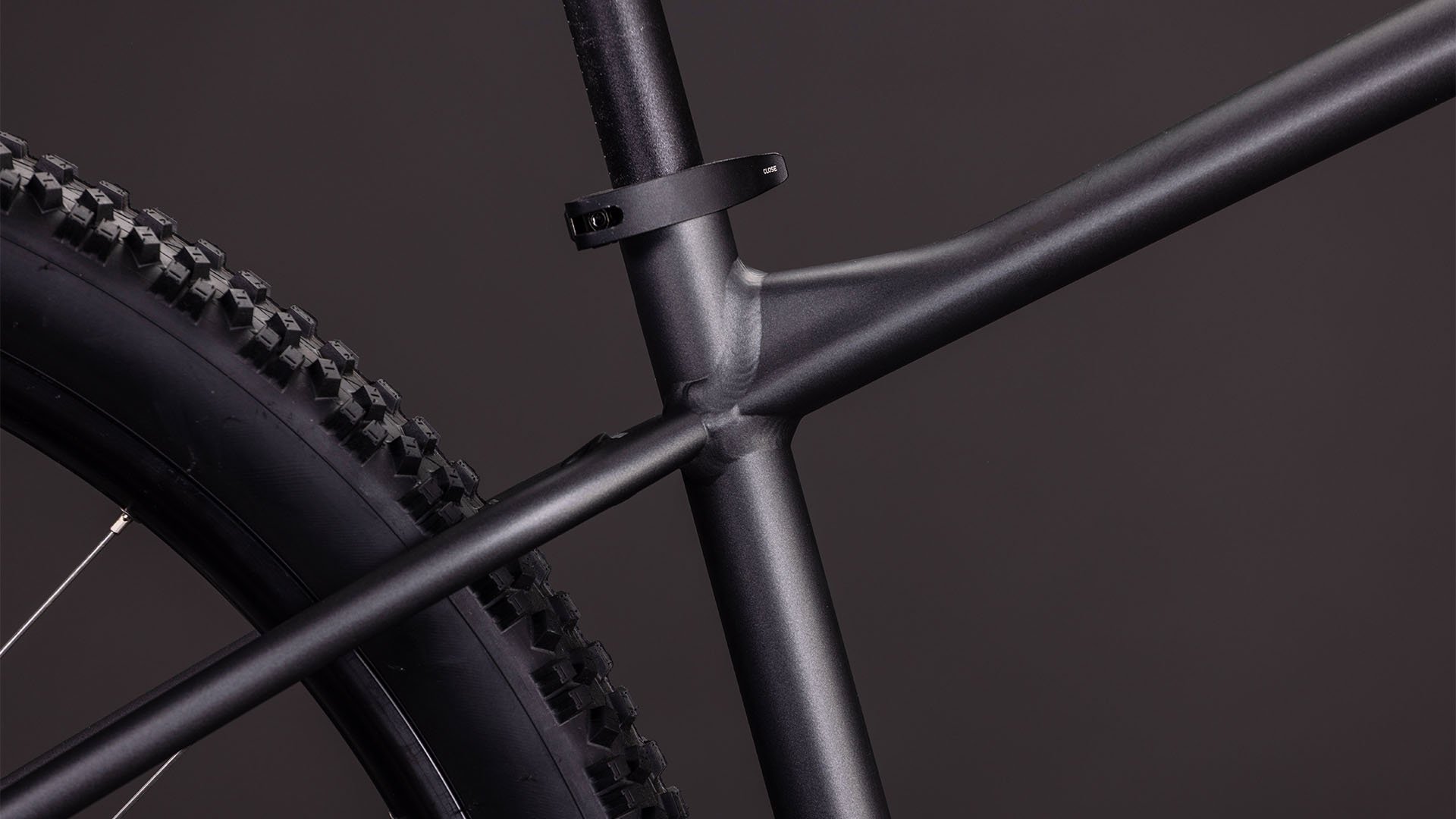

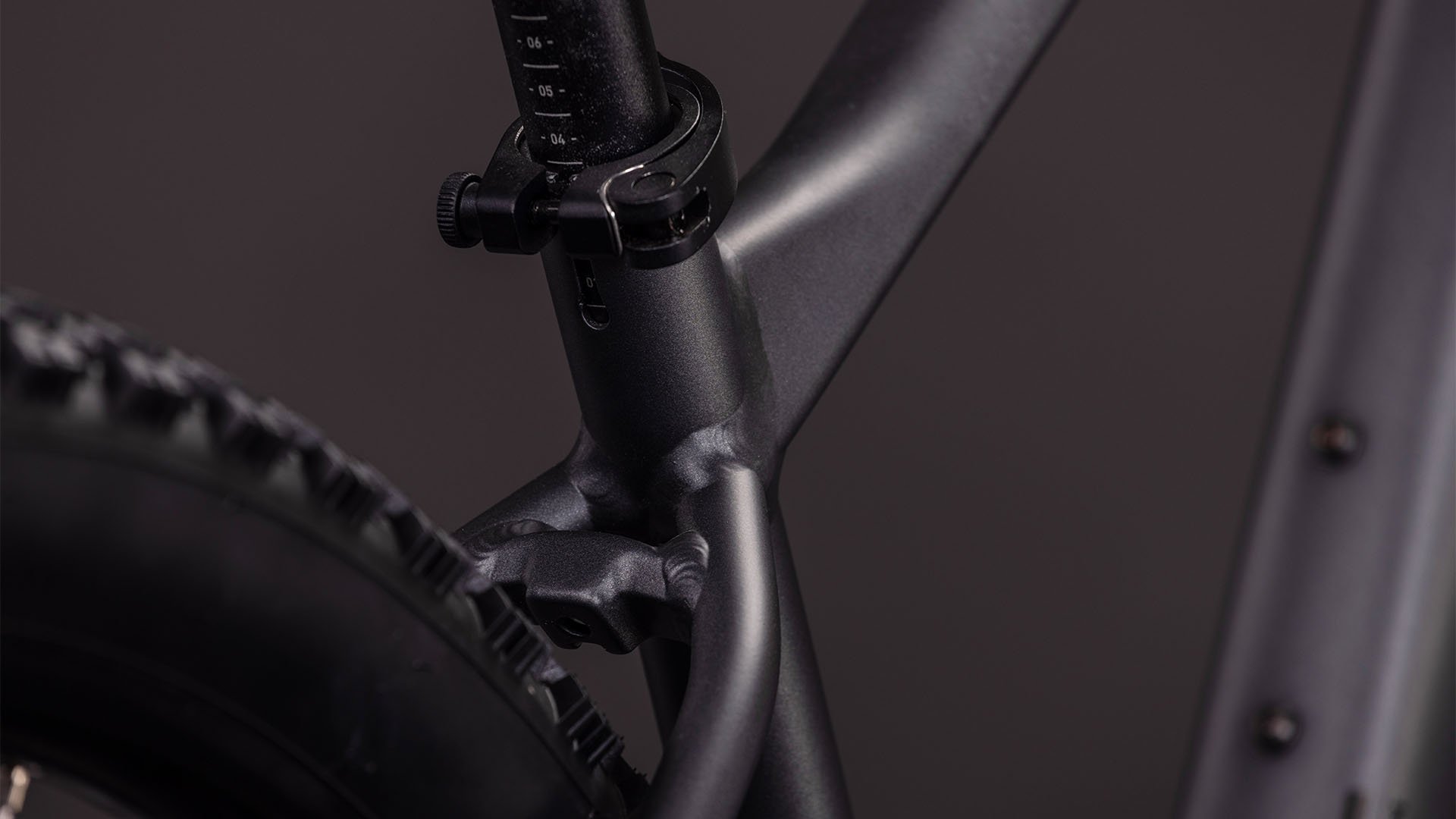

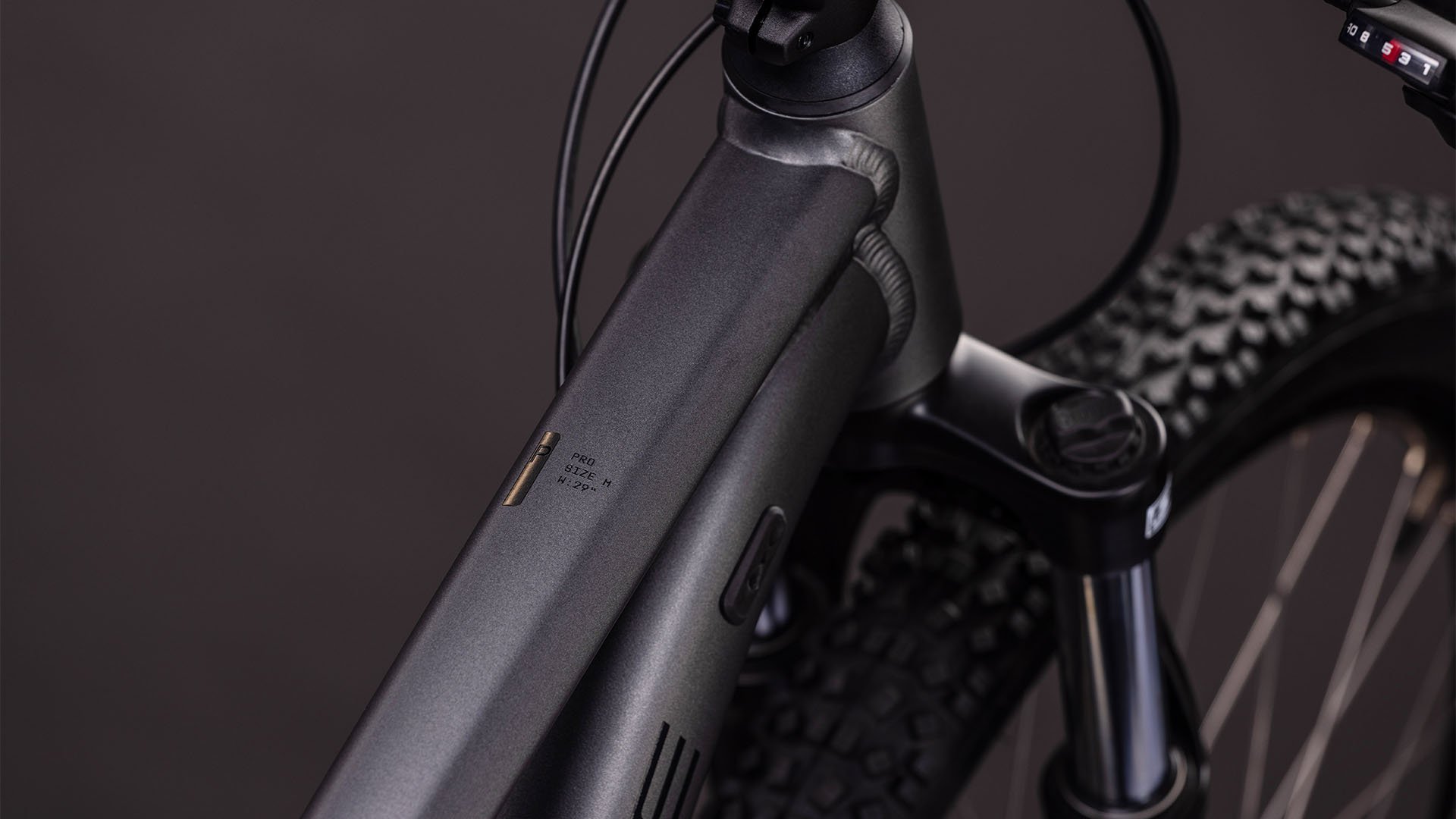

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
- Manufacturer number: 140200
- EAN: 4054571506061
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube Aim Pro slateblack´n´black
open 360° viewHighlights
- Aluminium frame
- Cues RD-U6000-GS 10-speed derailleur from Shimano
- Cues FC-UT400 crankset from Shimano
- BR-MT200 hydraulic disc brakes with 160 mm brake rotors from Shimano
- SR Suntour XCT fork with 100 mm travel
In frame sizes XS and S as 27.5er. In frame sizes M, L, XL and XXL as a 29er.
FRAME Cube Aim Pro
Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
- Manufacturer number: 140200
- EAN: 4054571506061
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
|---|---|
| Frame material: | aluminium |
| Wheel size: | Size Split: 27.5: XS, S // 29: M, L, XL, XXL |
| Speeds: | 1 x 10 |
| Colour: | slateblack´n´black |

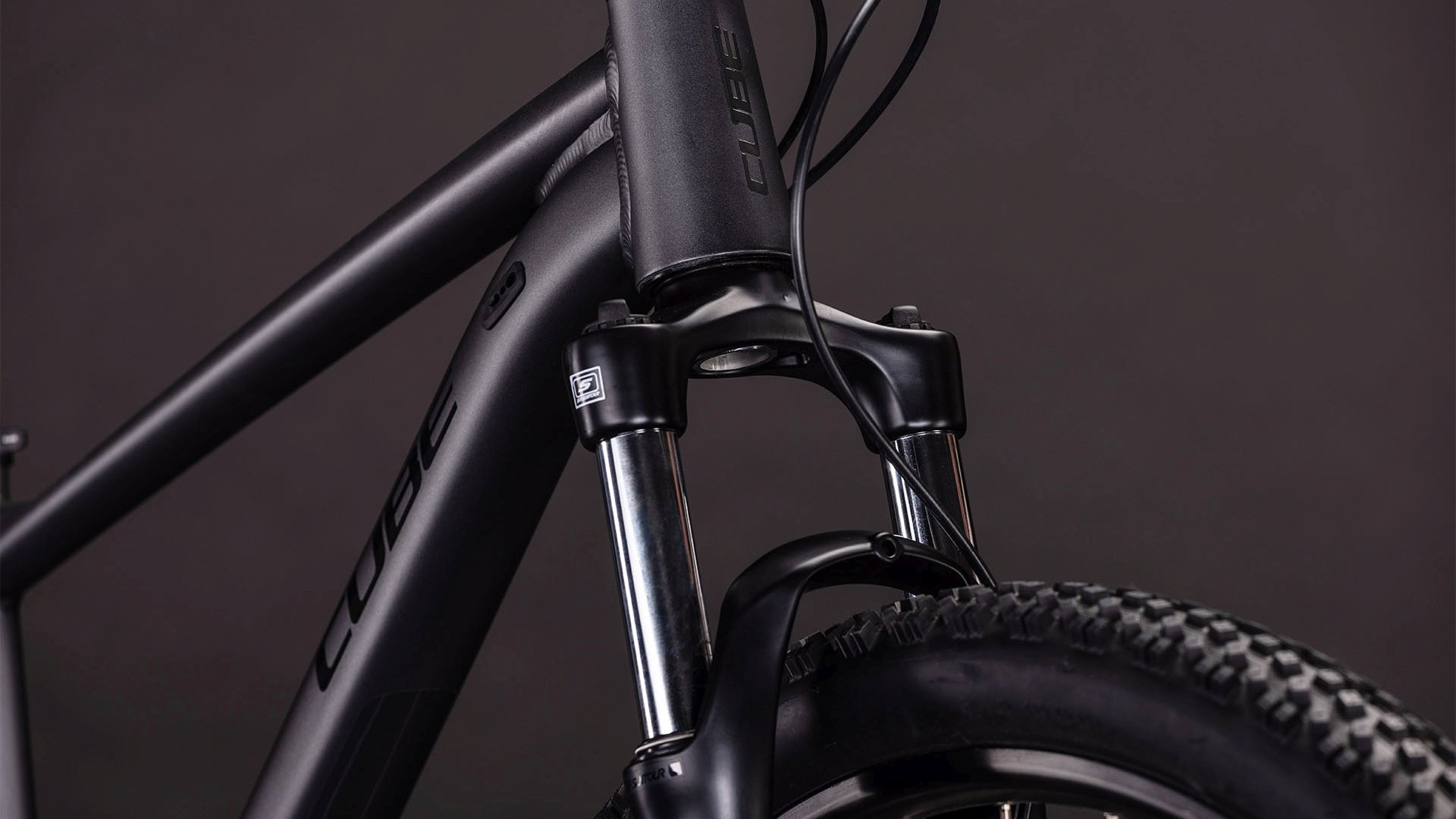

| Fork: | SR Suntour XCT, 100mm |
| Travel: | 100 mm |
| Brakes: | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Brake discs: | 160/160 mm |
| Headset: | CUBE FPH868p, Tapered, Semi-Integrated |
| Stem: | CUBE Performance Stem, 31.8mm |
| Handlebar: | CUBE Rise Trail Bar, 680mm |
| Bar grips: | ACID Icon |
| Saddle: | ACID Venec Lite |
|---|---|
| Seatpost: | CUBE Performance Post, 27.2mm |
| Crankset: | Shimano Cues FC-UT400, 32T |
| Bottom bracket: | Thun Paso-ML, 73mm BSA |
| Rear derailleur: | Shimano Cues RD-U6000-GS, 10-Speed |
| Gear shifters: | Shimano Cues SL-U6000, Rapidfire-Plus |
| Cassette: | Shimano Cues CS-LG300, 11-48T |
| Chain: | KMC xGlide |
| Tyres: | CUBE MTB, 2.25 |
| Wheelset: | ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready |
| Pedals: | CUBE PP MTB |
| Maximum total weight allowed: | 140 kg (body weight + bike + equipment) |
| Weight: | 15,1 kg |
Geometry
