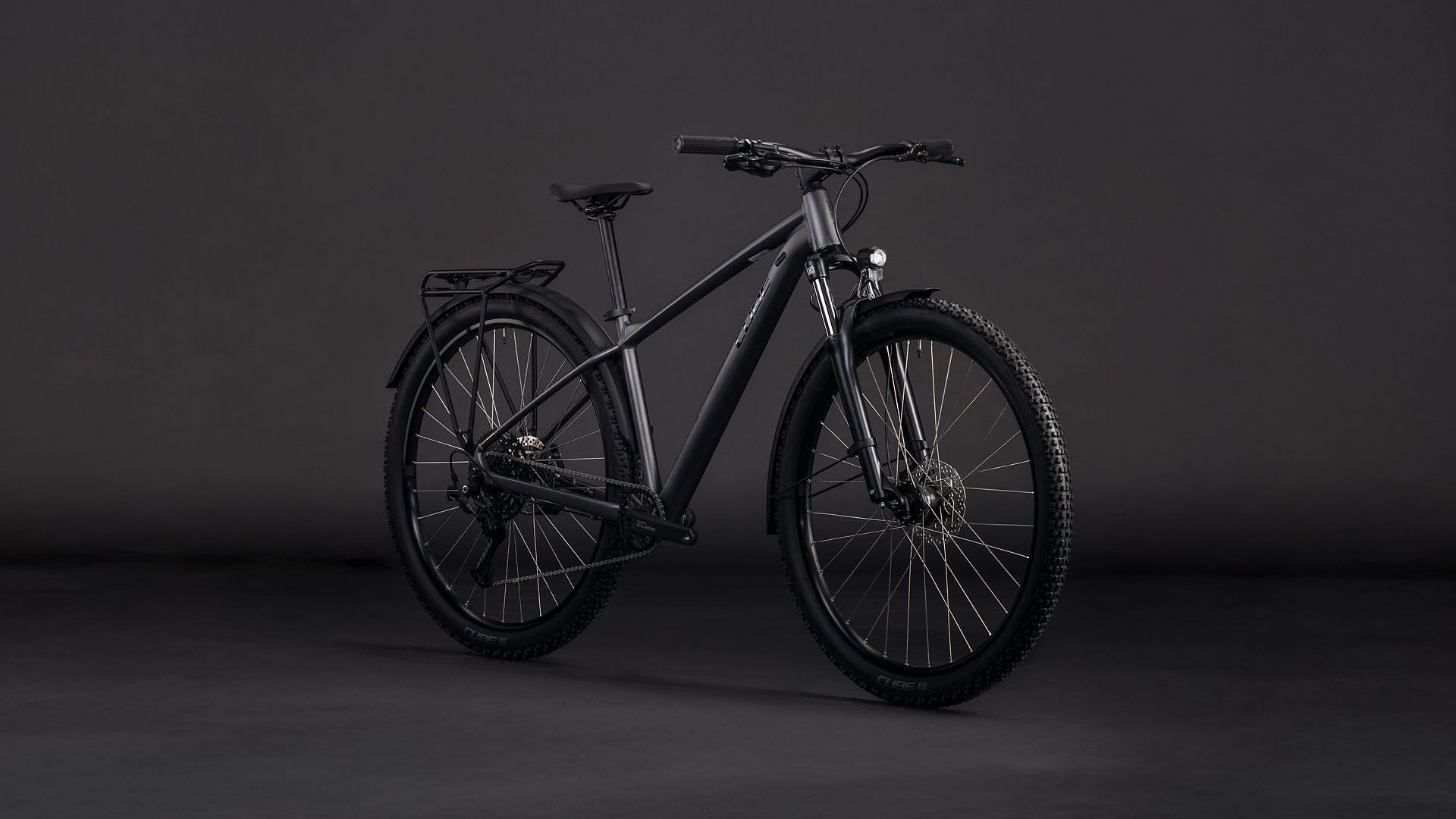

Cube Aim Pro FE slateblack´n´black
Product information "Aim Pro FE slateblack´n´black"
open 360° viewHighlights
- Aluminium frame
- Cues RD-U6000-GS 10-speed derailleur from Shimano
- Cues FC-UT400 crankset from Shimano
- BR-MT200 hydraulic disc brakes with 160 mm brake rotors from Shimano
- SR Suntour XCT fork with 100 mm travel
- Includes luggage rack, headlight, rear light, kickstand, mudguards, and bell
In frame sizes XS and S as 27.5er. In frame sizes M, L, XL and XXL as a 29er.
FRAME Cube Aim Pro FE
With the Aim Pro FE Cube is redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and Internal Cable Routing, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The Size Split system has an expanded range, too, so however tall you are there'll be an Aim Pro FE that fits perfectly.
- Manufacturer number: 140230
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube Aim Pro FE slateblack´n´black
open 360° viewHighlights
- Aluminium frame
- Cues RD-U6000-GS 10-speed derailleur from Shimano
- Cues FC-UT400 crankset from Shimano
- BR-MT200 hydraulic disc brakes with 160 mm brake rotors from Shimano
- SR Suntour XCT fork with 100 mm travel
- Includes luggage rack, headlight, rear light, kickstand, mudguards, and bell
In frame sizes XS and S as 27.5er. In frame sizes M, L, XL and XXL as a 29er.
FRAME Cube Aim Pro FE
With the Aim Pro FE Cube is redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and Internal Cable Routing, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The Size Split system has an expanded range, too, so however tall you are there'll be an Aim Pro FE that fits perfectly.
- Manufacturer number: 140230
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
|---|---|
| Frame material: | aluminium |
| Wheel size: | Size Split: 27.5: XS, S // 29: M, L, XL, XXL |
| Speeds: | 1 x 10 |
| Colour: | slateblack´n´black |
| Fork: | SR Suntour XCT, 100mm |
| Travel: | 100 mm |
| Brakes: | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Brake discs: | 160/160 mm |
| Headset: | CUBE FPH868p, Tapered, Semi-Integrated |
| Stem: | CUBE Performance Stem, 31.8mm |
| Handlebar: | CUBE Rise Trail Bar, 680mm |
| Bar grips: | ACID Icon |
| Saddle: | ACID Venec Lite |
| Seatpost: | CUBE Performance Post, 27.2mm |
| Crankset: | Shimano Cues FC-UT400, 32T |
| Bottom bracket: | Thun Paso-ML, 73mm BSA |
|---|---|
| Rear derailleur: | Shimano Cues RD-U6000-GS, 10-Speed |
| Gear shifters: | Shimano Cues SL-U6000, Rapidfire-Plus |
| Cassette: | Shimano Cues CS-LG300, 11-48T |
| Chain: | KMC xGlide |
| Tyres: | CUBE MTB, 2.25 |
| Front hub: | Shimano DH-3D32, hub dynamo, QR |
| Rear hub: | ACID Pro, QR, 6-Bolt |
| Rims: | ACID EX25, 32H, Disc, Tubeless Ready |

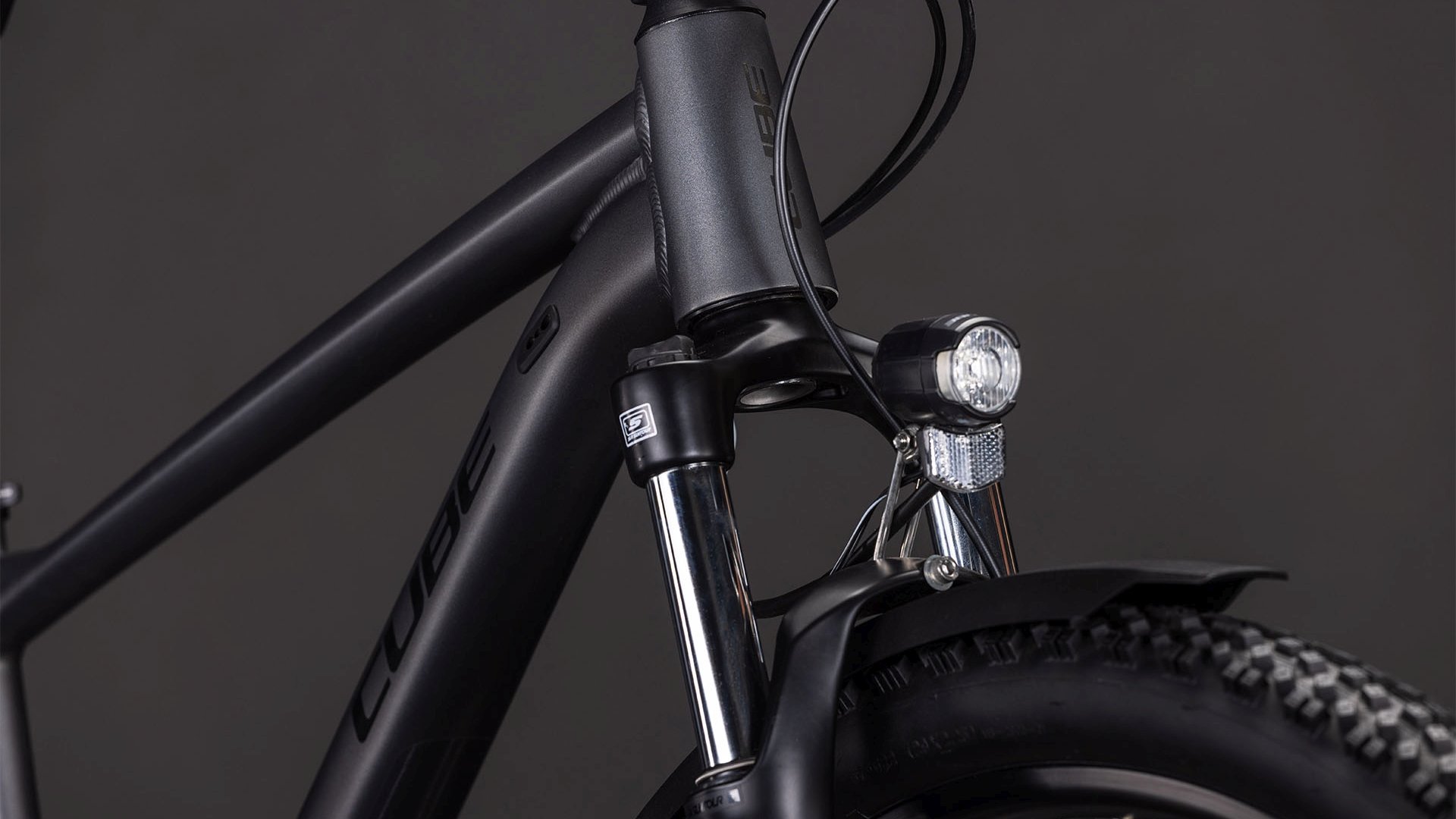

| Front light: | CUBE Shiny 50 |
| Backlight: | ACID Mudguard Rear Light PRO-D, 6V, AC |

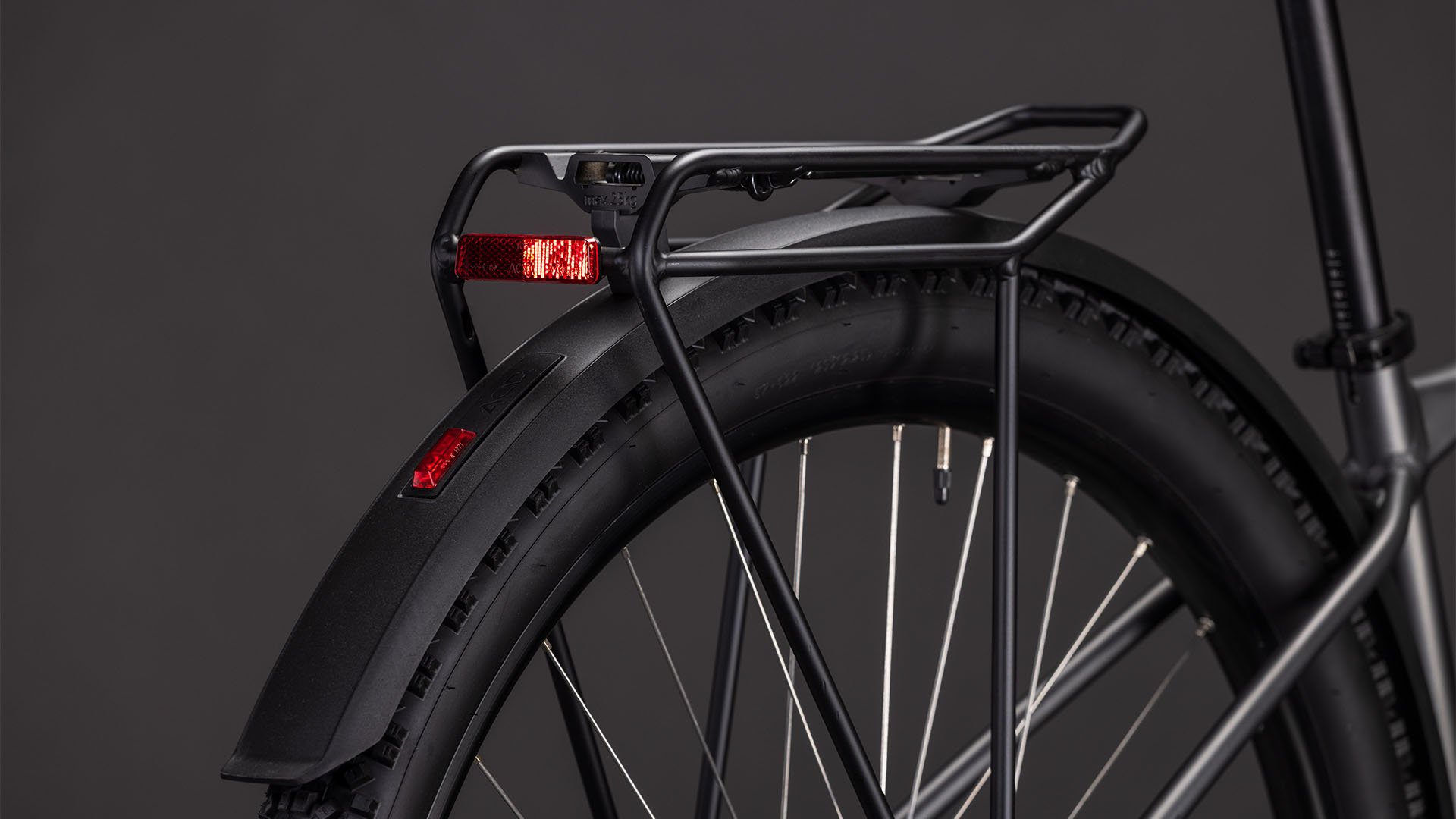

| Rack: | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible and Rail |
| Pedals: | CUBE PP MTB |
| Other details: | Schutzbleche, Ständer, Glocke |
| Maximum total weight allowed: | 140 kg (body weight + bike + equipment) |
| Weight: | 17.2 kg |
