Zipp 303 XPLR SW Carbon Disc Tubeless Shimano HG wheelset+Goodyear XPLR Inter Gravel folding tyre 45mm set

Zipp 303 XPLR SW Carbon wheelset with Goodyear XPLR Inter 45 mm: aerodynamic gravel system for maximum speed. Wide rims, low tyre pressure and less vibration ensure efficiency, comfort and top performance on dry gravel.

Scope of delivery

• 1 x Zipp XPLR SW Carbon Disc Tubeless Shimano HG wheelset
• 2 x tubeless tape
• 1 x 12 mm end cap
• 2 x Goodyear XPLR Inter folding tyres

Thru axles not included!

Zipp XPLR SW Carbon wheelset

The Zipp 303 XPLR SW wheelset has the size to take on your biggest gravel goals. And how big exactly? This wheel is the fastest on unpaved surfaces - not least thanks to its mega-wide rim, which can be seamlessly combined with approved gravel tyres.* Most gravel wheels are modified versions of existing road bike wheels that focus primarily on stiffness and low weight. Zipp takes a different approach. On gravel, wind resistance and friction slow the rider down just as much as the vibrations caused by the uneven surfaces. To counteract this, Zipp has applied its Total System Efficiency design philosophy specifically to the challenges of gravel. The wide rim profile increases the tyre volume and thus enables lower tyre pressures without sacrificing stability. This means you dampen vibrations from the ground while maintaining the necessary grip for corners and traction for steep climbs. The rim profile also creates a seamless transition to the gravel tyres and therefore efficient aerodynamics on gravel. And despite its width, the 303 XPLR SW wheelset remains lightweight so that you can experience those fulfilling days in the saddle as quickly and refreshed as possible.

Features

• Fastest race wheel for gravel, with tubeless and hookless rim profile
• Ultra-wide inner profile for lower rolling resistance, suitable for pressures below 30psi (2.1 bar)
• The wide and high profile can be seamlessly integrated into gravel tyres and increases aerodynamic efficiency
• Applies the Zipp Total System Efficiency to high-performance gravel tyres
• The ZR1 DB hub set developed in Germany has an improved seal design and faster response behaviour thanks to 66 points of engagement of the freehub body.
• Maximum tyre pressure 3.45 bar (50 psi)
• *THE 303 XPLR SW IS ONLY COMPATIBLE WITH APPROVED TYRES. The Goodyear XPLR Slick and Goodyear XPLR Inter are specially developed and optimised for the 303 XPLR SW

Product features

• Application: Gravel
• Model: XPLR SW
• Rim diameter: 28"
• ETRTO: 622 mm
• Tyre interface: Hookless tubeless
• Rim type: Clincher (folding tyre)
• Tubeless Ready: Yes
• Hub type: ZR1
• Freehub system: 6 pawls
• Freehub: Shimano HG
• Rim height: 54 mm
• Outer width: 40 mm
• Rim width: 32 mm
• Axle system: 12 mm Thru Axle
• Installation width:
  • Front: 12 x 100 mm thru axle
  • Rear: 12 x 142 mm thru axle
• Number of holes: 24 front and rear
• Spoke pattern: Two-cross
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc Centerlock
• Spokes: CX-Ray
• Nipples: Sapim Secure-Loc
• Maximum system weight: 130 kg (body weight + bike + equipment)
• ASTM classification: 2

Material

• Rim: Carbon
• Hub shell: Aluminium
• Spokes: Stainless steel
• Nipples: Brass
• Freehub body: Aluminium

Weight (manufacturer's specification)

• approx. 1496 g

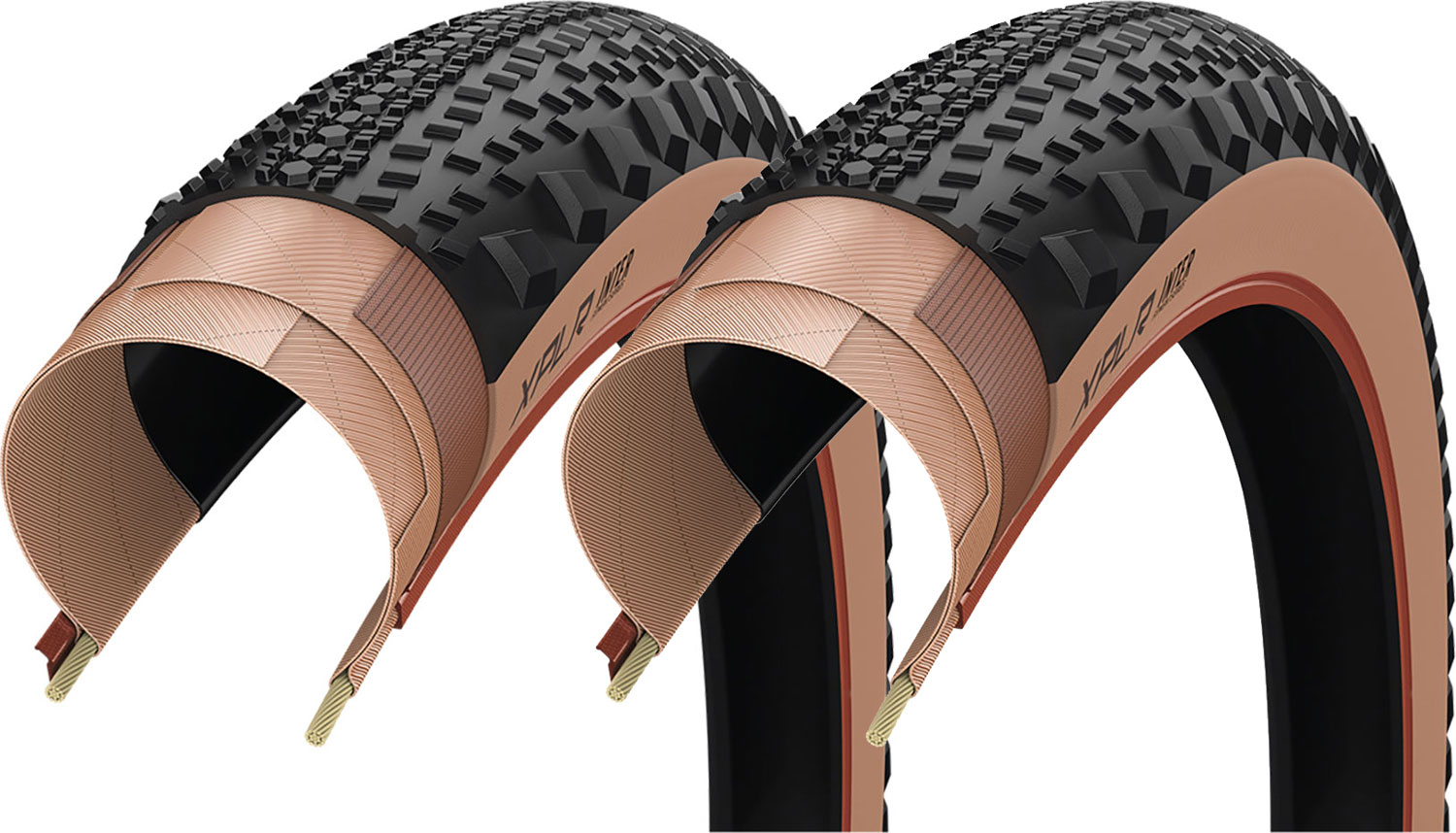

Goodyear XPLR Inter designed for Zipp

The Goodyear XPLR Inter is part of a wheel and tyre system that is changing the gravel game. Designed for Zipp's ultra-wide 303 XPLR S and SW wheels, this versatile gravel tyre offers a fast wheel and tyre combination for any gravel terrain. Suitable for dry to moderate conditions.

More control and efficiency: The Goodyear XPLR Inter for mixed terrain

Gravel wheel and tyre systems today are usually slightly stronger versions of what is available for the road: light, stiff, narrow and aerodynamic. The problem is that riding on gravel leads to damaging vibrations that slow you down and tire you out over time. In addition, gravel tyres usually negate the aerodynamic advantages of traditionally narrow road rims. The slick tyre is designed to measure 40 mm on the 303 XPLR wheel.

The new XPLR wheel and tyre system takes a completely new approach and optimises the dimensions of the components to achieve the fastest setup on the market. In addition to the unrivalled aero advantages for gravel, the resulting width of the rim also allows for lower tyre pressure, which helps to filter vibrations and thus save additional energy.

The XPLR Inter offers the most versatile gravel setup with 303 XPLR and can be ridden in most situations. Its compact centre tread ensures fast rolling, while the larger side blocks provide grip and confidence in corners. The lightweight and supple construction improves ride quality. The M:Wall reinforcements in the sidewalls provide puncture protection against cuts and punctures, allowing the rider to run the lowest possible air pressure. Finally, the dimensions of the tyre beads are designed to ensure comfortable mounting and a secure grip on Zipp TSS rims. Only approved tyres can be used on the XPLR wheels.

Features

• Lightweight carcass ensures a comfortable ride
• M:Wall protection prevents cuts and reduces the risk of bruising
• Optimised construction and geometry for the Zipp 303 XPLR. The versatile tread pattern is suitable for most gravel situations in all conditions.
• Dynamic:UHP compound improves grip and reduces rolling resistance
• Tubeless Complete and Dual Angle bead ensure secure grip on XPLR rims
• Developed for 45 mm on a Zipp 32 mm TSS rim

Product features

• Application: Gravel
• Size: 700x45c
• ETRTO: 45-622
• Type: Folding tyre
• Compound: Dynamic: UHP
• Version: M:Wall
• Seal: TLR
• Pressure: Max. 3 Bar (Max. 43 psi)
• TPI: 120

Weight (manufacturer's specification)

• 575 g each

• Manufacturer number: 00.1918.737.000|00.1918.738.000|00.1918.747.001
