DT Swiss C 1800 SPLINE® 28" 23mm rear wheel
Product information "C 1800 SPLINE® 28" 23mm rear wheel"
Improve the riding characteristics of the wheels by using tubeless tires, which allows you to ride at lower pressures and improve comfort and traction for an unforgettable riding experience.
Features - DT Swiss C 1800 SPLINE
- Rim - A strong and durable rim that is ideal for the tough conditions of a cyclocross track. Tubeless-ready, you can take advantage of the technology to run your tires at lower pressure and enhance your grip.
- Spokes - The DT new aero® II straightpull delivers a great mix of stiffness and speed, ideal for keeping the wheel spin across the mud pond.
- Hub - The 370 hub incorporates the Ratchet LN system providing improved reliability and a seamless engagement when properly maintained.
- Freehub Body - Compared to its predecessor its pawl system and its smaller engagement surfaces, the Ratchet LN System achieves greater reliability by allowing each tooth to engage simultaneously.
Product features
- Application: Cross Road
- Model: C 1800
- Rim diameter: 28" / 700C
- ETRTO: 622 mm
- Rim joint: Sleeve joint
- Tire interface: Hooked / Crotchet tubeless TC
- Rim type: Clincher (folding / clincher)
- Tubeless Ready: Yes
- Hub type: 370
- Freehub system: Ratchet LN 18

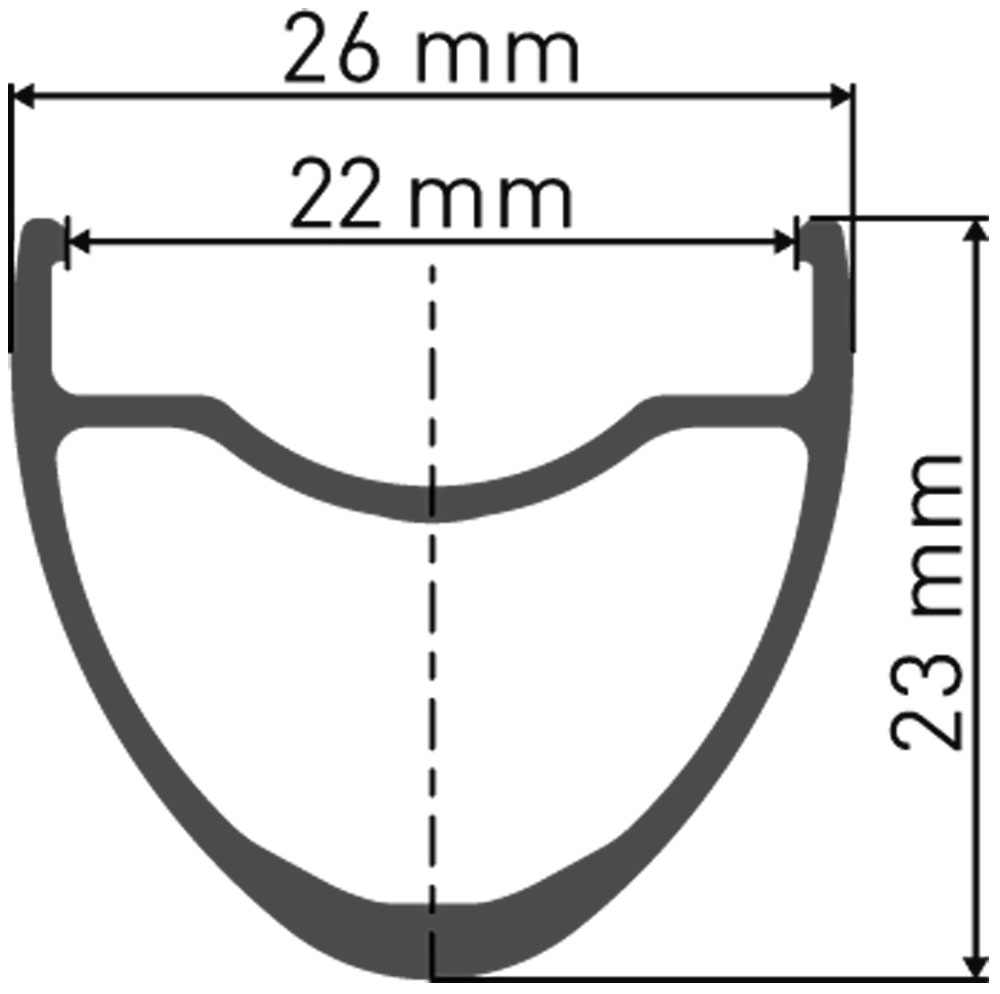

- Rim height: 23 mm
- Outer width: 26 mm
- Inner width: 22 mm
- Axle system: 12 mm Thru Axle
- Built-In dimension: 142 mm
- Number of holes: 24
- Spoke pattern: Two-cross (1:1)
- Valve hole: Presta / SV Ø 6.5 mm
- Brake system: Disc Center Lock
- Spokes: DT new aero® II straightpull
- Nipple: DT ProLock Squorx ProHead alu
- Recommended system weight: 120 kg (body weight + bike + equipment)
- ASTM classification: 2
Freehub body (choose variant)
- Shimano HG
- Sram XDR
Material
- Rim: Aluminium
- Hub body: Aluminum
- Spokes: Stainless steel
- Nipple: Aluminum
- Freehub body: Aluminium
Weight (manufacturer information)
- Shimano HG: 958 g
- Sram XDR: 935 g
Scope of delivery
- 1 x DT Swiss C 1800 SPLINE Disc rear wheel
- 1 x Tubeless tape 25 mm
- 1 x Tubeless valve alu black 18 - 25 mm
Technologies
SPLINE® Technology
The elaborately machined hub body, the cleverly placed spokes and the proven freewheel technology of the new DT Swiss SPLINE® wheel line have a single goal: to meet the high needs of today's cyclists. It is components like the SPLINE® wheels that allow you to go further and further and faster and thus further increase the joy of cycling. Thanks to the many well thought-out details and the legendary DT Swiss reliability, you can experience pure cycling fun with SPLINE® wheels.
Straightpull technology
Straightpull stands for straight, unbent spokes. Thanks to this technology it is possible to achieve an ideal ratio between weight and stability. The Straightpull spokes allow a very precise alignment and optimized positioning in the wheel and thus provide a stiffer and more responsive wheel.
- Manufacturer number: W0C1800NIDMSA21424
Längfeldweg 101
2504 Biel
Switzerland
[email protected]
https://www.dtswiss.com
Blumenstraße 49-51
71106 Magstadt
Deutschland
[email protected]
https://www.mcg-parts.de
