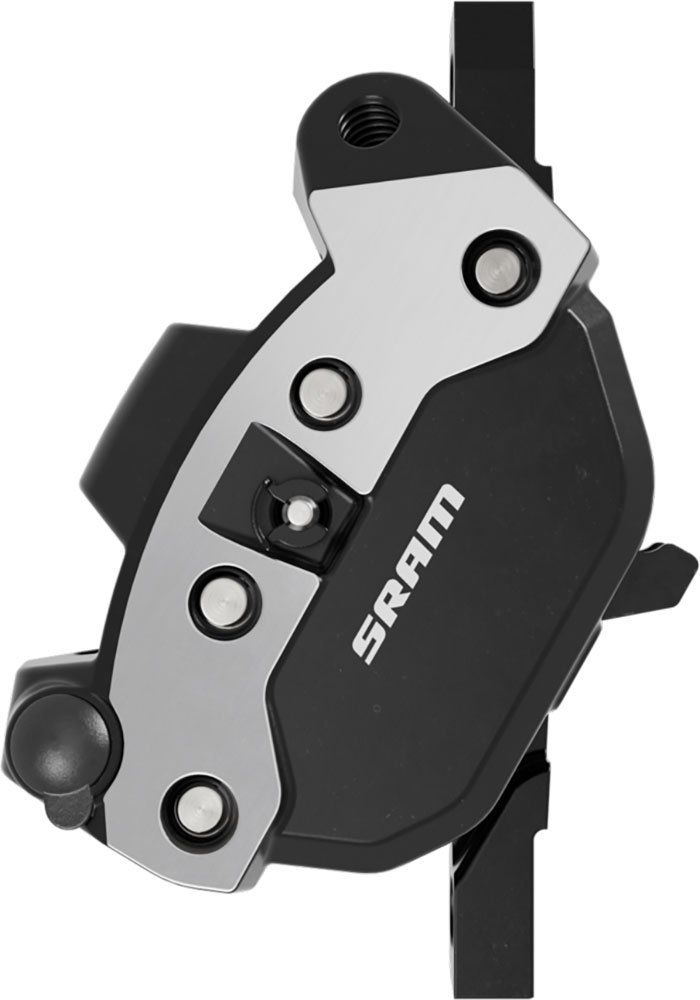

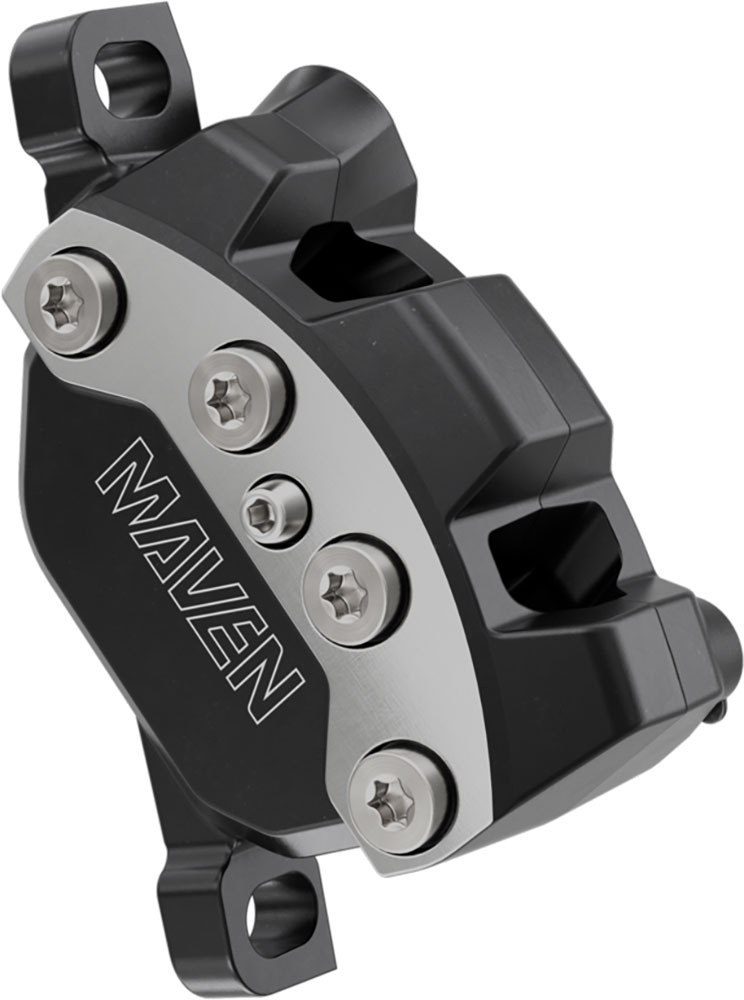

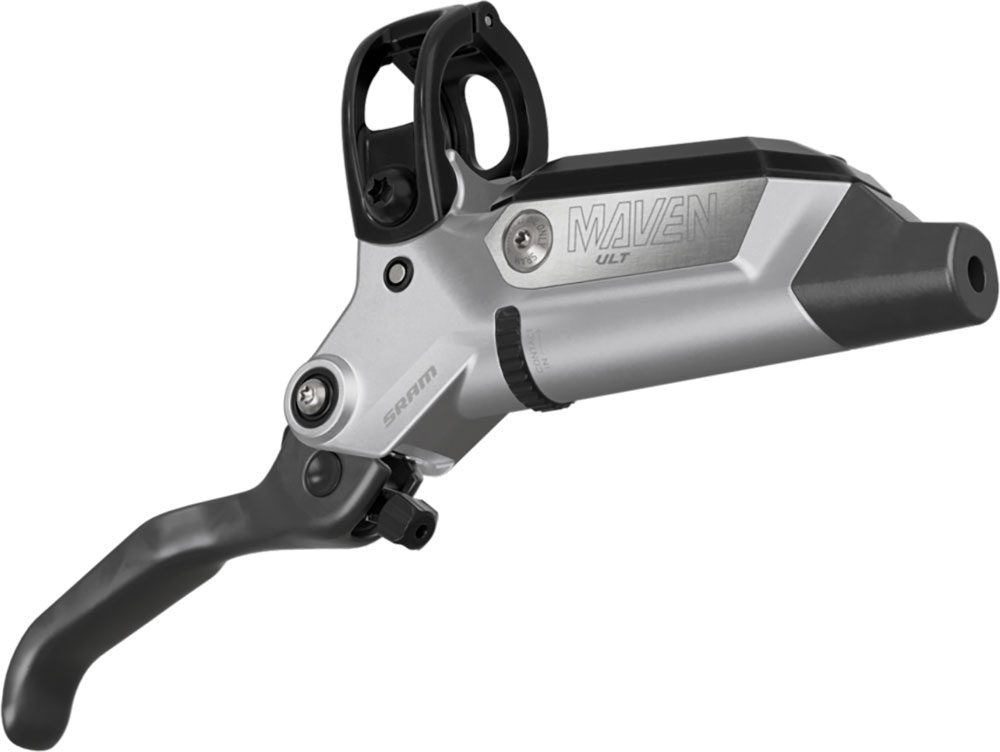

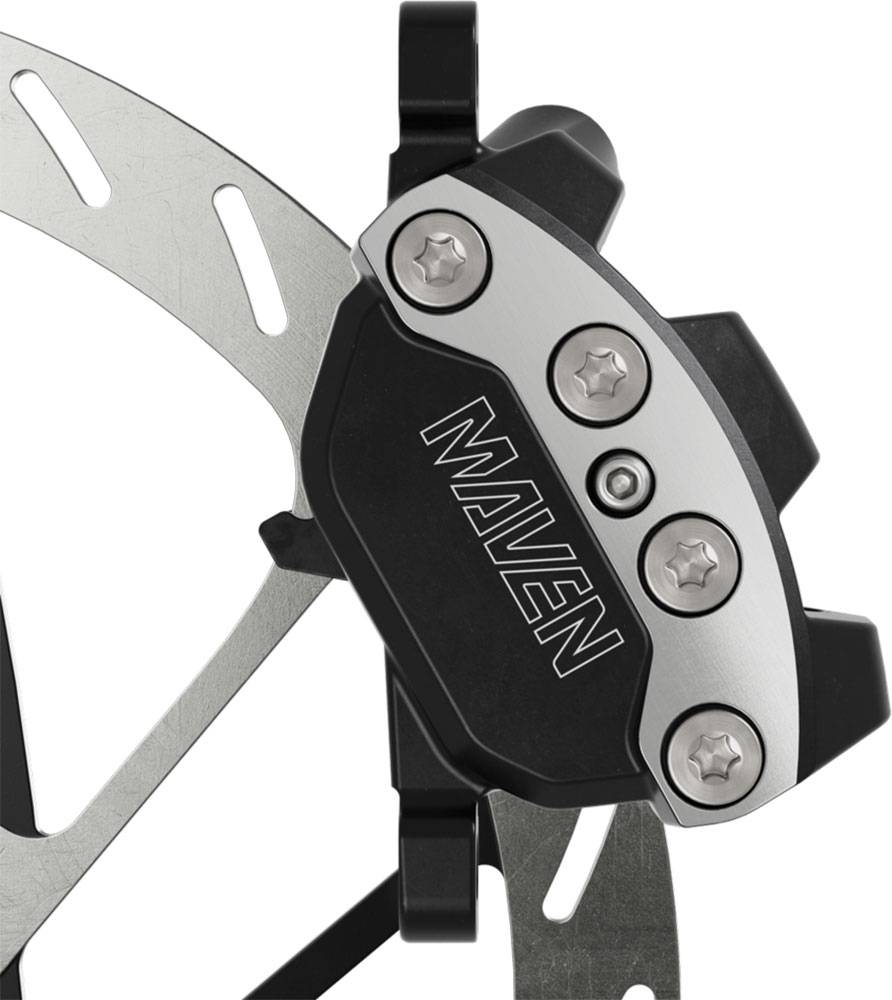

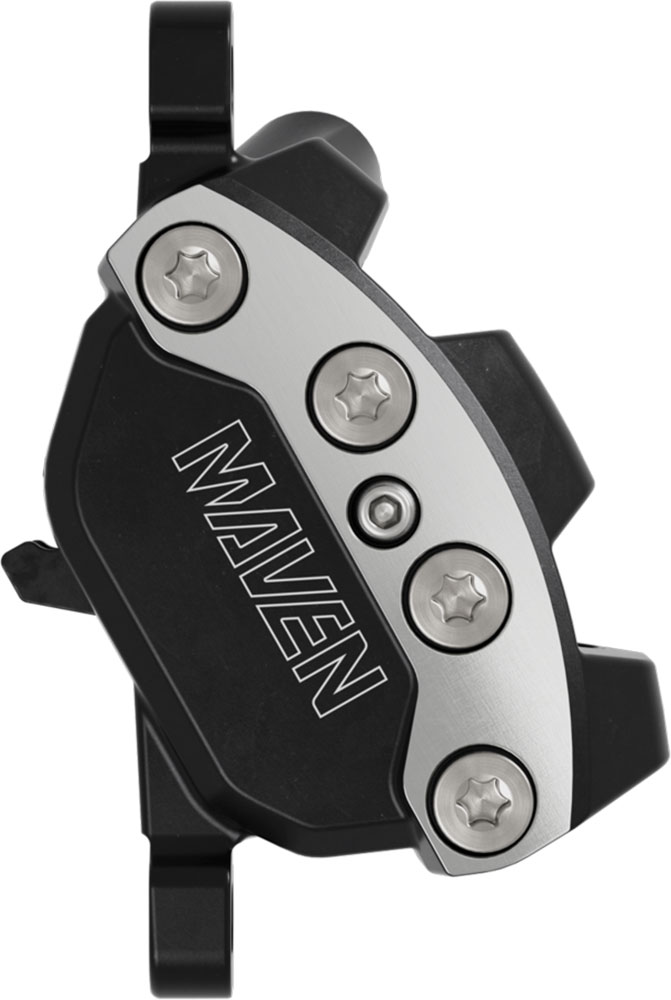

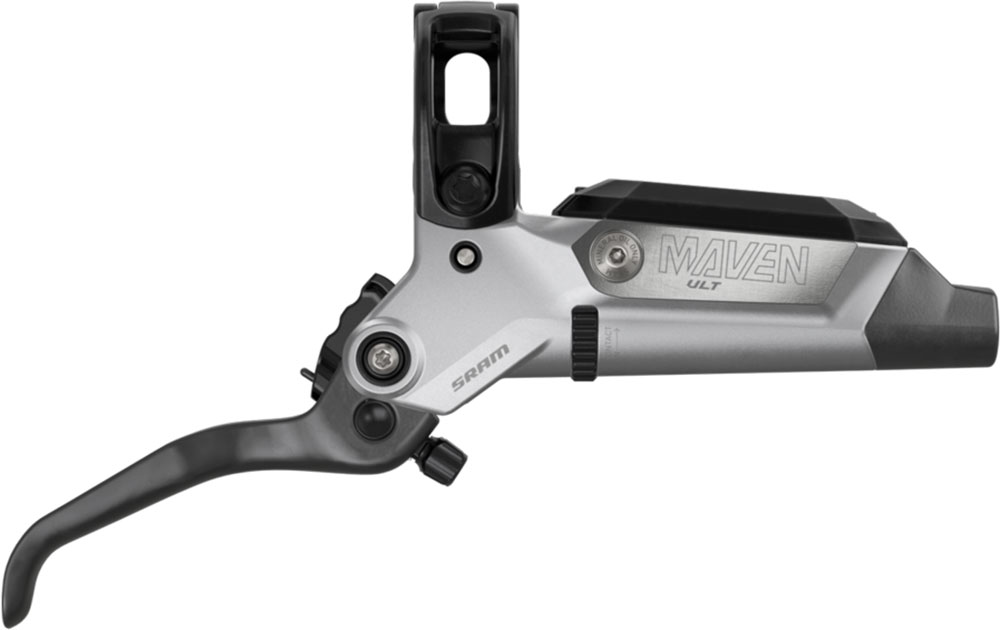

SRAM Maven Ultimate B1 Disc brake
Product information "Maven Ultimate B1 Disc brake"
SRAM Maven Ultimate B1 disc brake - 18 mm pistons and 4-piston power without compromise
The SRAM Maven Ultimate B1 was developed for uncompromising performance in demanding terrain and is aimed at riders with the highest demands on deceleration and precision. The newly designed lever mechanism optimises power transmission from the first contact to the full pressure point and ensures finely tunable modulation. A highly rigid, quadruple-bolted brake calliper ensures consistent performance even on long, heat-intensive descents. Precious materials such as carbon and titanium not only emphasise the high-end character, but also reduce weight and enable individual ergonomic adjustment without tools.
Features - SRAM Maven B1 Ultimate Stealth
- Re-designed SwingLink architecture for smooth power delivery and lighter engagement for a broader range of ergonomic preferences
- 18-millimeter pistons for best-in-class power
- Easily tuneable across Gravity, E-MTB, Enduro and Trail bikes
- Stiff 4-piston caliper with best heat management
- Stealth lever architecture for a sleeker, more modern ride
- Mineral Oil for low maintenance and performance
- Designed for use with Maxima Mineral Brake Oil only
- Ultimate worthy carbon Lever blade and Titanium hardware
- Contact Point Adjust and tool-free Reach Adjust
Product features
- Range of use: MTB
- Brake type: Hydraulic
- Caliper design: Two-piece
- Piston: 4
- Pad type: Steel-backed organic
- Bracket: Direct Mount DIR
- Hydraulic fluid: SRAM Mineral Oil
- Lever pivot point: Bearing
- Contact adjust: Yes
- Reach adjustment: Tool-free
- Caliper bleed port: Bleeding Edge
- Rotor type recommended: One-piece HS2 (not included!)
Mounting - hose length (choose variant)
- front - 950 mm
- rear - 2000 mm
Material
- Brake lever: Carbon fibre
- Lever body: Forged aluminium
- Brake caliper: Forged aluminium
- Piston: Phenolic plastic
- Bolts: Titanium
Colour
- Clear Anodised
Scope of delivery
- 1 x Maven Ultimate B1 Stealth disc brake
- 1 x Organic XL brake pads on steel backing plate
- 1 x MMX clamp
- 1 x Olive
- 1 x support sleeve
- 1 x 20P-2 adapter
- 2 x mounting screw for brake calliper
- Disc brake is ready to installation, completely assembled and bleeded!
Rotor not included!
- Manufacturer number: 00.5018.259.000
1000 W Fulton Market 4th Floor
60607 Chigago (Illinois)
United States
Paasbosweg 14
3862 ZS Nijkerk
Netherlands
[email protected]
https://www.sram.com
