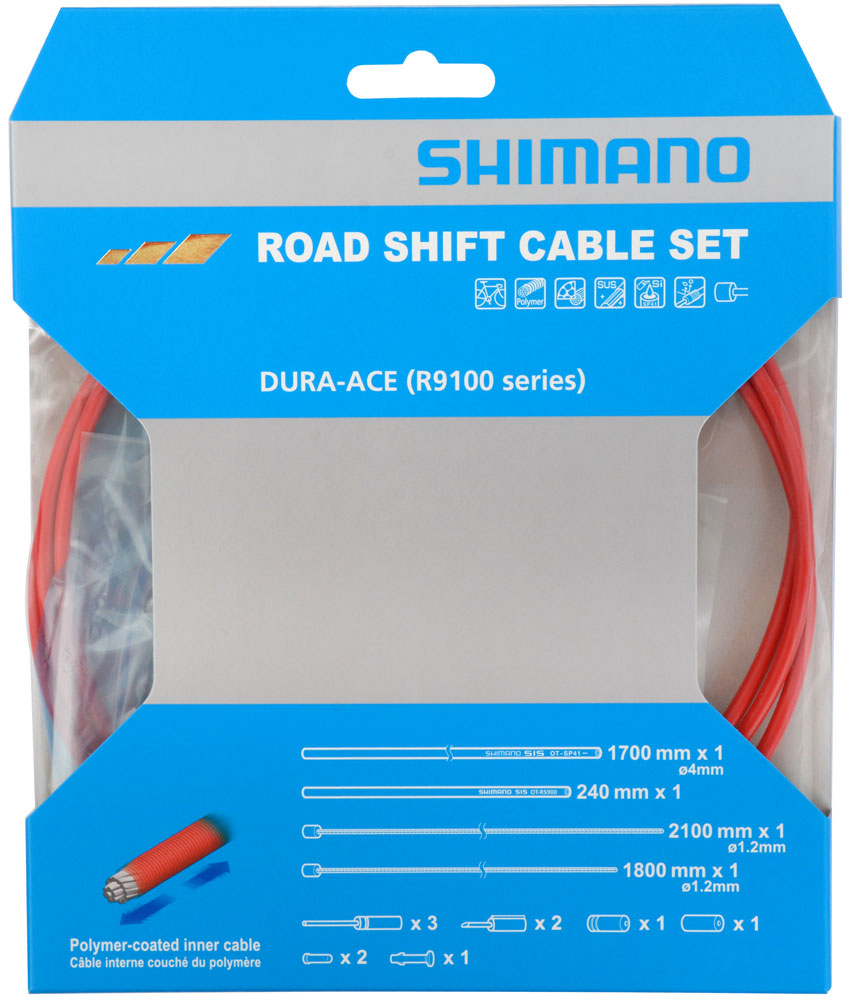

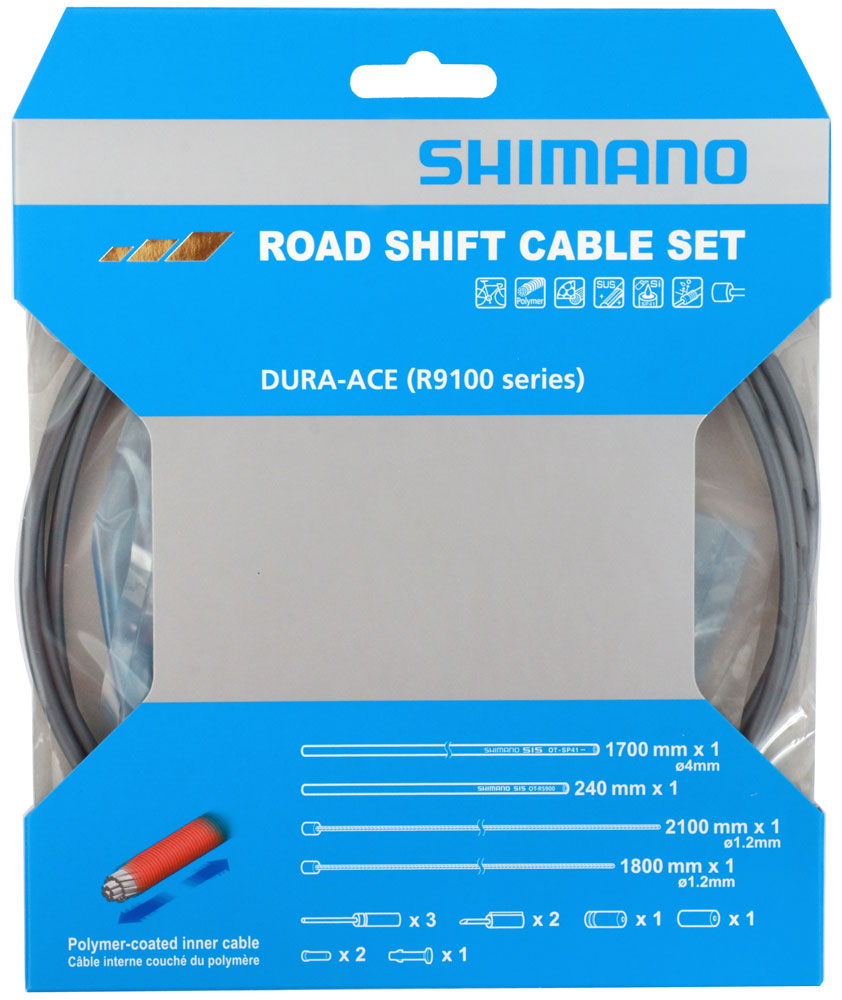

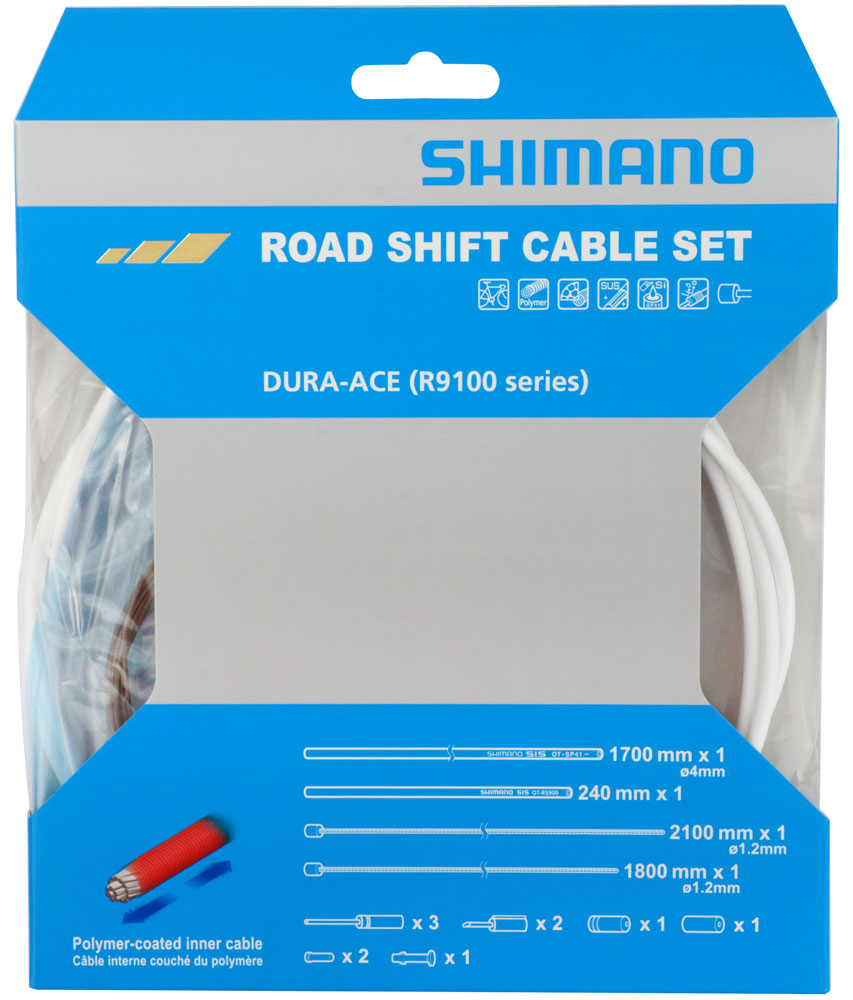

Shimano OT-SP41+OT-RS900 Polymer Shift Cable Set for R9100/R8000
Product information "OT-SP41+OT-RS900 Polymer Shift Cable Set for R9100/R8000"
The secret in polymer coating is that when viewed under a microscope it looks like a series of tubes wrapped around the cable. This means less surface area rubbing the internal housing liner and it holds grease longer. Main benefits are significantly less shifting effort and the feeling of a quicker shift action also improves braking power with remarkably less brake lever effort.
Purpose of OT-RS900
The radius (r) of the curved cable that is routed from the bicycle frame to the RD-R9100 become smaller compared to the radius generated with other rear derailleurs, as indicated in the images below. The commonly used outer casing, OT-SP41, is too stiff for such small radius that it could cause technical problems on the adjutment barrel and disturb quick and smooth engagement and disengagement of the rear wheel from the frame. By using the OT-RS900, such problems can be avoided as the stiffness is reduced on OT-RS900.
OT-RS900 should be used only on the rear derailleur side. It should not be used on the shift/brake lever side.
Features - Shimano OT-SP41+OT-RS900 Polymer Shift Cable Set
- Polymer coating Polymer coated inner cables reduce the sliding resistance to achieve lighter and quick operation
- Low friction Cables are formed with curved surface for low friction
- Anti-rust Stainless steel cable for anti-rust protection
- Silicone grease SIS SP41 is pre-lubricated with a special silicone grease for light-action shifting
- Mud resistance Sealed end caps to minimize mud contamination
Produkteigenschaften
- Use: Road
- Group: Dura Ace R9100, Ultegra R8000/RX800, 105 R7000
- Gear wire diameter: 1.2mm
- Gear wire lengths: 1800mm / 2100mm
- Gear cable diameter: 4mm
- Gear cable lengths: 1700mm (OT-SP40) / 240mm (OT-RS900)
Color Gear Cable (choose variant)
- black
- white
- red
- grey
Material
- Gear wire: Stainless steel polymer coated

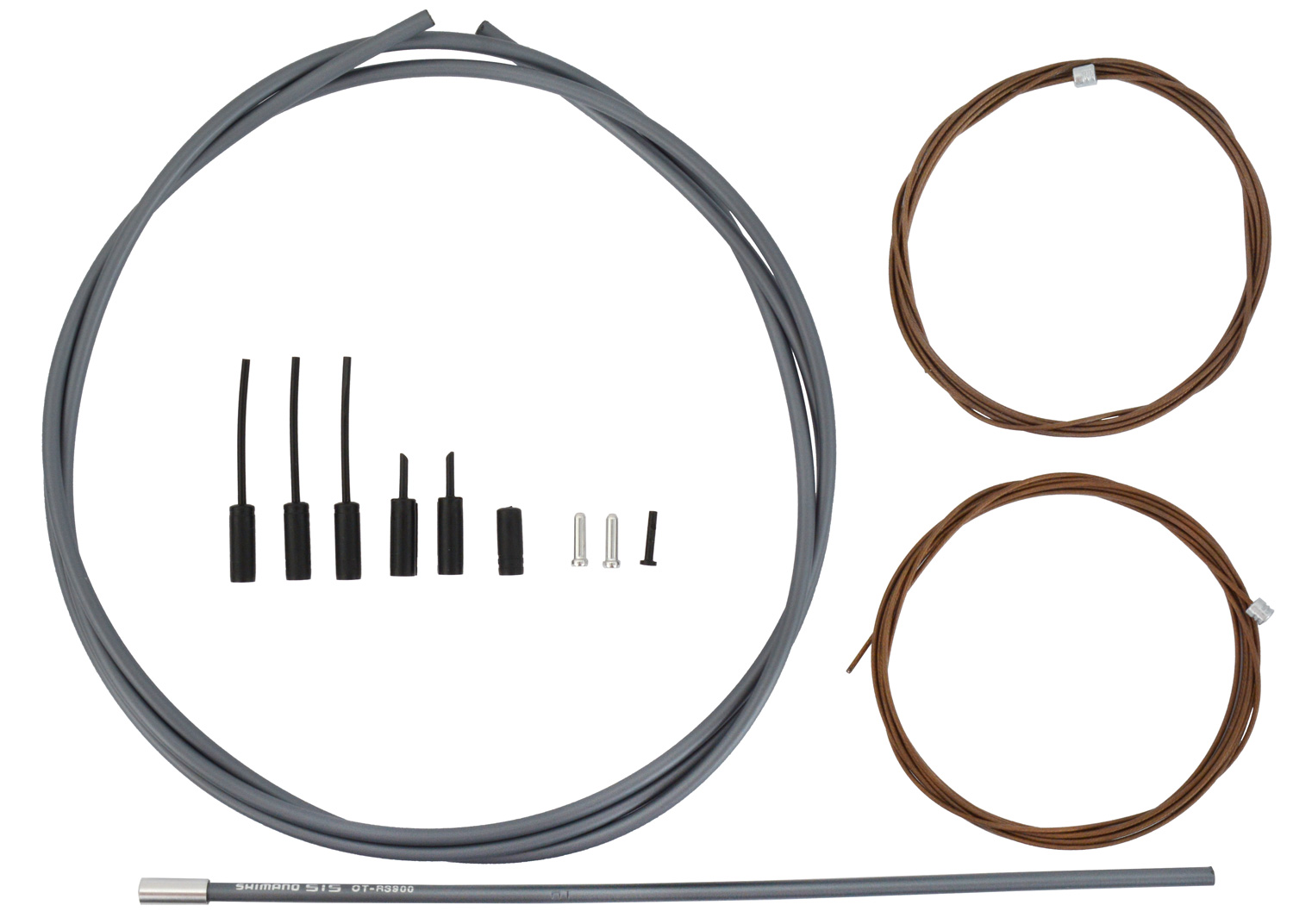

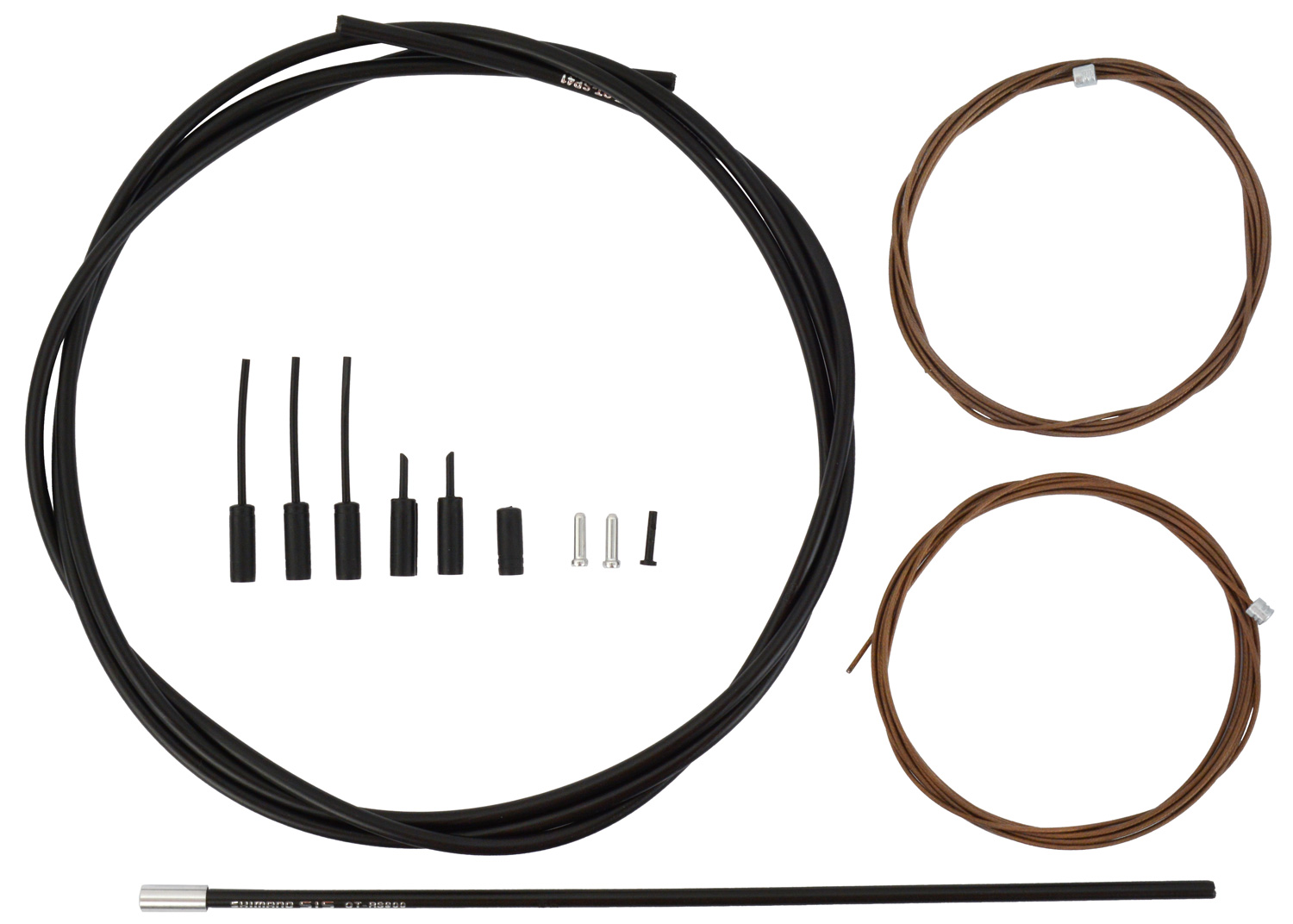

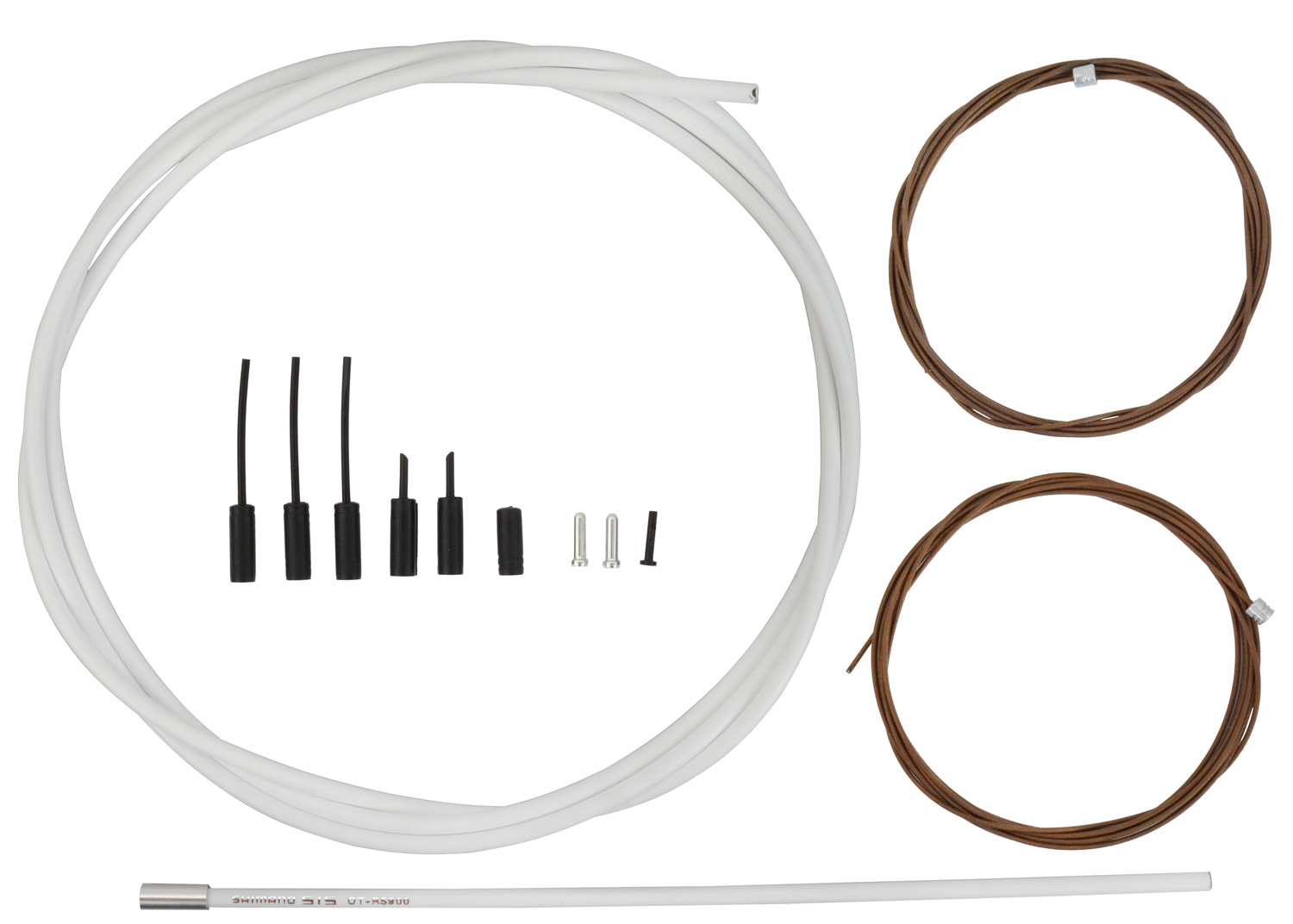

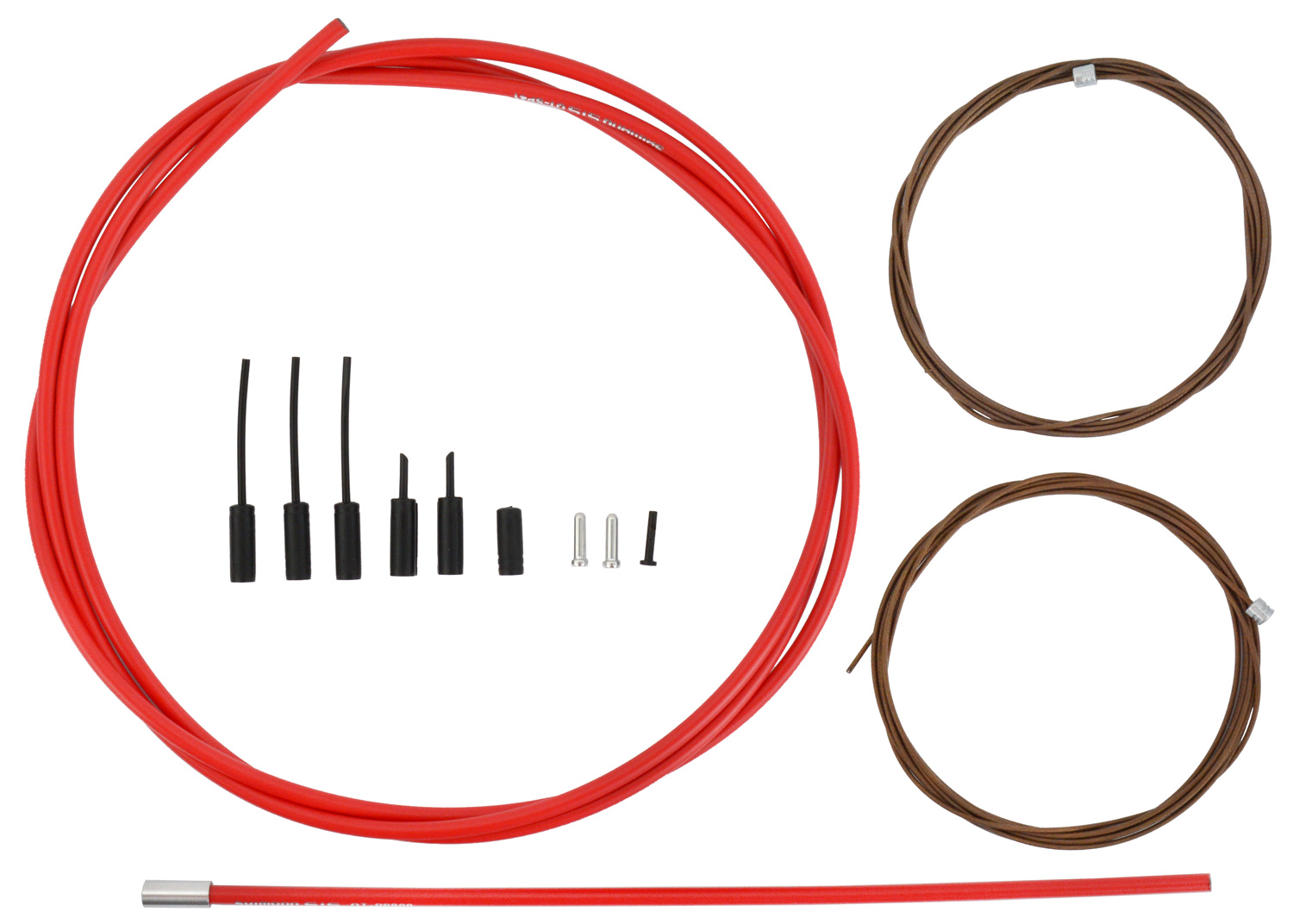

Scope of delivery
- 1 x Gear Wire Optislick 1.2mm x 1800mm
- 1 x Gear Wire Optislick 1.2mm x 2100mm
- 1 x Gear Cable OT-SP41 1700mm
- 1 x Gear Cable OT-RS900 240mm
- 2 x Outer cap with short tongue for ST
- 3 x Outer cap with long tongue
- 1 x Sealed outer cap for Rear Derailleur
- 2 x Inner end cap
- 1 x Cover with tongue for rear derailleur
- 1 x Outer cap for FD in case of full outer cable routing
- Manufacturer number: Y0BM98040
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
Shimano OT-SP41+OT-RS900 Polymer Shift Cable Set for R9100/R8000
The secret in polymer coating is that when viewed under a microscope it looks like a series of tubes wrapped around the cable. This means less surface area rubbing the internal housing liner and it holds grease longer. Main benefits are significantly less shifting effort and the feeling of a quicker shift action also improves braking power with remarkably less brake lever effort.
Purpose of OT-RS900
The radius (r) of the curved cable that is routed from the bicycle frame to the RD-R9100 become smaller compared to the radius generated with other rear derailleurs, as indicated in the images below. The commonly used outer casing, OT-SP41, is too stiff for such small radius that it could cause technical problems on the adjutment barrel and disturb quick and smooth engagement and disengagement of the rear wheel from the frame. By using the OT-RS900, such problems can be avoided as the stiffness is reduced on OT-RS900.
OT-RS900 should be used only on the rear derailleur side. It should not be used on the shift/brake lever side.
Features - Shimano OT-SP41+OT-RS900 Polymer Shift Cable Set
- Polymer coating Polymer coated inner cables reduce the sliding resistance to achieve lighter and quick operation
- Low friction Cables are formed with curved surface for low friction
- Anti-rust Stainless steel cable for anti-rust protection
- Silicone grease SIS SP41 is pre-lubricated with a special silicone grease for light-action shifting
- Mud resistance Sealed end caps to minimize mud contamination
Produkteigenschaften
- Use: Road
- Group: Dura Ace R9100, Ultegra R8000/RX800, 105 R7000
- Gear wire diameter: 1.2mm
- Gear wire lengths: 1800mm / 2100mm
- Gear cable diameter: 4mm
- Gear cable lengths: 1700mm (OT-SP40) / 240mm (OT-RS900)
Color Gear Cable (choose variant)
- black
- white
- red
- grey
Material
- Gear wire: Stainless steel polymer coated
Scope of delivery
- 1 x Gear Wire Optislick 1.2mm x 1800mm
- 1 x Gear Wire Optislick 1.2mm x 2100mm
- 1 x Gear Cable OT-SP41 1700mm
- 1 x Gear Cable OT-RS900 240mm
- 2 x Outer cap with short tongue for ST
- 3 x Outer cap with long tongue
- 1 x Sealed outer cap for Rear Derailleur
- 2 x Inner end cap
- 1 x Cover with tongue for rear derailleur
- 1 x Outer cap for FD in case of full outer cable routing
- Manufacturer number: Y0BM98040
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
Bought this kit to re-cable my road bike. Replaced the original cables/wires with like for like Shimano Dura-Ace. Great quality Shimano product makes gear changes very smooth. Bike feels like new again.
die Beschichtung ist super empfindlich, bei der Montage am Schalthebel einmal über eine Kante gezogen und das Zeug geht ab
BEST E-COMMERCE - VERY GOOD PRODUCT - 1000 STARS - BIKE-DISCOUNT IS N. ONE.
