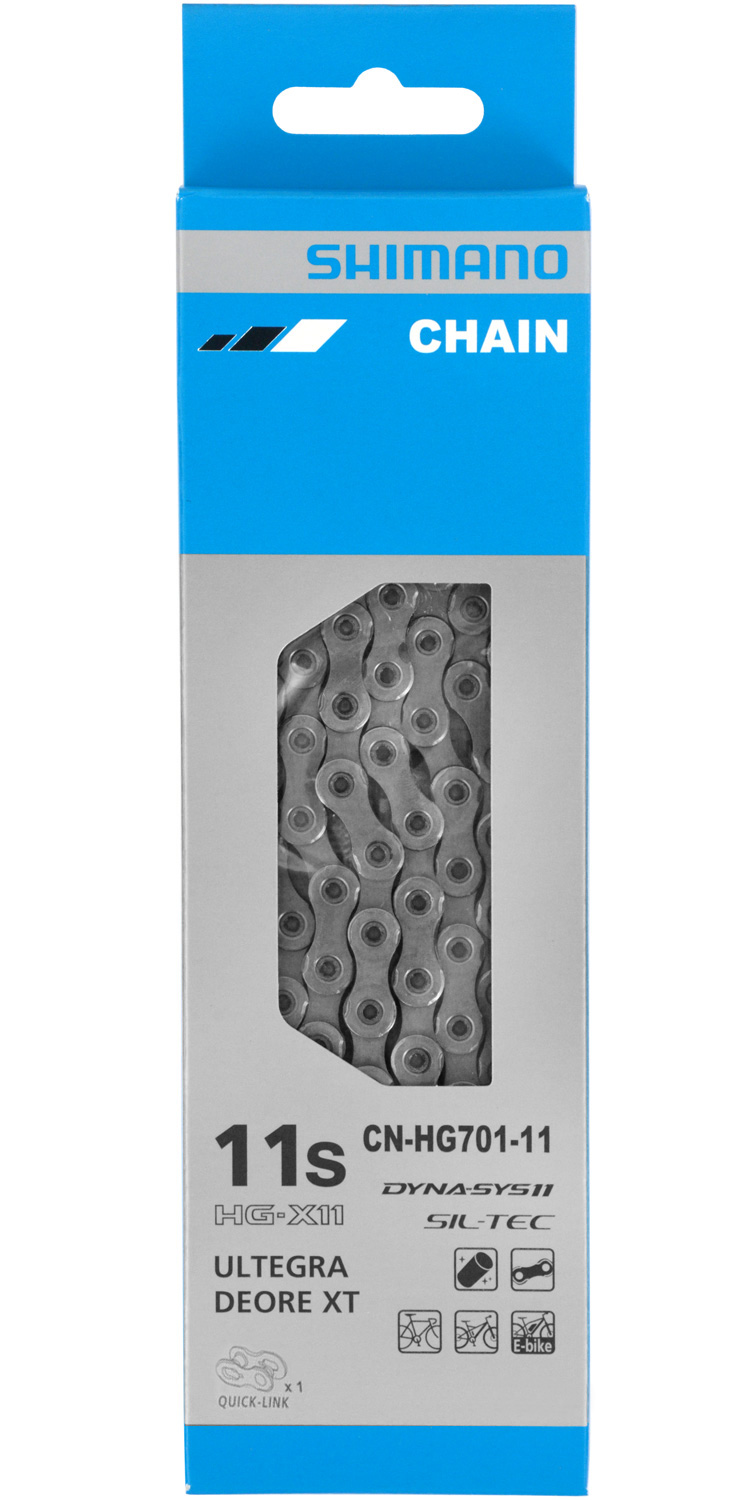

Shimano CN-HG701 11-speed Chain with Quick-Link
Average rating of 4.5 out of 5 stars
from 24,99 €
incl. 19% VAT
Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |

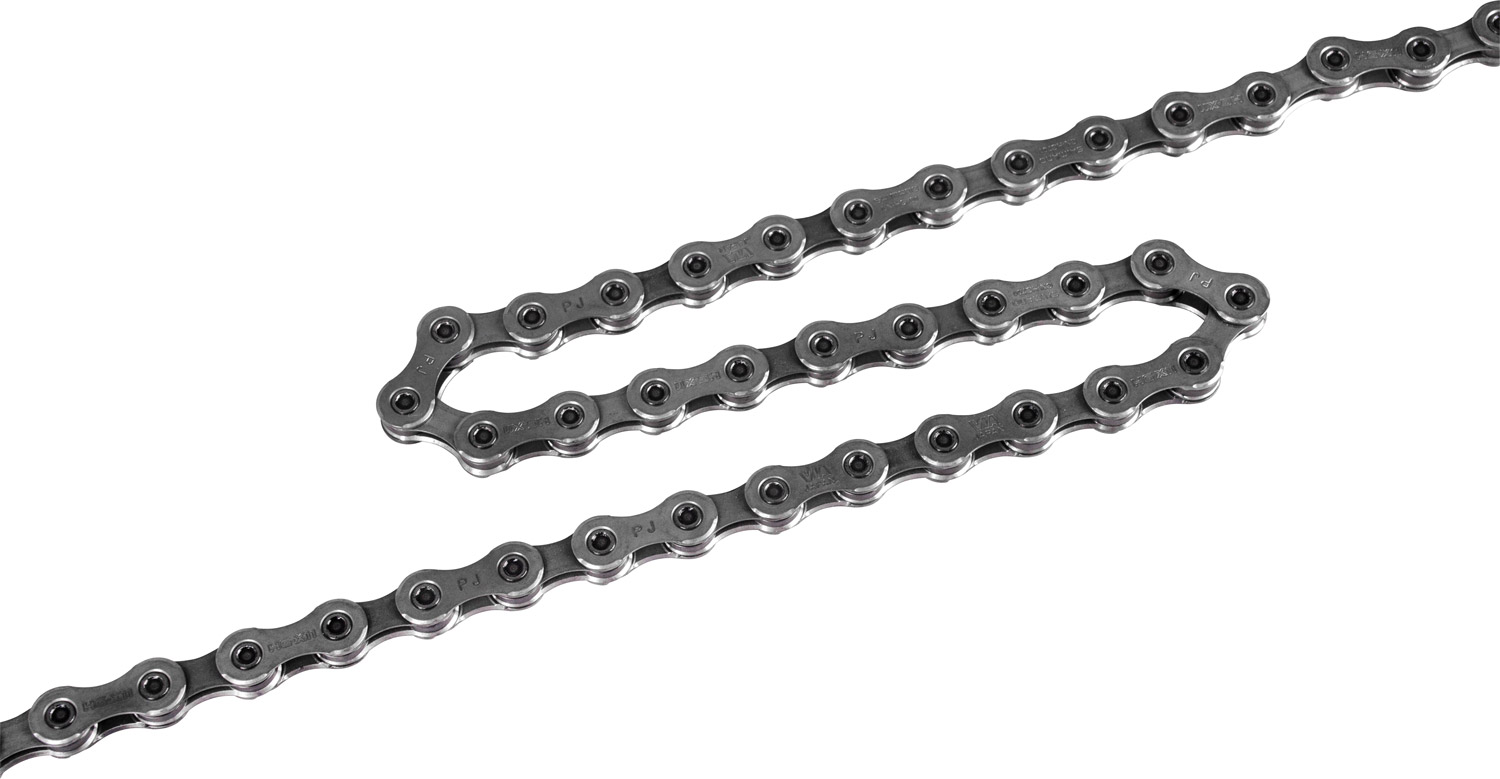

Product information "CN-HG701 11-speed Chain with Quick-Link"
Silky driving and accurate shifting: Shimano CN-HG701 11-speed Chain with Quick-Link Connector
With an HG-X11 special asymmetric plate design and Shimano's new SIL-TEC surface treatment, a quieter ride, increased chain life and better performance await you.Features - Shimano CN-HG701-11 with Quick-Link

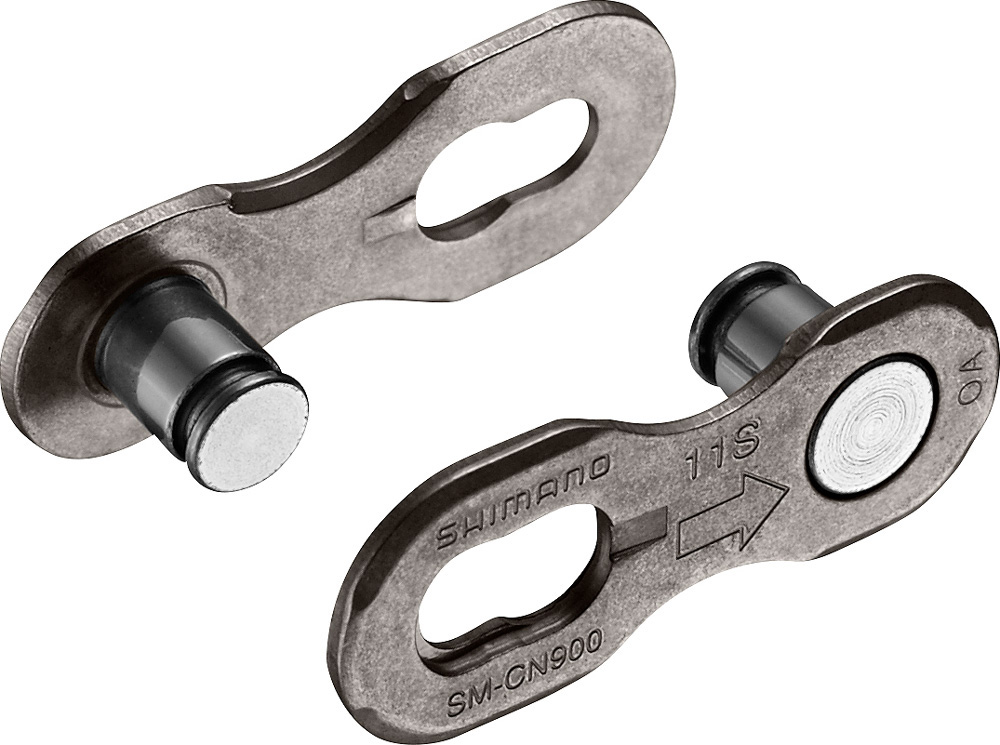

- Connector Quick-Link For the mounting and dismounting of 11-speed chains without tools
- Smooth and reliable shifting performance
- Directional 11-speed chain
- More efficient and silent, less maintenance
- SIL-TEC surface treatment
- MTB, Road, E-BIKE 11-speed compatible
- Reinforced chain for E-BIKE use
- New chain plate dimension
Product features
- Use: Road, MTB, E-Bike
- Model: CS-HG701-11
- Group: Ultegra, XT, STEPS E8000, STEPS E6000
- Gear: 11-speed
- Type: HG-X11
- Directional design: Yes
- Chromizing Treatment Link Pin: Yes
- Pin Link Plate: SIL-TEC
- Roller Link Plate: SIL-TEC
- Connector: Quick-Link SM-CN900-11
Links (choose variant)
- 116
- 126
- 138
Compatibility
- Dura Ace R9100
- Dura Ace 9000
- Ultegra 6800
- 105 5800
- XTR M9000/9020
- XT M8000/8020
- SLX M7000-11
- 11-speed E-Bike (STEPS E6000/8000)
Material
- Steel
Color
- silver
Weight
- approx. 260g (116)
Scope of delivery
- 1 x Shimano 11-speed Chain CN-HG701 incl. Connector Quick-Link SM-CN900-11
- Manufacturer number: ICNHG70111116Q
- EAN:
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
