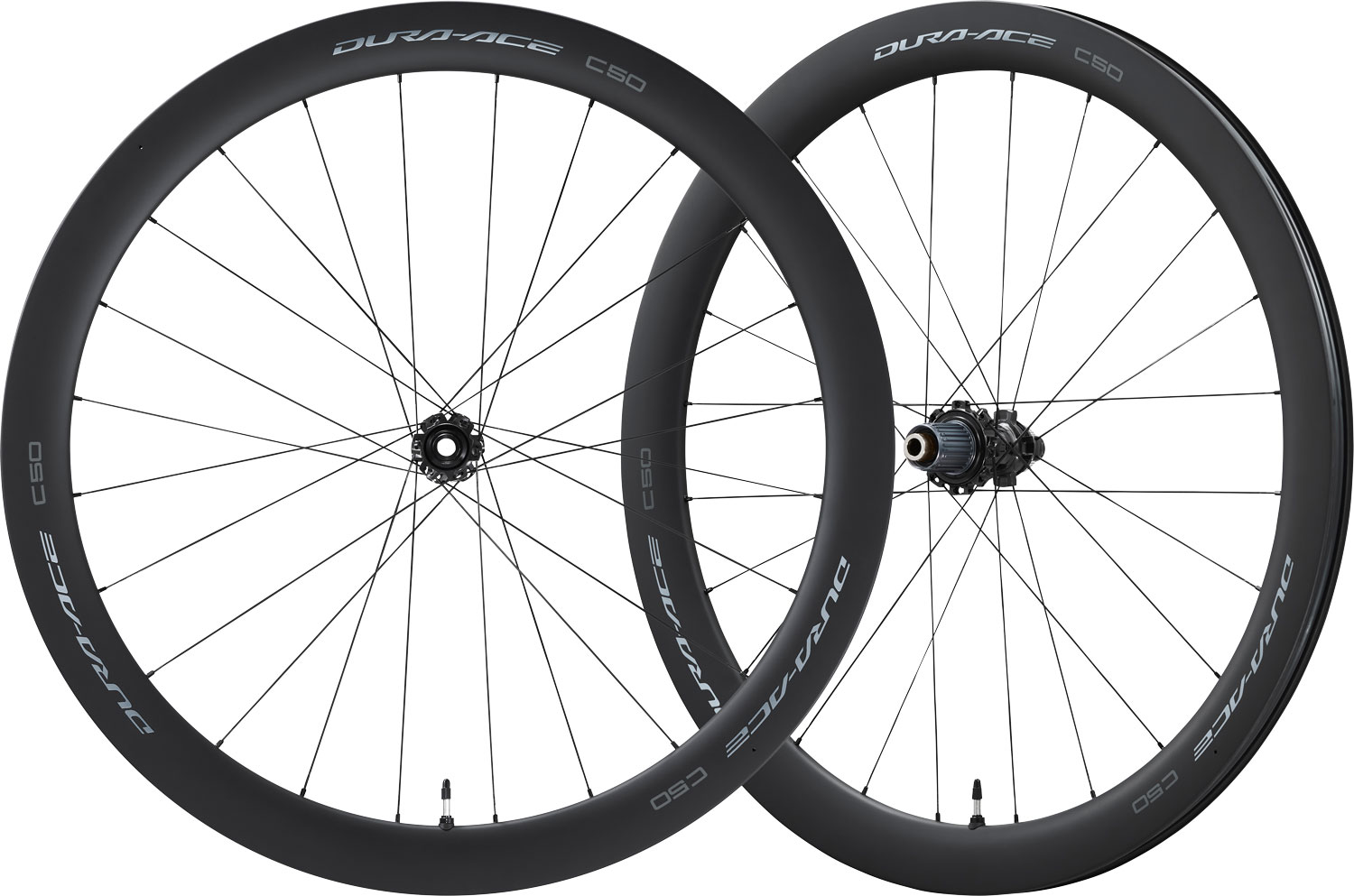

Shimano DURA ACE WH-R9270-C50-TL 28" Center-Lock Carbon Wheelset incl. Bags
1.094,99 €
incl. 19% VAT
- In stock, delivery time 1-3 Days
Product information "DURA ACE WH-R9270-C50-TL 28" Center-Lock Carbon Wheelset incl. Bags"
The DURA ACE WH-R9270-C50-TL wheelset from Shimano, complete with matching SM-WB11 bags, offers an ideal combination of low weight and aerodynamic performance thanks to its 50 mm-high full-carbon rims. Particularly noteworthy are the redesigned full-carbon tubeless rims, which ensure high stiffness whilst reducing weight.
THE SCIENCE OF SPEED: Shimano Dura-Ace WH-R9270-C50-TL Centre-Lock + SM-WB11
Shimano has spent years working to give you a head start of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO’s technology and innovation. Speed was the driving force behind the development of this new-generation road bike groupset. That’s why every component has been redesigned, refined and optimised to make you even faster – whether you’re breaking away from the peloton or sprinting for the finish on the Champs-Élysées.
The DURA-ACE WH-R9270-TL is a real highlight of the new wheelset range. With a lighter, wider full-carbon rim and a lighter hub, the WH-R9270-TL is ideally equipped for mountain climbs. The new rims – with 36 mm, 50 mm and 60 mm tall profiles – offer good aerodynamic performance despite their extremely low weight. Meanwhile, the 12-speed freehub body (HG-Spline L2) impresses with increased drive stiffness thanks to DIRECT ENGAGEMENT.
Features – Shimano DURA ACE WH-R9270-C50-TL 28" Centre-Lock wheelset + SM-WB11 road bike wheel bags | 12x100mm / 12x142mm
- Best all-round wheelset
- A balanced combination of aerodynamics and low moment of inertia
- Fast acceleration
- Improved drivetrain stiffness
- OPTBAL spoke system
- Lightweight and stiff
- 12 mm E-THRU thru-axle for road bikes

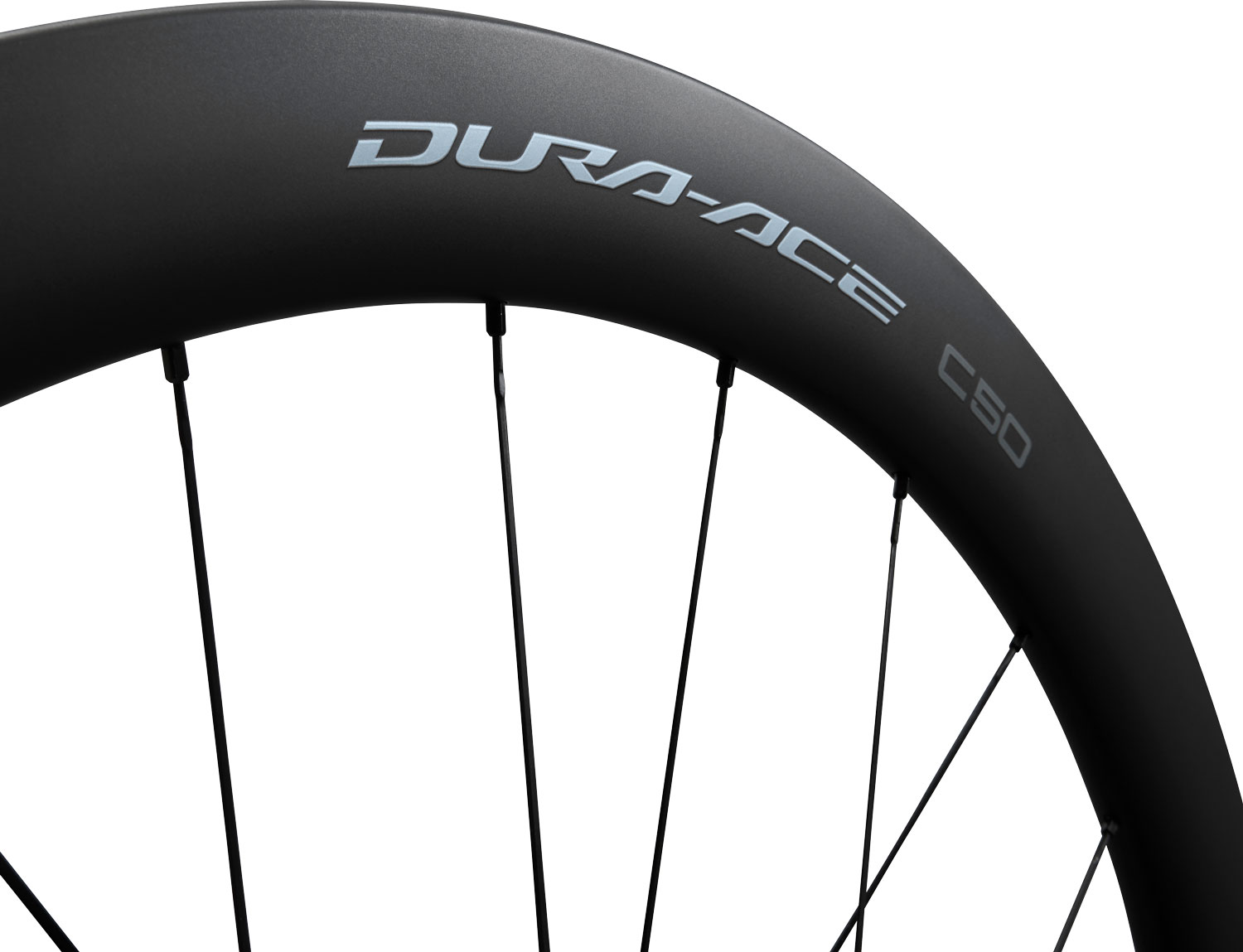

- Ultra-light full-carbon rim
- CENTER LOCK disc brake system
- Compatible only with SHIMANO 12-speed road bike cassettes (HG-Spline L2
Product features
- Intendeduse: Road bike
- Groupset: Dura-Ace R9200
- Model: WH-R9270-C50-TL
- Wheel size: 28 "
- Tyre type: UST Tubeless Ready / folding/clincher tyres

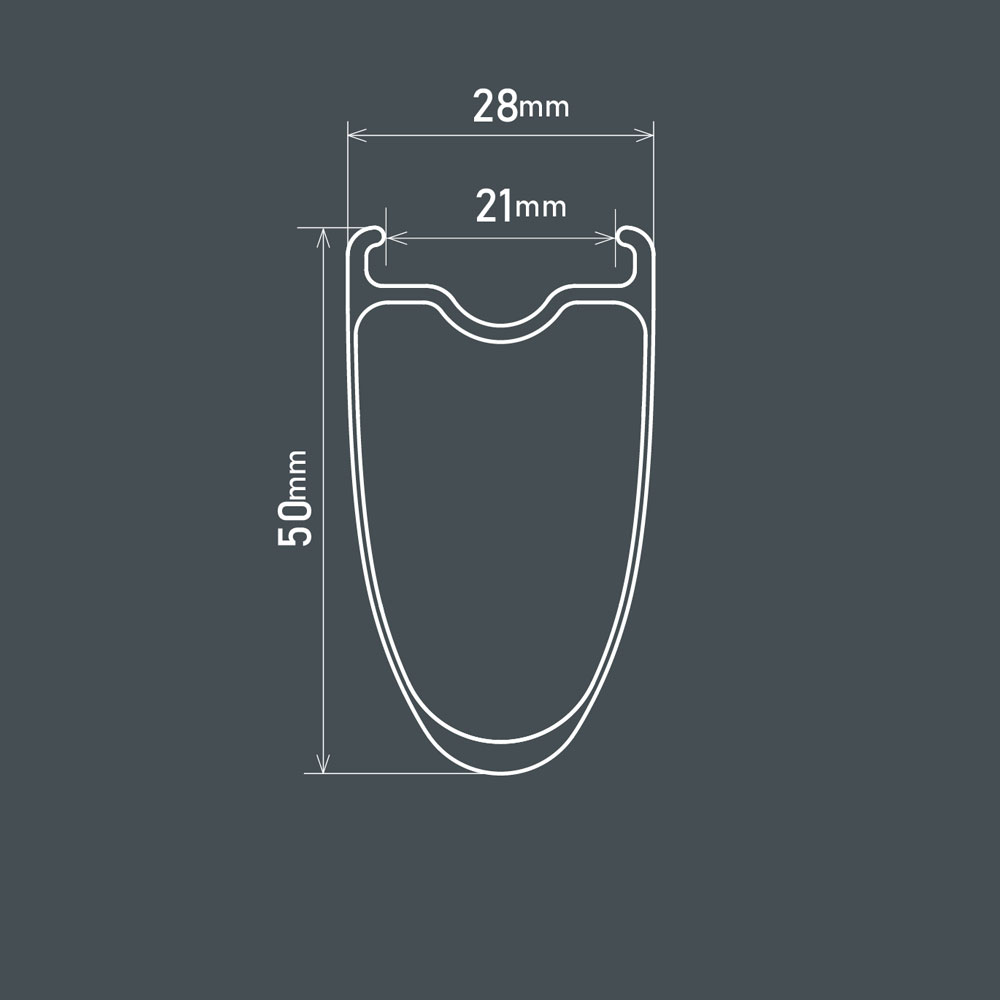

- Rim size: 622 x 21C
- Internal rim width: 21mm
- Outer rim width: 28 mm
- Brake type: Centre-lock disc brake

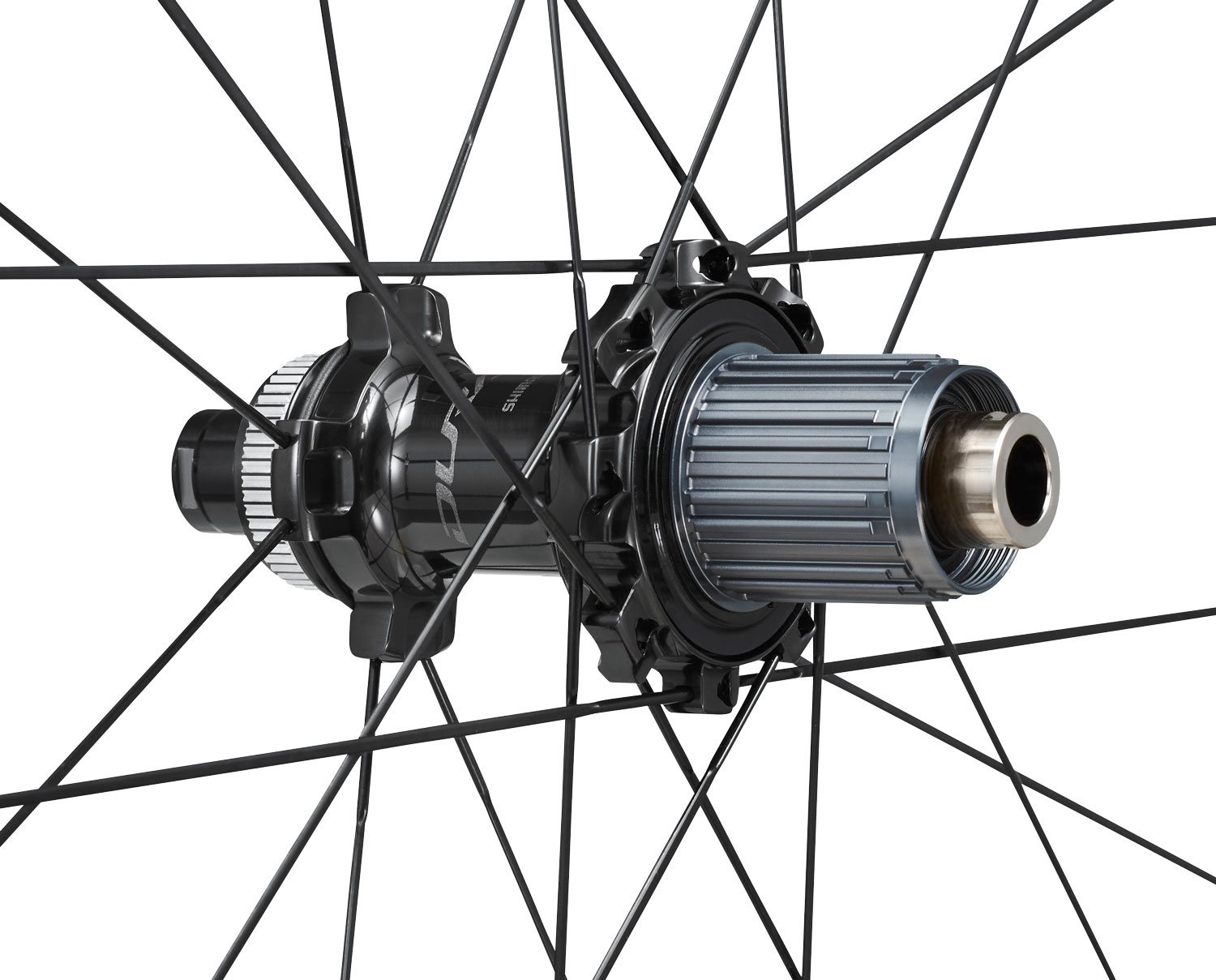

- Freewheel body: Shimano 12-speed road bike (HG-Spline L2)
- Mounting width: front 12 x 100 mm / rear 12 x 142 mm
- Axle system: 12 mm E-Thru thru-axle
- Seals: Labyrinth and Contact
- Spokes: 24at the front / 24 at the rear
- Recommended tyre size: 25-622 to 32-622
Rim height
- C50 rim (50mm)
Material
- Rims: carbon
- Hub body: Aluminium
- Spokes: Stainless steel
- Nipples: Aluminium
Colour
- Series color
Weight (manufacturer’s specification)
- C50 (front 674g | rear 787g | set 1461g)
Contents
- 1 x Shimano Dura Ace WH-R9270-C50-TL 28" Centre-Lock wheelset
- 2 x Shimano tubeless valves

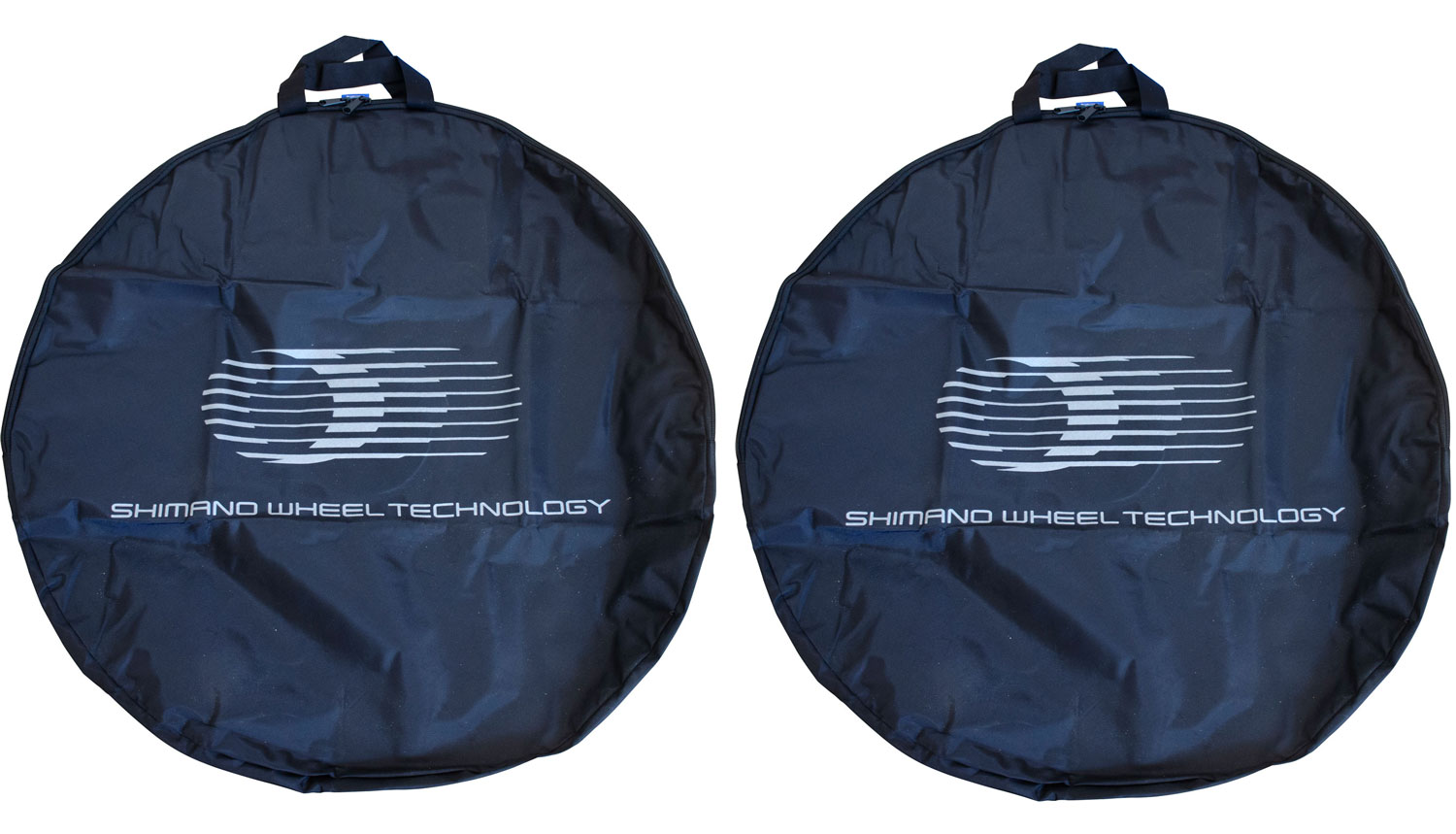

- 2 x Shimano SM-WB11 road bike wheel bag
Thru-axles 12x100mm / 12x142mm not included!
Technologies
OPTBAL spoke system
The OPTBAL road bike spoke system uses 24 spokes: 16 on the right and 8 on the left. The cassette width in modern wheels causes an imbalance in tension in conventional 1:1 spoke systems. This imbalance is further exacerbated by the 11-speed cassette, which exerts almost double the tension on the spokes on the right-hand side. Under certain circumstances, spokes with high and low tension may break or come loose. Uneven tension affects the wheel’s lifespan and strength. The OPTBAL design balances the spoke tension, thereby improving wheel stiffness and strength for a more robust wheel.
CENTER LOCK system
CENTER LOCK brake disc mount. This system, which uses a retaining ring for mounting, allows for quick installation and removal of the brake disc, thereby saving on servicing costs. Furthermore, the secure fit on the multi-tooth profile ensures greater precision and rigidity, which increases the effectiveness of the brakes.
Shimano DURA-ACE Di2 R9250
- Manufacturer number: EWHR9270C50LFEREDB
- EAN: 4550170891220
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
