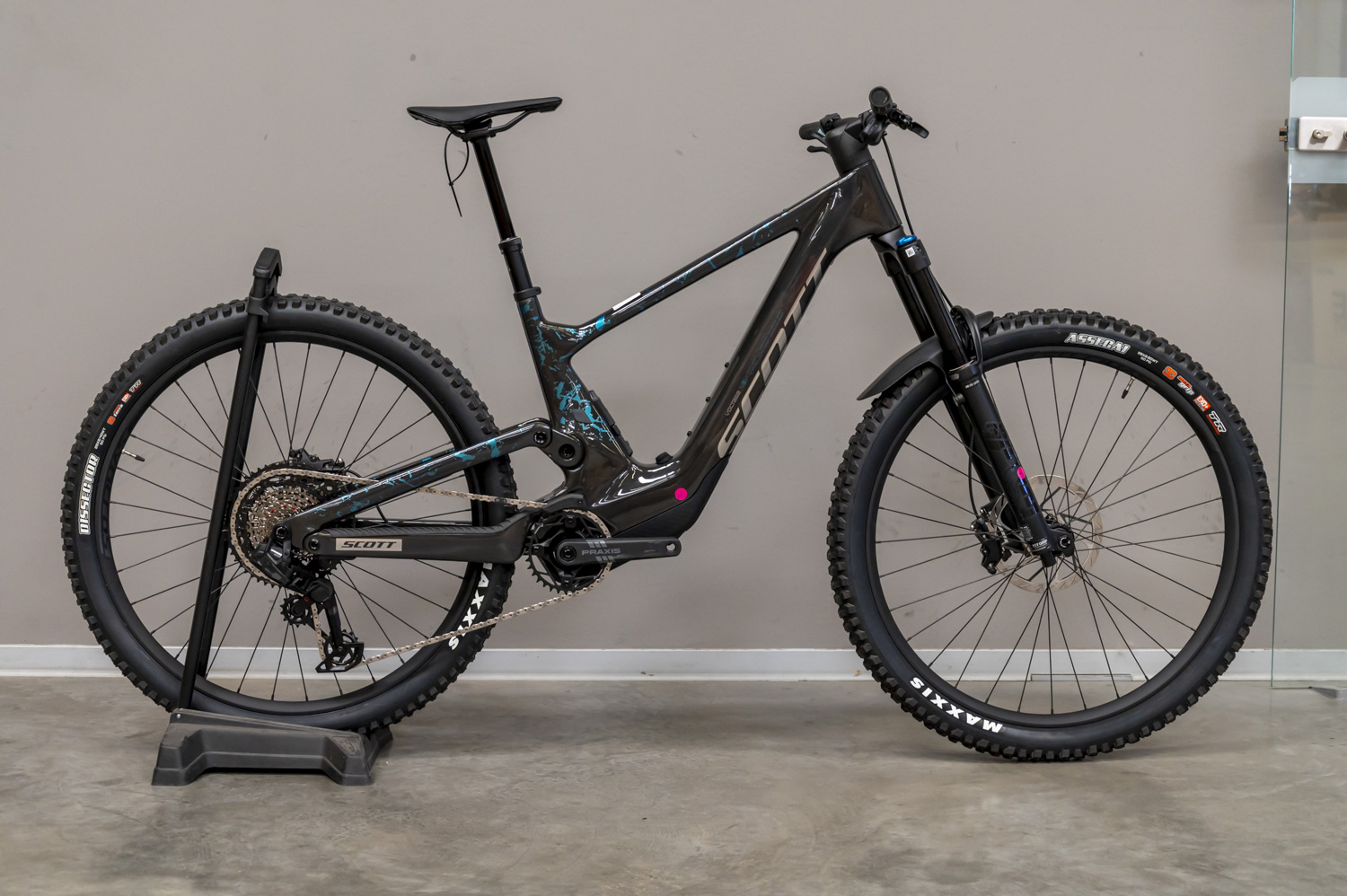

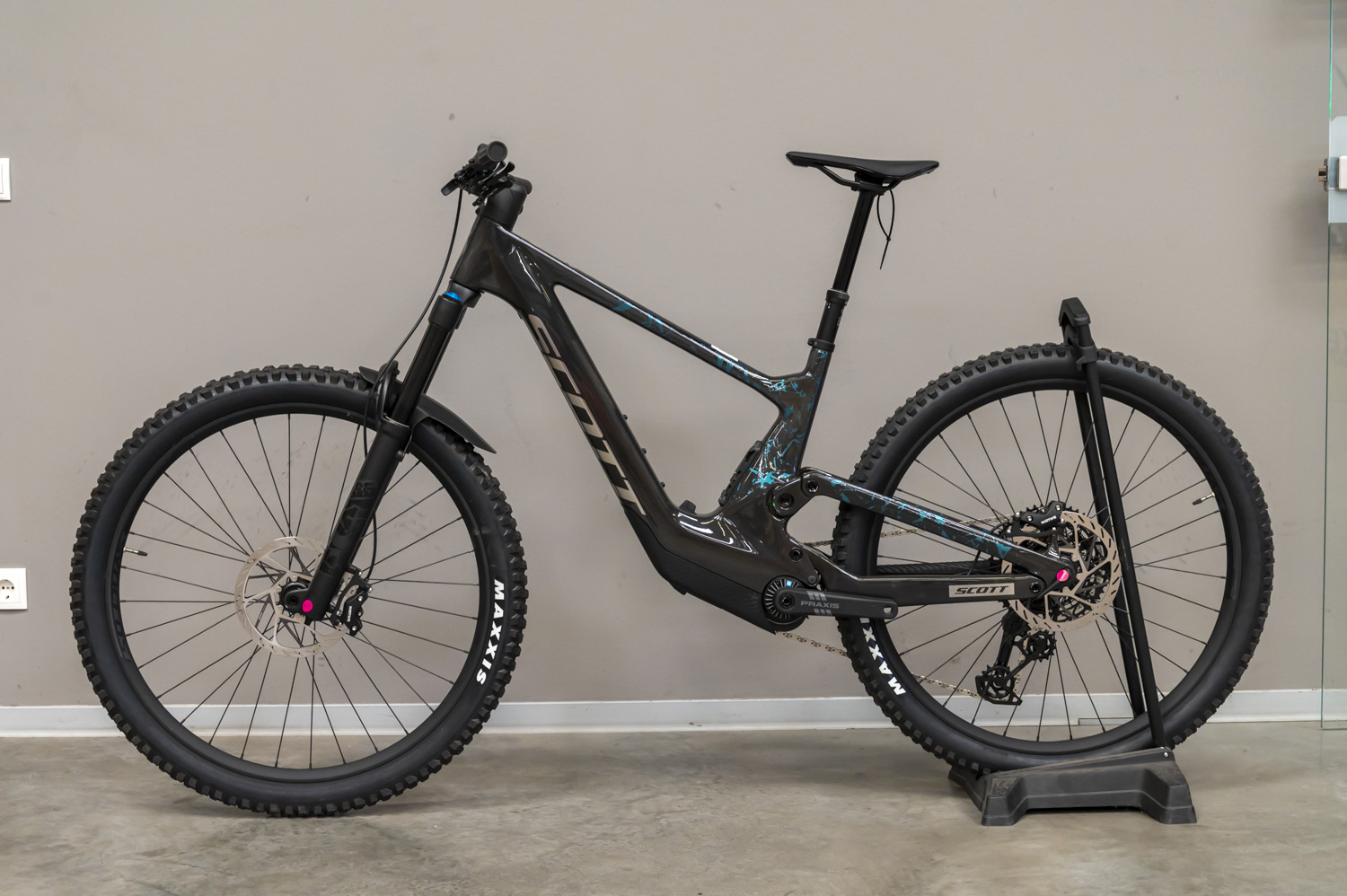

Scott Voltage 910 Carbon Black (returned item)
Product information "Voltage 910 Carbon Black (returned item)"

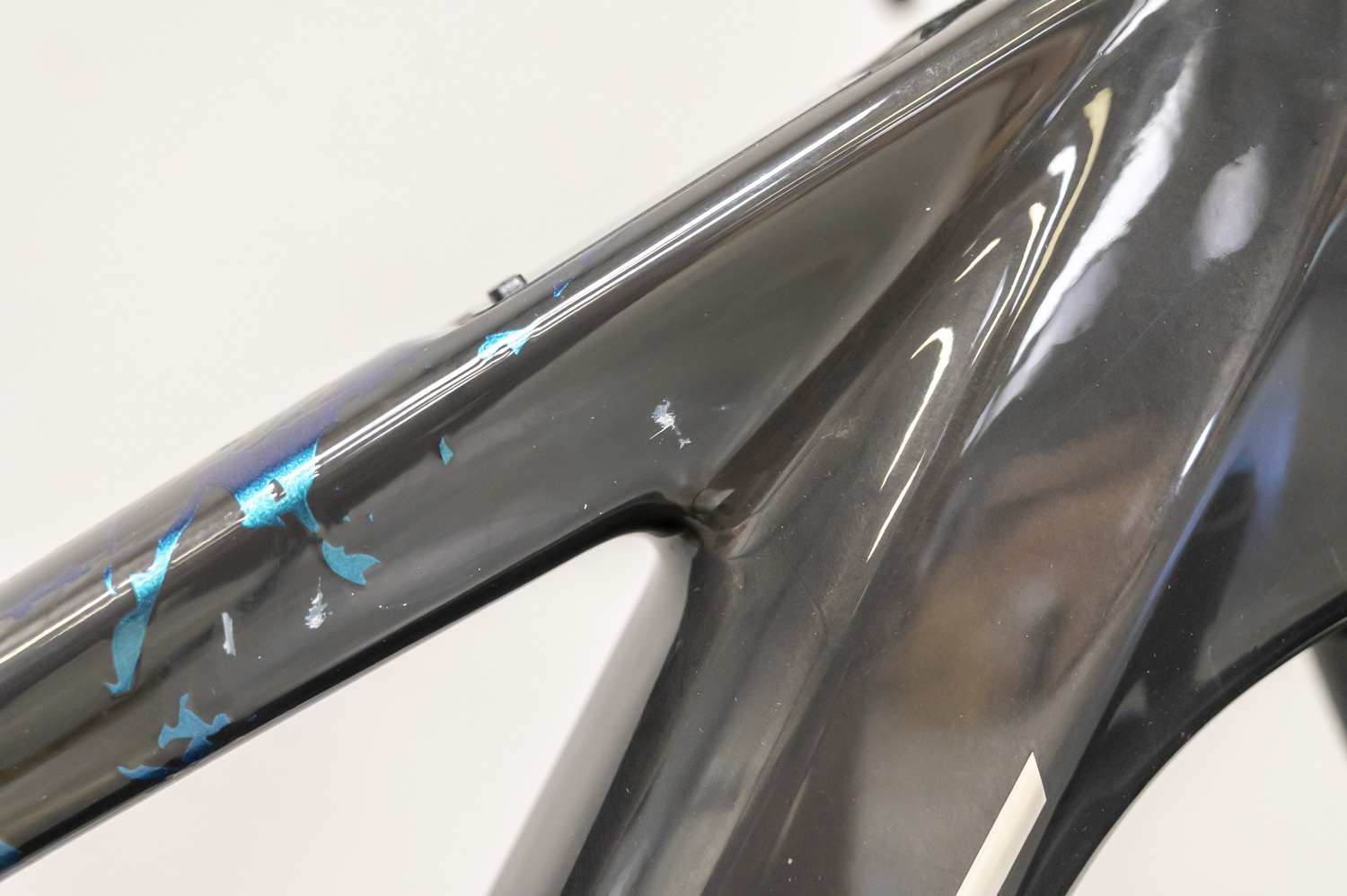

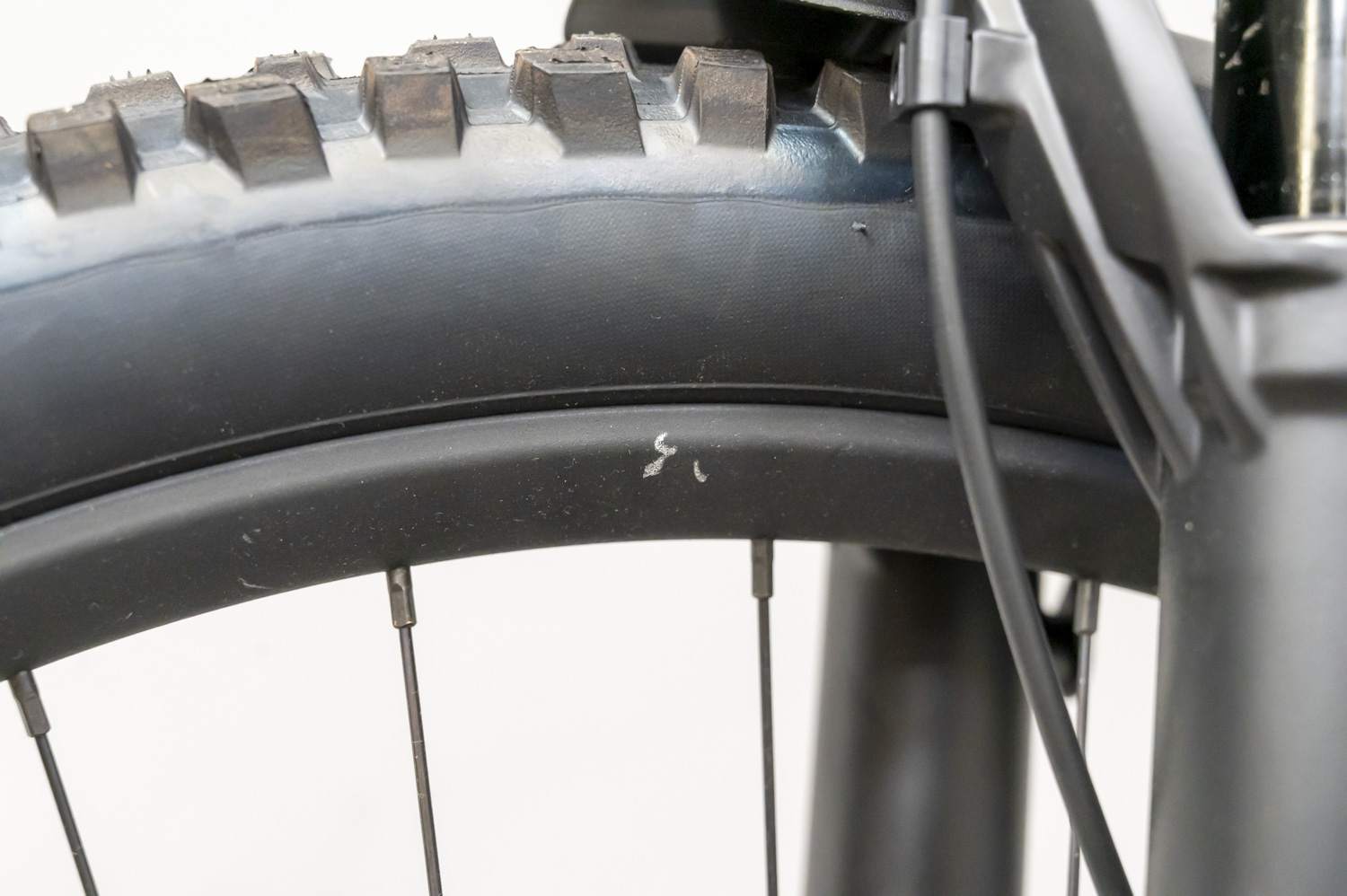

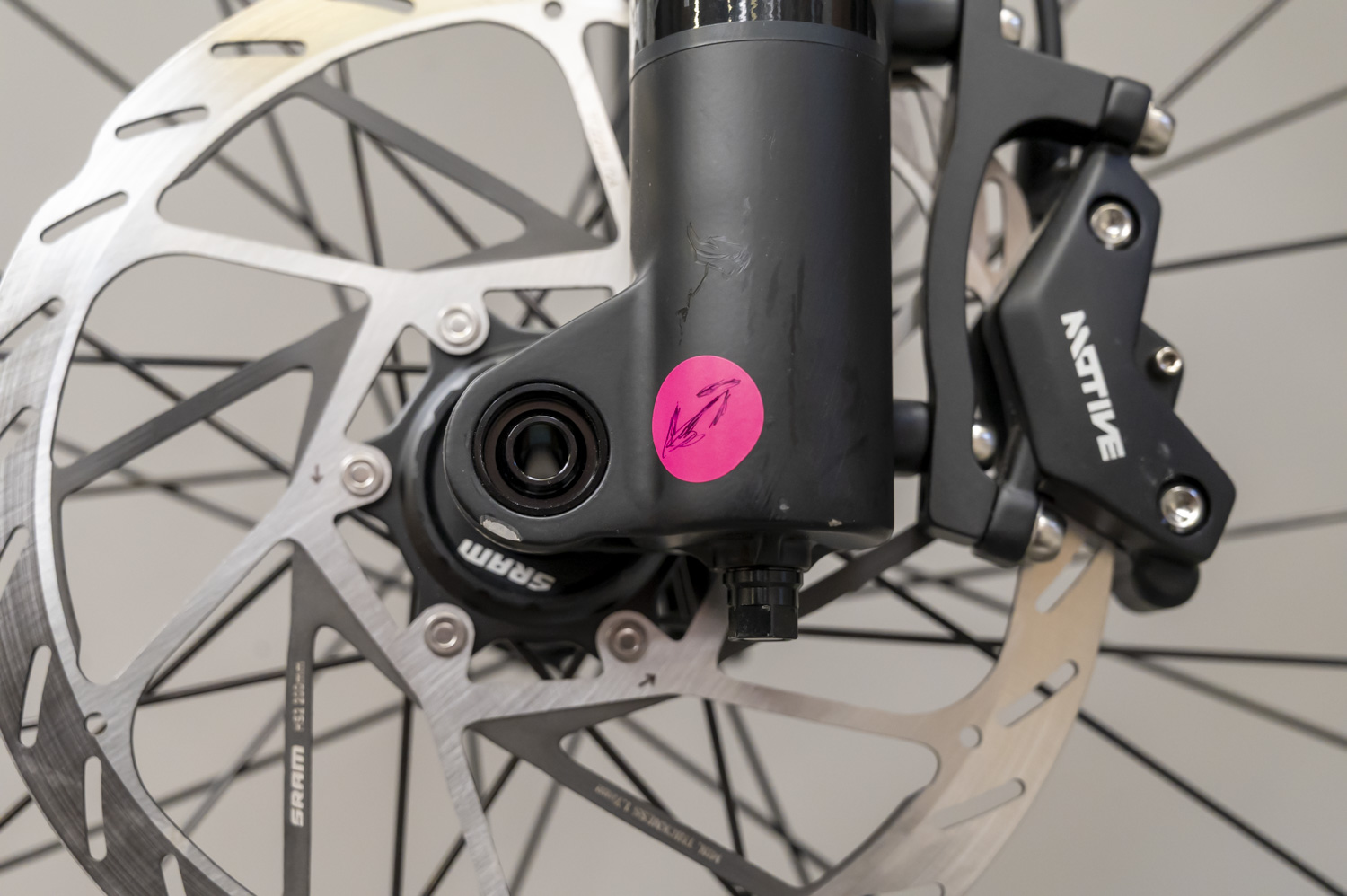

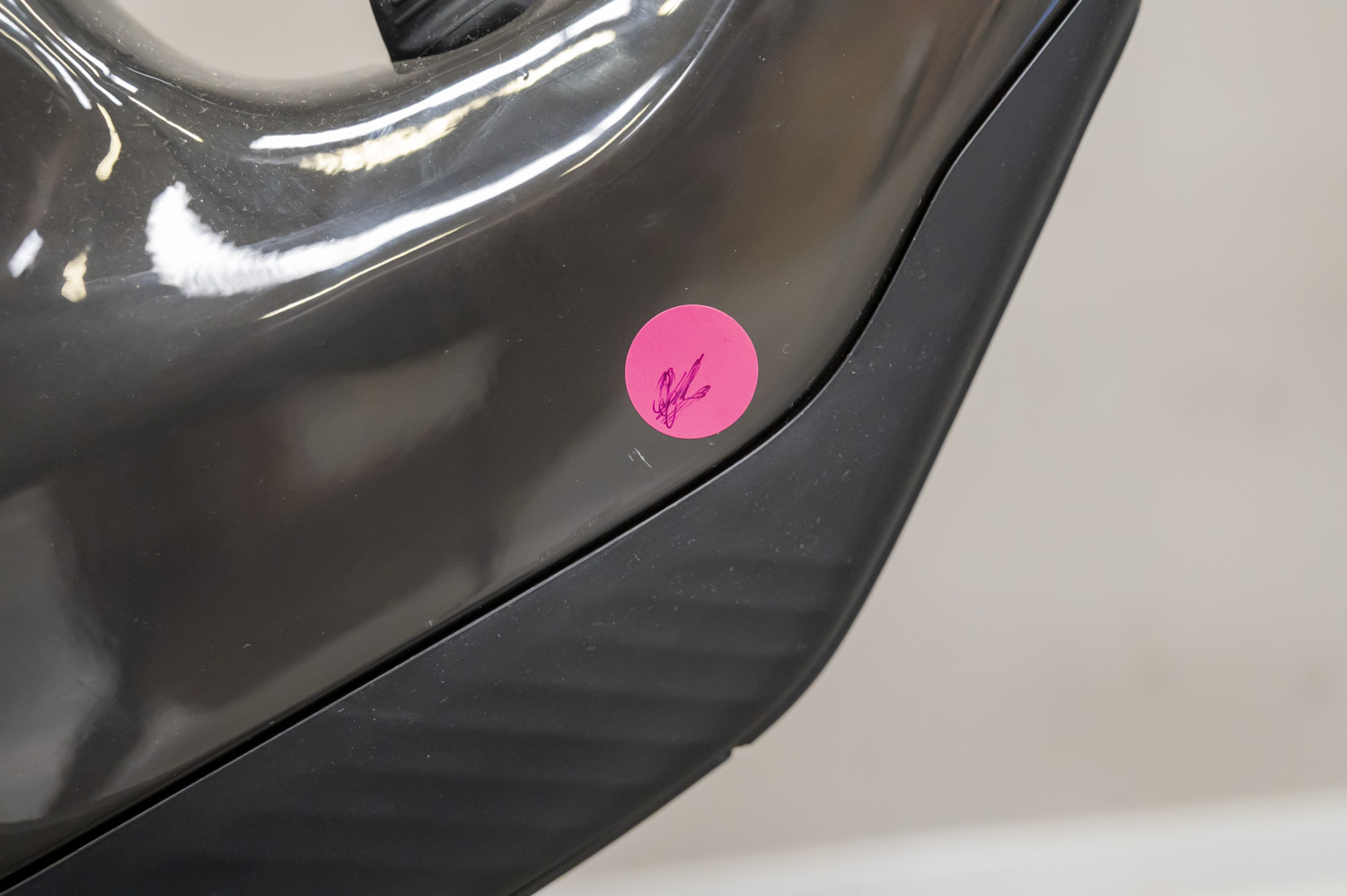

This Scott Voltage 910 Carbon Black is a returned item. The full-suspension e-bike shows slight signs of wear (including scratches on the suspension fork, wheels, crankset and frame) and was ridden for a test ride (a total of 1 km).
With the improved power and range of the Voltage 910 long-travel e-MTB, you can take your trail rides and shuttle runs to a whole new level – or better still, be your own shuttle. The Voltage 910’s new secret weapon is the redesigned TQ HPR60 motor unit, which delivers 60 Nm of torque to achieve a 20 per cent increase in power compared to the previous Voltage. No hairpin bend is too tight and no obstacle too challenging when you’re out riding this trail monster.
The full-carbon frame forms the basis for an uncompromising setup. The precise SRAM S1000 Eagle AXS 1x12-speed drivetrain, combined with powerful SRAM Maven Bronze Stealth 4-piston disc brakes, results in an e-MTB that redefines speed, control and riding enjoyment on every trail.
Features – Scott Voltage 910
- Voltage HMF full-carbon frame
- FOX 36 Float Rhythm suspension fork with 160 mm travel
- FOX Float X NUDE EVOL rear shock with 155 mm travel
- SRAM S1000 AXS electronic 1x12-speed drivetrain
- SRAM Maven hydraulic 4-piston disc brakes with 200 mm HS2 brake discs
- TQ HPR60 motor, 360 Wh battery (160 Wh range extender available as an option)
- Maxxis 29x2.5" tubeless-ready folding tyres
- Syncros Duncan Vario seatpost and Syncros Hixon 1.5 aluminium handlebars
Please note that pedals are not included!
Technologies
Easy access to the shock
On the Voltage, accessing the patented integrated shock is easier than ever. Simply press the button, remove the cover… and you’re done. From here, adjusting the rebound, air pressure and so on is just a push of a button away. When you’re finished, simply replace the cover until you hear a click, and you’re good to go.
External SAG indicator
Adjusting sag and checking travel has never been easier than with the Voltage. An external indicator on the link makes it easier for the rider to set sag and determine how much travel is being used.
Float X Nude suspension
The Voltage Tuned model features NUDE suspension technology with the FOX Float X NUDE shock, paired with a fork that offers greater adjustability. When you’re riding uphill to really enjoy the ride down, you want a shock that delivers full performance on the descent, but also one that doesn’t slow you down when you have to ride back up. That’s where the Float-X NUDE comes in.
TQ HPR60 motor
TQ is a German company founded in 1994 that specialises in electrical components for a range of industries. The latest generation of TQ’s Harmonic Pin Ring gearbox (HPR) – the HPR60 – offers an unrivalled weight-to-torque ratio of 60 Nm at 1,910 g. Thanks to TQ, the size of the drive unit can be reduced whilst simultaneously increasing the system’s precision. The result is a lighter bike, better integration and reduced kickback, creating a more natural pedalling feel. This technology also helps to reduce operating noise – for a truly pleasant and quiet riding experience. After all, you’re out in the great outdoors to enjoy it.
TQ HPR 360 Wh battery
The Voltage features an internal 360 Wh battery, which can be supplemented by an external 160 Wh range extender (optional). Thanks to TQ’s expertise in electronics, the HPR360 battery, in combination with the range extender, guarantees maximum performance throughout until it is fully discharged. TQ uses specialised battery cells to ensure that both the battery and the range extender continue to operate at full power, even when the battery reaches a low charge level. The system can be charged using the range extender and the smart charger, with the state of charge of the main battery being prioritised first, so you never lose connection whilst riding.
TQ HPR Range Extender (available as an option)
The Voltage features an internal 360 Wh battery, which can be supplemented by an external 160 Wh range extender. The range extender can be easily attached to the front bottle cage using the quick-release mounting system developed exclusively by SCOTT, and features a slim design and low weight, meaning it has minimal impact on the bike’s handling.
TQ HPR Display
To ensure a clear and uncluttered cockpit, the TQ system focuses on a minimalist color display on the top tube. Thanks to the integrated power metre, the display shows all key information at a glance, such as the battery level in %, the remaining range in kilometres and even wattage figures. The color version displays information more clearly on the screen. Want even more? Connect your smartphone and use the TQ e-bike app, available from the Apple or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customise your modes. Want to use it with a cycle computer? No problem there either. Thanks to built-in ANT+, the system connects seamlessly with cycle computers such as Garmin, Hammerhead or Wahoo.
Dual water bottle
Unlike most full-suspension e-bikes, with the Voltage you don’t have to choose between a range extender and a water bottle – in other words, between longer rides and staying hydrated. Thanks to the integrated shock absorber, there’s space for both an external battery and water. An optional slide-lock mounting system also allows you to switch easily between the seat-tube water bottle and the range extender, so that both can be carried with ease on longer rides.
Clearance
With the TQ motor, we can maintain a standard Q-factor with a 55 mm chainline. This opens up some interesting possibilities for us. Firstly, we can guarantee greater tyre clearance without compromising stiffness – which is essential for power transfer. Secondly, you have exactly the same riding position and pedal width as on a standard bike.
The Tech Behind the All-New Voltage eRIDE
- Manufacturer number: 4255903020008
- Model Year: 2026
Route du Crochet 11
1762 Givisiez
Switzerland
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact
Scott Voltage 910 Carbon Black (returned item)
This Scott Voltage 910 Carbon Black is a returned item. The full-suspension e-bike shows slight signs of wear (including scratches on the suspension fork, wheels, crankset and frame) and was ridden for a test ride (a total of 1 km).
With the improved power and range of the Voltage 910 long-travel e-MTB, you can take your trail rides and shuttle runs to a whole new level – or better still, be your own shuttle. The Voltage 910’s new secret weapon is the redesigned TQ HPR60 motor unit, which delivers 60 Nm of torque to achieve a 20 per cent increase in power compared to the previous Voltage. No hairpin bend is too tight and no obstacle too challenging when you’re out riding this trail monster.
The full-carbon frame forms the basis for an uncompromising setup. The precise SRAM S1000 Eagle AXS 1x12-speed drivetrain, combined with powerful SRAM Maven Bronze Stealth 4-piston disc brakes, results in an e-MTB that redefines speed, control and riding enjoyment on every trail.
Features – Scott Voltage 910
- Voltage HMF full-carbon frame
- FOX 36 Float Rhythm suspension fork with 160 mm travel
- FOX Float X NUDE EVOL rear shock with 155 mm travel
- SRAM S1000 AXS electronic 1x12-speed drivetrain
- SRAM Maven hydraulic 4-piston disc brakes with 200 mm HS2 brake discs
- TQ HPR60 motor, 360 Wh battery (160 Wh range extender available as an option)
- Maxxis 29x2.5" tubeless-ready folding tyres
- Syncros Duncan Vario seatpost and Syncros Hixon 1.5 aluminium handlebars
Please note that pedals are not included!
Technologies
Easy access to the shock
On the Voltage, accessing the patented integrated shock is easier than ever. Simply press the button, remove the cover… and you’re done. From here, adjusting the rebound, air pressure and so on is just a push of a button away. When you’re finished, simply replace the cover until you hear a click, and you’re good to go.
External SAG indicator
Adjusting sag and checking travel has never been easier than with the Voltage. An external indicator on the link makes it easier for the rider to set sag and determine how much travel is being used.
Float X Nude suspension
The Voltage Tuned model features NUDE suspension technology with the FOX Float X NUDE shock, paired with a fork that offers greater adjustability. When you’re riding uphill to really enjoy the ride down, you want a shock that delivers full performance on the descent, but also one that doesn’t slow you down when you have to ride back up. That’s where the Float-X NUDE comes in.
TQ HPR60 motor
TQ is a German company founded in 1994 that specialises in electrical components for a range of industries. The latest generation of TQ’s Harmonic Pin Ring gearbox (HPR) – the HPR60 – offers an unrivalled weight-to-torque ratio of 60 Nm at 1,910 g. Thanks to TQ, the size of the drive unit can be reduced whilst simultaneously increasing the system’s precision. The result is a lighter bike, better integration and reduced kickback, creating a more natural pedalling feel. This technology also helps to reduce operating noise – for a truly pleasant and quiet riding experience. After all, you’re out in the great outdoors to enjoy it.
TQ HPR 360 Wh battery
The Voltage features an internal 360 Wh battery, which can be supplemented by an external 160 Wh range extender (optional). Thanks to TQ’s expertise in electronics, the HPR360 battery, in combination with the range extender, guarantees maximum performance throughout until it is fully discharged. TQ uses specialised battery cells to ensure that both the battery and the range extender continue to operate at full power, even when the battery reaches a low charge level. The system can be charged using the range extender and the smart charger, with the state of charge of the main battery being prioritised first, so you never lose connection whilst riding.
TQ HPR Range Extender (available as an option)
The Voltage features an internal 360 Wh battery, which can be supplemented by an external 160 Wh range extender. The range extender can be easily attached to the front bottle cage using the quick-release mounting system developed exclusively by SCOTT, and features a slim design and low weight, meaning it has minimal impact on the bike’s handling.
TQ HPR Display
To ensure a clear and uncluttered cockpit, the TQ system focuses on a minimalist color display on the top tube. Thanks to the integrated power metre, the display shows all key information at a glance, such as the battery level in %, the remaining range in kilometres and even wattage figures. The color version displays information more clearly on the screen. Want even more? Connect your smartphone and use the TQ e-bike app, available from the Apple or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customise your modes. Want to use it with a cycle computer? No problem there either. Thanks to built-in ANT+, the system connects seamlessly with cycle computers such as Garmin, Hammerhead or Wahoo.
Dual water bottle
Unlike most full-suspension e-bikes, with the Voltage you don’t have to choose between a range extender and a water bottle – in other words, between longer rides and staying hydrated. Thanks to the integrated shock absorber, there’s space for both an external battery and water. An optional slide-lock mounting system also allows you to switch easily between the seat-tube water bottle and the range extender, so that both can be carried with ease on longer rides.
Clearance
With the TQ motor, we can maintain a standard Q-factor with a 55 mm chainline. This opens up some interesting possibilities for us. Firstly, we can guarantee greater tyre clearance without compromising stiffness – which is essential for power transfer. Secondly, you have exactly the same riding position and pedal width as on a standard bike.
The Tech Behind the All-New Voltage eRIDE
- Manufacturer number: 4255903020008
- Model Year: 2026
Route du Crochet 11
1762 Givisiez
Switzerland
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact
Configuration
| Frame: | Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline |
|---|---|
| Frame material: | Carbon |
| Wheel size: | 27.5"x2.4 |
| Speeds: | 1 × 12 |
| Colour: | carbon black |

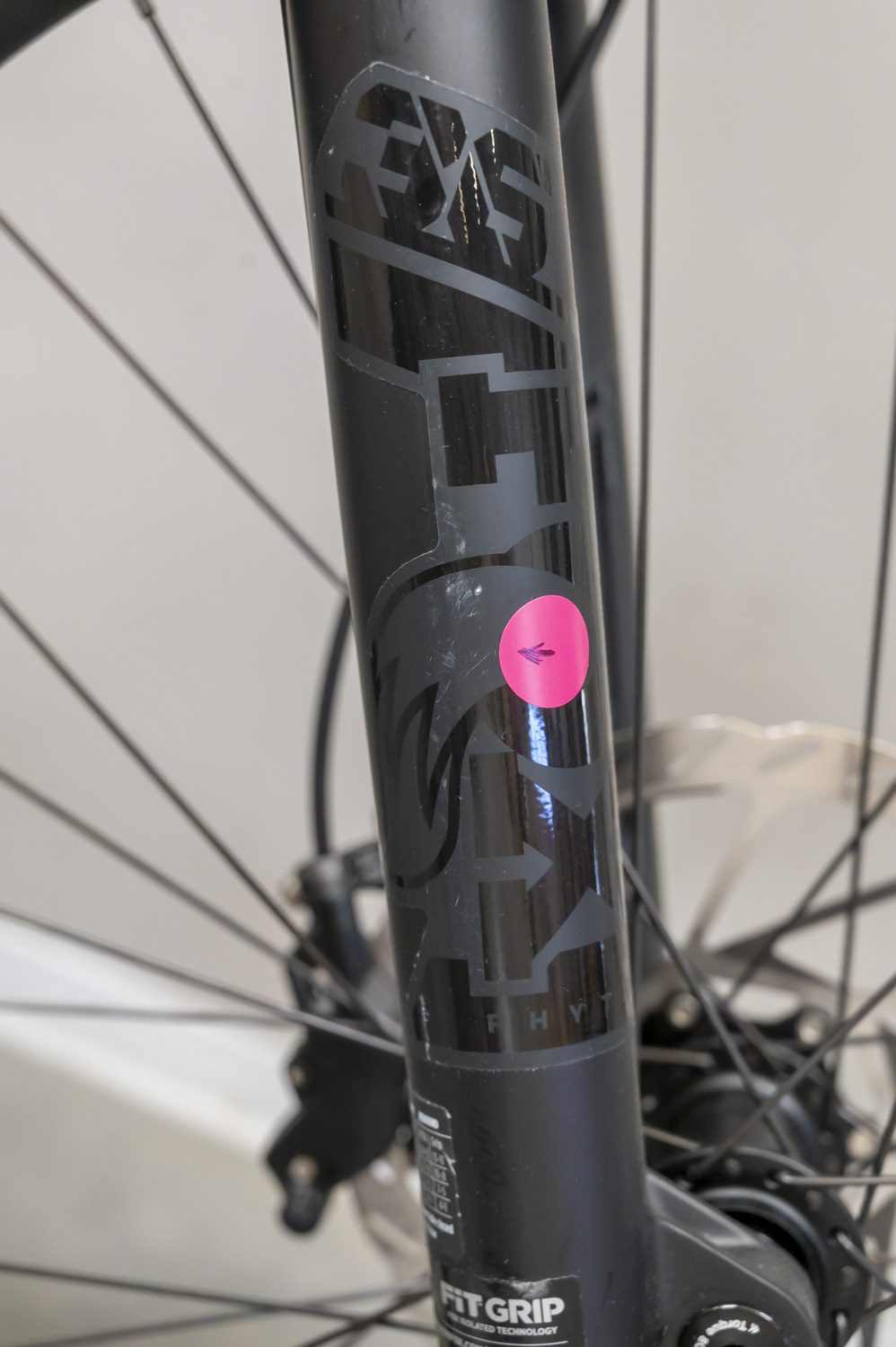

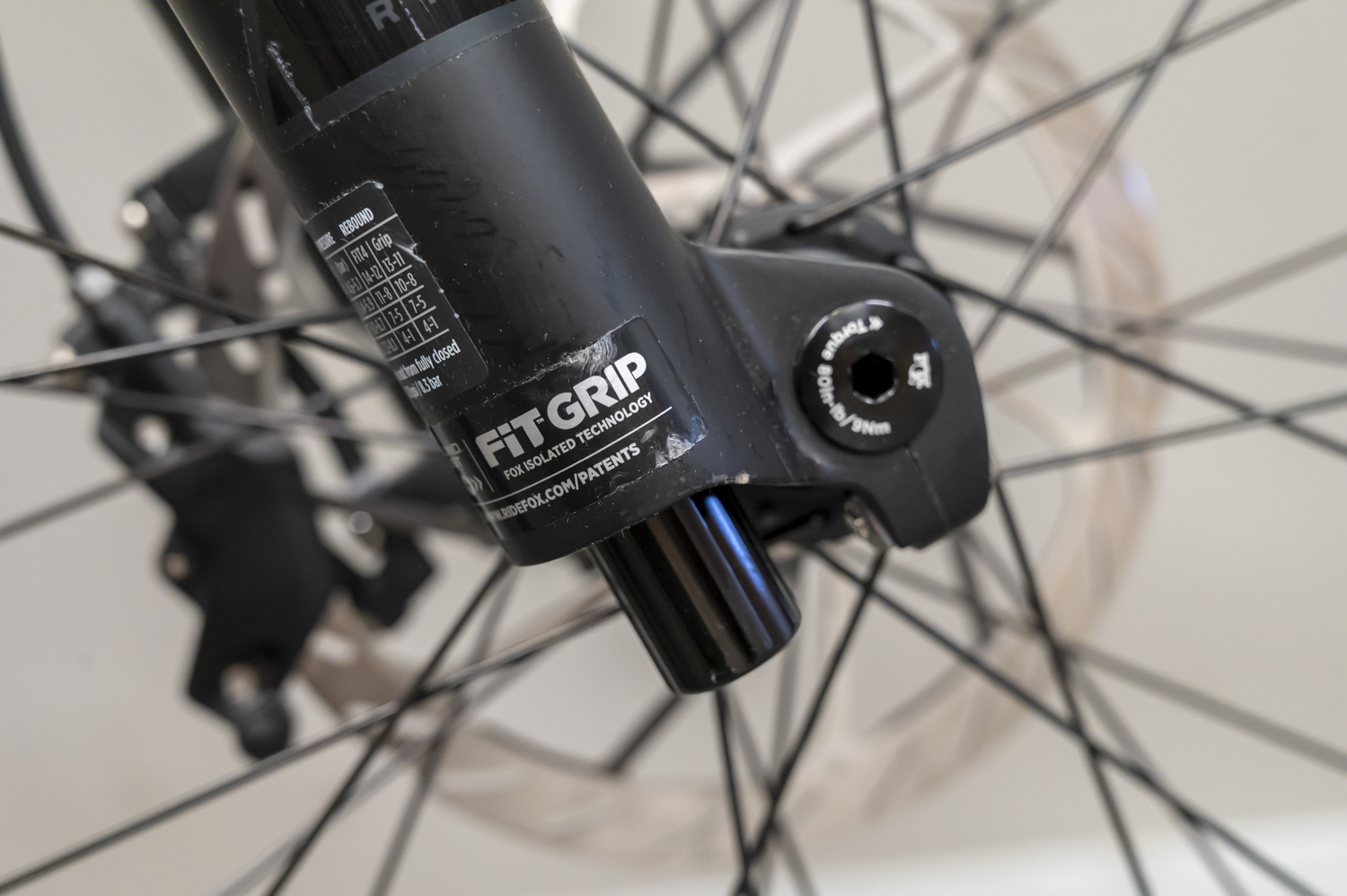

| Fork: | FOX 36 Rhythm Air Grip, Sweep Adj., 15x110mm QR axle, tapered steerer, 44mm offset, Reb. Adj., Lockout, 160mm travel |
| Rear Shock: | FOX FLOAT X NUDE EVOL Piggy Back Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Climb-Ramp Control-Descend Custom large Air volume, Comp & Reb. Adj. Travel 155-100-Climb, T185X55mm |
| Travel: | 160mm/ 155mm |
| Brakes: | SRAM Maven Bronze Stealth 4-Piston Disc |

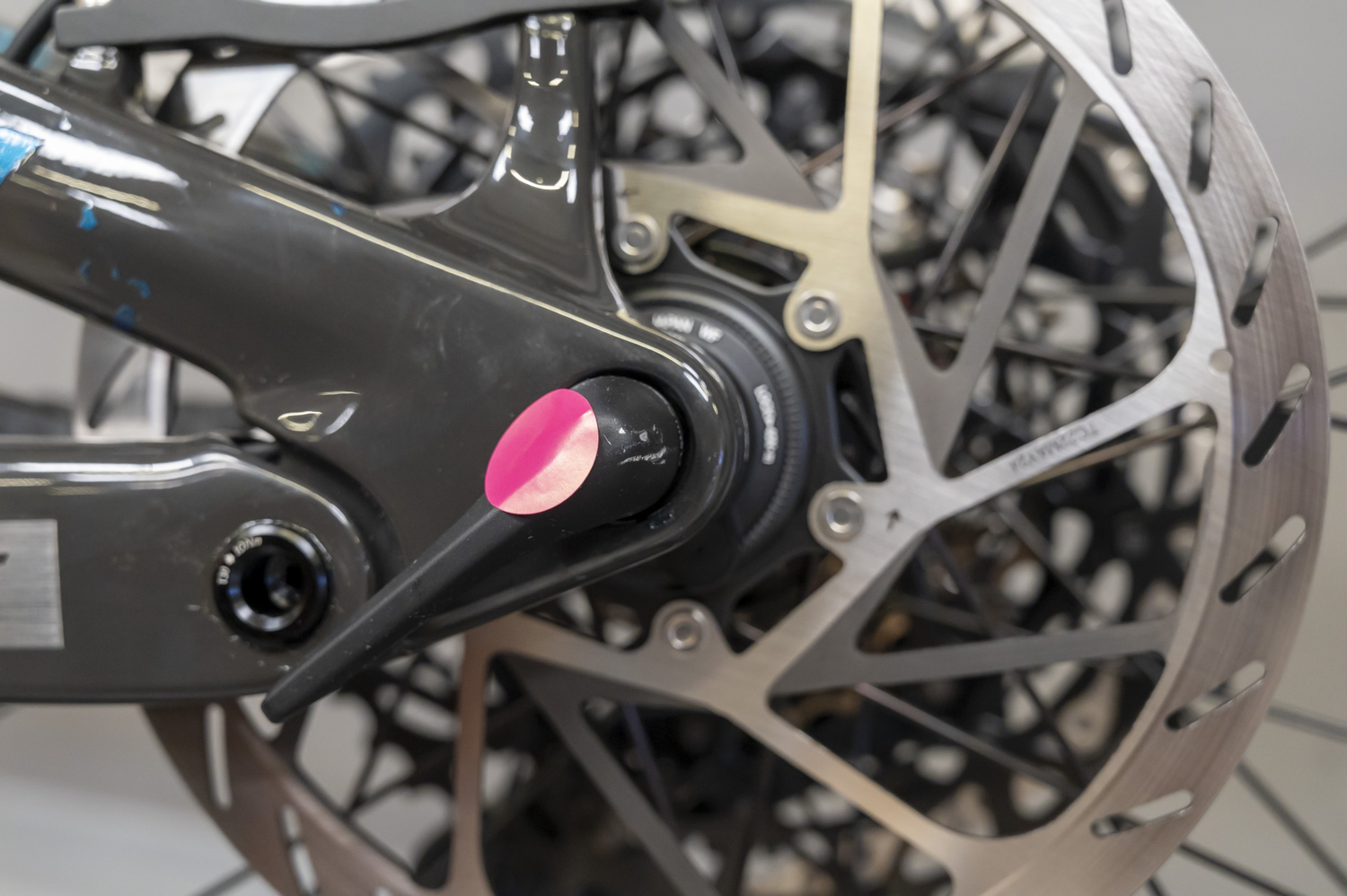

| Brake discs: | SRAM HS2 Rotors F&R 200mm |
| Headset: | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Stem: | Syncros AM 1.5, 4° rise, 7050 Alloy, 31.8mm, 1 1/8", Syncros Cable Integration System |
| Handlebar: | Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise, Size L & XL 25mm rise / back sweep 8° / 780mm |
| Saddle: | Syncros Tofino 1.5 Regular, Titanium rails |
| Seatpost: | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm, S size 140mm / M size 180mm / L & XL size 210mm |

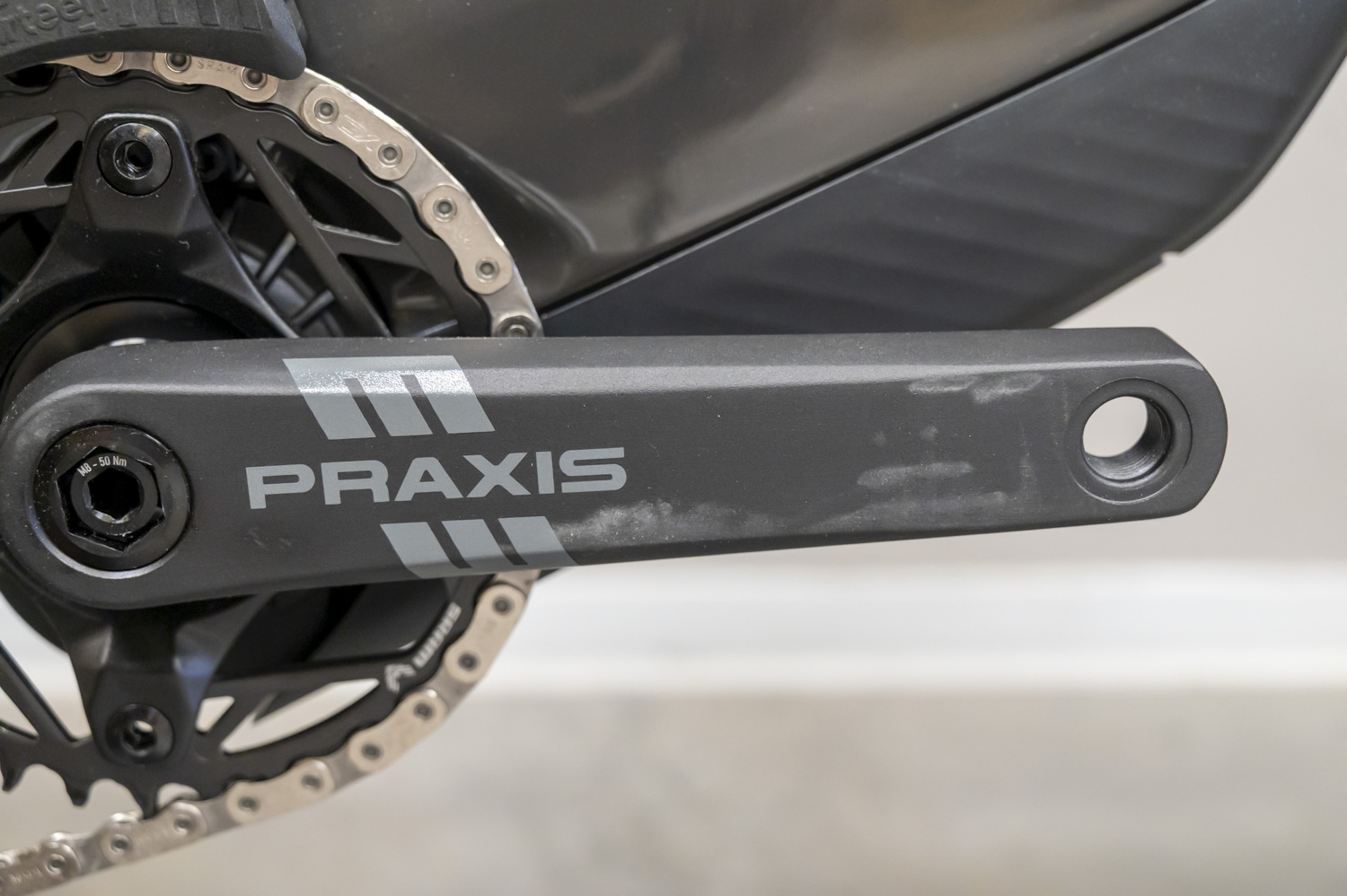

| Crankset: | Praxis Alloy with SRAM Eagle Transmission 34T chainring |

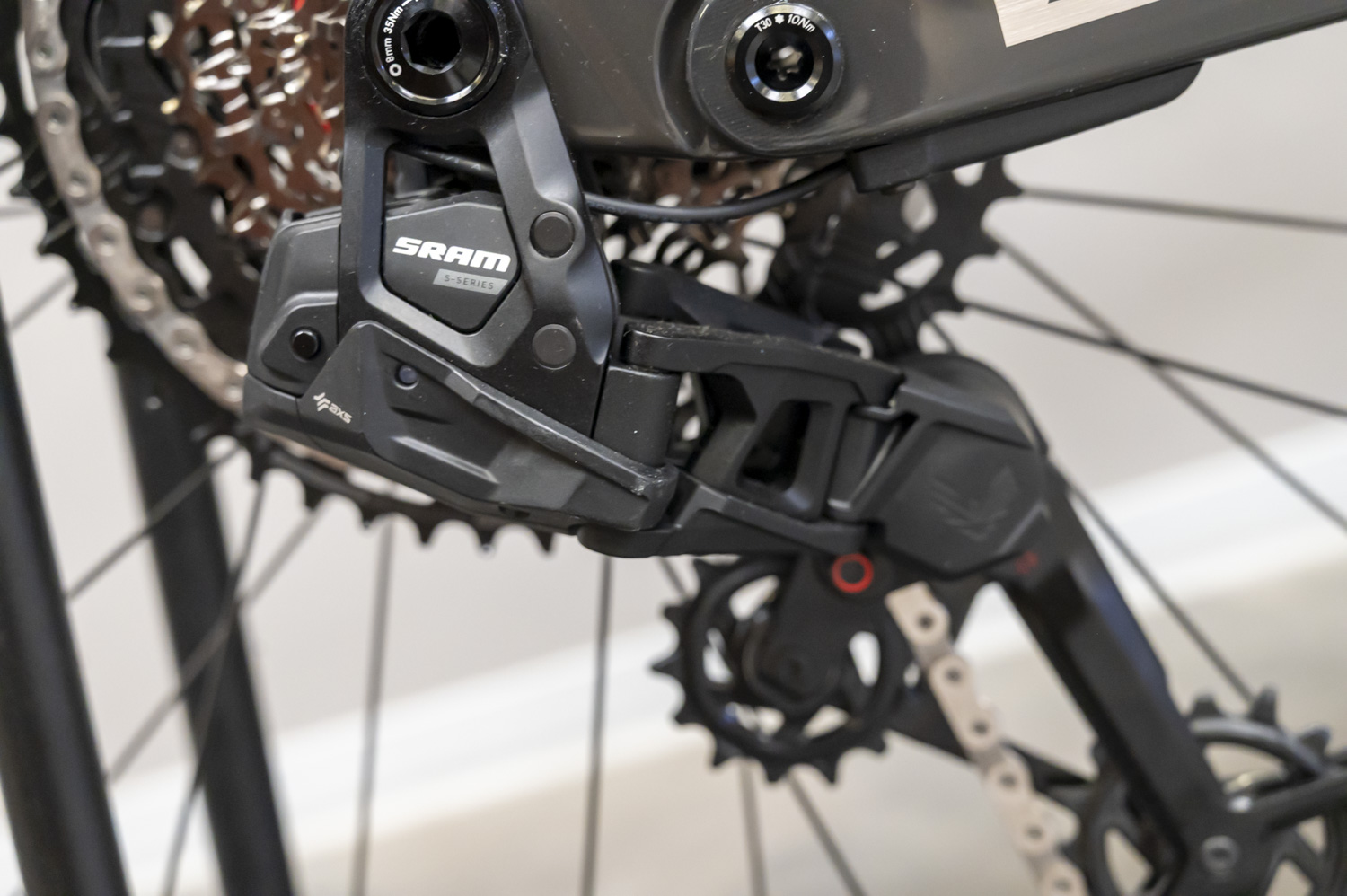

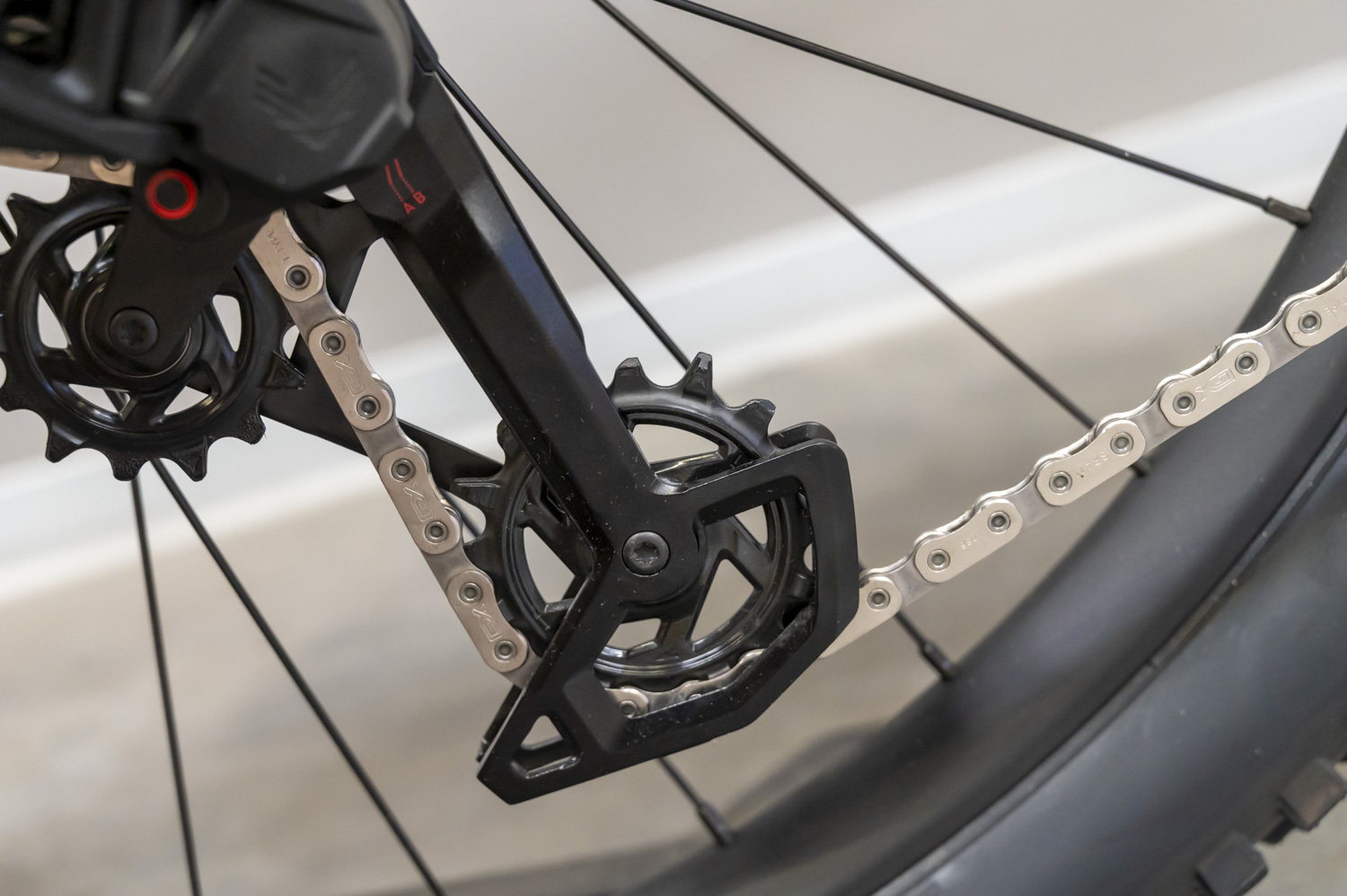

| Rear derailleur: | SRAM S1000 Eagle AXS Transmission 12-speed, Wireless Electronic Shift System |
| Gear shifters: | SRAM AXS Rocker Pod Controller |
| Chain guide: | e*thirteen / e*spec Slider |
|---|---|

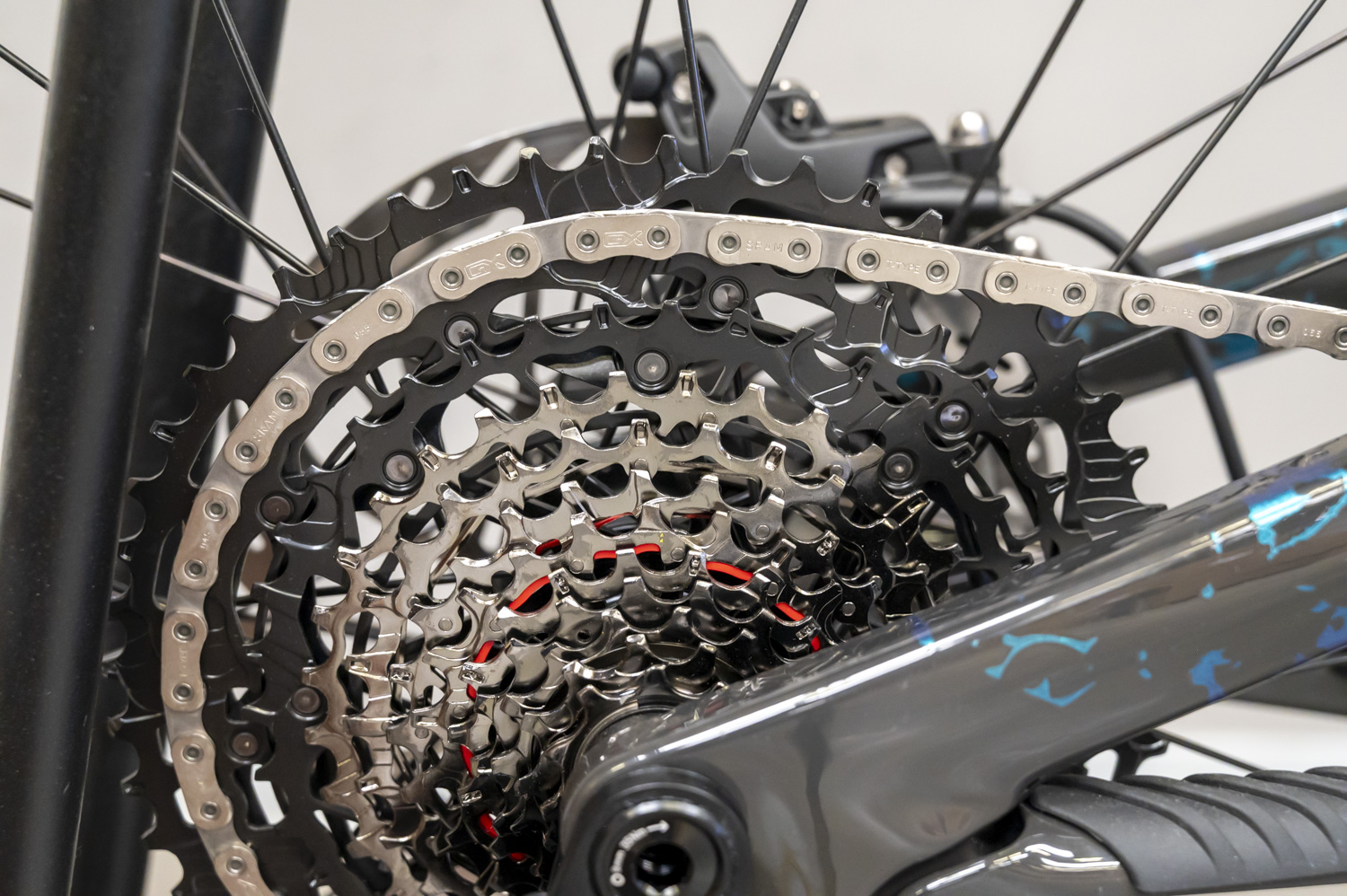

| Cassette: | SRAM Eagle XS 1270 Transmission 10-52T |
| Chain: | KMC X9 |
| Front tyre: | Maxxis Assegai, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Rear tyre: | Maxxis Dissector, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Front hub: | Formula CL-811, 15x110mm |
| Rear hub: | Formula CL-148S, 12x148mm |
| Spokes : | Stainless Black 15G, 1.8mm |
| Rims: | Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready |
| Display: | TQ HPR Color, Bluetooth / ANT+ / Dedicated Smartphone App |
| Battery: | TQ Internal 360Wh + TQ Range Extender 160Wh |
| Charger: | TQ 100-240V-4A |
| Engine: | TQ HPR60 Mid Motor drive 60Nm max Torque / EU: 25kmh |
| Pedals: | not included in the scope of delivery |
| Other details: | SRAM AXS Extension Cord |
| Maximum total weight allowed: | 130 kg (body weight + bicycle + equipment) |
| Weight: | starting from 19.9 kg |
The TQHPR60 e-bike system
The lightest, quietest and smallest e-bike system in its class. The perfect features for more uphill and downhill riding. The TQ-HPR60 brings bikes to life, letting you have more fun without having to compromise – Advanced, Naturally! TQ takes care of the technology so you can enjoy your ride!
At the heart of the system is the 1,910 g HPR60 drive unit, featuring patented Harmonic Pin-Ring technology. Combined with the 360 Wh battery, the fully integrated 2-inch display and the minimalist remote unit, this creates the lightest e-bike system in its class, weighing just 4,000 g in total. The entire system is designed to maximise your riding enjoyment without drawing attention to itself.
Technology for the most natural riding experience
The Harmonic Pin-Ring gearbox, or ‘HPR’ for short, is the result of TQ’s decades of experience in developing electric motors. A drive system used in robots, satellites and even Mars rovers. By further developing the patented Harmonic Pin-Ring technology, a drive gearbox has been designed that enables a seamlessly integrated, silent e-bike system.
Conventional mid-drive e-bike motors consist of an electric motor and a combination of gears and planetary gearboxes, which makes them bulky, heavy and noisy. At the same time, more moving parts also mean more things that can break and act as sources of noise.
Thanks to the revolutionary HPR gearbox, TQ is able to build a lightweight and extremely compact motor design around the bottom bracket, consisting of just a few individual parts and making the motor virtually invisible. By eliminating additional gears – which cause friction, noise, wear and potential sources of failure – the drive unit has been made even more efficient. The result is e-bikes that sound, look and ride just like conventional bikes – and are ultimately better! It’s technology you can feel. It’s Advanced, Naturally!
TQ HPR Display
To ensure a clear and uncluttered cockpit, the TQ system focuses on a minimalist color display on the top tube. Thanks to the integrated power metre, the display shows all key information at a glance, such as the battery level in %, the remaining range in kilometres and even wattage figures. The color version displays information more clearly on the screen. Want even more? Connect your smartphone and use the TQ E-Bike app, available from the Apple or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customise your modes. Want to use it with a cycle computer? No problem there either. Thanks to built-in ANT+, the system connects seamlessly with cycle computers such as Garmin, Hammerhead or Wahoo.
Remote
With the handy REMOTE, you have full control over the HPR50 system without having to take your hands off the handlebars. It’s intuitive and easy to use, and you can switch between three assistance modes as well as the information displayed. Should the going get particularly steep, Walk Mode will support you over the final metres to the summit.
Battery
The BATTERY, with a capacity of 360 Wh, was specially developed for the HPR50 Drive Unit and combines maximum efficiency with a compact design. Thanks to its low weight of just 1,830 g, the dynamics and appearance of a conventional bicycle are retained.
Range Extender (available as an optional extra)
About the size of a 500 ml water bottle, the 900 g RANGE EXTENDER fits elegantly into the frame of your e-bike and fits into any standard bottle cage. Thanks to the Dual Charge Port, it can be charged alongside the battery without having to be removed from the frame first. With a capacity of 160 Wh, it has enough power to turn your after-work laps into epic all-day rides.
Geometry
