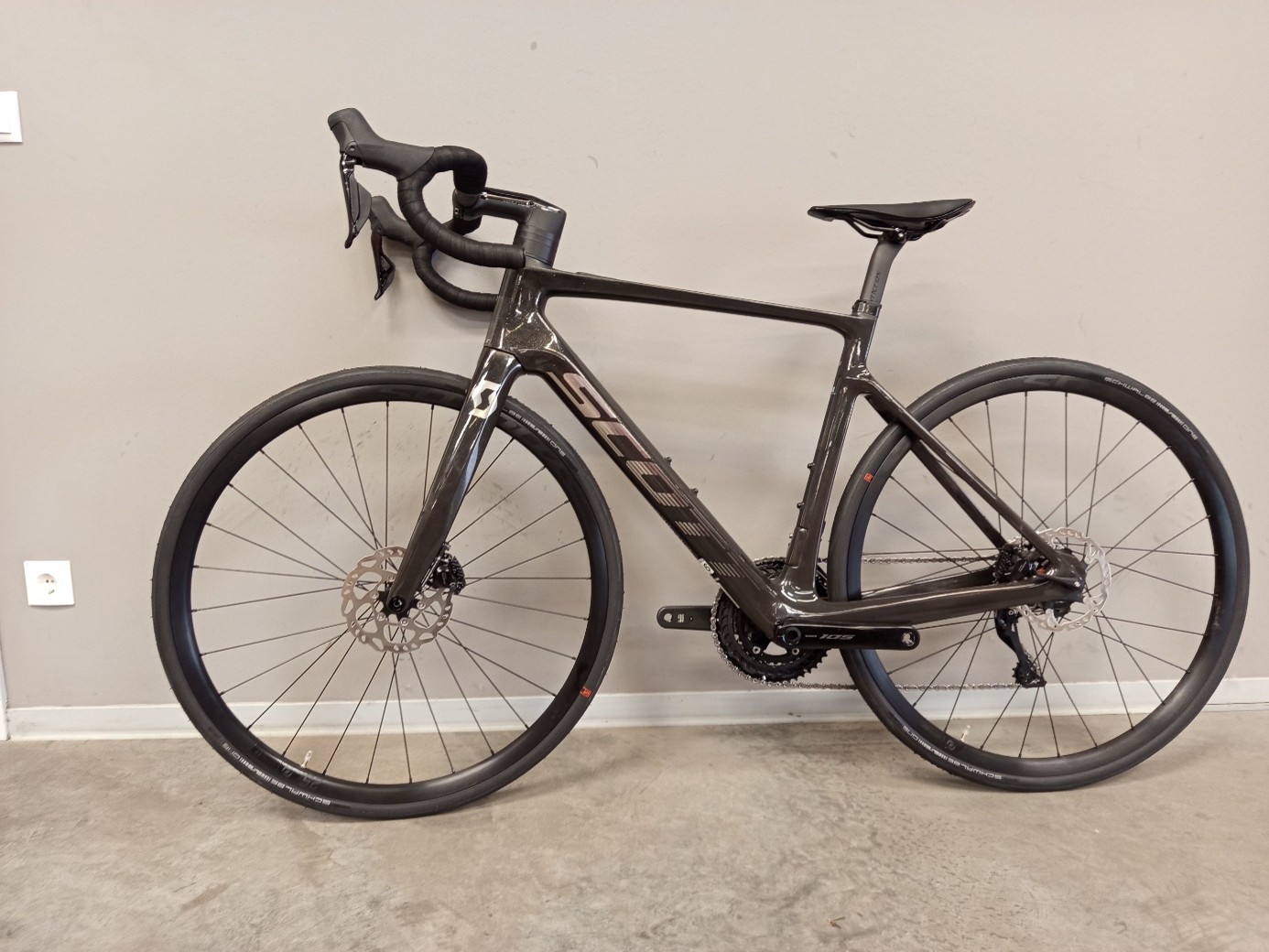

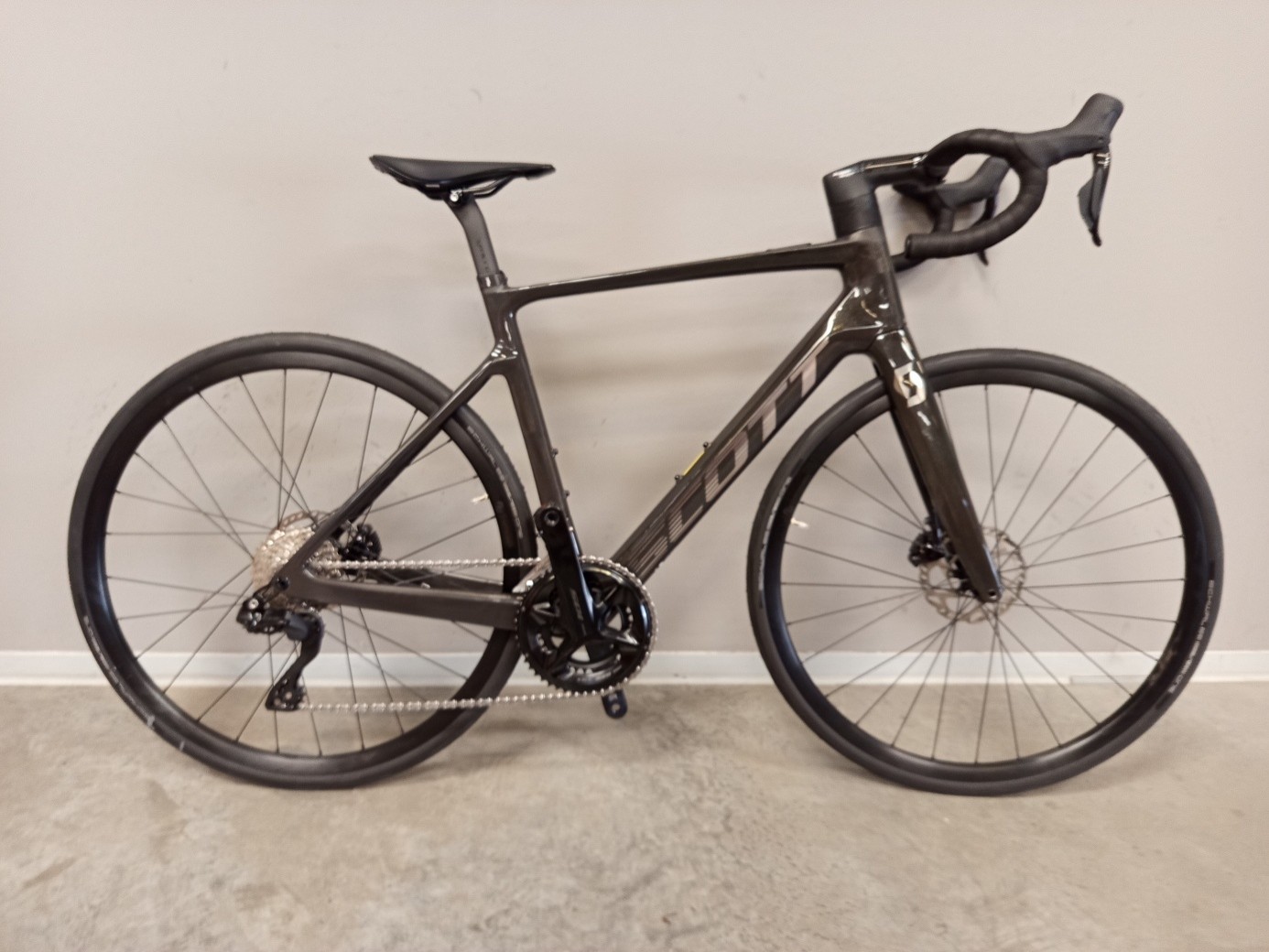

Scott Addict RC eRIDE 20 (returned item)
Product information "Addict RC eRIDE 20 (returned item)"
Bei diesem Addict RC eRIDE 20 von Scott handelt es sich um Neuware mit Lackfehlern. Das Road E-Bike weist minimale Gebrauchsspuren (Kratzer Stargabel) auf und wurde lediglich im Rahmen der Probefahrt (insgesamt 82 km) bewegt.
When Scott decided to develop an Addict eRIDE, they didn't do it to simplify everything. No, you wanted to make things even more challenging. Higher, longer and steeper climbs were the goal. So that you leave the house even earlier and come home even later. Light, powerful and just as reliable as its World Tour brother. The Addict eRIDE is a real revelation in the world of cycling. Available with range booster. Equipped with a Mahle hub motor with 55 Nm torque, a 236 Wh battery and the reliable 105 Di2 electronic shifting system from Shimano.
Features - Scott Addict eRIDE 20
- Addict RC Disc HMX carbon frame
- Addict eRIDE HMX carbon fork
- Shimano 105 Di2 24 gears
- Mahle hub drive motor with max. 55 Nm torque and 236 Wh battery (407 Wh in total with the optional Mahle Range Extender E185)
- Syncros Capital 2.0 25e Disc wheelset
- Schwalbe One 30 mm tires
- Syncros components made from carbon/aluminum
Please note that no pedals are included in the scope of delivery!
Technologies
EVO-LAP technology
When manufacturing a Scott frame, the right choice of materials is crucial - 80% of the work is done. But the remaining 20% requires the greatest precision. That's why Scott uses the highest quality carbon fibers on the market and combines them with specific processes such as FEA (Finite Element Analysis) software to optimally map the carbon layer structure.
With FEA, Scott can simulate various forces on a virtual frame model and adapt the design accordingly. This software enables the creation of complete virtual prototypes that take into account all physical phenomena from the real environment.
Thanks to EvoLap technology, Scott models the frame to optimize the surface area. Tube shapes are simulated using differently oriented carbon layers, the load distribution in different areas is tested and the results of different configurations are analyzed.
The extensive computer modelling has enabled Scott to optimize the carbon layers in all parts of the frame. Assembling the first prototypes resulted in a super light and compact frame, without sacrificing stiffness, comfort or impact resistance. The entire range benefits from EvoLap technology.
Mahle X20 drive unit
The Mahle X20 motor is silent and completely resistance-free. The technology behind it uses a special assistance system for road bikes, which not only ensures a natural riding experience when the rider exceeds 25 km/h and the assistance is switched off, but also when it is switched on again. The transition is smooth, it doesn't jerk and there is no unnatural boost in between - it's subtle and light. What's more, thanks to the torque and cadence sensor in the bottom bracket, it also learns from your riding style and adapts its responses and support to you. The Mahle X20 system is one of the lightest on the market with a total weight of 3.2 kg and a maximum torque of 55 Nm.
Mahle IX250
The Addict eRIDE has a 236 Wh battery that is inconspicuously placed in the down tube. The battery has intelligent technology with the function that the battery can be charged to 80% of its full capacity in less than two hours. The battery gives the bike a sleek look and is not too bulky, keeping it light and closer to an acoustic bike.
Mahle HMI control
The Mahle HMI controller is discreetly built into the top tube. The remote control is minimalist and simple, but provides all the data you need while riding. With just one glance, you get an overview of the battery status, support mode, warnings and notifications. With the controller, you can easily switch the drive unit on and off and switch between support modes.
My Smartbike app
The Mahle My SmartBike app keeps you up to date with everything concerning your bike. You can easily track your ride, perform system updates within minutes and view the status of your bike. Here you can also adjust the motor and enter how you like the support and pedal response. It can be easily integrated with recorded Strava activities, which can be viewed in the app.
Support modes
The X20 system from Mahle offers four riding modes: ECO, Mid-Power, Turbo and Smart-Assist. Smart-Assist mode responds to the rider and adjusts the assistance according to weight, power and the way the terrain changes during the ride. With Smart Assist mode, the driver does not have to adjust the driving mode, but the system adapts the modes to the terrain.
Mahle Range Extender
The Addict RC eRIDE is compatible with a range extender, which provides an additional 171 Wh and a total output of 407 Wh. The range extender comes in the design of a simple water bottle. Connecting it to the system is as simple as sliding a bottle into the water bottle cage and the system automatically adjusts to the two power sources.
Please note that this bike must be registered in the Mahle "My SmartBike" app to unleash its full potential.
Shimano 105 Di2
- Model Year: 2024
Route du Crochet 11
1762 Givisiez
Switzerland
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact
Scott Addict RC eRIDE 20 (returned item)
Bei diesem Addict RC eRIDE 20 von Scott handelt es sich um Neuware mit Lackfehlern. Das Road E-Bike weist minimale Gebrauchsspuren (Kratzer Stargabel) auf und wurde lediglich im Rahmen der Probefahrt (insgesamt 82 km) bewegt.
When Scott decided to develop an Addict eRIDE, they didn't do it to simplify everything. No, you wanted to make things even more challenging. Higher, longer and steeper climbs were the goal. So that you leave the house even earlier and come home even later. Light, powerful and just as reliable as its World Tour brother. The Addict eRIDE is a real revelation in the world of cycling. Available with range booster. Equipped with a Mahle hub motor with 55 Nm torque, a 236 Wh battery and the reliable 105 Di2 electronic shifting system from Shimano.
Features - Scott Addict eRIDE 20
- Addict RC Disc HMX carbon frame
- Addict eRIDE HMX carbon fork
- Shimano 105 Di2 24 gears
- Mahle hub drive motor with max. 55 Nm torque and 236 Wh battery (407 Wh in total with the optional Mahle Range Extender E185)
- Syncros Capital 2.0 25e Disc wheelset
- Schwalbe One 30 mm tires
- Syncros components made from carbon/aluminum
Please note that no pedals are included in the scope of delivery!
Technologies
EVO-LAP technology
When manufacturing a Scott frame, the right choice of materials is crucial - 80% of the work is done. But the remaining 20% requires the greatest precision. That's why Scott uses the highest quality carbon fibers on the market and combines them with specific processes such as FEA (Finite Element Analysis) software to optimally map the carbon layer structure.
With FEA, Scott can simulate various forces on a virtual frame model and adapt the design accordingly. This software enables the creation of complete virtual prototypes that take into account all physical phenomena from the real environment.
Thanks to EvoLap technology, Scott models the frame to optimize the surface area. Tube shapes are simulated using differently oriented carbon layers, the load distribution in different areas is tested and the results of different configurations are analyzed.
The extensive computer modelling has enabled Scott to optimize the carbon layers in all parts of the frame. Assembling the first prototypes resulted in a super light and compact frame, without sacrificing stiffness, comfort or impact resistance. The entire range benefits from EvoLap technology.
Mahle X20 drive unit
The Mahle X20 motor is silent and completely resistance-free. The technology behind it uses a special assistance system for road bikes, which not only ensures a natural riding experience when the rider exceeds 25 km/h and the assistance is switched off, but also when it is switched on again. The transition is smooth, it doesn't jerk and there is no unnatural boost in between - it's subtle and light. What's more, thanks to the torque and cadence sensor in the bottom bracket, it also learns from your riding style and adapts its responses and support to you. The Mahle X20 system is one of the lightest on the market with a total weight of 3.2 kg and a maximum torque of 55 Nm.
Mahle IX250
The Addict eRIDE has a 236 Wh battery that is inconspicuously placed in the down tube. The battery has intelligent technology with the function that the battery can be charged to 80% of its full capacity in less than two hours. The battery gives the bike a sleek look and is not too bulky, keeping it light and closer to an acoustic bike.
Mahle HMI control
The Mahle HMI controller is discreetly built into the top tube. The remote control is minimalist and simple, but provides all the data you need while riding. With just one glance, you get an overview of the battery status, support mode, warnings and notifications. With the controller, you can easily switch the drive unit on and off and switch between support modes.
My Smartbike app
The Mahle My SmartBike app keeps you up to date with everything concerning your bike. You can easily track your ride, perform system updates within minutes and view the status of your bike. Here you can also adjust the motor and enter how you like the support and pedal response. It can be easily integrated with recorded Strava activities, which can be viewed in the app.
Support modes
The X20 system from Mahle offers four riding modes: ECO, Mid-Power, Turbo and Smart-Assist. Smart-Assist mode responds to the rider and adjusts the assistance according to weight, power and the way the terrain changes during the ride. With Smart Assist mode, the driver does not have to adjust the driving mode, but the system adapts the modes to the terrain.
Mahle Range Extender
The Addict RC eRIDE is compatible with a range extender, which provides an additional 171 Wh and a total output of 407 Wh. The range extender comes in the design of a simple water bottle. Connecting it to the system is as simple as sliding a bottle into the water bottle cage and the system automatically adjusts to the two power sources.
Please note that this bike must be registered in the Mahle "My SmartBike" app to unleash its full potential.
Shimano 105 Di2
- Model Year: 2024
Route du Crochet 11
1762 Givisiez
Switzerland
P.E.D. Zone C1 Rue du Kiell 60
6790 Aubange
Belgium
www.scott-sports.com/contact
Configuration
| Frame: | Addict eRIDE Disc HMX Endurance geometry / Replaceable Derailleur Hanger Fully Internal cable routing Range Extender Ready |
|---|---|
| Frame material: | Carbon |
| Wheel size: | 28" |
| Speeds: | 2 x 12 |
| Colour: | raw carbon / yellow flakes / chrome silver |
| Fork: | Addict eRIDE HMX Flatmount Disc 1 1/4"-1 1/2" Excentric Carbon steerer |

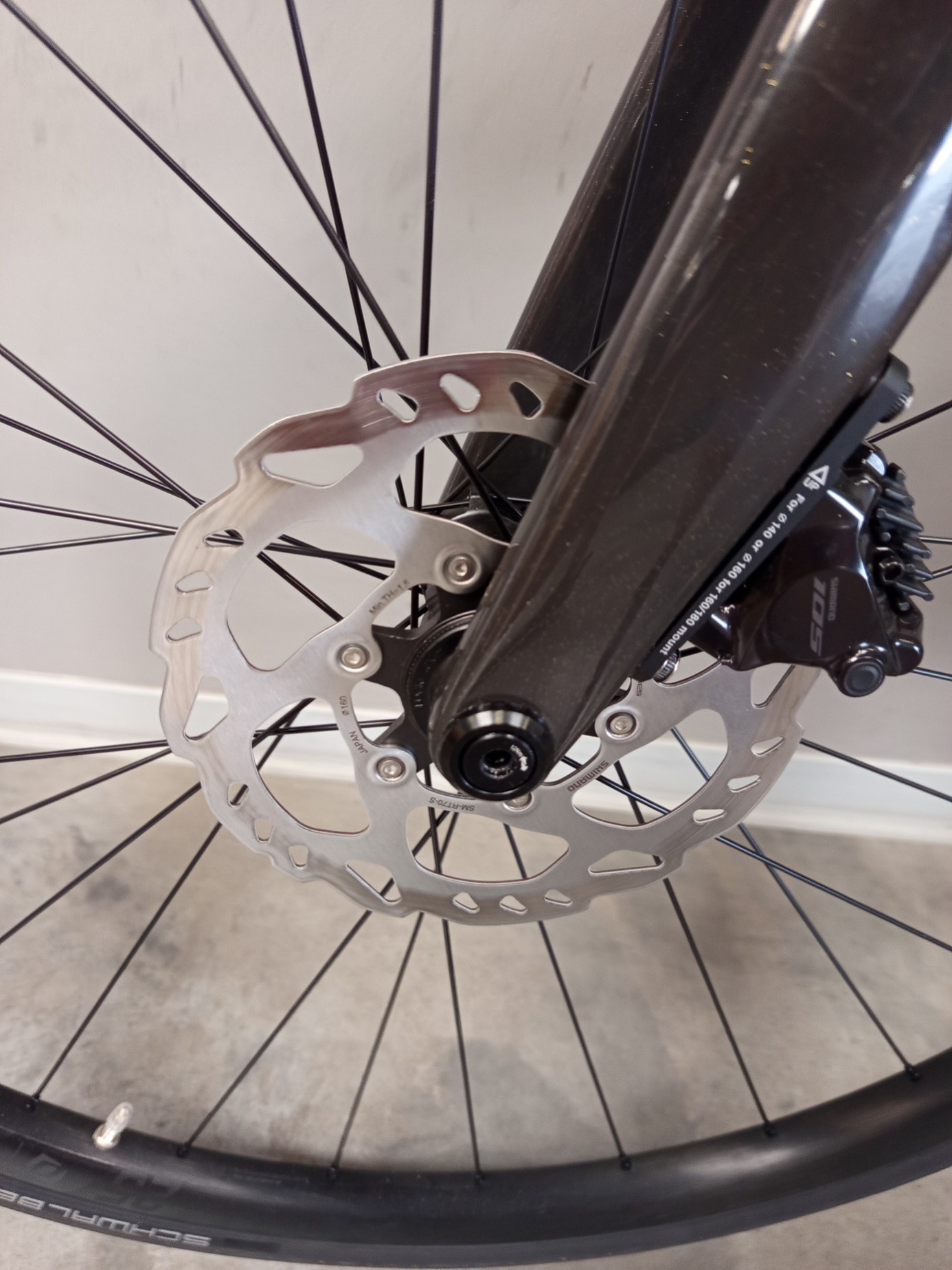

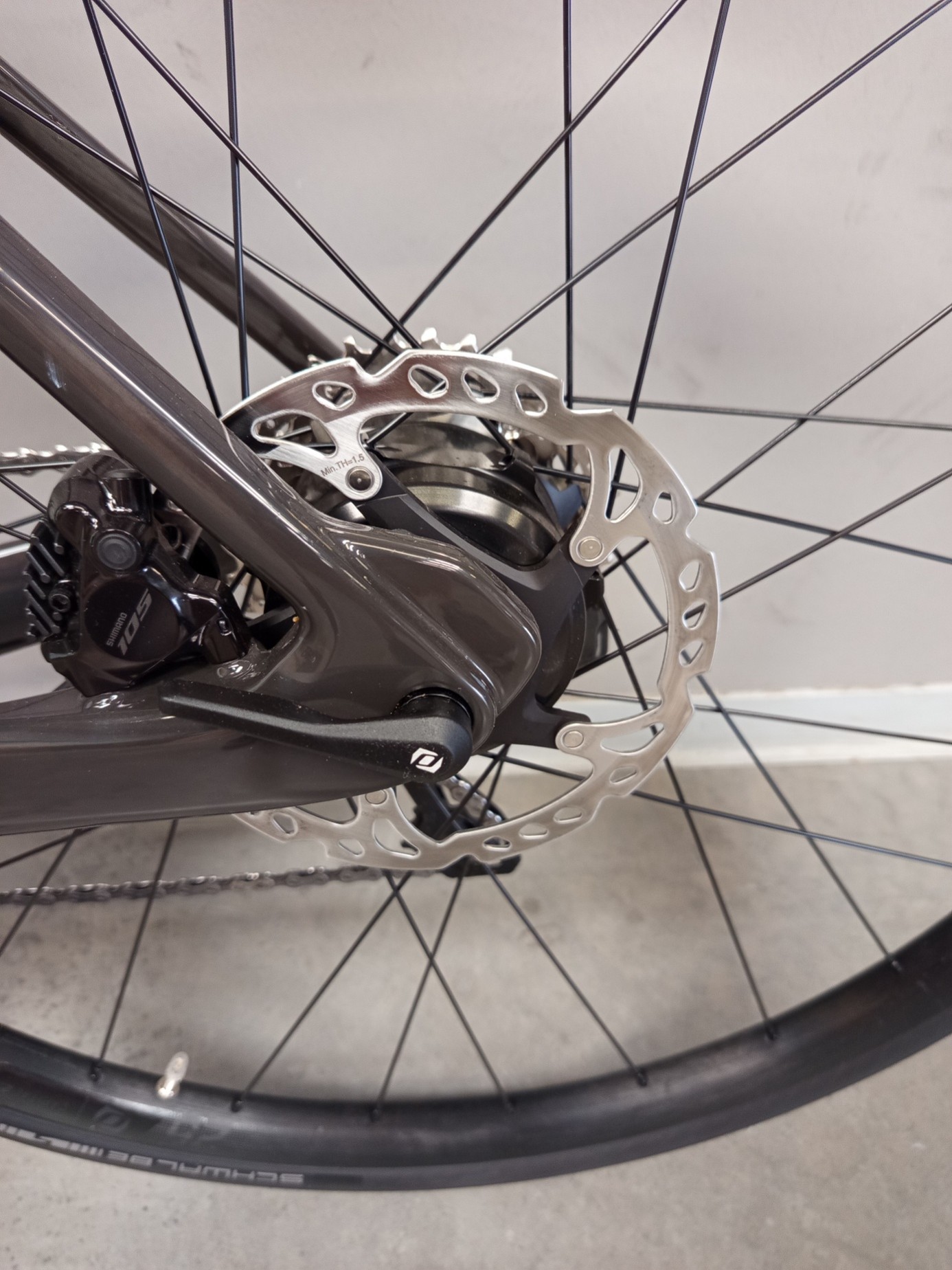

| Brakes: | Shimano BR-R7170 Hyd.Discn flatmount |
| Brake discs: | 160/F SM-RT70 CL and 160/R SM-RT76 6B |
| Brake levers: | Shimano 105 Di2 ST-R7170 |
| Headset: | Syncros Addict RC Integrated |
| Stem: | Syncros RR 1 5 iC 1 1/4": 90mm; S/52: 100mm; M/54: 110mm; L/56: 120mm; XL/58: 120mm |
| Handlebar: | Syncros Creston 2.0 Compact Alloy |
| Saddle: | Syncros Belcarra Regular 2.0 |
| Seatpost: | Syncros Duncan 1.0 D-Shape |
| Crankset: | Shimano 105 FC-R7100 Hollowtech II 50x34 |
| Bottom bracket: | Mahle Torque sensor |
|---|---|

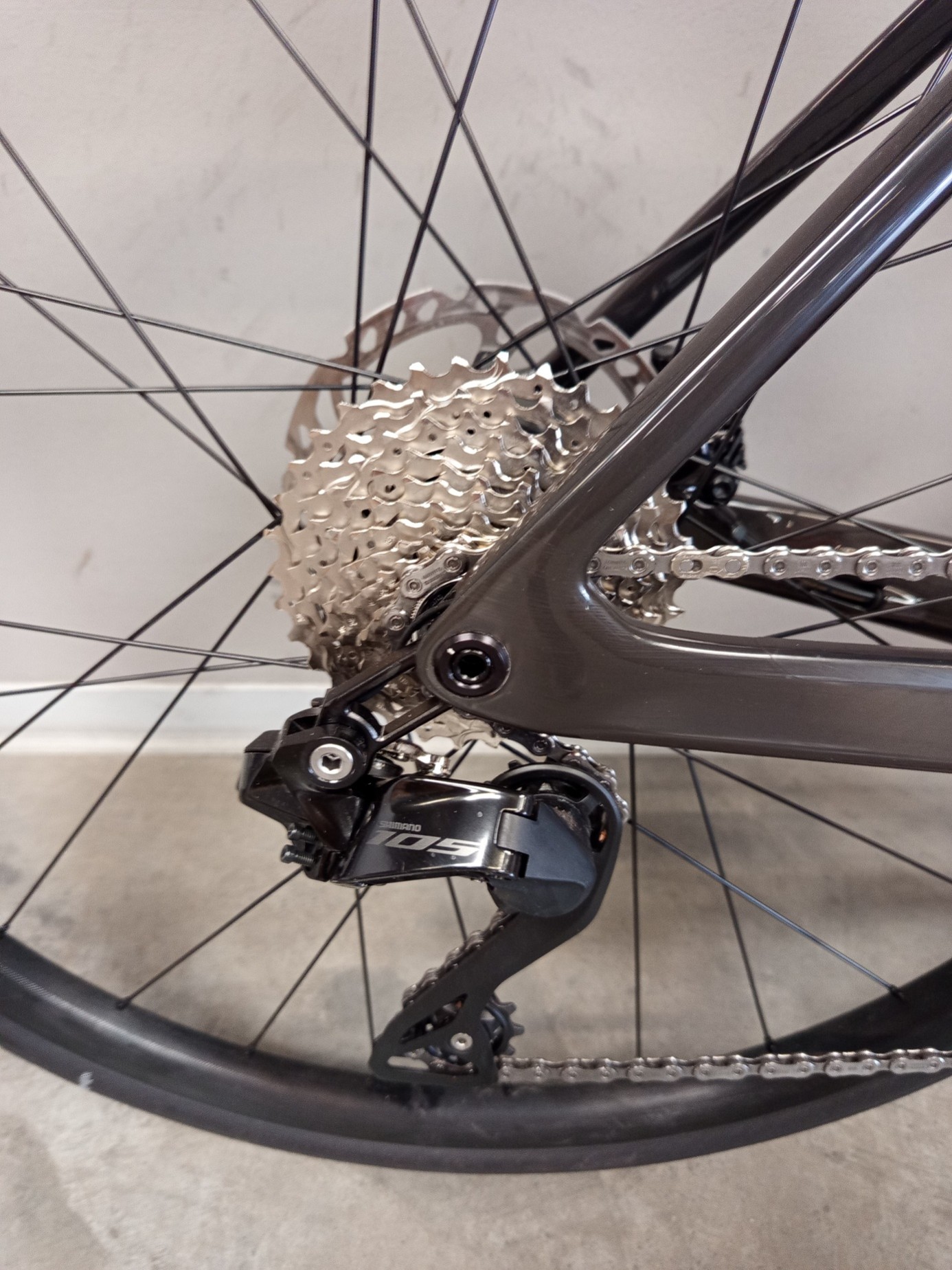

| Rear derailleur: | Shimano 105 Di2 RD-R7150 24 Speed |
| Gear shifters: | Shimano 105 Di2 ST-R7170 |
| Front derailleur: | SHIMANO 105 DI2 FD-R7150 |
| Cassette: | Shimano CS-R7100-12 11-34 |
| Chain: | Shimano 105 CN-M6100-12 |
| Tyres: | Schwalbe ONE Race-Guard 700x30C |
| Wheelset: | Syncros Capital 2.0 25e Disc 24 Front 12x100mmTA /28 Rear 12x142mmTA |
| Battery: | Mahle 36V-236Wh |
| Charger: | Mahle 100-240V 4A Active Charger |
| Engine: | Mahle X20 Motor Hub drive 55Nm max Torque / EU: 25kmh - US: 20mph |
| Pedals: | not included in the scope of delivery |
| Maximum total weight allowed: | 120 kg (body weight + bike + equipment) |
| Weight: | ab 11,66 kg |
Die neue Revolution ist da: Das Mahle X20 System ist das leichteste und intelligenteste eBike-Hinterradnaben-System auf dem Markt
Mahle X20, der neue Maßstab in der SmartBike-Industrie
Ein ultrakompaktes, leichtes und intelligentes System, das eine ganze Reihe neuer Fahrmöglichkeiten eröffnet und gleichzeitig dafür sorgt, dass eBikes optisch und haptisch nicht von Hochleistungsfahrrädern zu unterscheiden sind. Die neuesten Innovationen sorgen für die beste Unterstützung bei jeder Trittfrequenz, egal ob Sie Rennen mit Höchstgeschwindigkeit fahren oder einen Berg besteigen. X20 wurde entwickelt, um sowohl den Fahrer als auch die gesamte Branche voranzubringen.
Die Subtilität der Leistung
Durch die vollständige Systemintegration und das niedrigste Systemgewicht auf dem Markt bleibt das X20 System völlig unbemerkt, bis Sie die 55 Nm Drehmoment spüren.
Du setzt die Grenzen
Neue 236Whinterne Akkus, die mit einem Range Extender von 185Wh ergänzt werden können und bis zu 200Km Autonomie bieten. Intelligentes Schnellladesystem mit bis zu 4A, das den Akku in weniger als 2 Stunden auf 80 % der vollen Kapazität auflädt.
Ein lebendiges System
Das neue kompakte Informationssystem der Steuereinheit verfügt über BT- und ANT+-Konnektivität, einen Helligkeitssensor und einen 3D-Beschleunigungsmesser und vereint damit alles, was Sie wissen müssen, in einer einzigen leichten Linie.
Alles, was du brauchst
Der neue Drehmoment- und Trittfrequenzsensor im Tretlager ermöglicht es dem E-Bike, jedes Watt Leistung, das Sie aufwenden, genau zu messen und dem Benutzer dank KI und maschinellem Lernen die passende Reaktion zu geben. Das System lernt von Ihnen und passt sich Ihren Bedürfnissen und der Umgebung zu jedem Zeitpunkt an.
Das leichteste System auf dem Markt
Mit nur 3,2 kg Systemgewicht, einschließlich Antriebseinheit, innerem Akku und Steuereinheit, ist das X20 System das leichteste eBike Hinterradnaben-System auf dem Markt.
Mahle X20 Motor mit 55 Nm
Die leichteste Antriebseinheit auf dem Markt
Das Kronjuwel des neuen Systems, das die gesamte Branche vorantrieb. Es verfügt über das AMC-System -Automatic Motor Connection, zum Patent angemeldet-, das die Motorkabel überflüssig macht und eine natürliche Positionierung des Rades ermöglicht, indem es über eine 12 mm Standard-Steckachse befestigt wird.
Die Subtilität der Leistung
Die X20-Antriebseinheit mit einem Drehmoment von 55 Nm, die mit dem EU-Markt (25 km/h) und dem US-Markt (20 km/h) kompatibel ist, wurde in Europa entwickelt und zusammengebaut, um ein maximales Leistungsniveau zu erreichen, wobei der Luftwiderstand bei Überschreiten der maximal unterstützten Geschwindigkeit vollständig eliminiert wird, ohne den Fahrer zu beeinträchtigen.
Stets bereit
Kompatibel mit allen Freilaufstandards und Gruppen mit bis zu 13 Gängen. Die X20 Antriebseinheit verfügt über ein neues Schnellwechselsystem für den Freilauf, das die Wartung erleichtert und den Motor jederzeit einsatzbereit hält.
Mahle X20 IX236Wh Akku
Weiter, sicherer, effizienter, schneller
Die neuen Batterien, iX2, iX3 und Range Extender, bieten eine unterstützte Fahrautonomie, die über 140km hinausgehen kann und optimieren den Verbrauch dank der neuen Generation integrierter Motorsteuerungen
Intelligenter Ladevorgang
Das Ladesystem ist so konzipiert, dass es Informationen über den Ladezustand liefert, das System aktualisiert oder den Ladestrom an die Art und den Zustand der Batterie anpasst und so die Ladezeiten erheblich verkürtzt.
Einen Schritt voraus
Die neue Generation der Range Extender mit 171Wh und nur 1,1kg Gewicht erhöht die Autonomie des eBikes um 50% bis 70% und bietet die Möglichkeit, den Betriebsmodus und die Entladepriorität einzustellen
