RRP*
56,00 €
49,99 €
Content 0.25 l (199,96 € / 1 l)

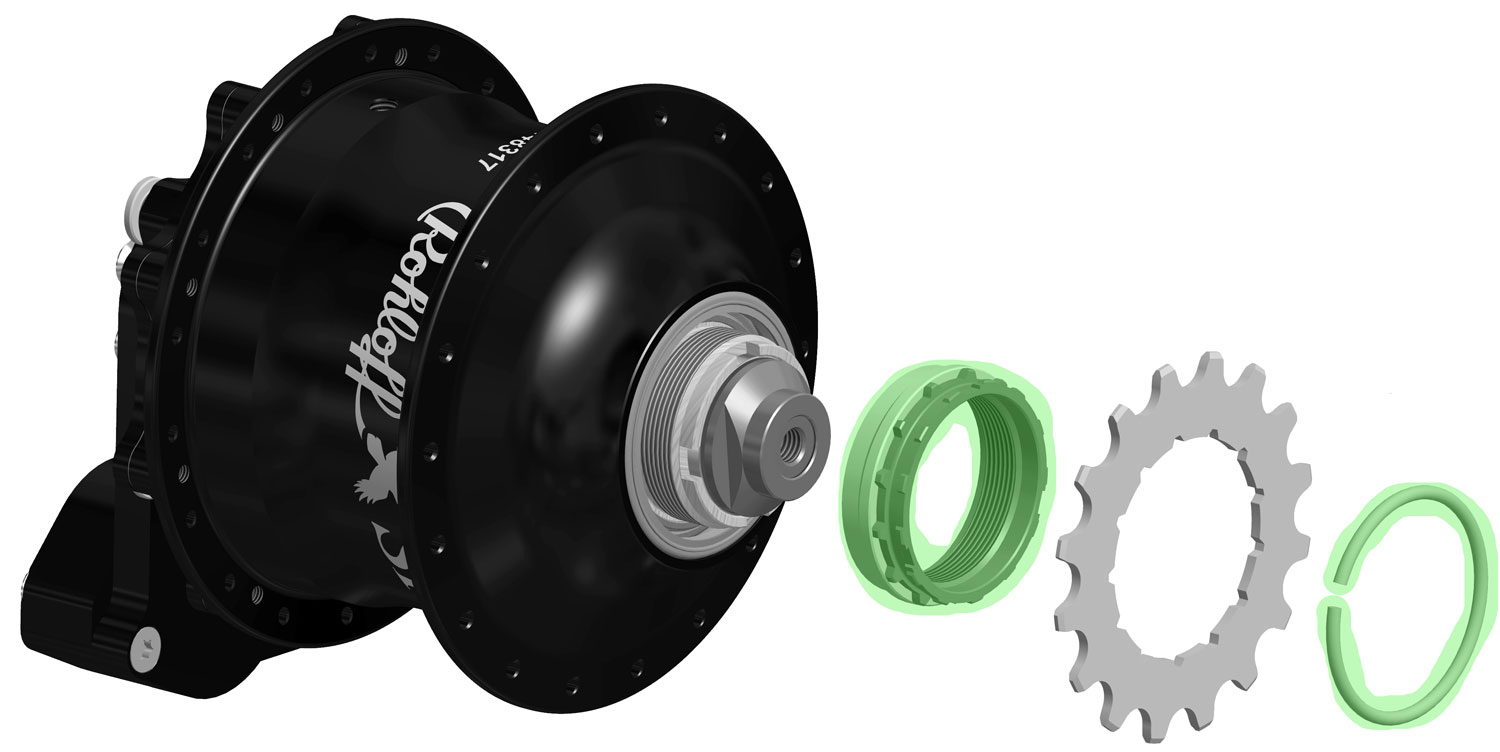

Rohloff Splined Carrier Adapter with Snap Ring Circlip Standard
Item no:
20035839
Product information "Splined Carrier Adapter with Snap Ring Circlip Standard"
It is possible to retrofit the new splines sprocket system to every Rohloff SPEEDHUB 500/14 transmission. One must simply remove the old, worn sprocket using a chainwhip and our special sprocket remover tool.
The higher the chainring/sprocket ratio, the lower the input torque to the gear-unit. It is imperative therefore that the chainring/sprocket factor does not drop below 1.9 (e.g. 34/17=2.0). The smallest permissible sprocket ratios for a rider weighing less than 100kg are: 40:21, 36:19, 34:18, 32:17, 30:16, 28:15, 26:14 und 26:13 = Factor ~ 1,9.
These are the equivalent to a 22:40 combination on a conventional drivetrain. There is no limit whatsoever for higher ratios which means that you can mount bigger chainrings than shown on the table for extreme downhill racing.
If the SPEEDHUB is mounted on a tandem bicycle or if the rider weighs over 100kg, a chainring/sprocket factor of 2.5 (e.g. 42/17=2.5) must be upheld. This equates to sprocket ratios of: 34:13, 35:14, 38:15, 40:16, 42:17, 45:18, 48:19, 52:21.
ATTENTION
Chain-cases such as Hebie must be checked individually for compatibility. The chain-case must run collision free without touching either hub shell nor the splined carrier!
Features
- All Rohloff Splined Sprockets are reversible and constructed to offer a 3mm wider chainline (than the original threaded sprockets) (position of largest sprocket on modern triple cranksets)
- The belt-line with Carrier of a Carbon Drive transmission remains 55mm (+/-1mm) as before
- The extended range of sprocket sizes now available, offers a greater choice of primary transmission ratios and thus gear-inches
Material
- Stainless steel
Weight
- 38g
Scope of delivery
- 1 Rohloff Splined Carrier Adapter with Snap Ring Circlip Standard
Recommendation
Experience shows that regular commuter/leisure cyclists will be best suited using a transmission factor of 2.5 -2.8 Offroad cyclists using 29er/650B/Fatbikes tend to opt for a lighter gear ratio. Solo cyclists weighing less than 100kg may do so. This lighter ratio must not fall below 1.9 however!The higher the chainring/sprocket ratio, the lower the input torque to the gear-unit. It is imperative therefore that the chainring/sprocket factor does not drop below 1.9 (e.g. 34/17=2.0). The smallest permissible sprocket ratios for a rider weighing less than 100kg are: 40:21, 36:19, 34:18, 32:17, 30:16, 28:15, 26:14 und 26:13 = Factor ~ 1,9.
These are the equivalent to a 22:40 combination on a conventional drivetrain. There is no limit whatsoever for higher ratios which means that you can mount bigger chainrings than shown on the table for extreme downhill racing.
If the SPEEDHUB is mounted on a tandem bicycle or if the rider weighs over 100kg, a chainring/sprocket factor of 2.5 (e.g. 42/17=2.5) must be upheld. This equates to sprocket ratios of: 34:13, 35:14, 38:15, 40:16, 42:17, 45:18, 48:19, 52:21.
ATTENTION
Chain-cases such as Hebie must be checked individually for compatibility. The chain-case must run collision free without touching either hub shell nor the splined carrier!
- Manufacturer number: 8540
- EAN: 4250307406722
Manufacturer:
Rohloff AGMönchswiese 11
34233 Fuldatal
Deutschland
[email protected]
www.rohloff.de/de/
Rohloff Splined Carrier Adapter with Snap Ring Circlip Standard
It is possible to retrofit the new splines sprocket system to every Rohloff SPEEDHUB 500/14 transmission. One must simply remove the old, worn sprocket using a chainwhip and our special sprocket remover tool.
The higher the chainring/sprocket ratio, the lower the input torque to the gear-unit. It is imperative therefore that the chainring/sprocket factor does not drop below 1.9 (e.g. 34/17=2.0). The smallest permissible sprocket ratios for a rider weighing less than 100kg are: 40:21, 36:19, 34:18, 32:17, 30:16, 28:15, 26:14 und 26:13 = Factor ~ 1,9.
These are the equivalent to a 22:40 combination on a conventional drivetrain. There is no limit whatsoever for higher ratios which means that you can mount bigger chainrings than shown on the table for extreme downhill racing.
If the SPEEDHUB is mounted on a tandem bicycle or if the rider weighs over 100kg, a chainring/sprocket factor of 2.5 (e.g. 42/17=2.5) must be upheld. This equates to sprocket ratios of: 34:13, 35:14, 38:15, 40:16, 42:17, 45:18, 48:19, 52:21.
ATTENTION
Chain-cases such as Hebie must be checked individually for compatibility. The chain-case must run collision free without touching either hub shell nor the splined carrier!
Features
- All Rohloff Splined Sprockets are reversible and constructed to offer a 3mm wider chainline (than the original threaded sprockets) (position of largest sprocket on modern triple cranksets)
- The belt-line with Carrier of a Carbon Drive transmission remains 55mm (+/-1mm) as before
- The extended range of sprocket sizes now available, offers a greater choice of primary transmission ratios and thus gear-inches
Material
- Stainless steel
Weight
- 38g
Scope of delivery
- 1 Rohloff Splined Carrier Adapter with Snap Ring Circlip Standard
Recommendation
Experience shows that regular commuter/leisure cyclists will be best suited using a transmission factor of 2.5 -2.8 Offroad cyclists using 29er/650B/Fatbikes tend to opt for a lighter gear ratio. Solo cyclists weighing less than 100kg may do so. This lighter ratio must not fall below 1.9 however!The higher the chainring/sprocket ratio, the lower the input torque to the gear-unit. It is imperative therefore that the chainring/sprocket factor does not drop below 1.9 (e.g. 34/17=2.0). The smallest permissible sprocket ratios for a rider weighing less than 100kg are: 40:21, 36:19, 34:18, 32:17, 30:16, 28:15, 26:14 und 26:13 = Factor ~ 1,9.
These are the equivalent to a 22:40 combination on a conventional drivetrain. There is no limit whatsoever for higher ratios which means that you can mount bigger chainrings than shown on the table for extreme downhill racing.
If the SPEEDHUB is mounted on a tandem bicycle or if the rider weighs over 100kg, a chainring/sprocket factor of 2.5 (e.g. 42/17=2.5) must be upheld. This equates to sprocket ratios of: 34:13, 35:14, 38:15, 40:16, 42:17, 45:18, 48:19, 52:21.
ATTENTION
Chain-cases such as Hebie must be checked individually for compatibility. The chain-case must run collision free without touching either hub shell nor the splined carrier!
- Manufacturer number: 8540
- EAN: 4250307406722
Manufacturer:
Rohloff AGMönchswiese 11
34233 Fuldatal
Deutschland
[email protected]
www.rohloff.de/de/
Evaluations
Login
Daniel S.
Durch den Sprengring muss man jetzt nicht mehr das ewig haltende Ritsel mit gewalt abdrehen, sondern man kann dies einfach über den Sprengring entfernen. Genau wie bei dem alten Schraubritsel lässt sich beim Steckritseladapter das Ritsel selber drehen, wodurch man ein Ritsel nach Verschleiß einer Kette einfach wenden kann, und die ungenutzten Zahnflanken nutzen kann.
Günter W.
Ein super durchdachtes System! Die Montage der Ritzel geht deutlich einfacher und das Ritzel kann ich jetzt durch die Drehmöglichkeit doppelt so lange verwenden - Top!
To submit a rating, please log in. We do not check whether the rated item was purchased from us.
