Magura Gustav Elite Disc brake
Product information "Gustav Elite Disc brake"
Magura Gustav Elite disc brake - 4-piston MTB brake for 2.5 mm brake disc with Carbotecture lever, high heat stability up to 250 kg system weight, EASY LINK & Shiftmix IG compatible.
Magura Gustav Elite - Extreme braking power with 12/19 mm piston technology
The Magura Gustav Elite was designed for heavy E-MTBs and demanding gravity applications where thermal reserves are crucial. Large pistons and a solid, one-piece forged brake calliper ensure a constant pressure point and sensitive modulation even under extreme loads. The increased pad volume and the extra-strong disc significantly extend service intervals and increase durability in tough conditions. With Carbotecture levers, tool-friendly installation via EASY LINK and tidy cockpit integration, it offers a performance-orientated solution with practical ease of maintenance.
Features - Magura Gustav Elite
- Maximum power for heavy bikes: Oversized, one-piece forged brake callipers and 2.5 mm brake discs ensure extreme heat stability (approved up to 250 kg) and 194 % pad wear volume compared to the MT A2.
- Precise modulation & defined pressure point: Enlarged pistons (12 mm / 19 mm) reduce the system pressure - for less power loss and sensitive modulation at benchmark level.
- Long maintenance intervals: 194 % more pad volume and 2.5 mm discs with 2.1 mm wear limit double the time until the next maintenance.
- Innovative mounting & ergonomics: Carbotecture lever with textured surface for optimum grip; MAGURA EASY LINK for quick installation and Carbotecture IG clamp with Shiftmix IG compatibility.
Product features
- Range of use: E-MTB, Gravity, SUV, Allroad
- Number of pistons: 4
- Brake calliper mount: Postmount
- Brake fluid: MAGURA Royal Blood mineral oil
- Brake hose: MAGURA Disc Tube can be easily shortened
- Brake caliper cable connection: rotatable banjo
- Clamp clip: one-piece Carbotecture IG clamp
- Shiftmix compatibility: Yes

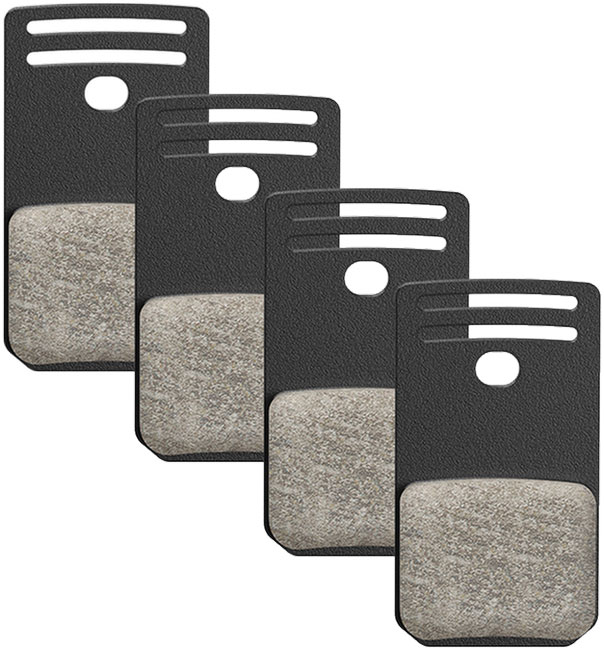

- Brake pads: MDP 13 Black
- Reach adjust: Yes (tool T25)
- BAT (individual pressure point adjustment): No
- Flip-flop brake lever: Yes
- Cable lengths: 2200 mm each (can be shortened)
- Brake master cable connection: EASY LINK
- Disc rotor compatibility: 2.0 mm or 2.5 mm rotor
Material
- Calliper: one-piece forged, aluminium
- Brake master: Carbotecture
- Brake lever: Carbotecture, textured brake lever
- Clamp: Carbotecture
- Bolts: Steel
Colour
- Black
Weight
- 328 g (manufacturer's specification)
Scope of delivery
- 1 x Magura Gustav Elite
- incl. accessories for shortening the cables
Disc rotor and adapter not included!
- Manufacturer number: 2703171
- EAN: 4055184042502
Stuttgarter Straße 48
72574 Bad Urach
Deutschland
[email protected]
https://www.magura.com
Magura Gustav Elite Disc brake
Magura Gustav Elite disc brake - 4-piston MTB brake for 2.5 mm brake disc with Carbotecture lever, high heat stability up to 250 kg system weight, EASY LINK & Shiftmix IG compatible.
Magura Gustav Elite - Extreme braking power with 12/19 mm piston technology
The Magura Gustav Elite was designed for heavy E-MTBs and demanding gravity applications where thermal reserves are crucial. Large pistons and a solid, one-piece forged brake calliper ensure a constant pressure point and sensitive modulation even under extreme loads. The increased pad volume and the extra-strong disc significantly extend service intervals and increase durability in tough conditions. With Carbotecture levers, tool-friendly installation via EASY LINK and tidy cockpit integration, it offers a performance-orientated solution with practical ease of maintenance.
Features - Magura Gustav Elite
- Maximum power for heavy bikes: Oversized, one-piece forged brake callipers and 2.5 mm brake discs ensure extreme heat stability (approved up to 250 kg) and 194 % pad wear volume compared to the MT A2.
- Precise modulation & defined pressure point: Enlarged pistons (12 mm / 19 mm) reduce the system pressure - for less power loss and sensitive modulation at benchmark level.
- Long maintenance intervals: 194 % more pad volume and 2.5 mm discs with 2.1 mm wear limit double the time until the next maintenance.
- Innovative mounting & ergonomics: Carbotecture lever with textured surface for optimum grip; MAGURA EASY LINK for quick installation and Carbotecture IG clamp with Shiftmix IG compatibility.
Product features
- Range of use: E-MTB, Gravity, SUV, Allroad
- Number of pistons: 4
- Brake calliper mount: Postmount
- Brake fluid: MAGURA Royal Blood mineral oil
- Brake hose: MAGURA Disc Tube can be easily shortened
- Brake caliper cable connection: rotatable banjo
- Clamp clip: one-piece Carbotecture IG clamp
- Shiftmix compatibility: Yes
- Brake pads: MDP 13 Black
- Reach adjust: Yes (tool T25)
- BAT (individual pressure point adjustment): No
- Flip-flop brake lever: Yes
- Cable lengths: 2200 mm each (can be shortened)
- Brake master cable connection: EASY LINK
- Disc rotor compatibility: 2.0 mm or 2.5 mm rotor
Material
- Calliper: one-piece forged, aluminium
- Brake master: Carbotecture
- Brake lever: Carbotecture, textured brake lever
- Clamp: Carbotecture
- Bolts: Steel
Colour
- Black
Weight
- 328 g (manufacturer's specification)
Scope of delivery
- 1 x Magura Gustav Elite
- incl. accessories for shortening the cables
Disc rotor and adapter not included!
- Manufacturer number: 2703171
- EAN: 4055184042502
Stuttgarter Straße 48
72574 Bad Urach
Deutschland
[email protected]
https://www.magura.com
