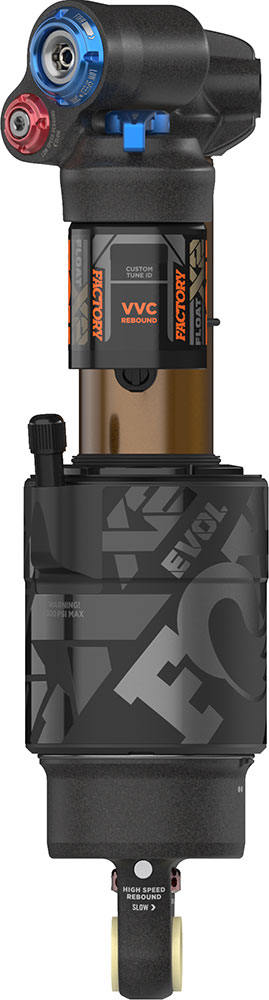

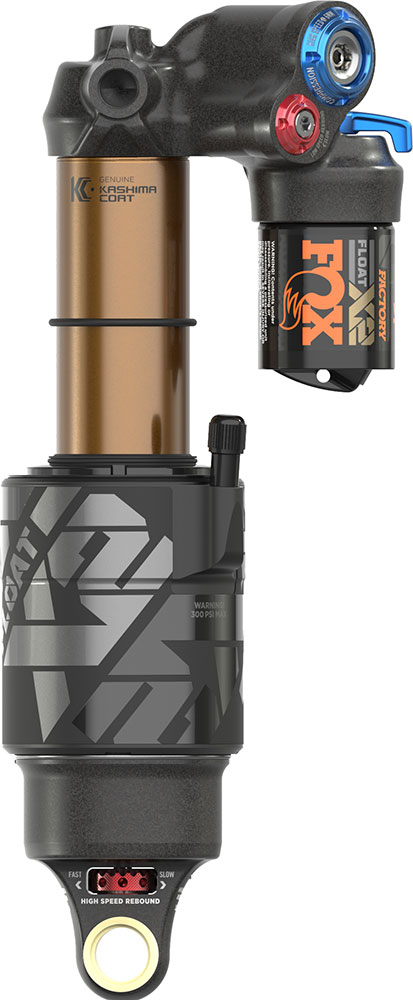

Fox Racing Shox Float X2 Factory 2Pos-Adj Trunnion Shock
Product information "Float X2 Factory 2Pos-Adj Trunnion Shock"
The gamechanger with less friction and more flow: Float X2 Factory 2Pos-Adj Shock from Fox Racing
The most tunable air sprung shock combines an ultra-plush, coil-like feel with incredible damping prowess optimized for Downhill and Enduro racing.
FLOAT X2 offers the ultimate in precision tuning with 4-way adjustability of high/low speed compression and high/low speed rebound damping, all conveniently accessible via external dials. The Variable Valve Control (VVC) technology allows trailside high speed rebound adjustment (a step which would otherwise require shock disassembly) giving riders optimal damping and race-level performance for any situation.
The X2's oversized air chamber provides a more linear, planted ride feel that gravity riders desire. With the MCU bottom-out bumper ensuring end-stroke progressivity and the overall weight savings that only an air spring can provide, X2 further narrows the downhill performance gap between coil and air.
“Factory” says it all – feature-packed and designed to exceed the demands of the Factory-level riders. . Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
Features - Fox Racing Float X2 Factory 2Pos-Adj Shock
- Base valve piston design and compression tune for increased damping performance and improved sensitivity
- Bearing housing seal package virtually eliminates possibility of aeration
- Scraper seal for improved durability
- More robust eyelet design on trunnion models
- 7000 series shock body on all models
- Hard chrome damper shaft finish for increased durability
- MCU bottom-out bumper for end-stroke progressivity
- Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
- Unrivaled high-speed rebound tunability via VVC (Variable Valve Control)

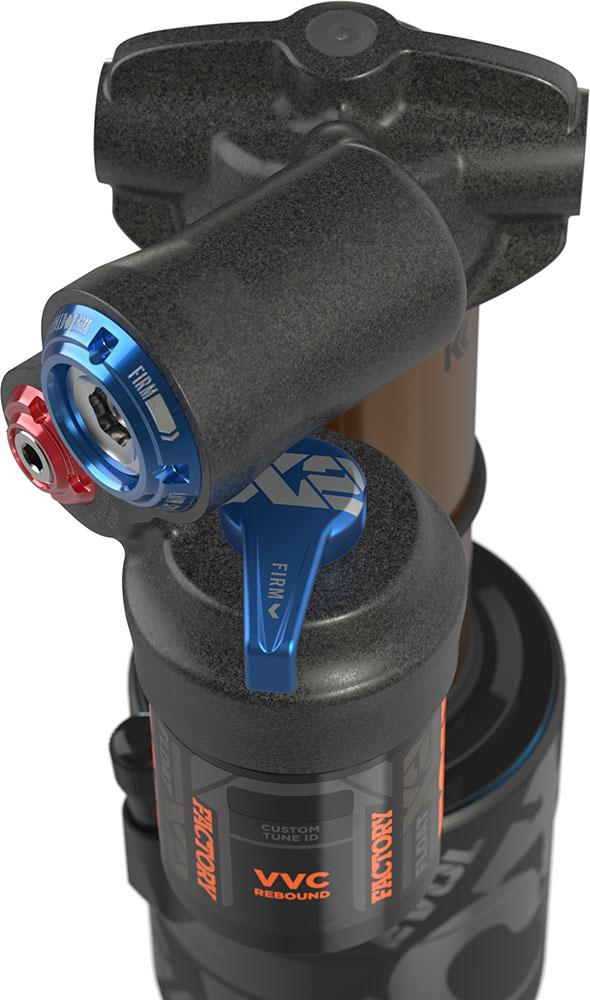

- Independent firm mode circuit (on models with 2-position switch)
- Finned inner body for improved structural rigidity and reduced hysteresis
Product Features
- Use: All-Mountain, Trail, Enduro, Downhill
- Version: Factory
- Suspension: Air
- Max. pressure: 300 Psi
- Mounting: Trunnion
- Settings:
- Optional 2-position Open/Firm lever (retains high and low speed compression adjustment)
- High-speed compression - 8 clicks
- Low-speed compression - 16 clicks

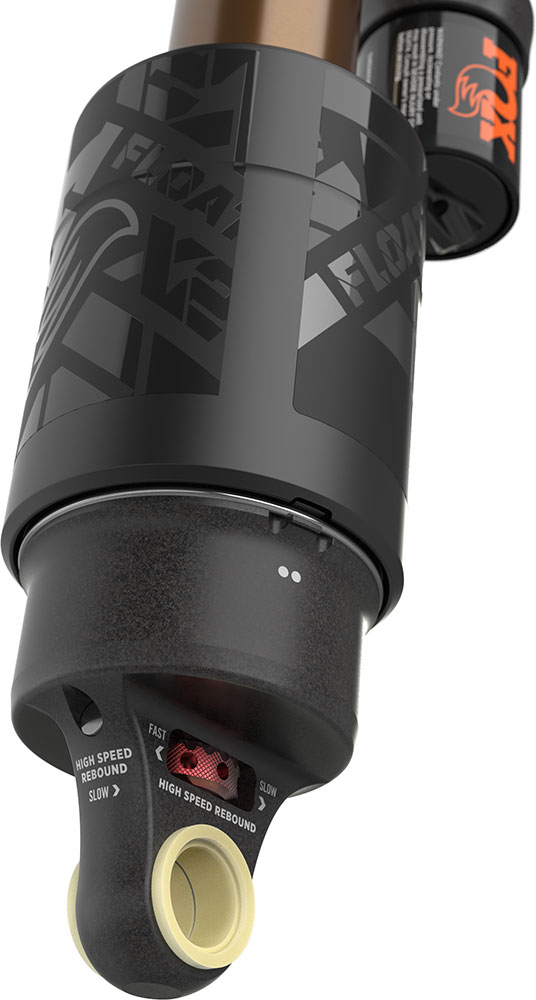

- High-speed rebound (w/VVC) - 8 clicks
- Low-speed rebound - 16 clicks
Installation legth / Hub (choose variant)
- 185-50
- 185-55
- 205-60
- 205-65
Color
- kashima coated
Scope of delivery
- 1 Fox Racing Float X2 Factory 2pos-Adj Shock Trunnion
Technologies
RVS - Rod Valve System
Rod Valve System (RVS) provides a more seamless damping transition when absorbing small to large impacts, resulting in faster system response, more control, and less harshness.
EVOL - Extra Volume
The Extra Volume (EVOL) air sleeve significantly reduces the force to initiate travel, providing added sensitivity and better small bump compliance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
FOX X2 SHOCK TECHNOLOGY EXPLAINED – FOX FACTORY, INC.
- Manufacturer number: 979-01-162
- Model Year: 2025
2055 Sugarloaf Circle
Suite 300 30097 Duluth
Georgia
United States
FOX Factory GmbH
Gewerbepark 6 66989
Höhfröschen
Deutschland
Fox Racing Shox Float X2 Factory 2Pos-Adj Trunnion Shock
The gamechanger with less friction and more flow: Float X2 Factory 2Pos-Adj Shock from Fox Racing
The most tunable air sprung shock combines an ultra-plush, coil-like feel with incredible damping prowess optimized for Downhill and Enduro racing.
FLOAT X2 offers the ultimate in precision tuning with 4-way adjustability of high/low speed compression and high/low speed rebound damping, all conveniently accessible via external dials. The Variable Valve Control (VVC) technology allows trailside high speed rebound adjustment (a step which would otherwise require shock disassembly) giving riders optimal damping and race-level performance for any situation.
The X2's oversized air chamber provides a more linear, planted ride feel that gravity riders desire. With the MCU bottom-out bumper ensuring end-stroke progressivity and the overall weight savings that only an air spring can provide, X2 further narrows the downhill performance gap between coil and air.
“Factory” says it all – feature-packed and designed to exceed the demands of the Factory-level riders. . Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
Features - Fox Racing Float X2 Factory 2Pos-Adj Shock
- Base valve piston design and compression tune for increased damping performance and improved sensitivity
- Bearing housing seal package virtually eliminates possibility of aeration
- Scraper seal for improved durability
- More robust eyelet design on trunnion models
- 7000 series shock body on all models
- Hard chrome damper shaft finish for increased durability
- MCU bottom-out bumper for end-stroke progressivity
- Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
- Unrivaled high-speed rebound tunability via VVC (Variable Valve Control)
- Independent firm mode circuit (on models with 2-position switch)
- Finned inner body for improved structural rigidity and reduced hysteresis
Product Features
- Use: All-Mountain, Trail, Enduro, Downhill
- Version: Factory
- Suspension: Air
- Max. pressure: 300 Psi
- Mounting: Trunnion
- Settings:
- Optional 2-position Open/Firm lever (retains high and low speed compression adjustment)
- High-speed compression - 8 clicks
- Low-speed compression - 16 clicks
- High-speed rebound (w/VVC) - 8 clicks
- Low-speed rebound - 16 clicks
Installation legth / Hub (choose variant)
- 185-50
- 185-55
- 205-60
- 205-65
Color
- kashima coated
Scope of delivery
- 1 Fox Racing Float X2 Factory 2pos-Adj Shock Trunnion
Technologies
RVS - Rod Valve System
Rod Valve System (RVS) provides a more seamless damping transition when absorbing small to large impacts, resulting in faster system response, more control, and less harshness.
EVOL - Extra Volume
The Extra Volume (EVOL) air sleeve significantly reduces the force to initiate travel, providing added sensitivity and better small bump compliance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
FOX X2 SHOCK TECHNOLOGY EXPLAINED – FOX FACTORY, INC.
- Manufacturer number: 979-01-162
- Model Year: 2025
