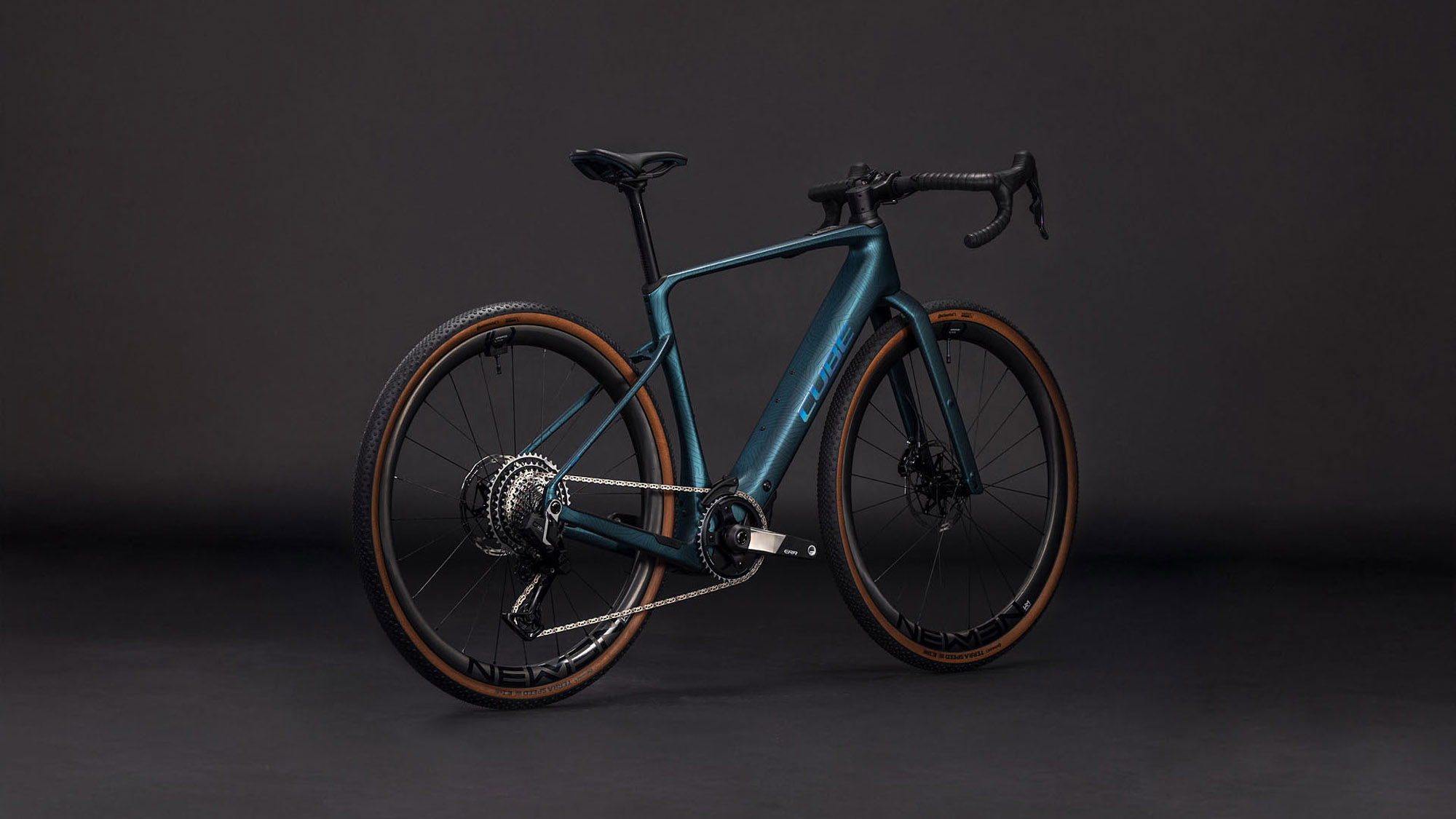

Cube Nuroad Hybrid C:62 SLT 400X royalgreen'n'crisscross
Product information "Nuroad Hybrid C:62 SLT 400X royalgreen'n'crisscross"
Open 360° viewFeatures - Cube Nuroad Hybrid C:62 SLT 400X royalgreen´n´crisscross
- Full carbon frame and fork with 50 mm tire clearance
- Sram Force XPLR AXS E1, 13-speed drivetrain und Sram Force brake system
- Powerful Bosch Performance Line SX Smart System motor with 60Nm and 250 watts
- Bosch Compact Tube 400 Wh battery and Bosch System Controller in the top tube with practical Bosch Mini Remote on the handlebar
- Robust Newmen Advanced SL X.R.36 Carbon wheelset with Conti Terra Speed ProTection 45 mm tires
FRAME
Form meets function in the elegant shape of the Nuroad Hybrid C:62's carbon frame. Sure, it's a great looker, with a clean profile and organic curves. But we haven't forgotten practicality, like incorporating clearance for tyres up to 50mm even with mudguards fitted. Or carrier mounting points at the rear and on the full carbon fork, for maximum bikepacking versatility. The Bosch drive system's control unit is incorporated into the top tube, with a mini handlebar remote, and the frame is PowerMore-ready for a +250Wh battery booster pack. The seat clamp is hidden, there's a Direct Mount lightweight chain guide, a flat mount kickstand interface, Boost rear end and UDH derailleur hanger. Cube reckon they've ticked all the boxes. Over to you...
Technologies
C:62® Carbon Fiber Technology
Not all carbon is created equal. With the C:62® carbon CUBE has increased the high modulus fibre content and reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
Boost 148
A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? CUBE has developed a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Fender/Rack & Kickstand Option
It's the little details that make the difference. With the option to easily fit full length mudguards, a luggage rack and kickstand you can make your bike that little bit more versatile and easier to live with. Wet roads, stuff to carry or nowhere to lean your bike up when you arrive? No problem – we've got it covered.
Gravel Endurance Geometry
For gravel epics – or races – into the back country and beyond, the Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.
Universal Derailleur Hange
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
Advanced Twin Mold
With the Advanced Twin Mold process CUBE has use two precisely manufactured forms for the C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
Optional Low Rider
Adventure sometimes demands different kit. That's where the low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10 kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.
Fixed Integrated Battery
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, CUBE has integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
Go-anywhere adventure | Nuroad Hybrid - CUBE Bikes Official
- Manufacturer number: 117400
- EAN: 4054571500298
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube Nuroad Hybrid C:62 SLT 400X royalgreen'n'crisscross
Open 360° viewFeatures - Cube Nuroad Hybrid C:62 SLT 400X royalgreen´n´crisscross
- Full carbon frame and fork with 50 mm tire clearance
- Sram Force XPLR AXS E1, 13-speed drivetrain und Sram Force brake system
- Powerful Bosch Performance Line SX Smart System motor with 60Nm and 250 watts
- Bosch Compact Tube 400 Wh battery and Bosch System Controller in the top tube with practical Bosch Mini Remote on the handlebar
- Robust Newmen Advanced SL X.R.36 Carbon wheelset with Conti Terra Speed ProTection 45 mm tires
FRAME
Form meets function in the elegant shape of the Nuroad Hybrid C:62's carbon frame. Sure, it's a great looker, with a clean profile and organic curves. But we haven't forgotten practicality, like incorporating clearance for tyres up to 50mm even with mudguards fitted. Or carrier mounting points at the rear and on the full carbon fork, for maximum bikepacking versatility. The Bosch drive system's control unit is incorporated into the top tube, with a mini handlebar remote, and the frame is PowerMore-ready for a +250Wh battery booster pack. The seat clamp is hidden, there's a Direct Mount lightweight chain guide, a flat mount kickstand interface, Boost rear end and UDH derailleur hanger. Cube reckon they've ticked all the boxes. Over to you...
Technologies
C:62® Carbon Fiber Technology
Not all carbon is created equal. With the C:62® carbon CUBE has increased the high modulus fibre content and reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
Boost 148
A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? CUBE has developed a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Fender/Rack & Kickstand Option
It's the little details that make the difference. With the option to easily fit full length mudguards, a luggage rack and kickstand you can make your bike that little bit more versatile and easier to live with. Wet roads, stuff to carry or nowhere to lean your bike up when you arrive? No problem – we've got it covered.
Gravel Endurance Geometry
For gravel epics – or races – into the back country and beyond, the Gravel Endurance Geometry is designed with you in mind. With a ride position optimised for long days in the saddle and frame angles and dimensions geared towards the perfect balance of agility and stability, it's all you need for off-road adventure.
Universal Derailleur Hange
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
Advanced Twin Mold
With the Advanced Twin Mold process CUBE has use two precisely manufactured forms for the C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
Optional Low Rider
Adventure sometimes demands different kit. That's where the low rider rack mounts come in. Designed to accept an optional fork rack, they're a great way to carry up to 10 kg of additional weight for extended tours. Not only that but carrying some of your luggage over the front wheel helps improve weight distribution and handling. Win, win.
Fixed Integrated Battery
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, CUBE has integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
Go-anywhere adventure | Nuroad Hybrid - CUBE Bikes Official
- Manufacturer number: 117400
- EAN: 4054571500298
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | C:62® Advanced Twin Mold, Gravel Endurance Geometry, Advanced Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, Boost 148, UDH™, Fixed Integrated Battery |
|---|---|
| Frame material: | Carbon |
| Wheel size: | 28" |
| Speeds: | 1 x 12 |
| Colour: | royalgreen´n´crisscross |
| Fork: | CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm |
| Brakes: | Sram Force AXS E1 HRD, Hydr. Disc Brake, Flat Mount (180) |
| Brake discs: | 180 / 180 mm |
| Brake levers: | Sram Force AXS E1 |
| Headset: | ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2" |
| Stem: | CUBE CIS Stem w/ Cable Routing, FPI-Link |
| Handlebar: | Newmen Advanced Gravel Bar 318, Carbon, 31.8mm |
| Handlebar tape: | ACID Bartape CC 3.0 |

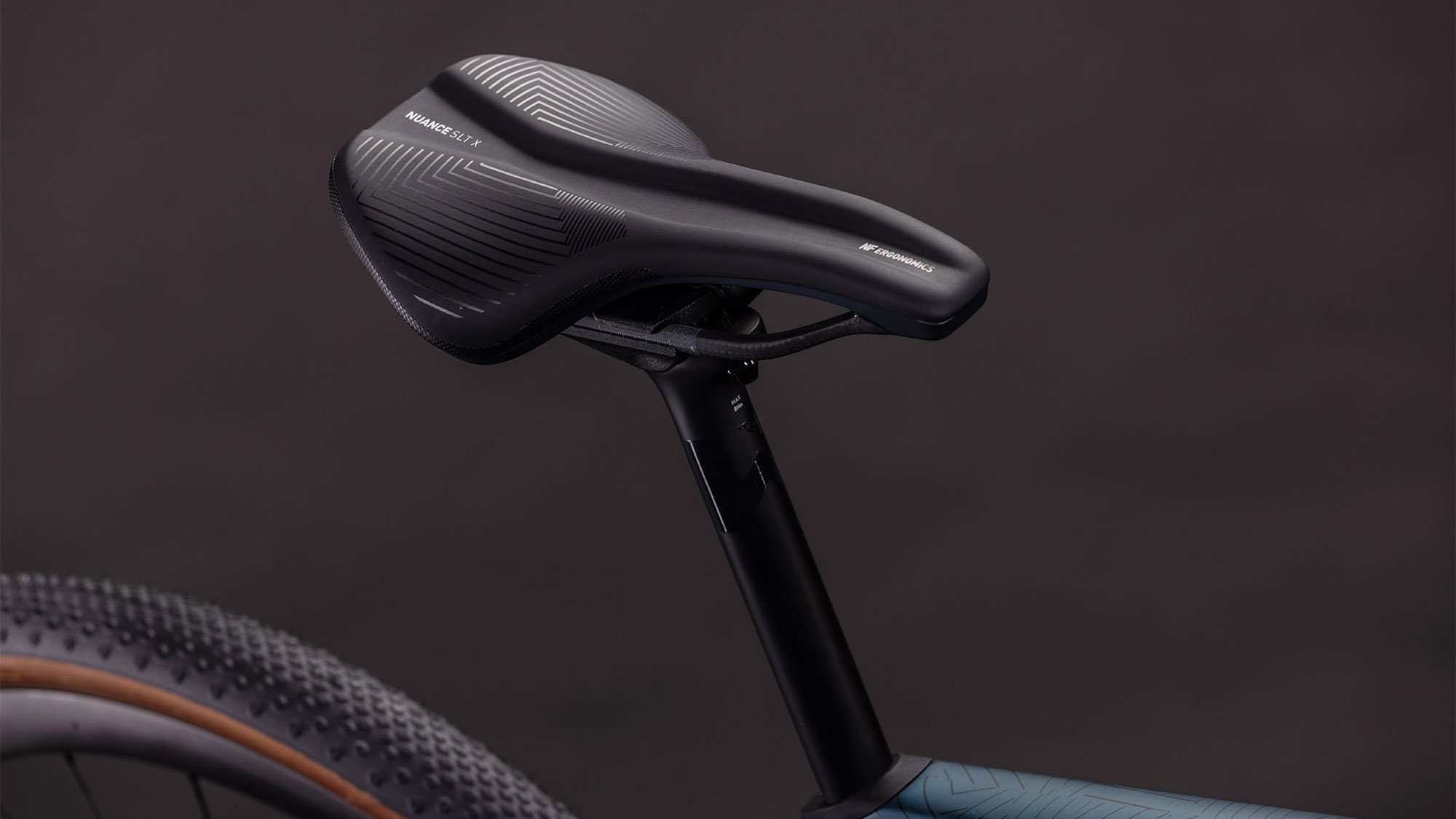

| Saddle: | ACID Nuance SLT X Carbon |
| Seatpost: | Newmen Advanced, Carbon, 27.2mm |

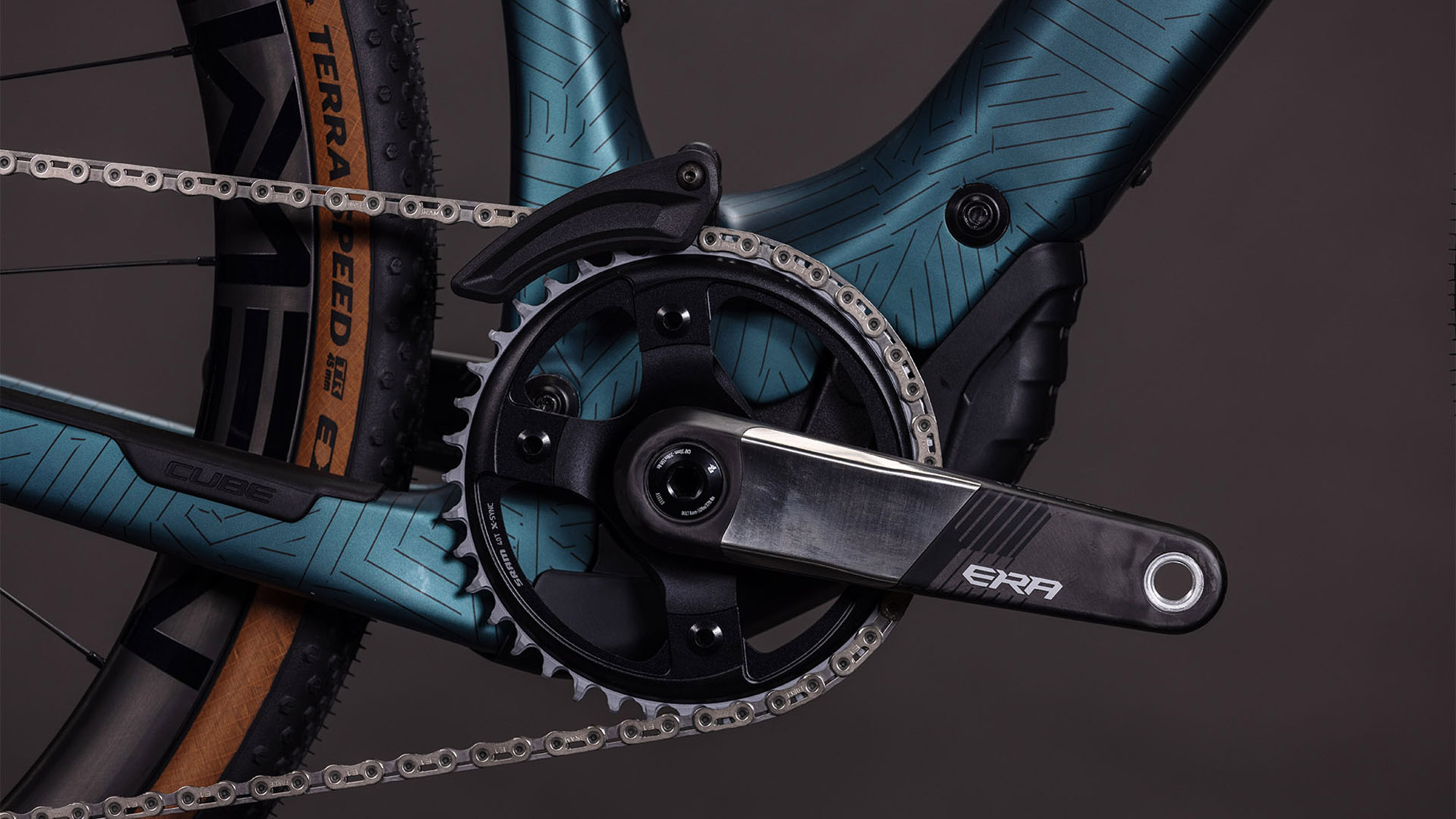

| Crankset: | Race Face ERA E-MTB, 40T |
|---|---|
| Rear derailleur: | Shimano GRX Di2 RD-RX827-SGS, 12-Speed |
| Gear shifters: | Sram Force XPLR AXS E1, 13-Speed |
| Chain guide: | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette: | SRAM XPLR XG-1371, 10-46T |
| Chain: | SRAM FORCE |
| Tyres: | Conti Terra Adventure, Trail Grip, 45-622 |
| Wheelset: | Newmen Advanced SL X.R.36 Carbon, 24/24 Spokes, 12x100mm/12x148mm, Tubeless Ready |
| Display: | Bosch System Control, incl. Mini Remote |
| Battery: | Bosch CompactTube 400 |
| Charger: | Bosch 4A |
| Engine: | Bosch Drive Unit Performance SX max. 60Nm (BDU31) |
| Pedals: | not included |
| Maximum total weight allowed: | 130 kg (body weight + bike + equipment) |
| Weight: | starting from 13,1 kg |
The new Bosch Performance Line SX Smart System motor
When muscle power and electric support work in conjunction and you get top performance exactly when you need it: With the Performance Line SX, we are launching a sporty drive unit that is lighter and more compact than anything we have developed so far. For light eMTBs, eGravel and eUrban bikes.
Features
Off to a fast start
Whether light eMTB or eGravel, a high cadence is rewarded. On rugged terrain or from traffic light to traffic light on your eUrban bike.
New kind of eBiking
Start pedaling and feel the support: sensitive, quiet, direct. A natural riding sensation combined with the benefits of the eBike.
Stylish and inconspicuous
Lightweight, slim, beautiful eBikes: The compact Performance Line SX drive unit disappears into the frame of light eMTBs, eGravel or eUrban bikes.
Light and powerful
The Performance Line SX is extremely light and remarkably quiet. If you have a sporty riding style, it drives you forward unobtrusively but with noticeable power.
- Up to 600 watts: Maximum power in the most compact space
- Approx. 4.4 lbs : The lightest drive, inconspicuously installed
- Max. 60 Newton meters: Pedal fast, get powerful support
- Sprint mode: For sporty eGravel and eUrban riding
Optimum setup for lightweight and slim e-bikes
For sporty riding
Pedal faster, pick up speed even faster: The Performance Line SX works at least as hard as you do. When riding in a sporty style with a high cadence, it supports you disproportionately to your performance with peaks of up to 600 watts of motor power. With its sensitive and reactive response behavior, it is ideal for all those who ride in sporty style with electric support and are looking for a training effect.
Lightness – almost natural
A reduced pedal resistance of more than 50 percent compared to the Performance Line CX, a narrower design of the cranks and an almost silent motor – the Performance Line SX convinces in many respects. Its direct but sensitive response conveys the feel of conventional cycling and enhances it with the ease and fun of eBiking.
Light, compact, agile
Around 4.4 lbs: The Performance Line SX is our lightest drive with the highest power density. Ride your eGravel bike dynamically into corners and carry your eUrban bike up to the fourth floor: The Performance Line SX reduces the total weight of your eBike, delivers greater agility and is ideal for fans of a sporty riding style. In addition, the compact drive unit disappears elegantly into the crank area of your eBike – so it looks like a conventional bike.
Multifaceted: sporty riding
You're looking for a challenge on the trail, on technically demanding passages and when riding uphill? Installed in light eMTBs, the Performance Line SX is the optimal piece of training equipment for you. But even if you're dreaming of long-distance adventures and don't yet know exactly which surfaces await you, the drive unit is ideally suited for powering eGravel bikes. You want to ride dynamically on the road with minimalist, agile eCity bikes? Here, too, the Performance Line SX is the right choice.
Sprint mode
Dynamic support according to the cadence - for fast sprints and steep climbs.
- dynamic support with up to 280% of your own power - the faster you pedal, the stronger the drive supports you
- for sprints, steep climbs or for fast commuting
- ideal for eGravel and eUrban bikes
- individually adjustable via the eBike Flow app
Performance Line SX Explanation video
| System | The smart system |
| Shift type | Derailleur/hub gears* |
| Max. Support level** (%) |
340 % |
| Maximum possible drive torque (Nm) | 60 Nm |
| Starting behavior | sensitive |
| Max. Support up to | 25 km/h |
| Backpedal function | no |
| Smart push assist with rollback protection | Yes |
| Shift detection | no |
| Weight | approx. 2.0 kg |
| Nominal continuous power | 250 W |
| Maximum power | 600 W |
| Max. Power at a cadence of 70 rpm | 400 W |
| Max. weight-related power | approx. 300 W/kg |
Bosch eBike Flow app
Enhancing the eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor and send them to your eBike via Bluetooth. That way it's always up to date and you get to enjoy more options.
Recording activities
Track your ride and fitness data as soon as you get started. If desired, the Activity Tracking for iPhone users can also sync all data automatically with Apple Health. When you take a break, the recording stops automatically.
Customising riding modes
Adjust the riding mode exactly to your needs: You can finely adjust the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Everything at a glance
Use the Home screen to gain a quick overview of everything that's important. Whether battery status, remaining range, distance travelled or the next service appointment, the Home screen clearly shows you everything you need to know with constantly updated eBike data.
System Controller and Mini Remote
 |
Simple operation Focus completely on the traffic in the city or on your ride. |
 |
Robust functional companion The System Controller is perfect for modern eCity bikes or eMTBs. |
 |
Constant extensions Connect your smartphone to the System Controller and benefit from new features via the eBike Flow app. |
 |
Minimalistic look System Controller and Mini Remote have an unadulterated and clean eBike look. |

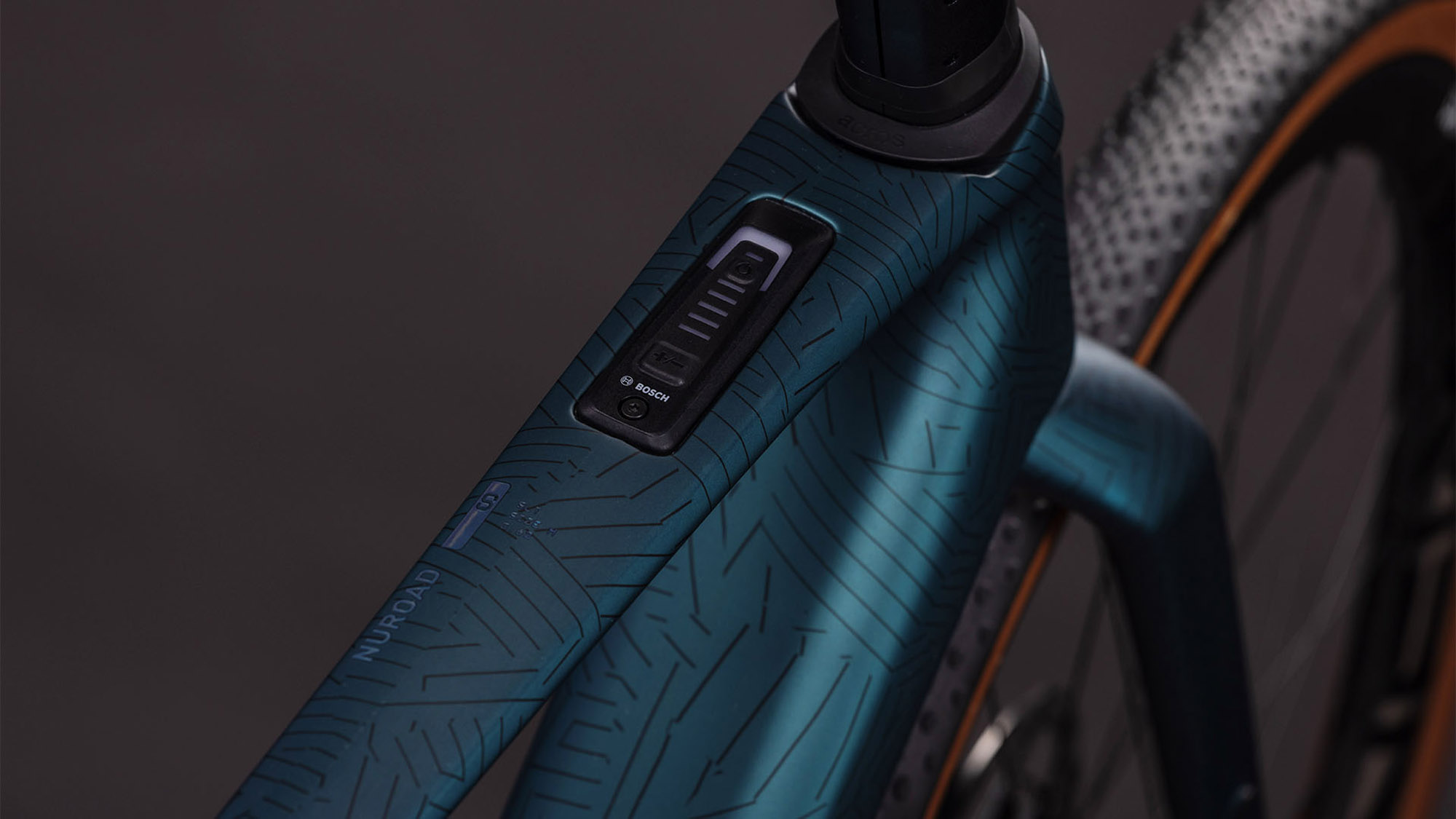

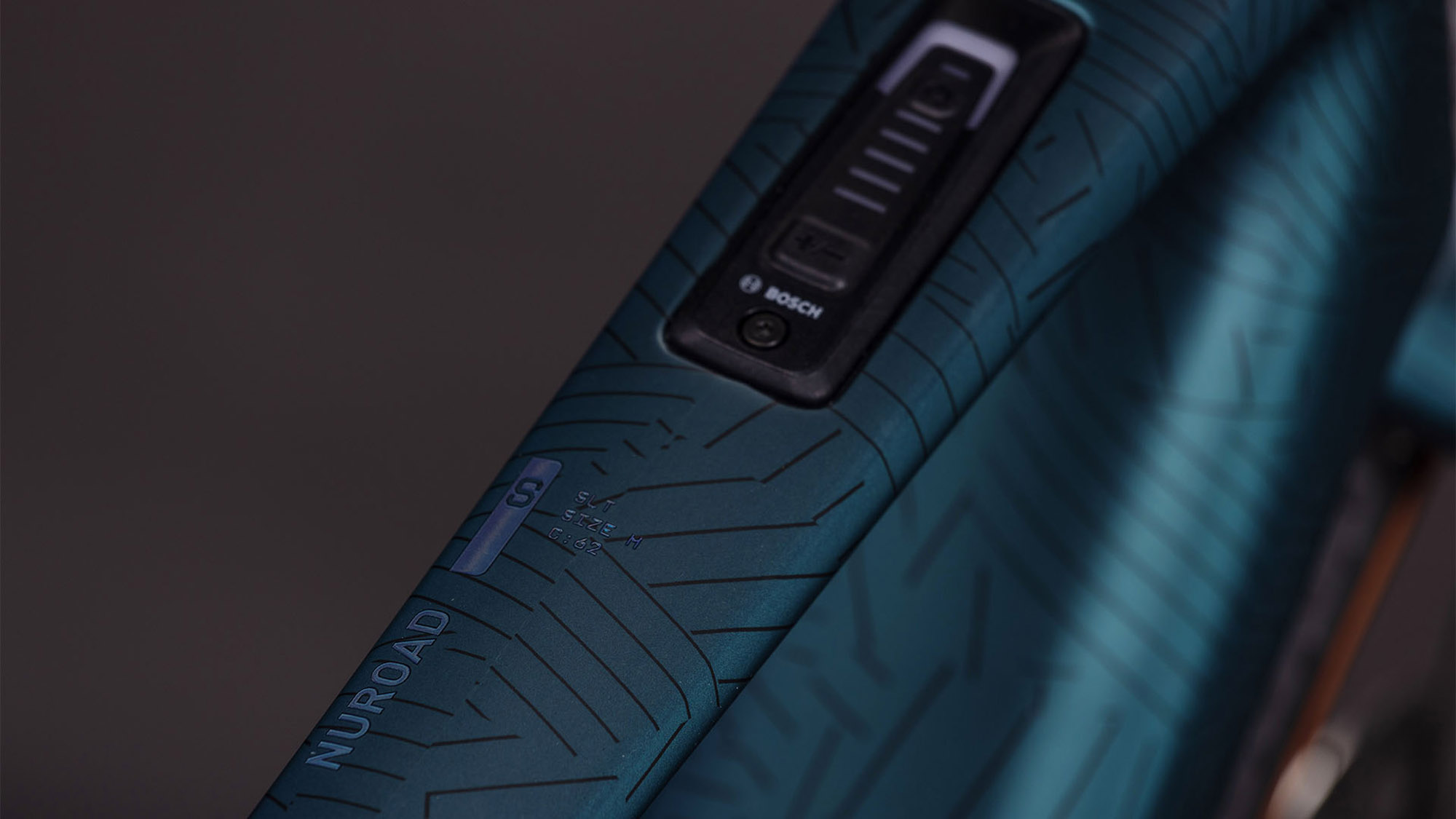

System Controller
Minimalist, robust Control Unit
The System Controller is the Control Unit for eBikes with the smart system, reduced to the essentials. The deliberately limited number of functions and information facilitates a quick overview and is not distracting while riding. The System Controller is seamlessly integrated into the top tube – this gives the already robust companion additional protection, is hardly noticeable and is perfect for sporty tours and design-oriented eBike fans.
LED indicators
LEDs use different colors to indicate the riding mode as well as the battery charge level in 10 % steps.
Connected in the smart system
The System Controller makes your eBike smart – and is the interface for software updates.
Built into the top tube
The System Controller is hardly noticeable, made of sturdy material and protected from knocks and scratches.
Two buttons
With only two buttons you control the most important functions of your eBike: turn your eBike on or off and change the riding mode.
Hardware Facts
- The bottom five LEDs indicate the charge level
- The large LED indicates the current support level through its colour: red, violet, blue, green
- Expandable with Mini Remote for additional functions and more convenient operation
- Modular use: The System Controller can be used in conjunction with the Mini Remote to control the eBike Flow app and Bosch display while riding
- Use of the Pust Assist via the Mini Remote and display of the status by rolling illumination of the charging status LEDs on the System Controller (white = Push Assist ready; ice blue = Push Assist active)
- Switching light on/off
- Ambient light sensor automatically adjusts the brightness of the LEDs
- Two-component design: combination of soft-touch surface and hard material for best ergonomics and robustness
- Replaceable and long-life battery lasts up to approx. 7 years
- Display of ABS function via ABS LED (only for eBikes with Bosch eBike ABS)
- Diagnostic interface (type: USB-C) for diagnosing the eBike system or charging the integrated battery of the system controller
- System connector for connecting the eBike system
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
Mini Remote
As an additional operating panel, the Mini Remote supplements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebar. The buttons near the thumb keep the hands on the handlebar at all times. More keys offer more functions: with the Mini Remote you get practical features like the smart Push Assist and you can turn your eBike light on or off.
Quickly retrofittable
The Mini Remote can be quickly retrofitted and is connected to the System Controller via Bluetooth.
Three keys, more functions
The keys of the Mini Remote have dual assignments: riding mode, light function, smart Push Assist, and for controlling a display.
Full flexibility
The Mini Remote works with or without display. Operate the Ride screen of the eBike Flow app or your display screens.
Intuitive operation
Short distances for the thumb and grippy soft-touch surface: The buttons have icons and can be used intuitively.
Hardware Facts
- Supplement to the system controller for additional functions and convenient operation on the handlebar
- Control of the navigation or ride screen in the eBike Flow app (smartphone) or the Bosch display
- Smart Push Assist and innovative rollback protection (supports on steep, non-rideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
- Optimal ergonomics of the buttons due to low profile design
- Wireless mounting on the handlebar
- Soft touch surface for extra good grip
- LED indicates low battery of the Mini Remote, pairing activity or lack of connection to the system
- Battery life (coin cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebar and inserting it into the rubber insert
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
- Bluetooth connectivity (Bluetooth 5.0 Low Energy)
CompactTube 400
Slim, integrated, compact, and with 400 watt hours at a weight of just around 4.4 pounds, it's a real energy champion: the CompactTube 400 with innovative battery cell technology offers the highest energy density of all Bosch eBike batteries. This makes the extra-light battery the ideal choice for performance light eMTBs, minimalist gravel eBikes or design-oriented urban eBikes – this battery is for anyone who loves the sleek look of conventional bikes and wants electric support.
- System: The smart system
- Voltage: 36 V
- Capacity: 11.1 Ah
- Weight : approx. 2 kg
- Compatible with DualBattery of the smart system: Yes
- Dimensions, horizontal / vertical 352 x 57 x 75 mm / 352 x 57 x 75 mm
