ACADEMY Grade 2 Belt Children's Bike
Product information "Grade 2 Belt Children's Bike"
Ultra-light junior bike that meets the latest ergonomic requirements
"Engineered by SCOOL". In collaboration with the German Institute for Orthopaedics, Osteopathy and Sports Medicine (DIOOS) under the direction of Dr. Andreas Elsner, the developers of ACADEMY Bikes have succeeded in developing ultra-light junior bikes that meet the latest ergonomic requirements.
All models are lighter than 40 % of a normal child's weight, and the frames with deep and narrow bottom brackets allow for close child-friendly leg guidance. Short cranks and the upright seating position allow the feet to be placed on the ground at all times and still ensure an ergonomic knee position while riding.
Features - Academy Grade 2 Belt children's bike
- Belt drive
- Tripple butted aluminum frame
- Lightweight aluminum components (rims, handlebars, crank, fork)
- V-brake (front and rear) made of aluminum
- Child-friendly geometry
- Pedals
Product features
- Size: 14 inch
- Weight: 5.4 kg (manufacturer's specification)
- Age: 2 - 4 years
- Height: 95 - 105 cm
- Drive: Chain
- Number of gears: 1-speed, freewheel
- Frame shape: Diamant bend
- Frame height: 21 cm
Color
- Ocean
The children's and youth bikes from Academy are shipped "fully assembled". This means that only the handlebars need to be turned in the direction of travel and the pedals attached. All other components are already assembled and set up ready to ride.
Technologies

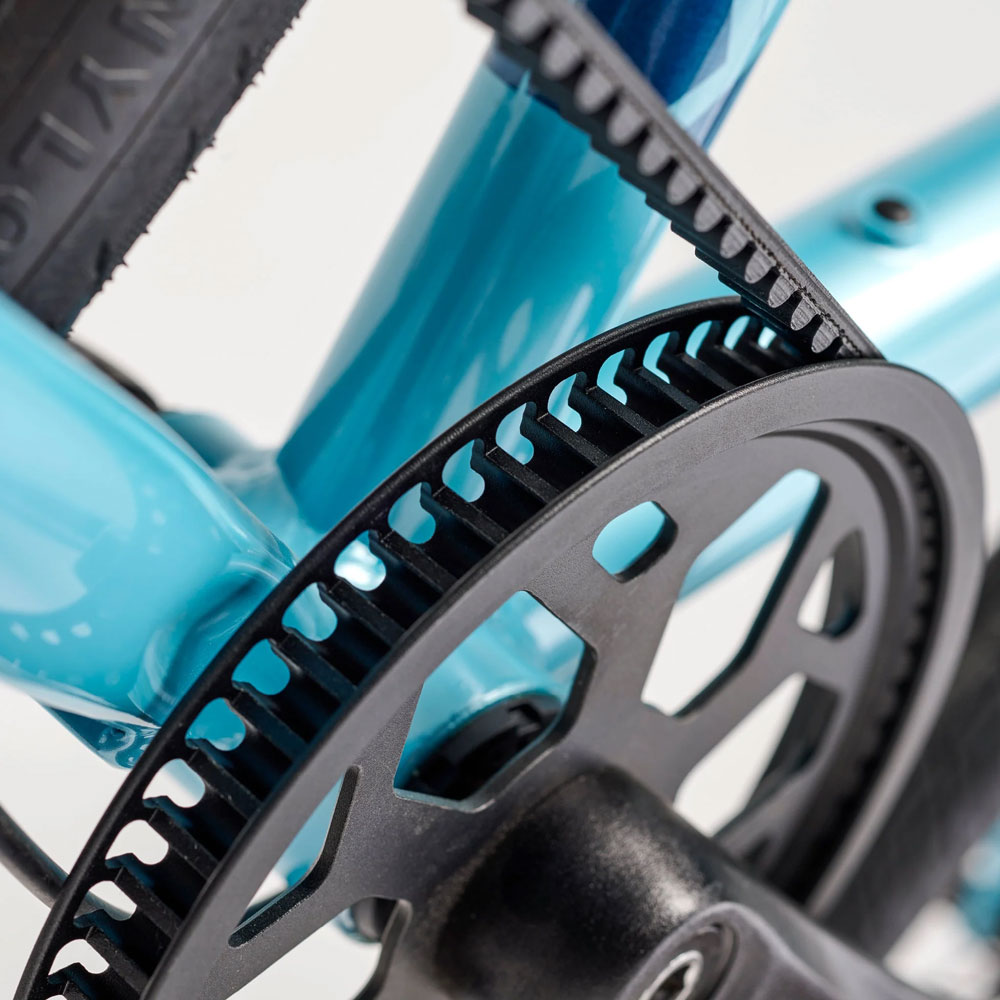

Belt drive
Here too, we strictly adhere to our "super-light concept" - belt drives are extremely light. Further plus points: less maintenance, a longer service life and very quiet to boot - what more could you want?
Stem
The patented Syntace Vario stem grows in height and length. The stem is infinitely adjustable and is 100% stable in any position. This always guarantees an optimally adapted riding position, allowing your Academy bike to grow effortlessly. Adjustment range: 55-105 mm Length: 70 mm FlipFlop: yes Angle: 6 degrees
Q-factor
The Q-factor describes the width of the cranks and plays an important role when it comes to the efficiency of the pedaling motion. Ideally, the Q-factor on the bike should match the rider's pedaling width. A small Q-factor is more ergonomic, whereas a Q-factor that is too large forces the legs into an X position when pedaling. Ergonomically correct, round pedaling is hardly possible. The result: knee pain, rapid fatigue and reaching the performance limit more quickly. The ACADEMY bikes offer one of the smallest Q-factors and are therefore optimally adapted to children's pedaling.
Frame
The weight of a bike has a significant influence on the fun and enthusiasm of children. A good children's bike is therefore only a good children's bike if it is really light and optionally customizable! The Academy bikes achieve this goal with lightweight frames and components and even go one better. The lowered top tube offers a low step-through height, making it easier for children to get on and off the bike.
Saddle
One, sit down! The straight seat prevents the sit bones from slipping and guarantees ideal support. The recessed saddle shell also relieves pressure. Optimum seat support (not too soft and not too hard) prevents sinking and ensures a secure seat with lots of comfort and riding fun!
Tires
Since the power-to-weight ratio of the children is the focus for Academy, they rely on the light and narrow VEE Tire Skinwall Synthesis. Thanks to its cross-country profile, it is perfect for use in the city as well as for riding on gravel paths. It also looks great with the Skinwall, but also offers optimum protection in traffic thanks to the reflective strips!
ACADEMY Bike BELT & CHAIN fitting instructions
- Manufacturer number: 8813
- EAN: 4250969288131
Ludwig-Erhard-Allee 3
33719 Bielefeld
Deutschland
academy-bikes.de/
ACADEMY Grade 2 Belt Children's Bike
Ultra-light junior bike that meets the latest ergonomic requirements
"Engineered by SCOOL". In collaboration with the German Institute for Orthopaedics, Osteopathy and Sports Medicine (DIOOS) under the direction of Dr. Andreas Elsner, the developers of ACADEMY Bikes have succeeded in developing ultra-light junior bikes that meet the latest ergonomic requirements.
All models are lighter than 40 % of a normal child's weight, and the frames with deep and narrow bottom brackets allow for close child-friendly leg guidance. Short cranks and the upright seating position allow the feet to be placed on the ground at all times and still ensure an ergonomic knee position while riding.
Features - Academy Grade 2 Belt children's bike
- Belt drive
- Tripple butted aluminum frame
- Lightweight aluminum components (rims, handlebars, crank, fork)
- V-brake (front and rear) made of aluminum
- Child-friendly geometry
- Pedals
Product features
- Size: 14 inch
- Weight: 5.4 kg (manufacturer's specification)
- Age: 2 - 4 years
- Height: 95 - 105 cm
- Drive: Chain
- Number of gears: 1-speed, freewheel
- Frame shape: Diamant bend
- Frame height: 21 cm
Color
- Ocean
The children's and youth bikes from Academy are shipped "fully assembled". This means that only the handlebars need to be turned in the direction of travel and the pedals attached. All other components are already assembled and set up ready to ride.
Technologies
Belt drive
Here too, we strictly adhere to our "super-light concept" - belt drives are extremely light. Further plus points: less maintenance, a longer service life and very quiet to boot - what more could you want?
Stem
The patented Syntace Vario stem grows in height and length. The stem is infinitely adjustable and is 100% stable in any position. This always guarantees an optimally adapted riding position, allowing your Academy bike to grow effortlessly. Adjustment range: 55-105 mm Length: 70 mm FlipFlop: yes Angle: 6 degrees
Q-factor
The Q-factor describes the width of the cranks and plays an important role when it comes to the efficiency of the pedaling motion. Ideally, the Q-factor on the bike should match the rider's pedaling width. A small Q-factor is more ergonomic, whereas a Q-factor that is too large forces the legs into an X position when pedaling. Ergonomically correct, round pedaling is hardly possible. The result: knee pain, rapid fatigue and reaching the performance limit more quickly. The ACADEMY bikes offer one of the smallest Q-factors and are therefore optimally adapted to children's pedaling.
Frame
The weight of a bike has a significant influence on the fun and enthusiasm of children. A good children's bike is therefore only a good children's bike if it is really light and optionally customizable! The Academy bikes achieve this goal with lightweight frames and components and even go one better. The lowered top tube offers a low step-through height, making it easier for children to get on and off the bike.
Saddle
One, sit down! The straight seat prevents the sit bones from slipping and guarantees ideal support. The recessed saddle shell also relieves pressure. Optimum seat support (not too soft and not too hard) prevents sinking and ensures a secure seat with lots of comfort and riding fun!
Tires
Since the power-to-weight ratio of the children is the focus for Academy, they rely on the light and narrow VEE Tire Skinwall Synthesis. Thanks to its cross-country profile, it is perfect for use in the city as well as for riding on gravel paths. It also looks great with the Skinwall, but also offers optimum protection in traffic thanks to the reflective strips!
ACADEMY Bike BELT & CHAIN fitting instructions
- Manufacturer number: 8813
- EAN: 4250969288131
Ludwig-Erhard-Allee 3
33719 Bielefeld
Deutschland
academy-bikes.de/
Configuration
| Frame: | Diamant Knick |
|---|---|
| Frame material: | Tripple Butted Aluminium |
| Wheel size: | 14" |
| Speeds: | 1-Gang |
| Colour: | ocean |
| Fork: | Aluminium |
| Brakes: | V-Brake vorne und hinten, Aluminium |
| Brake levers: | Composite, schwarz |
| Handlebar: | 470mm BMX Style |
| Bar grips: | Velo schwarz |
| Saddle: | Druck entlastender Kindersattel |
| Seatpost: | 25,4mm Aluminium |
| Crankset: | C-Drive 48T, 89mm, Aluminium |
|---|---|
| Bottom bracket: | Thun Twist-ML 2.0, 110mm |
| Cassette: | 14-28T |
| Tyres: | VEE TIRE Rail 14"x1,50 (40-254), Reflexstreifen, 72 TPI |
| Front hub: | Aluminium, 14G/16H, schwarz |
| Rear hub: | Aluminium, 14G/16H, schwarz |
| Rims: | 14" x 1,5" x 16H, Aluminium, schwarz |
| Pedals: | 95x80x23mm, Kugellager, schwarz mit Reflektoren, 9/16 Gewinde |
| Other details: | Hebie Chainlooper |
| Maximum total weight allowed: | 50 kg |
| Weight: | 5,4 kg |
