Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |
Product information "ALiEN X Multitool"
The ALiEN™ X features, among other things, T10/T15/T20/T25/T30 Torx® movement witnesses and a chain lock tool for use on single and multispeed chains with chain locks. The two-piece design allows easy access and full use of all tools and extends the lever during tightening. Tool preload adjustable, including robust nylon bag.
Features - Topeak ALiEN™ X
- Separable tool through ALiEN™ technology
- Smooth, rounded shape for optimum handling

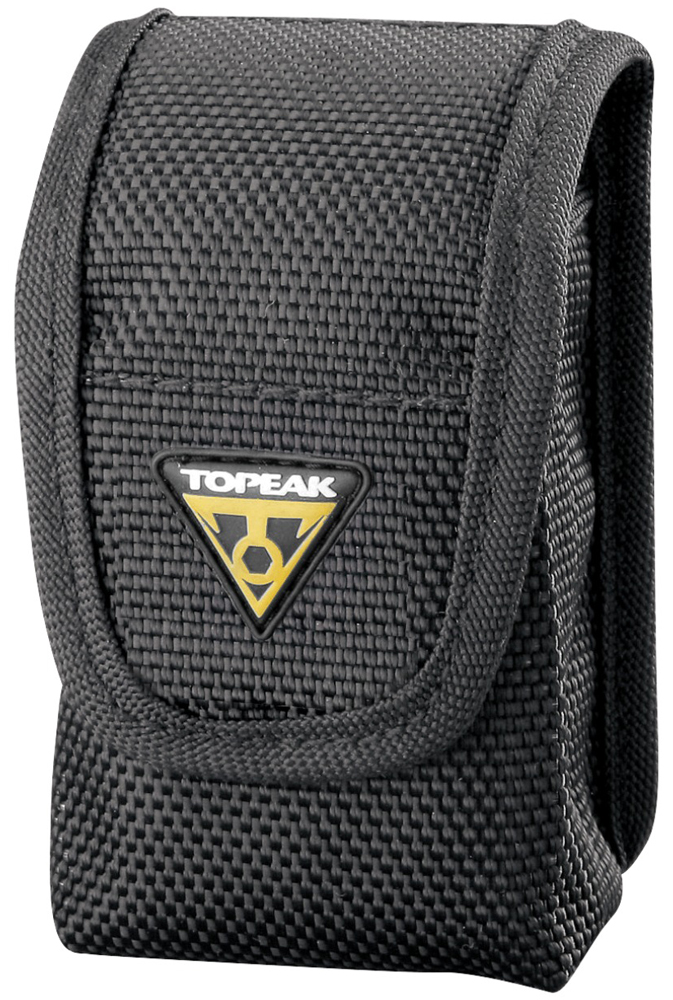

- Including robust carrying bag
- Increased safety when working with knives with protective cover and locking function
- Including brake pad spreader
Product features
- Chain tool *
- Chain fixing hooks

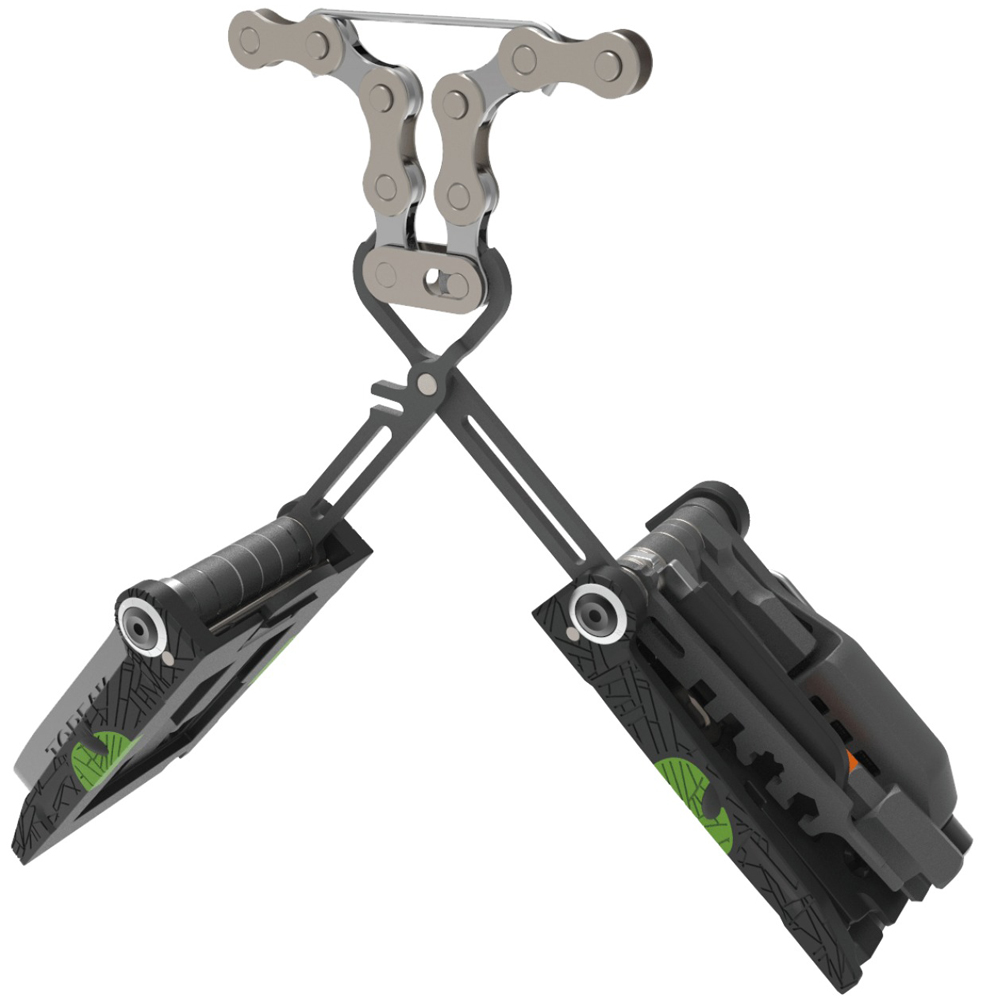

- Chain lock tool
- Tire lever*
- Knife with locking function and protective cover
- Presta valve tool
- spoke holder
- Brake pad spreader
- Rivet anvil for Campagnolo® Hollow Pin chains
- Rivet pin breaker
- Pocket for chain lock

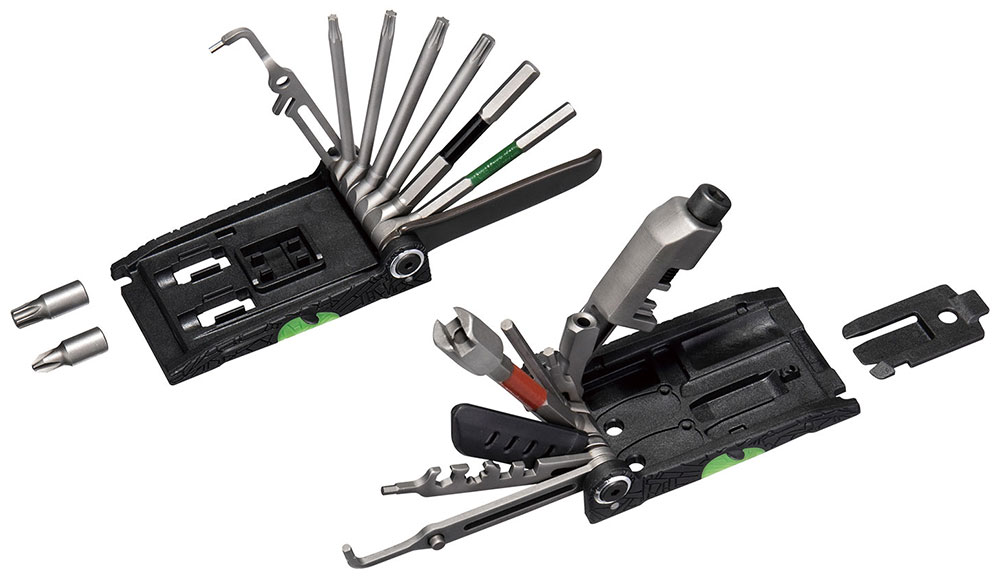

- Two-piece design
- Air release mandrel
- Larger levers
- Compartment for two rivet pins
- Tool interlock
- Two-piece design
- Extended lever
- Tool pre-tensioning adjustable
- Hex wrenches: 1.5-L /2-L / 2,5 / 3 / 4 / 5 / 6 / 8 / 10 mm
- TORX® wrench: T10 / T15 / T25 / T30
- Screwdriver: #2 Phillips / Flat head
- Spoke wrench: 14G (3,4 mm) / 15G (3,2 mm) / Mavic M7 / Shimano® 4.5 mm
- Dimensions: 7.8 x 4,5 x 4 cm
** Tire levers designed for emergency use only.
Materials
- Tools: Chrome vanadium steel
- Chain rivet: CrMo steel
- Body: Engineering grade polymer
- Brake pad spreader: Engineering grade polymer
- Bag: Nylon D1800D
Color
- black
Weight
- 204 g (manufacturer information)
Scope of delivery
- 1 x Topeak ALiEN X Multi-Tool
- incl. Neoprenbag
- Manufacturer number: TT2585
- EAN: 4710069687536
- UPC: 883466019355
8F-4, NO.20, TA LONG ROAD
Taichung
Taiwan
https://www.topeak.com/de/de
Am Autobahnkreuz 7
56072 Koblenz
Deutschland
Topeak ALiEN X Multitool
The ALiEN™ X features, among other things, T10/T15/T20/T25/T30 Torx® movement witnesses and a chain lock tool for use on single and multispeed chains with chain locks. The two-piece design allows easy access and full use of all tools and extends the lever during tightening. Tool preload adjustable, including robust nylon bag.
Features - Topeak ALiEN™ X
- Separable tool through ALiEN™ technology
- Smooth, rounded shape for optimum handling
- Including robust carrying bag
- Increased safety when working with knives with protective cover and locking function
- Including brake pad spreader
Product features
- Chain tool *
- Chain fixing hooks
- Chain lock tool
- Tire lever*
- Knife with locking function and protective cover
- Presta valve tool
- spoke holder
- Brake pad spreader
- Rivet anvil for Campagnolo® Hollow Pin chains
- Rivet pin breaker
- Pocket for chain lock
- Two-piece design
- Air release mandrel
- Larger levers
- Compartment for two rivet pins
- Tool interlock
- Two-piece design
- Extended lever
- Tool pre-tensioning adjustable
- Hex wrenches: 1.5-L /2-L / 2,5 / 3 / 4 / 5 / 6 / 8 / 10 mm
- TORX® wrench: T10 / T15 / T25 / T30
- Screwdriver: #2 Phillips / Flat head
- Spoke wrench: 14G (3,4 mm) / 15G (3,2 mm) / Mavic M7 / Shimano® 4.5 mm
- Dimensions: 7.8 x 4,5 x 4 cm
** Tire levers designed for emergency use only.
Materials
- Tools: Chrome vanadium steel
- Chain rivet: CrMo steel
- Body: Engineering grade polymer
- Brake pad spreader: Engineering grade polymer
- Bag: Nylon D1800D
Color
- black
Weight
- 204 g (manufacturer information)
Scope of delivery
- 1 x Topeak ALiEN X Multi-Tool
- incl. Neoprenbag
- Manufacturer number: TT2585
- EAN: 4710069687536
- UPC: 883466019355
8F-4, NO.20, TA LONG ROAD
Taichung
Taiwan
https://www.topeak.com/de/de
Am Autobahnkreuz 7
56072 Koblenz
Deutschland
Evaluations
Average rating of 4 out of 5 stars
Average rating of 3 out of 5 stars
Pretty disappointed in this tool overall. Had it for over a year now and used it maybe once or twice every week. So far I've broken 4 tools, the T25, 1.5mm, 2mm and 2.5mm allen keys and i can already see edges wearing out on other sizes and the tyre lever was bent after first tyre removal. However, there are other aspects i really liked about it, like the chain tool and chain link opener, a small knife has been very useful to me on the trail, needed to use chain master link after breaking the chain, good thing this had small space where u could put a pair and use it whenever needed. Overall I'm giving it 3 stars. I wish the allen keys and t25 lasted longer as those are the tools i use the most.
Average rating of 5 out of 5 stars
Top, hat alles was man auf der Tour/dem Trail brauchen kann. Jetzt in der überarbeiteten Version des Alien 3 mit Kettenschlosswerkzeug. Hat auch Platz für Nietstifte und Kettenschloss.
