Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |

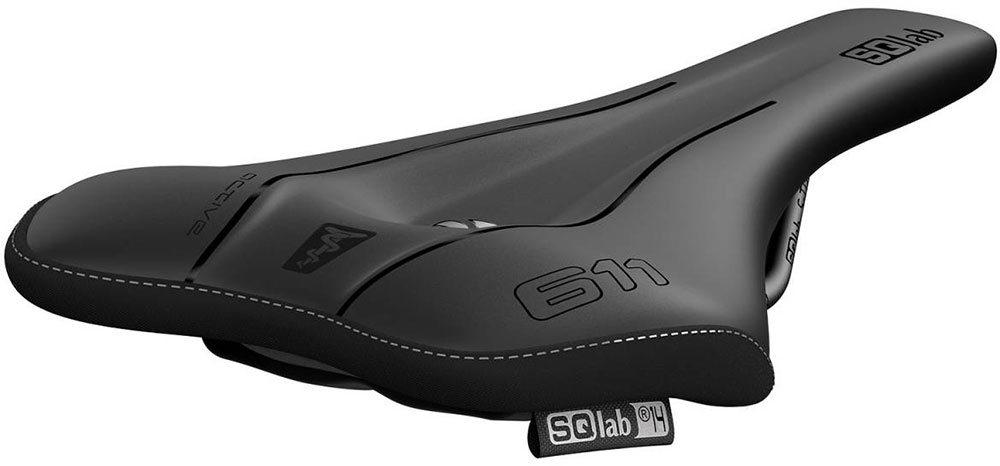

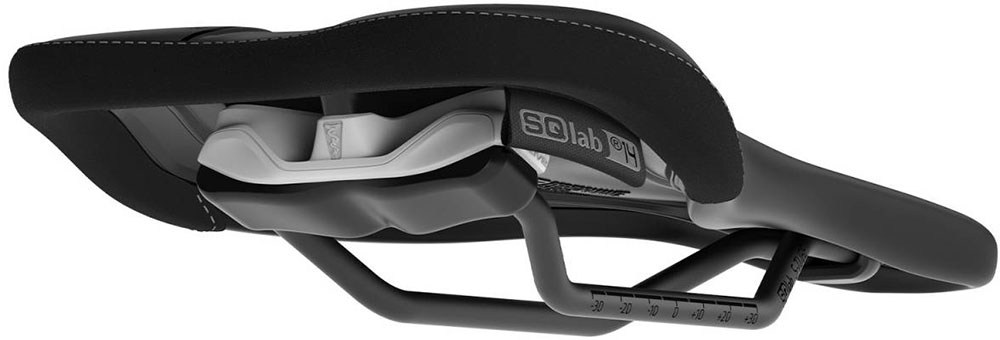

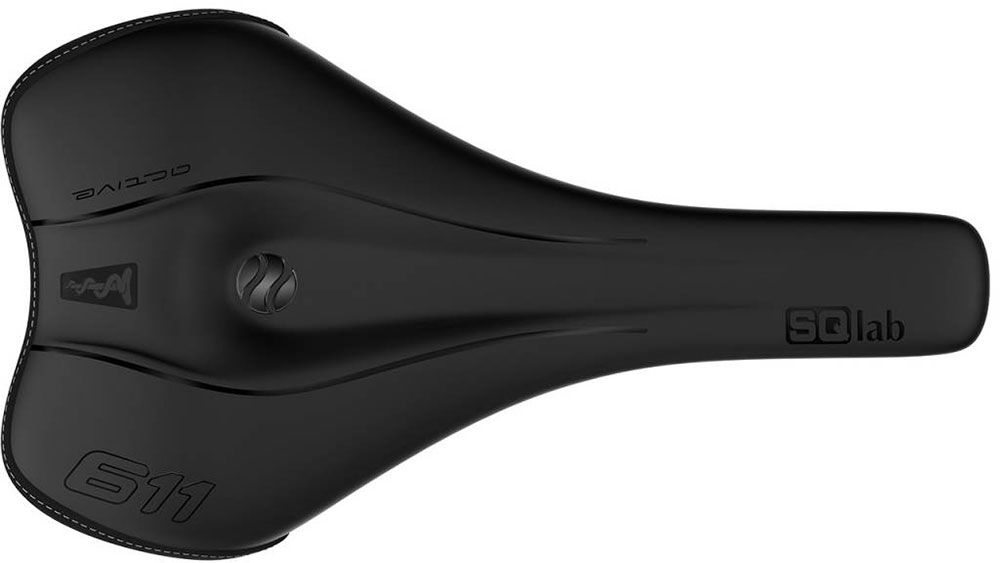

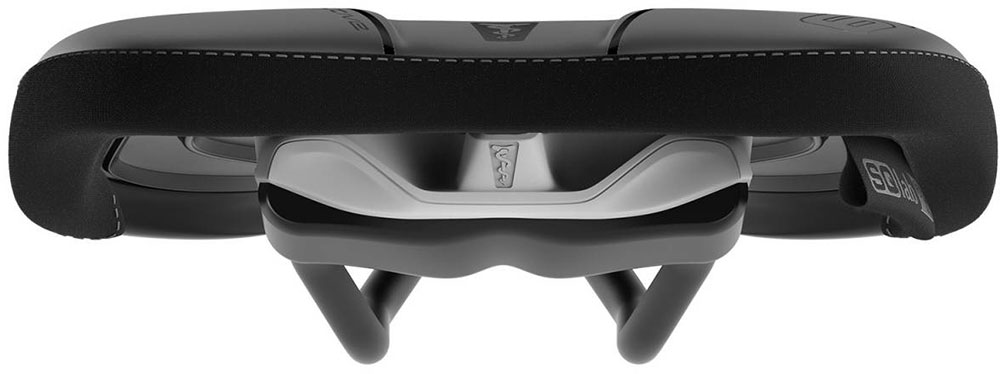

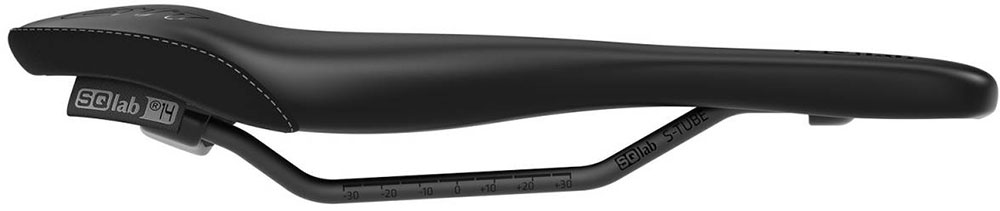

Product information "611 Ergowave active 2.1 Saddle"
The padding material has been specially adapted to the requirements of MTB and has more damping in rough terrain. High-quality Kevlar cover protects the particularly stressed areas on the saddle. The new 611 ERGOWAVE® active 2.1 has been given a form, function and comfort upgrade for long uphills and trail descents on the mountain bike. The 611 ERGOWAVE® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology means that the saddle follows the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.
Features - SQlab 611 Ergowave active 2.1
- Unisex - With the SQlab step saddle concept and the SQlab saddle width system, different saddles for men and women are no longer necessary.
- Ergowave® - The new shape of the SQlab step saddle for a dynamic riding position on the MTB and roadbike. It provides an optimal pressure distribution within the pubic branches for even further increased performance and comfort.
- Saddle Widths - SQlab saddles are available in 5 different saddle widths. The correct saddle width is determined using the SQlab sit bone measurement method.
- Active-technology - The active-saddle construction allows movement of the pelvis in the horizontal plane, which increases comfort and relieves the spinal discs. The active-saddles are equipped with two to four active-sticks.
- MaxContact® - SQlab MaxContact saddle nose maximizes the contact area thereby reducing pressure.
- Water Resistant - Water resistant cover material
Product features
- Use: MTB Tech & Trail
- Length: 280 mm
- Hardness in SQ-shore: 55
- Relief of perineal area: 65%
- active Technology: Sport (adjustable via 3 elastomers)
- Max. Weight: 100 kg
Material
- Rails: S-Tube
- Cover: C84 Kevlar
- Padding: Super Light Foam
Available widths (choose variant)
- 13 cm
- 14 cm
- 15 cm
- 16 cm
Color
- black
Weight
- 223 g (manufacturer information)
Scope of delivery
- 1 SQlab 611 Ergowave active 2.1 Saddle
- Incl. Elastomere (soft, medium, hard)
SQlab active System
- Manufacturer number: 2394
- EAN:
Frequently bought together
Average rating of 5 out of 5 stars
Average rating of 4.5 out of 5 stars
Content 0.06 l (83,17 € / 1 l)
SQlab 611 Ergowave active 2.1 Saddle
The padding material has been specially adapted to the requirements of MTB and has more damping in rough terrain. High-quality Kevlar cover protects the particularly stressed areas on the saddle. The new 611 ERGOWAVE® active 2.1 has been given a form, function and comfort upgrade for long uphills and trail descents on the mountain bike. The 611 ERGOWAVE® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology means that the saddle follows the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.
Features - SQlab 611 Ergowave active 2.1
- Unisex - With the SQlab step saddle concept and the SQlab saddle width system, different saddles for men and women are no longer necessary.
- Ergowave® - The new shape of the SQlab step saddle for a dynamic riding position on the MTB and roadbike. It provides an optimal pressure distribution within the pubic branches for even further increased performance and comfort.
- Saddle Widths - SQlab saddles are available in 5 different saddle widths. The correct saddle width is determined using the SQlab sit bone measurement method.
- Active-technology - The active-saddle construction allows movement of the pelvis in the horizontal plane, which increases comfort and relieves the spinal discs. The active-saddles are equipped with two to four active-sticks.
- MaxContact® - SQlab MaxContact saddle nose maximizes the contact area thereby reducing pressure.
- Water Resistant - Water resistant cover material
Product features
- Use: MTB Tech & Trail
- Length: 280 mm
- Hardness in SQ-shore: 55
- Relief of perineal area: 65%
- active Technology: Sport (adjustable via 3 elastomers)
- Max. Weight: 100 kg
Material
- Rails: S-Tube
- Cover: C84 Kevlar
- Padding: Super Light Foam
Available widths (choose variant)
- 13 cm
- 14 cm
- 15 cm
- 16 cm
Color
- black
Weight
- 223 g (manufacturer information)
Scope of delivery
- 1 SQlab 611 Ergowave active 2.1 Saddle
- Incl. Elastomere (soft, medium, hard)
SQlab active System
- Manufacturer number: 2394
- EAN:
