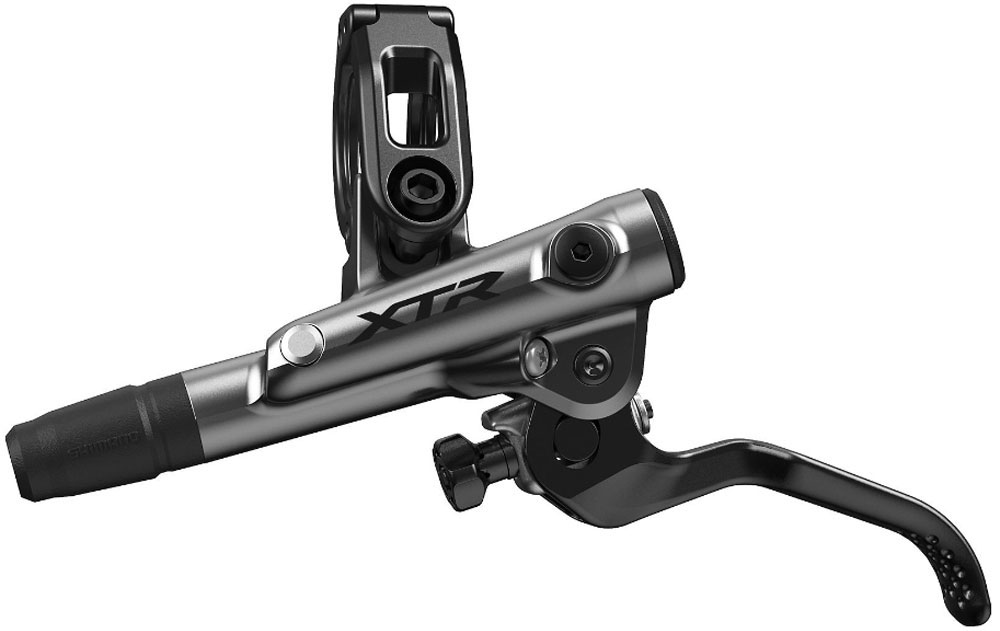

Shimano XTR BL-M9120 Brake Lever left
Item no:
20057079
Product information "XTR BL-M9120 Brake Lever left"
The Shimano XTR BL-M9120 hydraulic disc 2-finger brake lever, fits seamlessly into the line-up of the new XTR M9100 component group. Higher braking force with less effort on the fingers and extremely linear response to the lever movement.
The two-piston brake (BR-M9100) comes in combination with a light XC brake lever, whose grip width is of course individually adjustable. The four-piston brake (BR-M9120) recalls its immense potential in combination with a special SERVO-WAVE brake lever (BL-M9120), whose grip width can also be adjusted without tools and which also has an adjustment option for the free travel. Both calipers have a one-piece aluminum design and are combined with highly rigid brake lines, so that the new XTR brake systems score with significantly faster response and less free travel.
The brake pads and brake discs have also been revised to match the newly developed brake calipers. The four-piston brakes use brake pads with cooling fins. (N03/04A, resin/metal). On the other hand, the pads without Kührippen (K02/04S, resin/metal; optionally K02/04Ti with titanium carrier plate) ensure good deceleration with low weight. The design of the brake discs is a further development of the successful ICE TECHNOLOGIES FREEZA design. While the further weight reduction of 5g and 10g is particularly attractive for the 140mm and 160mm discs, the 180mm and 203mm versions are characterised by a further improvement in heat dissipation of 20°C in intensive tests and are also pleasantly low-weight (203mm: minus 30g).
Brake lever with excellent braking power: XTR BL-M9120 from Shimano
Starting from a brake system, which was already the benchmark for mountain bike brake systems, the SHIMANO engineers revised the design of the new brake levers (BL-M9100/9120). Both the clamp and the lever body itself have been modified. The clamp moves further into the middle of the lever and is angled. This cleverly supports the outer end of the expansion tank directly on the handlebar and creates an additional abutment when the lever is actuated. This significantly increases stiffness and stability, which ultimately leads to an even more direct braking feel and improved controllability.The two-piston brake (BR-M9100) comes in combination with a light XC brake lever, whose grip width is of course individually adjustable. The four-piston brake (BR-M9120) recalls its immense potential in combination with a special SERVO-WAVE brake lever (BL-M9120), whose grip width can also be adjusted without tools and which also has an adjustment option for the free travel. Both calipers have a one-piece aluminum design and are combined with highly rigid brake lines, so that the new XTR brake systems score with significantly faster response and less free travel.
The brake pads and brake discs have also been revised to match the newly developed brake calipers. The four-piston brakes use brake pads with cooling fins. (N03/04A, resin/metal). On the other hand, the pads without Kührippen (K02/04S, resin/metal; optionally K02/04Ti with titanium carrier plate) ensure good deceleration with low weight. The design of the brake discs is a further development of the successful ICE TECHNOLOGIES FREEZA design. While the further weight reduction of 5g and 10g is particularly attractive for the 140mm and 160mm discs, the 180mm and 203mm versions are characterised by a further improvement in heat dissipation of 20°C in intensive tests and are also pleasantly low-weight (203mm: minus 30g).
Features - Shimano XTR BL-M9120 left
- Quicker rebound between actions maintains rider concentration
- Greater flexibility and action-optimized cockpit layout
- Update brake lever shape
- Seamless operation
- High rigidity
- Optimized ergonomic 2-finger brake lever
- One-Way bleeding
- I-Spec EV compatible - securing the shift lever on the brake lever
Product features
- Use: MTB, Enduro, Trail
- Group: XTR M9100
- Model: BL-M9120 (front)
- Brake type: Hydraulic Disc-Brake
- Lever length: 2-Finger
- Mount: left
- Clamp: open
- Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
- Adjustable pressure point: Yes
- Reach adjustment: Yes, without tool
- One-Way bleeding: Yes
- Brake fluid: Mineral oil
- Recommended caliper: BR-M9120
- Recommended brake hose: SM-BH90-SBM
- Recommended brake rotor: RT-MT900
Material
- Aluminum Anodized
Color
- serial color
Scope of delivery
- 1 x Shimano XTR BL-M9120 Brake Lever left
XTR M9100
First ride impression XTR M9100
- Manufacturer number: IBLM9120L
- EAN: 4524667341062
- UPC: 689228341067
Manufacturer:
SHIMANO INC.3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Person responsible in the EU:
Shimano Europe BVHigh Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
