Shimano XT BL-M8200/BR-M8200 Disc Brake Upgrade Kit
New
Item no:
20142121
Product information "XT BL-M8200/BR-M8200 Disc Brake Upgrade Kit"

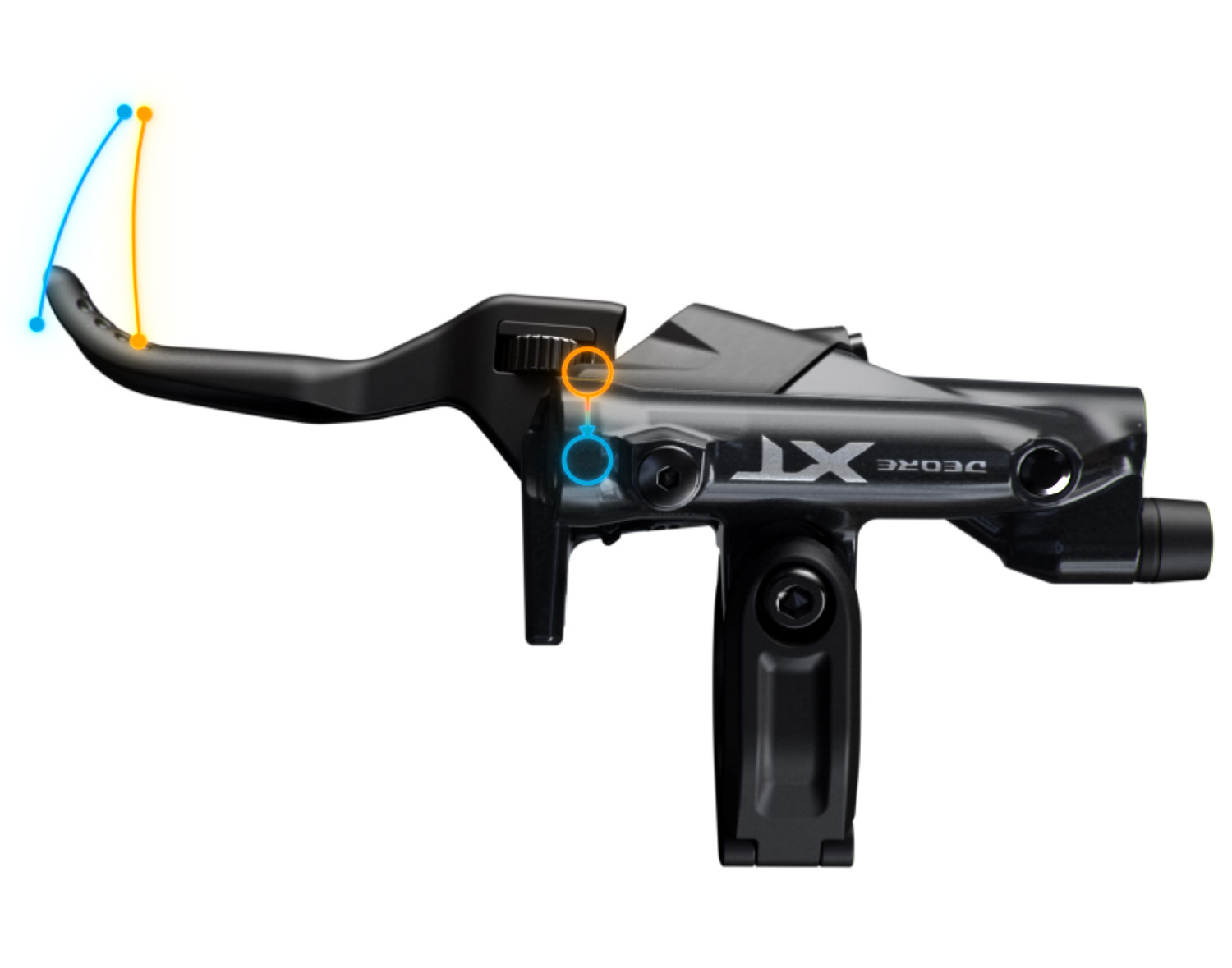

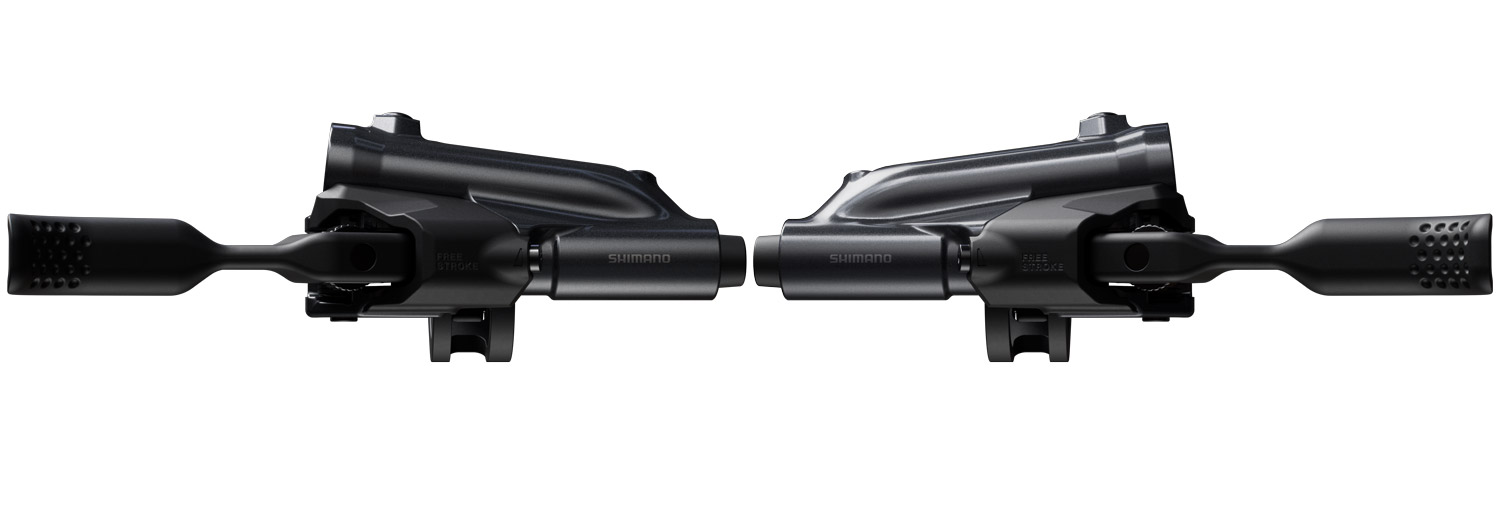

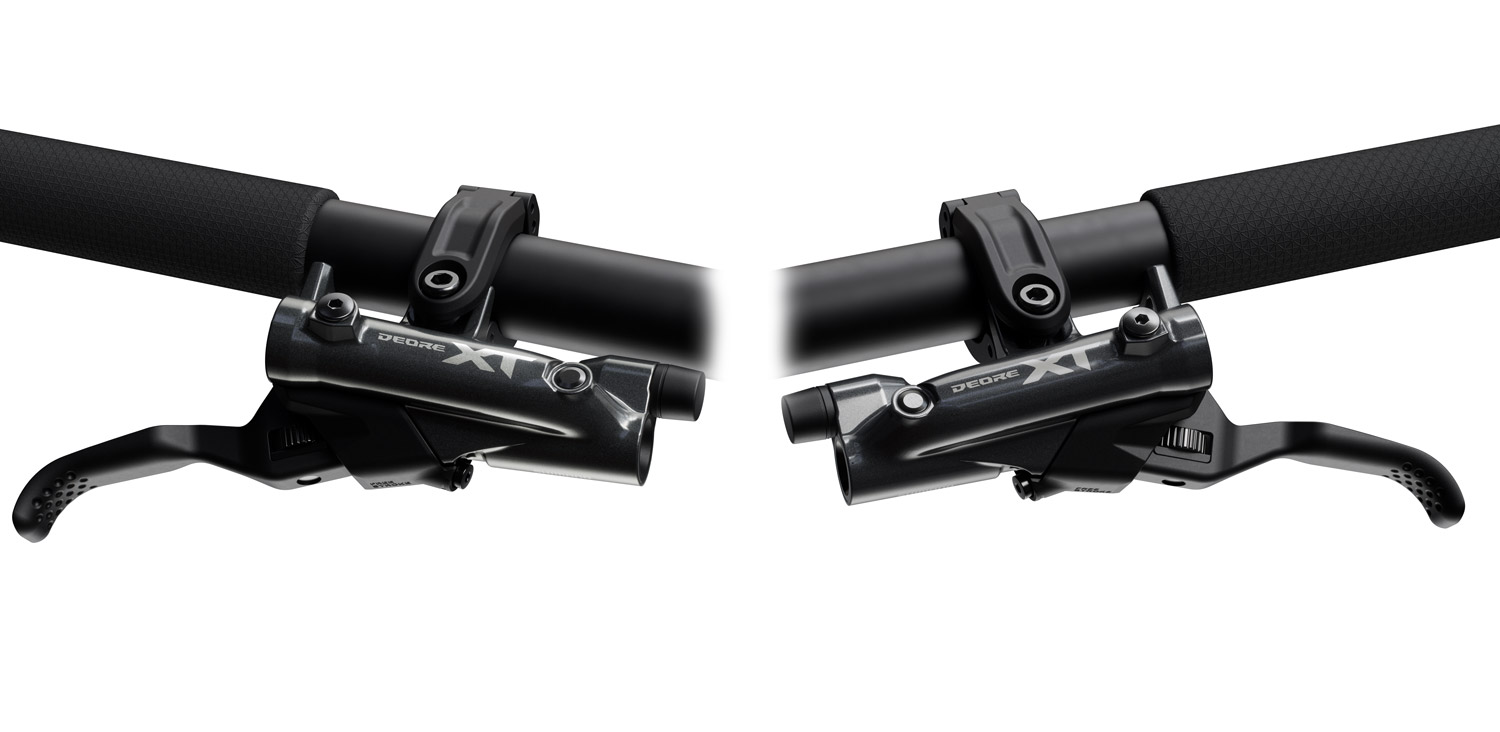

Designed with ergonomics and the human hand in mind, the Shimano XT BL-M8200 2-finger hydraulic brake lever offers a powerful pull with smooth lever feel and modulation for ultimate control in combination with the 2-piston BR-M8200 caliper. A new, closer pivot point follows the natural arc of the finger, while the 5-degree upturned lever and tuned grip width favor a natural position for confidently tackling technical trail sections. The upgrade kit includes two additional pairs of brake pads and 100 ml of mineral oil.

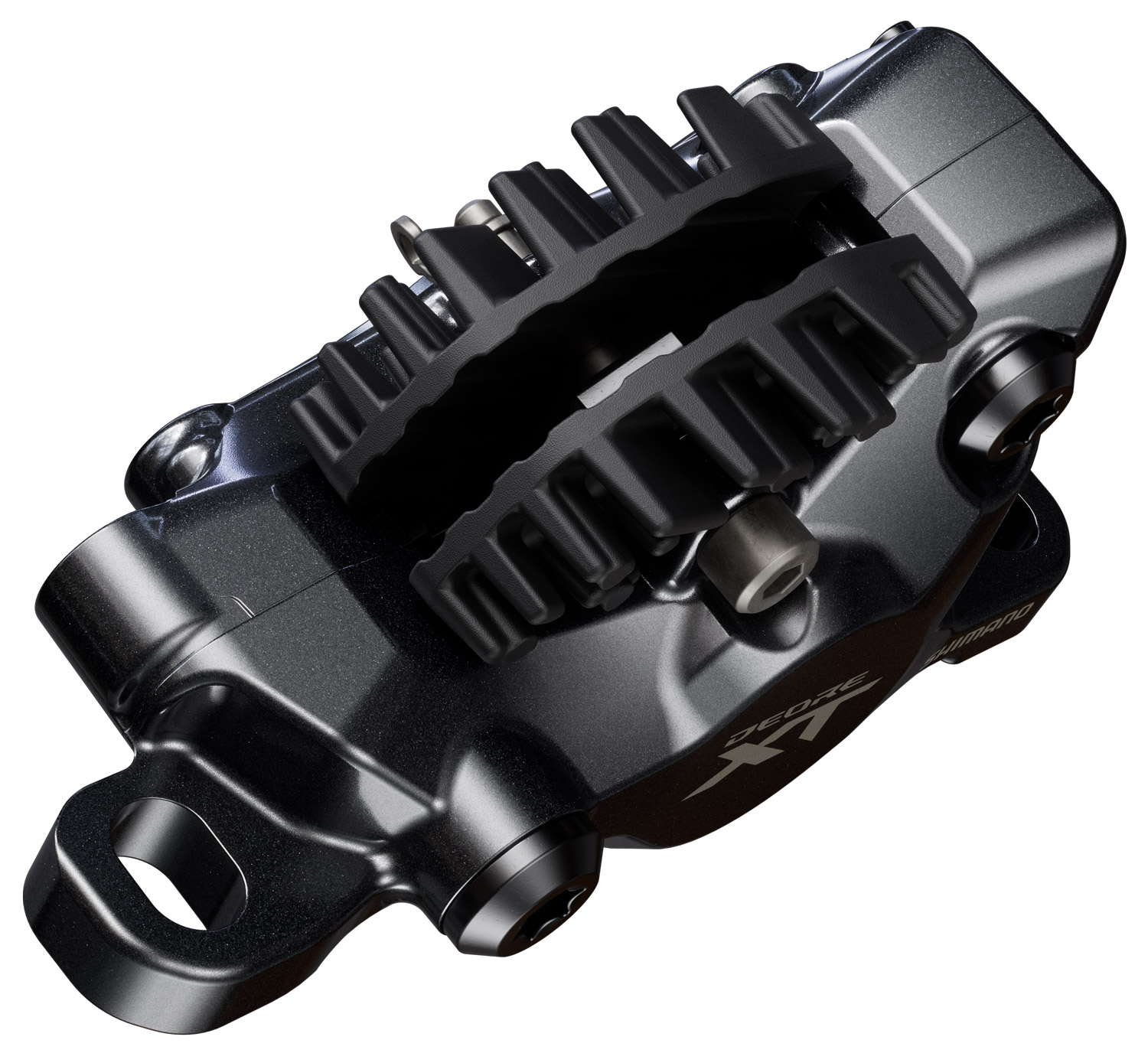

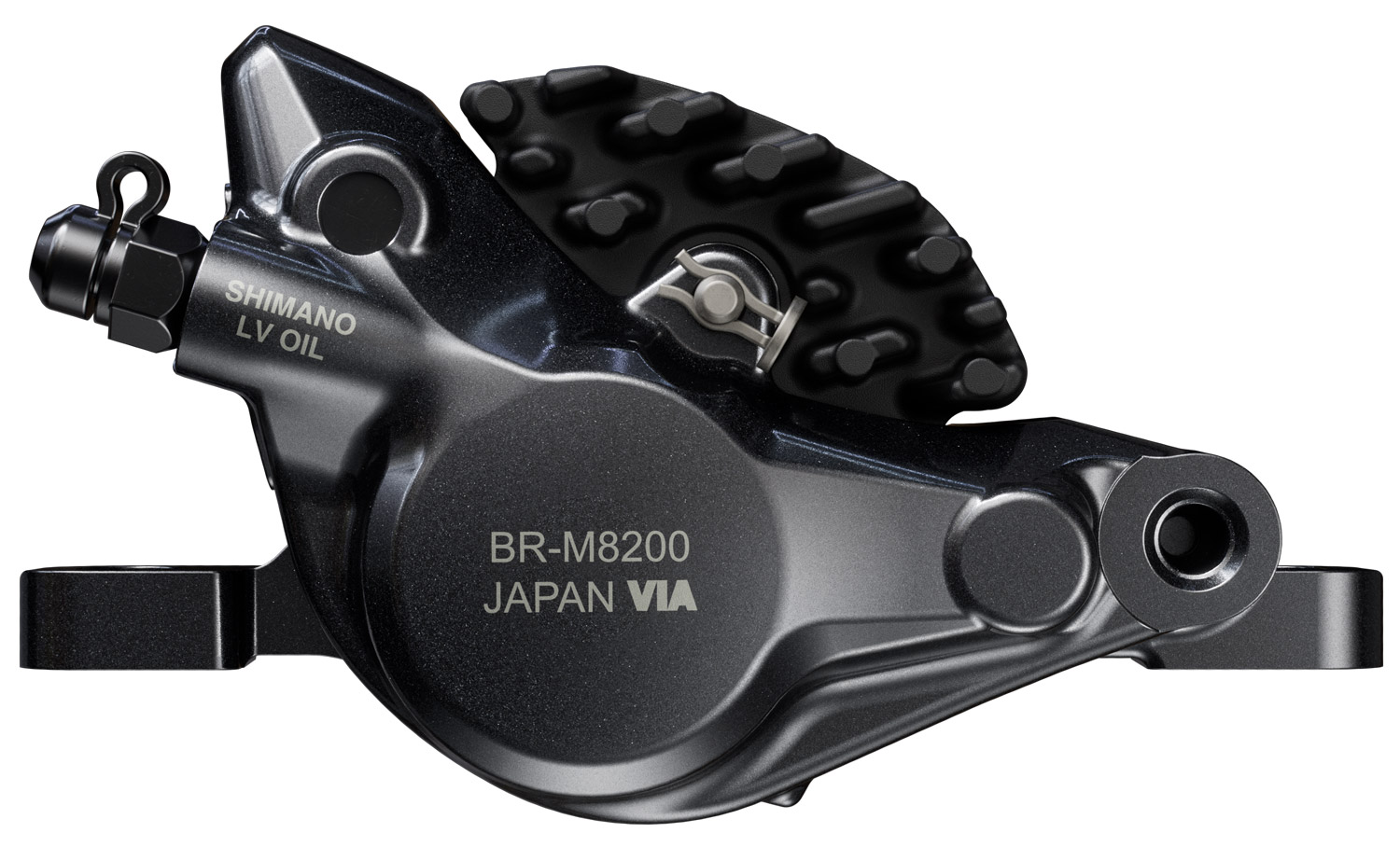

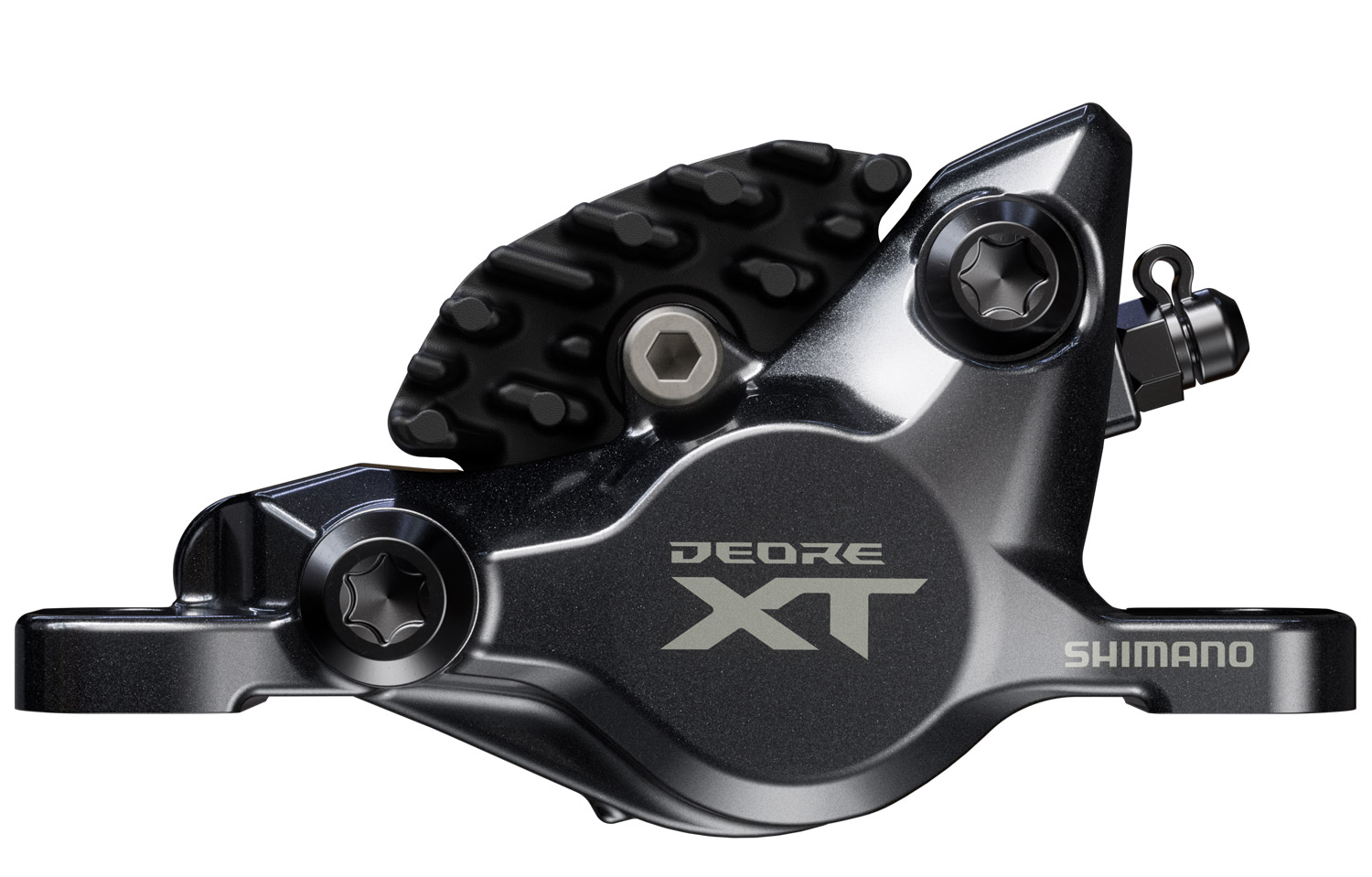

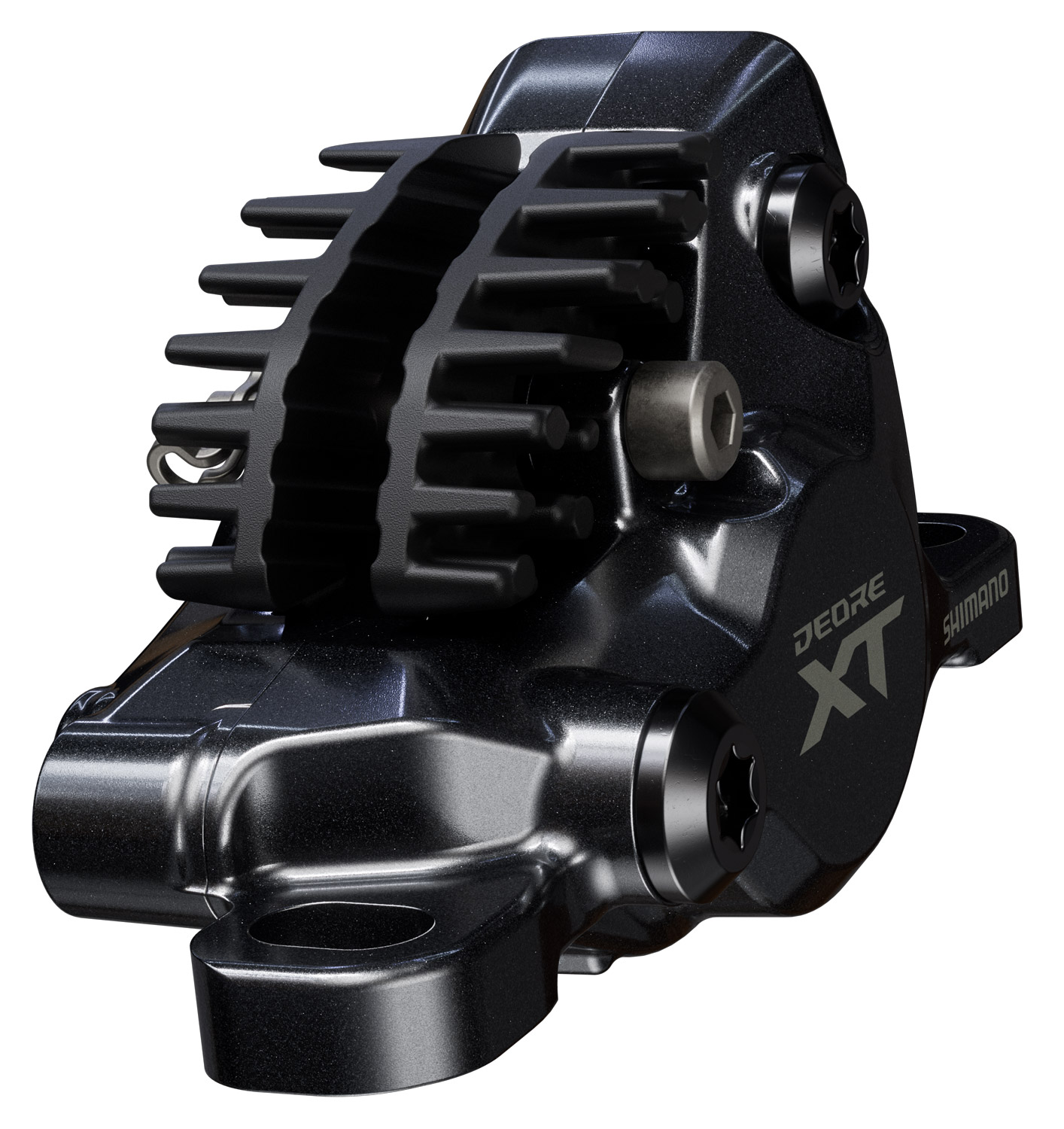

The XT BR-M8200 2-piston hydraulic brake caliper with post-mount standard is a further development of SHIMANO's lightest post-mount brake caliper to date and is suitable in combination with the BL-M8200 brake lever for the Cross-Country. Heat-resistant plastic pistons, resin and metal lining options and the new low-viscosity mineral oil make the M8200 brake caliper the ideal option for all two-piston braking requirements.
From the foundational moments in the early 1980s when DEORE XT first revolutionized mountain biking, SHIMANO brings fast and reliable shifting, a robust drivetrain construction, and refined braking systems to more riders with the latest introduction of DEORE XT M8200 Di2 components. Following the recent launch of our flagship XTR M9200 race group, DEORE XT receives key technology and design cues from XTR, delivering a robust group designed to withstand the demands of real-world riding, and consistently redefining what's possible on two wheels.
Robust, intuitive and consistent: XT BL-M8200+BR-M8200 2-Piston Disc Brake Upgrade Kit Shimano
The revised SERVO WAVE optimises the power curve without friction, while the new low-viscosity mineral oil keeps braking power constant at all temperatures and on all terrains.The XT BR-M8200 2-piston hydraulic brake caliper with post-mount standard is a further development of SHIMANO's lightest post-mount brake caliper to date and is suitable in combination with the BL-M8200 brake lever for the Cross-Country. Heat-resistant plastic pistons, resin and metal lining options and the new low-viscosity mineral oil make the M8200 brake caliper the ideal option for all two-piston braking requirements.
From the foundational moments in the early 1980s when DEORE XT first revolutionized mountain biking, SHIMANO brings fast and reliable shifting, a robust drivetrain construction, and refined braking systems to more riders with the latest introduction of DEORE XT M8200 Di2 components. Following the recent launch of our flagship XTR M9200 race group, DEORE XT receives key technology and design cues from XTR, delivering a robust group designed to withstand the demands of real-world riding, and consistently redefining what's possible on two wheels.
Features - Shimano XT BR-M8200/BR-M8200 2-Piston Disc Brake Upgrade Kit
- Consistent brake control: The all-new low-viscosity mineral oil ensures a reliable and strong performance curve in all temperatures and terrains
- Consistently XC: Combine the BR-M8200 brake caliper with the BL-M8200 brake lever for a light XC brake in the SHIMANO range
- Durability: The BL-M8200 aluminium brake lever is manufactured using the proven SHIMANO forging process
- Optimised ergonomics: New lever shapes and pivot points and improved reach adjustment ensure that the BL-M8200 fits all riders
- Clean cable routing: The revised cable routing of the BL-M8200 ensures a tidy appearance
- I-Spec EV compatible: Securing the shift lever on the brake lever
- Rattle-free: Revised brake pads and the oval mount eliminate unnecessary noise
Product features
- Use: MTB, E-MTB
- Group: XT M8200
- Model: BL-M8200/BR-M8200 (front+rear)
- Brake type: Hydraulic Disc-Brake
- Mounting: front / rear
- Brake lever: BL-M8200
- Lever length: 2-Finger
- Clamp: open
- Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
- Adjustable pressure point: Yes
- Reach adjustment: Yes, without tool
- Caliper: BR-M9200 (2-Piston)
- Brake mounting: Post-Mount
- Brake pads: Resin and Metal with Fin
- Brake hose: SM-BH90-SBM
- Brake hose lengths: front 1000mm + rear 1700mm (shortable)
- Cable connection: Straight brake lever / Straight caliper
- One-Way bleeding: Yes
- Brake fluid: Mineral oil with low viscosity (SM-LV-OIL) - 100ml included in delivery!
- Recommended brake rotor: RT-CL800
Material
- Aluminum
Color
- Series color
Scope of delivery
- 2 x Shimano XT BL-M8200 Brake left + right
- 2 x Shimano XT BR-M8200 (2-Piston) Brake caliper
- 2 x Brake hose SM-BH90 1000mm + 1700mm long (shortable)
- 2 x Brake pads Resin with Fin
- 2 x Brake pads Metal with Fin
- 4 x Screw for brake caliper
- 1 x Mineral oil with low viscosity (SM-LV-OIL) 100ml
- 2 x Tube Joint Kit (Olive in the brake lever and the pin already installed in the line)
- J-Kit - The brake hoses SM-BH90 are with mineraloil SM-LV-OIL filled and pre-mountedon the calipers BR-M8200!
Rotors and Adapters not included!
- Manufacturer number: IBRM8200UPGKIT2
- EAN: 4550170997625
Manufacturer:
SHIMANO INC.3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Person responsible in the EU:
Shimano Europe BVHigh Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
