Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |
Product information "SLX RD-M7100 12-speed Rear Derailleur"

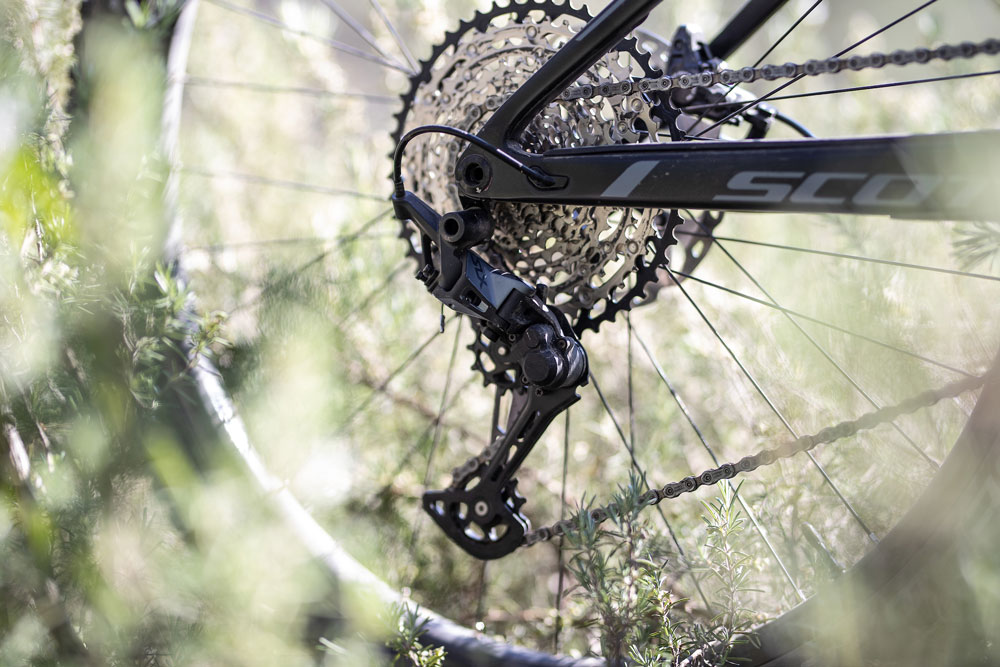

The mountain bike group that supports all adventurous riders: SLX RD-M7100 12-speed Rear Derailleur from Shimano
The use of a single or a double system requires the installation of the specific single or double rear derailleur. The new construction of the low-profile RD-M7100 SHADOW RD+ rear derailleur improves shift quality, range of adjustment and chain retention while allowing for a wide range of gearing options.After setting the benchmark in mountain bike components with SHIMANO XTR M9100 and new DEORE XT M8100, Shimano rounds out its now entirely 12-speed performance mountain bike component lines with new SLX M7100. SLX M7100 cascades technology from new XTR M9100 and DEORE XT M8100 - namely Shimano’s signature premium shifting and braking performance - while maintaining the SLX hallmark of value and durability.
Features - Shimano SLX RD-M7100 1x12-speed Rear Derailleur for 10-51 Cassette
- Shadow RD+ For optimal chain retention
- RD-M7100-SGS
- 51T max cog size
- Works with 12-speed 10-51 teeth cassettes
- Pulley size with 13T increased for reduced friction
Product features
- Use: MTB
- Group: SLX M7100
- Model: RD-M7100
- Mount: Direct attachment (Conventional)
- Technology: Shadow RD+
- Gradations: SGS-Type 1x12-speed (10-51 cassette)
- Compatible chain: CN-M7100 12-speed
- Max. teeth large sprocket: 51T
- Min. teeth large sprocket: 45T
- Max. teeth small sprocket: 10T
- Min. teeth small sprocket: 10T
- Max. Front Difference: 0T
- Total Capacity: 41T
Pulley cage
- Type-SGS long
Material
- Aluminum
- GFRP
- Stainless steel
- Steel
Weight
- approx. 316g (manufacturer information)
Scope of delivery
- 1 x Shimano SLX 12-speed Rear Derailleur RD-M7100
Shimano's 12-speed SLX M7100
First look: Shimano SLX M7100
Bryn Atkinson Rides the New 12-speed SLX
- Manufacturer number: IRDM7100SGS
- EAN:
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
