Product information "DURA ACE WH-R9200-TU 28" Tubular Carbon Wheelset"
The new Shimano Dura Ace wheel range is designed for robustness, low weight and aerodynamics and ensures outstanding performance on any road. The following rim heights are available for the WH-R9200-TU for tubular tires and rim brakes: 36 mm, 50 mm and 60 mm.
The DURA-ACE WH-R9200-TU for tubular and rim brakes is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9200-TU is perfectly equipped for powerful accelerations and sprints. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
THE SCIENCE OF SPEED: Shimano Dura Ace WH-R9200-TU for Tubular & Rim Brakes
Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That's why every component has been revised, refined and optimised to make you even faster - whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.The DURA-ACE WH-R9200-TU for tubular and rim brakes is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9200-TU is perfectly equipped for powerful accelerations and sprints. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
Features - Shimano DURA ACE WH-R9200-TU 28" Tubular Wheelset | Quick Release
- All-round tubular wheels made from lightweight materials with balanced aerodynamics
- Balanced low inertia & aerodynamics
- Responsive acceleration
- Improved drive rigidity
- OPTBAL spoke system
- Lightweight within rigid
- Ultra-light full carbon rim
- Compatible only with Shimano road 12-speed cassette sprockets
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: WH-R9200-TU
- Wheel size: 28"
- Tyre type: Tubular
- Rim size: 700C
- Rim outer witdh: 28mm
- Brake type: Rim Brake
- Freehub body: Shimano 12-speed Road
- Over locknut: front 9 x 100mm / rear 10 x 130mm
- Axle Fixing method: Quick Release
- Contact seal: Labyrinth and Contact
- Spokes: front 16 / rear 21
- Tire recommended size: 25-28" to 32-28"

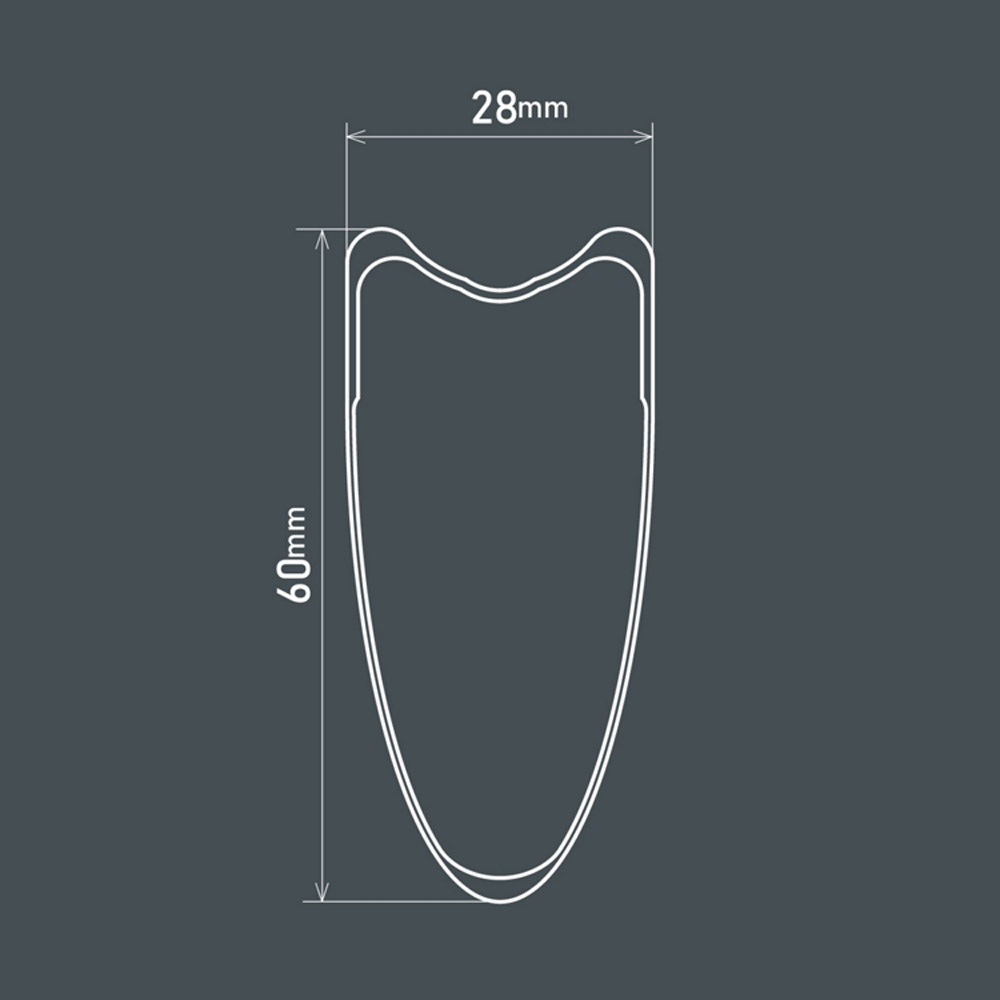

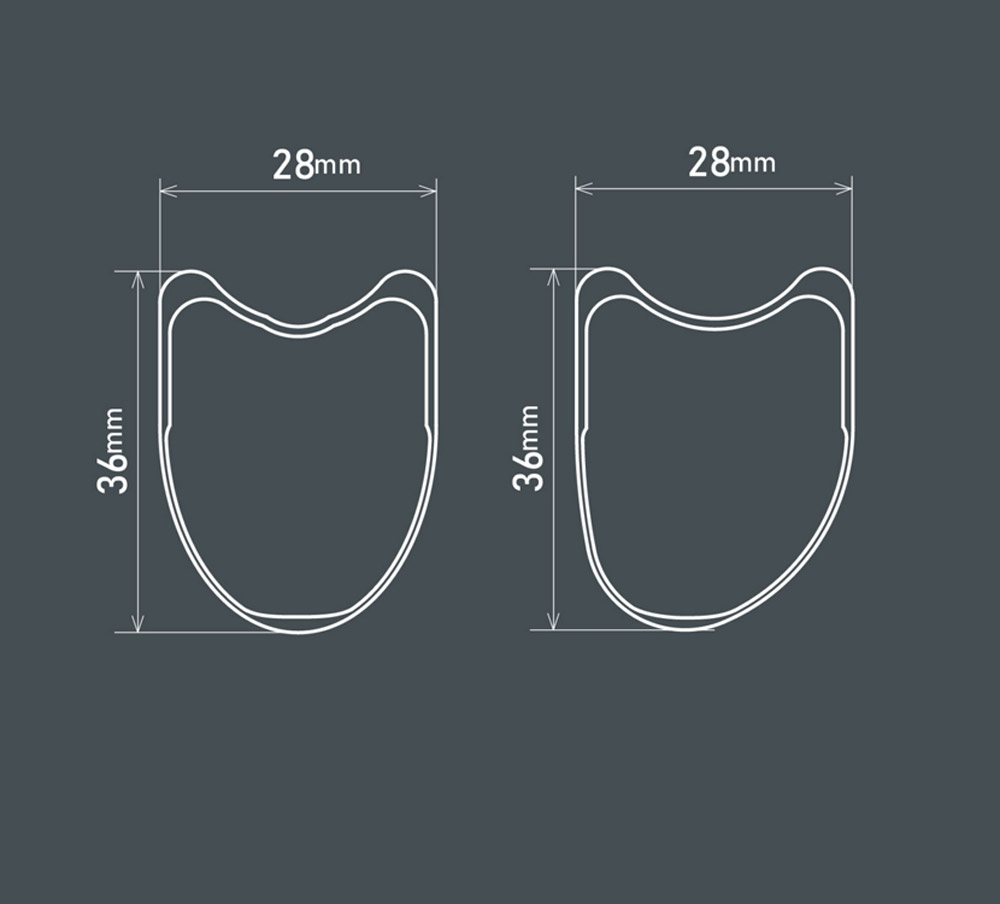

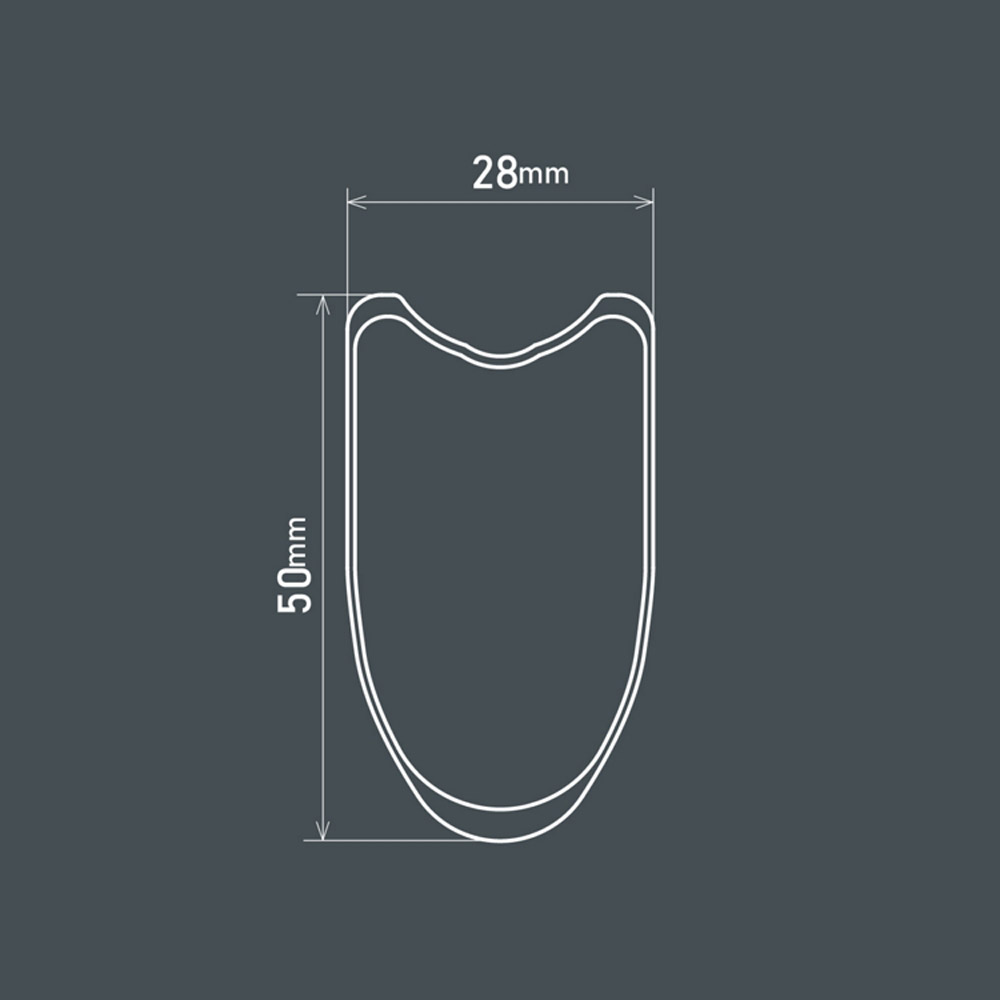

Rim height (choose variant)
- C36 Rim (36mm)
- C50 Rim (50mm)
- C60 Rim (60mm)
Material
- Rim: Carbon
- Hub: Aluminum
- Spokes: Stainless steel
- Nipples: Aluminum
Color
- Series color
Weight (manufacturer information)
- C36 (Front 602g | Rear 684g | Set 1286g)
- C50 (Front 586g | Rear 723g | Set 1309g)
- C60 (Front 653g | Rear 796g | Set 1449g)
Scope of delivery
- 1 x Shimano Dura Ace WH-R9200-TU 28" Tubular Wheelset
- 2 x Quick Release
Technology
OPTBAL Spoke System
The OPTBAL rear wheel spoke system features 24 spokes - 16 on the drive side and 8 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.
Shimano DURA-ACE Di2 R9250
- Manufacturer number: EWHR9200C36UFRCX
Manufacturer:
SHIMANO INC.3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Person responsible in the EU:
Shimano Europe BVHigh Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
Shimano DURA ACE WH-R9200-TU 28" Tubular Carbon Wheelset
The new Shimano Dura Ace wheel range is designed for robustness, low weight and aerodynamics and ensures outstanding performance on any road. The following rim heights are available for the WH-R9200-TU for tubular tires and rim brakes: 36 mm, 50 mm and 60 mm.
The DURA-ACE WH-R9200-TU for tubular and rim brakes is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9200-TU is perfectly equipped for powerful accelerations and sprints. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
THE SCIENCE OF SPEED: Shimano Dura Ace WH-R9200-TU for Tubular & Rim Brakes
Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That's why every component has been revised, refined and optimised to make you even faster - whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.The DURA-ACE WH-R9200-TU for tubular and rim brakes is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9200-TU is perfectly equipped for powerful accelerations and sprints. The new rims with 36 mm, 50 mm and 60 mm high profile - offer good aerodynamic properties despite their extremely low weight. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.
Features - Shimano DURA ACE WH-R9200-TU 28" Tubular Wheelset | Quick Release
- All-round tubular wheels made from lightweight materials with balanced aerodynamics
- Balanced low inertia & aerodynamics
- Responsive acceleration
- Improved drive rigidity
- OPTBAL spoke system
- Lightweight within rigid
- Ultra-light full carbon rim
- Compatible only with Shimano road 12-speed cassette sprockets
Product features
- Use: Road
- Group: Dura Ace R9200
- Model: WH-R9200-TU
- Wheel size: 28"
- Tyre type: Tubular
- Rim size: 700C
- Rim outer witdh: 28mm
- Brake type: Rim Brake
- Freehub body: Shimano 12-speed Road
- Over locknut: front 9 x 100mm / rear 10 x 130mm
- Axle Fixing method: Quick Release
- Contact seal: Labyrinth and Contact
- Spokes: front 16 / rear 21
- Tire recommended size: 25-28" to 32-28"
Rim height (choose variant)
- C36 Rim (36mm)
- C50 Rim (50mm)
- C60 Rim (60mm)
Material
- Rim: Carbon
- Hub: Aluminum
- Spokes: Stainless steel
- Nipples: Aluminum
Color
- Series color
Weight (manufacturer information)
- C36 (Front 602g | Rear 684g | Set 1286g)
- C50 (Front 586g | Rear 723g | Set 1309g)
- C60 (Front 653g | Rear 796g | Set 1449g)
Scope of delivery
- 1 x Shimano Dura Ace WH-R9200-TU 28" Tubular Wheelset
- 2 x Quick Release
Technology
OPTBAL Spoke System
The OPTBAL rear wheel spoke system features 24 spokes - 16 on the drive side and 8 on the non-drive side. Cassette spacing in today’s wheels produces unbalanced tension in traditional 1:1 spoke systems. This unbalance is intensified with the 11-speed cassette, producing nearly double the tension on the drive side spokes. Generally high and low tension spokes have respectively tendency toward breaking down and coming loose spoke nipples. Unbalanced tension affects durability and strength. The OPTBAL design rebalances spoke tension, enhancing wheel rigidity and strength for a more durable wheel.
Shimano DURA-ACE Di2 R9250
- Manufacturer number: EWHR9200C36UFRCX
Manufacturer:
SHIMANO INC.3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Person responsible in the EU:
Shimano Europe BVHigh Tech Campus 92
NL-5656 Eindhoven
Netherlands
[email protected]
https://www.shimano.com
Evaluations
Login
Atanas T.
Just opened these C50 wheels. Haven`t install tyres yet. These are my first Dura Ace wheels. They look like are made in Malaysia... ouuu they are made in Malaysia! I read in advance the freehub is relatively silent. It is not. But the sealing should be nice, at least you can feel it by spinning the axle with hand. But also the freehub has a lot of drag. Probably the rachet will last longer then pawls would and will be more reliable. The design is very nice though. I find is strange that many of the holes for tightening the nipples are misaligned with the spokes up to 5-6mm. You will need a special tool which noone has invented yet or tighten or loosen from below, where the nipple is outside the rim. I decided to check one similar wheelset from URSUS that I got recently. To my surprise all the holes were in line with the spokes. And the freehub is more silent and with less resistance... But I will update the review later when I have some actual miles on these Dura Ace. Until now I can say FOSS wheels are way better and with completely silent freehub and cheaper. Gokiso - in another league by their own.
David T.
Really solid wheel, I'm happy, arrived with advance!!!
