Magura MT7 Pro HC Disc Brake Set
Item no:
20079071
Product information "MT7 Pro HC Disc Brake Set"
First choice for gravity pilots: The Magura MT7 Pro has proven itself in countless competitions – and most recently on the bike of DH world champion Loic Bruni. With four pistons, the MT7 Pro offers the best possible braking performance, while the ergonomically-optimised 1-finger HC lever blade gives you the ideal braking feel.

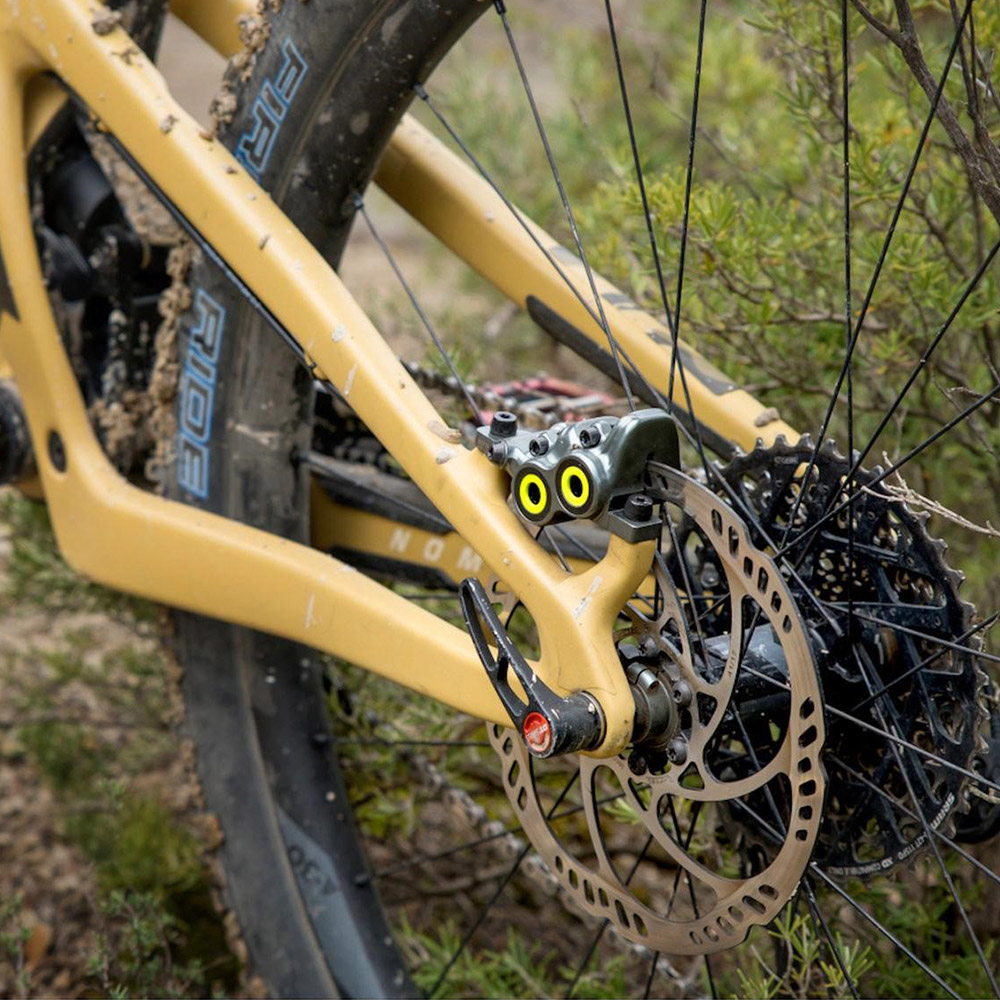

The MT7 Pro’s one-piece 4-piston caliper is made of forged aluminium. This manufacturing method gives the calliper its extraordinary degree of rigidity, making the MT7 Pro one of the strongest and most easily-modulated brakes on the market.
In the sensitive motorcycle and bicycle industries, MAGURA stands for the highest possible quality, solid reliability and mature components from its in-house production in Germany. In developing special materials and processes such as Carbotecture® and Carbolay®, we have realized designs and constructions that no other manufacturer can implement. We have also established an extremely effective quality assurance system at our Hülben and Hengen production and assembly sites near the original factory in Bad Urach. MAGURA brakes are light, very stable and function reliably for many years – and we realize these features with several plastics that we develop ourselves. However, Carbotecture is definitely not just a “plastic” – it is so much more!
We see ourselves as the architects of our materials – and the term Carbotecture® is a combination of the terms carbon and architecture. Here is a brief explanation of how we create our basic Carbotecture® material: First of all, a mixture of high-tech polymers and carbon or glass fibres is converted into a plastic granulate by means of several complex processes. During the processing from the granulate to the finished component, the carbon fibres are then optimally aligned to match future stress requirements. This “Carboflow” process can create any desired shape from the granulate during an injection moulding process. Carbotecture® offers major advantages compared to classic lightweight aluminium – for example, it’s 50% lighter, but it possesses the same tensile and breaking strength! Thanks to our highly developed machines and processes, Carbotecture® is indeed a dream material, from which smooth surfaces can be created in almost any complex shape – and this is also how we make our rigid yet lightweight brake masters. BMW also relies on the special properties of Carbotecture® for its motorcycles – the clutch master of the BMW GS is also made of this material, for instance.
We increase the resistance of our Carbotecture SL® material by integrating medium-length carbon fibres into the polyamides instead of short fibres – and this also reduces the weight of the material. The brake masters of our award-winning MT disc brake series are made of Carbotecture® and Carbotecture SL®.
Yet another of our materials is Carbolay®. It is produced in a fully automated procedure, during which a textile process is used to position the carbon fibres according to load. The fibres are then automatically impregnated with resin in a mould. This process enables us to produce Carbolay® lever blades in an attractive and ergonomically optimized form – and the blades also achieve perfect finger force transmission thanks to their high degree of rigidity and low weights.
I've been riding with Magura brakes for several years now and so far they've never let me down. The MT7 has particularly impressed me with its extremely high braking power. Despite the power that the brake provides, it can be very precisely controlled. One point I would really like to highlight is that Magura offers you the option of using different brake levers. This allows you to customise your brake even more to your preferences. The Magura MT7 is an exceptionally high-quality brake. No broken brake levers or wandering pressure points whatsoever. Advice: It's worth carefully breaking in the brake according to the instructions so as not to lose any braking power.
Justus, MTB-Downhill Racer
Award-winning performance with four pistons: MT7 Pro HC Carbotecture® from Magura

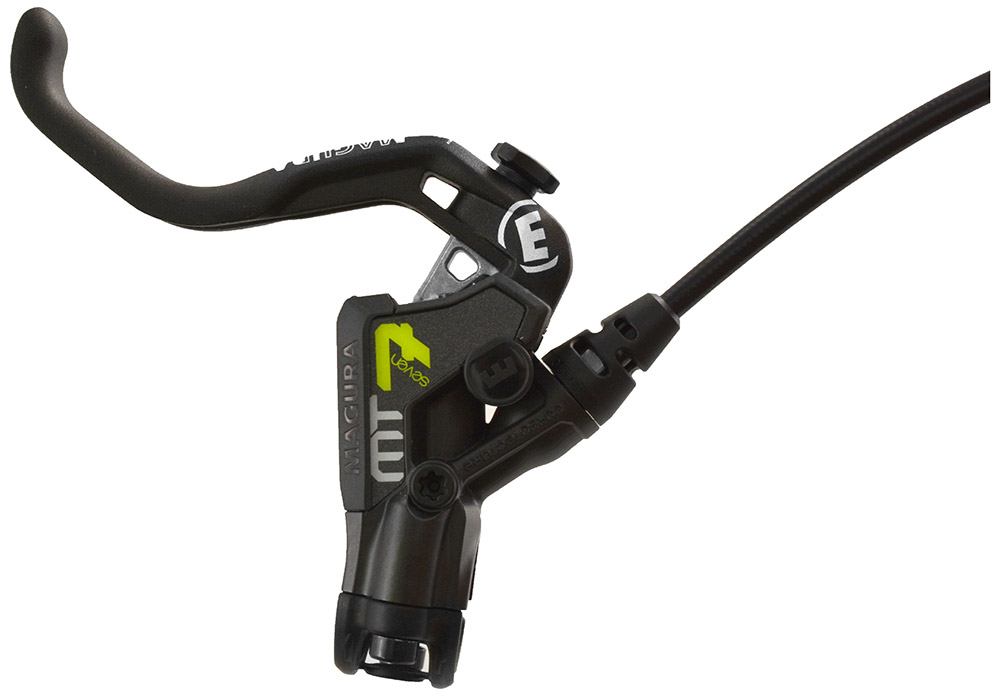

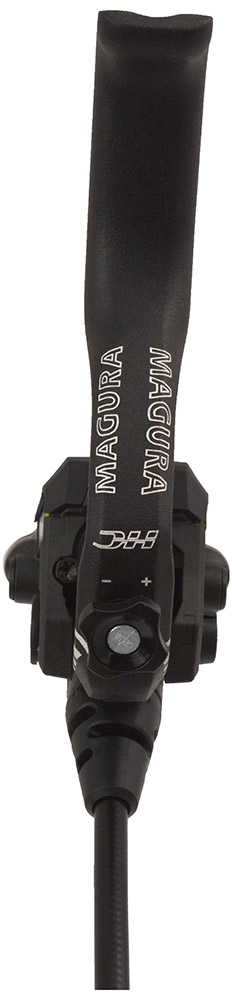

The Carbotecture SL brake master consists of a composite material made of polymers and embedded carbon fibres. This combination makes the brake master light and extremely resistant. The radial master design reduces friction and enables small/large transmission ratios. This reduces transmission losses and makes the brake more sensitive and easier to modulate.The MT7 Pro’s one-piece 4-piston caliper is made of forged aluminium. This manufacturing method gives the calliper its extraordinary degree of rigidity, making the MT7 Pro one of the strongest and most easily-modulated brakes on the market.
Features - Magura MT7 Pro HC Set

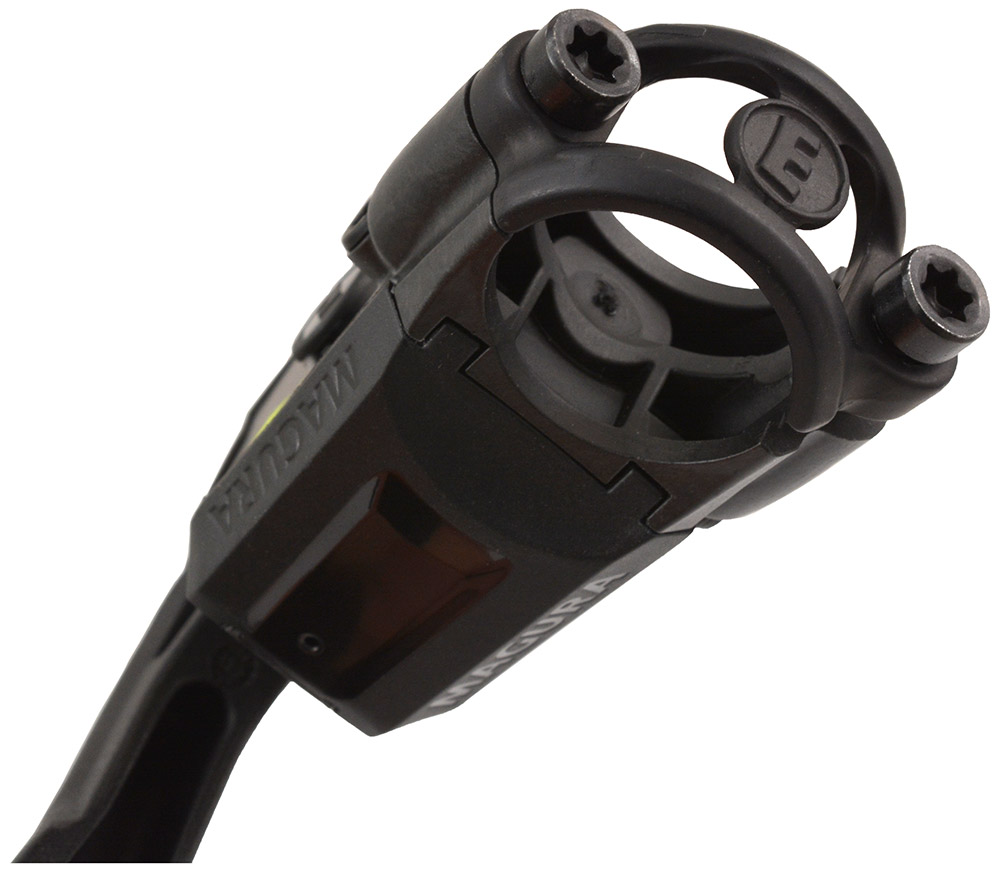

- Carbotecture® SL master and aluminum handlebar clamp
- Ergonomic 1-finger HC lever blade
- Forged 4-piston caliper with Banjo
- magnetiXchange pistons for easy brake pad replacement

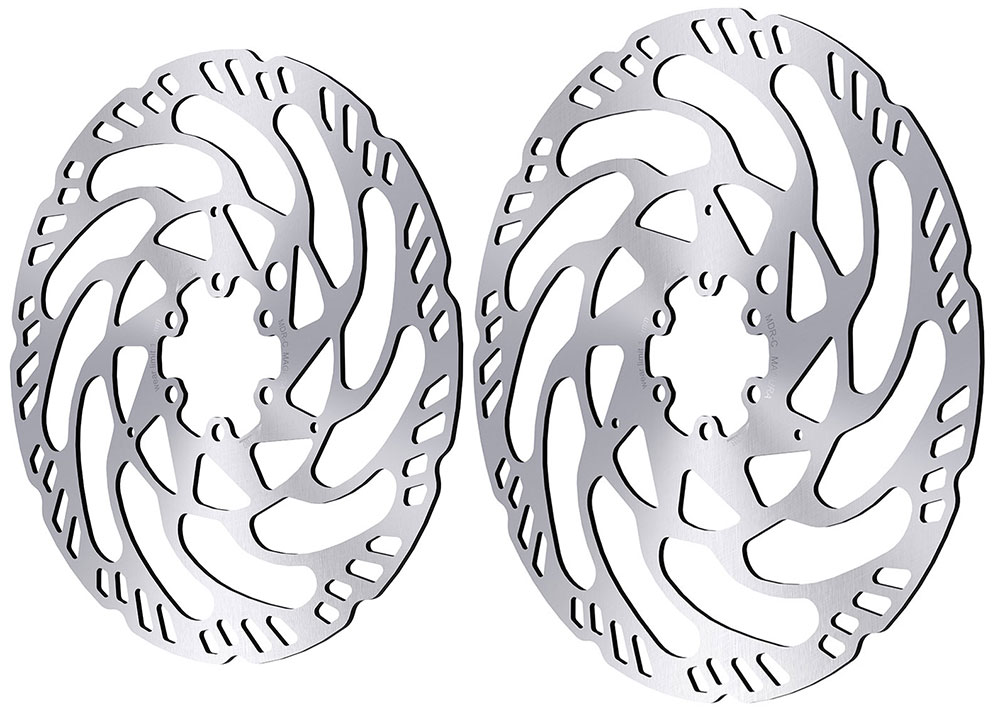

- Recommended Rotor Storm HC, MDR-C, MDR-P
Product Features
- Use: MTB, Enduro, Downhill, Gravity, E-MTB
- Technical features: Full hydraulic 4-piston floating caliper
- Pad wear adjustment: Automatic
- Brake pads: Organic 9.1 Performance (4 Pistons 2 Pads) 8.1 Performance (4 Pistons 4 Single Pads)
- Hose fitting caliper: RHR - Rotateable hose routing
- Brake hose: MAGURA disc tube easily shortened
- Transmission medium: MAGURA Royal Blood mineral oil
- Hydraulic system: Open, with expansion chamber
- Intern. standard mounting (IS): Yes, adaptor
- EBT (Easy Bleed Technology): Yes
- Feel-Safety-Ergonomic: Yes
- Dual Docking for trigger shifters: Yes
- Reach adjust: Yes (Tool free)
- BAT (bite point adjuster): No
- magnetiXchange: Yes
- OPD (caliper in one-piece design): Yes
- Postmount mounting (PM): Yes, direct mount
- 2-Piece Lever Clamp: Yes
- Material fitting bolts: Aluminium
- Brake lever and caliper: Carbotecture SL (Master), Aluminium forged (caliper)
- Lever blade: Aluminium
- Hose lengths: each 2200mm (shortable)
Color
- Black / Mystic Grey Anodized
Weight
- each 255g (manufacturer information)
Scope of delivery
- 1 x MT7 Pro HC Carbotecture® Disc Brake Set
- 4 x Fastening screw
- 2 x Insertpin
- 2 x Olive
- 2 x Transport safety
- Disc brake are ready-to-install, filled and bleed!
Technology
What is Carbotecture?In the sensitive motorcycle and bicycle industries, MAGURA stands for the highest possible quality, solid reliability and mature components from its in-house production in Germany. In developing special materials and processes such as Carbotecture® and Carbolay®, we have realized designs and constructions that no other manufacturer can implement. We have also established an extremely effective quality assurance system at our Hülben and Hengen production and assembly sites near the original factory in Bad Urach. MAGURA brakes are light, very stable and function reliably for many years – and we realize these features with several plastics that we develop ourselves. However, Carbotecture is definitely not just a “plastic” – it is so much more!
We see ourselves as the architects of our materials – and the term Carbotecture® is a combination of the terms carbon and architecture. Here is a brief explanation of how we create our basic Carbotecture® material: First of all, a mixture of high-tech polymers and carbon or glass fibres is converted into a plastic granulate by means of several complex processes. During the processing from the granulate to the finished component, the carbon fibres are then optimally aligned to match future stress requirements. This “Carboflow” process can create any desired shape from the granulate during an injection moulding process. Carbotecture® offers major advantages compared to classic lightweight aluminium – for example, it’s 50% lighter, but it possesses the same tensile and breaking strength! Thanks to our highly developed machines and processes, Carbotecture® is indeed a dream material, from which smooth surfaces can be created in almost any complex shape – and this is also how we make our rigid yet lightweight brake masters. BMW also relies on the special properties of Carbotecture® for its motorcycles – the clutch master of the BMW GS is also made of this material, for instance.
We increase the resistance of our Carbotecture SL® material by integrating medium-length carbon fibres into the polyamides instead of short fibres – and this also reduces the weight of the material. The brake masters of our award-winning MT disc brake series are made of Carbotecture® and Carbotecture SL®.
Yet another of our materials is Carbolay®. It is produced in a fully automated procedure, during which a textile process is used to position the carbon fibres according to load. The fibres are then automatically impregnated with resin in a mould. This process enables us to produce Carbolay® lever blades in an attractive and ergonomically optimized form – and the blades also achieve perfect finger force transmission thanks to their high degree of rigidity and low weights.
Mounting/Installation a Magura MT7 brake
>Shorten the tubing/hose of a Magura disc brake MT7
- Manufacturer number: S000002908
Manufacturer:
Gustav Magenwirth GmbH & Co KG Stuttgarter Straße 48
72574 Bad Urach
Deutschland
[email protected]
https://www.magura.com
Magura MT7 Pro HC Disc Brake Set
First choice for gravity pilots: The Magura MT7 Pro has proven itself in countless competitions – and most recently on the bike of DH world champion Loic Bruni. With four pistons, the MT7 Pro offers the best possible braking performance, while the ergonomically-optimised 1-finger HC lever blade gives you the ideal braking feel.
The MT7 Pro’s one-piece 4-piston caliper is made of forged aluminium. This manufacturing method gives the calliper its extraordinary degree of rigidity, making the MT7 Pro one of the strongest and most easily-modulated brakes on the market.
In the sensitive motorcycle and bicycle industries, MAGURA stands for the highest possible quality, solid reliability and mature components from its in-house production in Germany. In developing special materials and processes such as Carbotecture® and Carbolay®, we have realized designs and constructions that no other manufacturer can implement. We have also established an extremely effective quality assurance system at our Hülben and Hengen production and assembly sites near the original factory in Bad Urach. MAGURA brakes are light, very stable and function reliably for many years – and we realize these features with several plastics that we develop ourselves. However, Carbotecture is definitely not just a “plastic” – it is so much more!
We see ourselves as the architects of our materials – and the term Carbotecture® is a combination of the terms carbon and architecture. Here is a brief explanation of how we create our basic Carbotecture® material: First of all, a mixture of high-tech polymers and carbon or glass fibres is converted into a plastic granulate by means of several complex processes. During the processing from the granulate to the finished component, the carbon fibres are then optimally aligned to match future stress requirements. This “Carboflow” process can create any desired shape from the granulate during an injection moulding process. Carbotecture® offers major advantages compared to classic lightweight aluminium – for example, it’s 50% lighter, but it possesses the same tensile and breaking strength! Thanks to our highly developed machines and processes, Carbotecture® is indeed a dream material, from which smooth surfaces can be created in almost any complex shape – and this is also how we make our rigid yet lightweight brake masters. BMW also relies on the special properties of Carbotecture® for its motorcycles – the clutch master of the BMW GS is also made of this material, for instance.
We increase the resistance of our Carbotecture SL® material by integrating medium-length carbon fibres into the polyamides instead of short fibres – and this also reduces the weight of the material. The brake masters of our award-winning MT disc brake series are made of Carbotecture® and Carbotecture SL®.
Yet another of our materials is Carbolay®. It is produced in a fully automated procedure, during which a textile process is used to position the carbon fibres according to load. The fibres are then automatically impregnated with resin in a mould. This process enables us to produce Carbolay® lever blades in an attractive and ergonomically optimized form – and the blades also achieve perfect finger force transmission thanks to their high degree of rigidity and low weights.
I've been riding with Magura brakes for several years now and so far they've never let me down. The MT7 has particularly impressed me with its extremely high braking power. Despite the power that the brake provides, it can be very precisely controlled. One point I would really like to highlight is that Magura offers you the option of using different brake levers. This allows you to customise your brake even more to your preferences. The Magura MT7 is an exceptionally high-quality brake. No broken brake levers or wandering pressure points whatsoever. Advice: It's worth carefully breaking in the brake according to the instructions so as not to lose any braking power.
Justus, MTB-Downhill Racer
Award-winning performance with four pistons: MT7 Pro HC Carbotecture® from Magura
The Carbotecture SL brake master consists of a composite material made of polymers and embedded carbon fibres. This combination makes the brake master light and extremely resistant. The radial master design reduces friction and enables small/large transmission ratios. This reduces transmission losses and makes the brake more sensitive and easier to modulate.The MT7 Pro’s one-piece 4-piston caliper is made of forged aluminium. This manufacturing method gives the calliper its extraordinary degree of rigidity, making the MT7 Pro one of the strongest and most easily-modulated brakes on the market.
Features - Magura MT7 Pro HC Set
- Carbotecture® SL master and aluminum handlebar clamp
- Ergonomic 1-finger HC lever blade
- Forged 4-piston caliper with Banjo
- magnetiXchange pistons for easy brake pad replacement
- Recommended Rotor Storm HC, MDR-C, MDR-P
Product Features
- Use: MTB, Enduro, Downhill, Gravity, E-MTB
- Technical features: Full hydraulic 4-piston floating caliper
- Pad wear adjustment: Automatic
- Brake pads: Organic 9.1 Performance (4 Pistons 2 Pads) 8.1 Performance (4 Pistons 4 Single Pads)
- Hose fitting caliper: RHR - Rotateable hose routing
- Brake hose: MAGURA disc tube easily shortened
- Transmission medium: MAGURA Royal Blood mineral oil
- Hydraulic system: Open, with expansion chamber
- Intern. standard mounting (IS): Yes, adaptor
- EBT (Easy Bleed Technology): Yes
- Feel-Safety-Ergonomic: Yes
- Dual Docking for trigger shifters: Yes
- Reach adjust: Yes (Tool free)
- BAT (bite point adjuster): No
- magnetiXchange: Yes
- OPD (caliper in one-piece design): Yes
- Postmount mounting (PM): Yes, direct mount
- 2-Piece Lever Clamp: Yes
- Material fitting bolts: Aluminium
- Brake lever and caliper: Carbotecture SL (Master), Aluminium forged (caliper)
- Lever blade: Aluminium
- Hose lengths: each 2200mm (shortable)
Color
- Black / Mystic Grey Anodized
Weight
- each 255g (manufacturer information)
Scope of delivery
- 1 x MT7 Pro HC Carbotecture® Disc Brake Set
- 4 x Fastening screw
- 2 x Insertpin
- 2 x Olive
- 2 x Transport safety
- Disc brake are ready-to-install, filled and bleed!
Technology
What is Carbotecture?In the sensitive motorcycle and bicycle industries, MAGURA stands for the highest possible quality, solid reliability and mature components from its in-house production in Germany. In developing special materials and processes such as Carbotecture® and Carbolay®, we have realized designs and constructions that no other manufacturer can implement. We have also established an extremely effective quality assurance system at our Hülben and Hengen production and assembly sites near the original factory in Bad Urach. MAGURA brakes are light, very stable and function reliably for many years – and we realize these features with several plastics that we develop ourselves. However, Carbotecture is definitely not just a “plastic” – it is so much more!
We see ourselves as the architects of our materials – and the term Carbotecture® is a combination of the terms carbon and architecture. Here is a brief explanation of how we create our basic Carbotecture® material: First of all, a mixture of high-tech polymers and carbon or glass fibres is converted into a plastic granulate by means of several complex processes. During the processing from the granulate to the finished component, the carbon fibres are then optimally aligned to match future stress requirements. This “Carboflow” process can create any desired shape from the granulate during an injection moulding process. Carbotecture® offers major advantages compared to classic lightweight aluminium – for example, it’s 50% lighter, but it possesses the same tensile and breaking strength! Thanks to our highly developed machines and processes, Carbotecture® is indeed a dream material, from which smooth surfaces can be created in almost any complex shape – and this is also how we make our rigid yet lightweight brake masters. BMW also relies on the special properties of Carbotecture® for its motorcycles – the clutch master of the BMW GS is also made of this material, for instance.
We increase the resistance of our Carbotecture SL® material by integrating medium-length carbon fibres into the polyamides instead of short fibres – and this also reduces the weight of the material. The brake masters of our award-winning MT disc brake series are made of Carbotecture® and Carbotecture SL®.
Yet another of our materials is Carbolay®. It is produced in a fully automated procedure, during which a textile process is used to position the carbon fibres according to load. The fibres are then automatically impregnated with resin in a mould. This process enables us to produce Carbolay® lever blades in an attractive and ergonomically optimized form – and the blades also achieve perfect finger force transmission thanks to their high degree of rigidity and low weights.
Mounting/Installation a Magura MT7 brake
>Shorten the tubing/hose of a Magura disc brake MT7
- Manufacturer number: S000002908
Manufacturer:
Gustav Magenwirth GmbH & Co KG Stuttgarter Straße 48
72574 Bad Urach
Deutschland
[email protected]
https://www.magura.com
