Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |

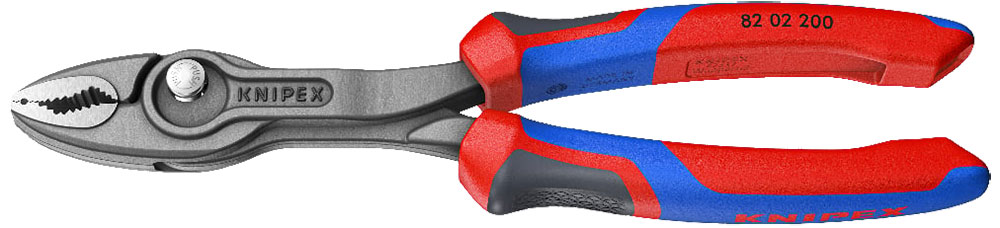

Product information "TwinGrip Front and Side Gripping pliers"
The five-way adjustable sliding joint with push button enables precise adjustment of the gripping width to workpieces from 4 to 22 mm. Its snappy front gripping jaws with robust teeth ensure maximum grip, even with worn or flat workpieces. Ergonomic handles, integrated anti-trap protection and the durable chrome vanadium electric steel construction guarantee maximum comfort and resilience.
Features - KNIPEX TwinGrip front and side gripping pliers

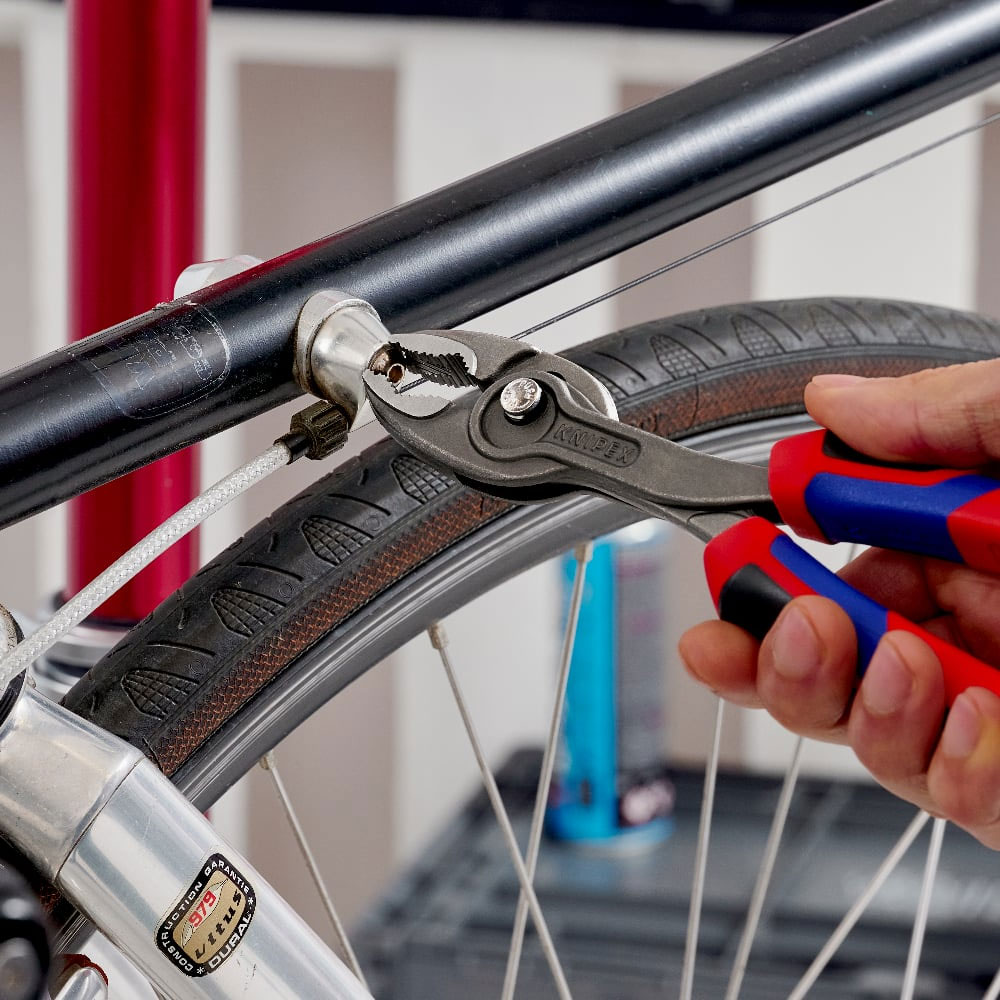

- Gripping, tightening and loosening screws with worn heads and threads
- Unique combination: Front grip and side grip function, box joint, push button adjustment

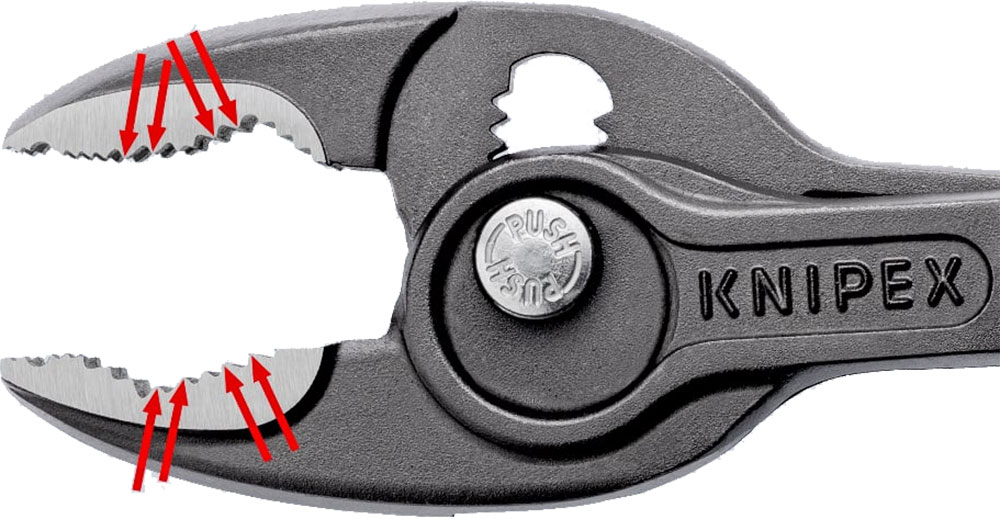

- High-grip front jaw with robust teeth and high gear ratio at the tip of the mouth

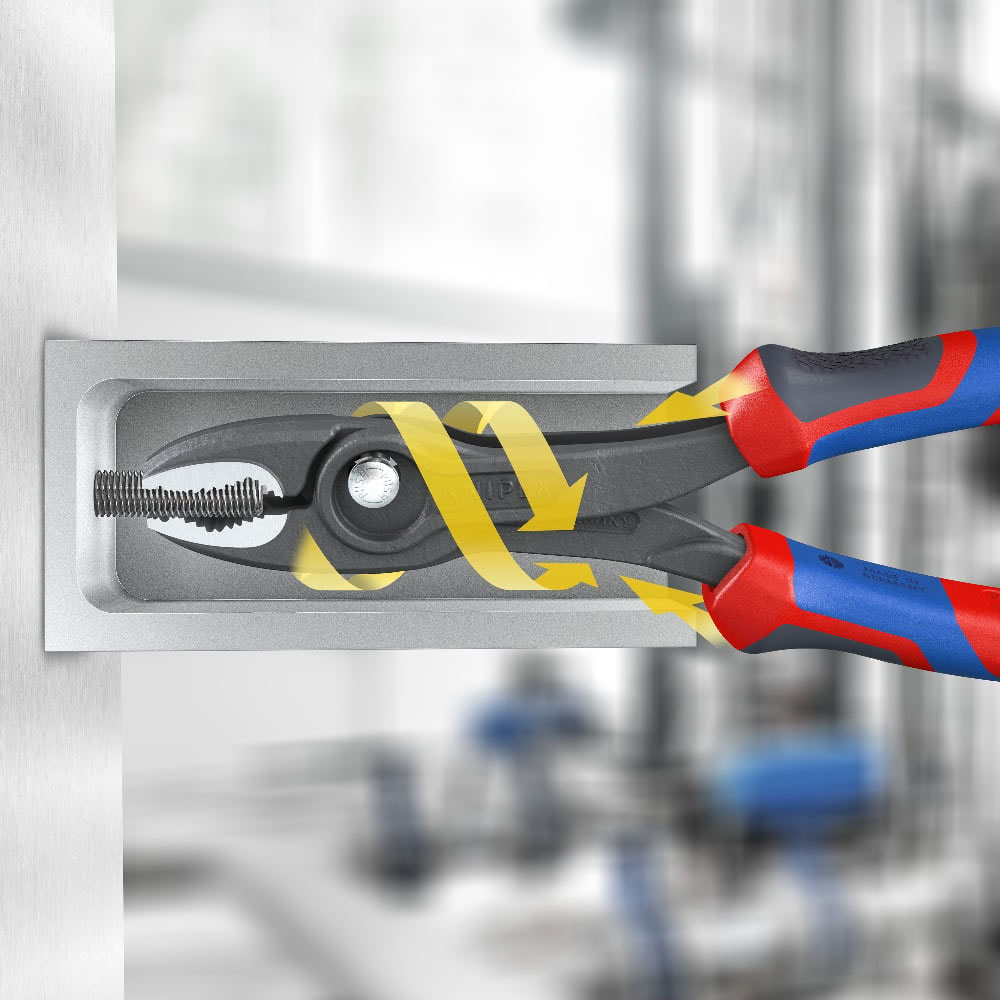

- Very slim pliers let you work even in confined installation spaces with a narrow turning zone for fast results
- Pinch stop reduces the risk of crushed fingers
- Durable and resilient thanks to robust box joint
- The all-rounder for all common tasks
- With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions

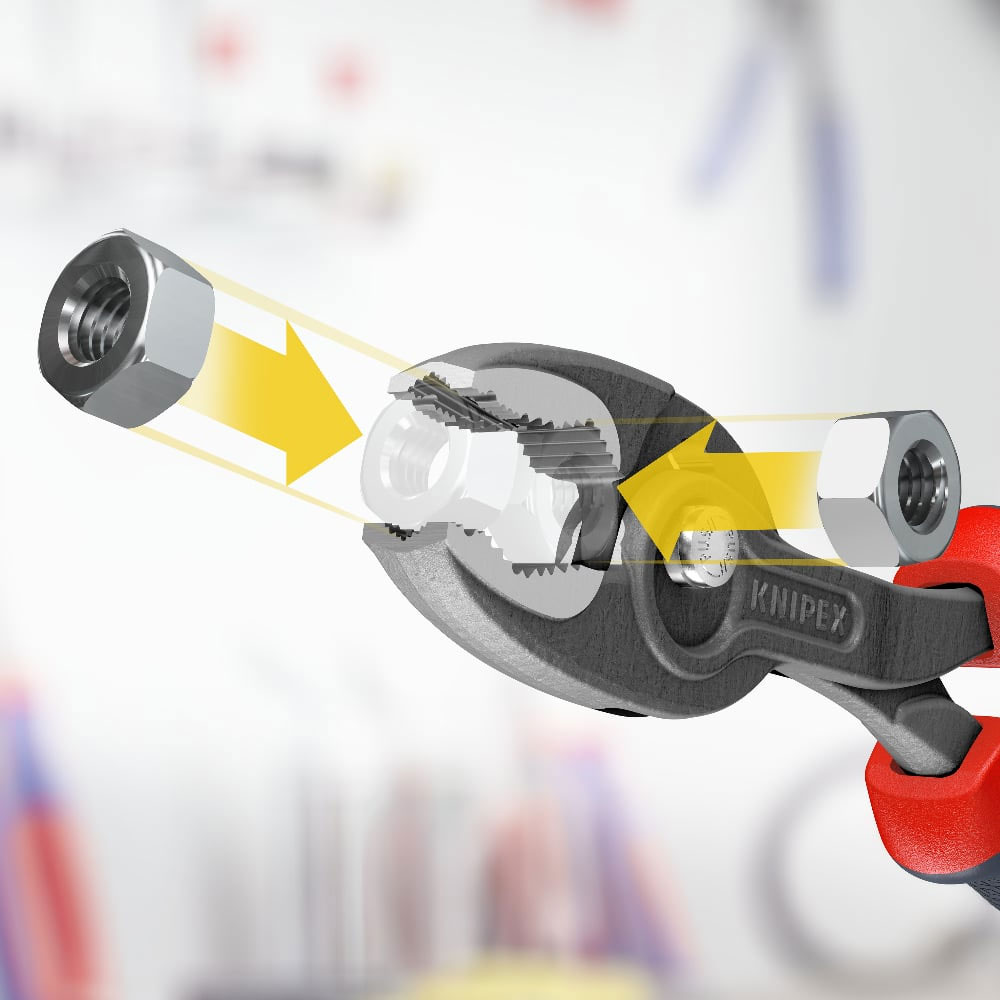

- Large front and side gripping capacity for diameters and widths across flats 4 - 22 mm
- Reliable, frontal gripping of flat workpieces up to 8 mm thanks to three-point system

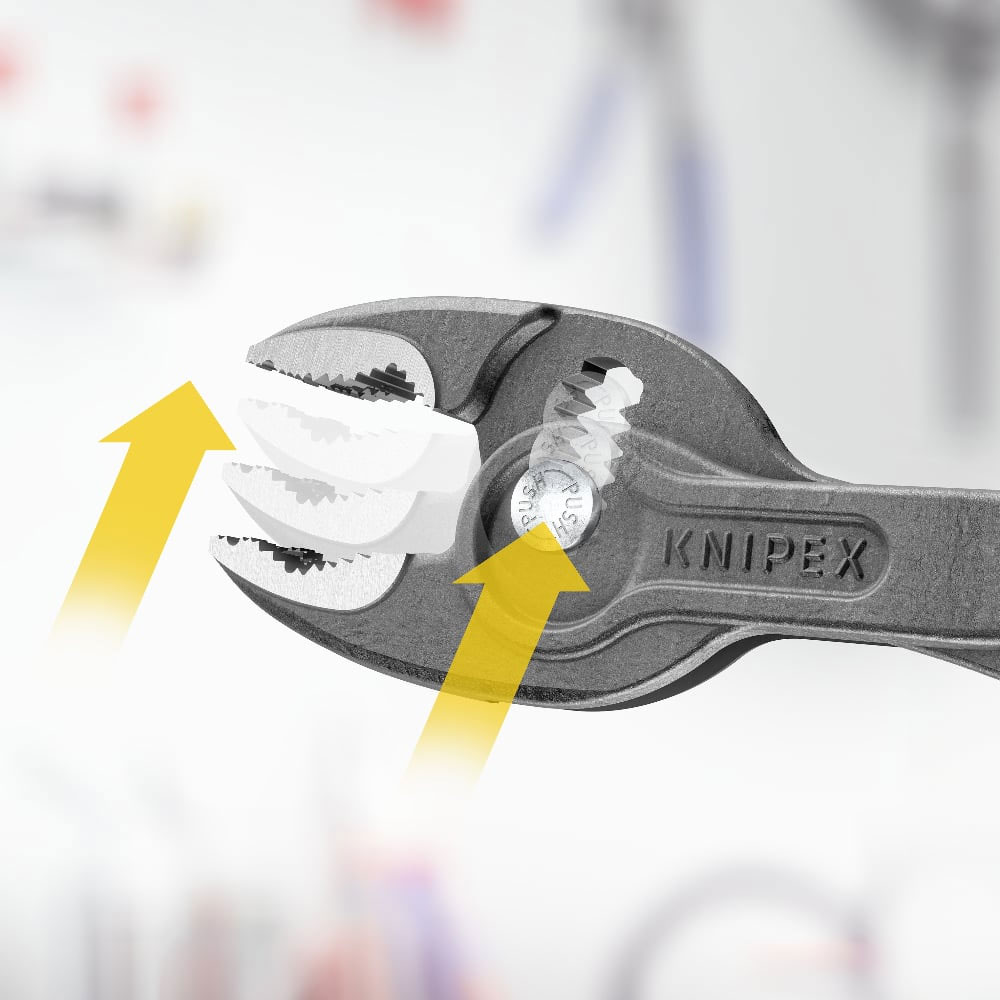

- Five-way adjustable slip joint with push button adjustment for precise adjustment of gripping capacity
Product features
- Pliers: gray atramentized
- Head: polished
- Handles: with comfort handles
- Dimensions: 200 x 51 x 22 mm
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Adjustment positions: 5
- Capacity for tubes: Ø 4 - 22 mm (Ø 0 5/32 - 0 7/8 inch)
- Capacity for nuts: 4 - 22 mm (0 5/32 - 0 7/8 inch)
Material
- Chrome vanadium electric steel, oil-hardened
Weight
- 280 g (manufacturer information)
Scope of delivery
- 1 x KNIPEX TwinGrip front and side gripping pliers
- Manufacturer number: 82 02 200
- EAN: 4003773087250
Knipex TwinGrip Front and Side Gripping pliers
The five-way adjustable sliding joint with push button enables precise adjustment of the gripping width to workpieces from 4 to 22 mm. Its snappy front gripping jaws with robust teeth ensure maximum grip, even with worn or flat workpieces. Ergonomic handles, integrated anti-trap protection and the durable chrome vanadium electric steel construction guarantee maximum comfort and resilience.
Features - KNIPEX TwinGrip front and side gripping pliers
- Gripping, tightening and loosening screws with worn heads and threads
- Unique combination: Front grip and side grip function, box joint, push button adjustment
- High-grip front jaw with robust teeth and high gear ratio at the tip of the mouth
- Very slim pliers let you work even in confined installation spaces with a narrow turning zone for fast results
- Pinch stop reduces the risk of crushed fingers
- Durable and resilient thanks to robust box joint
- The all-rounder for all common tasks
- With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
- Large front and side gripping capacity for diameters and widths across flats 4 - 22 mm
- Reliable, frontal gripping of flat workpieces up to 8 mm thanks to three-point system
- Five-way adjustable slip joint with push button adjustment for precise adjustment of gripping capacity
Product features
- Pliers: gray atramentized
- Head: polished
- Handles: with comfort handles
- Dimensions: 200 x 51 x 22 mm
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Adjustment positions: 5
- Capacity for tubes: Ø 4 - 22 mm (Ø 0 5/32 - 0 7/8 inch)
- Capacity for nuts: 4 - 22 mm (0 5/32 - 0 7/8 inch)
Material
- Chrome vanadium electric steel, oil-hardened
Weight
- 280 g (manufacturer information)
Scope of delivery
- 1 x KNIPEX TwinGrip front and side gripping pliers
- Manufacturer number: 82 02 200
- EAN: 4003773087250
