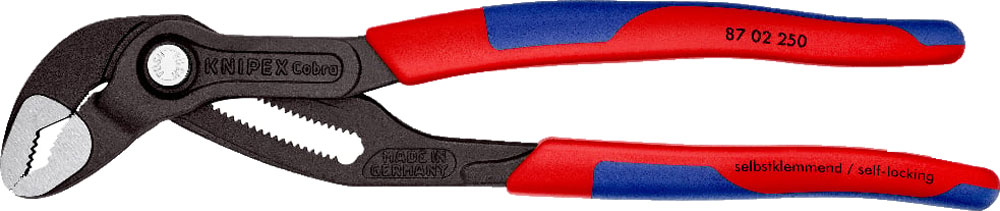

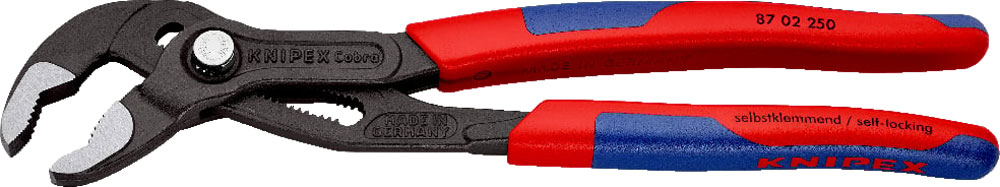

Product information "High-tech Cobra® Water Pump Pliers (self-clamping)"
The spring-loaded hinge pin ensures secure locking without unintentional adjustment. With its 25-position fine adjustment, it adapts perfectly to different workpiece sizes and ensures a hand-friendly grip distance. The box joint stabilizes the pliers and prevents tilting forces under load. The innovative jaw geometry enables the turning of round workpieces and the efficient loosening and tightening of screw connections.
Features - KNIPEX Cobra® High-Tech Water Pump Pliers

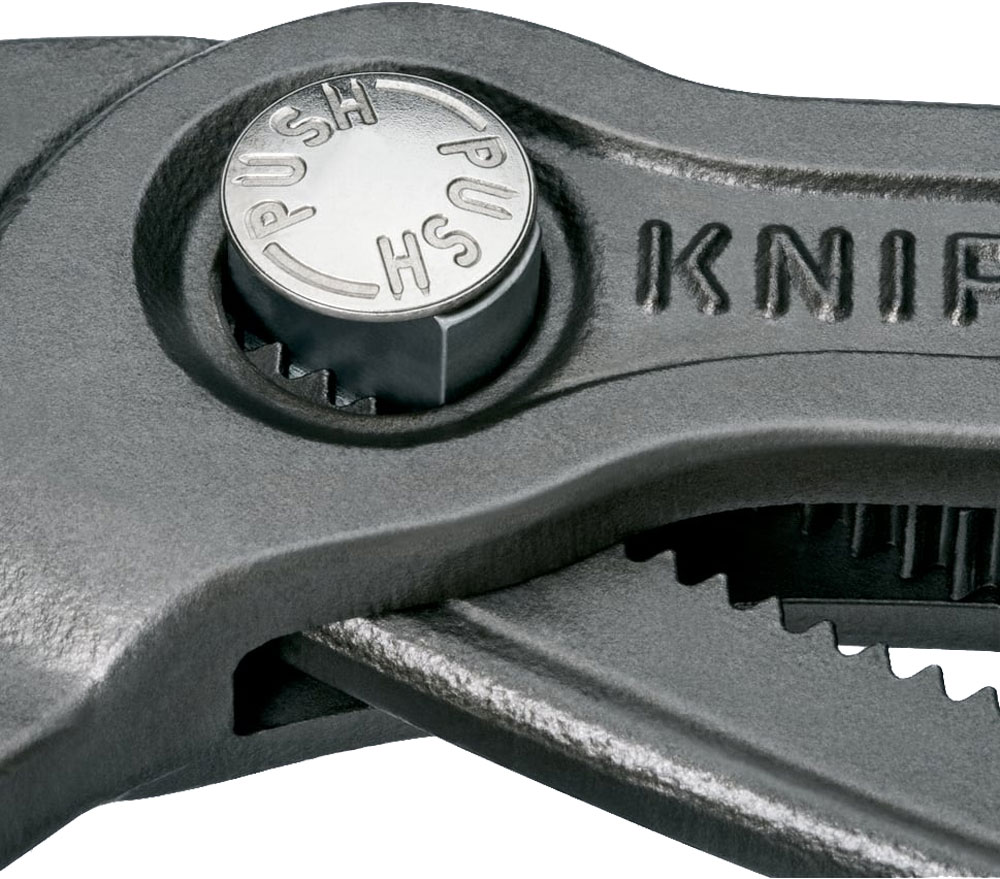

- Push the button for adjustment on the workpiece
- Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width
- Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required
- Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
- Box-joint design for high stability due to double guide
- Reliable catching of the hinge bolt: no unintentional shifting
- Pinch guard prevents operators' fingers being pinched
- With slim multi-component grips without collar for better handling and easier transport
- 25-fold fine adjustment at the touch of a button for fast adjustment to different sizes of component
- Large grip width (up to a wrench opening of 46 mm / pipes up to 2 inches)

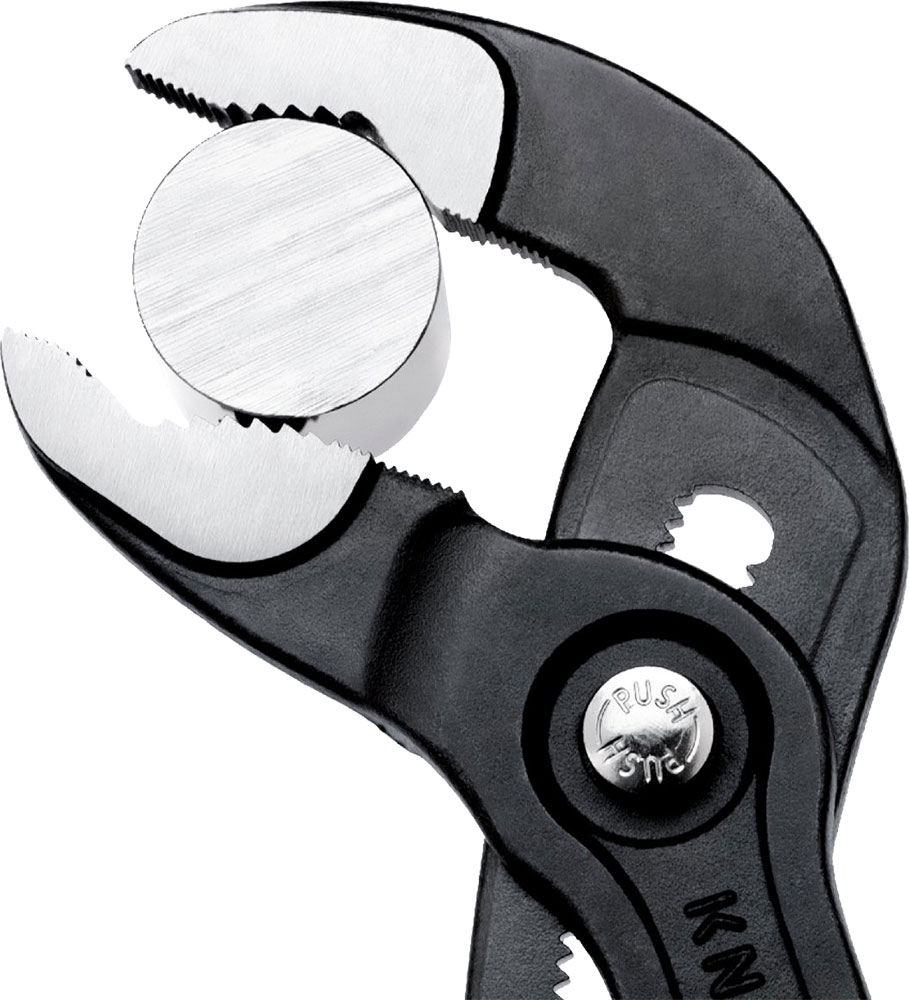

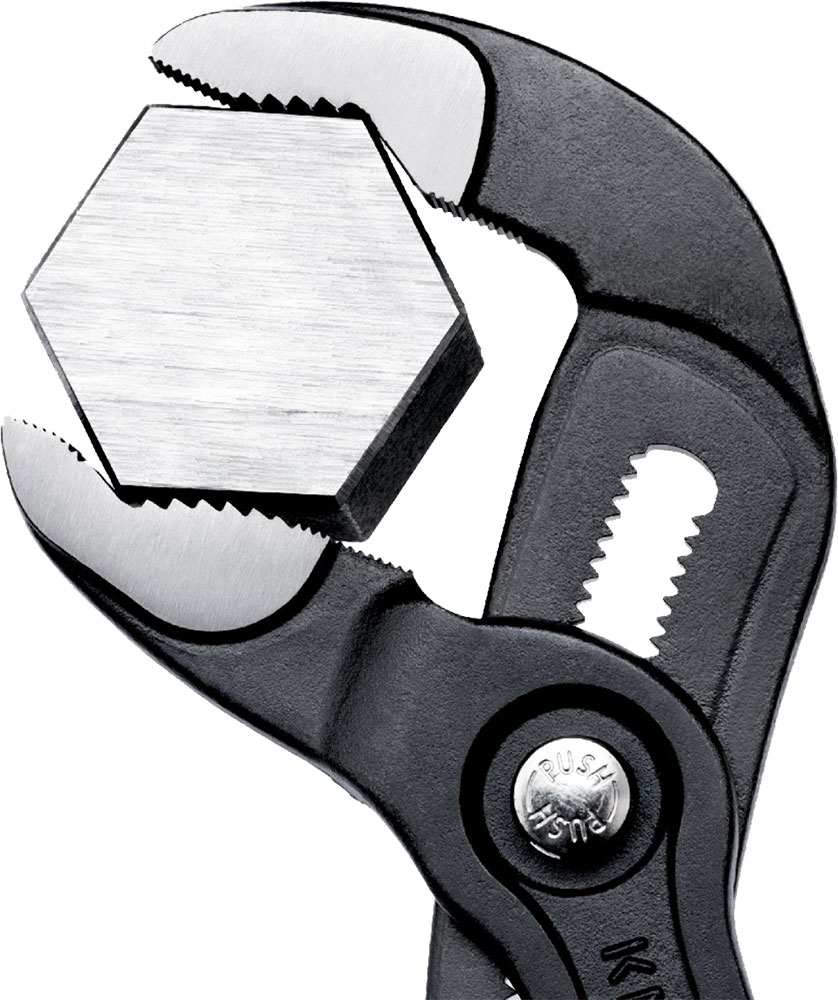

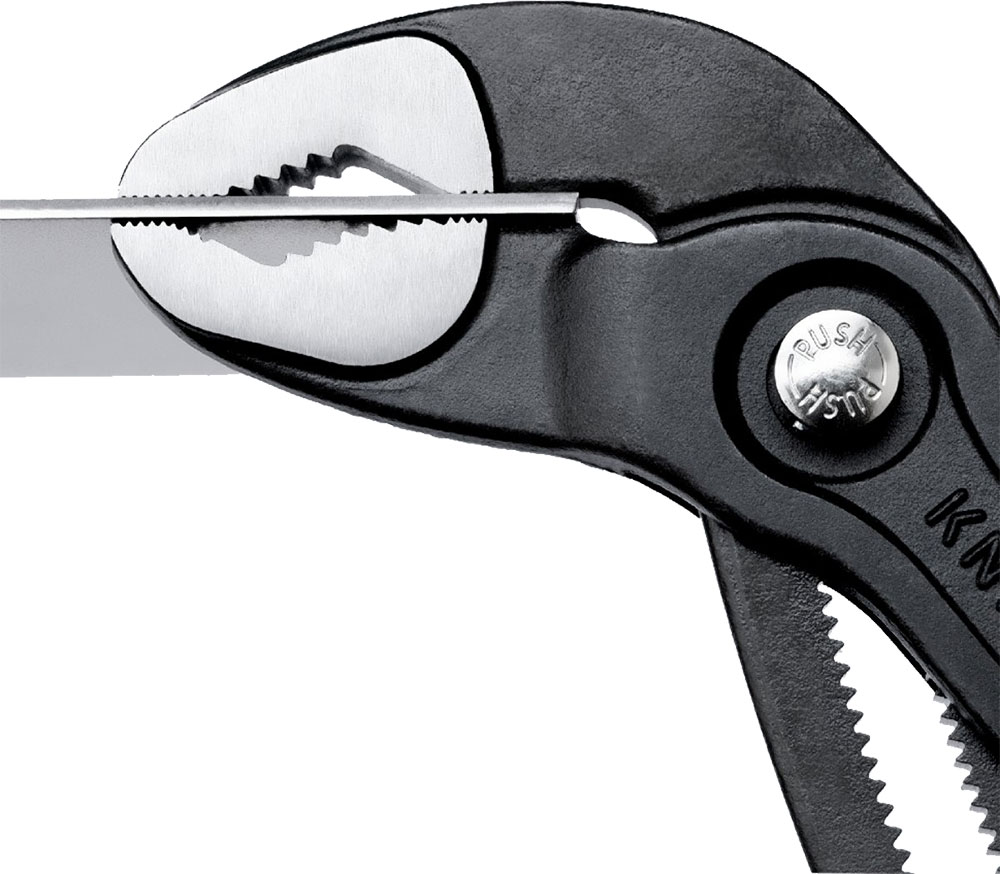

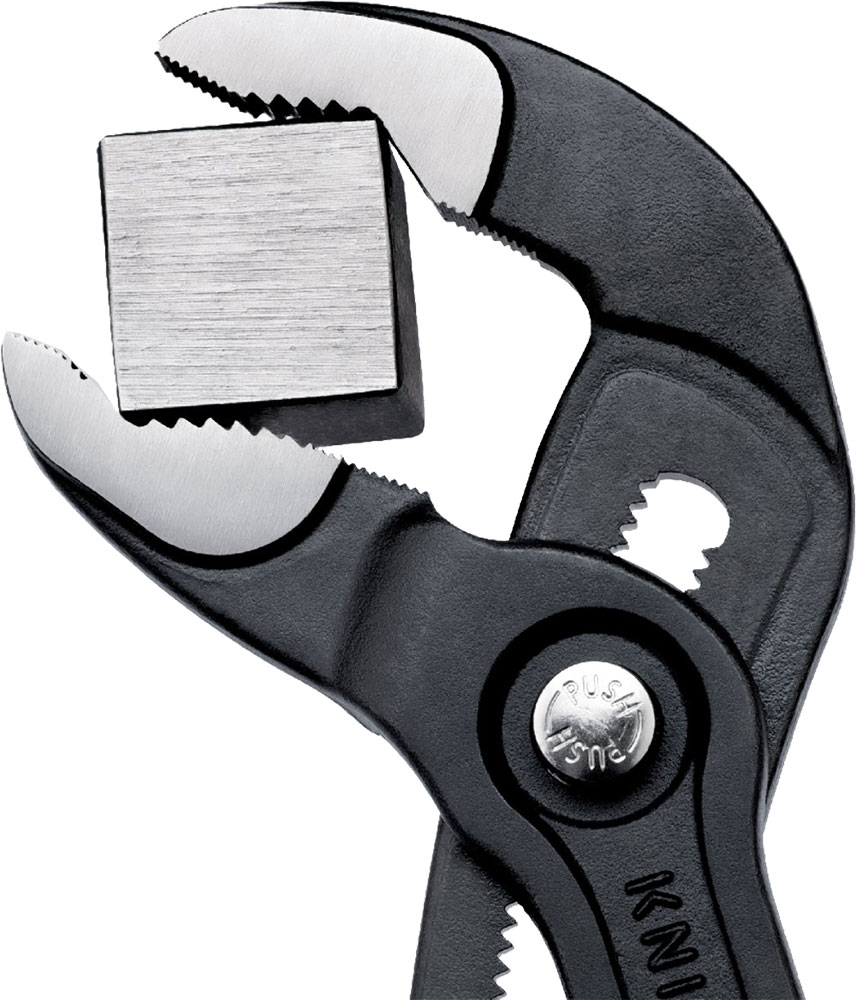

- Grips flat, round and angled components
Product features
- Pliers: gray atramentized
- Head: polished
- Handles: with slim multi-component grips
- Dimensions: 250 x 50 x 18 mm
- Standard: DIN ISO 8976
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Adjustment positions: 25
- Capacity for tubes: Ø 2 inch
- Capacity for nuts: 46 mm
- Capacity for pipes: Ø 50 mm
Material
- Chrome vanadium electric steel; forged, multi-stage oil-hardened
Tool weight
- 366 g (manufacturer information)
Scope of delivery
- 1 x KNIPEX Cobra® high-tech water pump pliers
KNIPEX Cobra Range
- Manufacturer number: 87 02 250
- EAN: 4003773040316
Knipex High-tech Cobra® Water Pump Pliers (self-clamping)
The spring-loaded hinge pin ensures secure locking without unintentional adjustment. With its 25-position fine adjustment, it adapts perfectly to different workpiece sizes and ensures a hand-friendly grip distance. The box joint stabilizes the pliers and prevents tilting forces under load. The innovative jaw geometry enables the turning of round workpieces and the efficient loosening and tightening of screw connections.
Features - KNIPEX Cobra® High-Tech Water Pump Pliers
- Push the button for adjustment on the workpiece
- Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width
- Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required
- Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
- Box-joint design for high stability due to double guide
- Reliable catching of the hinge bolt: no unintentional shifting
- Pinch guard prevents operators' fingers being pinched
- With slim multi-component grips without collar for better handling and easier transport
- 25-fold fine adjustment at the touch of a button for fast adjustment to different sizes of component
- Large grip width (up to a wrench opening of 46 mm / pipes up to 2 inches)
- Grips flat, round and angled components
Product features
- Pliers: gray atramentized
- Head: polished
- Handles: with slim multi-component grips
- Dimensions: 250 x 50 x 18 mm
- Standard: DIN ISO 8976
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Adjustment positions: 25
- Capacity for tubes: Ø 2 inch
- Capacity for nuts: 46 mm
- Capacity for pipes: Ø 50 mm
Material
- Chrome vanadium electric steel; forged, multi-stage oil-hardened
Tool weight
- 366 g (manufacturer information)
Scope of delivery
- 1 x KNIPEX Cobra® high-tech water pump pliers
KNIPEX Cobra Range
- Manufacturer number: 87 02 250
- EAN: 4003773040316
