Kind Shock Rage-i 2.0 Dropper Post
Product information "Rage-i 2.0 Dropper Post"
The Kind Shock KS Rage-i 2.0 is a high-performance dropper seatpost designed for demanding trail riding, offering a long drop travel within a compact design. The Schrader valve allows you to individually adjust the air pressure and, consequently, the extension speed. The self-bleeding system eliminates a spongy ride feel and quickly restores the seatpost to full functionality. Its service-friendly design, internal cable routing and compatibility with all KS remotes make the Rage-i 2.0 a versatile dropper post offering excellent value for money.
Features - Kind Shock Rage-i 2.0
- Adjustable seatpost for demanding trail riding
- Generous lowering travel combined with a compact design
- Air pressure individually adjustable via Schrader valve
- Adjustable rebound speed
- Self-bleeding system for rapid restoration of stable operation
- Service-friendly design for quick and easy maintenance
- Optimised clamping head and compact actuator for a short overall length
- Greater usable stroke with the same insertion depth
- Good compatibility with small frames and modern frame geometries
- Designed for internal cable routing within the frame
- Cylindrical upper clamping nut for easy installation
- Optimised angle of the clamping screw for high clamping force
- Special cartridge design for reliable and smooth operation
- Lightweight, rotating lower actuator with reduced operating force
- Compatible with all KS Remotes
Product features
- Range of use: MTB
- Mounting: 2-bolt
- Offset: 0 mm
- Max. rider weight: 90 kg
Lever compatibility
- Kind Shock Soutpaw A
- Kind Shock Soutpaw B
- Kind Shock KG
- Kind Shock Westy

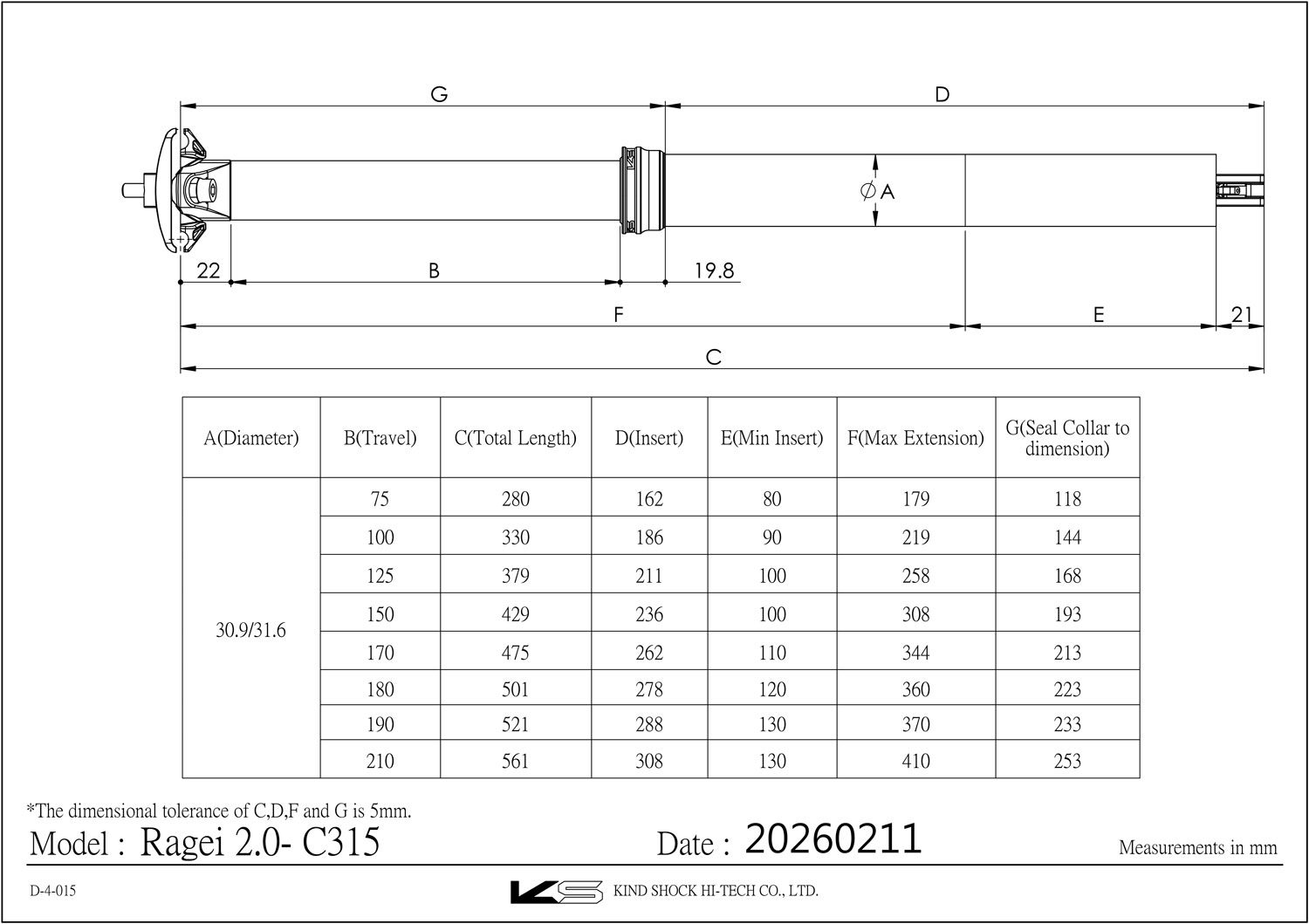

Diameter / Length / Travel (choose variant)
- 30.9 x 429 mm / 150 mm
- 30.9 x 475 mm / 170 mm
- 30.9 x 521 mm / 190 mm
- 31.6 x 379 mm / 125 mm
- 31.6 x 429 mm / 150 mm
- 31.6 x 495 mm / 170 mm
- 31.6 x 521 mm / 190 mm
Material
- Aluminium
Color
- black
Weight (manufacturer’s information)
- 30.9 x 429 mm / 150 mm: 518 g
- 30.9 x 475 mm / 170 mm: 559 g
- 30.9 x 521 mm / 190 mm: 598 g
- 31.6 x 379 mm / 125 mm: 498 g
- 31.6 x 429 mm / 150 mm: 538 g
- 31.6 x 495 mm / 170 mm: 582 g
- 31.6 x 521 mm / 190 mm: 624 g
Contents
- 1 x Kind Shock Rage-i 2.0 Vario seatpost
- 1 x inner cable and outer casing
Remote lever not included!
Technologies
Adjustable extension speed
The internal air pressure of the KS Rage-i 2.0 can be individually adjusted via the integrated Schrader valve. This allows the extension speed of the Vario seatpost to be tailored to personal preferences and different riding conditions.
Self-bleeding system
Should air and oil mix within the system during use, resulting in a temporarily soft or spongy feel, the Rage-i 2.0 can restore its normal function through a simple self-bleeding process. By manually cycling through the full stroke several times, stable operation is restored – without the need for tools or dismantling.
Compact design with maximum drop travel

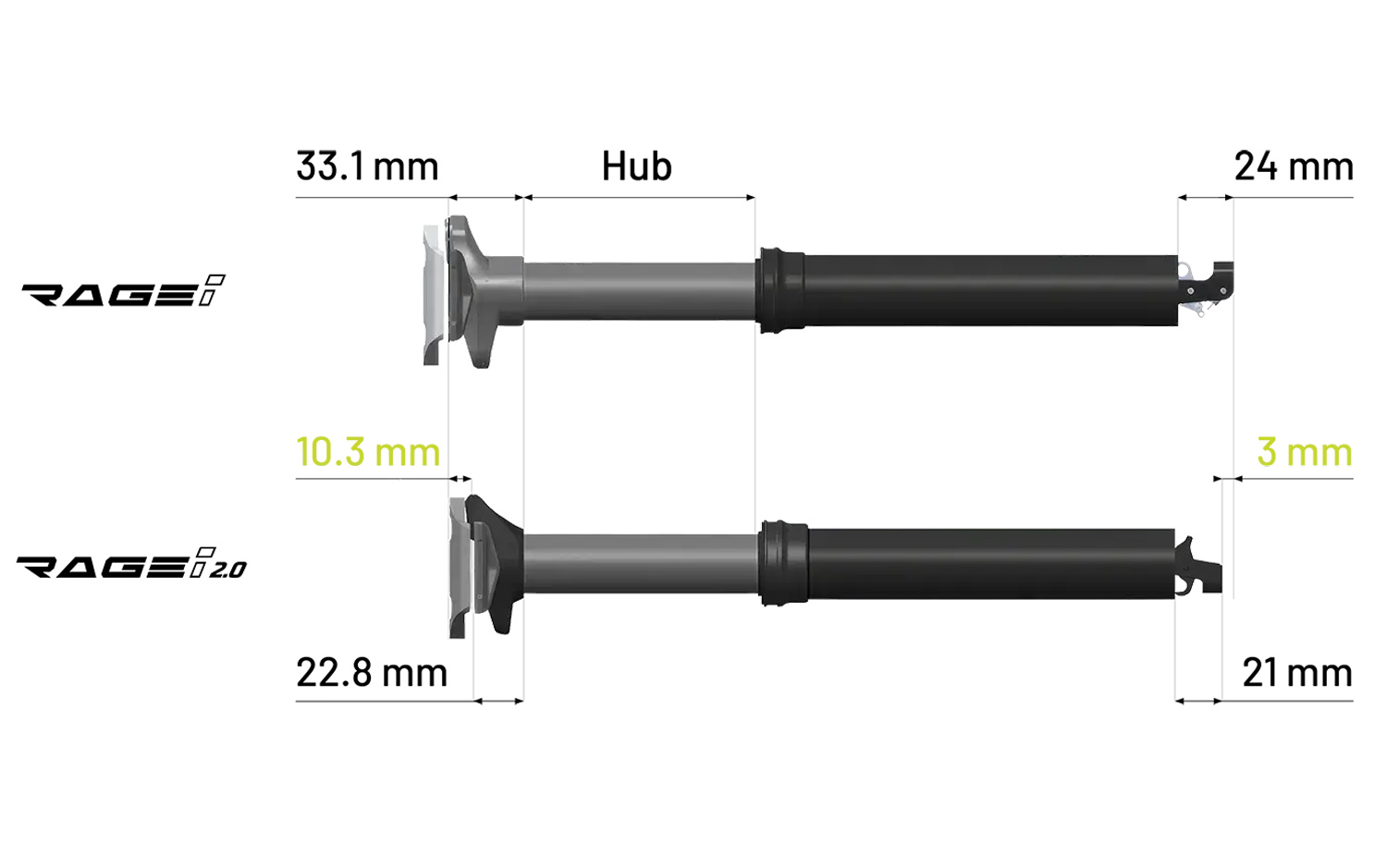

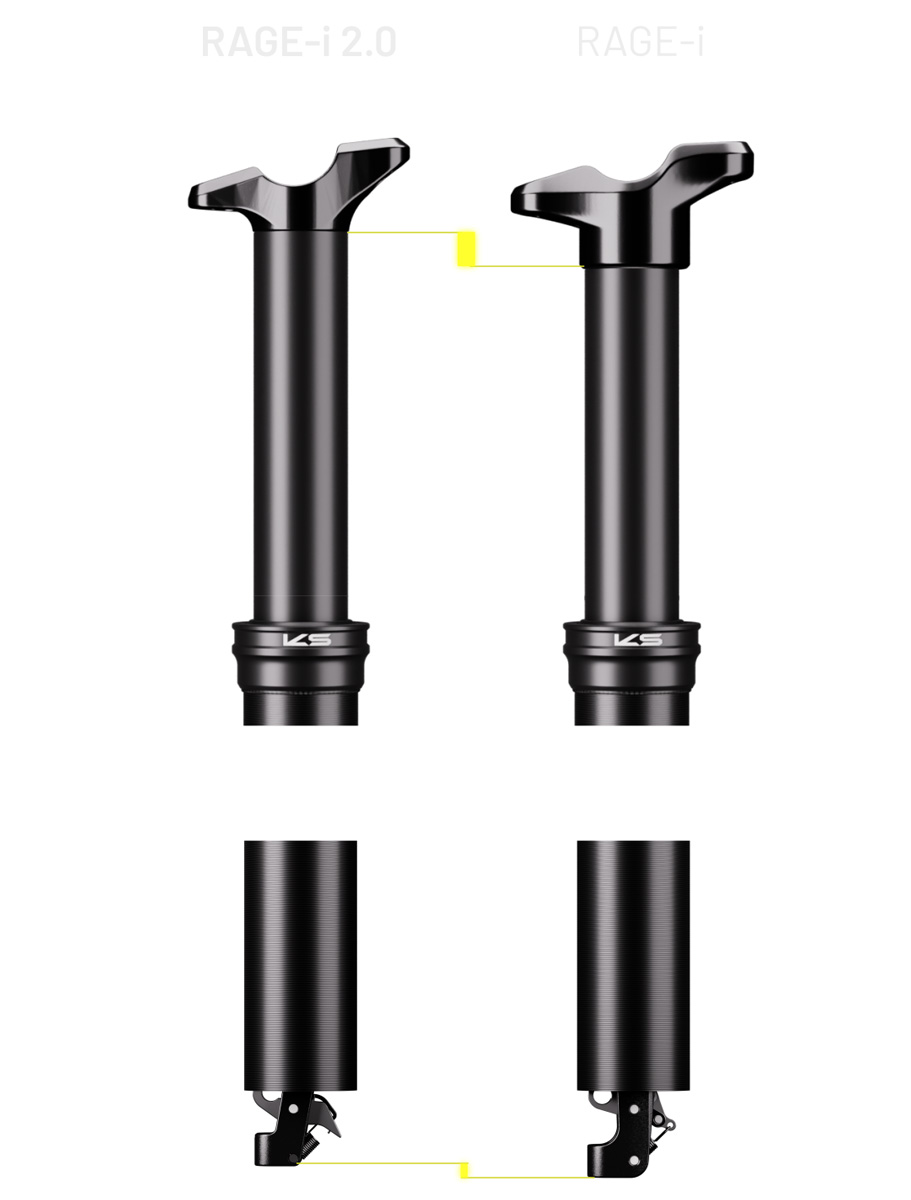

The redesigned clamp head and compact actuator reduce the overall length of the Rage-i 2.0. Compared to the Rage-i with the same travel, the new clamp head is 10.3 mm shorter and the actuator is 3 mm shorter. This provides more usable lowering travel for the same insertion depth, making the seatpost suitable for smaller frames or frames with limited installation space.
Service-friendly design

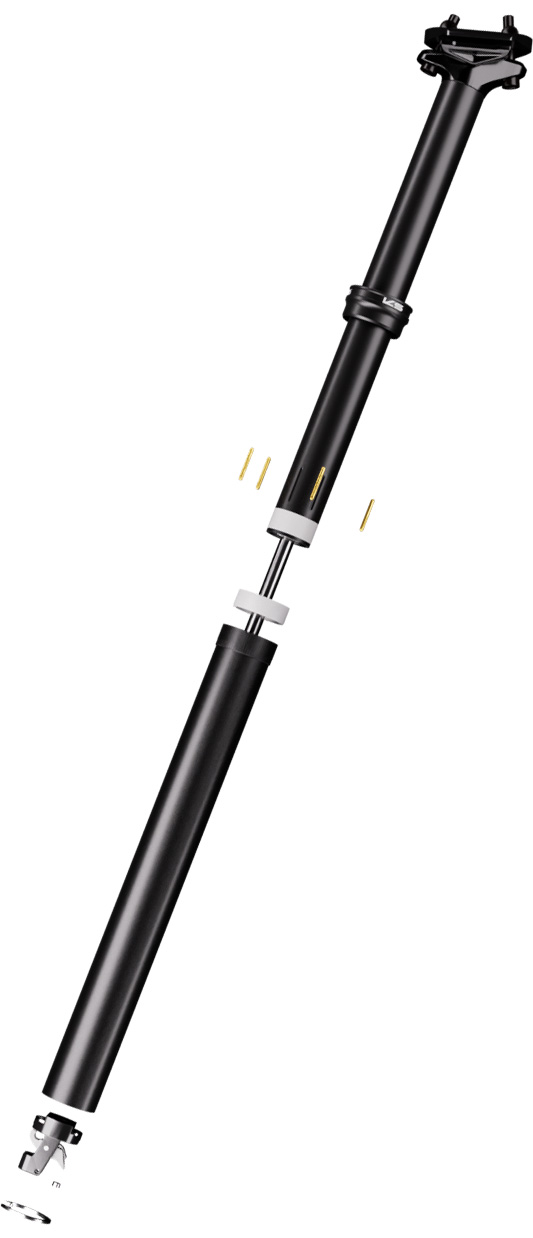

The revised design makes maintenance and servicing of the Vario seatpost easier. The bolted design allows quicker and easier access to the relevant components.
Optimised saddle clamping
The cylindrical upper clamping nut makes it easier to fit the saddle. At the same time, the increased vertical angle of the clamping bolt ensures greater clamping force and a secure fit for the saddle.
Optimised actuator
The lightweight, rotating lower actuator has been designed to require minimal operating force. In conjunction with the internal cable routing, it allows for a clean integration into compatible bicycle frames.
Reliable cartridge architecture
The specially developed cartridge architecture of the KS Rage-i 2.0 is designed for smooth and reliable operation under demanding trail conditions.
RAGE-i 2.0
Rage-i 2.0 Reborn
- Manufacturer number: C315-170-31.6
No. 298, Anxin 2nd Rd., Annan Dist.
709007 Tainan City
Taiwan (R.O.C.)
[email protected]
kssuspension.com/
