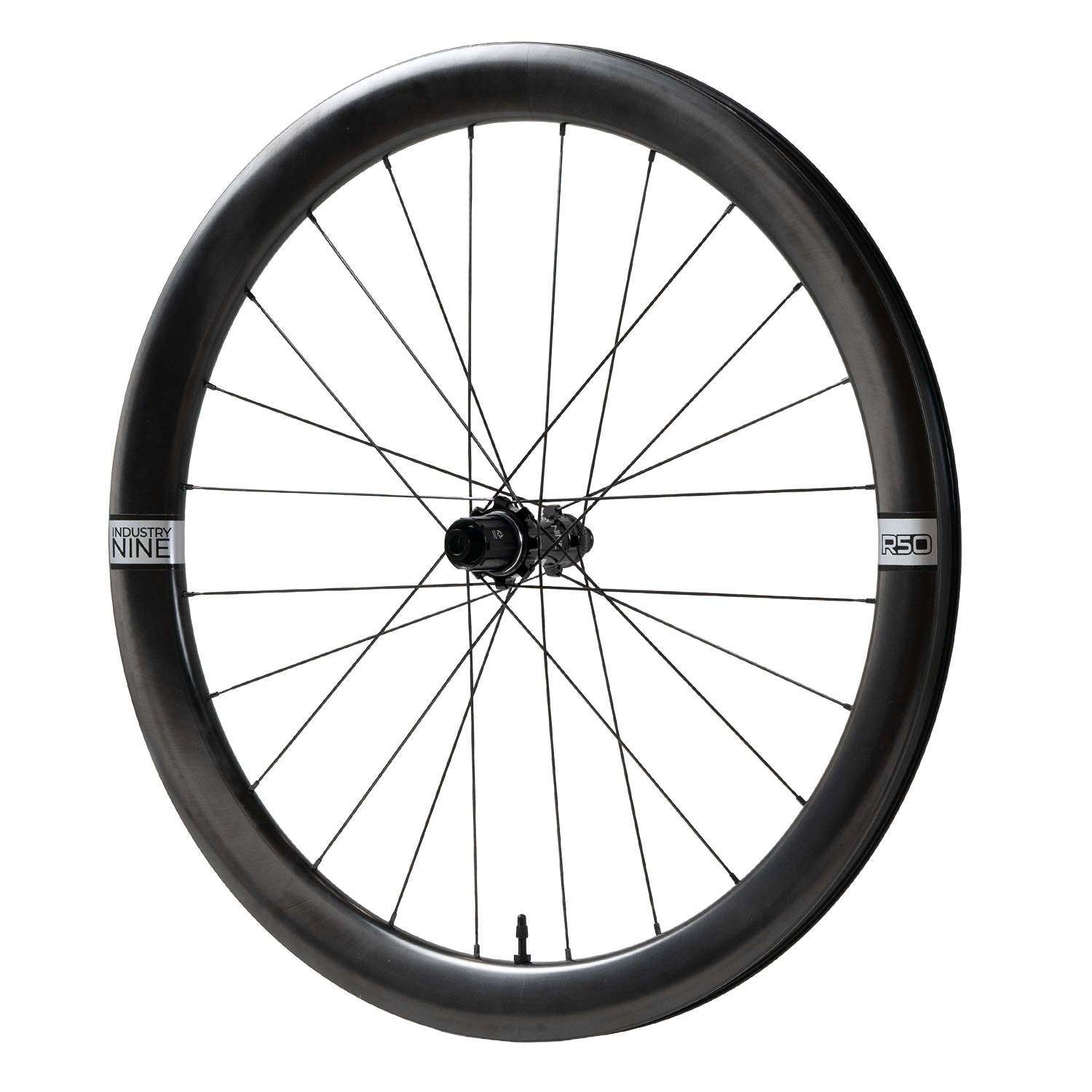

Industry Nine R50 CR Solix Road SP 700C CL Rear Wheel
Product information "R50 CR Solix Road SP 700C CL Rear Wheel"
The Industry Nine R50 rear wheel is the most aerodynamic all-round rear wheel in the current R-Series and has been designed for riders seeking maximum efficiency on fast road race courses without having to ride a heavy, high-profile wheel. The combination of a 50 mm-deep carbon rim and the SOLiX-SL hub makes it a true performance wheel.
The 50 mm rim has been specially developed for modern 28–30 mm tyres. Industry Nine has optimised the rim shape using CFD simulations and wind tunnel tests.
The SOLiX-SL hub, with 605 engagement points and an engagement angle of just 0.59°, enables exceptionally direct power transfer.
Features – R50 CR Solix Road SP 700C CL rear wheel
- High aerodynamic performance at speeds above 35 km/h
- Noticeably smoother ride than a 35 mm rear wheel
- Very good acceleration despite a 50 mm rim height
- High crosswind stability compared to 60 mm and 80 mm wheels
- Suitable for races, fast training rides and long Gran Fondos
Product features
- Range of use: Road
- Model: R50 CR Solix Road
- Rim diameter: 28"
- ETRTO: 700C
- ERD: 542 mm
- Rim type: Clincher (folding/wired tyres)
- Tubeless Ready: Yes
- Rim height: 50 mm
- Inner width: 22 mm
- Outer width: 30 mm
- Axle system: 12 mm thru-axle
- Built-in dimension: 142 mm
- Hub: Solix Road Straight Pull
- Freewheel system: Solix SL
- Spokes: Sapim CX-Ray Steel Spoke
- Number of spokes: 24
- Valve hole: Presta
- Brake interface: Disc CenterLock
Freewheel body (choose variant)
- Shimano HG 11
- SRAM XDR
Material
- Rim: Carbon
- Hub body: Aluminium
- Freewheel body: Aluminium
- Spokes: Stainless steel
Weight (manufacturer’s information)
- approx. 760 g
Contents
- 1 x Industry Nine R50 Solix Road SP 700C CL rear wheel
Technologies
Aero-optimised carbon rim
The R Carbon rims were developed using CFD simulations and tested in a wind tunnel, and are among the fastest rims on the market specifically designed for disc brakes. And best of all: they are lightweight and tubeless-compatible.
SOLix Hub
The ultra-light Industry Nine SOLiX hub combines low weight, high stiffness and durable bearing technology, making the R50 rear wheel a high-performance companion for fast and demanding road cycling.
SOLix SL Freewheel
At the heart of the SOLiX rear hub is a continuously phase-controlled freehub with five pawls, seamlessly integrated into a 121-tooth drive ring – this provides 605 contact points, corresponding to an extremely fine engagement angle of 0.59°. The pawls and drive ring, machined from A2 tool steel using precision wire EDM, are designed for maximum durability. To minimise rolling resistance and freewheel noise, Industry Nine has reduced the drive diameter, the rotation of the pawls and the spring tension of the pawls, and has altered the arrangement of the freewheel seal.
- Manufacturer number: R5C9RPCCTXBRBABB
