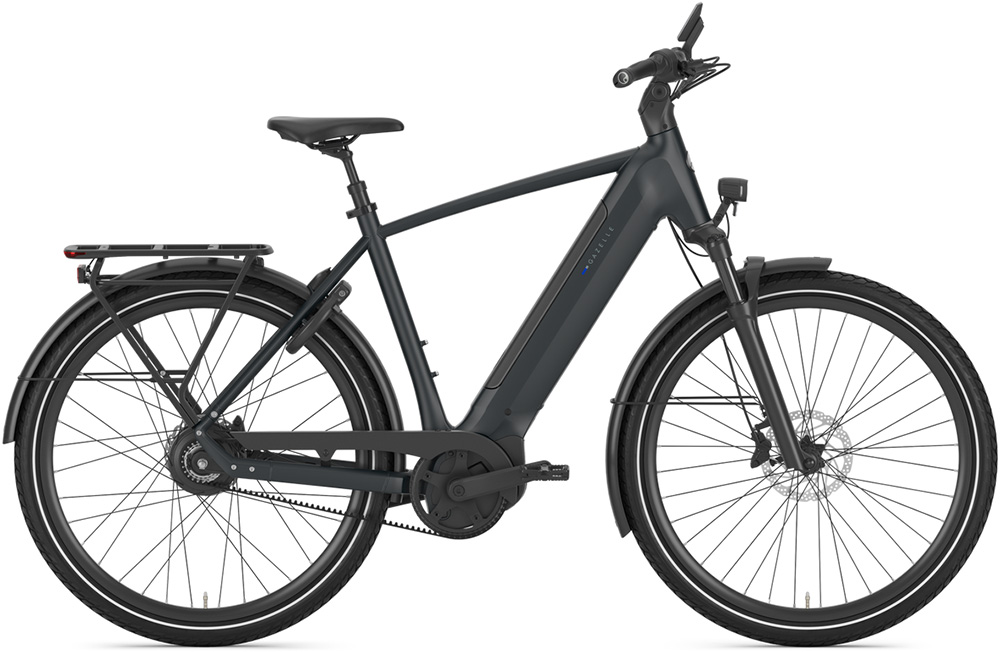

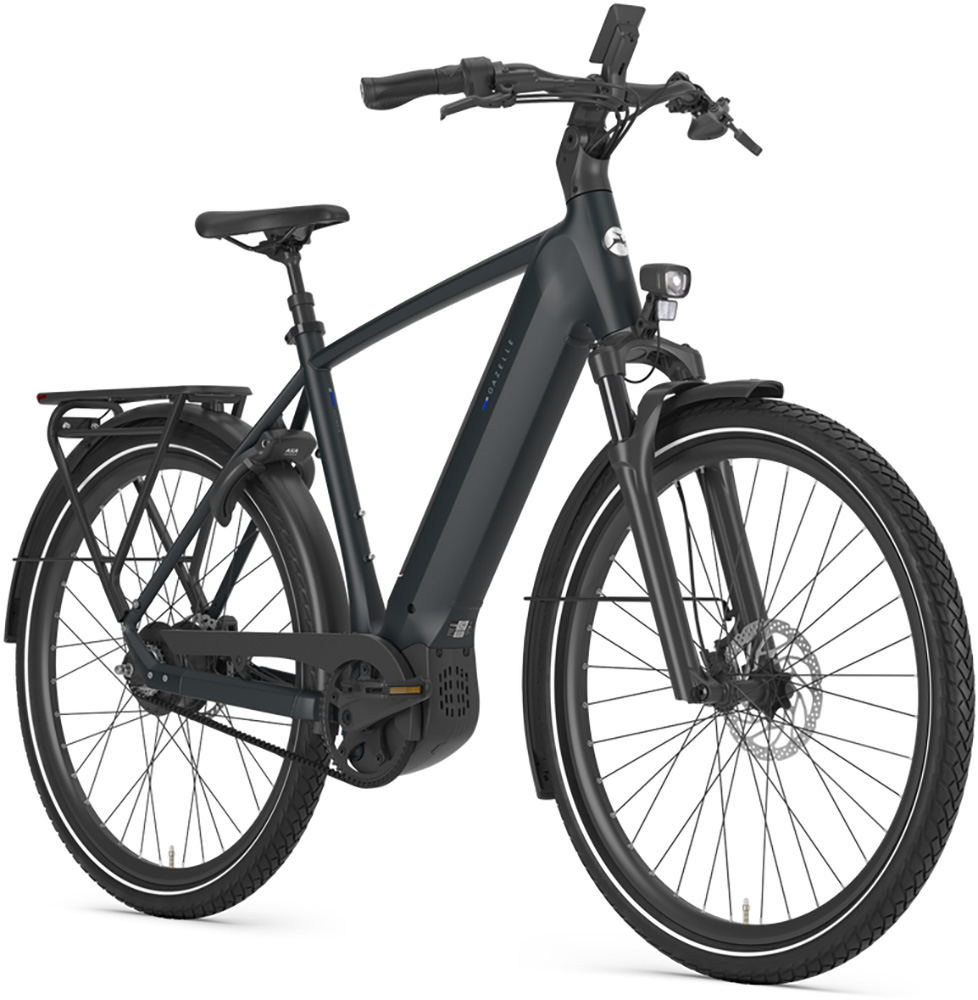

Gazelle Ultimate C380
Product information "Ultimate C380"
Features - Gazelle Ultimate C380
- Frame: High-quality men's aluminum frame, designed for a maximum total weight of 150 kg
- Bosch Smart System e-drive: Bosch Performance Line PX motor with 85 Nm torque for powerful and efficient riding up to 25 km/h (can be updated to 90 Nm via the E-Bike Flow app)
- Large battery: Integrated Bosch PowerTube 800 Wh battery for long ranges with a slim design.
- Smart display: Bosch Kiox 500 display for clear riding information and simple operation of the Smart System.
- Comfortable suspension: SR Suntour Mobie 34 suspension fork with 80 mm travel for comfortable riding on uneven paths.
- Reliable shifting: Infinitely variable belt transmission from Enviolo Gates Manual with precise shifting behavior for all everyday situations.
- Efficient tires: Schwalbe The Green Marathon 55-622 for optimum rolling resistance and puncture protection.
- Reliable brakes: Shimano MT420 hydraulic 4-piston disc brakes with 180/160 mm brake discs for reliable braking in any situation.
- Comfort-enhancing equipment: Adjustable stem, Selle Royal Essenza Plus Gel saddle and Ergon GP1-L grips for a high level of comfort
- Fully equipped: Fully equipped MIK HD System pannier rack, mudguards, Hermans lighting (90 lux) and Spanninga rear light and Axa frame lock.
Highlights
Plenty of motor power
The Avignon C380 is equipped with the extremely powerful Bosch Performance Line PX mid-motor. Do you want even more than 85 Nm support? Then upgrade to 90 Nm in the Bosch app. The PX motor is a silent force: it makes little noise and has plenty of power. So you can enjoy every ride to the full.

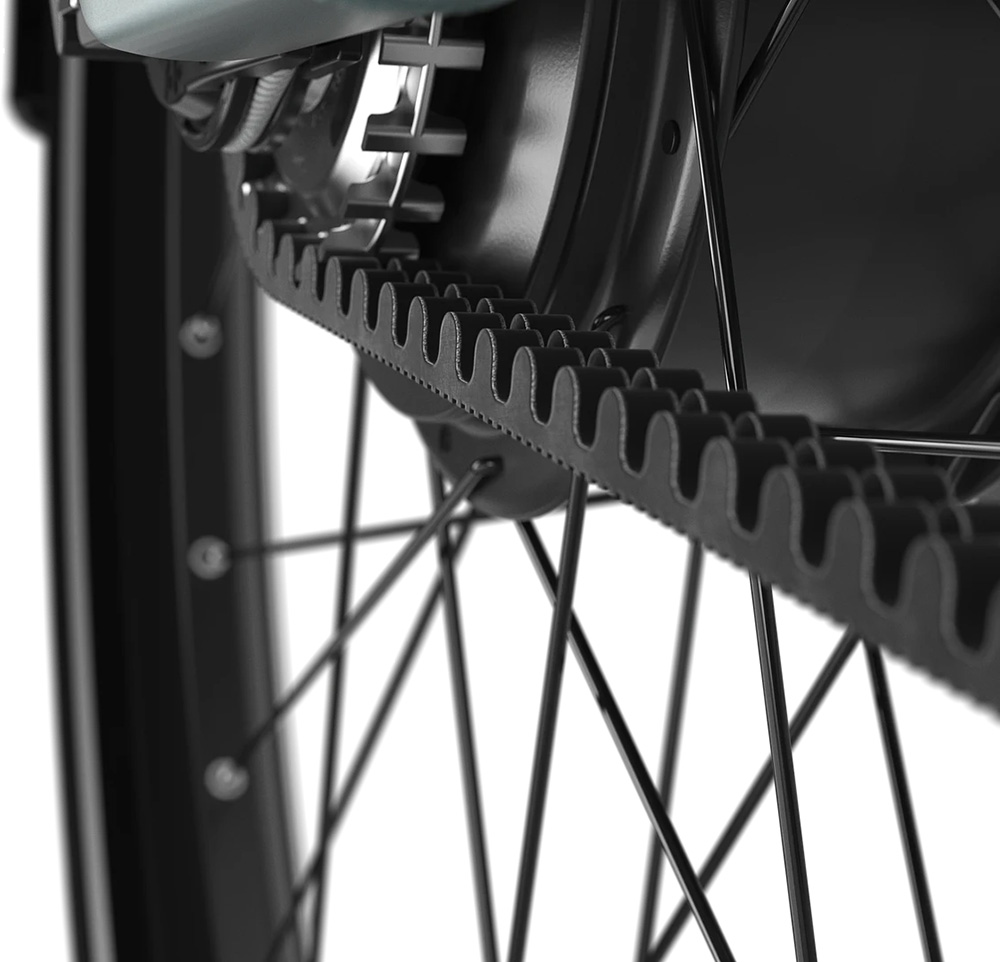

Silent belt
The robust Gates belt is low-maintenance. Unlike a chain, you don't have to lubricate a belt and it lasts 3 to 5 times longer. The belt is also whisper-quiet and matches the sporty design of the Ultimate.
Stepless in the right gear
With the robust, stepless gear hub from Enviolo, you have an infinite number of gears. You can shift effortlessly without fixed notches: simply turn to pedal lighter or harder - even while pedaling. Whatever your ride entails, you can shift smoothly into the right gear.
Extra-large display
Everything at a glance with the large Kiox 500 color display from Bosch. This display offers you extensive functions such as navigation. You can easily connect your phone to the Ultimate via Bluetooth and even choose to have your phone be your display. With an Intellimount mounting system, you can use both SP Connect and Quad Lock.

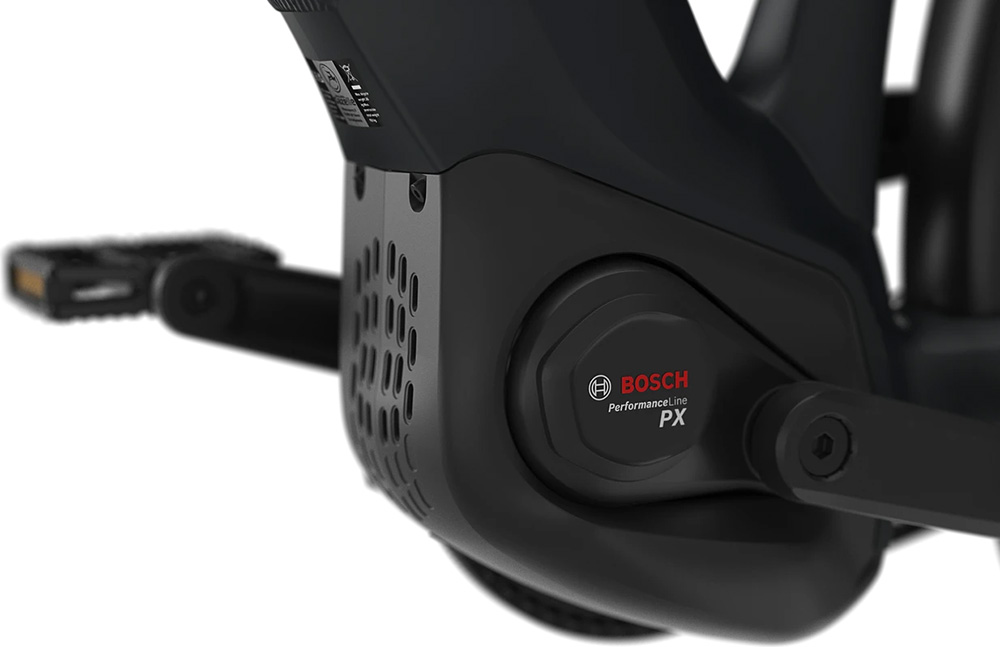

Bosch Smart System Performance Line PX
The Performance Line PX is the premium drive from Bosch and specially designed for demanding bike tours and unforgettable weekend excursions. This mid-motor with 85 Nm support is extremely powerful. An upgrade to up to 90 Nm is possible in the Bosch app. The motor makes little noise. This means that you can enjoy the surroundings to the full on every ride.
Ride endlessly
The lithium-ion batteries from Bosch are among the most modern batteries on the market. Their intelligent battery management system guarantees a long service life and the efficient energy control ensures an optimum range. You determine the capacity of the battery yourself. Equipped with an 800 Wh battery. This gives you an enormous range. For endless riding fun!
Controlled, safe braking
With an advanced e-bike like the Ultimate C380, you want to be able to brake safely without having to think about it. Hydraulic disc brakes are therefore indispensable, as they provide the necessary braking power and precision for controlled braking at all times - even in the rain or on wet roads.

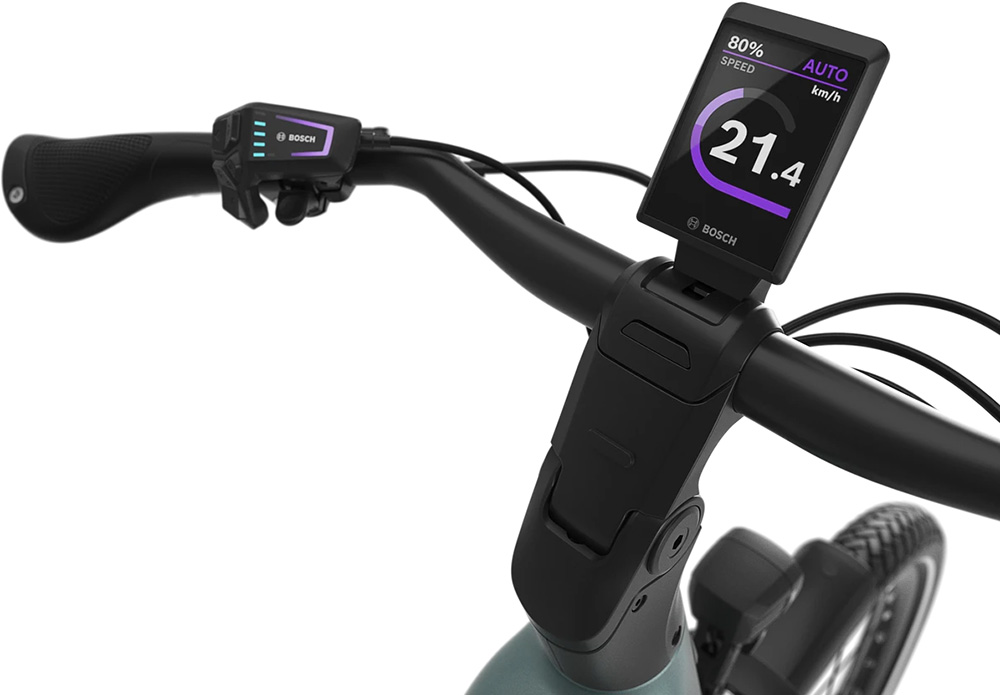

Bosch Kiox 500
The extra-large Kiox 500 color display from Bosch is positioned centrally. This gives you a perfect view of your riding data. Connect your smartphone to your Avignon via Bluetooth and discover a world of functions, including navigation. The display controls are safely and cleverly positioned on the side of the handlebars.

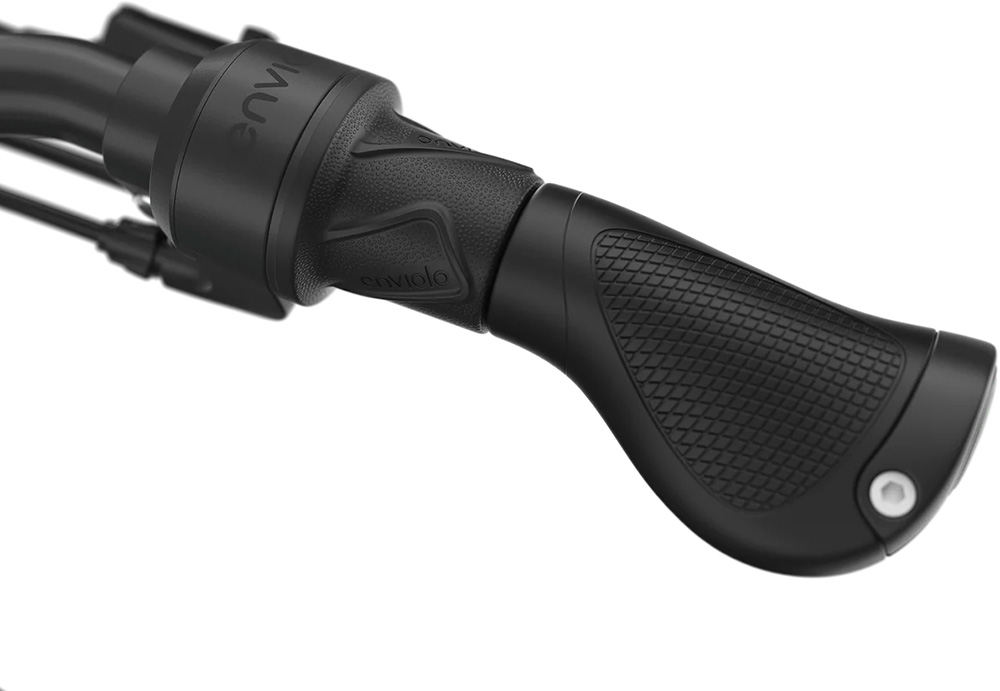

Enviolo continuously variable hub gears
Pleasant, convenient - without gears or gear steps. Just a stepless rotary control. Enviolo offers a robust, continuously variable transmission system for bicycles. Smooth, shiftable under load or when stationary, and virtually maintenance-free. The easiest way to ride.
Less maintenance - fewer workshop visits
Enviolo is completely enclosed and ready for any weather. It requires no oil changes and ensures less effort and maintenance, especially in combination with a belt drive.
Simple
Whether sporty or relaxed for work - the stepless shifting is intuitive.
Versatile
310-380 % gear ratio range - ideal for every ride and environment.
Efficient
Riding in the optimum gear means less strain on you and your engine.
Safe
Your attention remains free for balance and surroundings.
Modern
Stylish and innovative, for fewer cables and minimalist frames.
The CVP technology
Continuously variable planetary CVP technology is at the heart of Enviolo's bicycle gears. The hub contains rotating balls that allow an unlimited number of gear ratios across its gear range. Between the input power from the pedals via the ring on the right. And output power from the ring on the left to the wheel.
A specially developed oil in the hub shell ensures effortless shifting from one gear ratio to the next. This makes shifting under load and pedaling child's play. The whole thing is controlled by a manual or automatic twist grip, which tilts the rotating balls and thus changes the gear ratio. All Enviolo hubs offer the same advantages: simplicity, resilience, no maintenance and low noise.
This is the Enviolo AUTOMATiQ app
How to install a new sprocket on your Enviolo hub.
- Model Year: 2026
Schwalmstraße 301
41238 Mönchengladbach
Deutschland
[email protected]
www,gazelle.de
Gazelle Ultimate C380
Features - Gazelle Ultimate C380
- Frame: High-quality men's aluminum frame, designed for a maximum total weight of 150 kg
- Bosch Smart System e-drive: Bosch Performance Line PX motor with 85 Nm torque for powerful and efficient riding up to 25 km/h (can be updated to 90 Nm via the E-Bike Flow app)
- Large battery: Integrated Bosch PowerTube 800 Wh battery for long ranges with a slim design.
- Smart display: Bosch Kiox 500 display for clear riding information and simple operation of the Smart System.
- Comfortable suspension: SR Suntour Mobie 34 suspension fork with 80 mm travel for comfortable riding on uneven paths.
- Reliable shifting: Infinitely variable belt transmission from Enviolo Gates Manual with precise shifting behavior for all everyday situations.
- Efficient tires: Schwalbe The Green Marathon 55-622 for optimum rolling resistance and puncture protection.
- Reliable brakes: Shimano MT420 hydraulic 4-piston disc brakes with 180/160 mm brake discs for reliable braking in any situation.
- Comfort-enhancing equipment: Adjustable stem, Selle Royal Essenza Plus Gel saddle and Ergon GP1-L grips for a high level of comfort
- Fully equipped: Fully equipped MIK HD System pannier rack, mudguards, Hermans lighting (90 lux) and Spanninga rear light and Axa frame lock.
Highlights
Plenty of motor power
The Avignon C380 is equipped with the extremely powerful Bosch Performance Line PX mid-motor. Do you want even more than 85 Nm support? Then upgrade to 90 Nm in the Bosch app. The PX motor is a silent force: it makes little noise and has plenty of power. So you can enjoy every ride to the full.
Silent belt
The robust Gates belt is low-maintenance. Unlike a chain, you don't have to lubricate a belt and it lasts 3 to 5 times longer. The belt is also whisper-quiet and matches the sporty design of the Ultimate.
Stepless in the right gear
With the robust, stepless gear hub from Enviolo, you have an infinite number of gears. You can shift effortlessly without fixed notches: simply turn to pedal lighter or harder - even while pedaling. Whatever your ride entails, you can shift smoothly into the right gear.
Extra-large display
Everything at a glance with the large Kiox 500 color display from Bosch. This display offers you extensive functions such as navigation. You can easily connect your phone to the Ultimate via Bluetooth and even choose to have your phone be your display. With an Intellimount mounting system, you can use both SP Connect and Quad Lock.
Bosch Smart System Performance Line PX
The Performance Line PX is the premium drive from Bosch and specially designed for demanding bike tours and unforgettable weekend excursions. This mid-motor with 85 Nm support is extremely powerful. An upgrade to up to 90 Nm is possible in the Bosch app. The motor makes little noise. This means that you can enjoy the surroundings to the full on every ride.
Ride endlessly
The lithium-ion batteries from Bosch are among the most modern batteries on the market. Their intelligent battery management system guarantees a long service life and the efficient energy control ensures an optimum range. You determine the capacity of the battery yourself. Equipped with an 800 Wh battery. This gives you an enormous range. For endless riding fun!
Controlled, safe braking
With an advanced e-bike like the Ultimate C380, you want to be able to brake safely without having to think about it. Hydraulic disc brakes are therefore indispensable, as they provide the necessary braking power and precision for controlled braking at all times - even in the rain or on wet roads.
Bosch Kiox 500
The extra-large Kiox 500 color display from Bosch is positioned centrally. This gives you a perfect view of your riding data. Connect your smartphone to your Avignon via Bluetooth and discover a world of functions, including navigation. The display controls are safely and cleverly positioned on the side of the handlebars.
Enviolo continuously variable hub gears
Pleasant, convenient - without gears or gear steps. Just a stepless rotary control. Enviolo offers a robust, continuously variable transmission system for bicycles. Smooth, shiftable under load or when stationary, and virtually maintenance-free. The easiest way to ride.
Less maintenance - fewer workshop visits
Enviolo is completely enclosed and ready for any weather. It requires no oil changes and ensures less effort and maintenance, especially in combination with a belt drive.
Simple
Whether sporty or relaxed for work - the stepless shifting is intuitive.
Versatile
310-380 % gear ratio range - ideal for every ride and environment.
Efficient
Riding in the optimum gear means less strain on you and your engine.
Safe
Your attention remains free for balance and surroundings.
Modern
Stylish and innovative, for fewer cables and minimalist frames.
The CVP technology
Continuously variable planetary CVP technology is at the heart of Enviolo's bicycle gears. The hub contains rotating balls that allow an unlimited number of gear ratios across its gear range. Between the input power from the pedals via the ring on the right. And output power from the ring on the left to the wheel.
A specially developed oil in the hub shell ensures effortless shifting from one gear ratio to the next. This makes shifting under load and pedaling child's play. The whole thing is controlled by a manual or automatic twist grip, which tilts the rotating balls and thus changes the gear ratio. All Enviolo hubs offer the same advantages: simplicity, resilience, no maintenance and low noise.
This is the Enviolo AUTOMATiQ app
How to install a new sprocket on your Enviolo hub.
- Model Year: 2026
Schwalmstraße 301
41238 Mönchengladbach
Deutschland
[email protected]
www,gazelle.de
Configuration
| Frame: | Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
|---|---|
| Frame material: | aluminium |
| Wheel size: | 28" |
| Speeds: | stepless |
| Colour: | teal grey matt |
| Fork: | SR Suntour MOBIE 34, air, aluminium, 80mm |
| Travel: | 80 mm |
| Brakes: | Shimano MT420 |
| Brake discs: | Shimano MT420, Front: 180 mm / Rear: 160 mm |
| Brake levers: | Shimano MT420 |
| Stem: | Gazelle, adjustable stem with Intelli-Mount interface for attaching your smartphone |
| Handlebar: | Gazelle |
| Bar grips: | Ergon GP1-L ergonomic, ergonomically shaped plastic grips for better distribution of pressure on the hands |
| Saddle: | Selle Royal Essenza Plus gel |
| Seatpost: | Gazelle with seat post suspension 27,2 mm |
| Crankset: | Delta belt 55T |
| Gear shifters: | Enviolo stepless |
|---|---|
| Chain: | belt |
| Tyres: | Schwalbe The Green Marathon, 28", 55-622 |
| Wheelset: | Ryde ZAC 25, double-walled aluminum for exceptional stability and excellent riding characteristics |
| Front hub: | Shimano |
| Rear hub: | Enviolo Trekking Manual, stepless hubgear |
| Display: | Bosch Kiox 500 |
| Battery: | Bosch PowerTube 800 Wh |
| Charger: | Bosch Standard Charger,4 Ah |
| Engine: | Bosch Smart System Performance Line PX 85 Nm (90Nm update via eBike Flow App), Smart System |
| Front light: | Herrmans MR10, 90 lux, battery |
| Backlight: | Spanninga Commuter Glow, battery |
| Rack: | MIK HD System Aluminum carrier |
| Other details: | Schutzblech, Ständer, Glocke, Axa Imenso Lock |
| Maximum total weight allowed: | 150 kg (body weight + bike + equipment) |
| Weight: | ab 27 kg ohne Akku |
Bosch Performance Line PX - Smart System
- 90Nm Max. Max. torque
- 700 watts Max. Motor power
- 400% Max. Support factor
- 2.9 kg light
Functions and details
Permium: High quality and versatile
Let go of everyday life, let adventure begin: The Performance Line PX is the premium drive specifically for demanding bike tours, weekend excursions and extended bike-packing trips.
Power: Precise and natural
The Performance Line PX responds precisely to your input and supports you naturally thanks to the low pedal resistance. Sensors and software recognize the starting situation - and give you a powerful boost when needed.
Quiet
Thanks to the optimized gear concept, the motor remains quiet so that you can listen to nature.
Enjoy nature responsibly
Experience powerful support on adventure tours with the Performance Line PX and enjoy nature at the same time. To achieve this, Bosch has taken various measures to reduce the product carbon footprint. Firstly, Bosch uses around 40 percent recycled aluminum in the housing of the drive unit. This has enabled Bosch to save almost half of the housing's CO₂ emissions. Secondly, Bosch uses recycled plastic for some components in the drive unit - thereby supporting the circular economy.
Everything for your adventure tour
eShift (optional)
Benefit from the eShift automatic function on tour. The optimized electric shifting solution now responds even more directly to inclines, changes gears faster and shifts more harmoniously.
eBike ABS (optional)
The Bosch eBike ABS helps you to brake more effectively and comfortably. The all-road mode is the perfect choice if you are out and about on more challenging terrain or loose surfaces on your trekking tours.
eBike Lock
A perfect tour also includes a relaxing break. You can enjoy your time out more carefree with eBike Lock - the free theft protection of the eBike Flow app.
Auto mode
Auto mode automatically adjusts the assistance when the speed drops due to climbs or sudden headwinds.
More range
Use the eBike Flow app for your trekking tours. With Range Control, you can plan routes without range anxiety, but with freedom and flexibility.
| New | |
|---|---|
| Performance Line PX (BDU347Y) | |
| eBike system | The smart system |
| Gear type | Derailleur gears, Hub gears |
| Max. Support level (%) | 400 % |
| Max. possible drive torque | 90 Nm |
| Starting behavior | powerful, dynamic, controlled |
| Assistance up to max. | 25 km/h |
| Coaster brake | yes |
| Push assist with Hill Hold | yes |
| Hill start assist with hill hold | yes |
| Switch recognition | optional |
| Weight, approx. | 2.9 kg |
| Nominal continuous power | 250 W |
| Maximum power | 700 W |
| Max. Power at a cadence of 70 rpm | 550 W |
| Max. weight-related power, approx. | 240 W/kg |
Bosch eBike Flow app
Extend the eBike
Use the eBike Flow app to download new functions and updates for components such as the battery or motor and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.
Record activities
Record your tour and fitness data as soon as you set off. For iPhone users, Activity Tracking also synchronizes all data automatically with Apple Health if desired. If you take a break, the recording stops automatically.
Individualize riding modes
Customize the riding mode exactly to your needs: You can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether battery status, remaining range, distance already ridden or next service appointment - the home screen shows you everything you need to know with constantly updated eBike data.
Bosch Kiox 500 Display
The Kiox 500 display from Bosch is the ultimate tool for your sporting adventures. This robust and intelligent display offers intuitive control via the matching control unit and is compact as well as protected from water jets and dust. Compared to the Kiox 300, the Kiox 500's color display is an impressive 40 percent larger, meaning a screen area nearly twice as large. Ideal for demanding tours and sporting challenges. Take your sporting adventures to a new level with the Kiox 500 display from Bosch. Experience the ultimate in connectivity and performance to keep you on track and motivated!
Highlights of the Kiox 500 Display
- Keep track of your fitness data and stay motivated
- Minimalist navigation to always find the best way to go
- Ergonomic operation for safe control
- Continuous updates and new features thanks to the smart system
Minimalist navigation function
The Kiox 500 display offers a clear and free navigation function that allows you to plan your route in the eBike Flow app or import it from komoot. Via Bluetooth, the route is transferred to your display, with an arrow showing your position and clear turn-by-turn directions showing you the way. The Kiox 500 even provides audible cues, such as before turns. It displays arrival time, distance, time remaining and range depending on the riding mode, which you can easily access via the control panel.
Customizable display
The Kiox 500 display also allows you to customize the display via the eBike Flow app. You can define the order and content of the screens and personalize the status bar according to your wishes. This way, you get exactly the information you need during your ride.
Display as a key
Another innovative feature is the ability to use the Kiox 500 display as a key for your eBike. You can remove it from the mount and store it safely to protect your eBike. Replace the display to activate motor assist and continue your ride.
Boost performance and motivation
Like the Kiox 300, the Kiox 500 provides detailed distance and fitness data, giving you a graphical power and cadence comparison to keep your motivation high. After your ride, you can share all captured fitness data with Strava, Apple Health and komoot via the eBike Flow app.
Flexible display alternative
The Kiox 500 display is versatile and offers the option to use your smartphone as a large display with the eBike Flow app.
Always in the right gear
With a shift recommendation, you shift more efficiently and are on the road in the optimal gear: Kiox 500 gives you tips for upshifting and downshifting. If you ride an eBike with eShift, the electric shifting solution, the display shows you the current and maximum gear.
ABS modes: Cargo, Touring, Allroad, Trail
Display your braking behavior after braking and get precise information about how long your braking distance was and how long it took you to come to a stop. Use this knowledge to improve your braking behavior, drive with more foresight and even more safely.
Bosch PowerTube 600 / 800
Maximum range
With the PowerTube 600 / 800, long distances and many meters of altitude are easy to master.
Stylish eBike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive eBike design and high capacity - a combination without compromise. A new, lighter housing has been used for the battery. Provided the eBike manufacturer has prepared the eBike for this, it can be easily replaced - for more or less range.
Reliable energy supplier
High safety standards. Enormous mileage, long service life, reliable handling - the lithium-ion battery is equipped with a battery management system that protects the battery cells from overload.
User-friendly handling
The PowerTube 600 / 800 is characterized by particularly easy handling. The battery is always securely anchored in the frame on all tours, removal is via an intuitive, lockable mechanism and offers you user-friendly operation.
Comparison table
| PowerTube | 600 | 800 |
|---|---|---|
| System | The smart system | The smart system |
| Mounting type | In the frame | In the frame: Horizontal / Vertical |
| Voltage | 36 V | 36 V |
| Battery capacity | 16.7 Ah | 22.2 Ah |
| Energy content | approx. 600 Wh | approx. 800 Wh |
| Weight, Frame battery / Rack battery |
approx. 3.0 kg | approx. 3.9 kg |
|
Size, horizontal / vertical |
424 x 71 x 67 mm | 424 x 77 x 71 mm / 430 x 71 x 77 mm |
| Compatible with DualBattery of the smart system | yes | yes |
| 4A Charger | 50 % charge: approx. 2.0 hours 100 % charge: approx. 5.3 hours |
50 % charge: approx. 2.6 hours 100 % charge: approx. 6.9 hours |
| 2A Charger | 50 % charge: approx. 4.2 hours 100 % charge: approx. 9.1 hours |
50 % charge: approx. 5.7 hours 100 % charge: approx. 12.4 hours |
