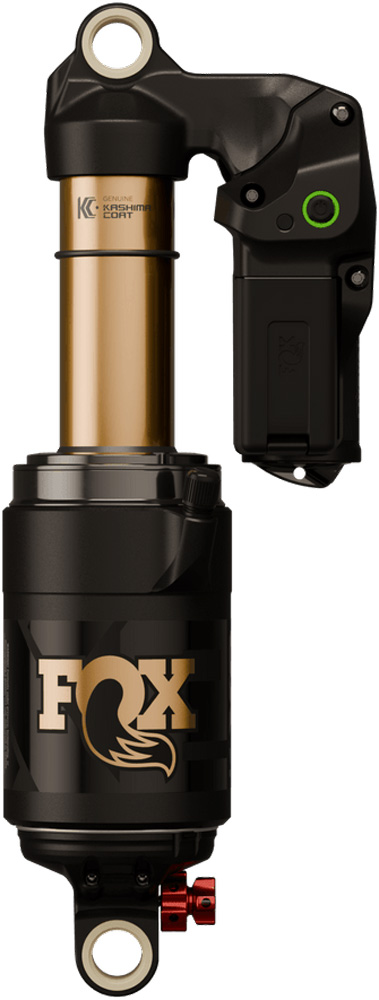

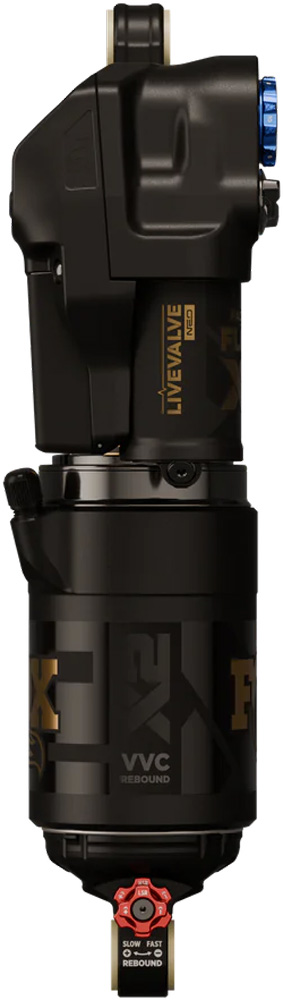

Fox Racing Shox Float X2 Factory Live Valve Neo Air Shock
Product information "Float X2 Factory Live Valve Neo Air Shock "
The most tunable gravity air shock now with the speed-inducing benefits of Live Valve Neo. With a monotube body for greater durability, the FLOAT X2 Live Valve Neo firms and opens the compression circuit based on trail data in 1/70th of a second. Gravity racing just got faster.
Features - Fox Racing Float X2 Factory Live Valve Neo Shock
- Factory Series air shock featuring a wireless, electronic Live Valve Neo suspension system for downhill and enduro racing
- Monotube design with an enlarged EVOL air chamber for optimised air pressure compensation
- Enlarged air piston rod diameter for greater stability and durability
- Wireless, electronic and automatic suspension damping within 3.5 milliseconds
- FOX Bike App as an interface for all Neo components for fine-tuning. Set-up, battery level monitoring, downloading and activating Live Valve Neo Tunes, and managing maintenance intervals (free from the Apple App Store and Google Play Store)
- Tool-free adjustments for LSC, LSR and HSR & Firm platform
- ‘Shake-to-Wake’ & LED bump indicator for automatic activation and monitoring
- Rechargeable lithium battery, compatible with FOX Transfer Neo seatpost (15–20 hours’ operating time)
- Open-position safety feature when the battery is flat
- Battery-powered sensors, easily replaceable without removal (sold separately)
- 125-hour service interval
Highlights – Fox Racing Float X2 Factory Live Valve Neo shock
LIVE SUSPENSION GIVES YOU MORE
Live Valve Neo reads terrain inputs 400 times per second and instantly responds by opening or firming the shock. Harness speed and efficiency in every moment on the trail — firm when needed, plush when wanted.
FIRM WHEN IT COUNTS
A 7-position Firm Mode Adjust dial allows riders to fine-tune the support of the FLOAT X2 Live Valve Neo when firmed. Low Speed Compression and High Speed/Low Speed Rebound dials provide precise descent tuning for maximum speed and plushness.
APP OPTIMIZED
The FOX Bike App is the hub for all Neo components. Follow easy setup guides, monitor battery levels, download and activate Live Valve Neo Tunes, and track suspension service intervals. Available on the Apple App Store and Google Play Store.
WORLD’S FIRST 4-WAY MONOTUBE
Monotube shocks are simpler and more durable, while 4-way adjustability delivers exceptional tuning capability. High/Low Speed Compression, High/Low Speed Rebound adjustment, and pressure balancing combine to provide even greater sensitivity and support.
Product features
- Use: Enduro, Downhill, Gravity
- Version: Factory
- Suspension: Air
- Max. pressure: 300 psi
- Mounting: Standard
- Settings:
- Low-speed compression 16 clicks (w/VVC)
- High-speed compression: 8 clicks
- Low-speed compression stage: 16 clicks
- High-speed extension stage: 8 clicks (with VVC)
Mounting / Stroke (choose variant)
- 230 x 57,5 mm
- 250 x 75 mm
- 230 x 60 mm
- 230 x 65 mm
- 210 x 55 mm
Colour
- Kashima-coated
Weight
- approx. 750 g (manufacturer information )
Scope of delivery
- 1 Fox Racing Float X2 Factory Live Valve Neo shock
Note: The Live Valve Neo Kit (including sensors, controller battery and fitting hardware) is available separately and is required for the FLOAT X2 Live Valve Neo shock absorber to function as intended.
Technology
VVC
Variable Valve Control (VVC) enables exceptionally precise tuning of high-speed damping and delivers race-ready performance in all riding conditions.
