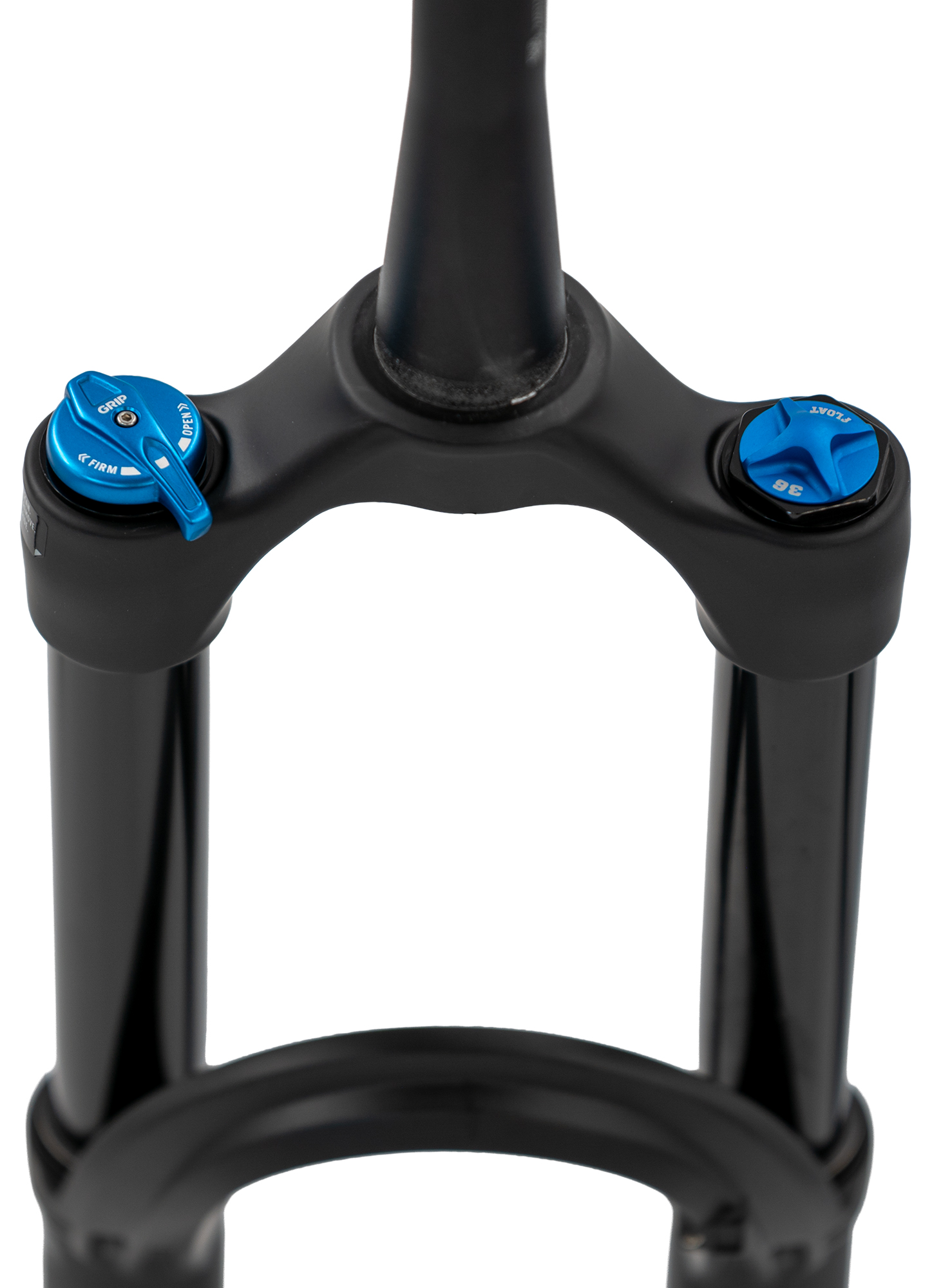

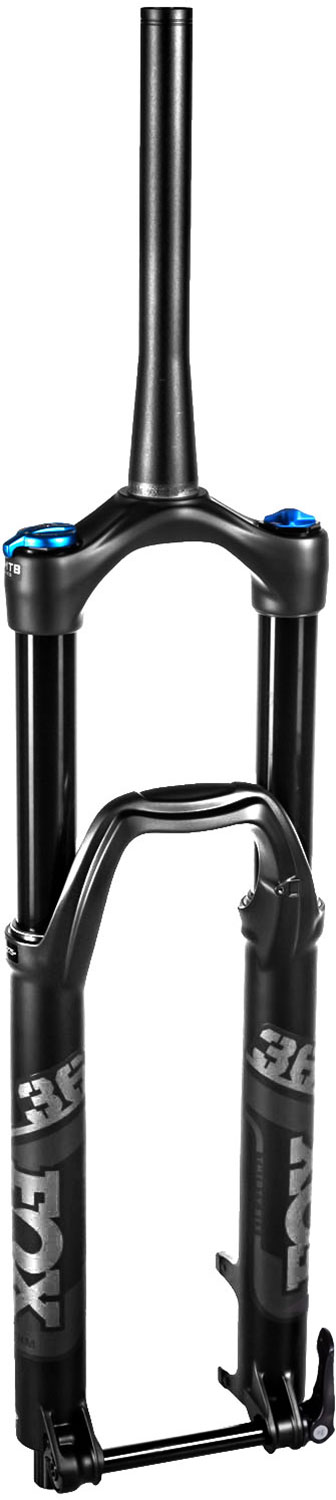

Fox Racing Shox 36 A Float 29" Rhythm 140 Grip Sweep-Adj 58HT Tapered Boost suspension fork TOP-DEAL
Product information "36 A Float 29" Rhythm 140 Grip Sweep-Adj 58HT Tapered Boost suspension fork TOP-DEAL"
The Fox 36 A Float 29" Rhythm with 2Pos Grip-Sweep damper is a lightweight Boost suspension fork with 140 mm travel - developed for trail riders. Designed for aggressive trails, the 36 Rhythm features a GRIP sweep, a FLOAT air spring and a super light chassis for maximum reliability and control. The 36 offers proven trail performance that inspires confidence and control.
Smoother, lighter, more tunable and more capable than ever before: The Fox Racing 36 Float Rhythm 29" 140mm 2Pos Grip Sweep Tapered Boost
The EVOL air spring returns with the same legendary smoothness and durability and now features an enlarged negative air spring on 36s to help with mid-stroke support.
The Rhythm Series forks have the same features as the Performance Series forks, but are equipped with 6000 series aluminium top tubes and a 2-stage, infinitely adjustable GRIP sweep instead of a 3-stage GRIP with detents.
Product features - Fox Racing 36 A Float Rhythm 29" 140 mm 2Pos Grip Sweep Tapered Boost
- Model: Rhythm Series 36 FLOAT 29 140 Grip
- Part number: 910-27-518
- Application: MTB, Trail
- Wheel size: 29"
- Suspension: Air
- Damping: GRIP Sweep 2-position lever
- Adjustability: Rebound, spring rate via air pressure, GRIP 2-position compression (open/firm) without detents
- Lowspeed rebound: 10 clicks
- Steerer tube: Tapered 1.5" to 1 1/8" (tapered)
- Steerer tube length: 264 mm
- Stanchions: 36 mm
- Disc brake mount: Post mount (direct mount 180mm)
- Maximum recommended brake disc size: 203 mm
- Dropouts: 15x110 mm Boost thru axle
- Offset: 44 mm
- Suspension travel: 140 mm
- Max. Tyre width: 2.6"
- Fork crown diameter: 58 mm
Material
- Steerer tube: Aluminium
- Fork crown: Aluminium
- Stanchions: magnesium
- Lower tubes: Aluminium
Colour
- matte black, silver grey decals
Weight
- approx. 2210 g
Scope of delivery
- 1 Fox Racing 36 A Float 29" Rhythm 140 2Pos Grip Sweep-Adj 58HT Tapered Boost TOP-DEAL (no box packaging)
- 1 Fox Racing 15x110 mm Boost thru axle with quick release
- 1 cable guide
Star nut not included!
Technologies
FIT GRIP
The motorbike-inspired GRIP damper uses our sealed FIT cartridge technology in combination with a coil-sprung, independent floating piston. GRIP allows excess oil to be drained through specially designed ports at the top of the shock to ensure consistent damping and increase durability.
FLOAT air spring - patented air equalisation technology
The FLOAT air spring system for the 32, 34 and 40 is lighter and reduces the compression release force, providing excellent ride comfort and better response to small bumps for all riders and at all pressure settings. Similar to our FLOAT shocks, the new FLOAT system has positive and negative air springs that automatically equalise in use to give the rider exactly the desired suspension behaviour. The progressivity of the spring characteristic can be adjusted via air volume spacers, allowing the rider to fine-tune the spring behaviour of the air spring.
EVOL
A more linear spring curve gives EVOL forks and shocks smoother top-end spring behaviour, extra mid-travel support and more tunable end progression. EVOL technology has an increased negative air spring volume. Specially positioned and dimensioned with optimum sensitivity to small bumps.
Air Volume Spacers
The FLOAT air spring on Fox forks and shocks can be fine-tuned by using volume spacers to make the suspension elements more progressive or less progressive. This allows the rider to fine-tune the suspension exactly to their needs.
15QR
Avoid performance losses due to a thru axle of inferior quality. In co-operation with Shimano, we have developed an axle that is extremely light and stiff and can be fitted without tools. You'll appreciate the reliability of this thru-axle when you're riding over rocks, roots and through bushes.
- The 15QR lever
- The recess in the lever reduces weight and simplifies operation
- Lightweight, forged lever
- Lightweight, forged axle shaft
- Fixed adjustable thread position - you don't need to adjust the QR quick-release axle adjustment nut to find the optimum tension.
- 25 % higher stiffness against lateral shear forces - Thanks to 25 % higher stiffness against lateral shear forces, the fork legs function as a synchronised unit. The result is higher suspension performance and directional stability of the front wheel when uneven lateral forces act on the wheel.
- 15% higher torsional stiffness - The legendary torsional stiffness of our fork has been increased by a further 15% to further improve handling.
FOX FLOAT Air Spring
- Manufacturer number: 910-27-518
2055 Sugarloaf Circle
Suite 300 30097 Duluth
Georgia
United States
FOX Factory GmbH
Gewerbepark 6 66989
Höhfröschen
Deutschland
Fox Racing Shox 36 A Float 29" Rhythm 140 Grip Sweep-Adj 58HT Tapered Boost suspension fork TOP-DEAL
The Fox 36 A Float 29" Rhythm with 2Pos Grip-Sweep damper is a lightweight Boost suspension fork with 140 mm travel - developed for trail riders. Designed for aggressive trails, the 36 Rhythm features a GRIP sweep, a FLOAT air spring and a super light chassis for maximum reliability and control. The 36 offers proven trail performance that inspires confidence and control.
Smoother, lighter, more tunable and more capable than ever before: The Fox Racing 36 Float Rhythm 29" 140mm 2Pos Grip Sweep Tapered Boost
The EVOL air spring returns with the same legendary smoothness and durability and now features an enlarged negative air spring on 36s to help with mid-stroke support.
The Rhythm Series forks have the same features as the Performance Series forks, but are equipped with 6000 series aluminium top tubes and a 2-stage, infinitely adjustable GRIP sweep instead of a 3-stage GRIP with detents.
Product features - Fox Racing 36 A Float Rhythm 29" 140 mm 2Pos Grip Sweep Tapered Boost
- Model: Rhythm Series 36 FLOAT 29 140 Grip
- Part number: 910-27-518
- Application: MTB, Trail
- Wheel size: 29"
- Suspension: Air
- Damping: GRIP Sweep 2-position lever
- Adjustability: Rebound, spring rate via air pressure, GRIP 2-position compression (open/firm) without detents
- Lowspeed rebound: 10 clicks
- Steerer tube: Tapered 1.5" to 1 1/8" (tapered)
- Steerer tube length: 264 mm
- Stanchions: 36 mm
- Disc brake mount: Post mount (direct mount 180mm)
- Maximum recommended brake disc size: 203 mm
- Dropouts: 15x110 mm Boost thru axle
- Offset: 44 mm
- Suspension travel: 140 mm
- Max. Tyre width: 2.6"
- Fork crown diameter: 58 mm
Material
- Steerer tube: Aluminium
- Fork crown: Aluminium
- Stanchions: magnesium
- Lower tubes: Aluminium
Colour
- matte black, silver grey decals
Weight
- approx. 2210 g
Scope of delivery
- 1 Fox Racing 36 A Float 29" Rhythm 140 2Pos Grip Sweep-Adj 58HT Tapered Boost TOP-DEAL (no box packaging)
- 1 Fox Racing 15x110 mm Boost thru axle with quick release
- 1 cable guide
Star nut not included!
Technologies
FIT GRIP
The motorbike-inspired GRIP damper uses our sealed FIT cartridge technology in combination with a coil-sprung, independent floating piston. GRIP allows excess oil to be drained through specially designed ports at the top of the shock to ensure consistent damping and increase durability.
FLOAT air spring - patented air equalisation technology
The FLOAT air spring system for the 32, 34 and 40 is lighter and reduces the compression release force, providing excellent ride comfort and better response to small bumps for all riders and at all pressure settings. Similar to our FLOAT shocks, the new FLOAT system has positive and negative air springs that automatically equalise in use to give the rider exactly the desired suspension behaviour. The progressivity of the spring characteristic can be adjusted via air volume spacers, allowing the rider to fine-tune the spring behaviour of the air spring.
EVOL
A more linear spring curve gives EVOL forks and shocks smoother top-end spring behaviour, extra mid-travel support and more tunable end progression. EVOL technology has an increased negative air spring volume. Specially positioned and dimensioned with optimum sensitivity to small bumps.
Air Volume Spacers
The FLOAT air spring on Fox forks and shocks can be fine-tuned by using volume spacers to make the suspension elements more progressive or less progressive. This allows the rider to fine-tune the suspension exactly to their needs.
15QR
Avoid performance losses due to a thru axle of inferior quality. In co-operation with Shimano, we have developed an axle that is extremely light and stiff and can be fitted without tools. You'll appreciate the reliability of this thru-axle when you're riding over rocks, roots and through bushes.
- The 15QR lever
- The recess in the lever reduces weight and simplifies operation
- Lightweight, forged lever
- Lightweight, forged axle shaft
- Fixed adjustable thread position - you don't need to adjust the QR quick-release axle adjustment nut to find the optimum tension.
- 25 % higher stiffness against lateral shear forces - Thanks to 25 % higher stiffness against lateral shear forces, the fork legs function as a synchronised unit. The result is higher suspension performance and directional stability of the front wheel when uneven lateral forces act on the wheel.
- 15% higher torsional stiffness - The legendary torsional stiffness of our fork has been increased by a further 15% to further improve handling.
FOX FLOAT Air Spring
- Manufacturer number: 910-27-518
