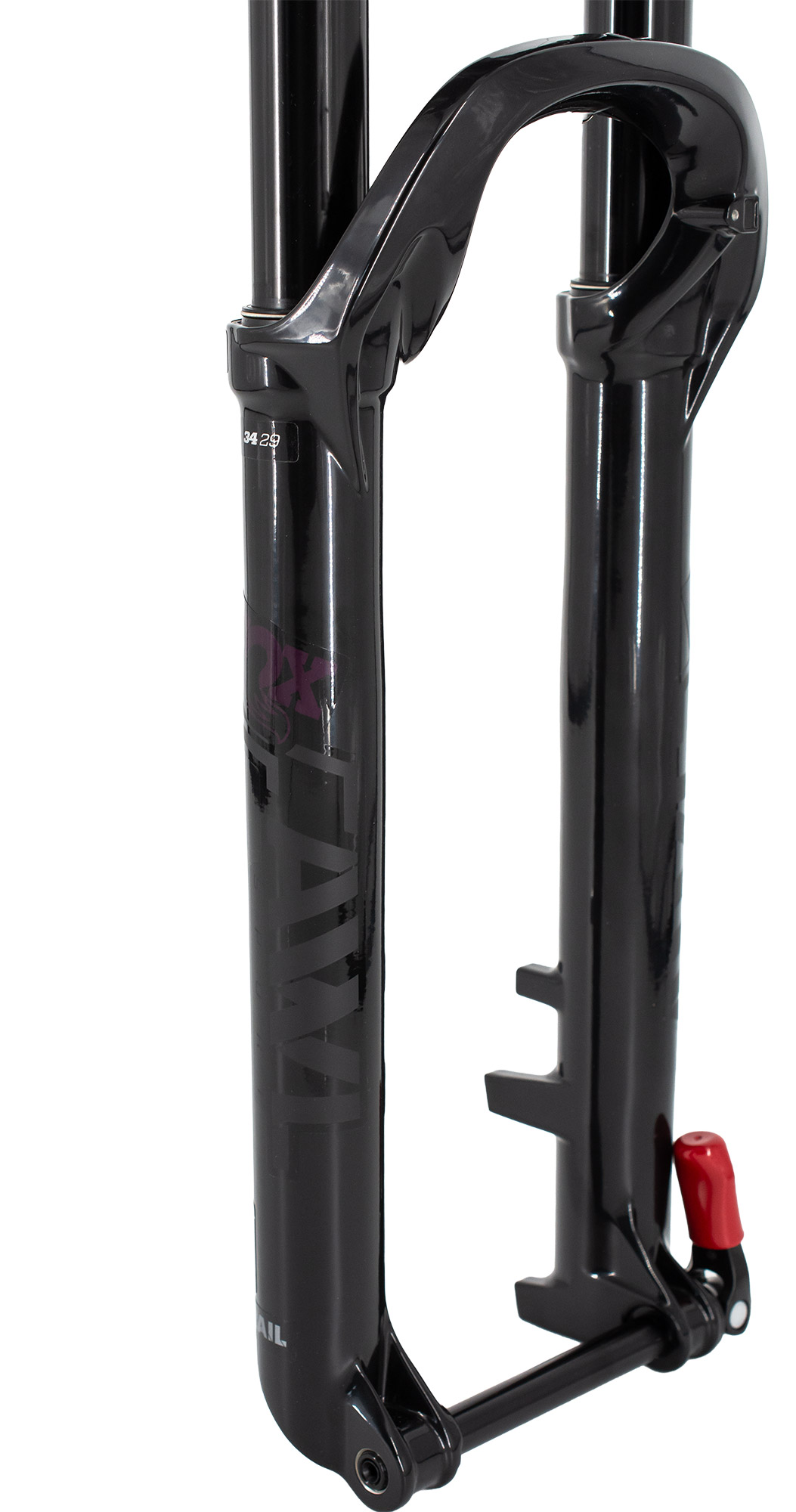

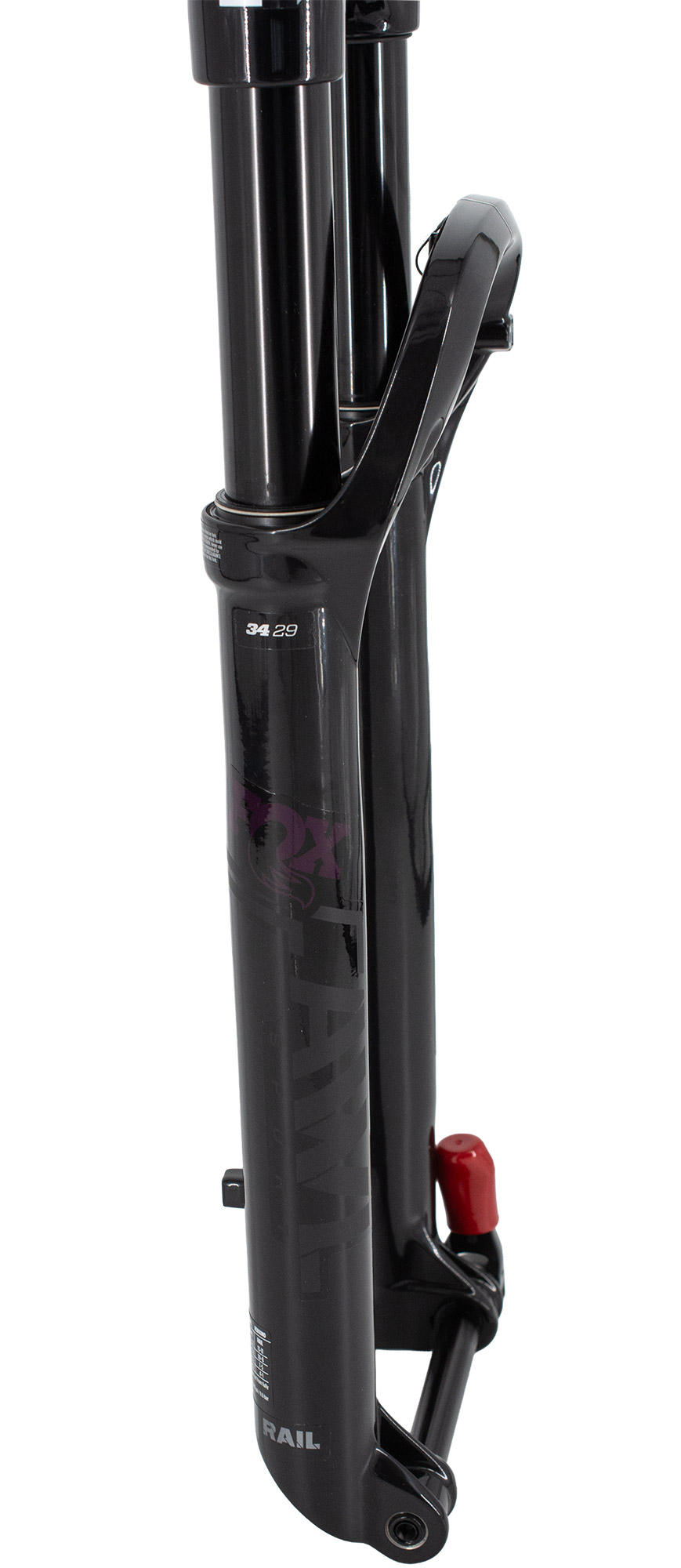

Fox Racing Shox 34 A Float 29" AWL SPORT 100 Rail 2.0 Reb-Adj 58HT Tapered Boost TOP-DEAL

The Fox 34 A Float 29" AWL Sport with RAIL 2.0 damper is a suspension fork with 100 mm travel - developed for E-SUV riders. Equipped with integrated mounts for lights and mudguards.

Adventure without limits: The Fox Racing 34 A Float 29" AWL 100 Rail Sweep-Adj Tapered Boost

Whether you're sprinting to the meeting across town or trying to break the record on your new favourite trail, the new AWL (Adventure without limits) E-SUV fork will get you to your destination safely and in style. With a new chassis, RAIL damper and 100 travel, the AWL is equipped to forgive you every rock and root as well as potholes and kerbs. The AWL is equipped with integrated mounts for lights and mudguards, as well as a new accessory mounting standard for maximum safety on the road. The AWL's robust chassis is available in both 27.5" and 29" wheel sizes and has been rigorously tested to a total weight of 169kg.

The new AWL fork is based on the proven FOX 34 chassis and utilises FOX Racing's extensive experience in developing the world's best performing off-road suspension systems. With its lightweight but stiff 34 mm stanchions and a precision-cast magnesium lower section, the AWL ensures precise handling without unwanted flex and guarantees optimum long-term performance, regardless of weather and dirt. Thanks to the infinitely adjustable EVOL air spring and the tried-and-tested rail damper, performance and adjustability are paramount. The externally adjustable rebound and compression damping is tool-less and easily accessible, while the sealed rail damper system offers exceptional performance, bombproof reliability and effortless maintenance.

The AWL is the most versatile fork Fox Racing has ever built.

Features - Fox Racing 34 A Float 29" AWL 100 Rail Sweep-Adj Tapered Boost

• Legendary FOX performance and durability combined in a completely new chassis, optimised for modern E-SUV applications
• With clearance for wide 2.6" tyres and mudguard
• Multi-award-winning RAIL shock delivers premium shock performance with intuitive adjustability and maximum durability
• Stiff 34 mm e-optimised chassis meets the highest e-bike demands
• Installation of 160 - 230 mm brake discs possible

Product features

• Area of application: E-SUV, crossover e-bike
• Wheel size: 29", 27.5+"
• Suspension: Air
• Damping: RAIL 2.0 damper
• Adjustability: Externally adjustable rebound (rebound adjust)
• Steerer tube: Tapered 1.5" to 1 1/8" (tapered)
• Stanchions: 34 mm
• Disc brake mount: Post mount (PM6 - Direct Mount 160 mm)
• Maximum recommended brake disc size: 230 mm
• Dropouts: 15x110 mm Boost thru axle with quick release lever
• Offset: 44 mm
• Suspension travel: 100 mm
• Max. Tyre width: 2.8" (2.6" with mudguard fender)
• Max. System weight (rider + bike + equipment): 169 kg
• Fork crown diameter: 58mm

Fork material

• Steerer tube: Aluminium
• Fork crown: Aluminium
• Stanchions: Magnesium
• Dip tubes: Aluminium (Black Ano)

Colour

• glossy black / purple decals

Weight

• approx. 2300 g

Scope of delivery

• 1 x Fox Racing 34 A Float 29" AWL SPORT 100 Rail 2.0 Reb-Adj 58HT Tapered Boost (no boc packaging)
• 1 x Fox Racing 15x110 mm Boost thru axle with quick release lever
• 1 x cable guide

Impact claw and volume spacer not included!

Technologies

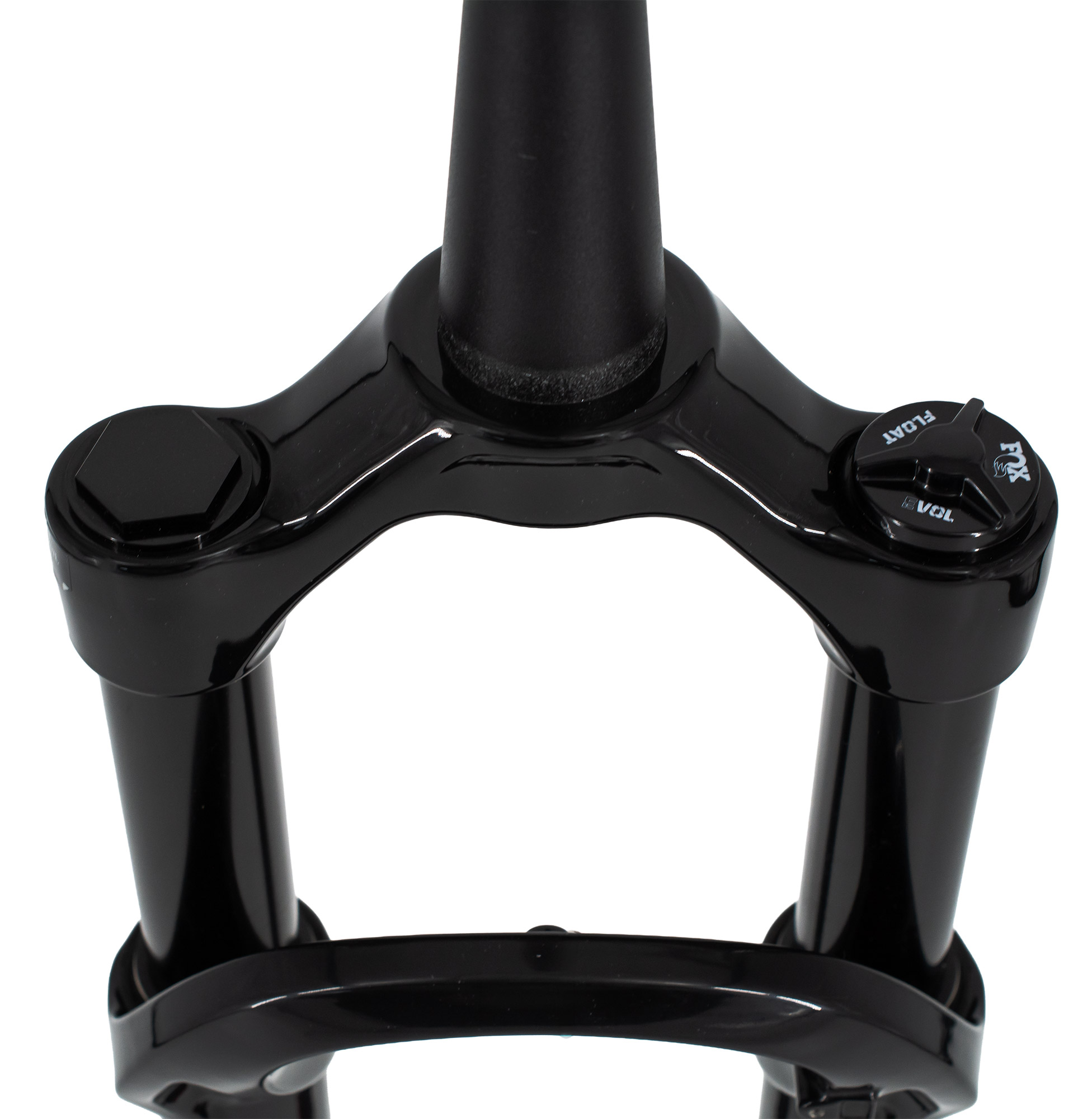

FLOAT air spring - patented air equalisation technology
The FLOAT air suspension system for the 32, 34 and 40 is lighter and reduces the release force for compression, which ensures excellent riding comfort and better response to smaller bumps for all riders and at all pressure settings. Similar to our FLOAT shocks, the new FLOAT system has positive and negative air springs that automatically equalise in use to give the rider exactly the desired suspension behaviour. The progressivity of the spring characteristic can be adjusted via air volume spacers, allowing the rider to fine-tune the spring behaviour of the air spring.

EVOL
A more linear spring curve gives EVOL forks and shocks smoother top-end spring behaviour, extra mid-travel support and more tunable end progression. EVOL technology has an increased negative air spring volume. Specially positioned and dimensioned with optimum sensitivity to small bumps.

Air Volume Spacers
The FLOAT air spring on Fox forks and shocks can be fine-tuned by using volume spacers to make the suspension elements more progressive or less progressive. This allows the rider to fine-tune the suspension exactly to their needs.

15QR
Avoid performance losses due to a thru axle of inferior quality. In co-operation with Shimano, we have developed an axle that is extremely light and stiff and can be fitted without tools. You'll appreciate the reliability of this thru-axle when you're riding over rocks, roots and through bushes.

• The 15QR lever
  • The recess in the lever reduces weight and simplifies operation
  • Lightweight, forged lever
  • Lightweight, forged axle shaft
• Fixed adjustable thread position - you do not need to adjust the QR quick-release axle adjustment nut to find the optimum tension.
• 25 % higher stiffness against lateral shear forces - Thanks to 25 % higher stiffness against lateral shear forces, the fork legs function as a synchronised unit. The result is higher suspension performance and directional stability of the front wheel when uneven lateral forces act on the wheel.
• 15% higher torsional stiffness - The legendary torsional stiffness of our fork has been increased by a further 15% to further improve handling.

FOX FLOAT Air Spring

• Manufacturer number: 910-32-267
