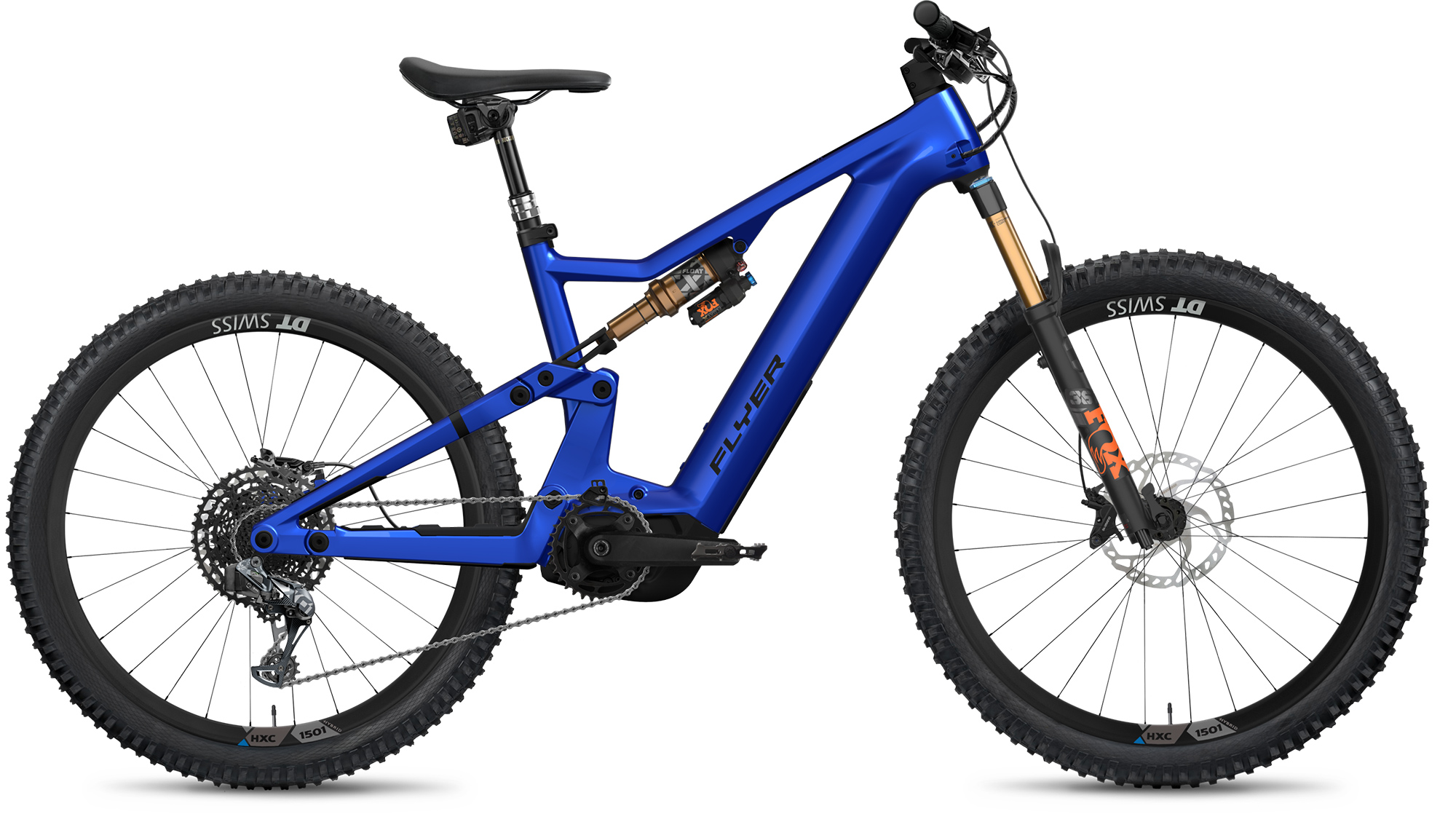

Flyer G1 Uproc X 9.50 FS
%
Product information "G1 Uproc X 9.50 FS"
Concentrated power and huge energy reserves: the Flyer Uproc X pushes boundaries in the mountains and on trails. With perfectly tuned 150 mm suspension from Fox and balanced geometry of the carbon frame, it shines on the climbs as well as on the descents. This super-strong, full-suspension e-bike is always ready to explore new territory. It is a robust e-bike with a carbon frame, powerful Panasonic GX Ultimate Pro FIT motor with 95 Nm torque and a long range thanks to the powerful battery (750 Wh). Equipped with a Sram X01 AXS 1x12 gear system, hydraulic 4-piston disc brakes and Fox suspension elements for first-class performance. The integrated MonkeyLink interface makes it easy to connect a front light, which is powered by the e-bike battery.
Features - Flyer G1 Uproc X 9.50 FS
- A robust carbon frame with internal cable guides and integrated speed sensor (Mullet: front 29", rear 27.5")
- Powerful Panasonic GX Ultimate Pro FIT motor with 95Nm torque, push assist and 4 support levels
- Long range thanks to powerful battery (750 Wh)
- FIT Compact DSP1-M 2-inch color display - clear and intuitive operation of the e-bike system
- Fox 36 Float Factory suspension fork with 150 mm travel and Fox Float X Factory shock
- SRAM 1x12-speed drivetrain
- Hydraulic 4-piston disc brakes from Shimano with 203 mm brake discs
- MAVIC E-Deemax S wheelset and Onza Porcupine tires
- Compatible with "MonkeyLink Connect"
The super quiet "Panasonic GX Ultimate Pro FIT" motor delivers powerful support with 95 Nm torque and 600 watts peak power. The bolt-on battery mount guarantees an absolutely secure, vibration-free fit of the fully integrated battery and also allows it to be replaced in a few simple steps - even on the trail. The powerful motorization and the permissible total weight of up to 140 kg ensure smooth, stable handling. Well thought-out details such as the internally routed cables or the speed sensor integrated in the frame create a tidy look and underline the premium character.
Recommended frame sizes
| S | M | L | XL |
|---|---|---|---|
| 155-165 cm | 165-175 cm | 175-185 cm | 185-195 cm |
Panasonic GX Ultimate e-bike motor
- Manufacturer number: 173032
- Model Year: 2023
Manufacturer:
FLYER AGSchwende 1
4950 Huttwil
Switzerland
www.flyer-bikes.com/de-ch/contact
Person responsible in the EU:
FLYER Bikes Austria GmbHAignerstraße 32
5026 Salzburg
www.flyer-bikes.com/contact
Flyer G1 Uproc X 9.50 FS
Concentrated power and huge energy reserves: the Flyer Uproc X pushes boundaries in the mountains and on trails. With perfectly tuned 150 mm suspension from Fox and balanced geometry of the carbon frame, it shines on the climbs as well as on the descents. This super-strong, full-suspension e-bike is always ready to explore new territory. It is a robust e-bike with a carbon frame, powerful Panasonic GX Ultimate Pro FIT motor with 95 Nm torque and a long range thanks to the powerful battery (750 Wh). Equipped with a Sram X01 AXS 1x12 gear system, hydraulic 4-piston disc brakes and Fox suspension elements for first-class performance. The integrated MonkeyLink interface makes it easy to connect a front light, which is powered by the e-bike battery.
Features - Flyer G1 Uproc X 9.50 FS
- A robust carbon frame with internal cable guides and integrated speed sensor (Mullet: front 29", rear 27.5")
- Powerful Panasonic GX Ultimate Pro FIT motor with 95Nm torque, push assist and 4 support levels
- Long range thanks to powerful battery (750 Wh)
- FIT Compact DSP1-M 2-inch color display - clear and intuitive operation of the e-bike system
- Fox 36 Float Factory suspension fork with 150 mm travel and Fox Float X Factory shock
- SRAM 1x12-speed drivetrain
- Hydraulic 4-piston disc brakes from Shimano with 203 mm brake discs
- MAVIC E-Deemax S wheelset and Onza Porcupine tires
- Compatible with "MonkeyLink Connect"
The super quiet "Panasonic GX Ultimate Pro FIT" motor delivers powerful support with 95 Nm torque and 600 watts peak power. The bolt-on battery mount guarantees an absolutely secure, vibration-free fit of the fully integrated battery and also allows it to be replaced in a few simple steps - even on the trail. The powerful motorization and the permissible total weight of up to 140 kg ensure smooth, stable handling. Well thought-out details such as the internally routed cables or the speed sensor integrated in the frame create a tidy look and underline the premium character.
Recommended frame sizes
| S | M | L | XL |
|---|---|---|---|
| 155-165 cm | 165-175 cm | 175-185 cm | 185-195 cm |
Panasonic GX Ultimate e-bike motor
- Manufacturer number: 173032
- Model Year: 2023
Manufacturer:
FLYER AGSchwende 1
4950 Huttwil
Switzerland
www.flyer-bikes.com/de-ch/contact
Person responsible in the EU:
FLYER Bikes Austria GmbHAignerstraße 32
5026 Salzburg
www.flyer-bikes.com/contact
Configuration
| Frame: | Engineered by FLYER, internal cable routing, 4-link suspension, 150 mm, 12 × 148 mm |
|---|---|
| Frame material: | Carbon |
| Wheel size: | Mullet: Front 29", Rear 27.5" |
| Speeds: | 1 × 12 |
| Colour: | Enzian Blue Gloss |
| Fork: | Fox 36 Float Factory E-Optimized, 150 mm Travel |
| Rear Shock: | Fox Float X Factory, 230 x 60 mm |
| Travel: | 150mm / 150mm |
| Brakes: | Shimano XT BR-M9120 / 4-piston |
| Brake discs: | Front: Shimano SLX SM-RT66L 6L, 203 mm, Rear: Shimano SLX SM-RT66L 6L, 203 mm |
| Brake levers: | Shimano XTR BL-M9120 |
| Headset: | Acros AIF-558 |
| Stem: | Satori Ursa, 35 × 35 mm, 0° |
| Handlebar: | Hayes ProTaper Carbon, 810 mm, 8°, 25mm |
| Bar grips: | VPG-122A |
| Saddle: | Fizik Aidon |
| Seatpost: | Sram Reverb AXS, 34.9 mm, Travel: S 125mm, M 150mm, L 175mm, XL 175mm |
| Seat clamp: | Laminar UR6 34.9 mm |
|---|---|
| Crankset: | Samox EC40 |
| Rear derailleur: | Sram X01 Eagle AXS, 12 speed, 10-50t |
| Gear shifters: | Sram Eagle AXS Controller, 12 speed |
| Cassette: | Sram CS XG1295 Eagle, 12 speed, 10-50t |
| Chain: | Sram Eagle |
| Wheelset: | MAVIC E-Deemax S, 30 mm / 35 mm |
| Display: | FIT Display Compact DSP1-M (2" color display) |
| Battery: | FLYER FIB 750 36 V FIT (750 Wh / 20,1 Ah / 36 V) |
| Charger: | FIT Fast Charger 36 V 6 A |
| Engine: | Panasonic GX Ultimate Pro FIT, 95 Nm / 25 km/h, Support steps: Support levels: ECO (70%), STANDART (150%), HIGH (300%), AUTO (70-300%), Pushing aid: Yes |
| Front light: | MonkeyLink Connect ready |
| Backlight: | MonkeyLink Connect ready |
| Pedals: | VP 532 |
| Maximum total weight allowed: | 140 kg (body weight + bicycle + equipment) |
| Weight: | ab 26 kg |
Geometry
460 mm
445 mm
77 °
415 mm
622 mm
772 mm
65 °
110 mm
600 mm
1229 mm
