Calculate frame size
The right size of your hardtail mountain-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.
If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate.
If you need help, please call us at +49 (0) 2641 -89 00 0.We will be happy to advise you!
|
Body size |
Frame Size | in cm: |
| 150 - 160 cm | 14" | 35 cm |
| 160 - 170 cm | 16" | 41 cm |
| 170 - 180 cm | 18" | 46 cm |
| 180 - 190 cm | 20" | 51 cm |
| 190 - 200 cm | 22" | 56 cm |
The right size of your fullsuspension-bike:
The Inside leg length is multiplied by 0.226 and thus you get the theoretical value of the frame size in inch. One inch equals 2.54 cm.If the theoretical value is in-between two sizes, the following rule of thumb can be applied:
- choose the smaller size when riding athletically
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively, you can also determine your frame height based on your height, see the table below. However, the method using inseam length is more accurate. If you need assistance, please call us at 02225-8888-222. We are happy to advise you!
| Body size | Frame Size | in cm: |
| 155 - 165 cm | 14 - 15" | 35 - 38 cm |
| 165 - 170 cm | 15 - 16" | 38 - 41 cm |
| 170 - 175 cm | 16 - 17" | 41 - 43 cm |
| 175 - 180 cm | 17 - 18" | 43 - 46 cm |
| 180 - 185 cm | 18 - 19" | 46 - 48 cm |
| 185 - 190 cm | 19 - 21" | 48 - 53 cm |
| 190 - 195 cm | 21 - 22" | 53 - 56 cm |
| 195 - 200 cm | 22 - 23" | 56 - 58 cm |
The right size of your Sport-Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.61. Frame size in inch: multiply your Inside leg length by the factor 0.24.If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Frame Size
|
in cm:
|
| 155 - 165 cm | 16 - 17" | 41 - 43 cm |
| 165 - 170 cm | 17" | 43 cm |
| 170 - 175 cm | 17 - 19" | 43 - 48 cm |
| 175 - 180 cm | 19 - 21" | 48 - 54 cm |
| 180 - 185 cm | 21" | 54 cm |
| 185 - 190 cm | 21 - 22" | 53 - 56 cm |
| 190 - 195 cm | 21 - 24" | 54 - 60 cm |
| 195 - 200 cm | 24" | 61 cm |
The right size of your road bike and triathlon bike:
The right size of your road bike and triathlon bike:
- choose the smaller size when riding competition-orientated
- choose the larger size when riding tour-orientated
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body size
|
Road Bike
|
Triathlon Bike
|
| 155 - 165 cm | 50 cm | 46 - 48 cm |
| 165 - 171 cm | 53 cm | 48 - 50 cm |
| 171 - 178 cm | 56 cm | 50 - 52 cm |
| 178 - 183 cm | 58 cm | 52 - 55 cm |
| 183 - 188 cm | 60 cm | 55 - 56 cm |
| 188 - 193 cm | 62 cm | 57 - 60 cm |
| 193 - 200 cm | 64 cm | 62 - Maßanfertigung |
The right size of your Trekking or Touring Cycle:
Frame-size in cm: multiply your Inside leg length by the factor 0.66.
If the theoretical value lies between two sizes, the following rule of thumb can be applied:
- Rather the smaller frame size when riding sportsmanlikely
- Rather the next frame in size when riding tour-orientated
- Deduct approx. 5 cm (or 2 inches respectively) of the theoretical size when using spring-mounted seat posts.
How to determine your Inside leg length:
The Inside leg length or stride height is the length of the inside of the leg. The most accurate way to measure your stride length is to use a spirit level and a tape measure or folding rule. Stand barefoot on a flat surface, clamp the spirit level horizontally between your legs and measure the distance from the upper edge of the spirit level to the ground. This value corresponds to your stride length.
Alternatively you may select the right frame size according to your height with the help of the chart below. This only serves as a rough guide though.
If you need help, please call us at +49 (0) 2225 - 98 90 590.We will be happy to advise you!
|
Body Size Women
|
Frame Size
|
| 150 - 160 cm | Lady 46 cm |
| 160 - 170 cm | Lady 50 cm |
| 170 - 180 cm | Lady 54 cm |
|
Body Size Men
|
Frame Size
|
| <170 cm | 46 cm |
| 170 - 175 cm | 50 cm |
| 175 - 185 cm | 54 cm |
| 185 - 195 cm | 58 cm |
| >195 cm | 62 cm |

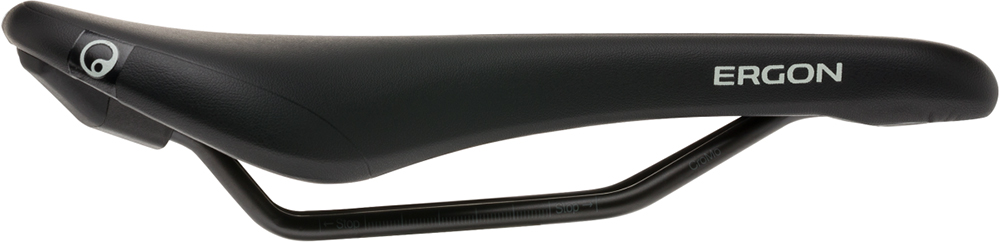

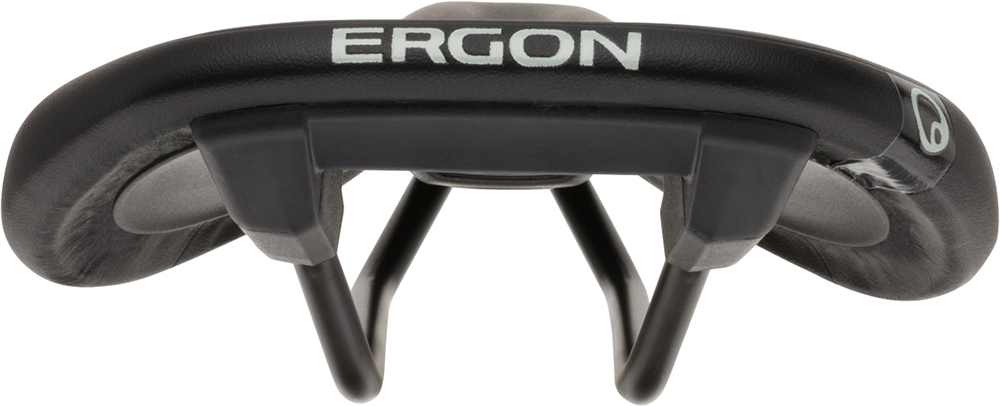

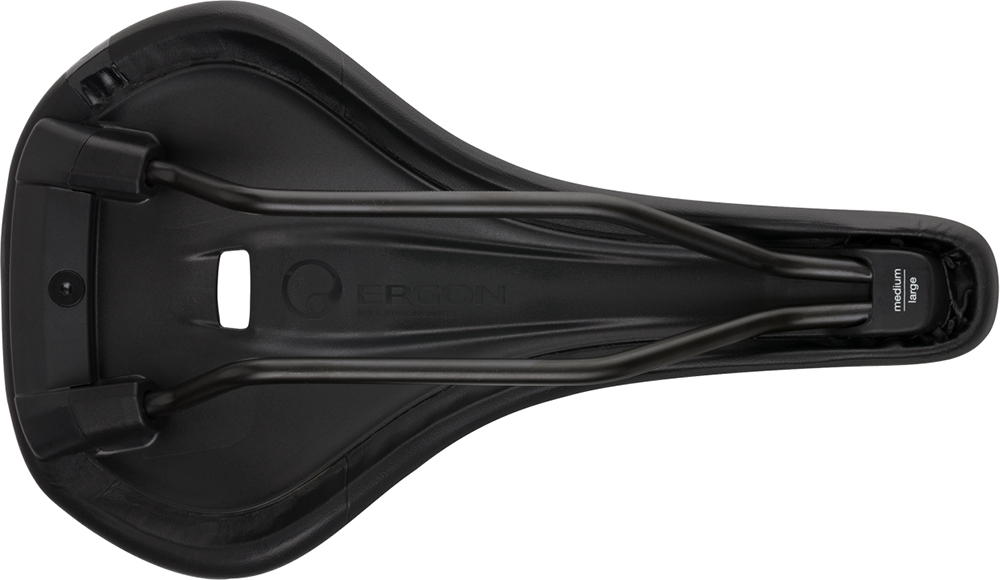

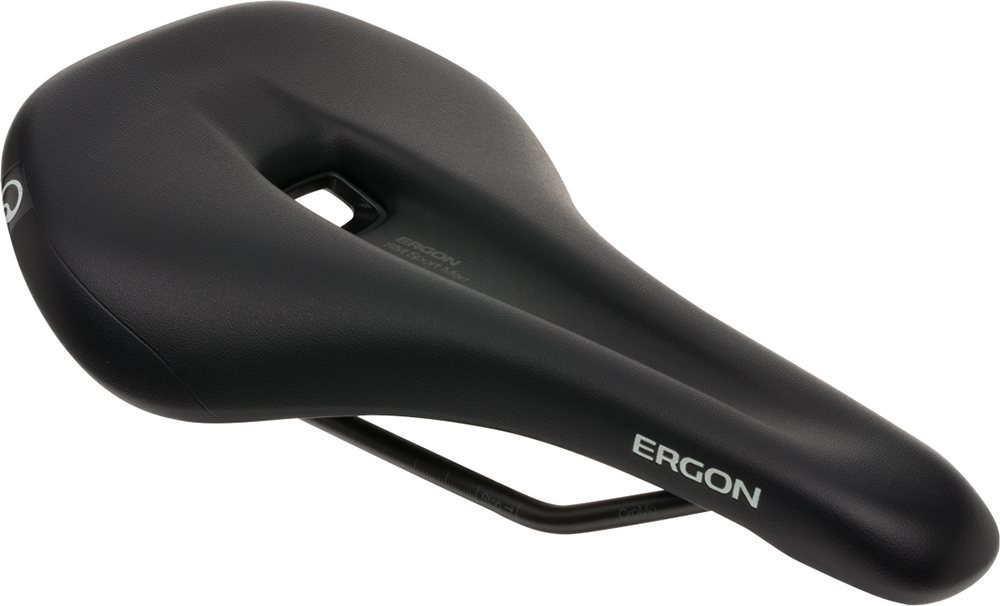

Product information "SM Sport Men Saddle"
Ergonomically and medically: the SM Sport Men Saddle from Ergon
Today you no longer need to live with discomfort when seated. The new Ergon SM Men saddles are specifically tailored to the features of the male anatomy and optimized for the requirements of mountain biking. With the assistance of the latest scientific studies and intensive prototyping our interdisciplinary development team – consisting of sports scientists, industrial designers, engineers and test riders – have come up with a new generation of pressure-relieving men’s saddles.The SM Men saddles effectively avoid discomfort and numbness for most applications in mountain biking – for most types of mountain bike riders.
Features - SM Sport Men Saddle
- Relief inlays - More comfort thanks to OrthoCell® inlays in the seat area, which distribute the seat pressure evenly (Comp and Pro models).
- Effective relief - The extremely deep relief channel, which is lowered to the rear, opens into an opening at the lowest point. The construction combines all the advantages of a perforated saddle without the possible disadvantages (very stiff saddle shell) and achieves a particularly high relief in the sensitive perineum area. Excessive pressure in this area often triggers discomfort and numbness in the genital area.
- Large-surface pressure distribution - Optimum pressure distribution in the area of the sitting and pubic bone bones due to a flat, even surface and high-quality seat foams.
- Shaping - The Y-shape guarantees high freedom of movement and legroom. The bony structures are optimally supported.
- Flat tail - Narrow, sloping tail with flat contour and minimal ramp allows good freedom of movement downhill.
- Straight side contour - The saddle surface is flat due to the upright pelvis and offers high freedom of movement.
- Integrated Topeak® QuickClick bracket - Practical, detachable bracket for accessories such as Topeak® saddlebags.
Product features
- Use: Mountain Bike
- Shell: Nylon Composite
- Rail: CroMo
- Cover: Microfiber
- Padding: Orthopedic Comfort Foam
- Gender: men specific
Size (choose variant)
- Small/Medium: Sit bone distance 9-12cm (Length: 269 mm, Width: 144 mm)
- Medium/Large: Sit bone distance 12-16cm (Length: 269 mm, Width: 160 mm)
Color
- black
Weight (manufacturer information)
- Small/Medium: approx. 305g
- Medium/Large: approx. 325g
Lieferumfang
- 1 Ergon SM Sport Men Saddle
- Manufacturer number: 44001000
- EAN:
Am Autobahnkreuz 7
56072 Koblenz
Deutschland
https://www.ergonbike.com/de/
Frequently bought together
Average rating of 4.4 out of 5 stars
Average rating of 4.8 out of 5 stars
Content 0.059 l (59,15 € / 1 l)
Average rating of 4.7 out of 5 stars
Ergon SM Sport Men Saddle
Ergonomically and medically: the SM Sport Men Saddle from Ergon
Today you no longer need to live with discomfort when seated. The new Ergon SM Men saddles are specifically tailored to the features of the male anatomy and optimized for the requirements of mountain biking. With the assistance of the latest scientific studies and intensive prototyping our interdisciplinary development team – consisting of sports scientists, industrial designers, engineers and test riders – have come up with a new generation of pressure-relieving men’s saddles.The SM Men saddles effectively avoid discomfort and numbness for most applications in mountain biking – for most types of mountain bike riders.
Features - SM Sport Men Saddle
- Relief inlays - More comfort thanks to OrthoCell® inlays in the seat area, which distribute the seat pressure evenly (Comp and Pro models).
- Effective relief - The extremely deep relief channel, which is lowered to the rear, opens into an opening at the lowest point. The construction combines all the advantages of a perforated saddle without the possible disadvantages (very stiff saddle shell) and achieves a particularly high relief in the sensitive perineum area. Excessive pressure in this area often triggers discomfort and numbness in the genital area.
- Large-surface pressure distribution - Optimum pressure distribution in the area of the sitting and pubic bone bones due to a flat, even surface and high-quality seat foams.
- Shaping - The Y-shape guarantees high freedom of movement and legroom. The bony structures are optimally supported.
- Flat tail - Narrow, sloping tail with flat contour and minimal ramp allows good freedom of movement downhill.
- Straight side contour - The saddle surface is flat due to the upright pelvis and offers high freedom of movement.
- Integrated Topeak® QuickClick bracket - Practical, detachable bracket for accessories such as Topeak® saddlebags.
Product features
- Use: Mountain Bike
- Shell: Nylon Composite
- Rail: CroMo
- Cover: Microfiber
- Padding: Orthopedic Comfort Foam
- Gender: men specific
Size (choose variant)
- Small/Medium: Sit bone distance 9-12cm (Length: 269 mm, Width: 144 mm)
- Medium/Large: Sit bone distance 12-16cm (Length: 269 mm, Width: 160 mm)
Color
- black
Weight (manufacturer information)
- Small/Medium: approx. 305g
- Medium/Large: approx. 325g
Lieferumfang
- 1 Ergon SM Sport Men Saddle
- Manufacturer number: 44001000
- EAN:
Am Autobahnkreuz 7
56072 Koblenz
Deutschland
https://www.ergonbike.com/de/
