1.039,99 €
incl. 19% VAT
- In stock, delivery time 1-3 Days
Product information "Square Smart Frame"
To improve your training routine: Elite Square Smart Frame
Square is a smart frame with a high-quality virtual rear derailleur that allows you to precisely customize the controls to the shifting systems of the leading manufacturers (SHIMANO, SRAM and Campagnolo) to replicate your bike's components down to the exact shifting configuration.
You can customize the number of gears and teeth of the cassette, the number of teeth of each chainring or choose from pre-built profiles or convenient sequential shifting via the dedicated Square app.

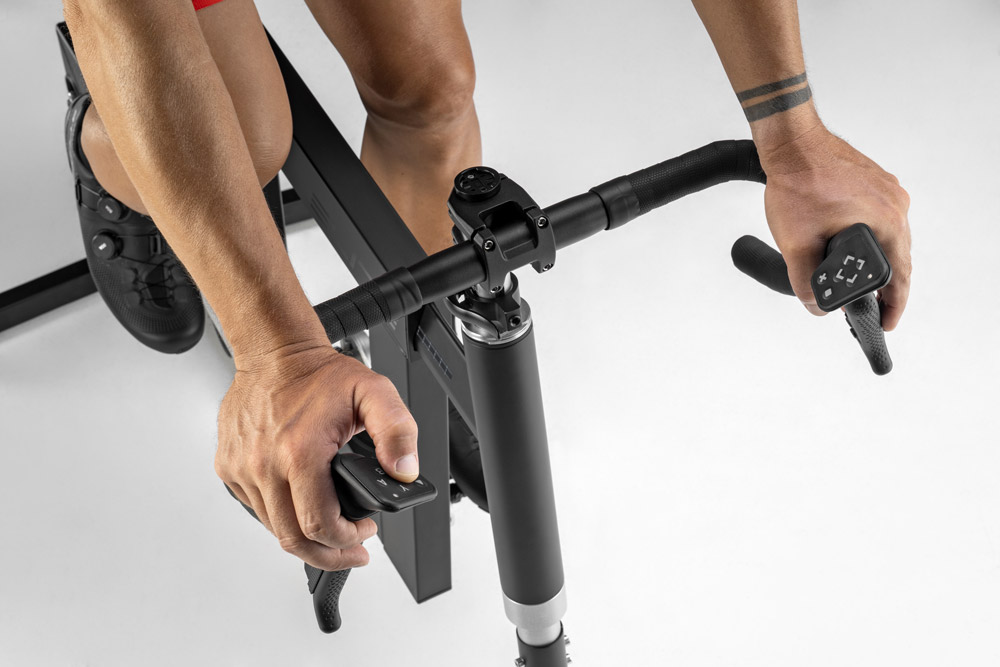

The shifting feel is realistic: simply operate the levers and buttons on the handlebars as you would on your outdoor bike.

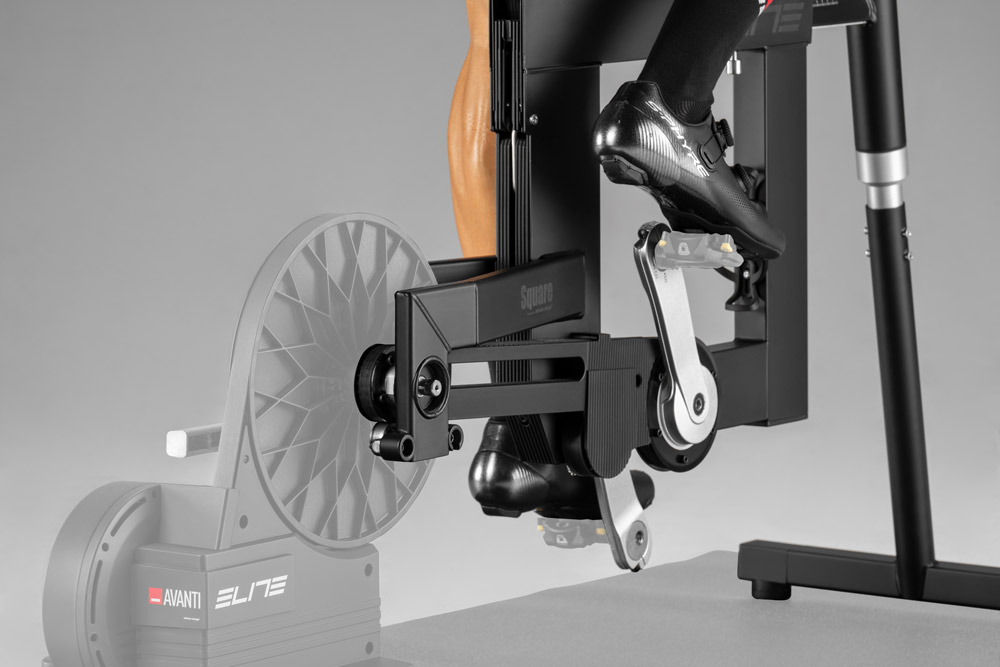

The belt drive offers a smooth, round pedal stroke without noise or vibration: With Square, workouts reach unbeatable levels of silence.

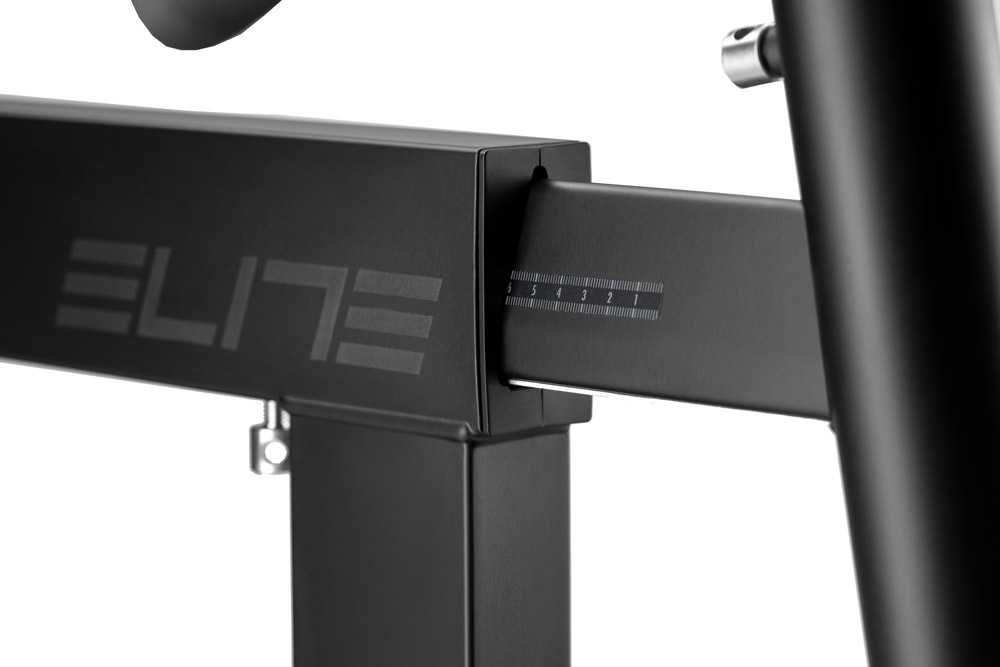

Square is extensively adjustable and offers great adaptability for users of different sizes, with many adjustment options for saddle height, saddle tilt, saddle height and saddle angle.saddle height, saddle tilt with forward/backward position, handlebar height with forward/backward position, top tube length and crank arm length.

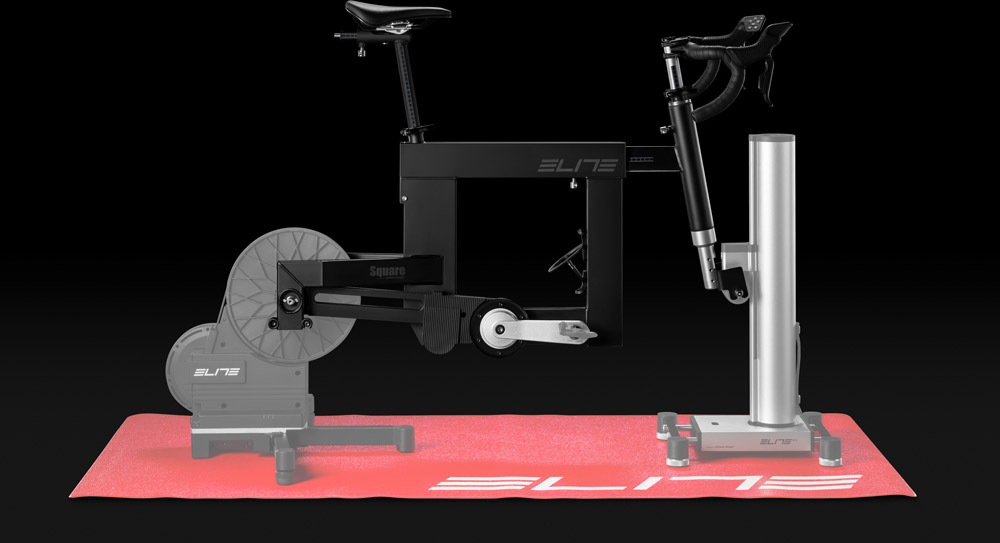

With its modular design, the Square Smart Frame offers a bike setup that can be updated at any time, with infinite configuration and operational options, whether in conjunction with the industry's most popular smart exercise bikes or the most technologically advanced accessories in the Elite indoor ecosystem.
Features - Elite Square Smart Frame
- Maximum adjustable frame, for sizes from XS to XL
- Compatible with all wheel-off trainers incl. Rizer incline simulator
- Can simulate all major shifting systems
- Equipped with a height-adjustable front support
- Extremely quiet thanks to belt drive
Product features
- Model: Square Smart Frame
- System: Belt drive
- Dimensions: 915 x 105 x 445 mm (H x L x W at smallest setting)
- Compatibility: All Wheel-Off trainers, Rizer and Aria
- Handlebar height: 84.5 - 106 cm
- Handlebar width: 42 cm
- Drop angle (flare): 6°
- Saddle height: 57 - 88 cm
- Saddle width: 150 mm
- Saddle offset:
- Min.: 170 mm
- Max: 293 mm
- Horizontal distance between the bottom bracket center and the head tube:
- Min.: 498 mm
- Max.: 814 mm
- Vertical distance between the bottom bracket center and the middle of the top edge of the head tube:
- Min.: 380 mm
- Max: 495 mm
- Rider:
- Min.: 152 cm
- Max: 198 cm

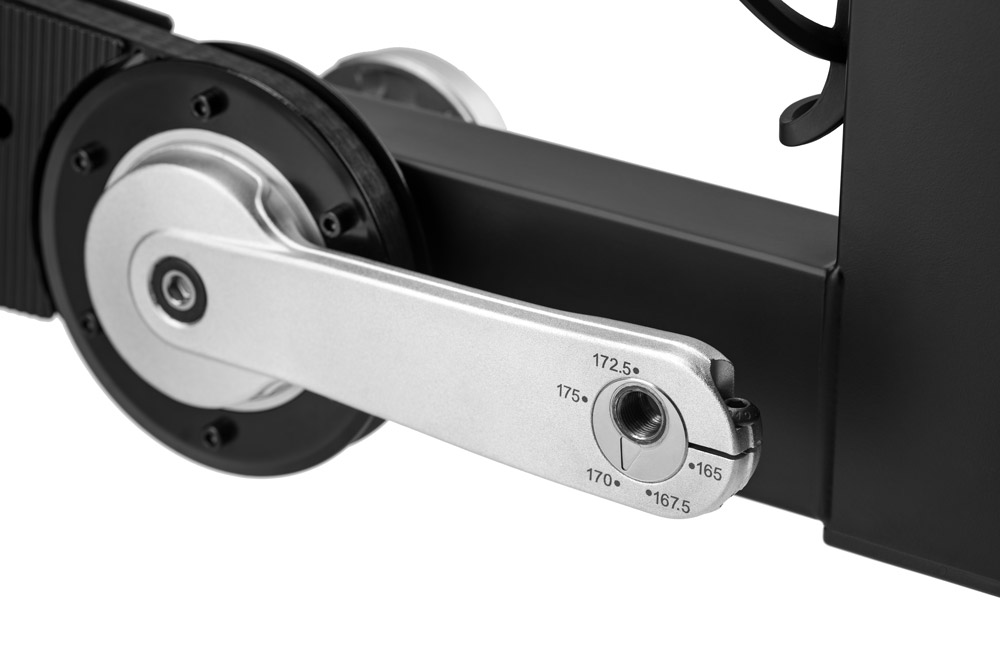

- Crankarm length: 165 mm, 167.5 mm, 170 mm, 172.5 mm, 175 mm
- Data transmission: Bluetooth, ANT+FE-C
- Max. rider weight: 110 kg
Material
- Steel, aluminium, plastic
Weight
- 23 kg (manufacturer information)
Scope of delivery
- 1 x Elite Square Smart Frame
- Manufacturer number: FA003516021
- EAN: 8020775044018
Via Fornaci, 4
35014 Fontaniva - PD
Italy
[email protected]
https://www.elite-it.com
Elite Square Smart Frame
To improve your training routine: Elite Square Smart Frame
Square is a smart frame with a high-quality virtual rear derailleur that allows you to precisely customize the controls to the shifting systems of the leading manufacturers (SHIMANO, SRAM and Campagnolo) to replicate your bike's components down to the exact shifting configuration.
You can customize the number of gears and teeth of the cassette, the number of teeth of each chainring or choose from pre-built profiles or convenient sequential shifting via the dedicated Square app.
The shifting feel is realistic: simply operate the levers and buttons on the handlebars as you would on your outdoor bike.
The belt drive offers a smooth, round pedal stroke without noise or vibration: With Square, workouts reach unbeatable levels of silence.
Square is extensively adjustable and offers great adaptability for users of different sizes, with many adjustment options for saddle height, saddle tilt, saddle height and saddle angle.saddle height, saddle tilt with forward/backward position, handlebar height with forward/backward position, top tube length and crank arm length.
With its modular design, the Square Smart Frame offers a bike setup that can be updated at any time, with infinite configuration and operational options, whether in conjunction with the industry's most popular smart exercise bikes or the most technologically advanced accessories in the Elite indoor ecosystem.
Features - Elite Square Smart Frame
- Maximum adjustable frame, for sizes from XS to XL
- Compatible with all wheel-off trainers incl. Rizer incline simulator
- Can simulate all major shifting systems
- Equipped with a height-adjustable front support
- Extremely quiet thanks to belt drive
Product features
- Model: Square Smart Frame
- System: Belt drive
- Dimensions: 915 x 105 x 445 mm (H x L x W at smallest setting)
- Compatibility: All Wheel-Off trainers, Rizer and Aria
- Handlebar height: 84.5 - 106 cm
- Handlebar width: 42 cm
- Drop angle (flare): 6°
- Saddle height: 57 - 88 cm
- Saddle width: 150 mm
- Saddle offset:
- Min.: 170 mm
- Max: 293 mm
- Horizontal distance between the bottom bracket center and the head tube:
- Min.: 498 mm
- Max.: 814 mm
- Vertical distance between the bottom bracket center and the middle of the top edge of the head tube:
- Min.: 380 mm
- Max: 495 mm
- Rider:
- Min.: 152 cm
- Max: 198 cm
- Crankarm length: 165 mm, 167.5 mm, 170 mm, 172.5 mm, 175 mm
- Data transmission: Bluetooth, ANT+FE-C
- Max. rider weight: 110 kg
Material
- Steel, aluminium, plastic
Weight
- 23 kg (manufacturer information)
Scope of delivery
- 1 x Elite Square Smart Frame
- Manufacturer number: FA003516021
- EAN: 8020775044018
Via Fornaci, 4
35014 Fontaniva - PD
Italy
[email protected]
https://www.elite-it.com
A fantastic smart bike, easy to assemble following the YouTube guide. A great feeling because it's completely customizable. Very quiet due to the belt drive system instead of a chain. I'm delighted.
