DT Swiss P 1800 SPLINE® 28" 23mm rear wheel
Product information "P 1800 SPLINE® 28" 23mm rear wheel"
Features - DT Swiss P 1800 SPLINE
- Rim - The new rim offers a great combination of width and lightness to ensure a comfortable ride both uphill and downhill.
- Spokes - The DT new aero® II straightpull will let you ride with confidence and ease thanks to their reinforced and aero construction.
- Hub - The upgrade of the 370 hub to the Ratchet LN system brings in an increased reliability, and its signature freewheeling sounds.
- Freehub Body - The higher reliability of the Ratchet LN system is achieved by the simultaneous engagement of each tooth in comparison to the pawl system and its smaller engagement surfaces.
Product features
- Application: Performance
- Model: P 1800
- Rim diameter: 28" / 700C
- ETRTO: 622 mm
- Rim joint: Sleeve joint
- Tire interface: Hooked / Crotchet tubeless TC
- Rim type: Clincher (folding / clincher)
- Tubeless Ready: Yes
- Hub type: 370
- Freehub system: Ratchet LN 18

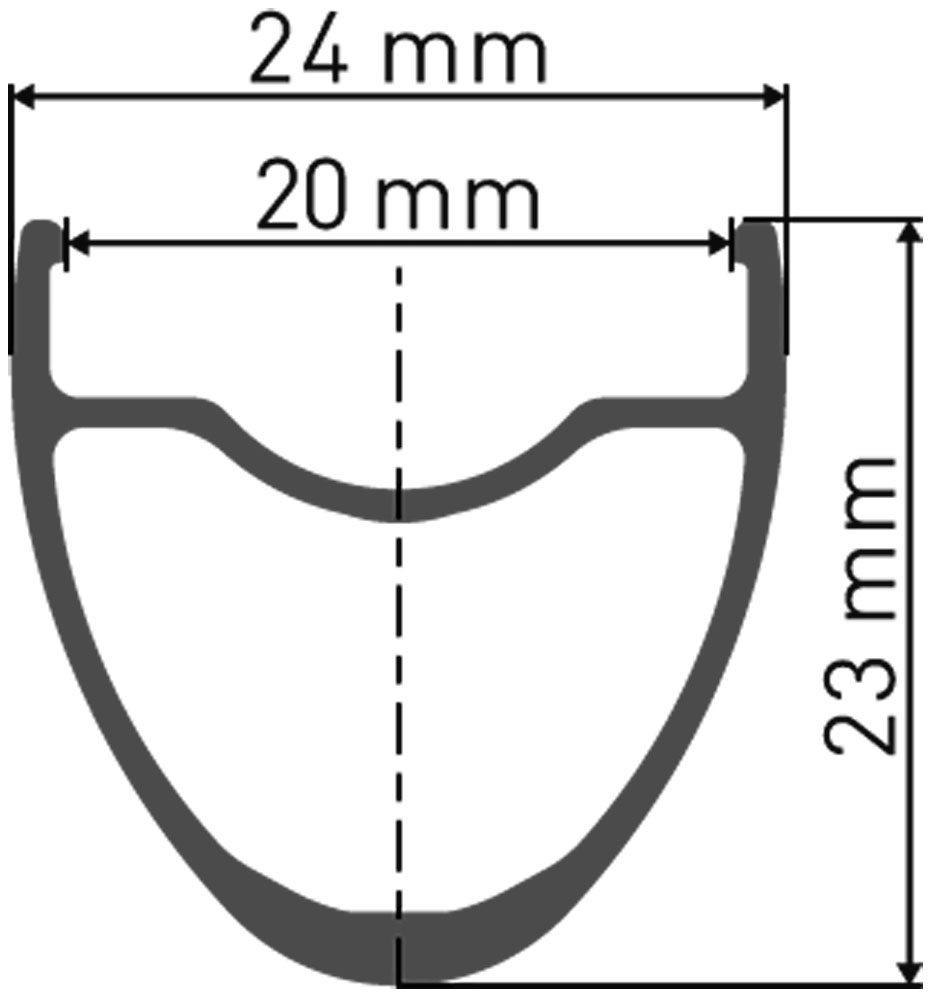

- Rim height: 23 mm
- Outer width: 24 mm
- Inner width: 20 mm
- Axle system: 12 mm Thru Axle
- Built-In dimension: 142 mm
- Number of holes: 24
- Spoke pattern: Two-cross (1:1)
- Valve hole: Presta / SV Ø 6.5 mm
- Brake system: Disc Center Lock
- Spokes: DT new aero® II straightpull
- Nipple: DT ProLock Squorx ProHead alu
- Recommended system weight: 120 kg (body weight + bike + equipment)
- ASTM classification: 1
Freehub body (choose variant)
- Shimano HG
- Sram XDR
Material
- Rim: Aluminium
- Hub body: Aluminum
- Spokes: Stainless steel
- Nipple: Aluminum
- Freehub body: Aluminium
Weight (manufacturer information)
- Shimano HG: 913 g
- Sram XDR: 890 g
Scope of delivery
- 1 x DT Swiss P 1800 SPLINE Disc rear wheel
- 1 x Tubeless tape 23 mm
- 1 x Tubeless valve alu black 18 - 25 mm
Technologies
SPLINE® Technology
The elaborately machined hub body, the cleverly placed spokes and the proven freewheel technology of the new DT Swiss SPLINE® wheel line have a single goal: to meet the high needs of today's cyclists. It is components like the SPLINE® wheels that allow you to go further and further and faster and thus further increase the joy of cycling. Thanks to the many well thought-out details and the legendary DT Swiss reliability, you can experience pure cycling fun with SPLINE® wheels.
Straightpull technology
Straightpull stands for straight, unbent spokes. Thanks to this technology it is possible to achieve an ideal ratio between weight and stability. The Straightpull spokes allow a very precise alignment and optimized positioning in the wheel and thus provide a stiffer and more responsive wheel.
- Manufacturer number: W0P1800NID1SA21346
- EAN: 7613052318813
Längfeldweg 101
2504 Biel
Switzerland
[email protected]
https://www.dtswiss.com
Blumenstraße 49-51
71106 Magstadt
Deutschland
[email protected]
https://www.mcg-parts.de
